The test includes the 3800- and 4800-series models from AMD, as well as the GeForce 8-, 9-, and GTX 200-series boards from Nvidia. The lower limits are bound by the Radeon HD 3650 and GeForce 8600 GT.
| Chip | Code name | Memory | GPU rate | Shader | Memory rate | SPs |
|---|---|---|---|---|---|---|
| GeForce GTX 280 SLI | GT200 | 1024 GDDR3 | 602 MHz | 4.0, 1296 MHz | 2214 MHz | 240 |
| GeForce GTX 280 | GT200 | 1024 GDDR3 | 602 MHz | 4.0, 1296 MHz | 2214 MHz | 240 |
| GeForce GTX 260 SLI | GT200 | 896 GDDR3 | 576 MHz | 4.0, 1242 MHz | 1998 MHz | 192 |
| GeForce GTX 260 | GT200 | 896 GDDR3 | 576 MHz | 4.0, 1242 MHz | 1998 MHz | 192 |
| GeForce 9800 GX2 | 2xG92 | 2x512 MB GDDR3 | 600 MHz | 4.0, 1500 MHz | 2000 MHz | 2x128 |
| GeForce 9800 GTX SLI | G92 | 512 MB GDDR3 | 675 MHz | 4.0, 1688 MHz | 2200 MHz | 128 |
| GeForce 9800 GTX | G92 | 512 MB GDDR3 | 675 MHz | 4.0, 1688 MHz | 2200 MHz | 128 |
| GeForce 9600 GT SLI | G94 | 1024 MB GDDR3 | 650 MHz | 4.0, 1625 MHz | 1800 MHz | 64 |
| GeForce 9600 GT | G94 | 1024 MB GDDR3 | 650 MHz | 4.0, 1625 MHz | 1800 MHz | 64 |
| GeForce 8800 GTS OC | G92 | 512 MB GDDR3 | 730 MHz | 4.0, 1825 MHz | 1944 MHz | 128 |
| GeForce 8800 GTS SLI | G92 | 512 MB GDDR3 | 650 MHz | 4.0, 1625 MHz | 1944 MHz | 128 |
| GeForce 8800 GTS | G92 | 512 MB GDDR3 | 650 MHz | 4.0, 1625 MHz | 1944 MHz | 128 |
| GeForce 8800 GT SLI | G92 | 1024 MB GDDR3 | 600 MHz | 4.0, 1500 MHz | 1800 MHz | 112 |
| GeForce 8800 GT | G92 | 1024 MB GDDR3 | 600 MHz | 4.0, 1500 MHz | 1800 MHz | 112 |
| GeForce 8800 GT SLI | G92 | 512 MB GDDR3 | 600 MHz | 4.0, 1500 MHz | 1800 MHz | 112 |
| GeForce 8800 GT | G92 | 512 MB GDDR3 | 600 MHz | 4.0, 1500 MHz | 1800 MHz | 112 |
| GeForce 8800 Ultra SLI | G80 | 768 MB GDDR3 | 612 MHz | 4.0, 1512 MHz | 2160 MHz | 128 |
| GeForce 8800 Ultra | G80 | 768 MB GDDR3 | 612 MHz | 4.0, 1512 MHz | 2160 MHz | 128 |
| GeForce 8800 GTX | G80 | 768 MB GDDR3 | 576 MHz | 4.0, 1350 MHz | 1800 MHz | 128 |
| GeForce 8800 GTS | G80 | 640 MB GDDR3 | 500 MHz | 4.0, 1188 MHz | 1600 MHz | 96 |
| GeForce 8800 GTS SLI | G80 | 320 MB GDDR3 | 500 MHz | 4.0, 1188 MHz | 1600 MHz | 96 |
| GeForce 8800 GTS | G80 | 320 MB GDDR3 | 500 MHz | 4.0, 1188 MHz | 1600 MHz | 96 |
| GeForce 8600 GTS | G84 | 512 MB GDDR3 | 675 MHz | 4.0, 1450 MHz | 2016 MHz | 32 |
| GeForce 8600 GTS SLI | G84 | 256 MB GDDR3 | 675 MHz | 4.0, 1450 MHz | 2016 MHz | 32 |
| GeForce 8600 GTS | G84 | 256 MB GDDR3 | 675 MHz | 4.0, 1450 MHz | 2016 MHz | 32 |
| GeForce 8600 GT SLI | G84 | 256 MB GDDR3 | 540 MHz | 4.0, 1180 MHz | 1400 MHz | 32 |
| GeForce 8600 GT | G84 | 256 MB GDDR3 | 540 MHz | 4.0, 1180 MHz | 1400 MHz | 32 |
| Chip | Memory bus | Manufacturing process | Transistors | Interface |
|---|---|---|---|---|
| GeForce GTX 280 SLI | 512 Bit | 65 nm | 1400 MB | PCIe 2.0 |
| GeForce GTX 280 | 512 Bit | 65 nm | 1400 MB | PCIe 2.0 |
| GeForce GTX 260 SLI | 448 Bit | 65 nm | 1400 MB | PCIe 2.0 |
| GeForce GTX 260 | 448 Bit | 65 nm | 1400 MB | PCIe 2.0 |
| GeForce 9800 GX2 | 2x256 Bit | 65 nm | 2x754 MB | PCIe 2.0 |
| GeForce 9800 GTX SLI | 256 Bit | 65 nm | 754 MB | PCIe 2.0 |
| GeForce 9800 GTX | 256 Bit | 65 nm | 754 MB | PCIe 2.0 |
| GeForce 9600 GT SLI | 256 Bit | 65 nm | 505 MB | PCIe 2.0 |
| GeForce 9600 GT | 256 Bit | 65 nm | 505 MB | PCIe 2.0 |
| GeForce 8800 GTS OC | 256 Bit | 65 nm | 754 MB | PCIe 2.0 |
| GeForce 8800 GTS SLI | 256 Bit | 65 nm | 754 MB | PCIe 2.0 |
| GeForce 8800 GTS | 256 Bit | 65 nm | 754 MB | PCIe 2.0 |
| GeForce 8800 GT SLI | 256 Bit | 65 nm | 754 MB | PCIe 2.0 |
| GeForce 8800 GT | 256 Bit | 65 nm | 754 MB | PCIe 2.0 |
| GeForce 8800 GT SLI | 256 Bit | 65 nm | 754 MB | PCIe 2.0 |
| GeForce 8800 GT | 256 Bit | 65 nm | 754 MB | PCIe 2.0 |
| GeForce 8800 Ultra SLI | 384 Bit | 90 nm | 681 MB | PCIe 1 |
| GeForce 8800 Ultra | 384 Bit | 90 nm | 681 MB | PCIe 1 |
| GeForce 8800 GTX | 384 Bit | 90 nm | 681 MB | PCIe 1 |
| GeForce 8800 GTS | 320 Bit | 90 nm | 681 MB | PCIe 1 |
| GeForce 8800 GTS SLI | 320 Bit | 90 nm | 681 MB | PCIe 1 |
| GeForce 8800 GTS | 320 Bit | 90 nm | 681 MB | PCIe 1 |
| GeForce 8600 GTS | 128 Bit | 80 nm | 289 MB | PCIe 1 |
| GeForce 8600 GTS SLI | 128 Bit | 80 nm | 289 MB | PCIe 1 |
| GeForce 8600 GTS | 128 Bit | 80 nm | 289 MB | PCIe 1 |
| GeForce 8600 GT SLI | 128 Bit | 80 nm | 289 MB | PCIe 1 |
| GeForce 8600 GT | 128 Bit | 80 nm | 289 MB | PCIe 1 |
| Chip | Code name | Memory | GPU rate | Shader | Memory rate | SPs |
|---|---|---|---|---|---|---|
| Radeon HD 4870 CF | RV770 | 512 MB GDDR5 | 750 MHz | 4.1 | 3600 MHz | 800 |
| Radeon HD 4870 | RV770 | 512 MB GDDR5 | 750 MHz | 4.1 | 3600 MHz | 800 |
| Radeon HD 4850 CF | RV770 | 512 MB GDDR3 | 625 MHz | 4.1 | 1986 MHz | 800 |
| Radeon HD 4850 | RV770 | 512 MB GDDR3 | 625 MHz | 4.1 | 1986 MHz | 800 |
| Radeon HD 3870 X2 | R680 | 2x512 MB GDDR3 | 825 MHz | 4.1 | 1802 MHz | 2x320 |
| Radeon HD 3870 CF | RV670 | 512 MB GDDR4 | 775 MHz | 4.1 | 2252 MHz | 320 |
| Radeon HD 3870 | RV670 | 512 MB GDDR4 | 775 MHz | 4.1 | 2252 MHz | 320 |
| Radeon HD 3850 CF | RV670 | 256 MB GDDR3 | 670 MHz | 4.1 | 1658 MHz | 320 |
| Radeon HD 3850 | RV670 | 256 MB GDDR3 | 670 MHz | 4.1 | 1658 MHz | 320 |
| Radeon HD 3650 CF | RV635 | 512 MB GDDR3 | 725 MHz | 4.1 | 1602 MHz | 120 |
| Radeon HD 3650 | RV635 | 512 MB GDDR3 | 725 MHz | 4.1 | 1602 MHz | 120 |
| Chip | Memory bus | Manufacturing process | Transistors | Interface |
|---|---|---|---|---|
| Radeon HD 4870 CF | 256 Bit | 55 nm | 965 MB | PCIe 2.0 |
| Radeon HD 4870 | 256 Bit | 55 nm | 965 MB | PCIe 2.0 |
| Radeon HD 4850 CF | 256 Bit | 55 nm | 965 MB | PCIe 2.0 |
| Radeon HD 4850 | 256 Bit | 55 nm | 965 MB | PCIe 2.0 |
| Radeon HD 3870 X2 | 2x256 Bit | 55 nm | 2x666 MB | PCIe 2.0 |
| Radeon HD 3870 CF | 256 Bit | 55 nm | 666 MB | PCIe 2.0 |
| Radeon HD 3870 | 256 Bit | 55 nm | 666 MB | PCIe 2.0 |
| Radeon HD 3850 CF | 256 Bit | 55 nm | 666 MB | PCIe 2.0 |
| Radeon HD 3850 | 256 Bit | 55 nm | 666 MB | PCIe 2.0 |
| Radeon HD 3650 CF | 128 Bit | 55 nm | 378 MB | PCIe 2.0 |
| Radeon HD 3650 | 128 Bit | 55 nm | 378 MB | PCIe 2.0 |
Memory rate = DDR clock rate doubled; physical rate is half
DDR5 clock rate quadrupled, physical rate is one quarter
SPs = stream processors; P and V = Pixel shader and Vertex shader
TC = Turbo Cache
HM = Hyper Memory
OC = Overclocked (clock rate higher than default)
SLI = Parallel operation with 2 Nvidia cards
3 SLI = Parallel operation with 3 Nvidia graphics chips
4 SLI = Parallel operation with 4 Nvidia graphics chips
CF = CrossFire parallel operation with 2 AMD cards
3 CF = CrossFire parallel operation with 3 ATI graphics chips
4 CF = CrossFire parallel operation with 4 ATI graphics chips
R680 = 2x RV670
Shader 2.0 = DirectX 9.0; 3.0 = DirectX 9.0c; 4.0 = DirectX 10; Shader 4.1 = DirectX 10.1

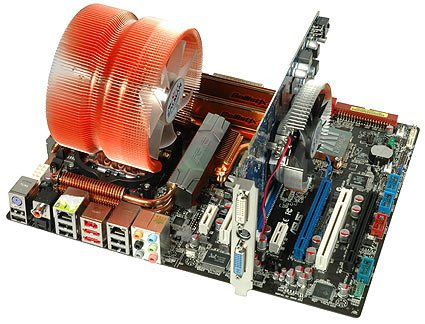

| CPU | Intel Core 2 Extreme X6800 @ 2.93 GHz (11x 266 MHz), Socket 775, 1.28 V, 65 nm, L2 cache 4096 KB |
| FSB | 1066 MHz (4x 266 MHz) |
| Motherboard | Asus P5E3 Deluxe, PCIe 2.0 2x16, ICH9R |
| Chipset | Intel X38 |
| Memory | 2x 1 GB, Ballistix (Crucial Technology) 1.5 V, DDR3 1066 7-7-7-20 (2x 533 MHz) |
| Audio | Intel High Definition Audio |
| LAN | Intel 1000 Pro |
| Drives | Western Digital WD5000AAKS 500 GB, SATA, 16 MB Cache, Hitachi 120 GB, SATA, 8 MB Cache |
| DVD | Gigabyte GO-D1600C |
| Power Supply | CoolerMaster RS-850-EMBA 850 W |
| Motherboard | Asus P5N-T Deluxe, PCIe 2.0 2x16 |
| Chip set | Nvidia nForce 780i SLI |
| Memory | 2x 1 GB, A-Data Technology 1.8 V, DDR2 800 5-5-5-18 (2x 400 MHz) |
| Audio | ADI 1988B SoundMax |
| LAN | Marvell 88E1116 Gigabit |
| Graphics | AMD Catalyst 8.6 Nvidia ForceWare 175.16, GTX 260 and GTX 280 Forceware 177.39 |
| Operating system | Windows Vista Enterprise SP1 |
| DirectX | 10 and 10.1 |
| Chipset driver | X38 Intel 8.3.1.1009 780i Nvidia nForce 9.64 |
