Test Setup, Access Times, Interface

Super Talent's 512GB RAIDDrive: RAID On An Add-In Card
By
System Hardware
Hardware
Details
CPU
Intel Core i7-920 (45 nm, 2.66 GHz, 8MB L2 Cache)
Motherboard (Socket 1366)
Supermicro X8SAX
Revision: 1.0, Chipset: Intel X58 + ICH10R, BIOS: 1.0B
RAM
3 x 1GB DDR3-1333 Corsair CM3X1024-1333C9DHX
HDD
Seagate NL35 400GB
ST3400832NS, 7,200 RPM, SATA/150, 8MB Cache
Power SupplyOCZ EliteXstream 800W, OCZ800EXS-EU
Benchmarks
Performance Measurements
h2benchw 3.13
PCMark Vantage 1.0
IO Performance
IOMeter 2008.08.18
Fileserver-Benchmark
Webstation-Benchmark
Workstation-Benchmark
StreamingPCMark Vantage 1.0 Reads
Streaming Writes
4k Random Reads
4k Random Writes


We decided to compare the RAIDDrive to Fusion-io’s ioDrive and the cheaper ioXtreme, as these can be considered direct competitors, rather than individual flash SSDs. For the sake of comparison, we also added Intel’s X25-M G2 drive.

Results: Access Time, Interface Bandwidth

The .14 to .18 ms access time is clearly longer than what we’ve seen on other flash drives, but still fast enough for most needs.

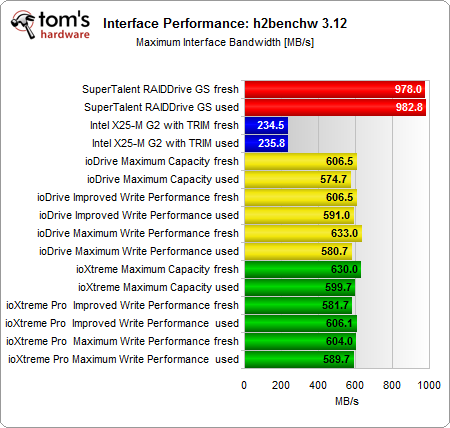

Interface Bandwidth

We measured almost 1 GB/s peak throughput, faster than any of the other solutions tested here.
