Cross-Load Tests And Infrared Images
Our cross-load tests are described in detail here.

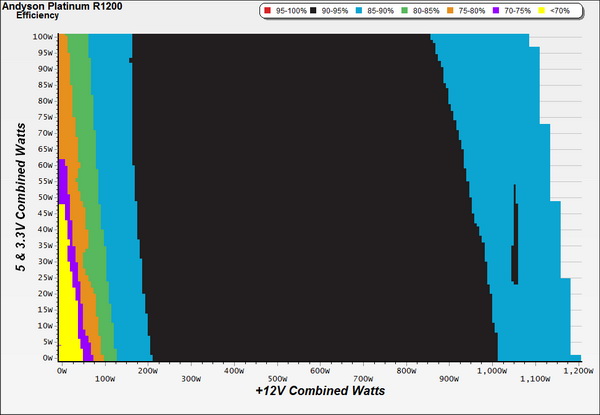

To generate the following charts, we set our loaders to Auto mode through our custom-made software before trying over a thousand possible load combinations with the +12V, 5V and 3.3V rails. The load regulation deviations in each of the charts below are calculated by taking the nominal values of the rails (12V, 5V and 3.3V) as point zero.
Load Regulation Charts

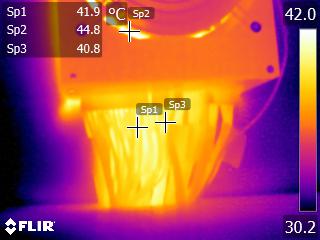

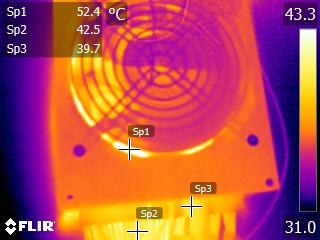

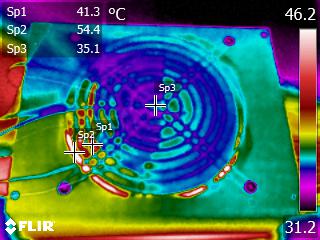

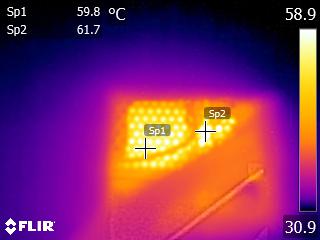

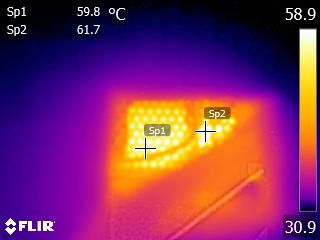

During the end of the cross-load tests, we took some photos of the PSU as it was being tested with our modified FLIR E4 camera that delivers 320x240 IR resolution (76,800 pixels).
