Lian Li RS1200G ATX 3.1 power supply review: Stellar performance, state-of-the-art design

Lian Li Industrial Co., Ltd., founded in 1983, is a Taiwanese company renowned for its premium computer cases, power supplies, and PC accessories. As one of the oldest players in the PC hardware market, Lian Li is recognized for its commitment to high-quality craftsmanship, innovative aluminum-based designs, and solutions tailored to both industrial and consumer markets. Their product lineup includes mid-tower and full-tower cases, compact enclosures for smaller builds, and cutting-edge PSUs, all acknowledged for their modularity, durability, and forward-thinking features. Among PC enthusiasts, Lian Li's reputation for blending functionality with aesthetics has established them as an industry leader.

This review examines the RS1200G ATX 3.1 PSU, representing Lian Li's most sophisticated approach to power supply design. Would this cutting-edge design earn it a spot in our list of best power supplies? The RS1200G introduces a rotatable AC power receptacle, a world-first innovation that fundamentally rethinks PSU orientation and cable management. This mechanism allows the modular cable connectors to exit from either the rear or left side of the chassis, adapting to different case architectures. The implementation appears more versatile than competing solutions, though it introduces its own compatibility requirements. Complementing this mechanical innovation is an optional magnetic USB hub that can mount directly to the PSU, expanding connectivity options for modern systems.

Specifications and Design

In the Box

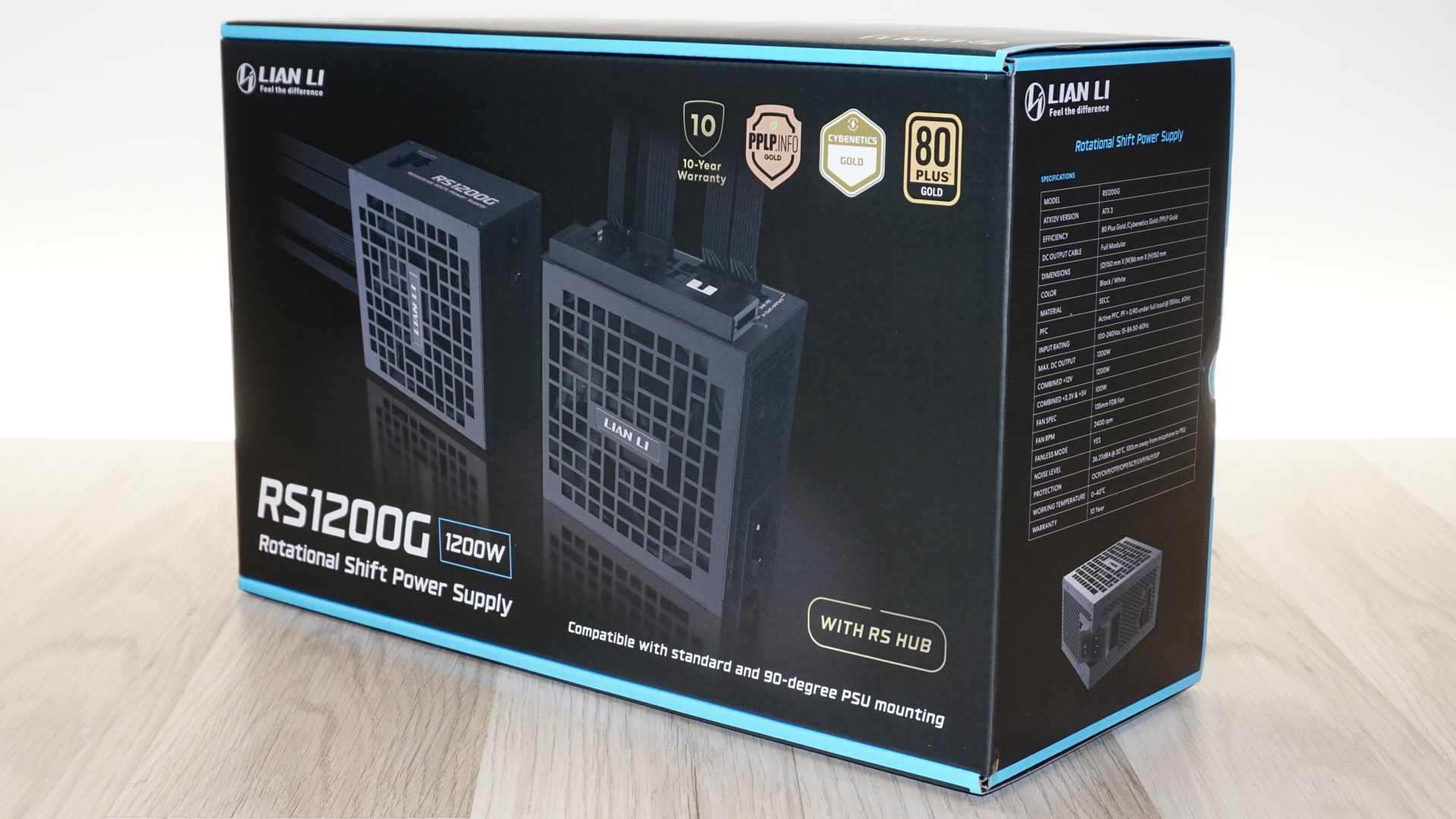

The Lian Li RS1200G ATX 3.1 PSU arrives in a sizable cardboard box with a predominantly black theme and blue accents. The unit itself dominates the front side, establishing immediate visual recognition. Protection is substantial, with the PSU enclosed in a protective pouch and surrounded by dense foam packaging inserts designed to withstand shipping stresses.

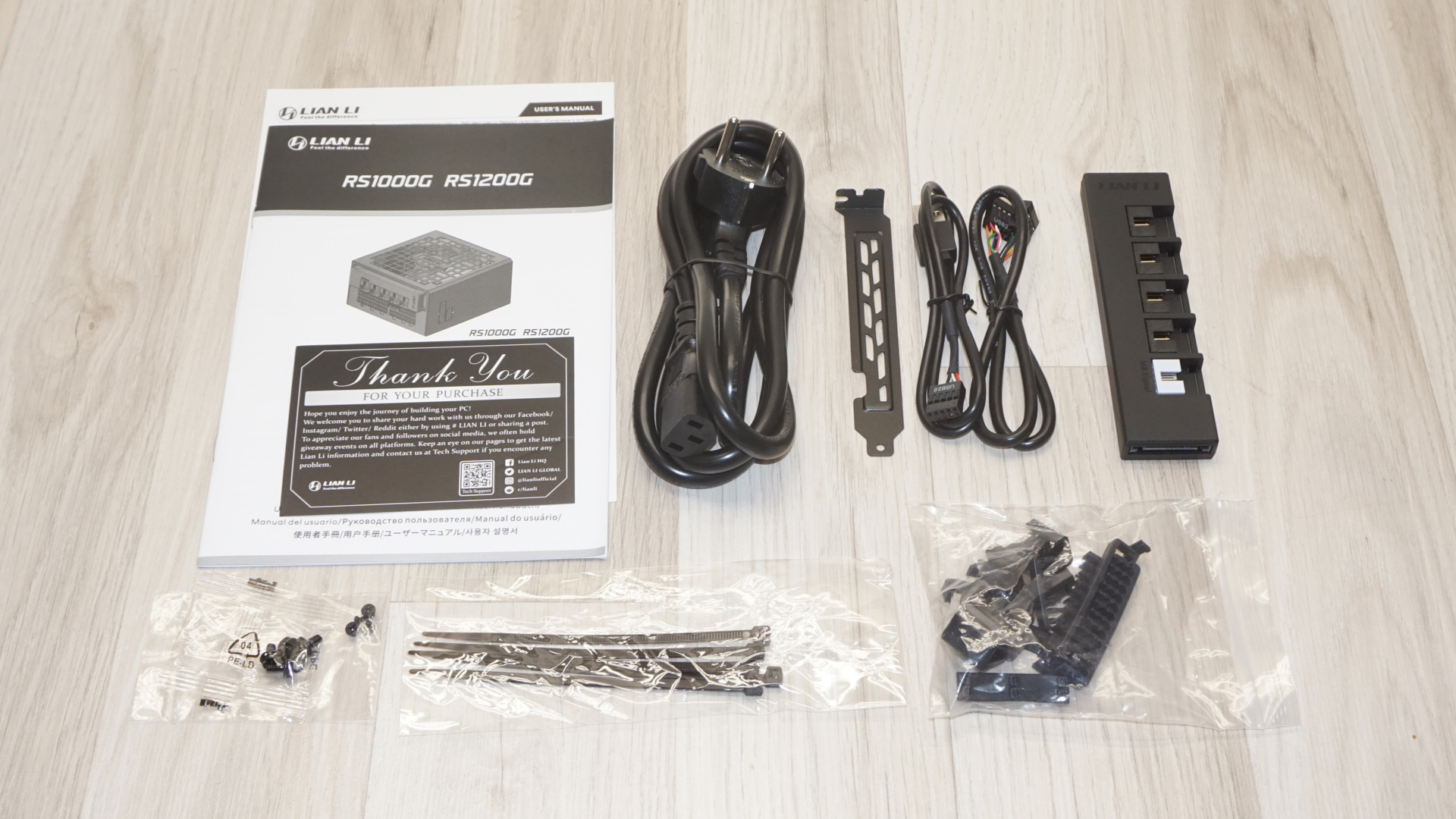

The bundle is comprehensive, exceeding typical PSU inclusions. Beyond the standard AC power cable and mounting hardware, Lian Li provides a magnetic USB hub capable of mounting anywhere within the chassis or directly on the PSU. Two USB cables accompany the hub, offering users a choice between internal motherboard header connection or rear panel USB routing. A specialized backplate with a cable routing notch enables clean exits when necessary. Magnetic cable organizers are included to replace traditional zip ties, offering repositionable cable management. Cable combs arrive pre-attached to select cables, with additional units included for user customization. Finally, Lian Li includes some basic cable ties as well.

Image 1 of 2

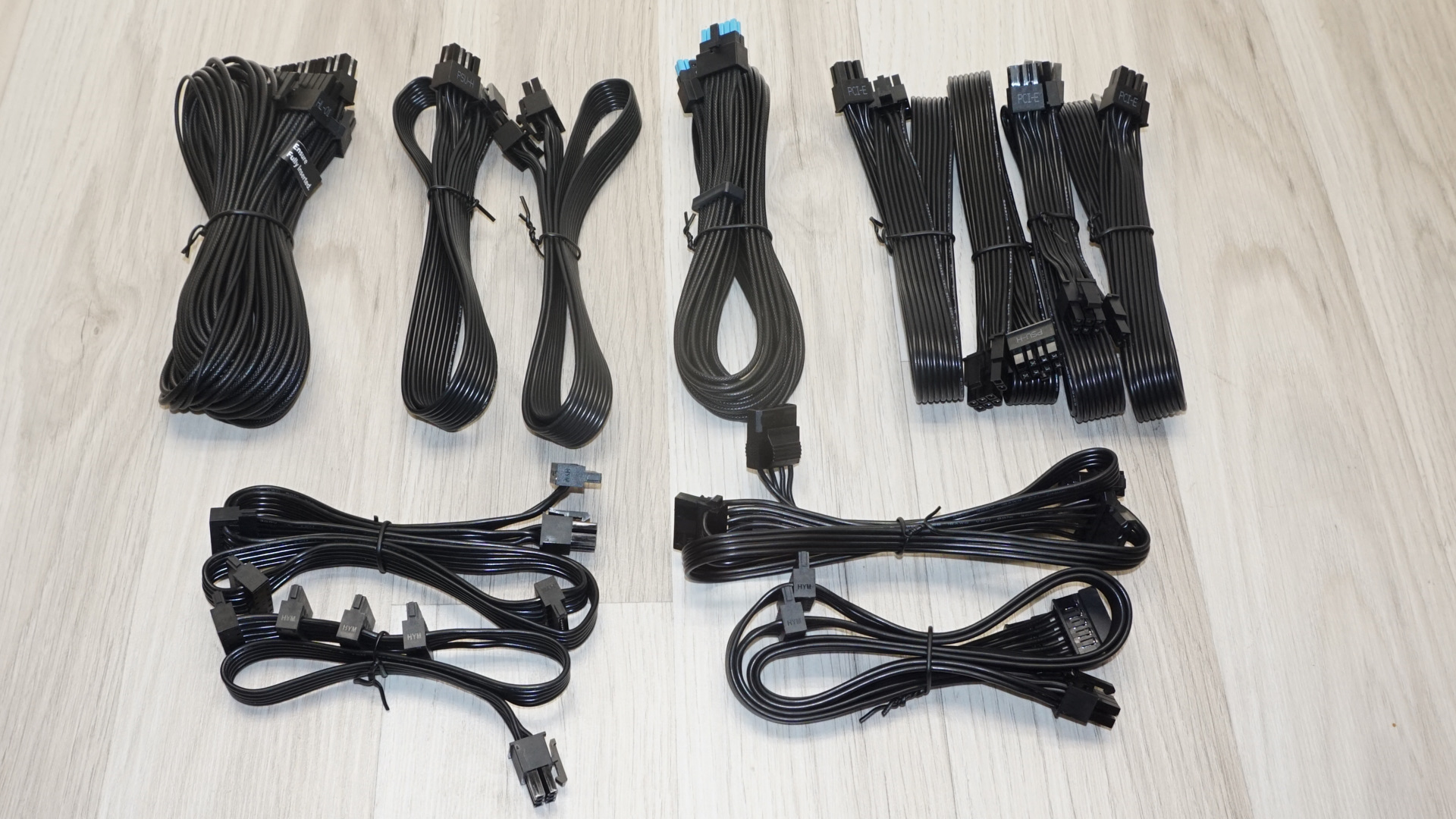

All cables utilize an all-black aesthetic with black connectors and wires. The cables employ a flat, ribbon-line construction that simplifies routing in tight spaces. The ATX 24-pin and PCIe 12V-2x6 cables receive premium treatment with per-wire sleeving and factory-installed combs. The cable configuration proves conservative for a 1200W unit, providing one 12V-2x6 connector and five 6+2 pin PCI Express connectors distributed across four cables. The unit's maximum output rating at 40 degrees Celsius and the number of connectors hint that it is not a platform meant to be severely stressed.

External Appearance

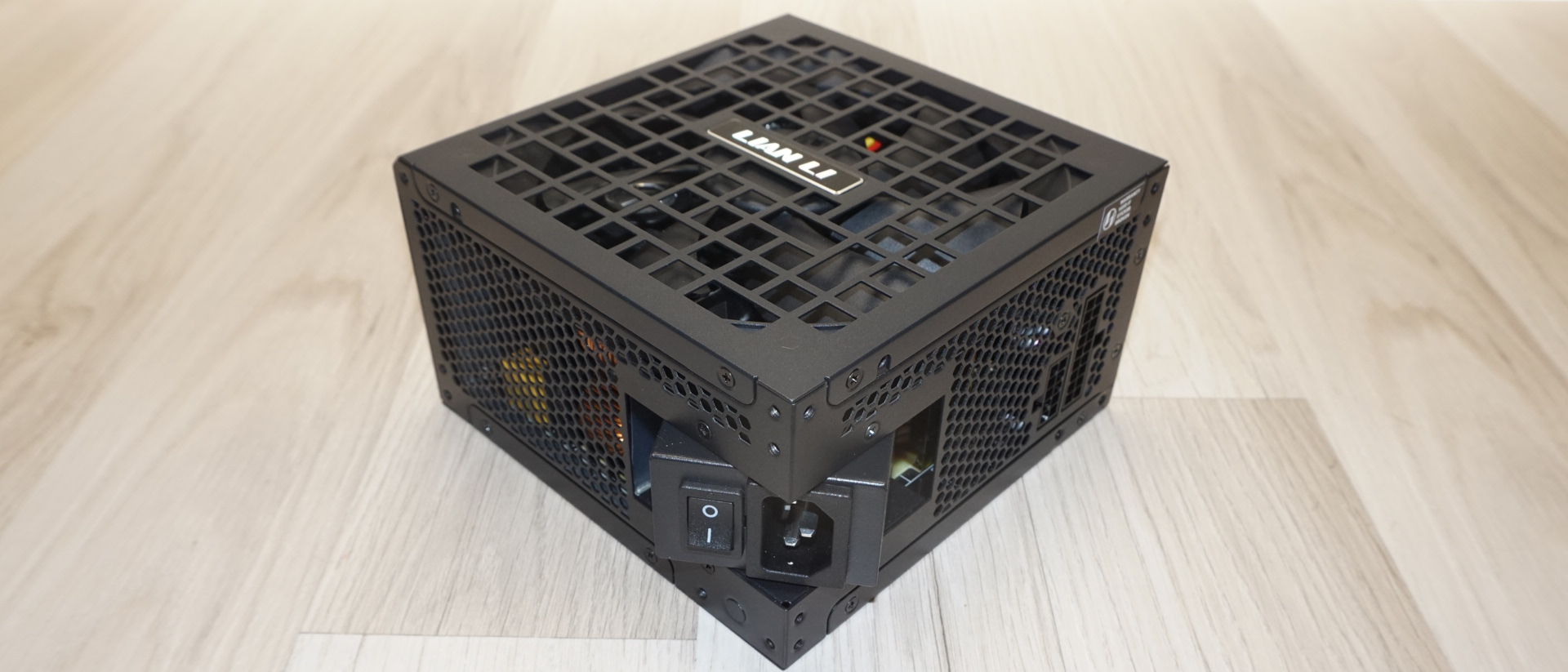

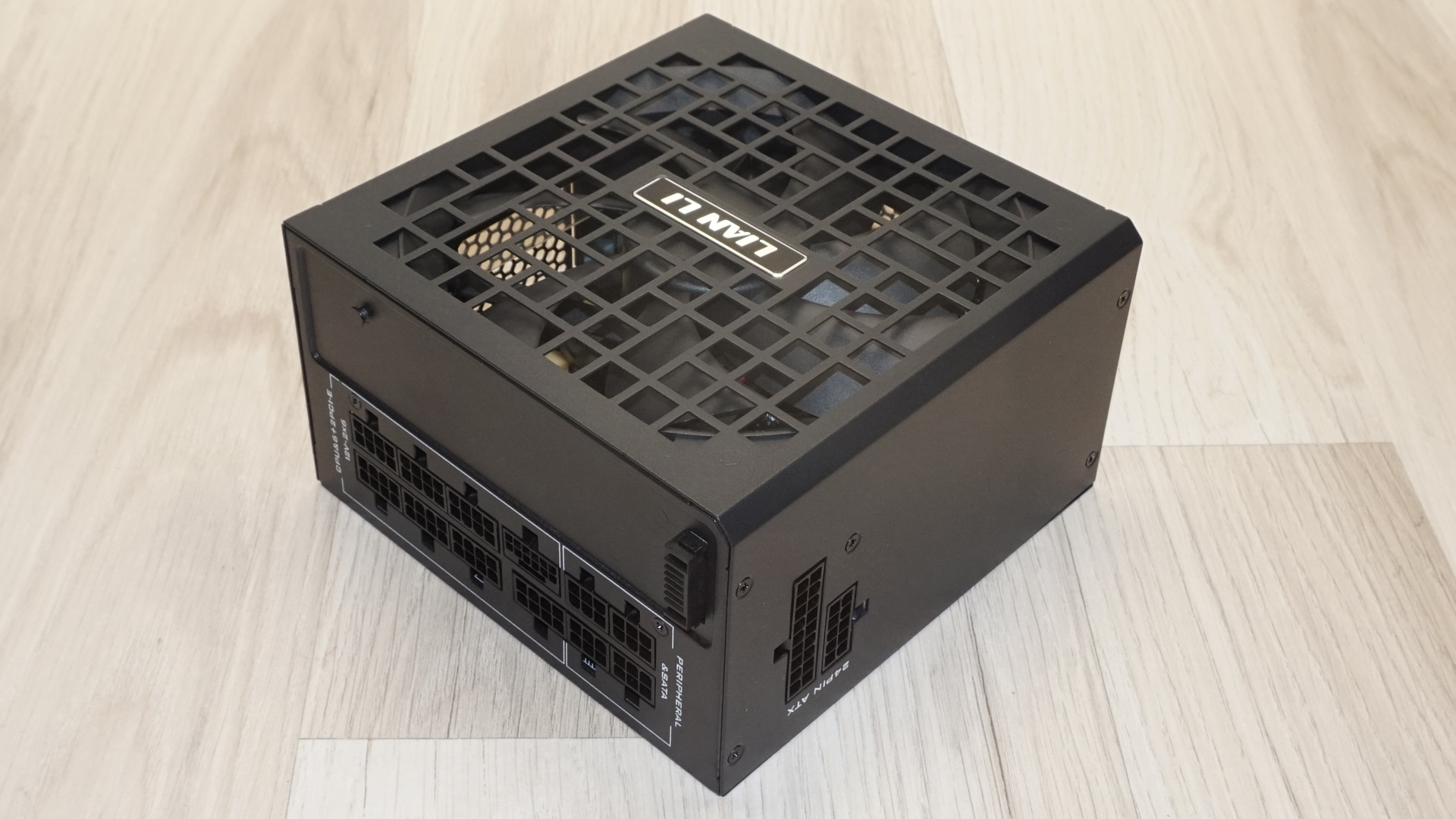

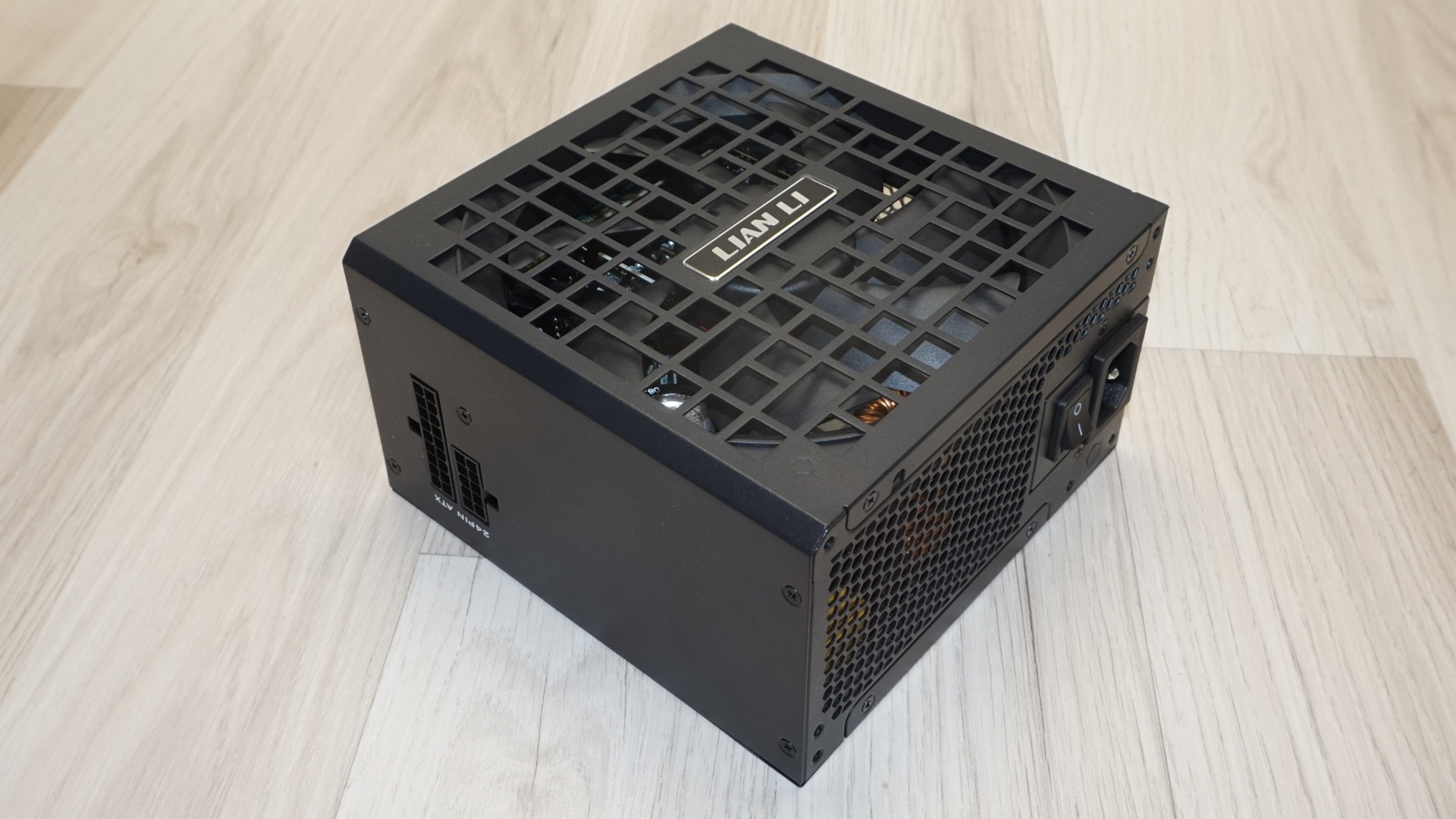

The Lian Li RS1200G ATX 3.1 PSU measures 150mm in length, barely exceeding standard ATX dimensions. This compact form factor is remarkable for a 1200W unit. The matte black chassis paint job demonstrates excellent finishing quality, with smooth surfaces free from manufacturing defects.

Image 1 of 2

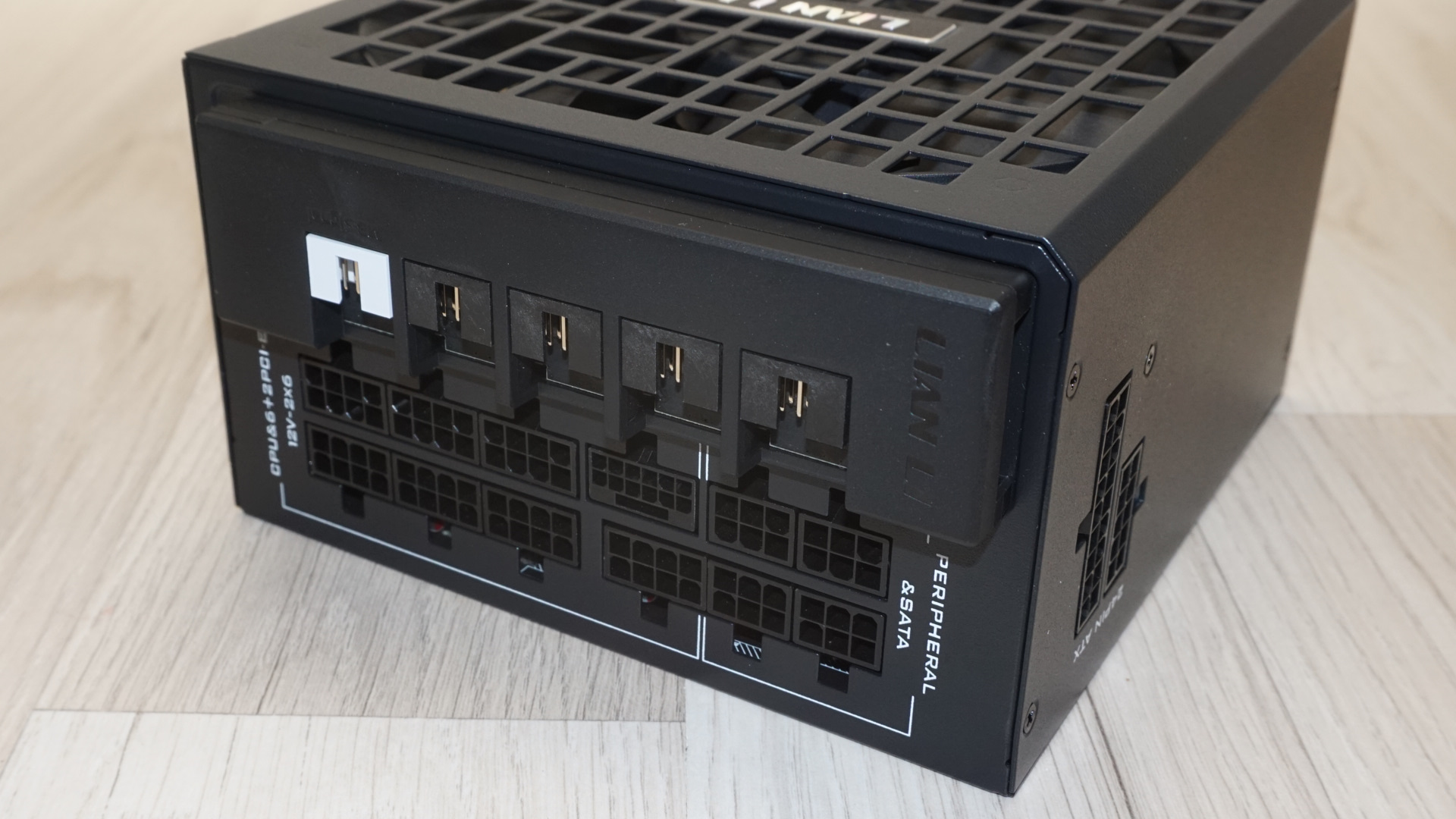

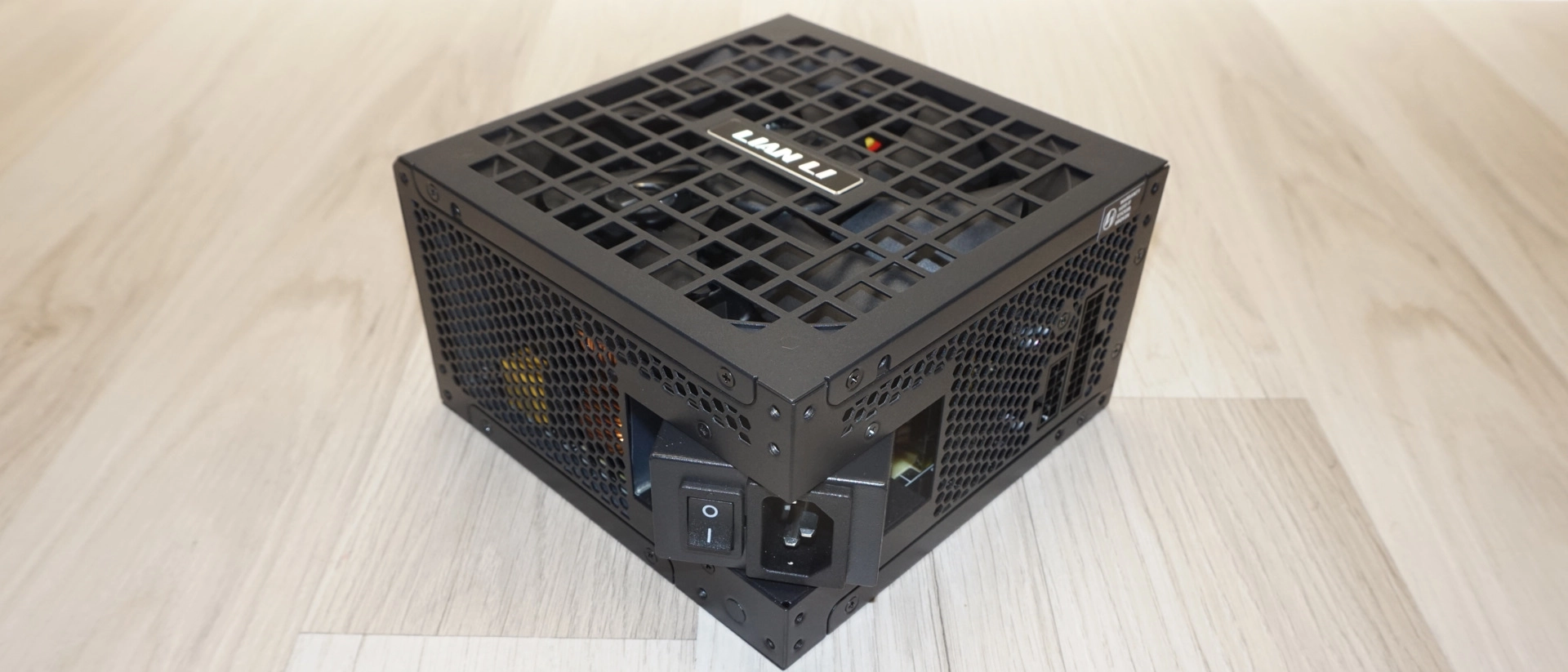

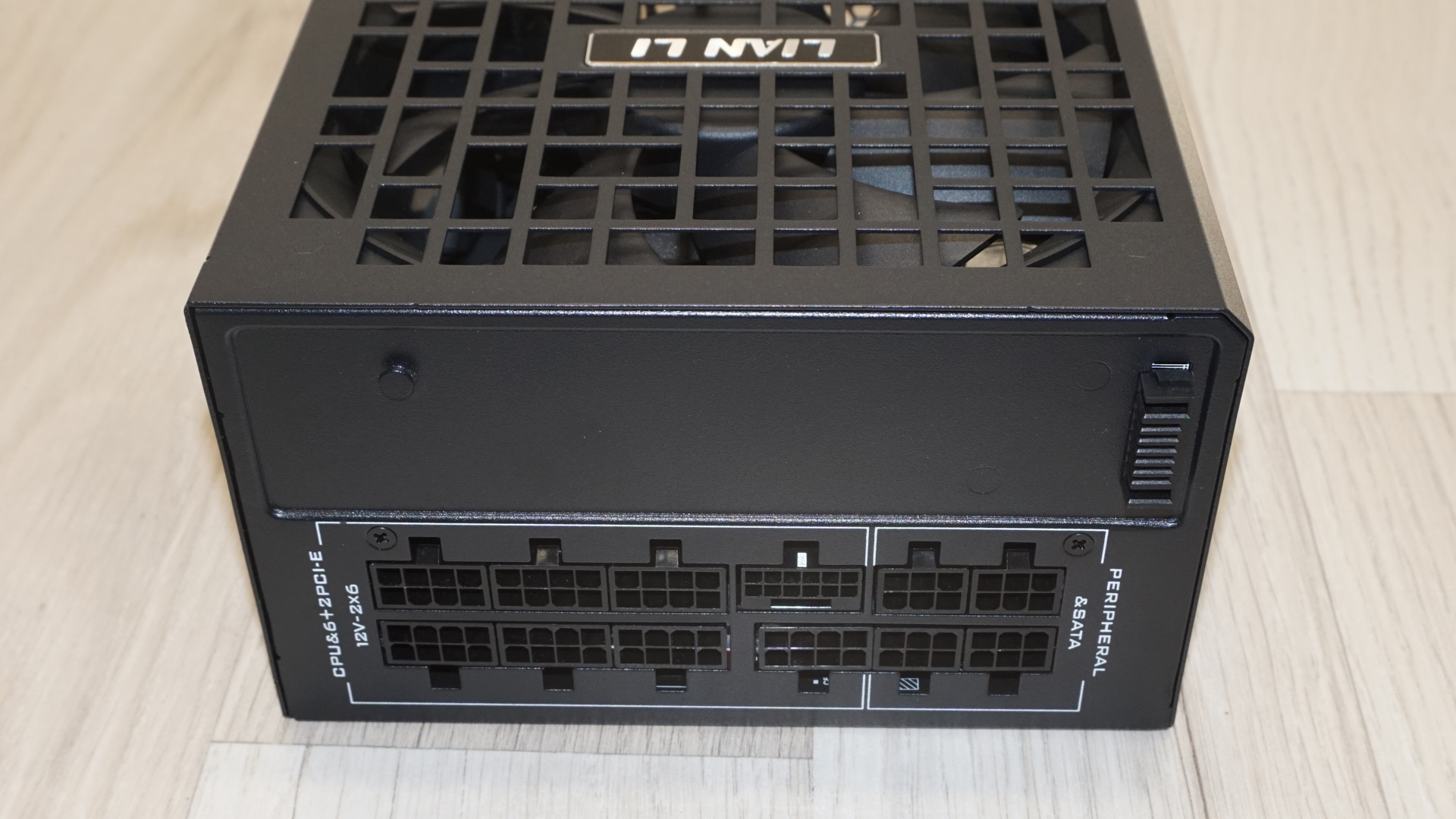

The design philosophy diverges dramatically from conventional PSU architecture. Modular cable connectors populate virtually every side of the chassis, enabled by the rotatable AC power receptacle. This receptacle represents the unit's defining feature, allowing users to shift modular cable connectors between rear and left-side positions. The implementation permits direct cable routing to the motherboard panel's backside in compatible cases. This appears more sophisticated than competing solutions, as users maintain orientation control based on case requirements. Cases supporting side cable routing can utilize that configuration, while traditional cases can employ rear routing.

A significant limitation exists. The 24-pin connector location inverses relative to other connectors depending on AC receptacle orientation. When standard connectors exit rearward, the 24-pin exits left. When standard connectors exit left, the 24-pin exits rearward. This necessitates cases always accommodate at least the 24-pin connector routing behind the motherboard, effectively eliminating universal compatibility.

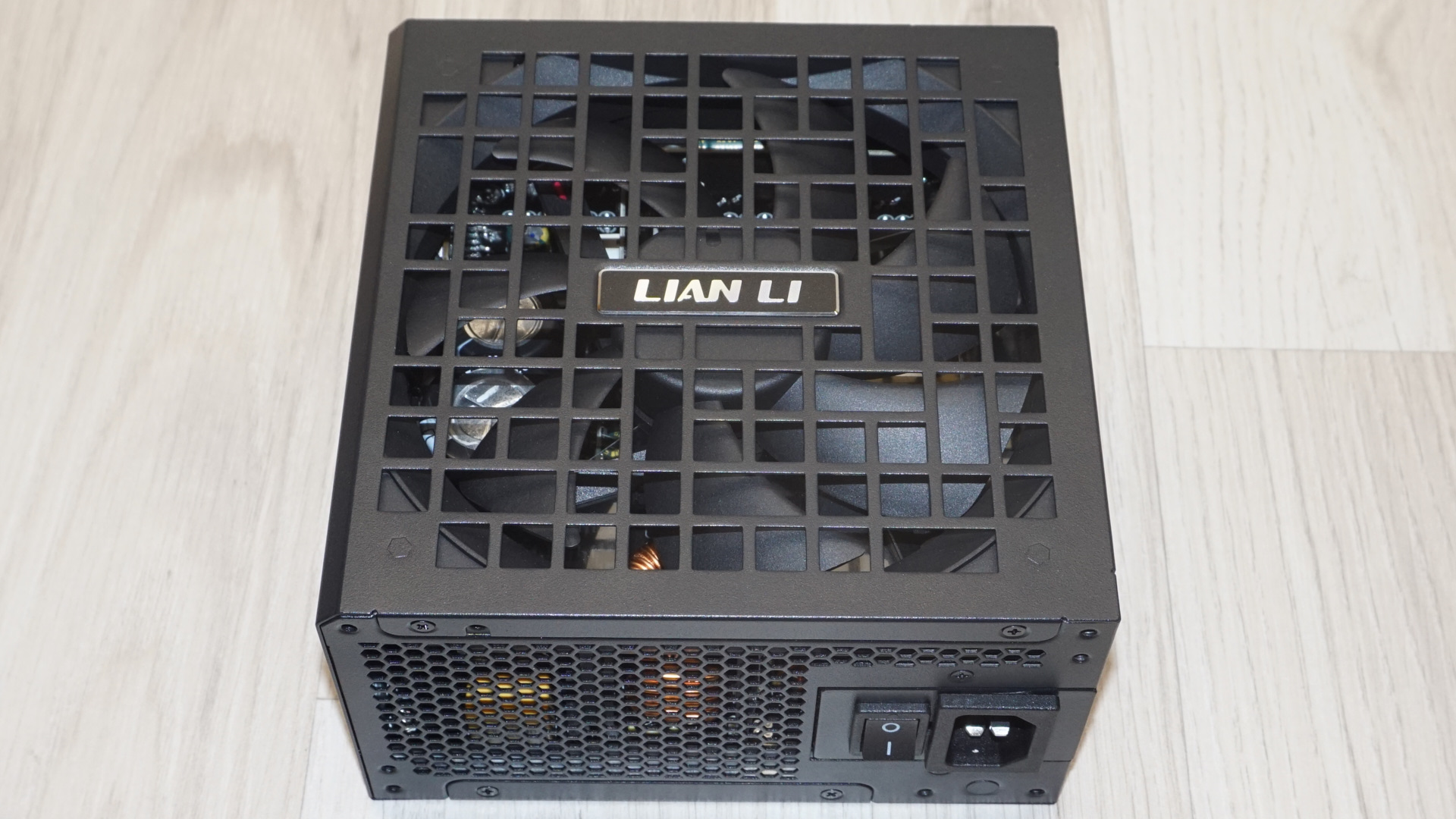

The right side is perforated, as rotational capability means this surface can become the front depending on AC receptacle positioning. The fan finger guard integrates directly into the chassis, displaying a unique geometric cutout pattern mixing squares and rectangles. The rear side, which alternates with the left depending on inlet orientation, incorporates a specialized slot for the USB hub. When positioned here, the USB hub draws power directly from the PSU without requiring a SATA connector.

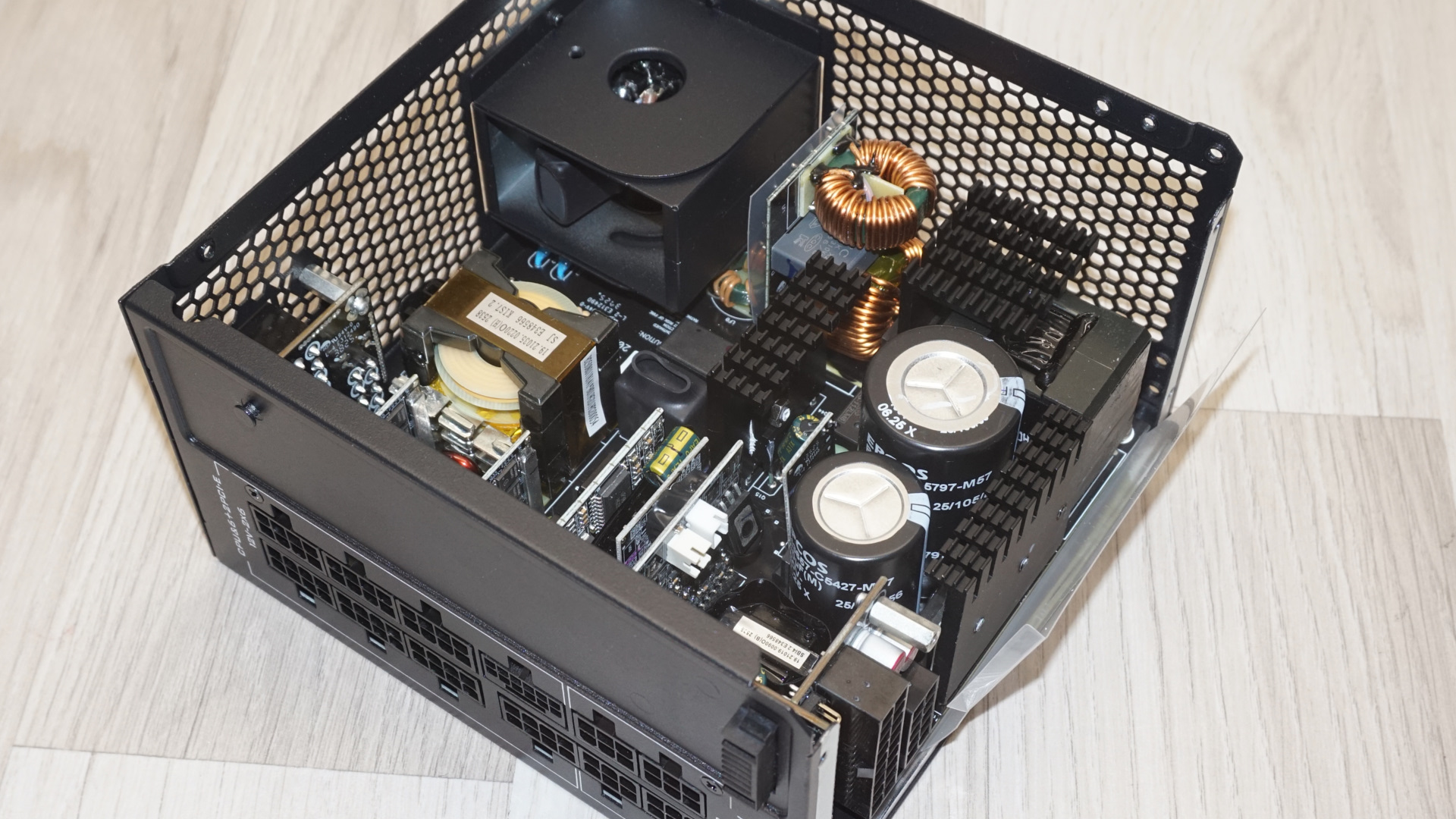

Internal Design

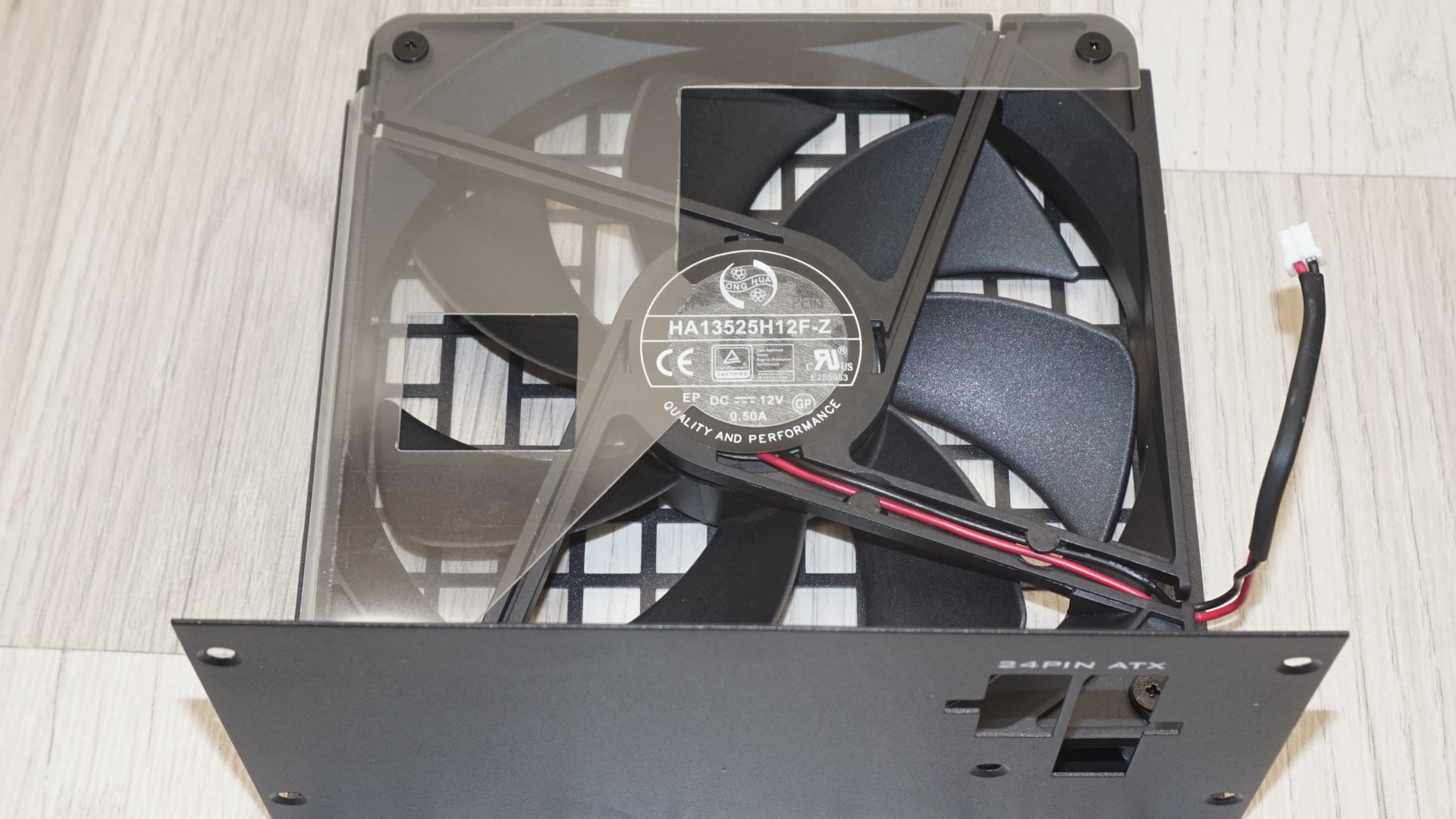

The Lian Li RS1200G ATX 3.1 PSU employs a Hong Hua 135mm fan utilizing a fluid dynamic bearing engine. FDB designs represent optimal acoustic-to-reliability balance, maintaining low operational noise at elevated speeds while delivering strong mean time between failure figures. The fan specification includes a high 2300 RPM maximum speed, though the unit's zero-RPM mode means extended periods of fanless operation while the system is idling.

The PSU originates from Sirfa, a Chinese OEM whose designs have graced numerous mid-to-top tier power supplies over the past two decades. Sirfa's experience shows in the platform's assembly quality and component selection, though some choices reflect cost optimization rather than absolute premium positioning.

Image 1 of 2

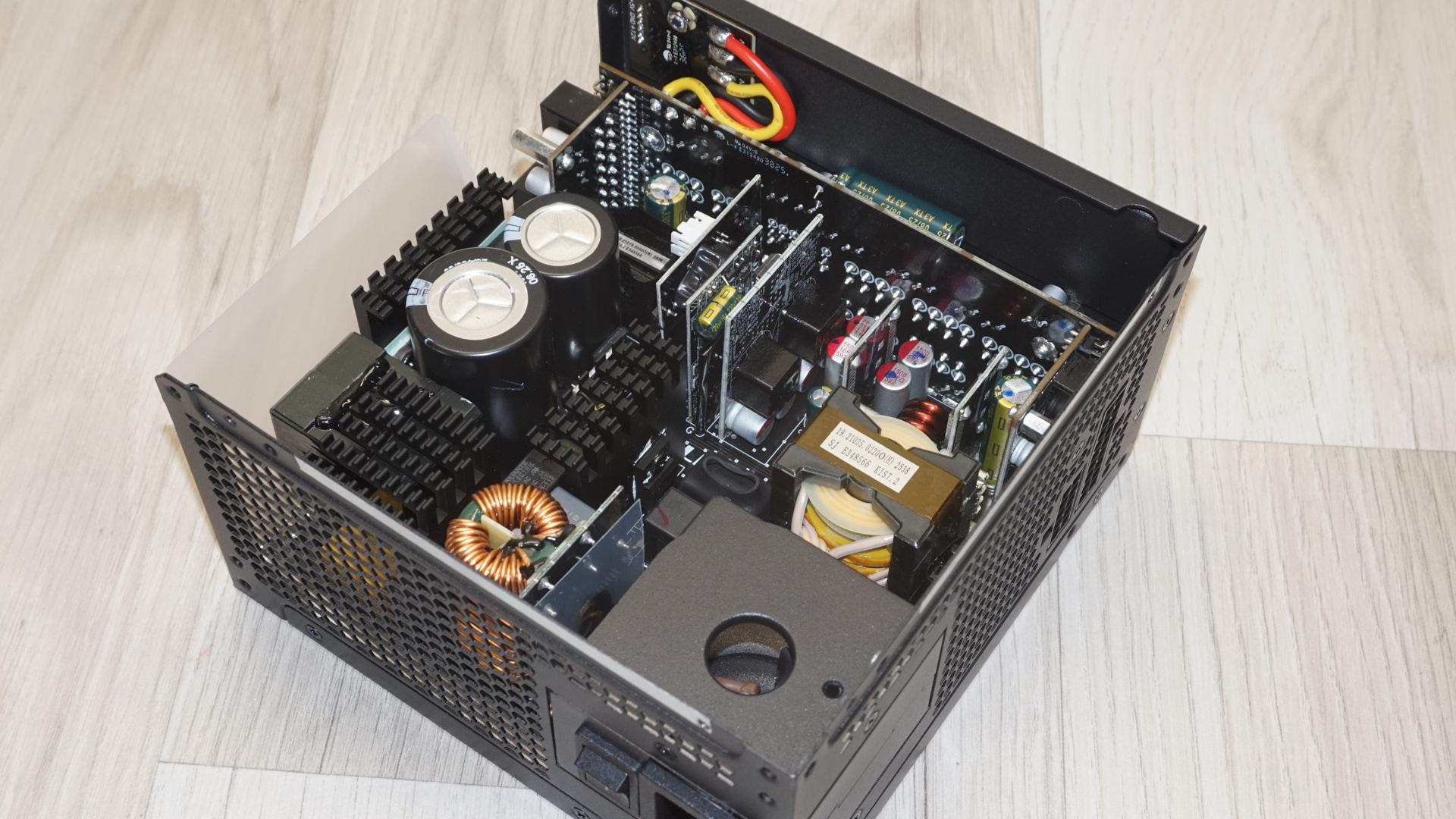

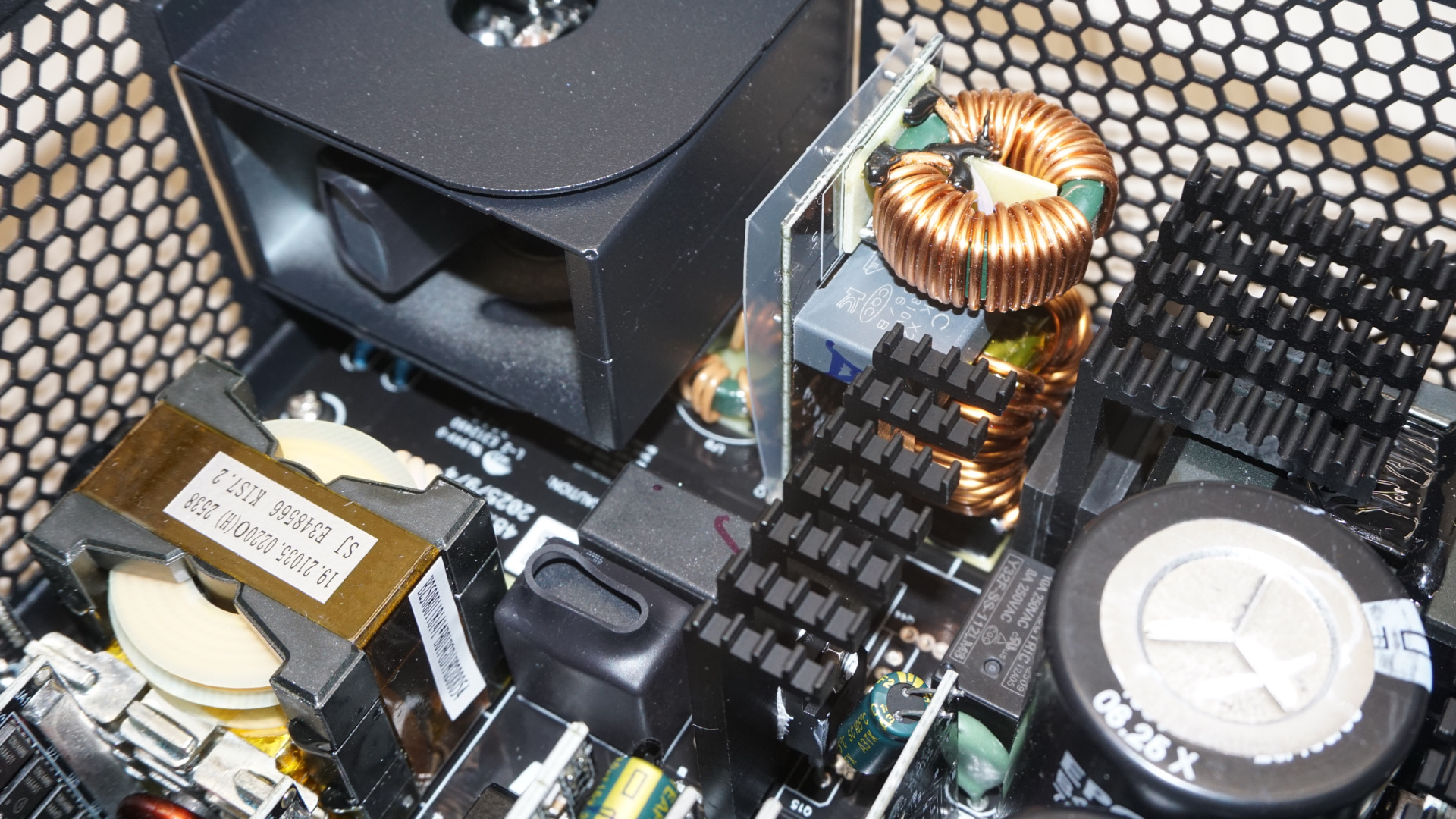

The input filtering stage provides adequate protection with four Y capacitors, two X capacitors, and two filtering inductors. Most filtering components mount on a vertical daughterboard, optimizing spatial efficiency and freeing the AC receptacle for movement. Two rectifying bridges are installed on a substantial heatsink immediately following the filtration stage.

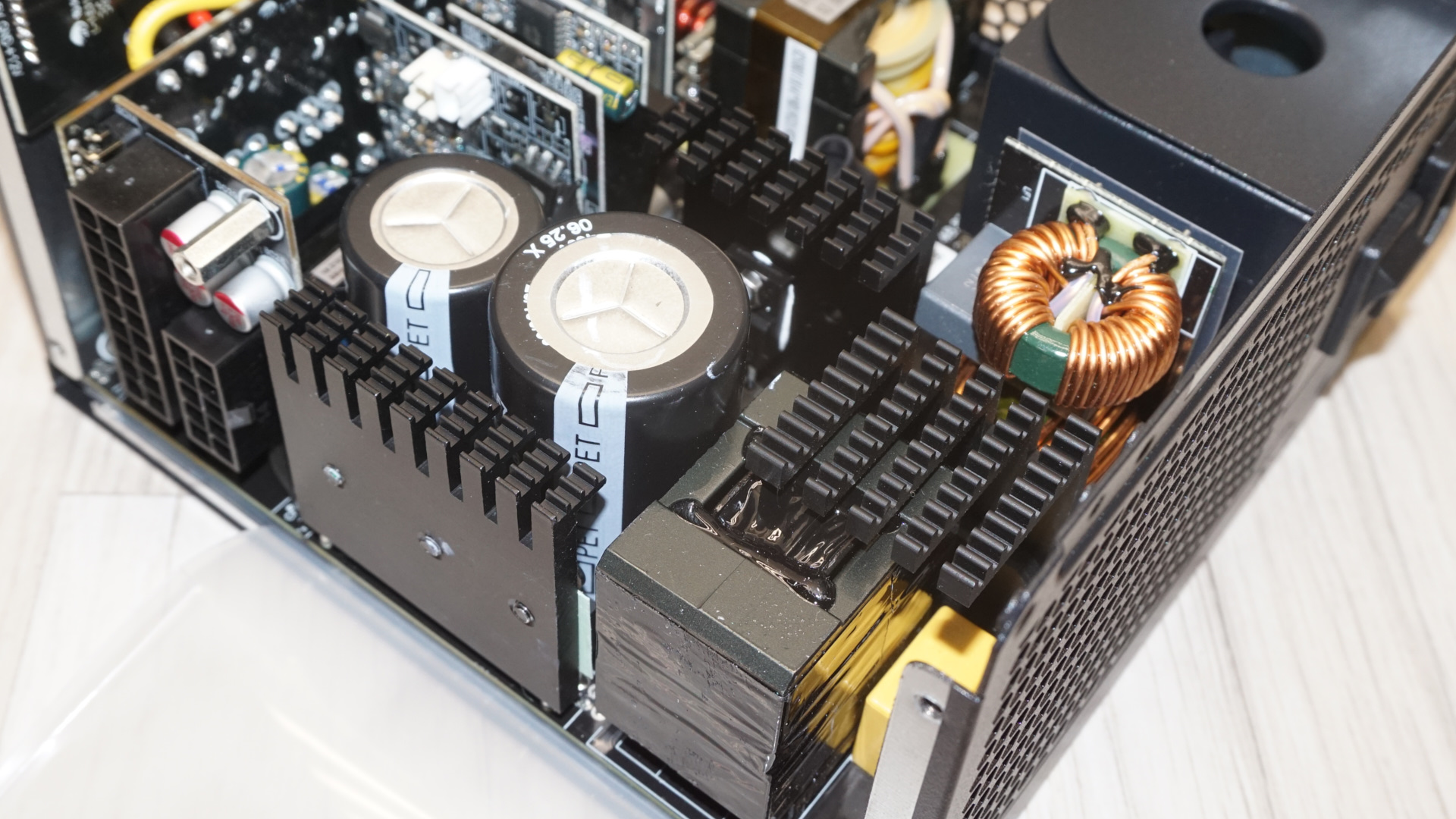

The APFC circuitry employs two SRC60R608BS MOSFETs and a diode, positioned on a large heatsink spanning the PCB edge. One encased inductor and two EPCOS (TDK) capacitors totaling 1210 μF comprise the passive components. The total capacitance is massive and EPCOS component quality is top-tier. These German-manufactured capacitors offer superior thermal and mechanical stress resistance compared to most alternatives but are very costly and we rarely see their products even in top-tier units.

In the primary stage, two SRC60R095BS MOSFETs form a half-bridge primary inversion topology. These components are on a separate heatsink positioned after the APFC bulk capacitors. Heatsink dimensions are generous, providing substantial surface area for heat dissipation even under sustained high-power operation.

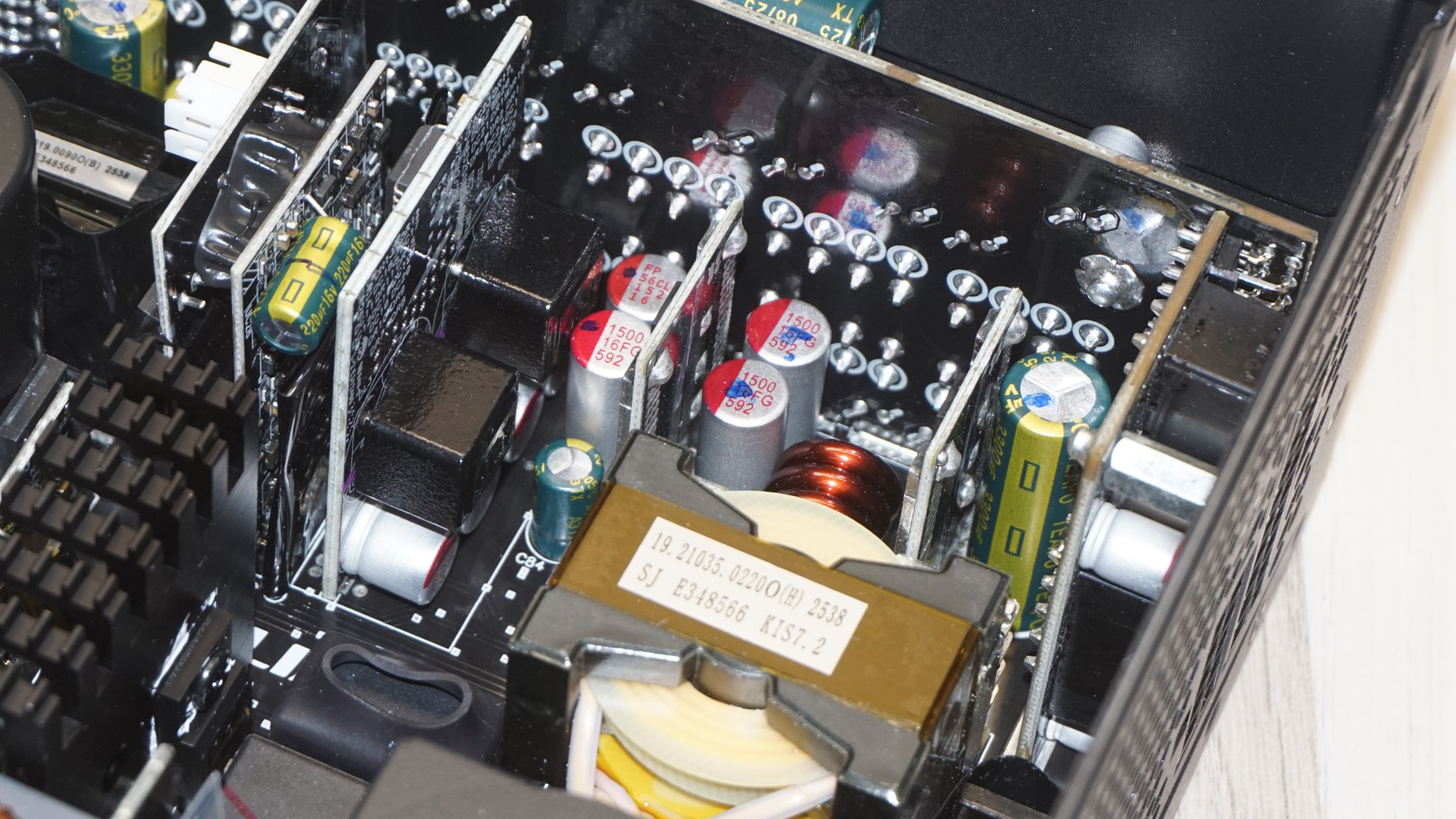

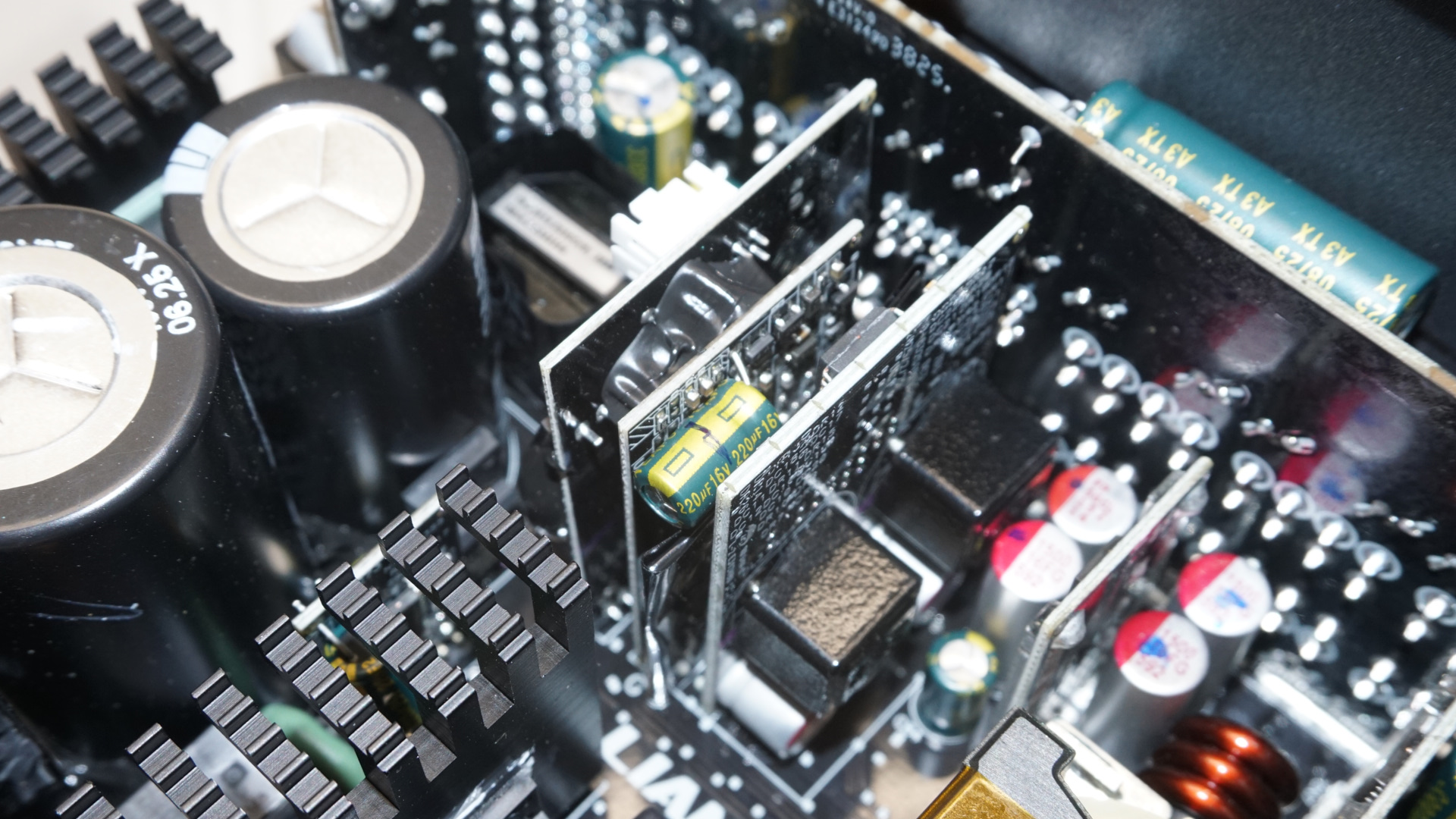

The secondary stage utilizes eight Infineon 10N04NM6 MOSFETs distributed across two vertical daughterboards, generating the primary 12V rail through synchronous rectification. The absence of dedicated heatsinks for these components hints their exceptional efficiency characteristics. DC-to-DC converter circuits on another vertical daughterboard generate the 3.3V and 5V rails from the primary 12V output.

Secondary side capacitors originate entirely from Teapo, a reputable Taiwanese manufacturer. While Teapo lacks the prestige of premium Japanese manufacturers like Nippon Chemi-Con or Rubycon, they maintain solid reliability records and appropriate specifications for this application. This represents a pragmatic compromise between cost and quality for a unit with a 10-year warranty.

Cold Test Results

Cold Test Results (25°C Ambient)

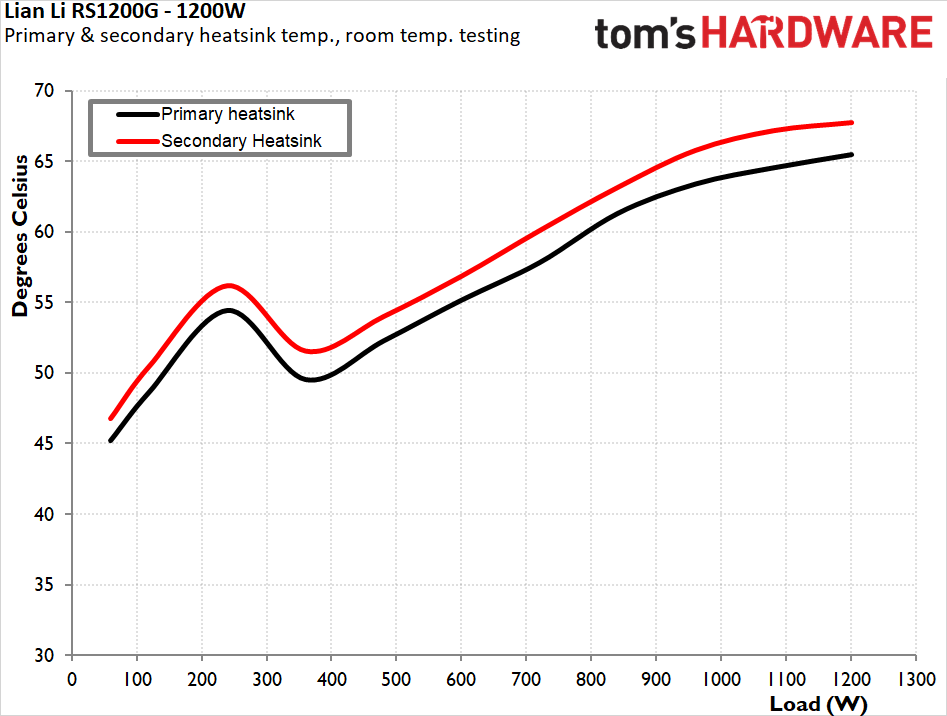

For the testing of PSUs, we are using high precision electronic loads with a maximum power draw of 2700 Watts, a Rigol DS5042M 40 MHz oscilloscope, an Extech 380803 power analyzer, two high precision UNI-T UT-325 digital thermometers, an Extech HD600 SPL meter, a self-designed hotbox and various other bits and parts.

Image 1 of 5

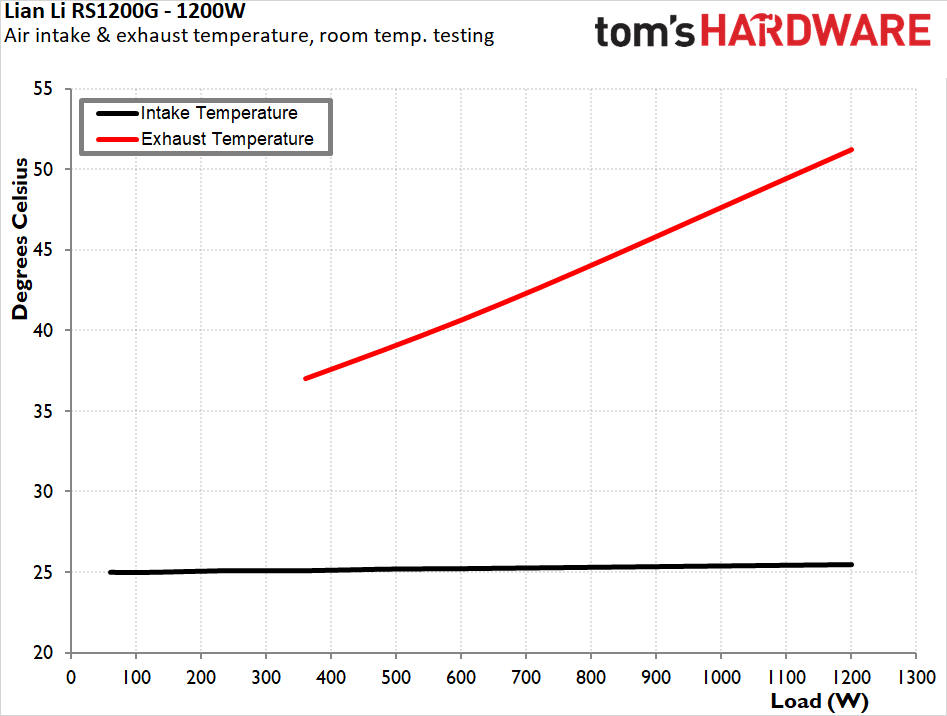

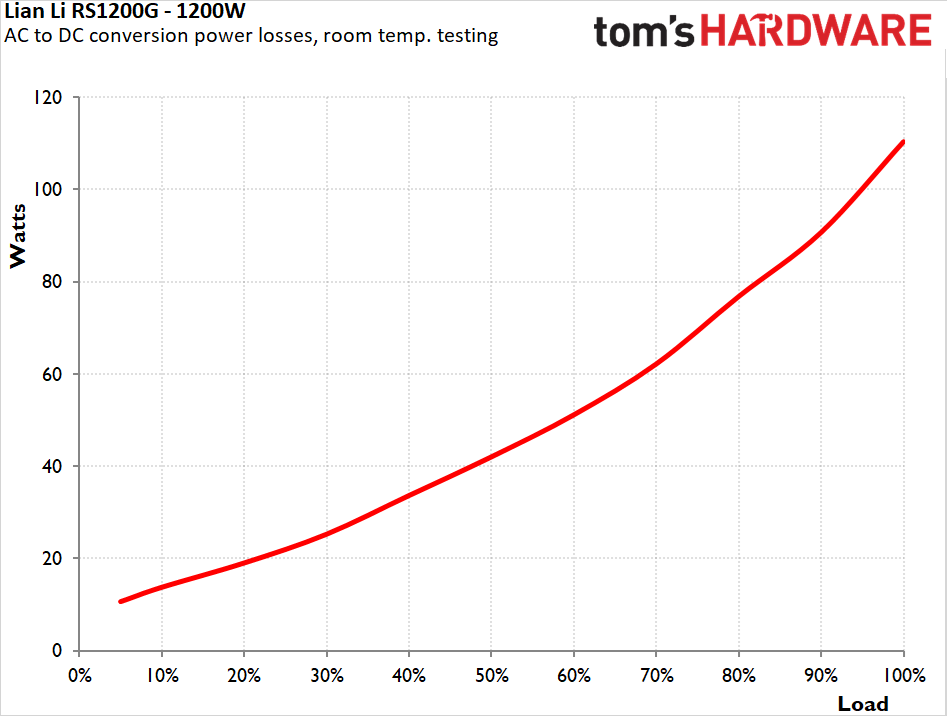

The Lian Li RS1200G PSU achieves average nominal load efficiency of 90.0% with 115 VAC input and 92.0% with 230 VAC input, measured across the 10% to 100% load range. These results comfortably satisfy 80 Plus Gold and CLEAResult Gold certification requirements. The unit received Cybenetics Platinum certification based on average efficiency calculations, though efficiency dips at maximum load prevented higher certifications from the other two certifying bodies. Lian Li markets this as Gold-certified, likely avoiding internal competition with their premium product lines.

Efficiency peaks near 40% load and maintains fairly good stability across most operational ranges. Very low load efficiency remains good, an important characteristic for modern systems spending significant time in idle states. The fan initiates rotation when load exceeds approximately 300 Watts but maintains very low speeds up to 800 Watts. Beyond 900 Watts, fan speed increases substantially though it still remains below half maximum capability.

Hot Test Results

Hot Test Results (~45°C Ambient)

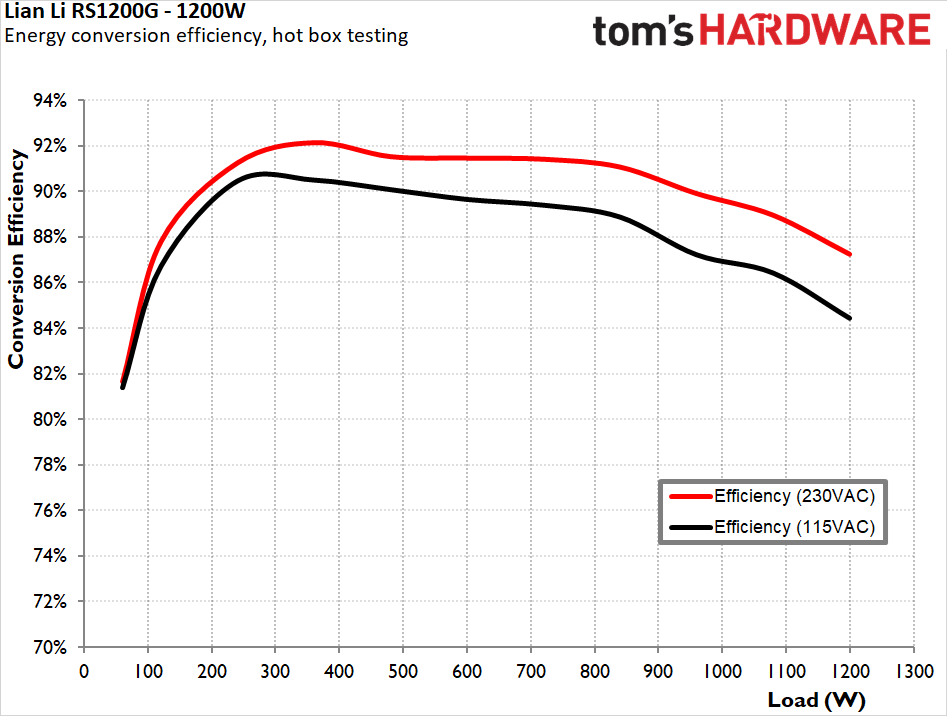

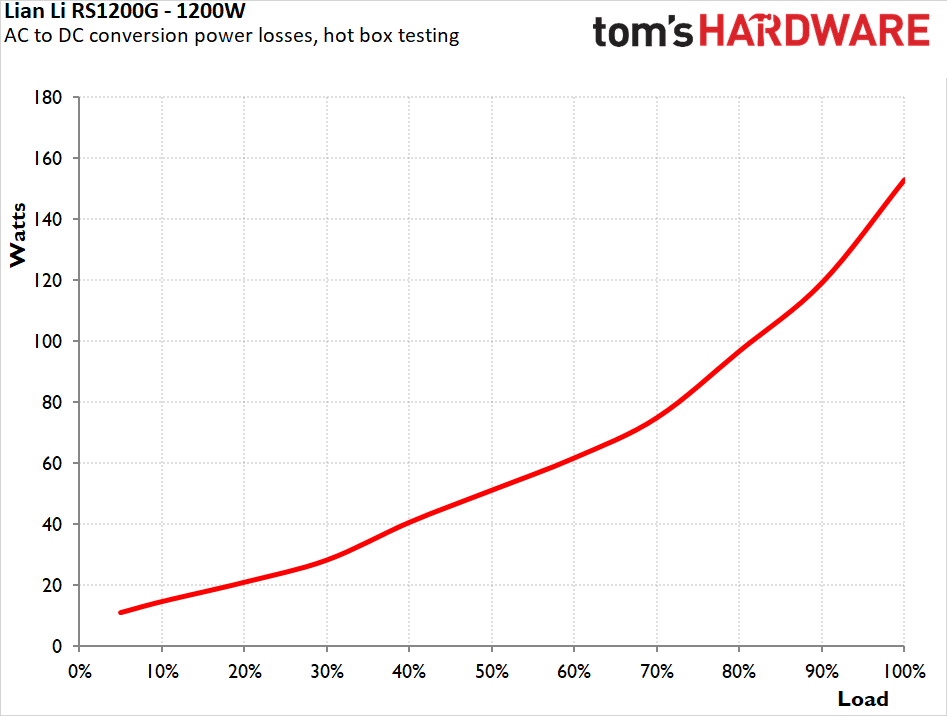

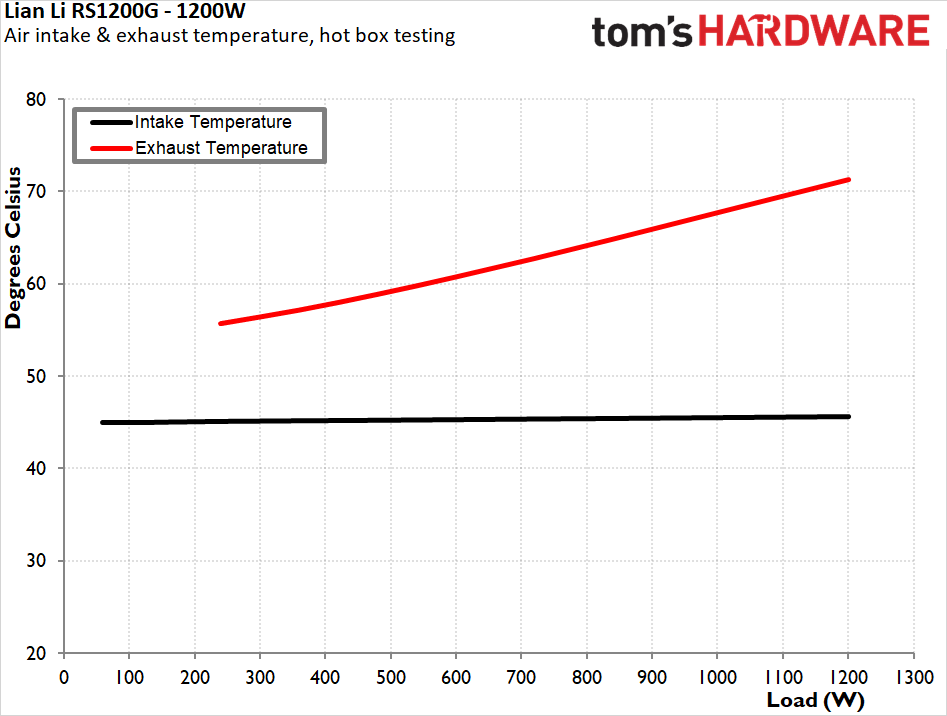

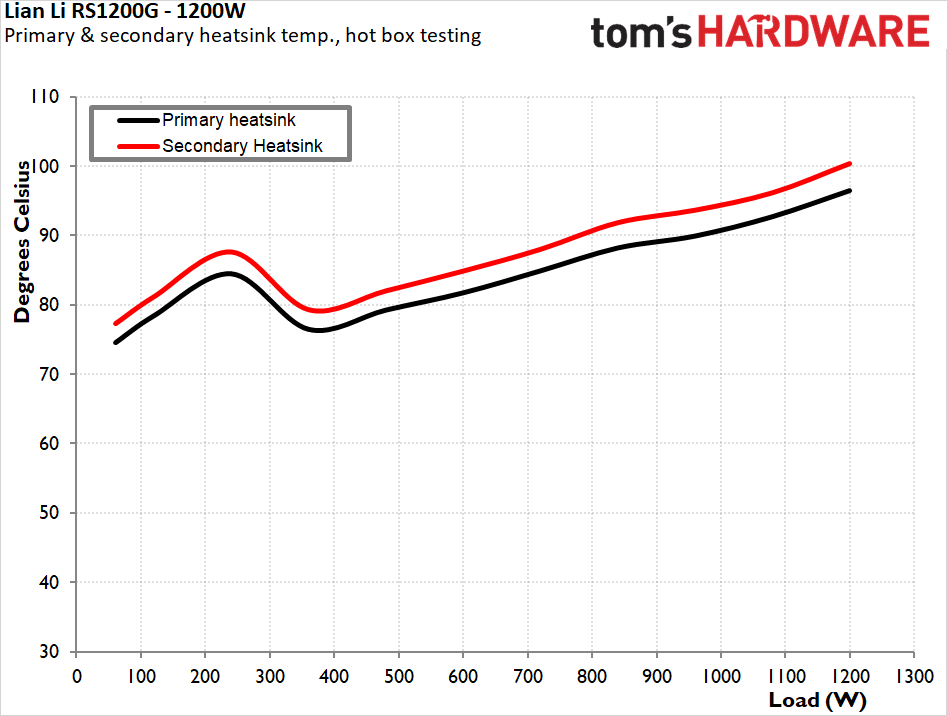

During elevated ambient temperature testing, the Lian Li RS1200G PSU exhibits notable efficiency degradation. Average nominal load efficiency drops to 88.4% with 115 VAC input and 90.3% with 230 VAC input. Signs of thermal stress emerge at maximum load, though they remain within acceptable operational parameters. This is a product rated for maximum output at 40°C and, although it can reach its maximum output at a higher temperature, the signs of stress are apparent.

Image 1 of 5

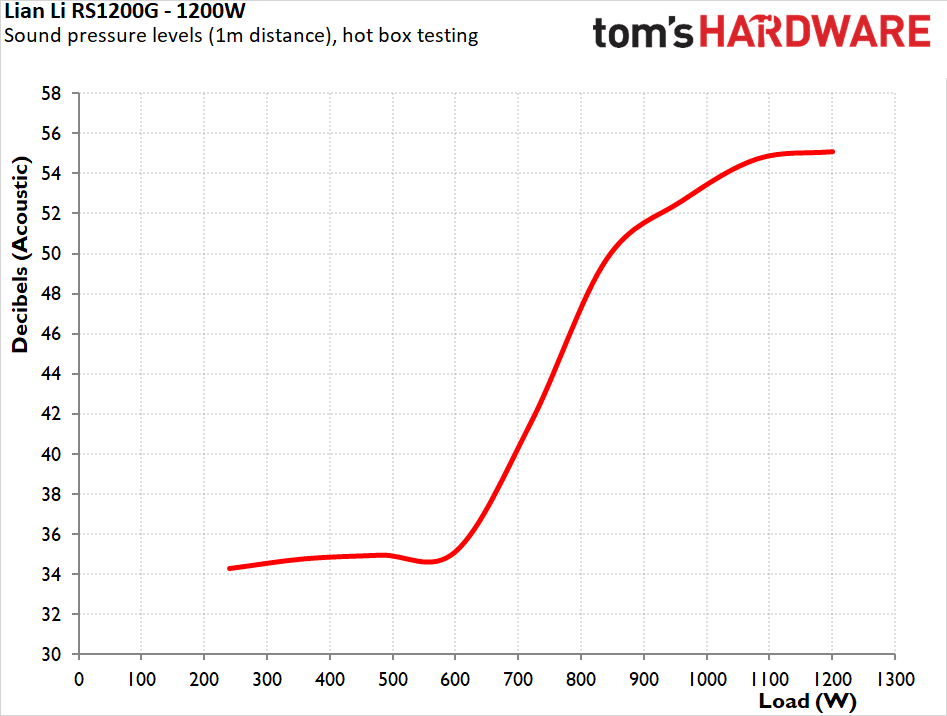

Fan behavior shifts considerably under thermal stress. Activation occurs earlier, engaging at approximately 250 Watts load. The fan maintains slow rotation up to 600 Watts, after which speed increases progressively until reaching maximum at 90% load. Maximum load operation produces significant noise levels, though this represents expected behavior for a compact, Gold-certified 1200W unit under thermal stress. Internal temperatures remain within acceptable operational levels throughout testing.

PSU Quality and Bottom Line

Power Supply Quality

The Lian Li RS1200G demonstrates outstanding power quality performance. Maximum ripple measured 26 mV on the 12V rail, 14 mV on the 5V rail, and 14 mV on the 3.3V rail, all substantially below industry safety limits and representing excellent performance considering test conditions and massive power output capability. Voltage regulation proves equally impressive, maintaining 0.9% on the 12V rail, 0.7% on the 5V rail, and 0.6% on the 3.3V rail. These figures indicate exceptional power quality across all voltage outputs under varying load conditions.

During our thorough assessment, we evaluate the essential protection features of every power supply unit we review, including Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP). OCP activates at 126% on the 3.3V rail, 128% on the 5V rail, and 112% on the 12V rail. OPP triggers at 110% during hot testing. These protection thresholds are exceptionally sharp, particularly for an ATX 3.1 certified unit.

Bottom Line

The Lian Li RS1200G ATX 3.1 PSU represents genuine innovation in power supply design, addressing cable management challenges through mechanical ingenuity rather than incremental improvements. The rotatable AC inlet provides unprecedented installation flexibility, adapting to diverse case architectures while maintaining compact ATX dimensions. This feature alone distinguishes the RS1200G from conventional offerings, though it introduces specific compatibility requirements that potential buyers must carefully evaluate. The 24-pin connector placement creates an inherent limitation. Cases must accommodate behind-motherboard routing for at least the primary ATX cable, eliminating compatibility with chassis lacking appropriate cable management provisions. This restriction is not insurmountable but requires careful case selection, potentially limiting the RS1200G's appeal to builders with existing incompatible cases.

The magnetic USB hub adds practical value for builders requiring additional connectivity and cable management. Direct PSU mounting eliminates SATA power requirements when positioned in the dedicated slot, simplifying cable management. Alternative mounting locations throughout the chassis provide flexibility for specific layout requirements. This feature addresses modern system connectivity demands elegantly, though its utility varies significantly based on individual build requirements. Cable configuration proves conservative for a 1200W unit. One 12V-2x6 connector and five 6+2 pin PCIe connectors accommodate most GPU requirements but may prove limiting for some top-tier builds. Flat ribbon cables with magnetic cable organizers simplify routing in constrained spaces, representing thoughtful attention to practical installation concerns.

Electrical performance proves exceptional across all metrics. Voltage regulation maintains sub-1% deviation across all rails, demonstrating precise control under varying loads. Ripple suppression achieves outstanding results, particularly given the unit's 1200W output capability and compact form factor. Protection circuits respond with sharp precision, balancing safety with practical operational requirements. The OCP threshold is rather conservative but this unit is certified to handle ATX 3.1 transients. Efficiency results merit recognition. Cold testing efficiency of 90.0% with 115 VAC and 92.0% with 230 VAC comfortably exceeds Gold certification requirements, with Cybenetics awarding Platinum certification based on average efficiency calculations. Hot testing reveals significant but predictable efficiency degradation to 88.4% and 90.3% respectively, with thermal stress signs at maximum load, even though the figures remain within acceptable parameters.

Thermal management proves adequate though not exceptional. The compact 150mm chassis and overall topology, although paired with a 135mm fan and good heatsinks on the primary side, create inherent cooling challenges at maximum power output. The fan remains inactive or operates at minimal speeds under moderate loads, contributing to excellent low-load acoustics. High load operation produces significant noise levels, particularly under elevated ambient temperatures when the fan reaches maximum speed. Overall, the thermal control circuitry is very reasonably programmed and responsive.

Component selection demonstrates pragmatic engineering. EPCOS APFC capacitors and Infineon MOSFETs represent premium choices in critical high-stress positions. Teapo secondary capacitors occupy a middle ground between economy and premium Japanese alternatives, appropriate for the 10-year warranty period but not representing absolute top-tier specification. This mixed approach balances cost optimization with reliability requirements.

Pricing positions the RS1200G at approximately $180, representing premium positioning justified by innovative features and solid electrical performance. Competition exists from conventional high-wattage units offering lower pricing but lacking the RS1200G's distinctive capabilities. Value assessment depends heavily on individual compatibility requirements and appreciation for the rotational design innovation.

The Lian Li RS1200G ATX 3.1 PSU succeeds in delivering meaningful innovation beyond incremental specification improvements. Exceptional electrical performance, comprehensive protection features, and thoughtful accessory inclusion demonstrate engineering competence. The unit’s performance at maximum load suggests the platform may be a little stressed at 1200 Watts, although it can deliver its maximum power output under adverse circumstances if necessary. Case compatibility limitations represent the primary concern, requiring careful evaluation before purchase. For builders with compatible cases seeking innovative solutions and exceptional power quality, the RS1200G merits serious consideration despite its premium pricing.
