Enthusiast fries 14TB HDD due to SATA power slipup — bemoans lack of SATA power safety and modular PSU cable standardization

News
By published

14+ years of data, and now the drive doesn’t even spin up.

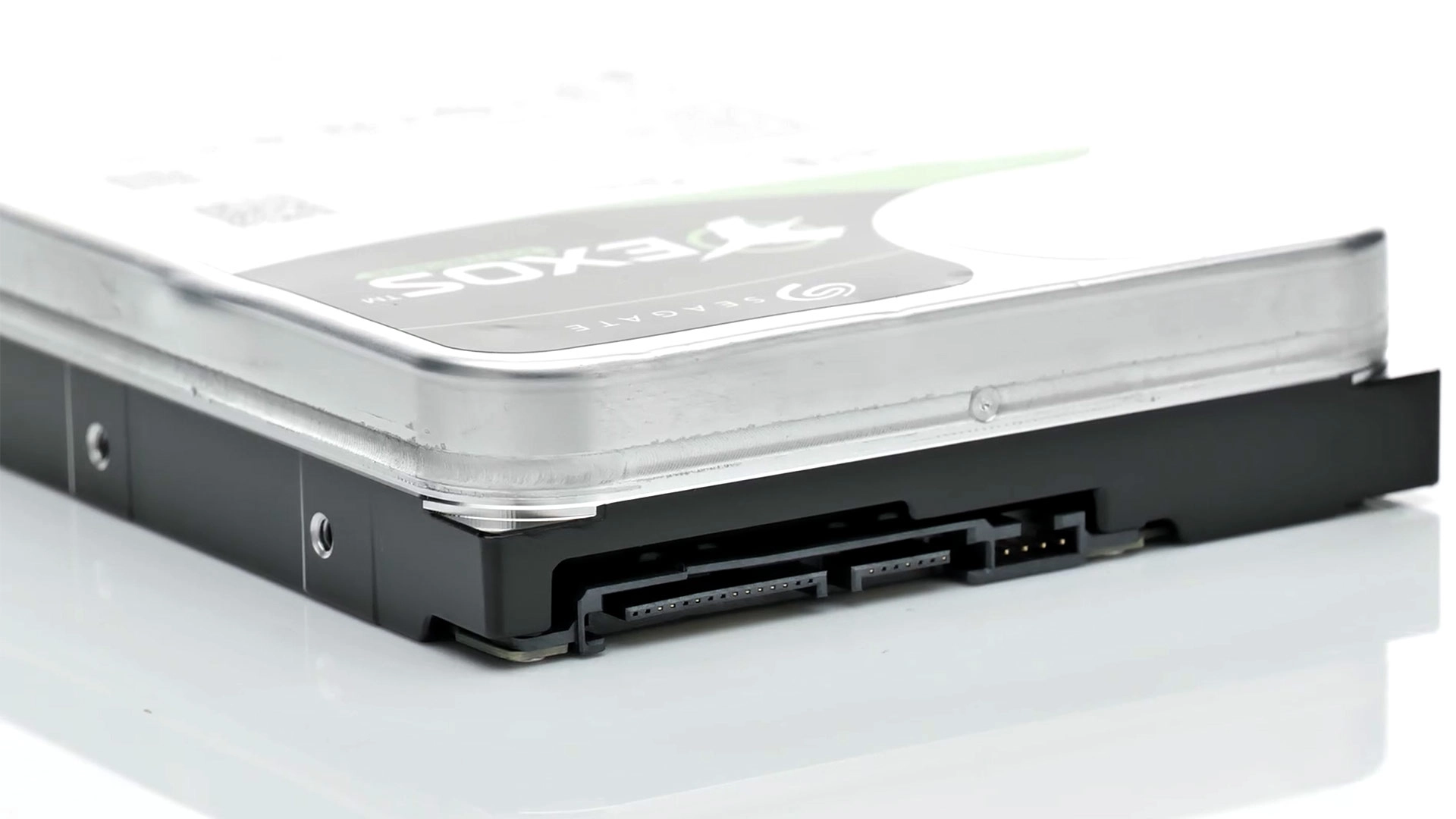

Seagate Exos X16
(Image credit: Seagate)

Losing all the data stored on a 14TB HDD in an instant — especially if it's data from over the past 14+ years — must be a very painful experience. This recently happened to Redditor HellBlade64, who told fellow members of the PC building community that they were “not angry, just disappointed with myself.”

Why? Because, despite knowing about the dangers of non-standardized cabling between modular PSUs, they “threw caution to the wind” and ended up frying their 14TB Seagate Exos X16. The drive died with an unceremonious “click," and is now completely unresponsive, with many un-backed-up videos lost.

HellBlade64 described this tragic data loss event as the “biggest mistake I’ve ever made.” But it's an easy mistake to make, even in 2026.

The underlying issue is the lack of standardization between PSU makers — and even between PSU models from the same brand. In this particular case, HellBlade64 seems to have plugged a modular SATA power cable into their Seasonic Focus, only to discover that the modular cable wasn’t one of the bundled cables that came with that specific PSU.

The risk with SATA drives is that 12V (drive motor) and 5V (logic) lines live on the same cable, and they might be the wrong way round if you use a modular cable that didn't come with your PSU. As the drive electronics don’t have any protection against such mishaps, the HDD controller electronics were probably fried (by 12V) in a millisecond. The click HellBlade64 heard was likely the PSU tripping to protect itself from the shorted SATA drive electronics. (It would then prevent reboots until the SATA drive was unplugged.)

PSA: Don’t mix modular cables between modular PSUs — even from the same brand — unless the manufacturer specs assure compatibility.

Article continues below

What to do if you fry your drive

Fellow Redditors reckoned the terabytes of lost data could be recovered with a drive electronics swap. I’m no data recovery expert, but since the electronics were fried — not the data on the platters — this seems likely, if the lost data warrants it. (You don't have to do it yourself — there are plenty of reputable data recovery outfits around.) But to keep yourself from having to scramble to recover your data, we highly suggest implementing and maintaining a backup plan.

Google Preferred Source

Follow Tom's Hardware on Google News, or add us as a preferred source, to get our latest news, analysis, & reviews in your feeds.

Mark Tyson
Mark Tyson
News Editor

Mark Tyson is a news editor at Tom's Hardware. He enjoys covering the full breadth of PC tech; from business and semiconductor design to products approaching the edge of reason.

39 Comments Comment from the forums
  • jp7189
    Im tying up entirely too much space in a storage closet because I keep PSU cables in their original packaging. Heck, I have a Corsair AX1600i with different cables from a Corsair HX1200. After I learned that, I'm paranoid that Focus and Prime cables might be different, so I keep them seperate too.

    It doesn't help that that all the wires are black now. Unlike in the past, you can no longer easily tell which pin has which power rail. You'd have to do a full pinout trace, and no way I'm spending the time on that.
    Reply
  • edzieba
    The good news is that the platters will be fine, the heads will probably be fine, and it's just the driver board that's let out the magic blue smoke. That means date is very likely recoverable by taking a drive of the same model and revision, and swapping the good board form that to the damaged drive, with no need to crack the housing.
    Reply
  • fzabkar
    edzieba said:
    The good news is that the platters will be fine, the heads will probably be fine, and it's just the driver board that's let out the magic blue smoke. That means date is very likely recoverable by taking a drive of the same model and revision, and swapping the good board form that to the damaged drive, with no need to crack the housing.
    Straight board swaps haven't worked for over a decade.

    "Adaptives" -- why PCB swaps don't work in modern HDDs
    The latest PCBs have unique keys in the MCU, which is an additional complication.

    Edit:

    Most HDDs supply 5V to the preamp on the headstack. If 12V is applied to the 5V input, there is a very real risk that the preamp may be damaged. Most modern drives have some kind of overvoltage protection, either via TVS diodes or electronic fuses, but these are not infallible. Older HDDs, and many SSDs, have poor protection, or none at all.

    Here is one example:

    Catastrophic failures in WD PCBs
    Here is what happens to the preamp:

    https://www.hddoracle.com/download/file.php?id=9531&mode=view
    Reply
  • fzabkar
    Admin said:
    A PC DIYer fried their 14TB HDD after a modular power cable mix up.

    Enthusiast fries 14TB HDD due to SATA power slipup — bemoans lack of SATA power safety and modular PSU cable standardization : Read more

    This is news? This same scenario has been acted out in numerous threads in Tom's Hardware's own storage forum over the past decade. I, myself, have helped numerous users rescue their own data at zero cost. Perhaps you should research your own forum first?
    Reply
  • bit_user
    The article said:
    The underlying issue is the lack of standardization between PSU makers — and even between PSU models from the same brand.
    Uh, I definitely have swapped modular PSUs of the same brand, without redoing the cabling. I suppose I just got lucky.

    Sigh. Seasonic previously used sleeved cables and has now switched to flat, ribbon-style cables that are easier to fold but definitely don't look as nice. When I upgrade one of my machines that's still wired with those cables, I was planning on exchanging the PSU but keeping the cables. Now, I'll probably try to find out if they're compatible.

    At work, I even brought in one of my Seasonic cables to get either 6-pin or 8-pin power from a Dell workstation PSU. In that case, I seem to recall I did go to the trouble of using a multimeter to check that the pinouts were the same.

    ATX 3.0 should've standardized this stuff.
    : (
    Reply
  • NightHawkRMX
    Very likely that drive can he saved by just removing the TVS diode or bridging some fuses
    Reply
  • MobileJAD
    I really wish PC component companies could get their act together and standardize this kind of stuff.
    This type of scenario where the wires for power dont line up correctly on the power supply could only get worse if someone building a new PC opts for more blingy components a discards the modular power cords that came with with their power supply for some cheap aftermarket cords they got online that promises fancy colors or what not.
    Right now I have one large SATA HDD in my PC where I throw all of my old files and I got some USB HDDs that hold offline backups of videos that cant be replaced, maybe I should buy another USB HDD or get back into burning stuff I dont want to lose on to blurays again.
    Reply
  • USAFRet
    MobileJAD said:
    I really wish PC component companies could get their act together and standardize this kind of stuff.
    This type of scenario where the wires for power dont line up correctly on the power supply could only get worse if someone building a new PC opts for more blingy components a discards the modular power cords that came with with their power supply for some cheap aftermarket cords they got online that promises fancy colors or what not.
    Right now I have one large SATA HDD in my PC where I throw all of my old files and I got some USB HDDs that hold offline backups of videos that cant be replaced, maybe I should buy another USB HDD or get back into burning stuff I dont want to lose on to blurays again.
    1. You should always have backups.

    2. Never ever mix cables from one PSU to another. This has been a known thing since forever.


    The pinouts are standard at the component end. They are not standard at the PSU end.
    Reply
  • MobileJAD
    USAFRet said:
    1. You should always have backups.

    2. Never ever mix cables from one PSU to another. This has been a known thing since forever.


    The pinouts are standard at the component end. They are not standard at the PSU end.
    Oya I have been really lucky with keeping my PSU cords organized so far, and I am a huge believer in making as many backups as possible.
    I guess im just agreeing with others that it would be nice if companies could have standardized those connectors on the PSU end?
    Or maybe it wasnt that bad afterall to have power cords for your components that were hard wired to the power supply?
    The only real benefit that I can think of with a modular PSU is that when you buy that super fancy 1,600 watt PSU for that new RTX 5090 you want and the PSU comes with enough SATA power connectors to power up 200 hard drives, you can remove those extra SATA power cords you dont need, along with the extra 4pin power cords, to regain some of your sanity...
    Reply
  • frodoitsmyname
    USAFRet said:
    1. You should always have backups.

    2. Never ever mix cables from one PSU to another. This has been a known thing since forever.


    The pinouts are standard at the component end. They are not standard at the PSU end.
    Yes but the only reason one should not mix cables is because they dont use standard pin layouts at the psu side, which is utterly ridiculous. Pretty easy to mix up a few sata cables when you have a lot of stuff going on.

    Yes you should have backups, yes you should not mix cables, yes you should double check.

    But you know what you should reaallly have? Right, standardized cables!
    And not blame consumers for this nonsense.
    Reply
