Packaging, Contents, Exterior And Cabling

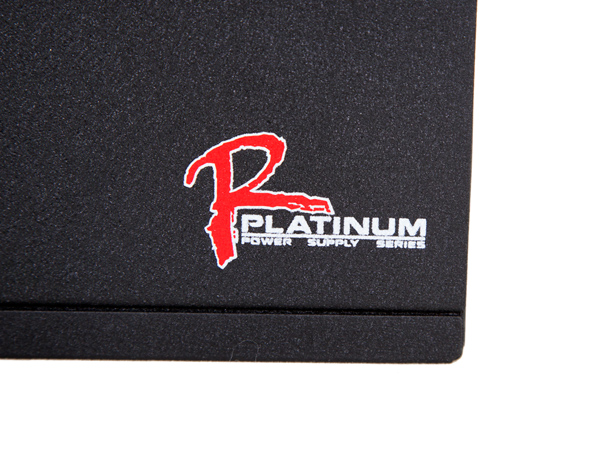

The box has a plain graphic design with no photos of the product on the front. Only a small Andyson logo is found there, along with the unit's model number and a tiny 80 PLUS Platinum icon. Usually the 80 PLUS certification appears more prominently, especially when it represents Platinum efficiency. Hopefully this has nothing to do with the fact that, at the time of our review, the R1200 still isn't officially certified by the 80 PLUS organization.
On the bottom-front of the packaging, a number of icons represent the PSU's most notable features. We think that a 10-year warranty is the most significant of these. Currently, only EVGA dares to provide such a long warranty period for its high-end PSU offerings. All of the competition, including Corsair and SeaSonic, provide at most seven years. On the top of the box, the PSU is depicted with its modular panel exposed.

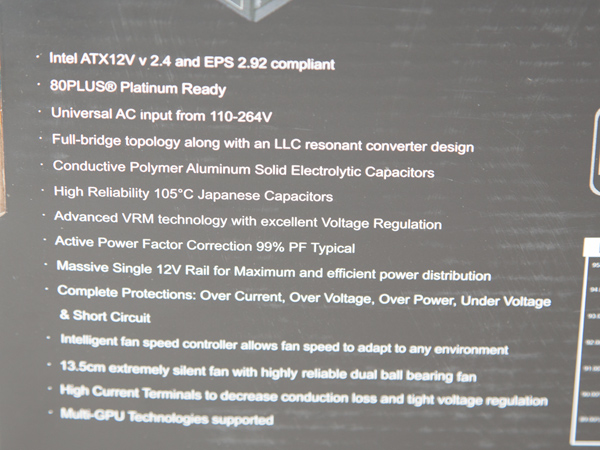

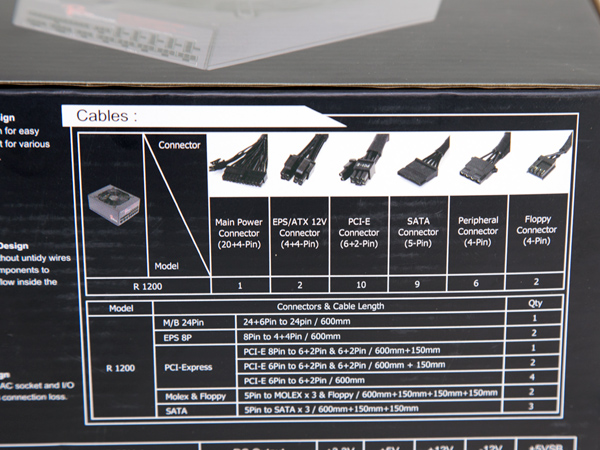

We find more details about the product on the back of the box. In this case, Andyson provides an x-ray photo of the PSU, showing a general view of its internals along with a long feature list. There are three additional photos of the product showing its fully modular panel, the PCB's clean design and the nicely designed EMI filter. Finally, a table shows the cable configuration.

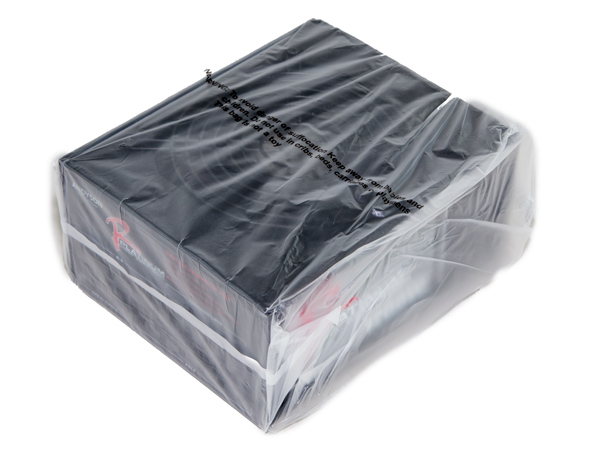

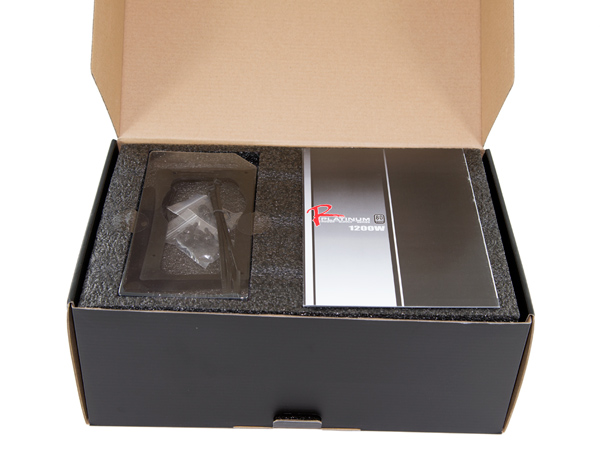

Packing foam protects the box's internals, while a small compartment inside the top piece of packing foam hosts all of the bundled items. The PSU itself is wrapped in plastic to avoid accidental scratches during unboxing.

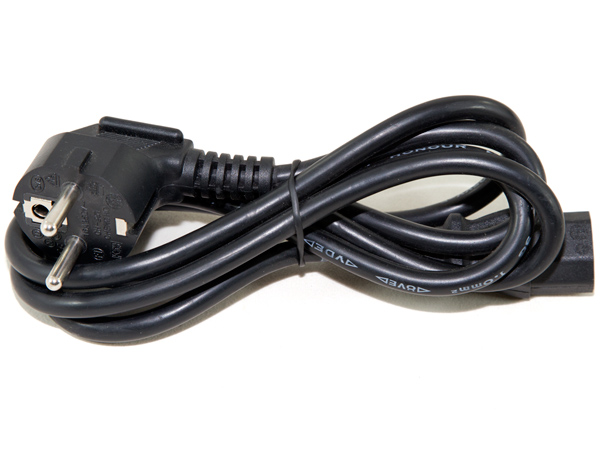

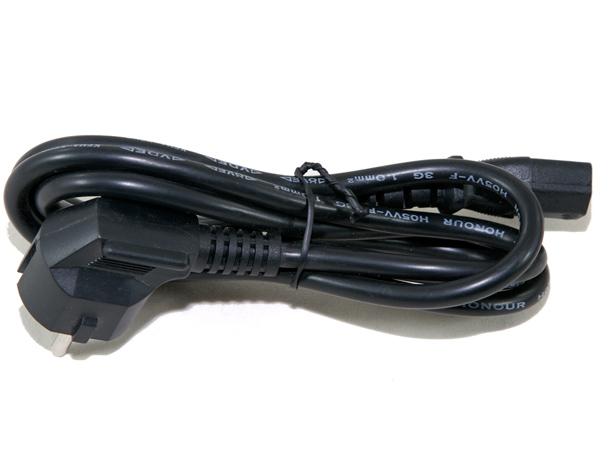

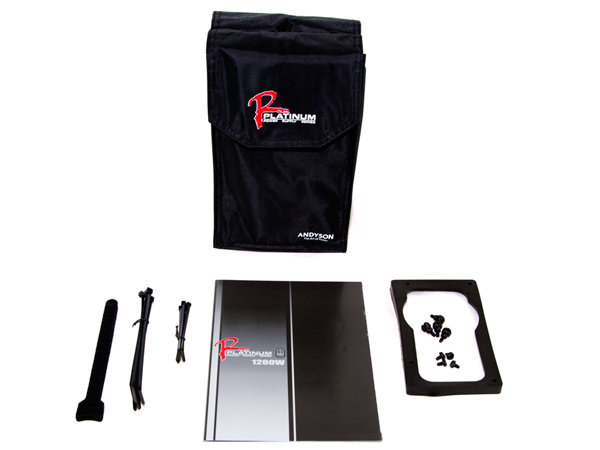

The bundle includes Velcro straps and zip ties, sets of screws for chassis mounting, a black noise dampener and a pouch for storing the many modular cables. Finally, the included EU type AC cord is thick enough for 230 VAC input.

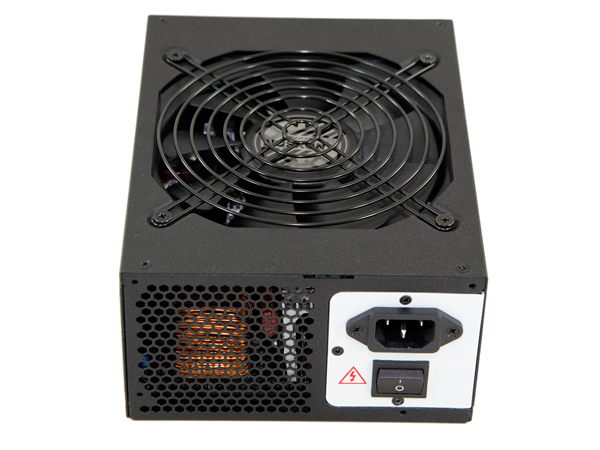

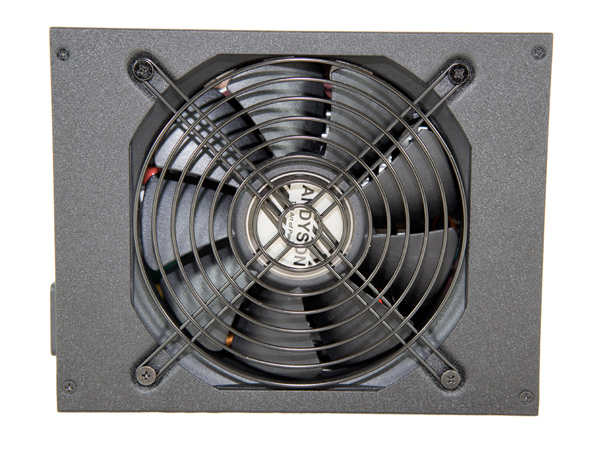

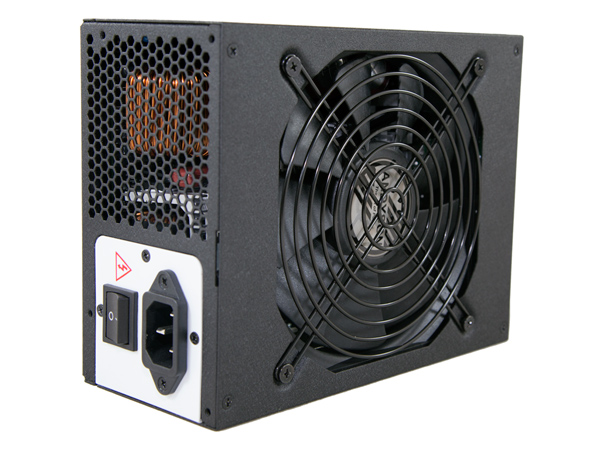

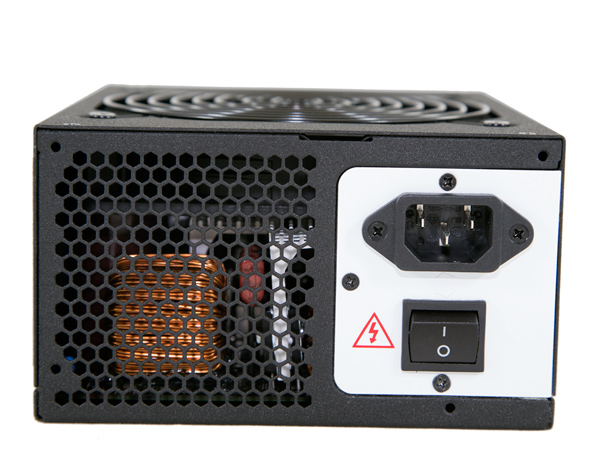

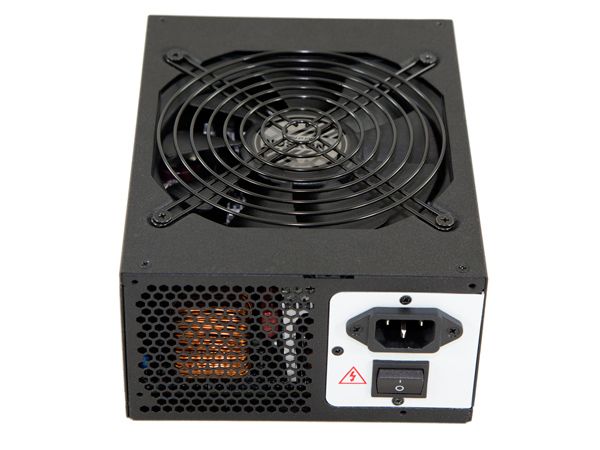

The PSU features an almost matte finish, which doesn't attract fingerprints easily. The design up front doesn't follow convention — at least in the AC socket and main switch area, since both of them are installed on a metal piece that attaches to the PSU chassis with three screws. This is because the first part of the transient filter is directly soldered onto the main PCB.

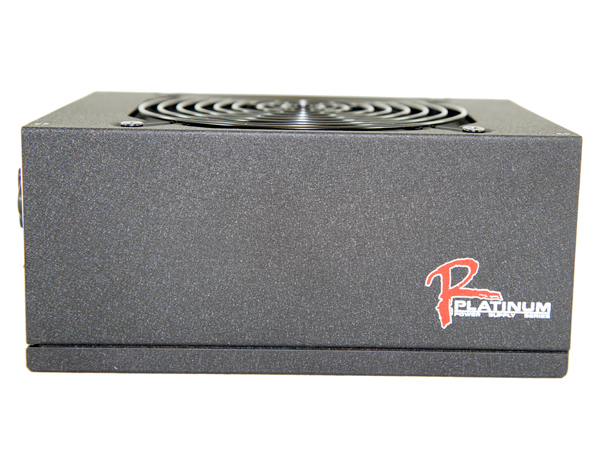

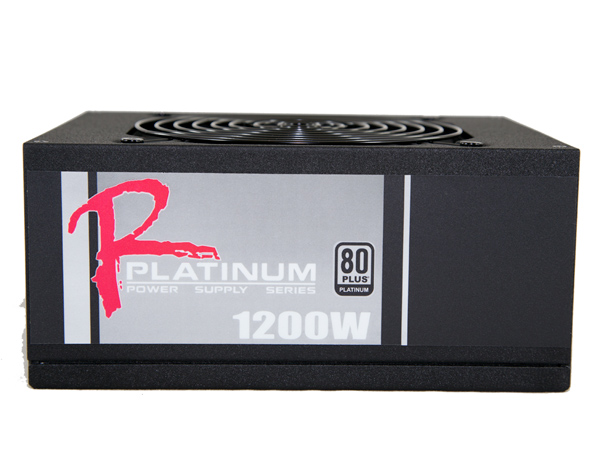

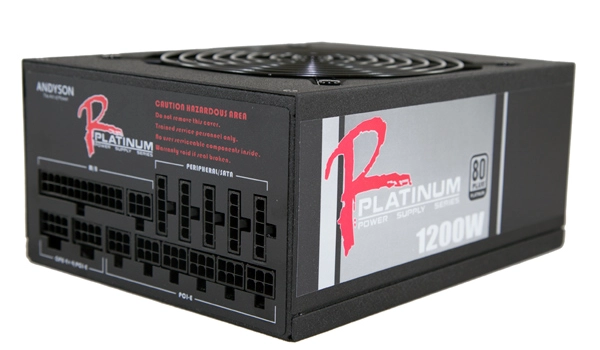

On one of the two sides, we find a small sticker with the product's model number. On the other, a significantly larger sticker provides some additional information (capacity description and efficiency certification).

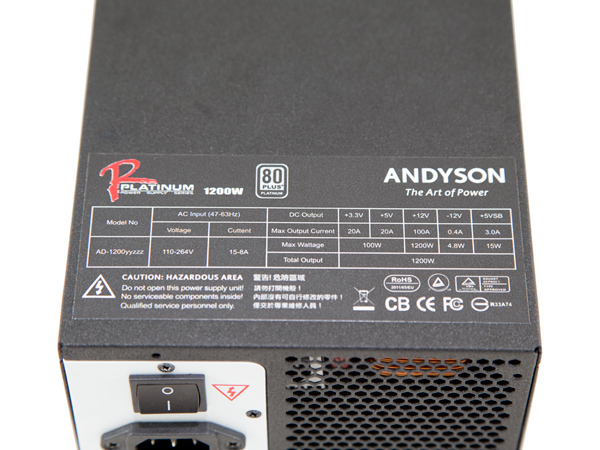

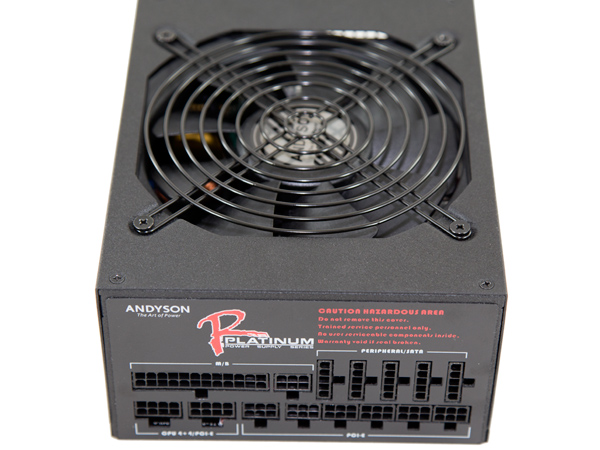

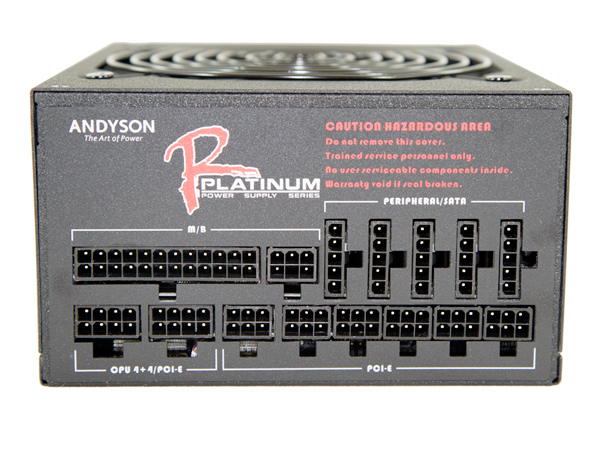

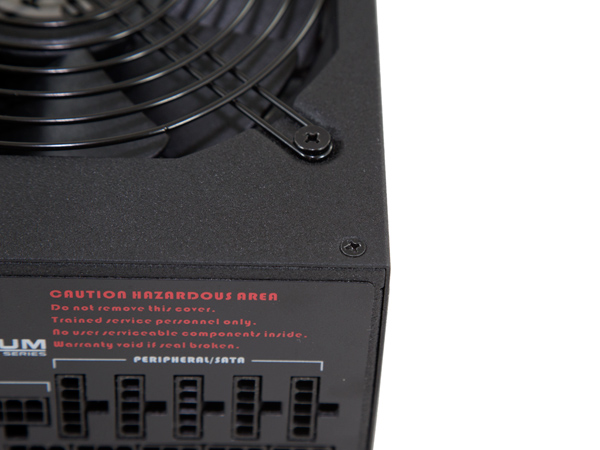

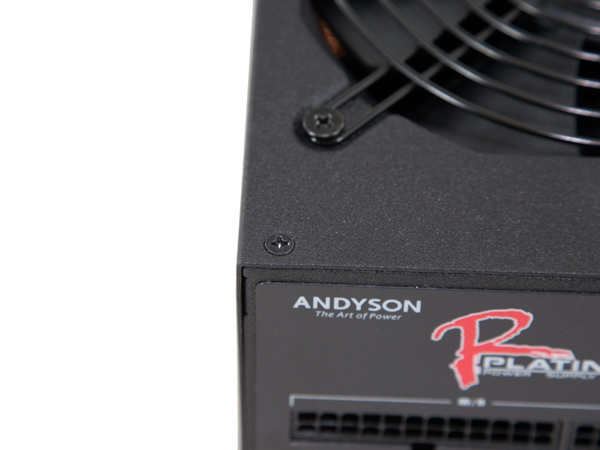

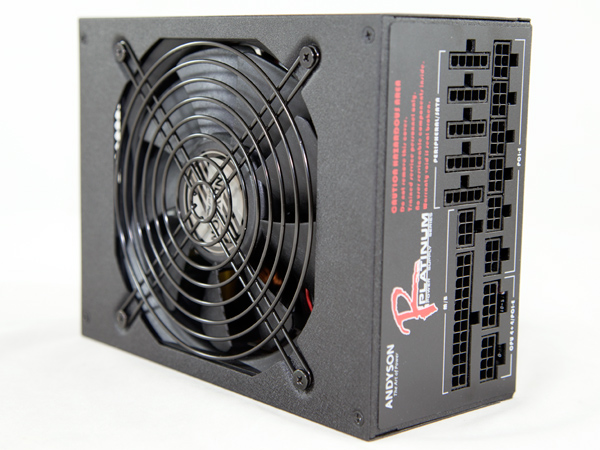

There is a power specification label that covers almost half of the bottom. The modular panel naturally hosts a lot of sockets, as 1200W PSUs need many connectors and cables by design. A high-capacity unit like this one would be practically useless if it didn't enable enough of them, since only a specific amount of amperage — and, consequently power — can pass through a cable and a connector, and the exact amount depends mostly on the gauges' diameters.

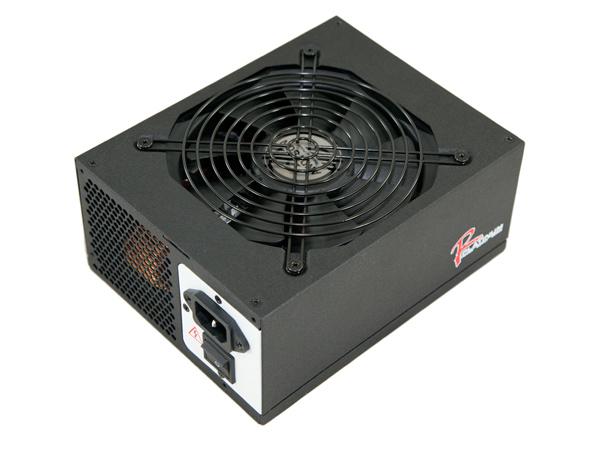

There's nothing too fancy on this unit, except the white part that hosts the pair of AC sockets and the on/off switch. The dimensions are substantial, which is understandable considering a 1.2kW PSU needs large components in order to generate its max power.

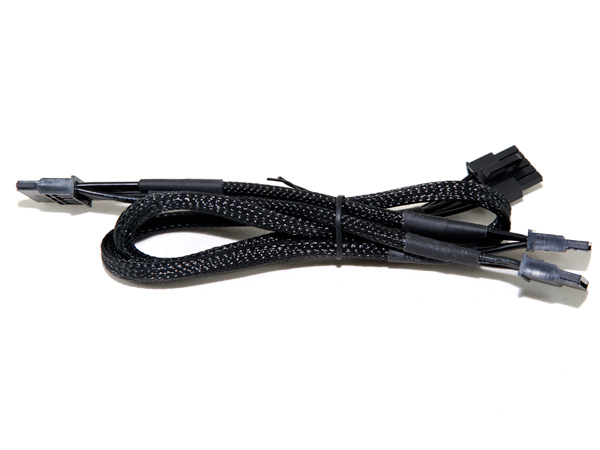

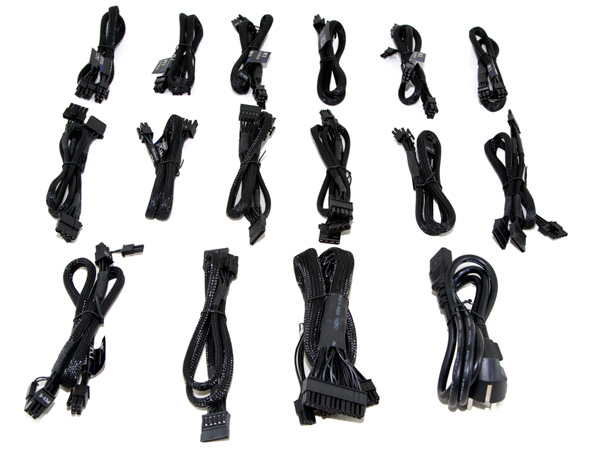

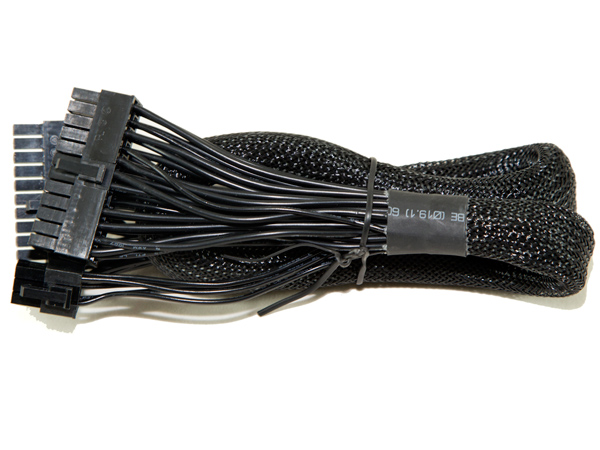

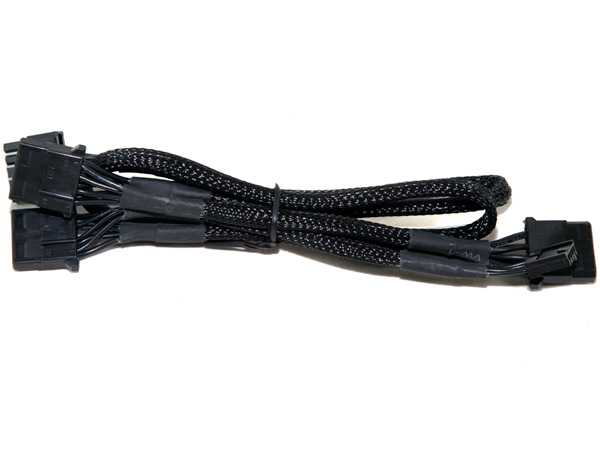

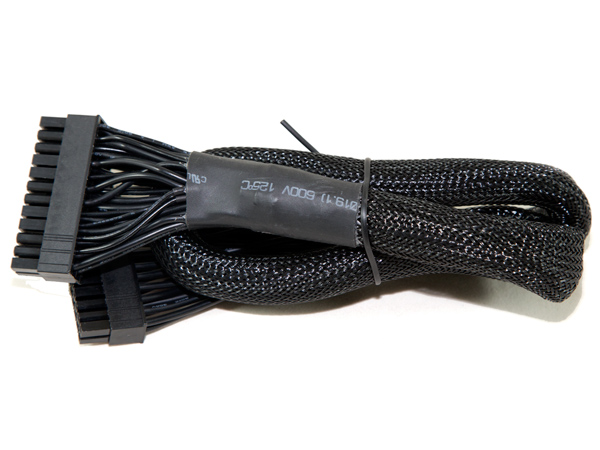

All of the cables are stealth, meaning that they have black wires that will be less visible inside a chassis with a black painted interior. Usually, in PSUs with high capacities and a lot of cables, manufacturers tend to use flat ribbon cables. But in this case, Andyson goes with the plain, round ones. We would have preferred to see flat cables because they block less airflow inside the chassis.

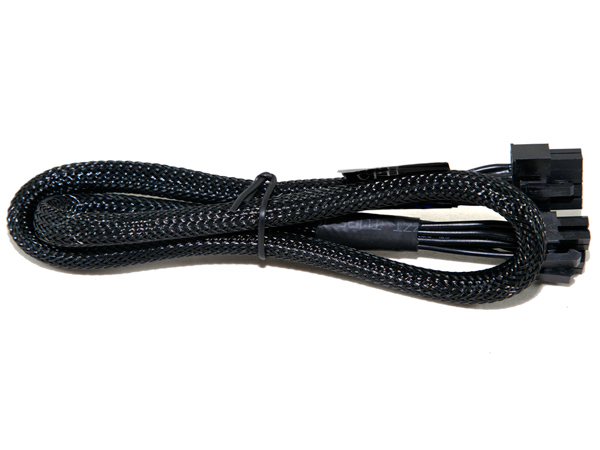

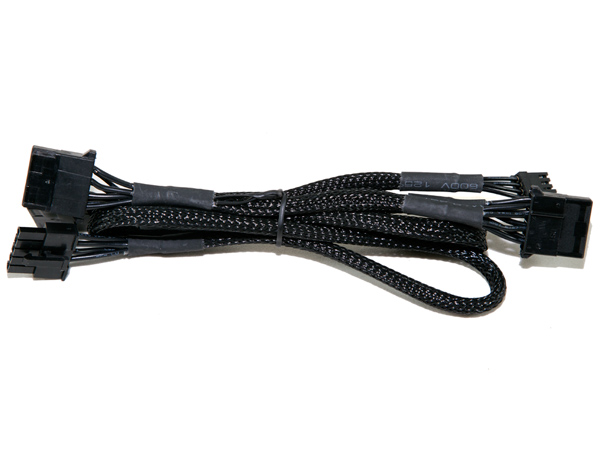

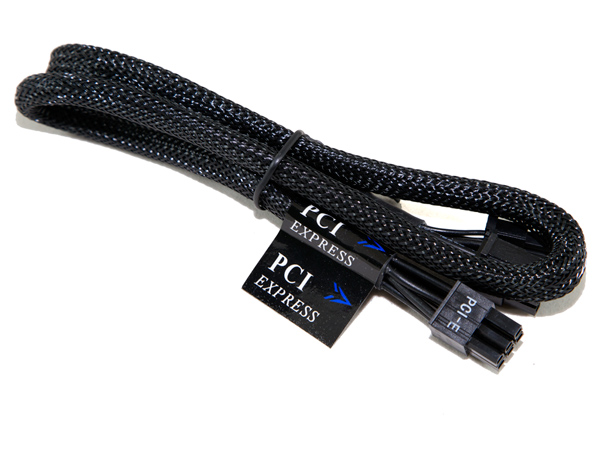

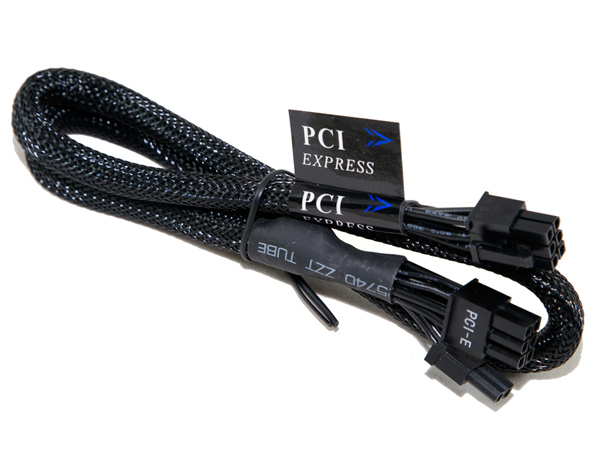

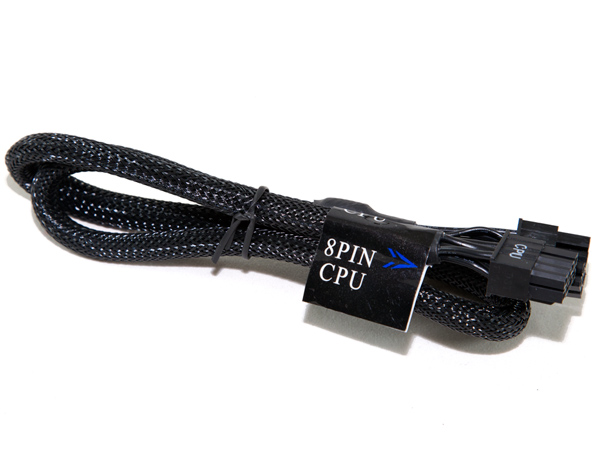

All of the cables are fully sleeved, though the sleeving quality isn't top-notch. That's somewhat commonplace, since high-quality sleeving can significantly increase production cost and affect the product's final price. Finally, all of the PCIe and EPS cables feature capacitors, which provide some extra ripple filtering.
