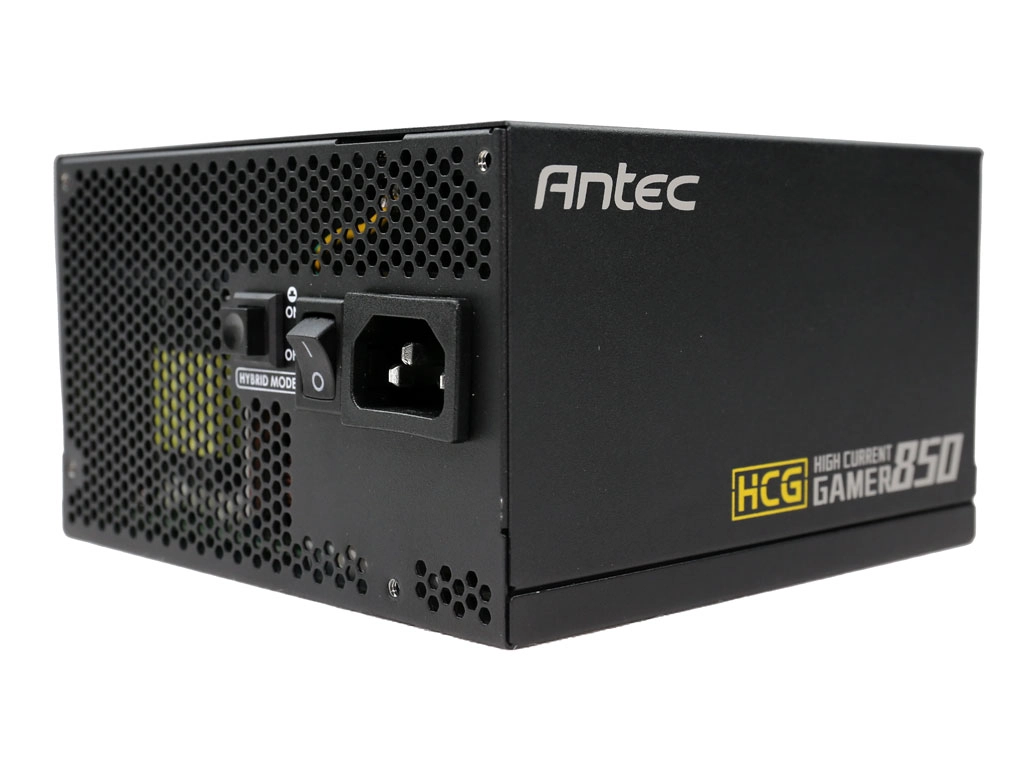

Cross-Load Tests & Infrared Images
Our cross-load tests are described in detail here.

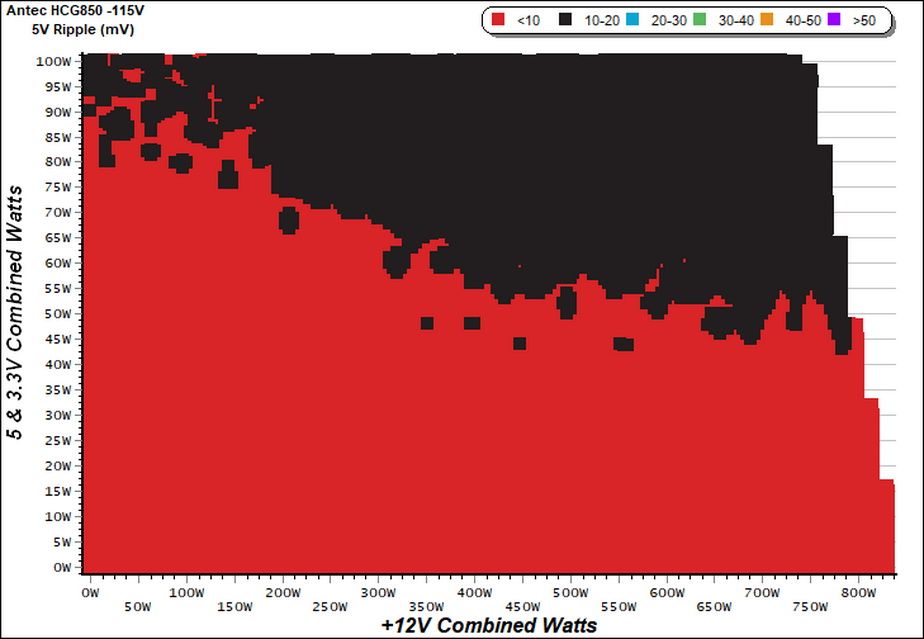

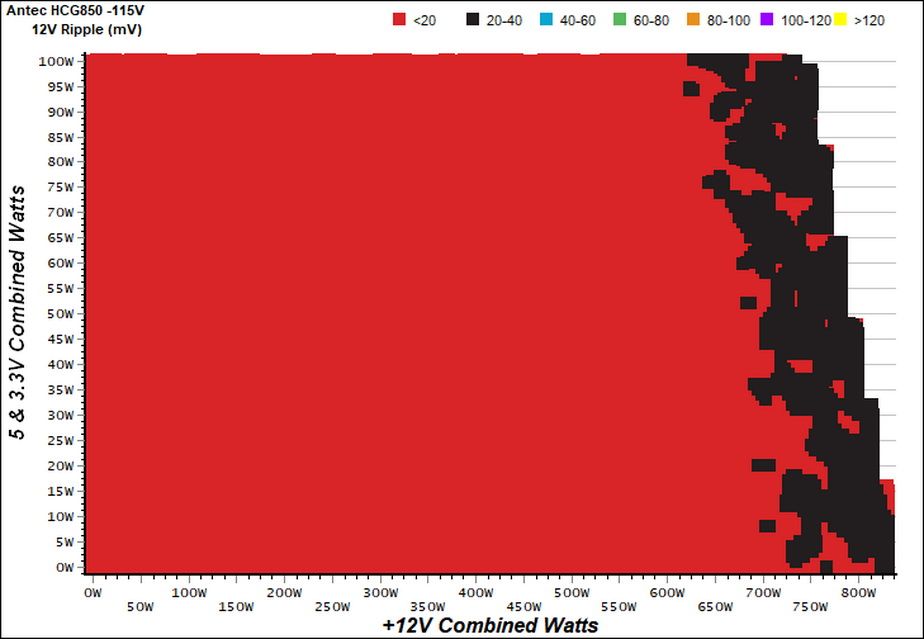

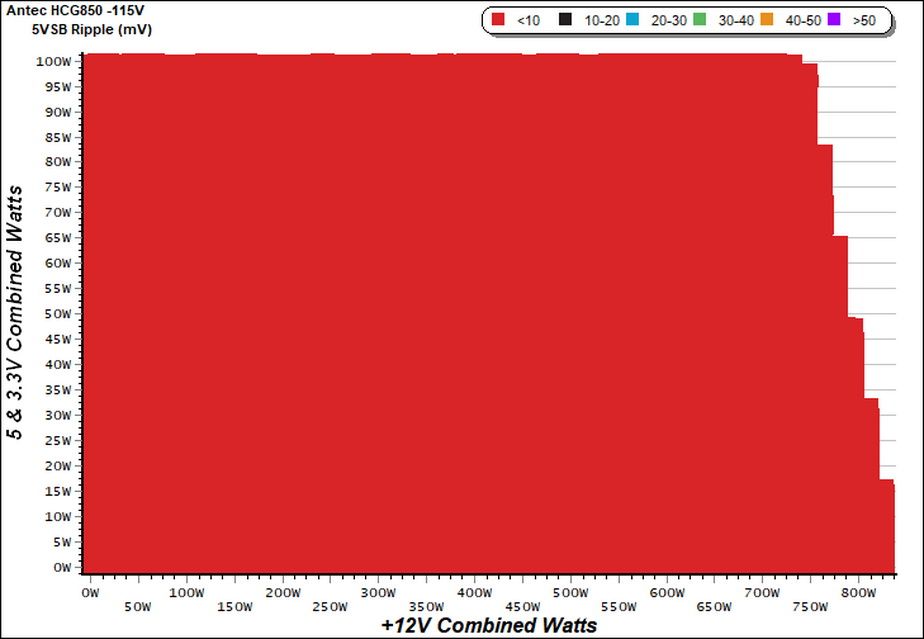

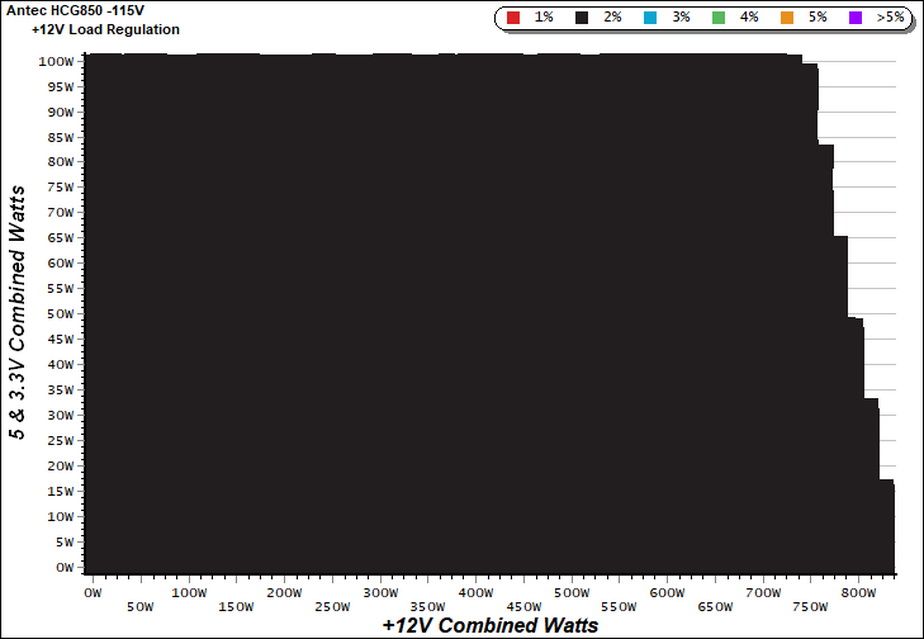

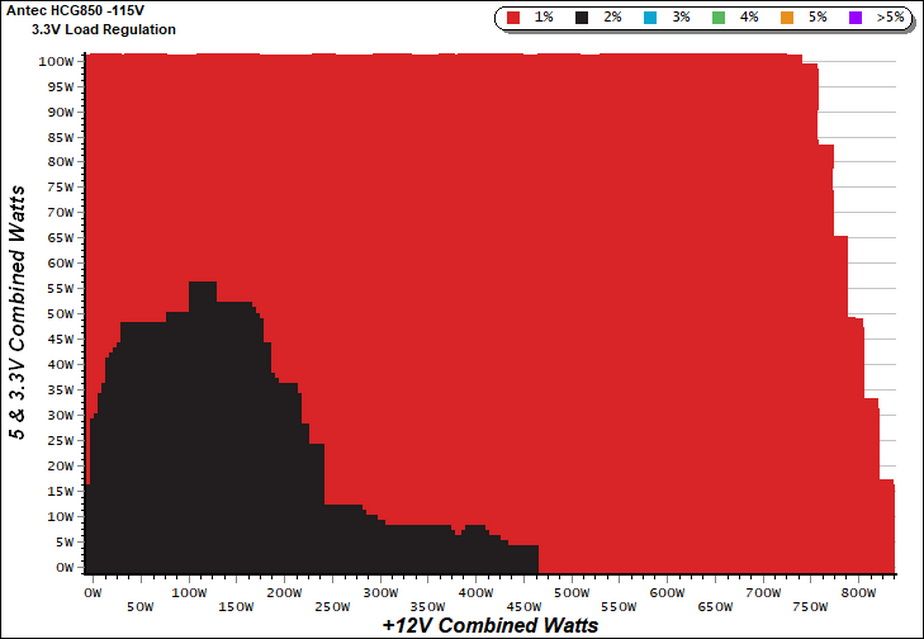

To generate the following charts, we set our loaders to auto mode through our custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V, and 3.3V rails. The load regulation deviations in each of the charts below were calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature was between at 30°C (86°F) to 32°C (89.6°F).

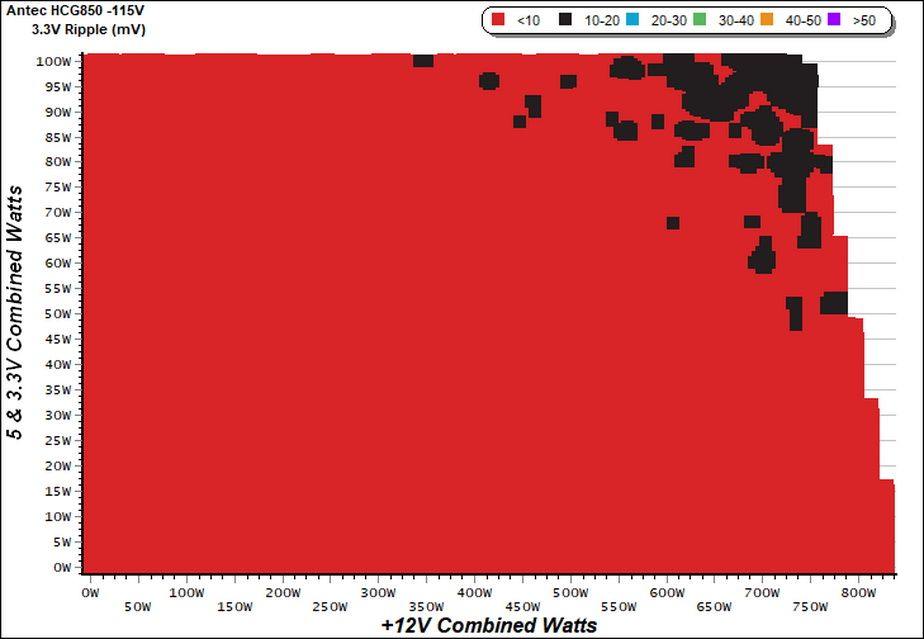

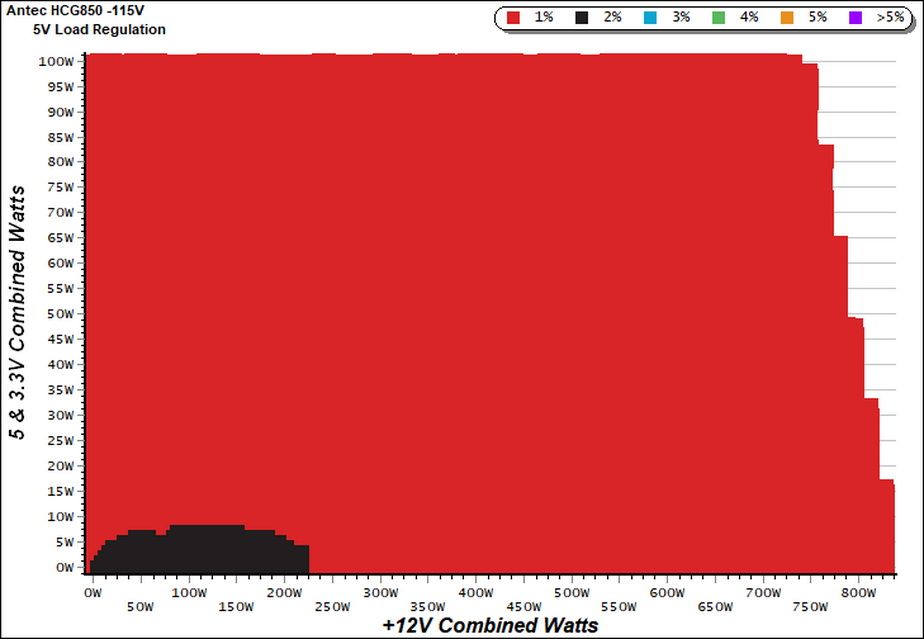

Load Regulation Charts
From 140W to around 480W load at +12V, and with the minor rails staying below 85W, the HCG850's efficiency lands between 90 and 92%.

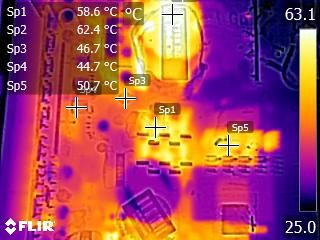

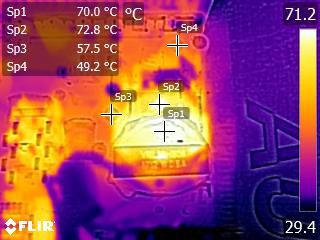

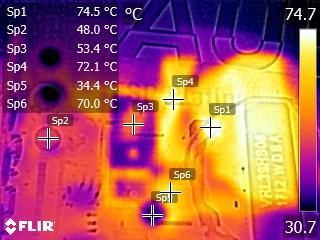

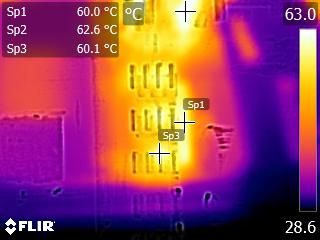

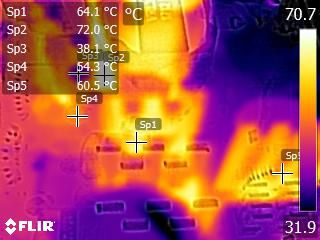

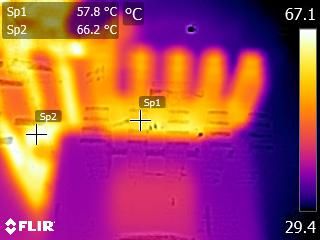

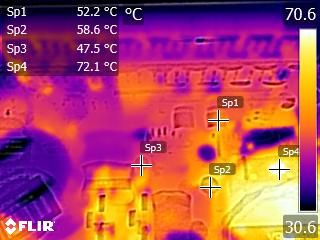

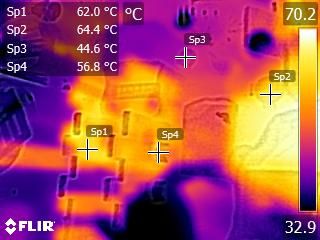

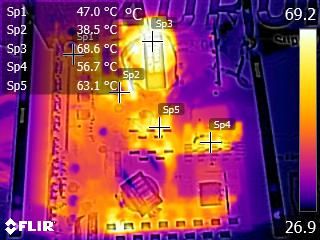

We applied half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with our modified FLIR E4 camera that delivers 320x240 IR resolution (76,800 pixels).
Temperatures inside the PSU are pretty low, making it possible to operate passively for quite a while.
MORE: Best Power Supplies
MORE: All Power Supply Content
