Be Quiet! Dark Power Pro 11 1200W PSU Review

Packaging, Contents, Exterior And Cabling

Packaging

The box is large and heavy, and unfortunately, it doesn't have a top handle. On the front, there's a photo of the PSU with the modular panel exposed on a dark background. In the front top-right corner, the 80 Plus Platinum badge is featured along with two icons that describe the modular design and the Silent Wings fan. On the back of the box, be quiet! offers useful information about the PSU's technical characteristics, including the power specifications, dimensions and a table listing all available cables and connectors and their length.

Contents

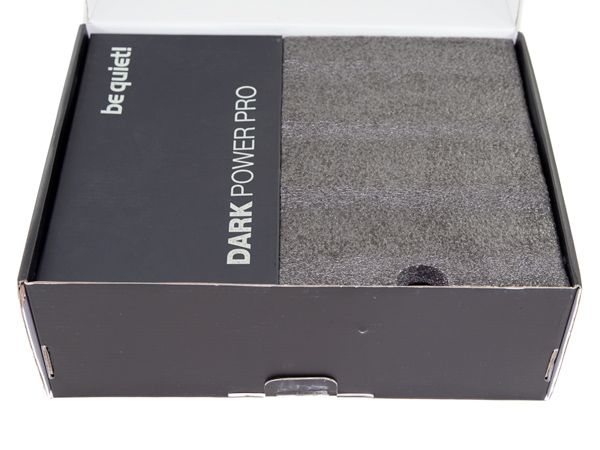

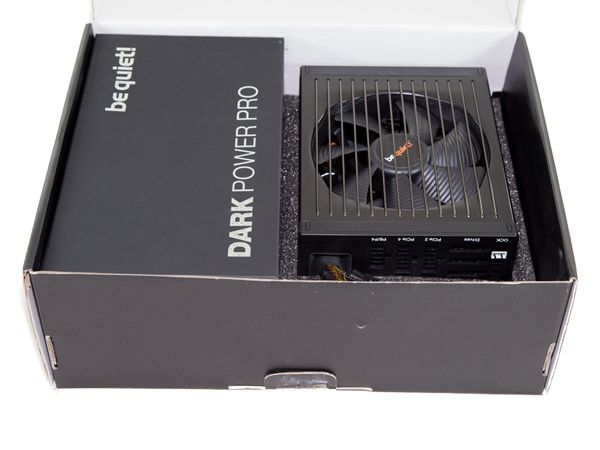

The contents are nicely arranged, and the PSU is fully protected by two pieces of packing foam that totally surrounds the unit.

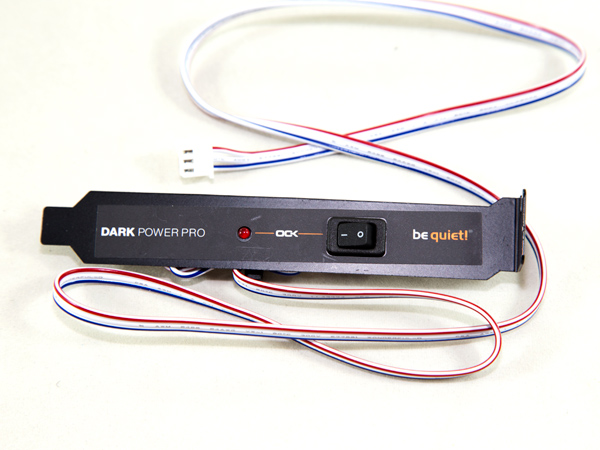

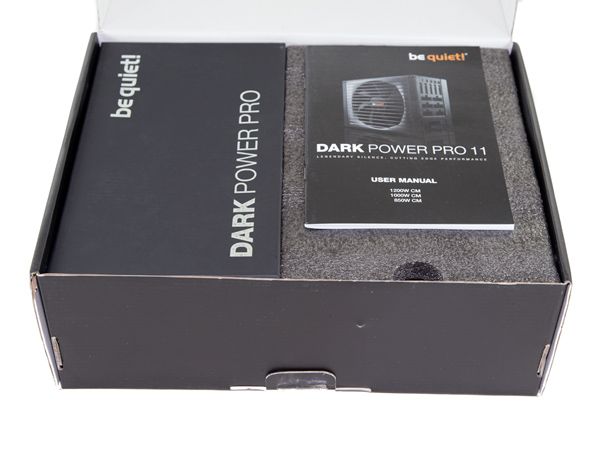

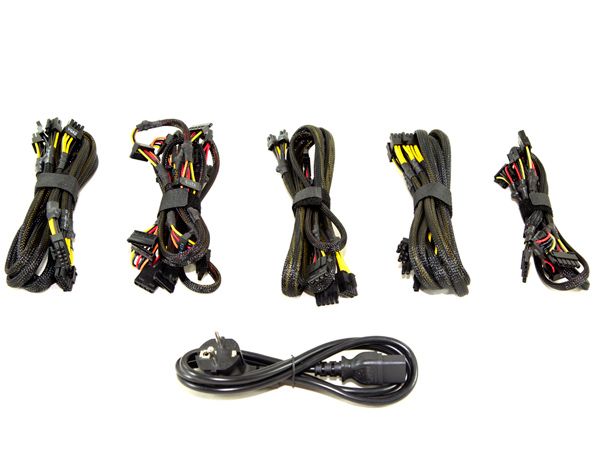

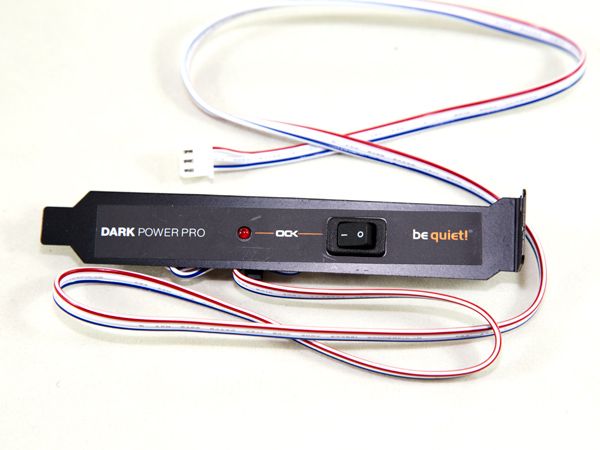

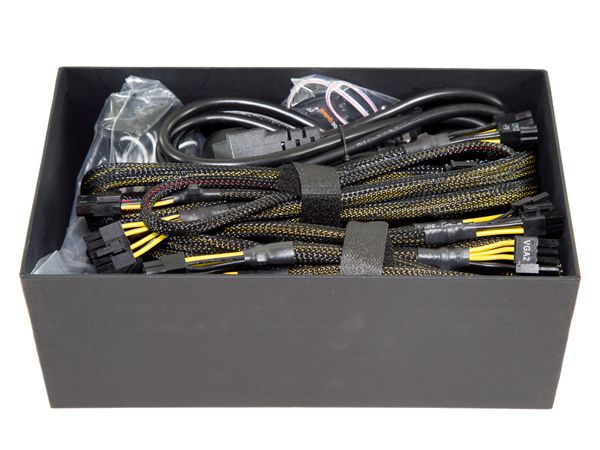

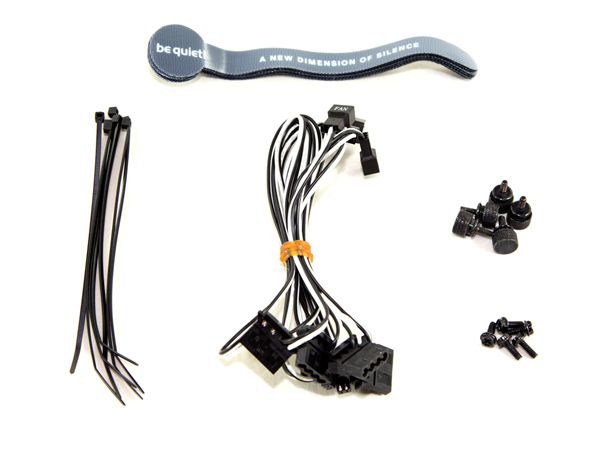

A smaller box stores a multitude of accessories that come with the PSU. The bundle includes a set of Velcro straps; some zip ties; two sets of screws, one of which includes thumb screws; the user manual, an AC power cord; the overclocking key bracket; and modular cables.

Exterior

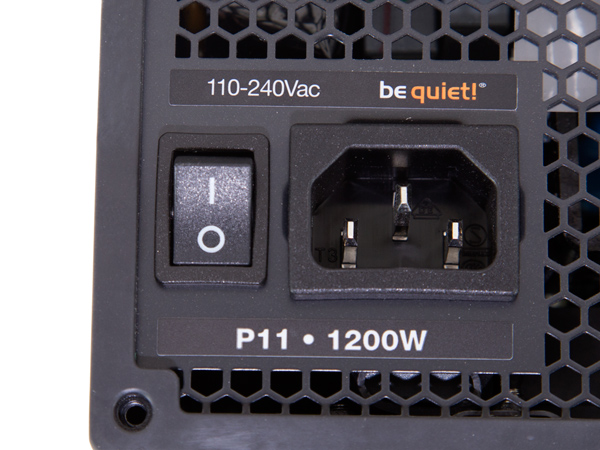

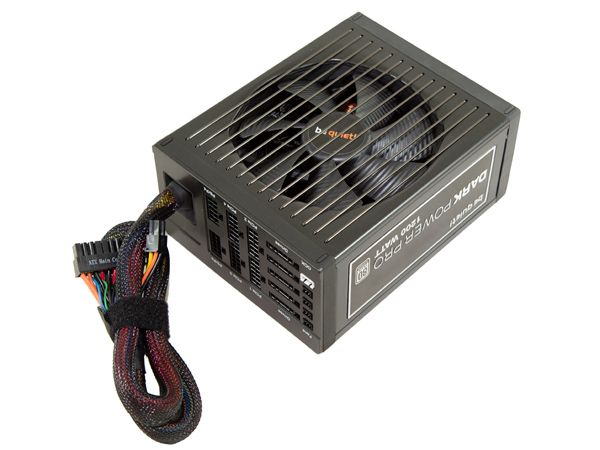

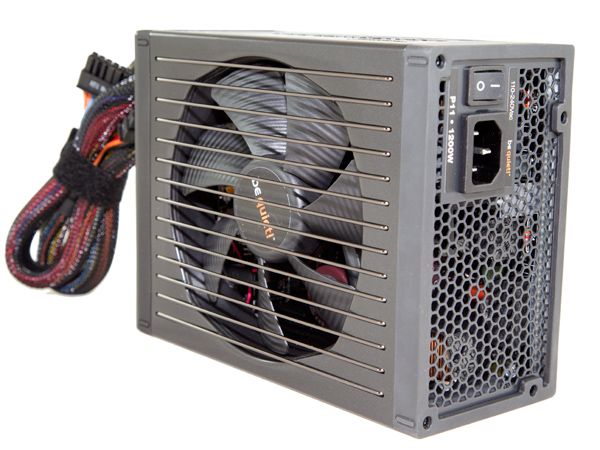

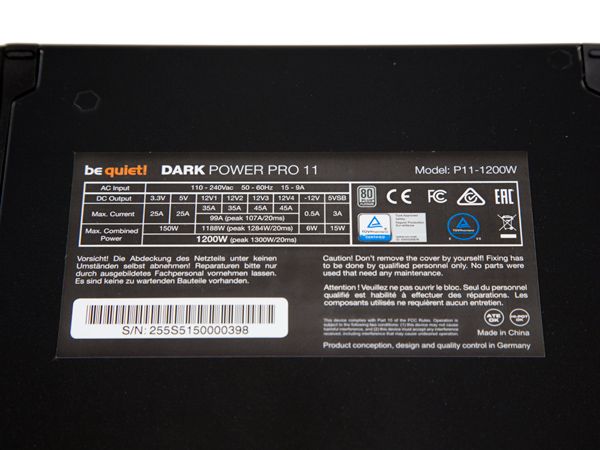

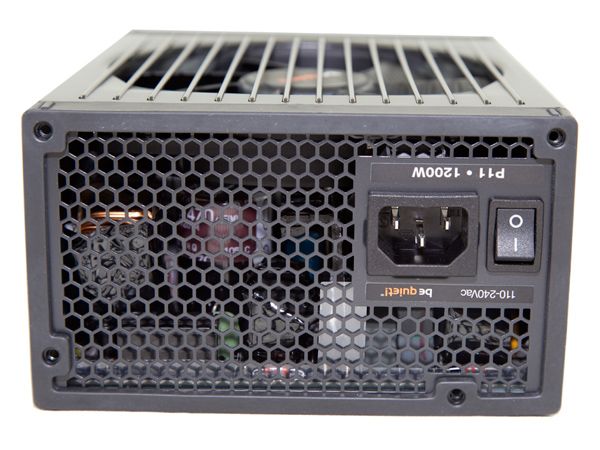

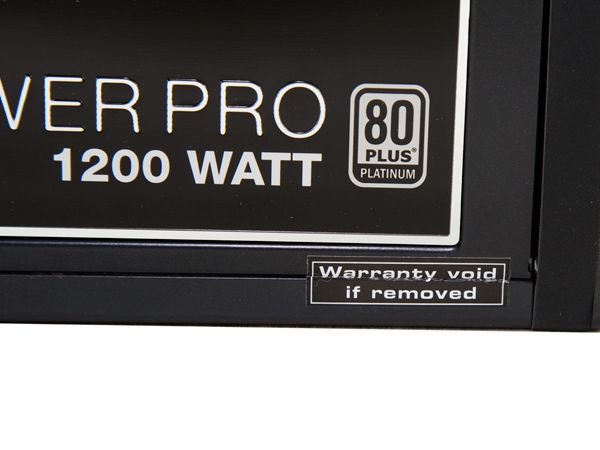

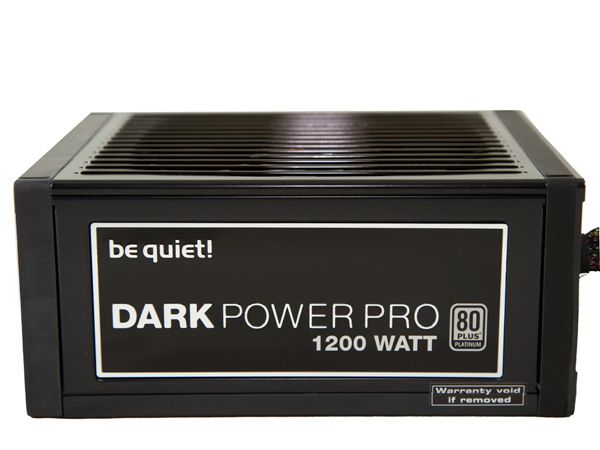

The finish and look of this unit is sleek and modern. That's expected, though, considering this is the company's flagship PSU. The only downside is that the glossy finish is a fingerprint magnet (which made our photo shoot process much more difficult). On the front, the small on/off switch is right beside the AC receptacle, while two labels on the sides show the unit's model number and the Platinum badge. The power specifications label is installed on the bottom of the PSU.

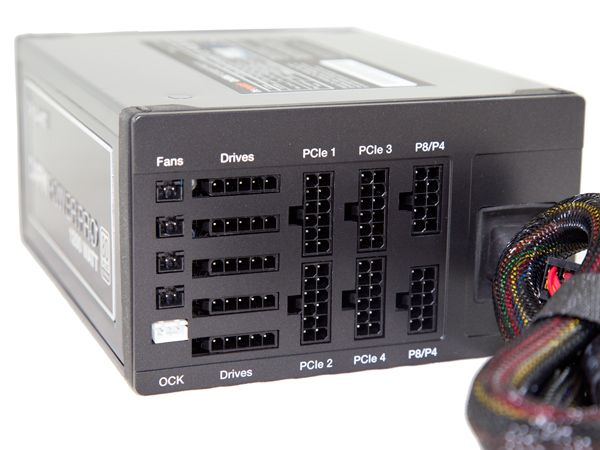

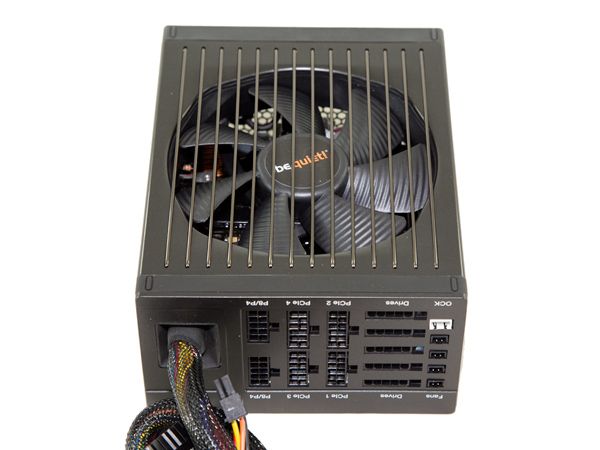

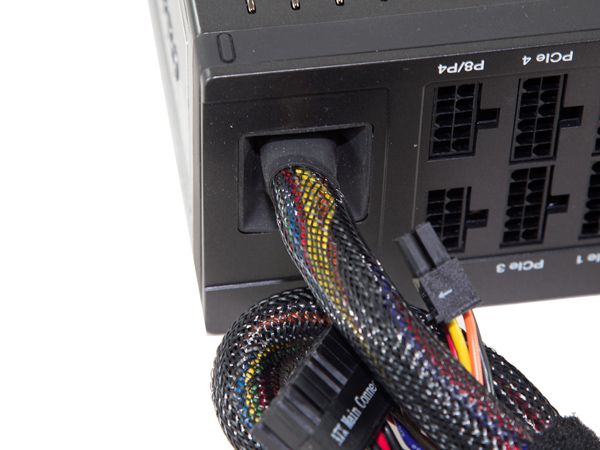

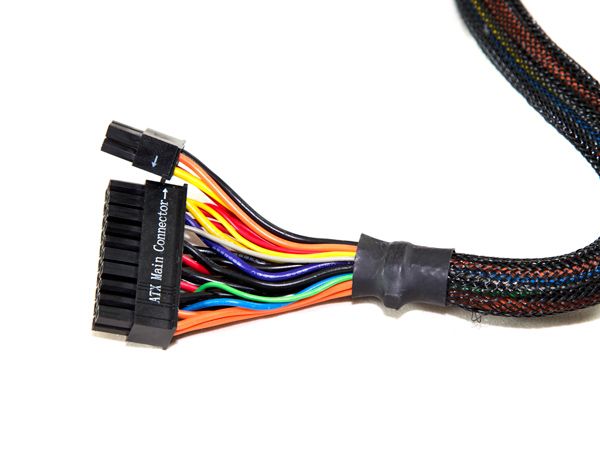

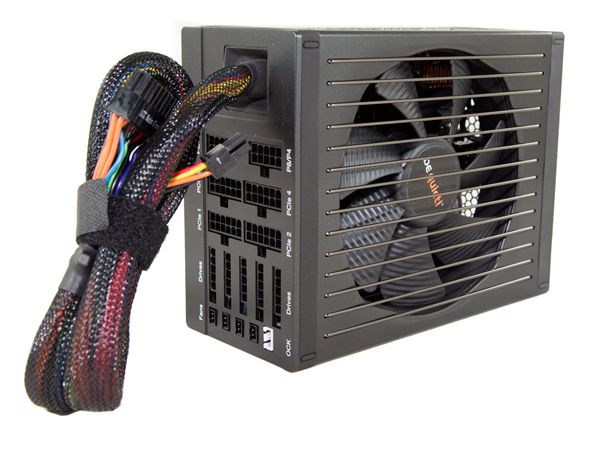

On the back of the unit, only the main ATX cable is native. The modular panel includes many sockets; the smaller black ones are destined for the fan cables, while the small white one is for the overclocking key.

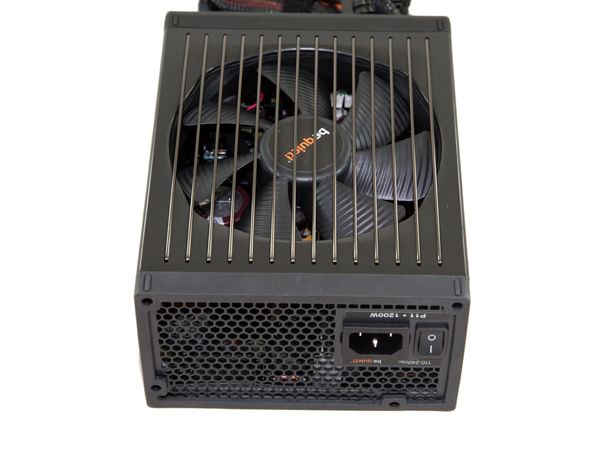

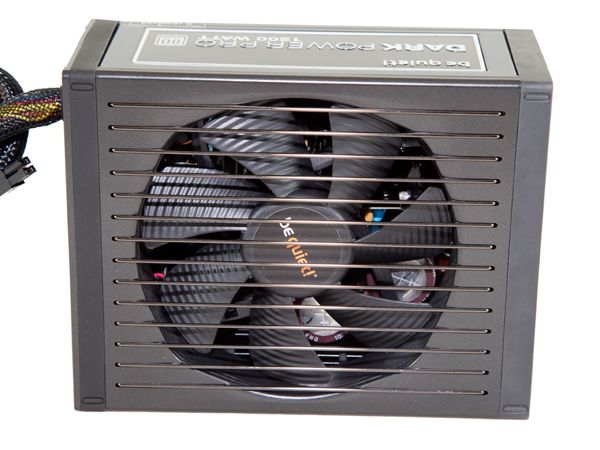

To further restrict noise output, be quiet! equips all Dark Power Pro units with rubber edges to absorb vibrations. The previous Dark Power Pro units also featured similar rubber edges. Finally, a typical fan grille for a be quiet! PSU definitely adds significantly to the unit's nice look.

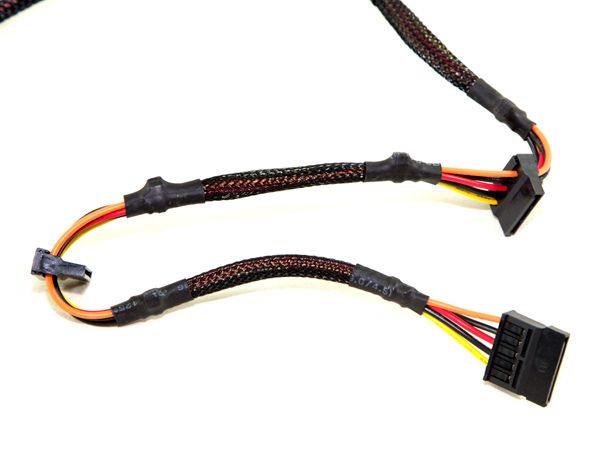

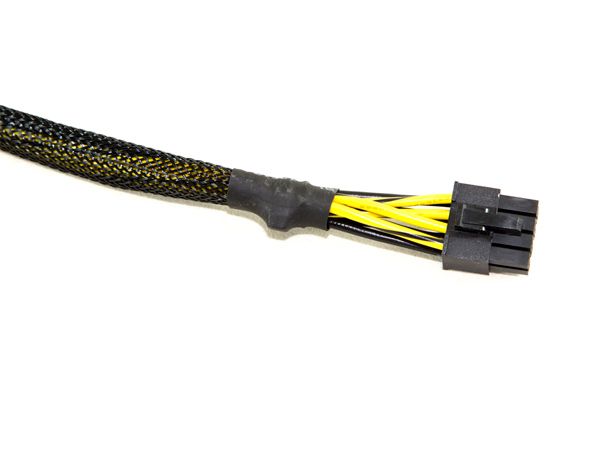

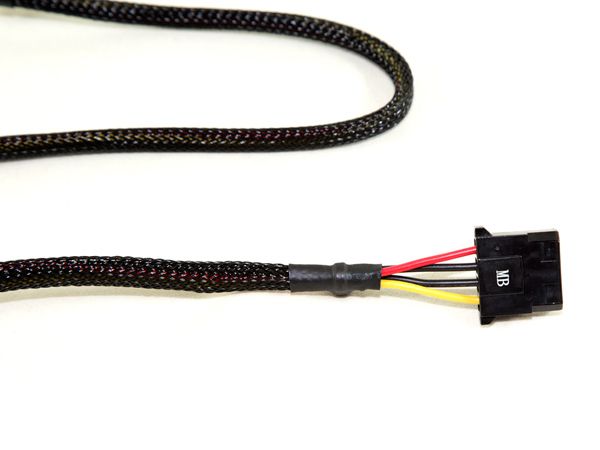

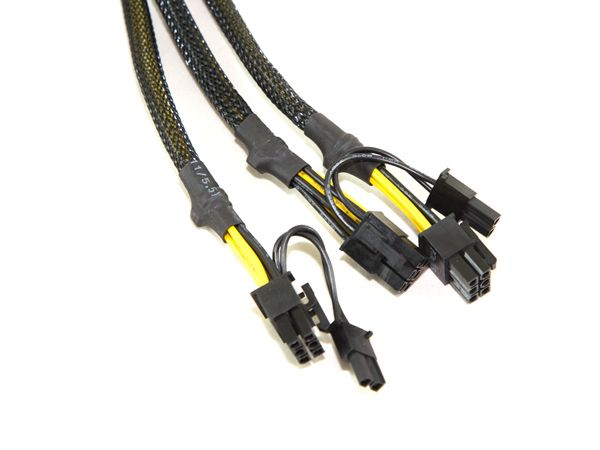

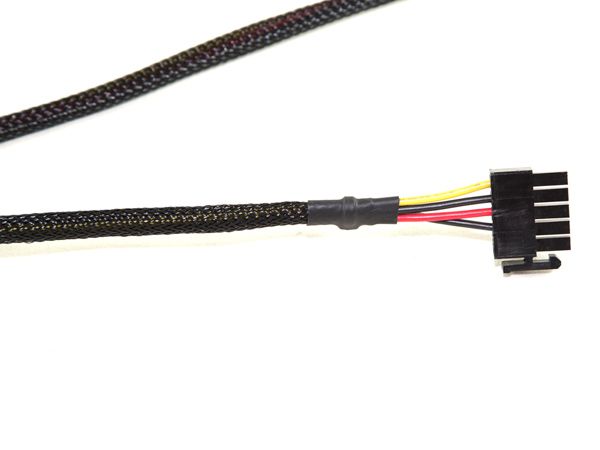

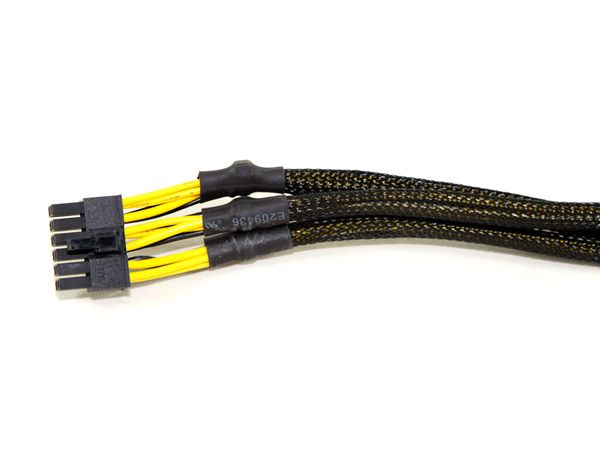

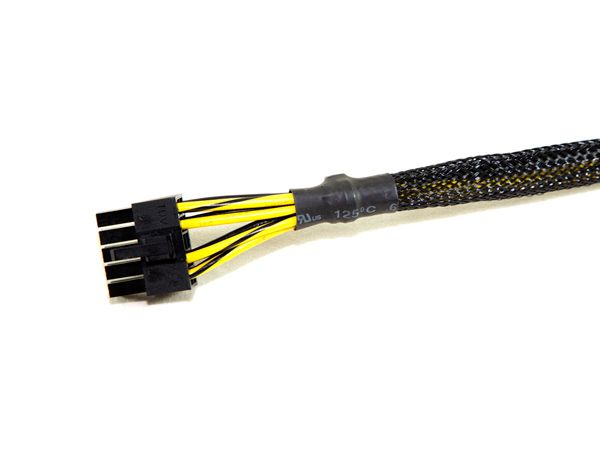

Cabling

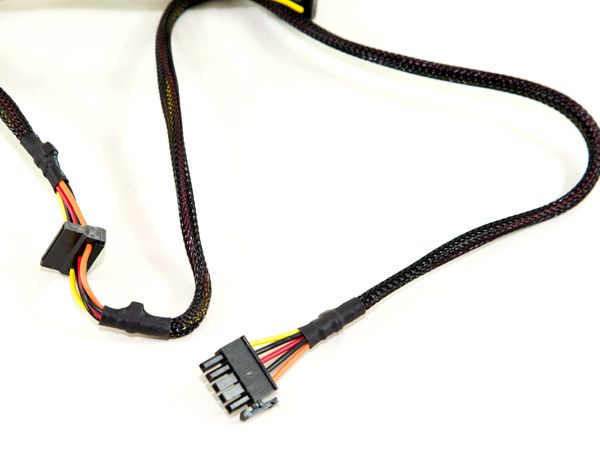

Strangely enough, be quiet! didn't use stealth cables, which is typical not only for PSUs in this price category but also for many lower-end units. In addition, some users might prefer flat modular cables to the usual round ones.

This thread is closed for comments
13 comments
    Your comment
  • Blueberries
    -12V Rail is very cool. These are really well built PSUs. I'd rather have a SeaSonic SS-1200 at this price range. I was expecting a better transient response change on the 5V rail, oh well.
  • chalabam
    Interesting, but way too much focus on PSUs over the kW, when the system builder marathons had peak overclocked power at 750w (and mostly 500w) for years now.

    And those computers spend most of the time running at 50/100 w, where even this unit efficiency is poor.

    Good review, anyway, but I think that Tomshardware should focus on units that readers are more probable to buy. That info is more useful.
  • chalabam
    1833643 said:
    -12V Rail is very cool. These are really well built PSUs. I'd rather have a SeaSonic SS-1200 at this price range. I was expecting a better transient response change on the 5V rail, oh well.


    Why you need 1200 W? What are you running?
  • Blueberries
    2081906 said:
    1833643 said:
    -12V Rail is very cool. These are really well built PSUs. I'd rather have a SeaSonic SS-1200 at this price range. I was expecting a better transient response change on the 5V rail, oh well.
    Why you need 1200 W? What are you running?


    Just because it's rated for 1200W doesn't mean you're drawing 1200W from the wall. The PSU in the article is a 1200W PSU so it makes sense to compare the two.

    2081906 said:
    Interesting, but way too much focus on PSUs over the kW, when the system builder marathons had peak overclocked power at 750w (and mostly 500w) for years now. And those computers spend most of the time running at 50/100 w, where even this unit efficiency is poor. Good review, anyway, but I think that Tomshardware should focus on units that readers are more probable to buy. That info is more useful.


    Power supplies are more efficient and put off less heat when they're not near their maximum load. If your system draws 500W you don't want to use a 550W PSU, you would be straining the PSU. SLI/CrossFire builds with multiple graphic processors can achieve a power draw of over 750W on the PCI Express rails alone!

    I don't have a use for 1200W, but that wouldn't stop me from paying extra for better components, efficiency, and reduced noise.
  • Aris_Mp
    indeed a PSU's peak efficiency is with typical loads (40-50% of its max rated capacity). However you should also take into account how long your system operates at full load. For example if your system is mostly working at idle or at low utilization then you will probably have more gain with a lower capacity PSU rather than with a high capacity one. On the other hand at high loads the stronger PSU will be closer to its sweet spot, having higher efficiency.
  • Blueberries
    Quote:
    indeed a PSU's peak efficiency is with typical loads (40-50% of its max rated capacity). However you should also take into account how long your system operates at full load. For example if your system is mostly working at idle or at low utilization then you will probably have more gain with a lower capacity PSU rather than with a high capacity one. On the other hand at high loads the stronger PSU will be closer to its sweet spot, having higher efficiency.


    It is absolutely true that power supplies are usually at their best efficiency around 50% of their maximum load, but that doesn't necessarily mean a smaller PSU is better. An AX1500 can peak at ~94% 12V efficiency, which is really good, but even at 300W it's still producing 91% efficiency, and over 90% at 150W.
  • Aris_Mp
    The AX1500i is a very special case :)
  • Blueberries
    1903369 said:
    The AX1500i is a very special case :)


    Be that as it may it's important to look at all of the factors. Amperage, Ripple, Efficiency, Hold-up, etc. Most important of all of course is build integrity and architecture. The best PSUs do have high loads, because well, they can handle it. They'll also last longer at any load.

    An average load for an i7 user with a single high-powered video card is ~350W (gaming), a 980ti under maximum stress can be a 300-350W draw alone, bringing that up to a potential ~550W. In this scenario an RM750X is gold rated and will perform better than a Supernova P2 650W which is platinum rated. Both are extraordinary power supplies and I'd use either one. My point is, maximum load shouldn't matter. If a power supply meets more than your demands consider that a good thing. Most people aren't going to buy these PSUs unless they have a use for them because there's other options available.

    The Dark Power Pro 11 in this article retains >90% efficiency from 200W-800W, which is a wide range, and your system load would want to fall between that range to be in the "sweet spot." A smaller PSU has a much smaller "sweet spot," but it could prove to be better.
  • mctylr
    Quote:
    Quote:
    indeed a PSU's peak efficiency is with typical loads (40-50% of its max rated capacity). However you should also take into account how long your system operates at full load.
    It is absolutely true that power supplies are usually at their best efficiency around 50% of their maximum load, but that doesn't necessarily mean a smaller PSU is better.


    All switching power supplies decrease their efficiencies as their load decreases, typically starting at or near 50% load and often rapidly decreasing efficiencies as their load falls below 20%.

    For desktop systems, unless you run a distributed computation project in the background, 80-95% of the time the system is powered on, the system is idle or near-idle. In my limited testing a desktop system likely draws 50-100W at idle, so with a 1000W power supply it's operating at 5-10% load, and thus at its worst efficiencies.

    With Haswell and newer consumer Intel's CPUs maxing out at 145W (I believe) at stock frequencies, and most video cards needing under 200-250 W maximum (980Ti 250W), a system with a single GPU rarely needs more then 600W.

    Specifying the PS for 50% load (for maximum efficiency) to match the maximum load the system is actually capable of drawing is a poor efficiency trade-off, as the system will spend the majority of time time at under 20% utilization, at its worst efficiency, that the few percentage points of increased efficiency (at 50% load versus moderately higher loads) will result in a net lost.

    Edited: Clarify first paragraph
  • Blueberries
    436284 said:
    Quote:
    Quote:
    indeed a PSU's peak efficiency is with typical loads (40-50% of its max rated capacity). However you should also take into account how long your system operates at full load.
    It is absolutely true that power supplies are usually at their best efficiency around 50% of their maximum load, but that doesn't necessarily mean a smaller PSU is better.
    All switching power supplies decrease their efficiencies as their load decreases, typically starting at or near 50% load and often rapidly decreasing efficiencies as their load falls below 20%. For desktop systems, unless you run a distributed computation project in the background, 80-95% of the time the system is powered on, the system is idle or near-idle. In my limited testing a desktop system likely draws 50-100W at idle, so with a 1000W power supply it's operating at 5-10% load, and thus at its worst efficiencies. With Haswell and newer consumer Intel's CPUs maxing out at 145W (I believe) at stock frequencies, and most video cards needing under 200-250 W maximum (980Ti 250W), a system with a single GPU rarely needs more then 600W. Specifying the PS for 50% load (for maximum efficiency) to match the maximum load the system is actually capable of drawing is a poor efficiency trade-off, as the system will spend the majority of time time at under 20% utilization, at its worst efficiency, that the few percentage points of increased efficiency (at 50% load versus moderately higher loads) will result in a net lost. Edited: Clarify first paragraph


    Yes but titanium efficiency PSUs retain 90% efficiency at a 10% load and platinum achieve at least 90% efficiency at 20% load. See: https://en.wikipedia.org/wiki/80_Plus

    If the components are good they'll be able to handle a large load. There's no such thing as a good PSU that can't handle a large load. Most platinum PSUs can handle well over what they're rated for.
  • Blueberries
    Remember that efficiency is percentage, so it's much better to be efficient at load than at idle.

    90% Efficiency at 120W idle = 12W loss.
    90% Efficiency at 400W load = 40W loss.
  • photonboy
    Blueberries,
    Good point, though I doubt most people will bother calculating the big picture which would be an AVERAGE of how often its spent at the different load levels.

    My rule of thumb is aim for about 60% max load while also investing the QUALITY of the power supply.
  • Blueberries
    Yes, the build quality is the foremost important attribute. With quality also comes a greater maximum load, typically. Your MAXIMUM load should be ~50% of the power supply's maximum load ideally, because that's when you're drawing the most power and it will have the greatest effect.

    But as you can see in this article, the difference in efficiency from 200W to 800W is less than 1%. So any load between that range will see a delta loss of 8W or less. This is why maximum load is less important for high-efficiency PSUs.
