Overclocking: Can Sandy Bridge-E Be Made More Efficient?

Features
By Achim Roos, Patrick Schmid
published

Intel's six-core processors are fast, but enthusiasts almost always want to push unlocked multipliers harder. Core i7-3960X can easily exceed 4 GHz, but what happens to power efficiency when clock rates go up? Sandy Bridge-E demonstrates weaknesses there.

Efficiency: Multi-Threaded (All Cores Active)

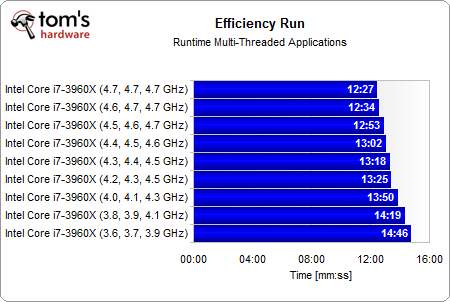

Our collection of multi-threaded applications also enjoy a roughly 16% speed-up in going from stock clock rates to our highest stable frequency.

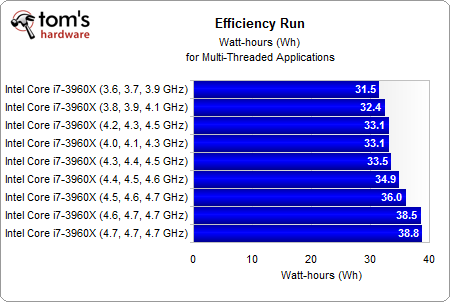

The total energy required climbed by about 31%, though. That's not a very good trade-off for the extra speed, if you're concerned about the relationship between both figures.

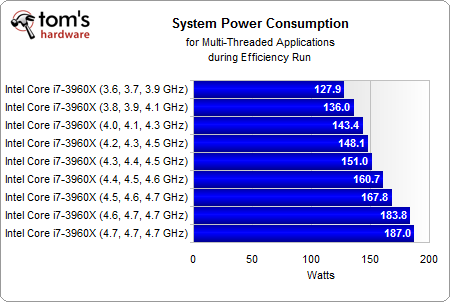

As a result of these more demanding benchmarks utilizing six cores instead of one, total energy required is, not surprisingly, higher than what we saw in the single-threaded suite. It's especially important to notice that power consumption climbed by 19% due to overclocking, which is more than performance improved.
