Enermax MaxTytan 1250W PSU Review
Why you can trust Tom's Hardware
Cross-Load Tests & Infrared Images
Our cross-load tests are described in detail here.
To generate the following charts, we set our loaders to auto mode through our custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V, and 3.3V rails. The load regulation deviations in each of the charts below were calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature was between at 30°C (86°F) to 32°C (89.6°F).

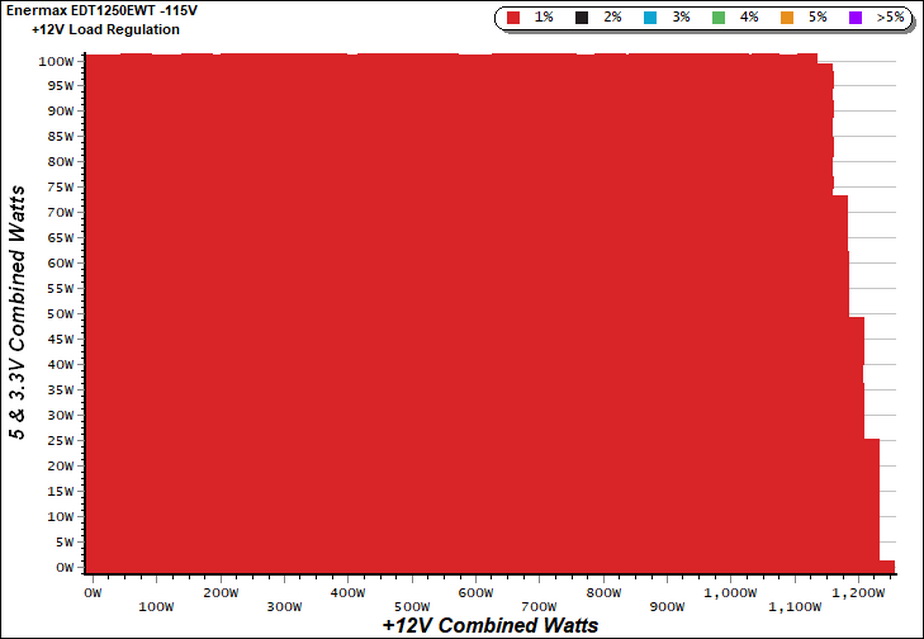

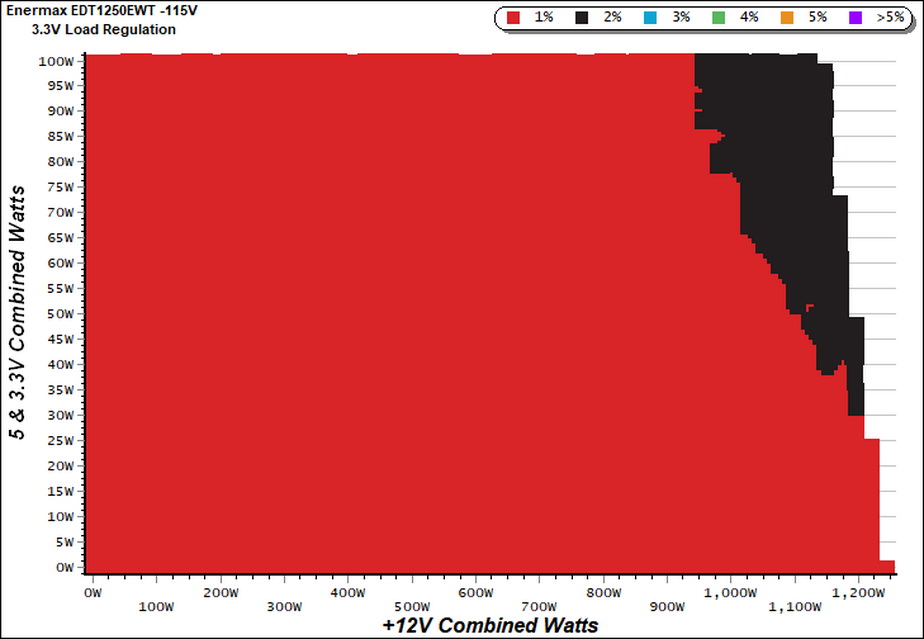

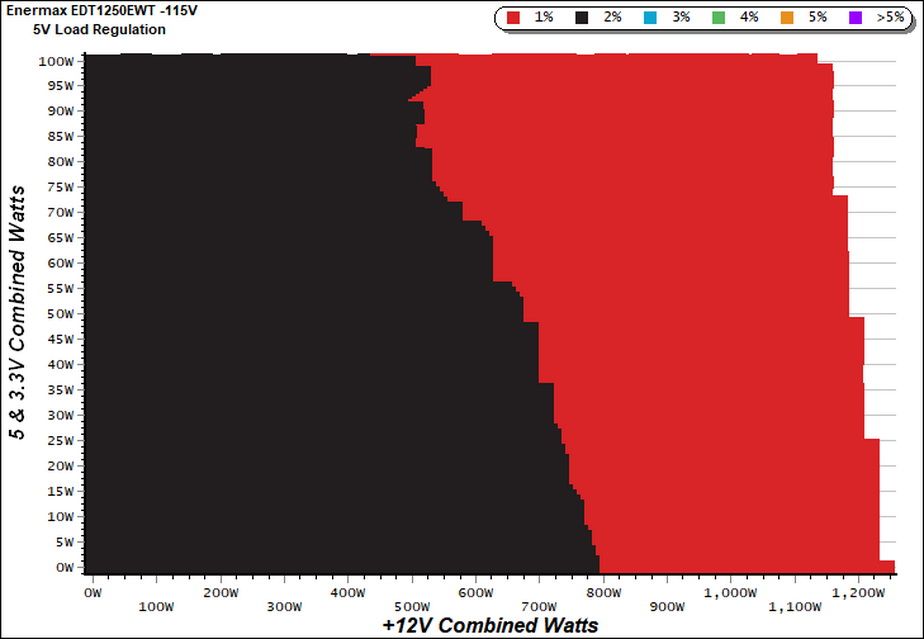

Load Regulation Charts
Efficiency Chart
It would be nice if there was an area in our plot where efficiency exceeded 94%. That's usually the case with PSUs sporting 80 PLUS Titanium and ETA-A+ certifications. However, the EDT1250EWT can't quite get there. For much of its operational range, though, this unit does deliver between 92%-94% efficiency.

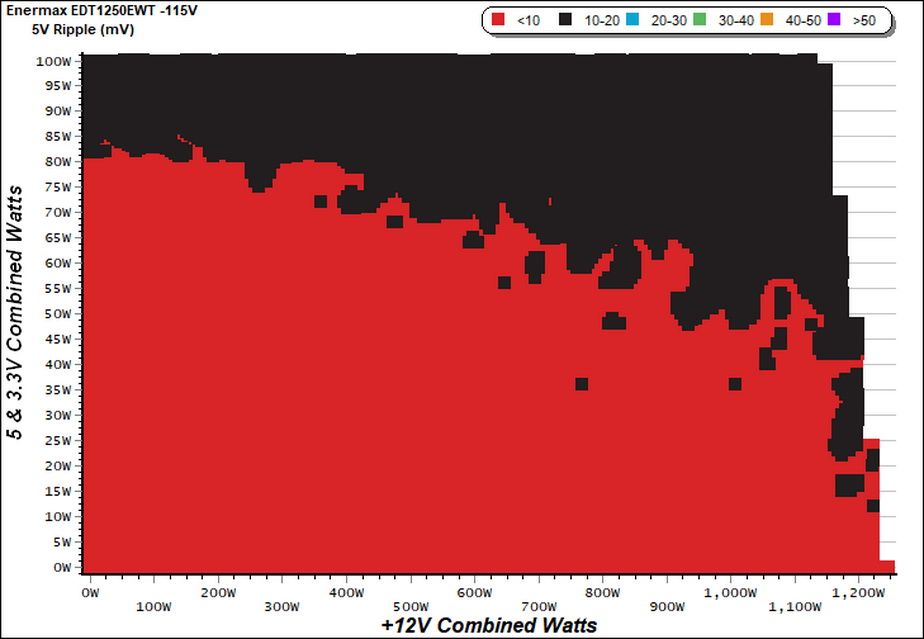

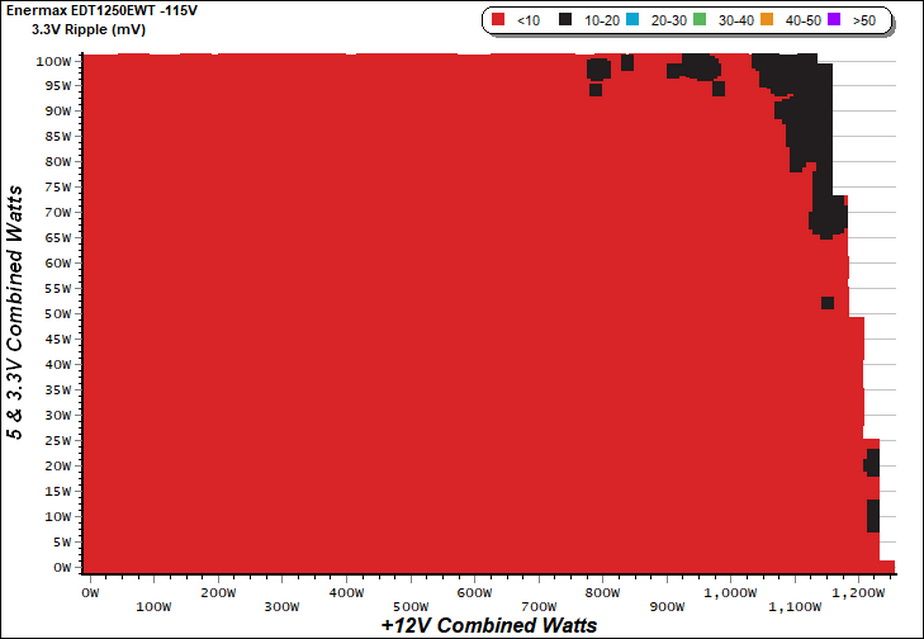

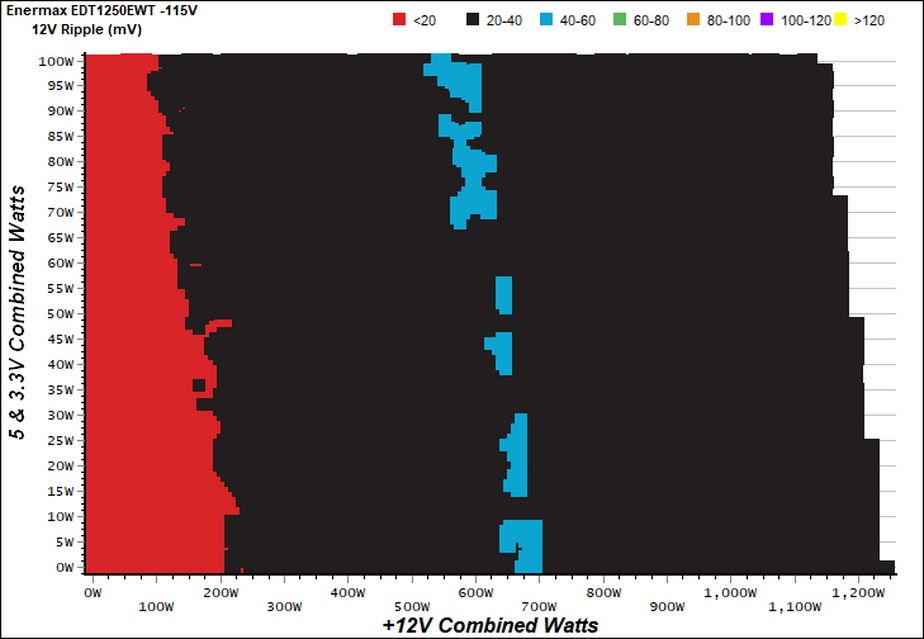

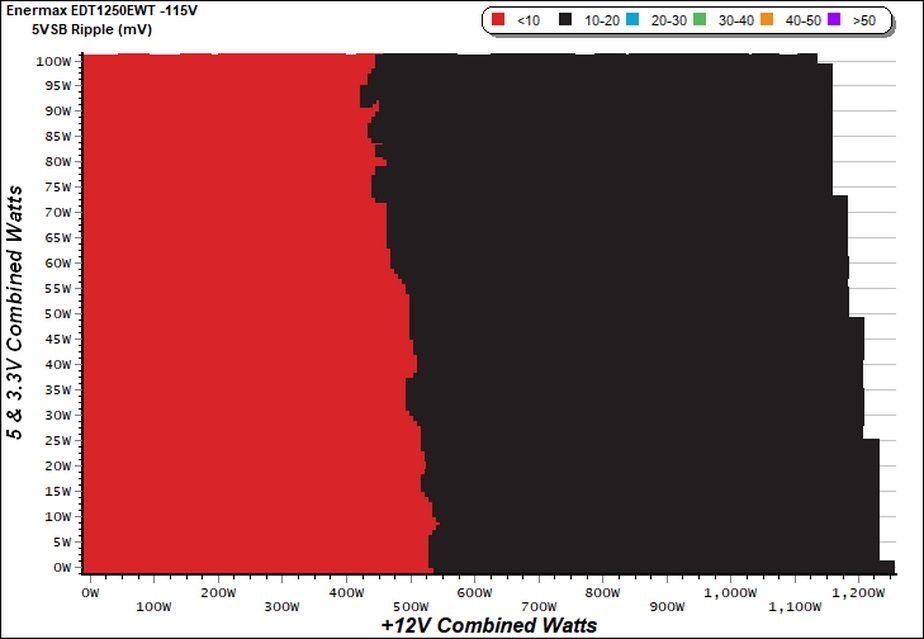

Ripple Charts

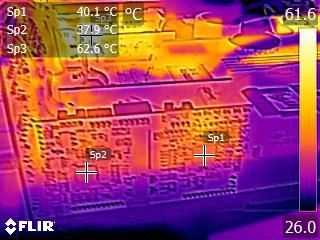

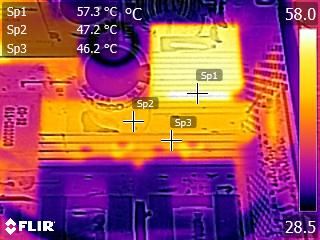

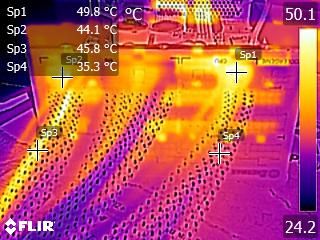

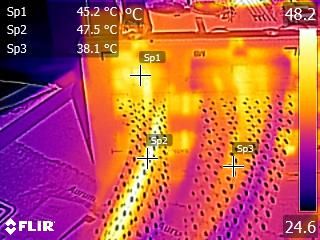

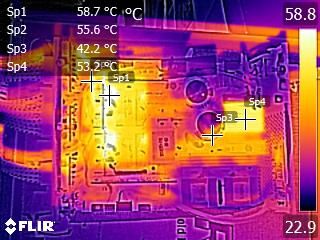

Infrared Images

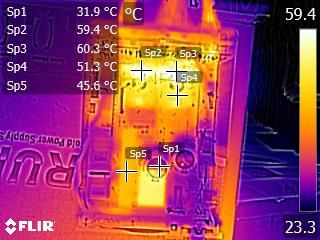

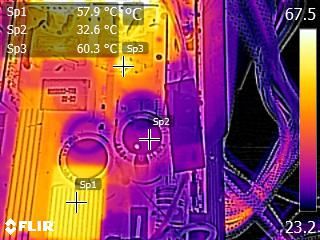

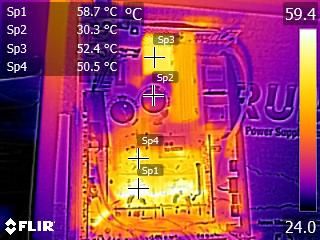

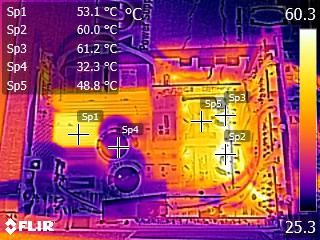

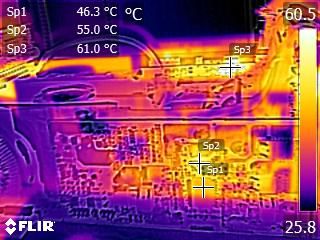

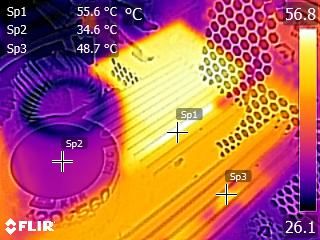

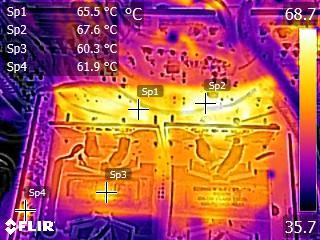

We applied half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with our modified FLIR E4 camera that delivers 320x240 IR resolution (76,800 pixels).
The temperatures inside of Enermax's PSU are normal, given its high capacity. Thanks to increased efficiency, energy losses are restricted, keeping thermal loads low.
MORE: Best Power Supplies
MORE: How We Test Power Supplies
MORE: All Power Supply Content
Current page: Cross-Load Tests & Infrared Images
Prev Page Protection Features Next Page Transient Response TestsStay On the Cutting Edge: Get the Tom's Hardware Newsletter
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.
Aris Mpitziopoulos is a contributing editor at Tom's Hardware, covering PSUs.
