Performance Rating
Overall performance is high.
Noise Rating

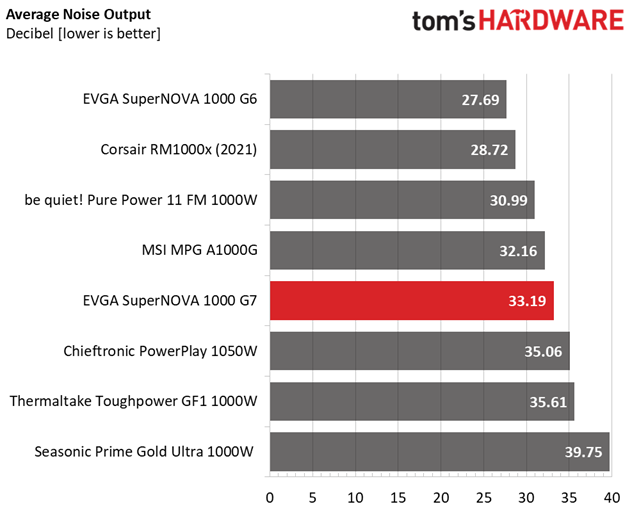

The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).
With a larger PCB and fan, this platform could have a lower overall noise output.
Efficiency Rating
The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature close to 30 degrees Celsius.
The 1000 G7 is highly efficient and this is why is rated as Platinum in the Cybenetics scale.
Power Factor Rating
The following graphs show the PSU's average power factor reading throughout its operating range with an ambient temperature close to 30 degrees Celsius and 115V/230V voltage input.
The APFC converter has decent performance.
MORE: Best Power Supplies
MORE: How We Test Power Supplies
MORE: All Power Supply Content
Current page: Performance, Noise, Efficiency and Power Factor
Prev Page Transient Response Tests, Timing Tests, Ripple Measurements and EMC Pre-Compliance Testing Next Page Bottom LineAris Mpitziopoulos is a contributing editor at Tom's Hardware, covering PSUs.
-
