Firmware

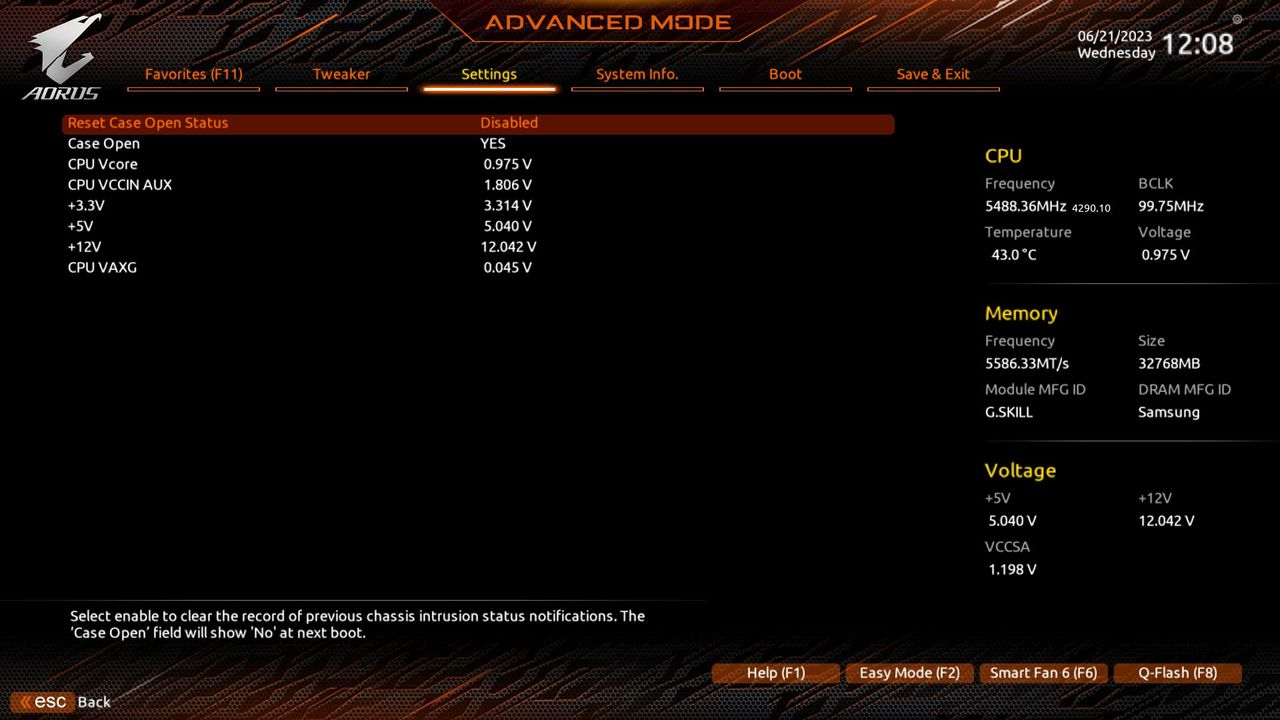

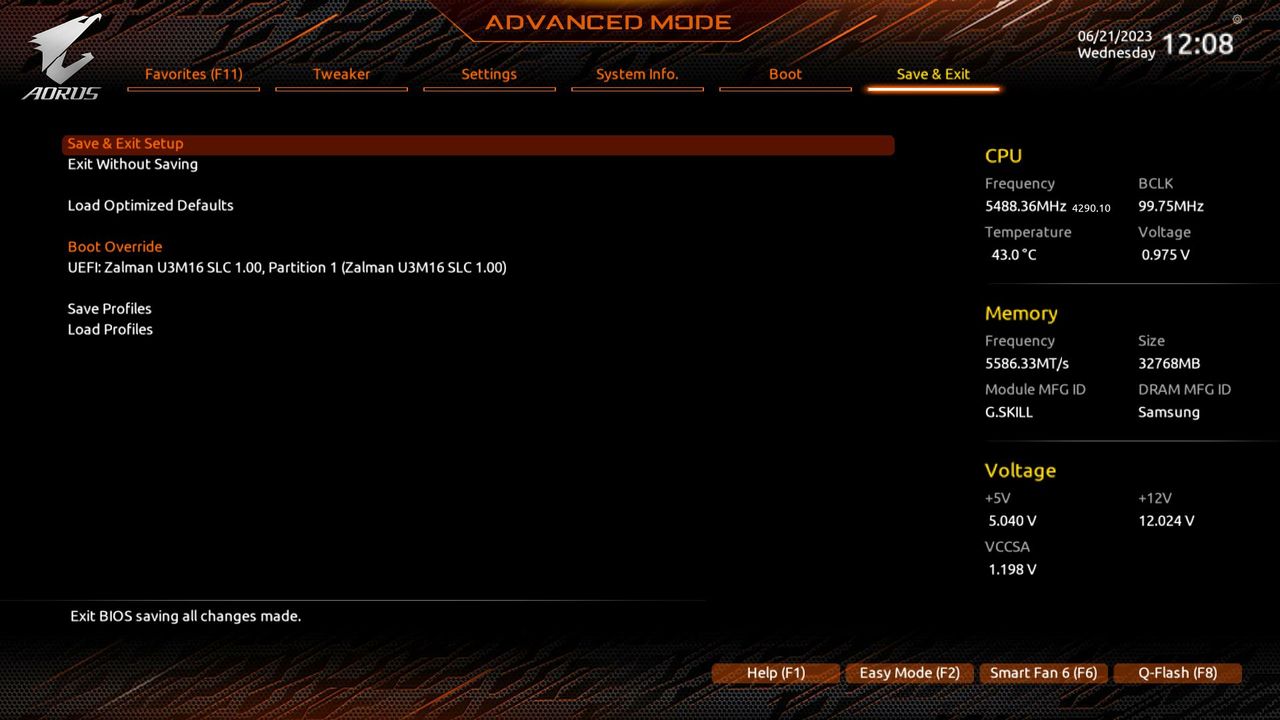

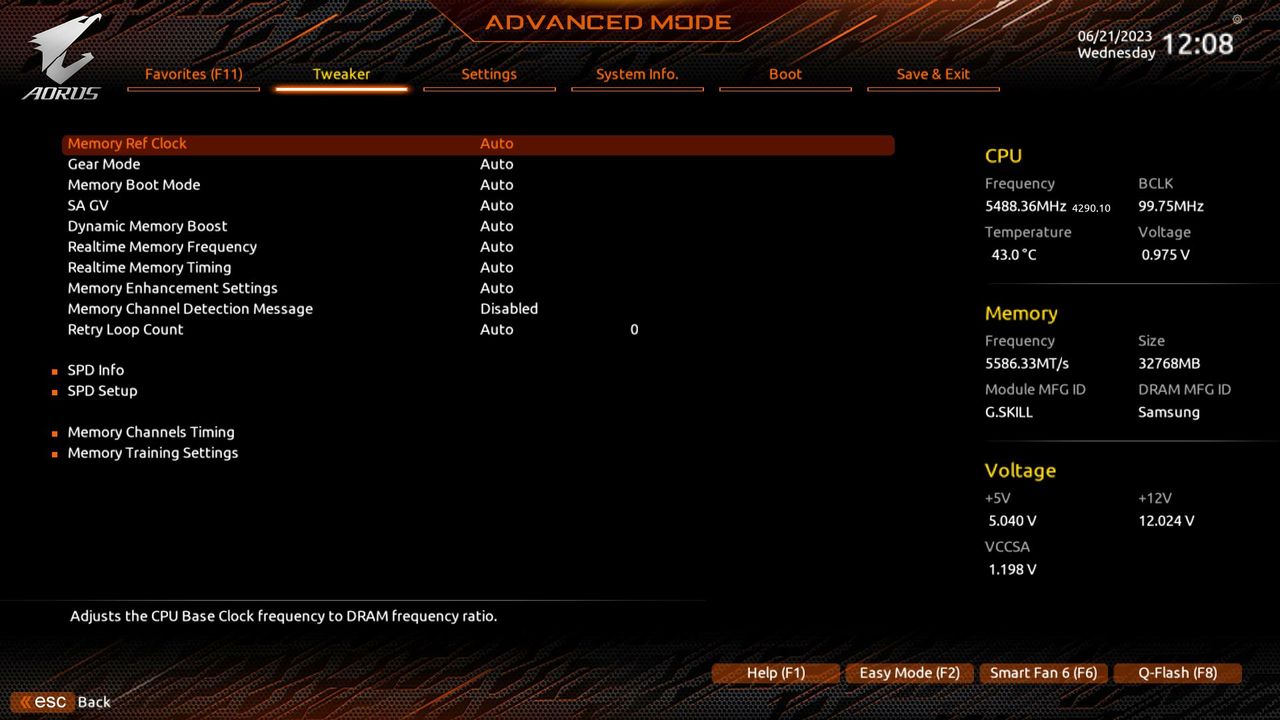

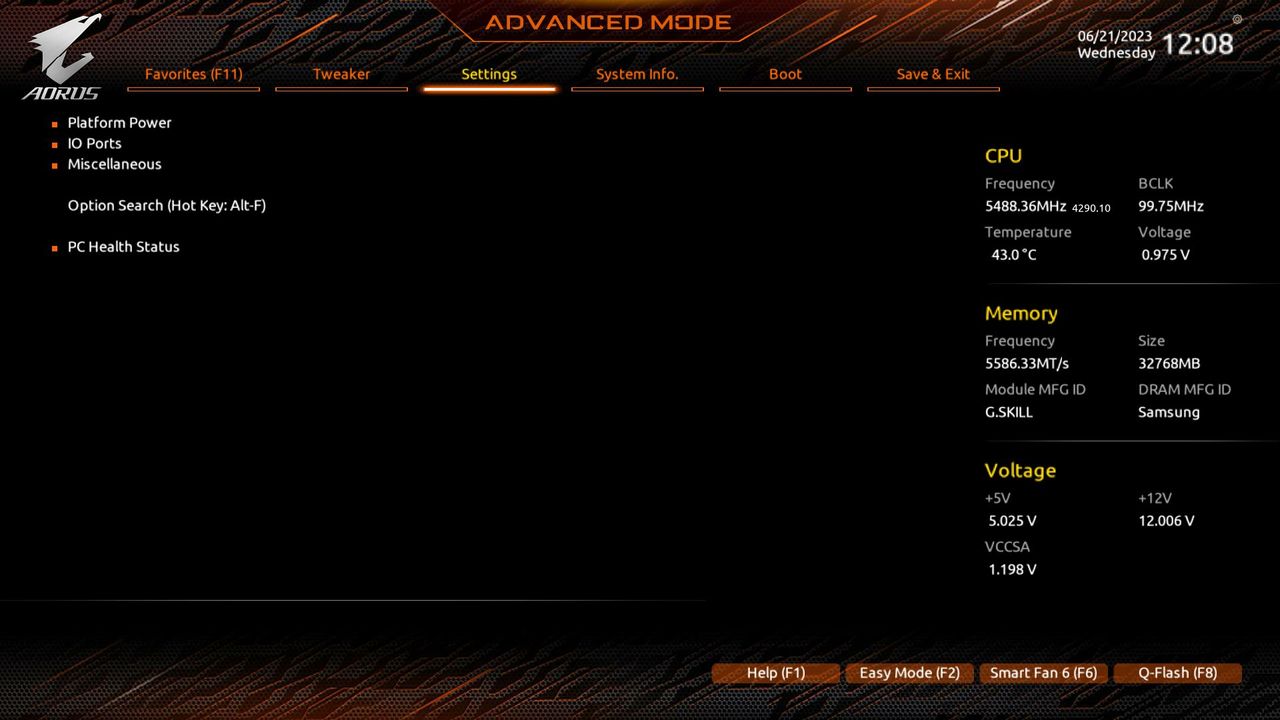

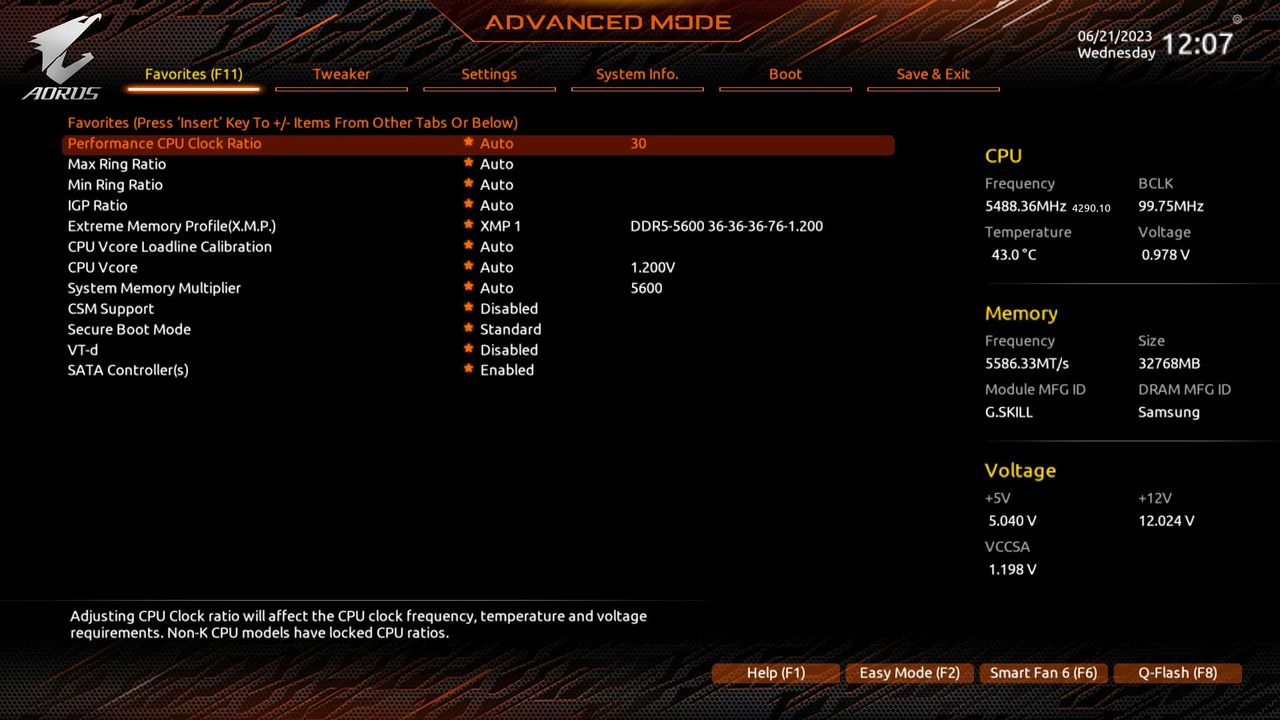

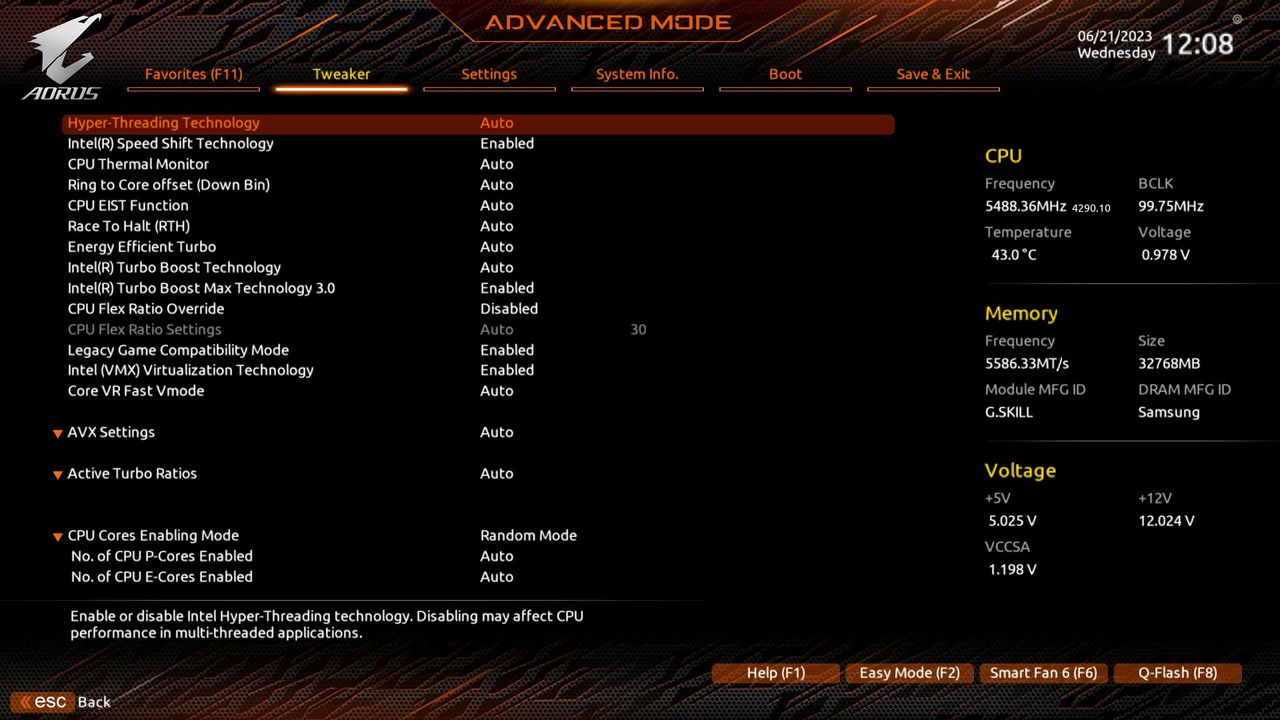

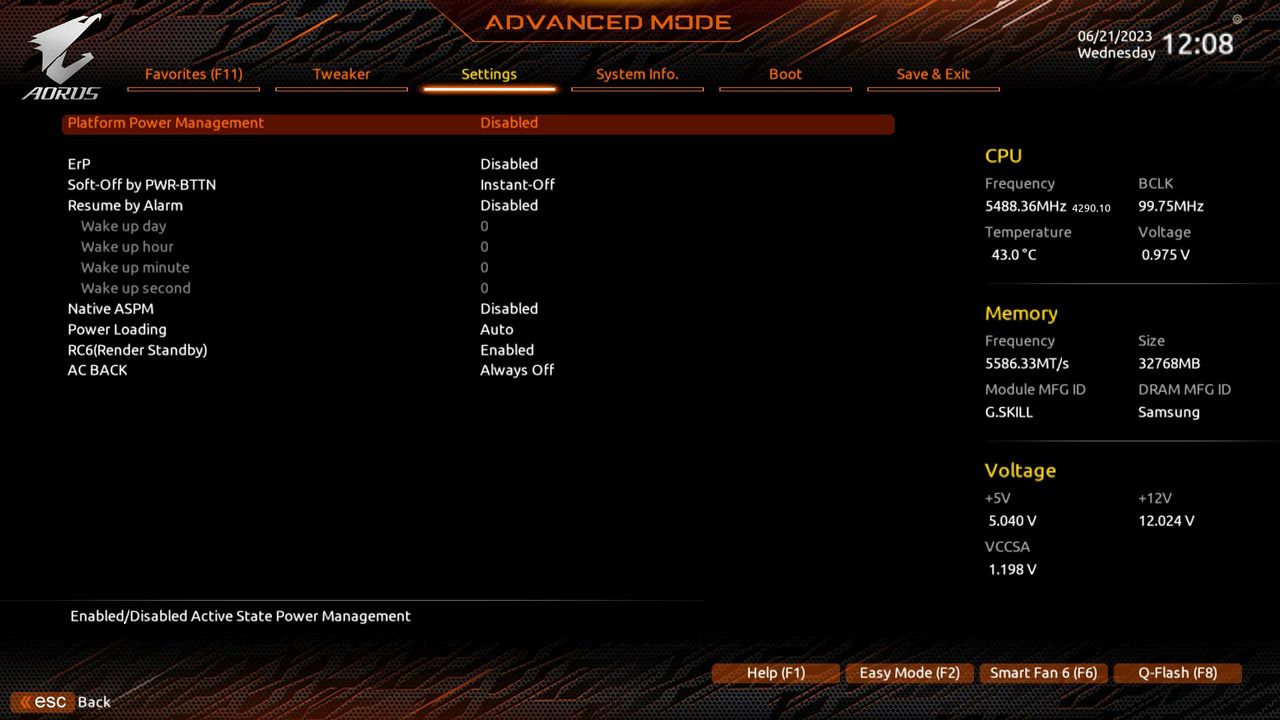

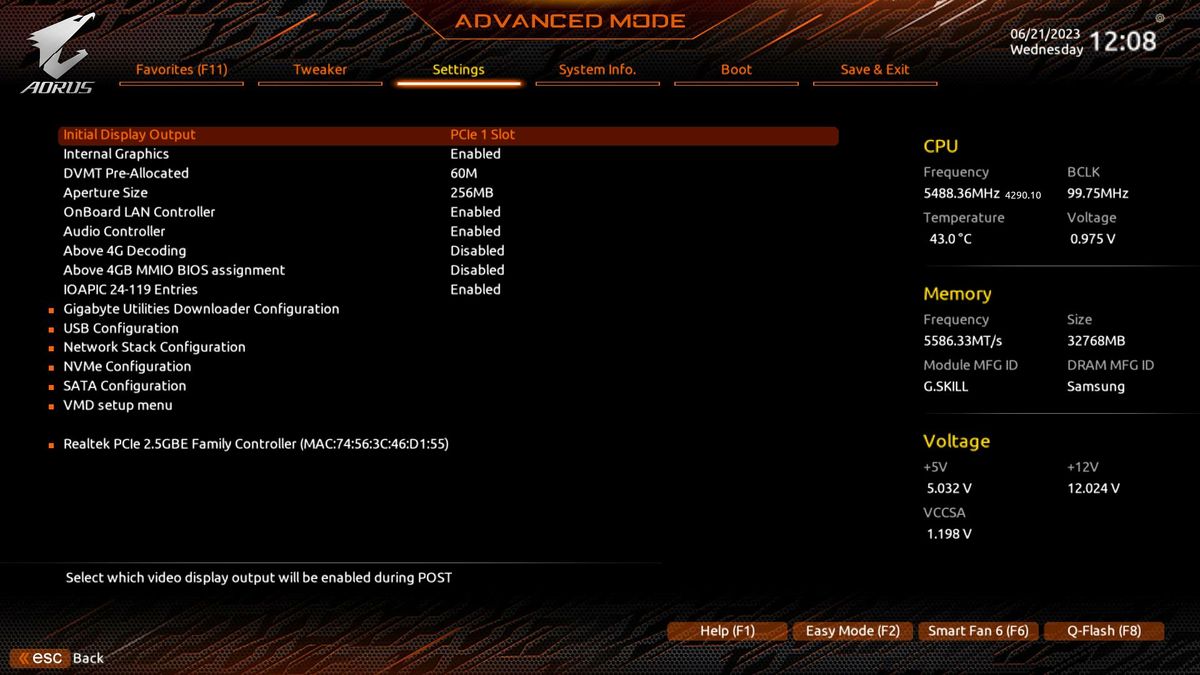

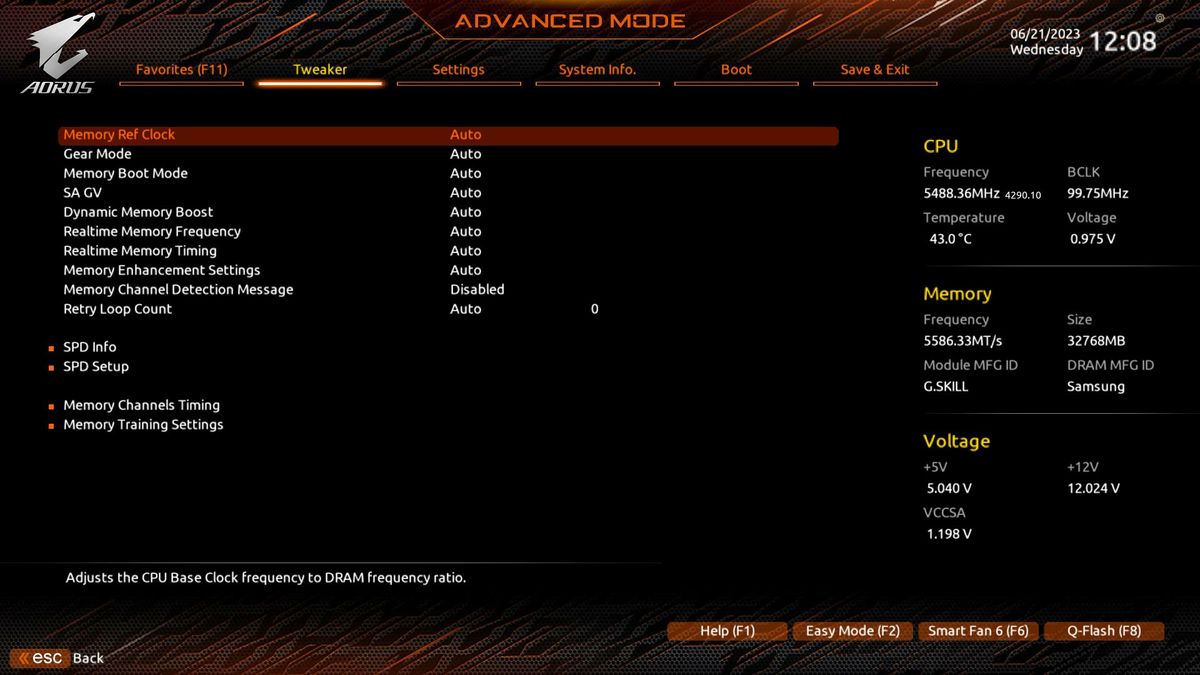

The Aorus-themed black-on-white/orange/yellow firmware is a good contrast and easy to read in both BIOS modes. The Easy Mode presents high-level information about the system, switch the boot sequence, and enables XMP memory profiles. Advanced mode gives you access to all the options you need to tweak the processor and memory. Most major overclocking/tweaking options are on the same page, with some power options in a different section. Otherwise, everything is laid out in a logical order and readily accessible.
Software

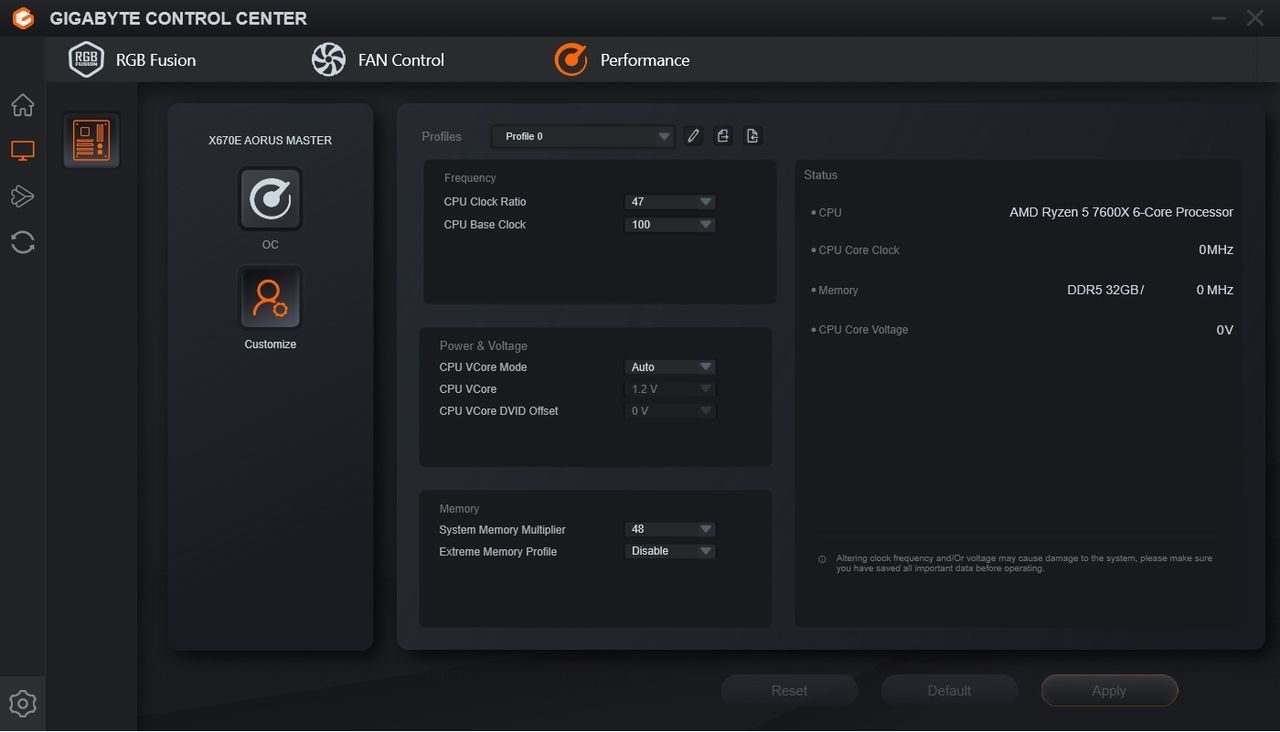

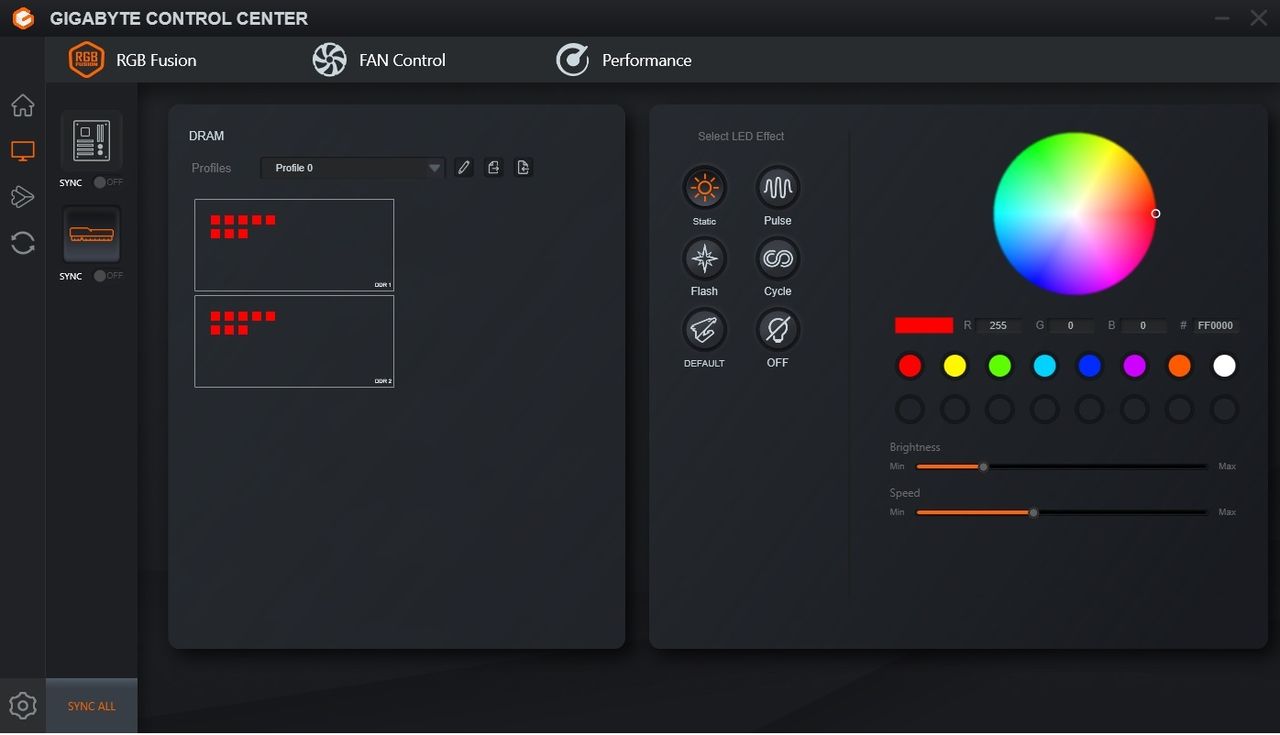

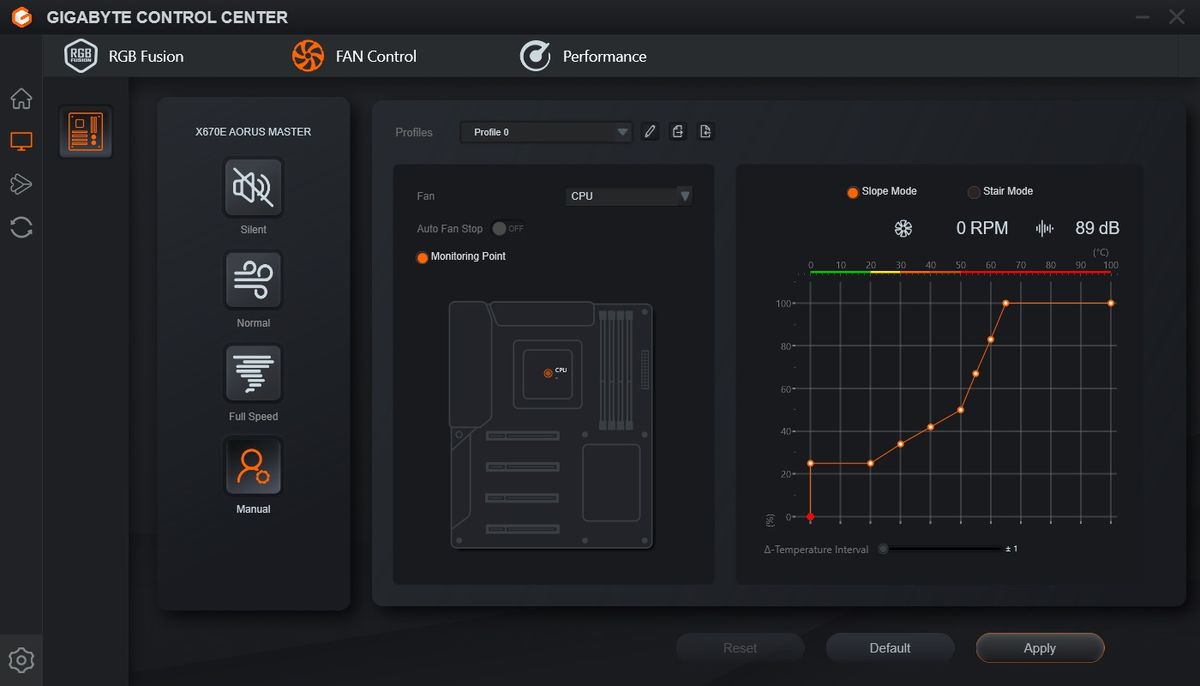

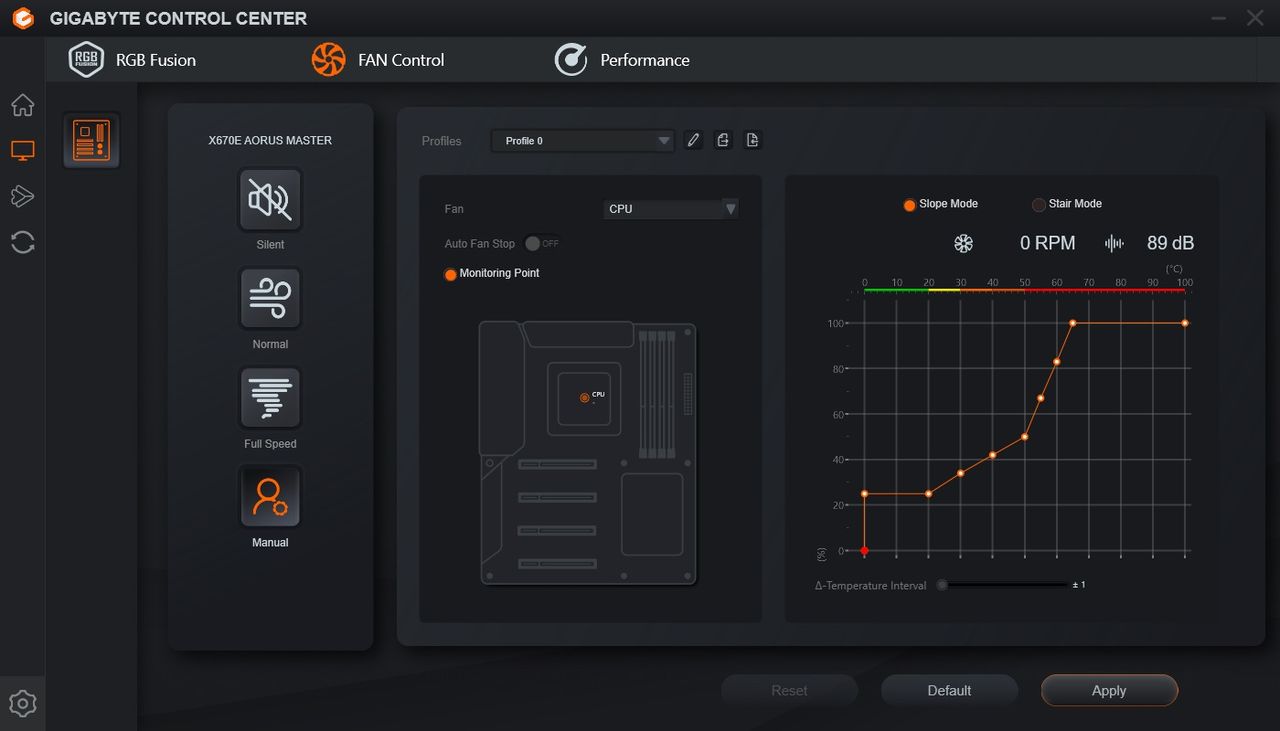

On the software side, Gigabyte’s primary tool is the Gigabyte Control Center (GCC). GCC is a one-stop shop for many board-centric functions, including RGB lighting control (RGB Fusion), Fan Control, and performance/overclocking. You can also update and install drivers from within the application too. It’s not as comprehensive as the App Center and some of its applications, but I doubt many will miss those features.
Test System / Comparison Products
We’ve updated our test system to Windows 11 64-bit OS with all updates applied. We kept the same Asus TUF RTX 3070 video card from our previous testing platforms but updated the driver. Additionally, we updated to F1 22 in our games suite and kept Far Cry 6. Unless otherwise noted, we use the latest non-beta motherboard BIOS available to the public. The hardware we used is as follows:
CPU | AMD Ryzen 9 7950X |
Memory | Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32) |
GSkill Trident Z DDR5-5600 CL36 (F5-5600U3636C16GX2-TZ5RK) | |
GPU | Asus TUF RTX 3070 |
Cooling | Coolermaster MasterLiquid PL360 Flux |
PSU | EVGA Supernova 850W P6 |
Software | Windows 11 64-bit (22H2) |
Graphics Driver | Nvidia GeForce Driver 522.25 |
Sound | Integrated HD audio |
Network | Integrated Networking (GbE or 2.5 GbE) |
EVGA supplied our Supernova 850W P6 power supply (appropriately sized and more efficient than the 1.2KW monster we used previously) for our test systems, and G.Skill sent us a DDR5-5600 (F5-5600U3636C16GX2-TZ5RK) memory kit for testing.
Benchmark Settings
Synthetic Benchmarks and Settings | |
Procyon | Version 2.1.459 64 |
Office Suite (Office 365), Video Editing (Premiere Pro 22.6.2.2), Photo Editing (Photoshop 23.5.1, Lightroom Classic 11.5) | |
3DMark | Version 2.22.7359 64 |
Firestrike Extreme and Time Spy Default Presets | |
Cinebench R23 | Version RBBENCHMARK330542 |
Open GL Benchmark - Single and Multi-threaded | |
Blender | Version 3.3.0 |
Full benchmark (all 3 tests) | |
Application Tests and Settings | |
LAME MP3 | Version SSE2_2019 |
Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s) | |
HandBrake CLI | Version: 1.2.2 |
Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX) | |
Corona 1.4 | Version 1.4 |
Custom benchmark | |
7-Zip | Version 21.03-beta |
Integrated benchmark (Command Line) | |
Game Tests and Settings | |
Far Cry 6 | Ultra Preset - 1920 x 1080, HD Textures ON |
F1 2022 | Ultra Preset - 1920 x 1080, Ultra High (default) Bahrain (Clear/Dry), FPS Counter ON |
