MSI MEG Z790 Ace Motherboard Review: Fully Loaded, Overpriced

A good-looking, well-equipped Z790 motherboard. But it’s expensive.

Reviews
By Joe Shields
published
MSI MEG Z790 Ace
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Firmware

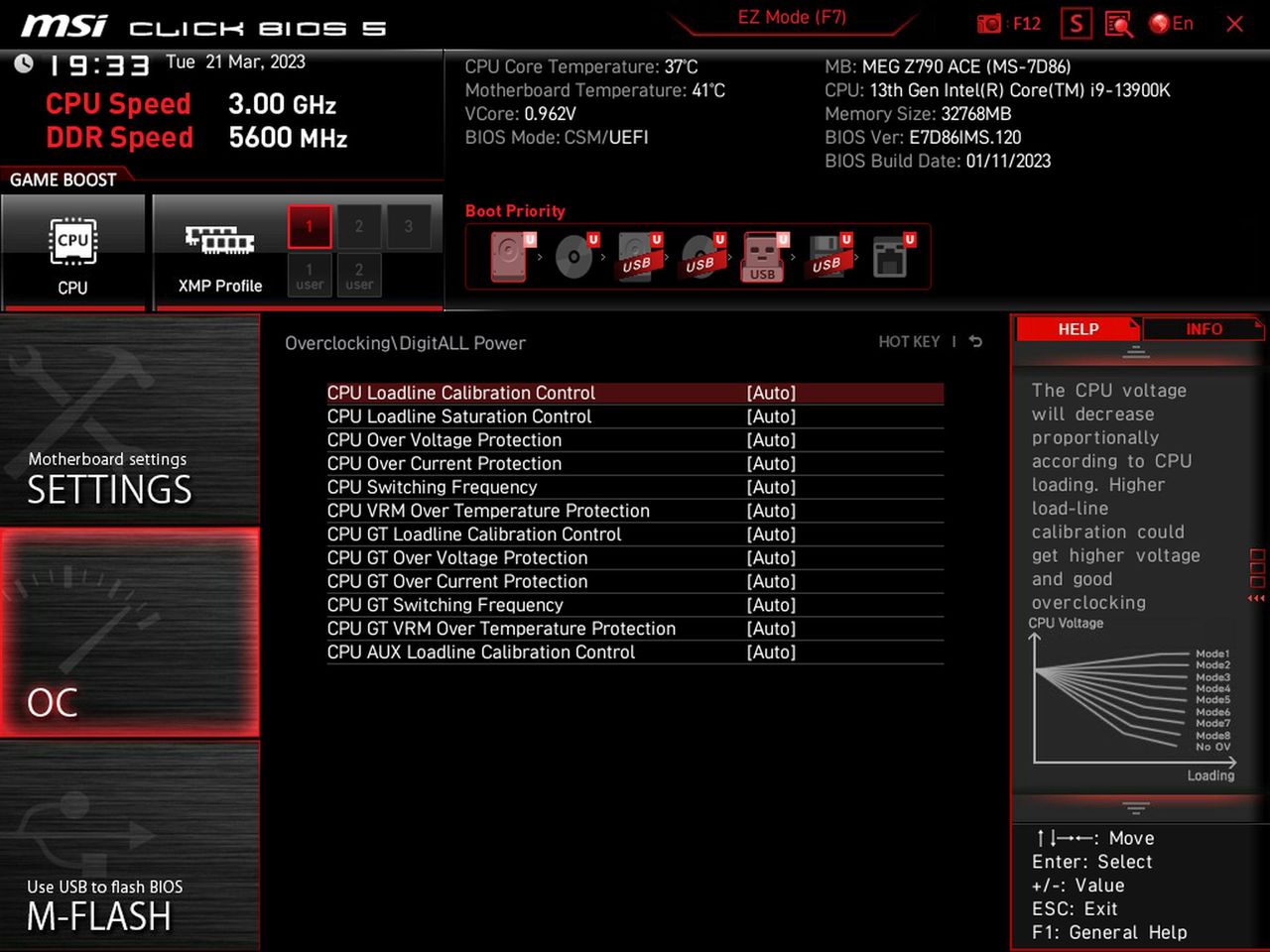

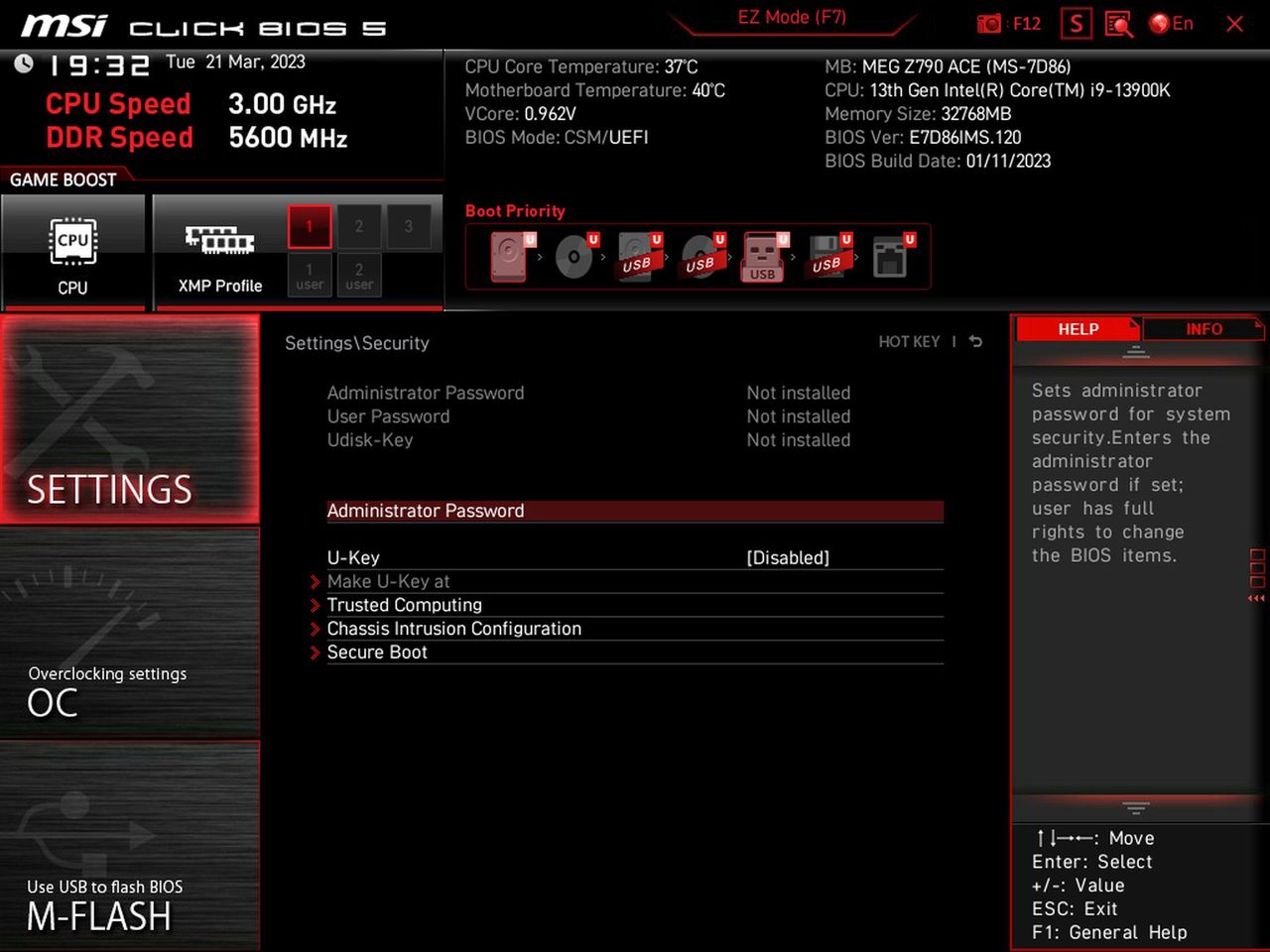

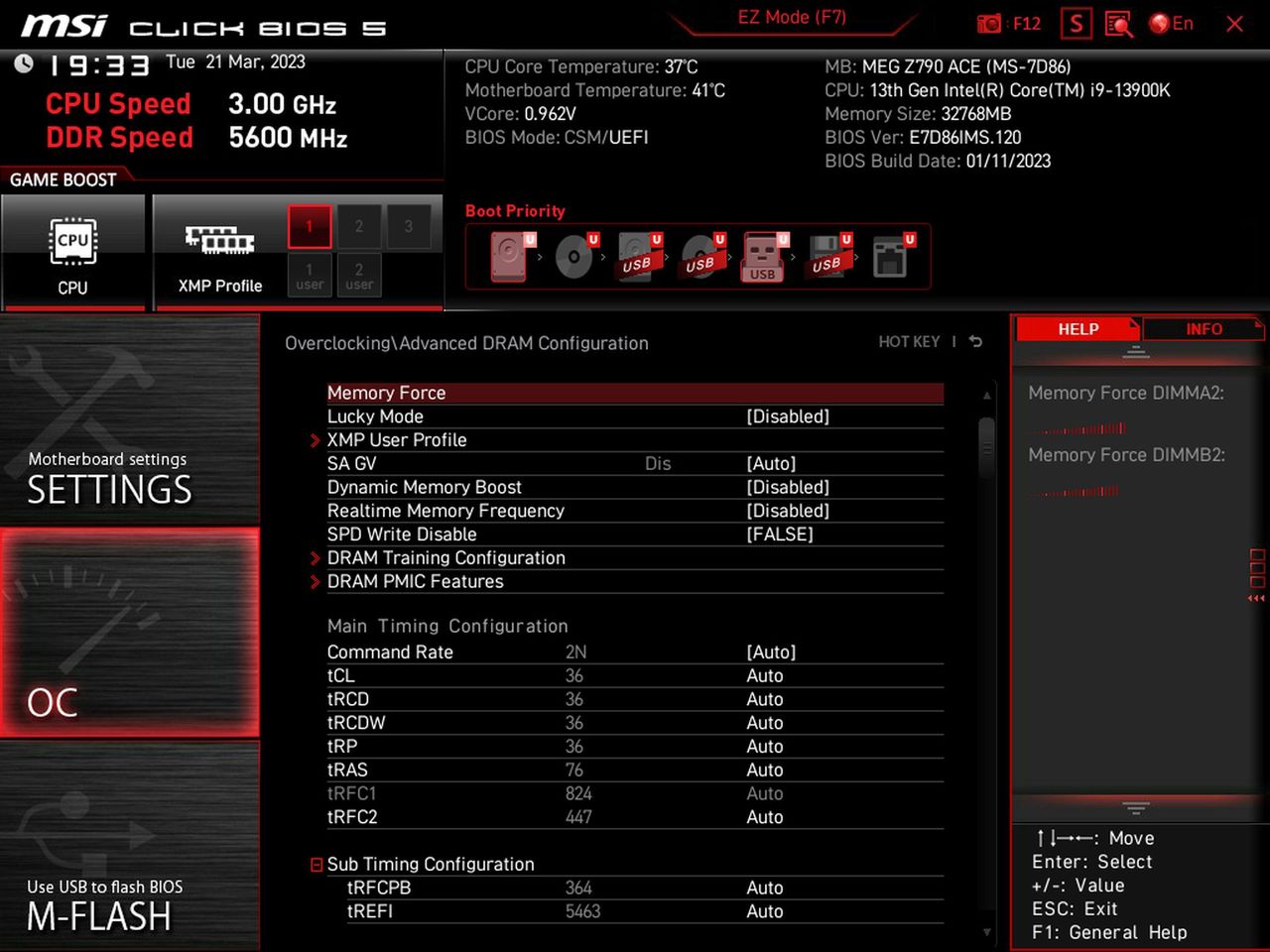

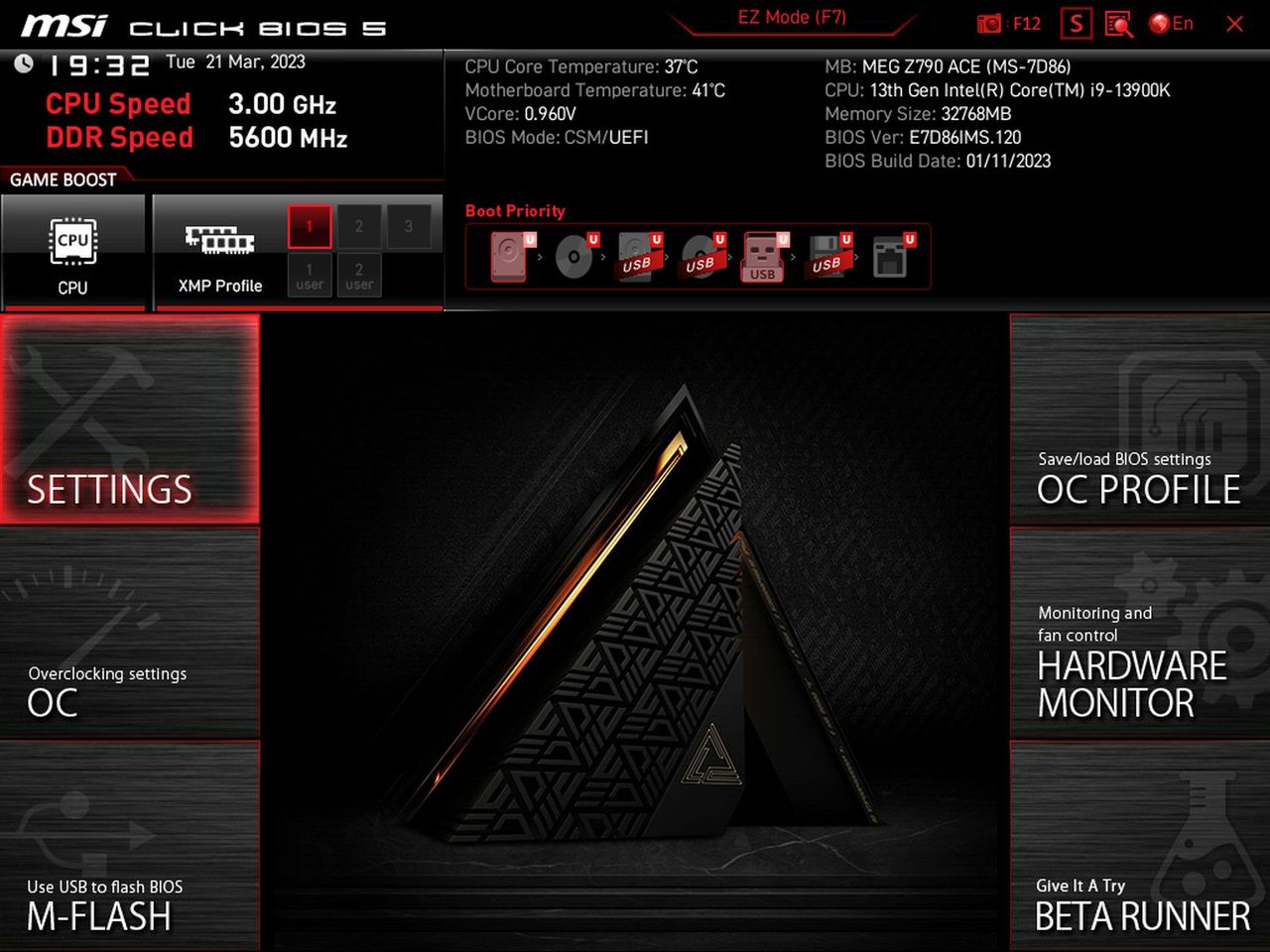

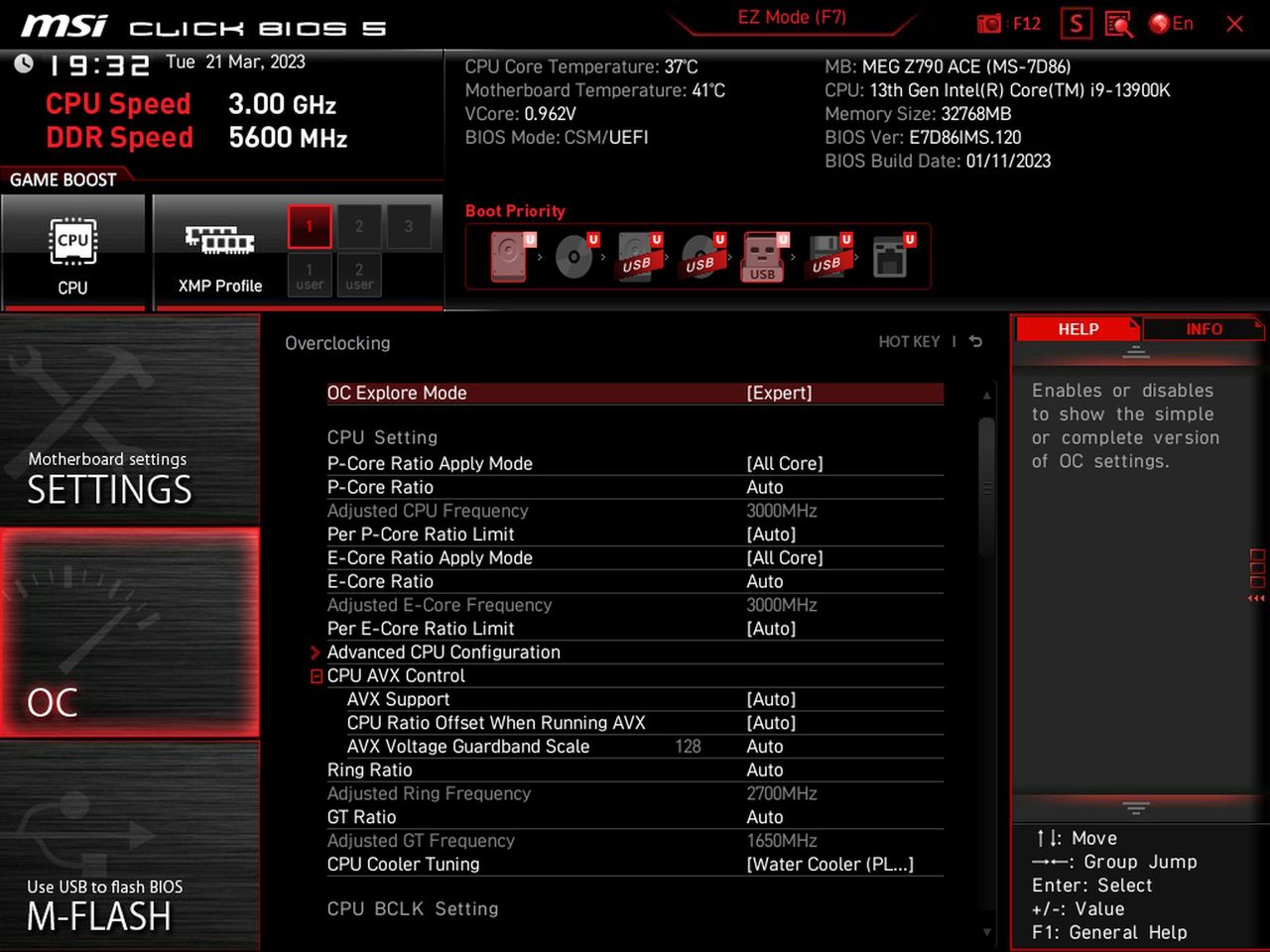

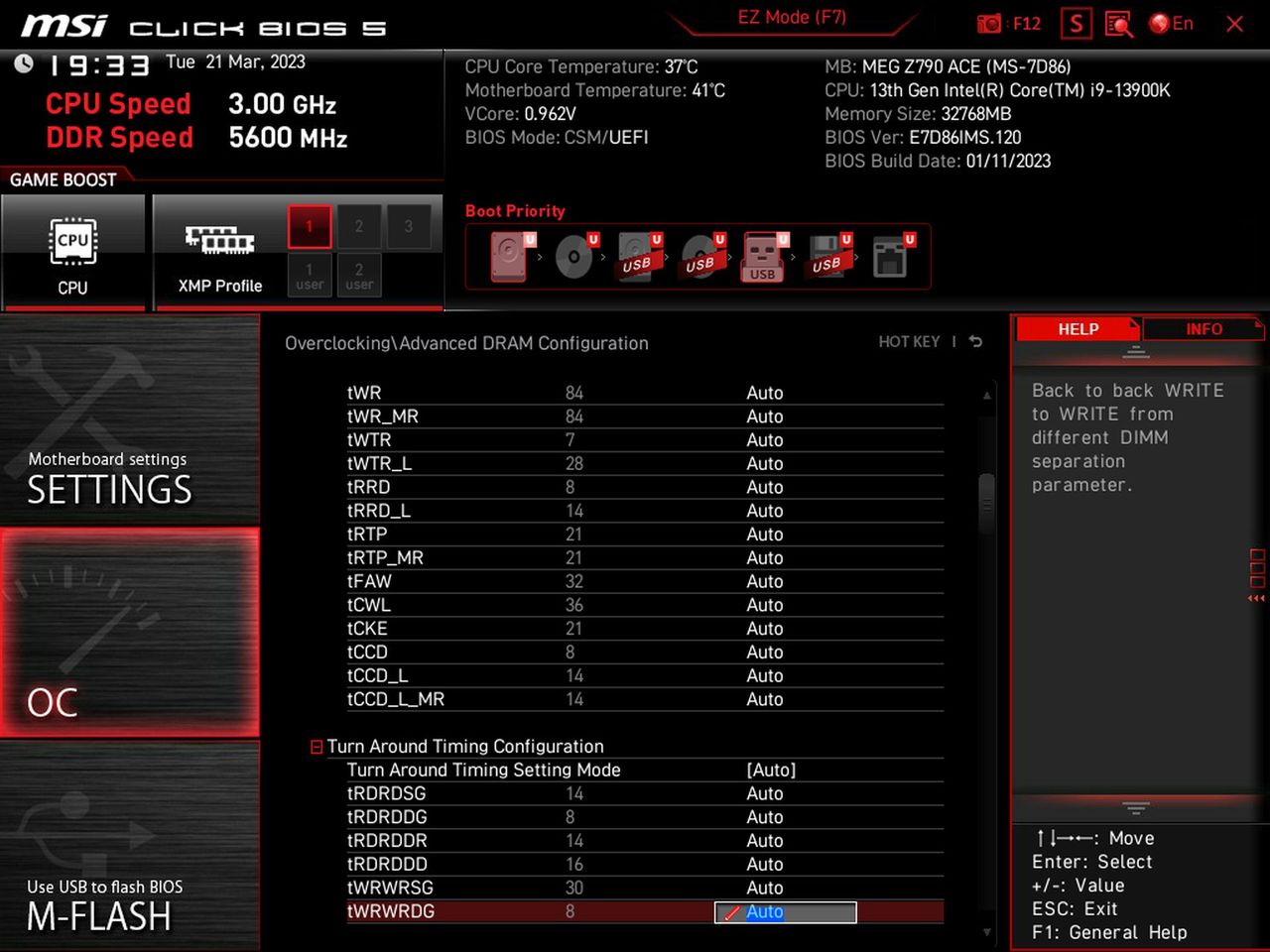

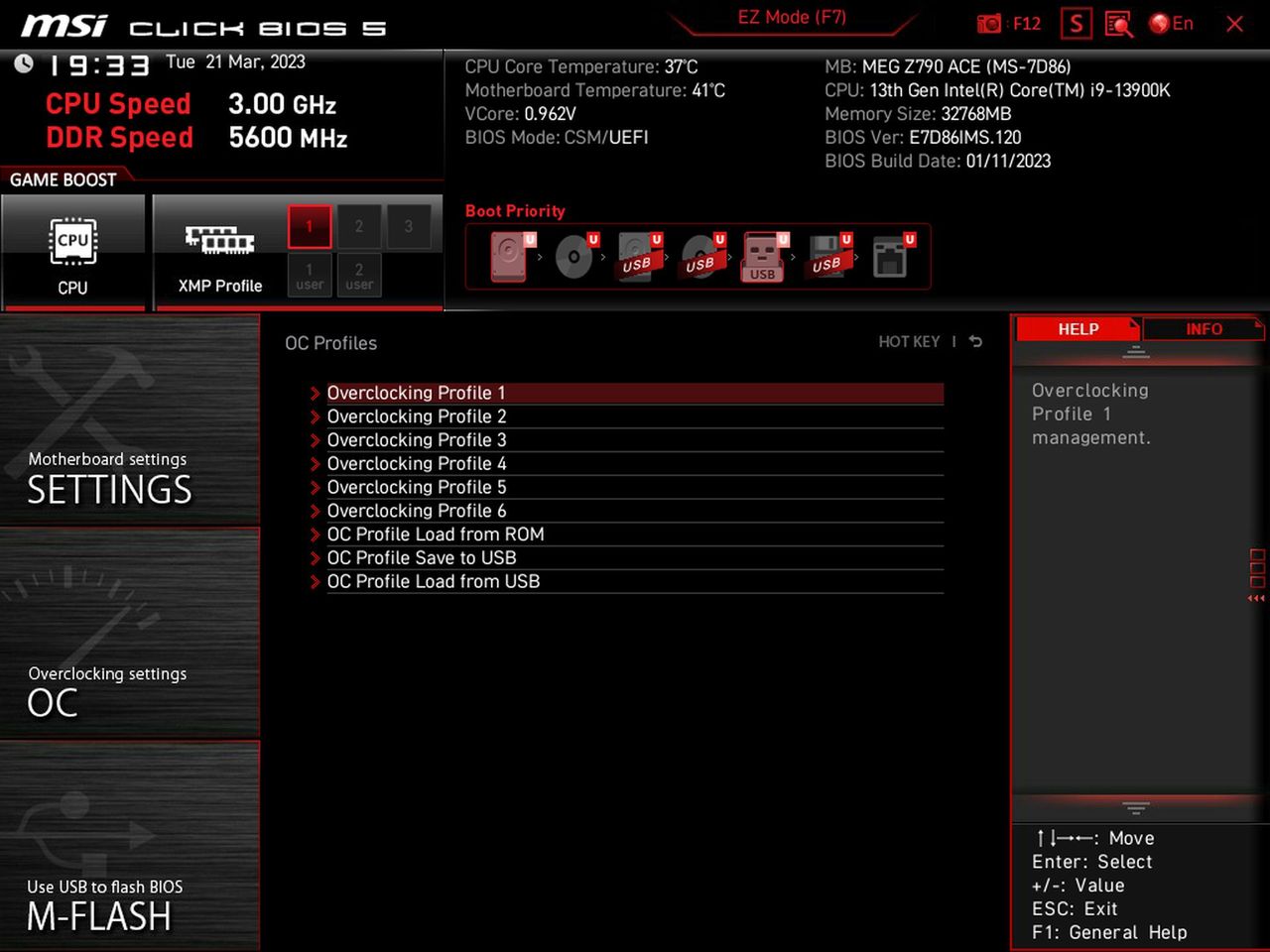

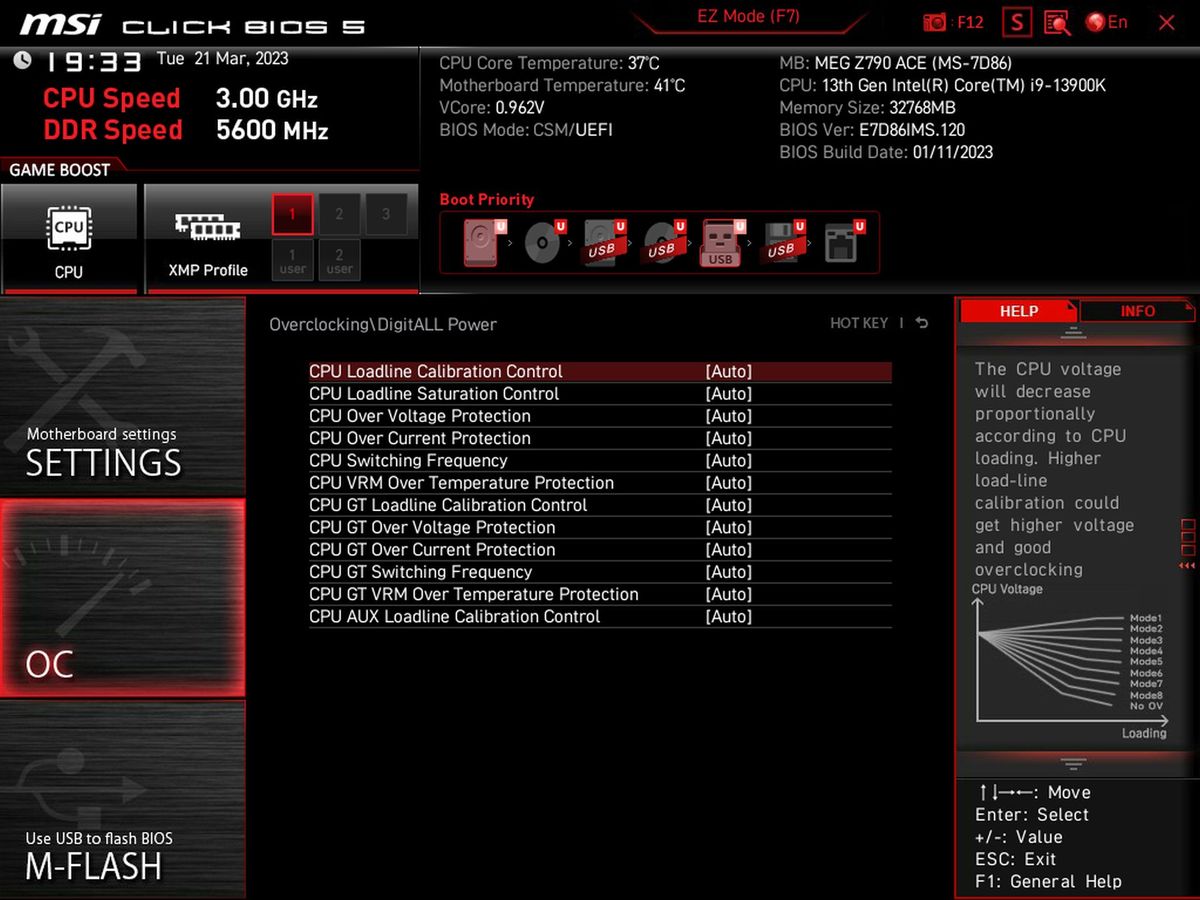

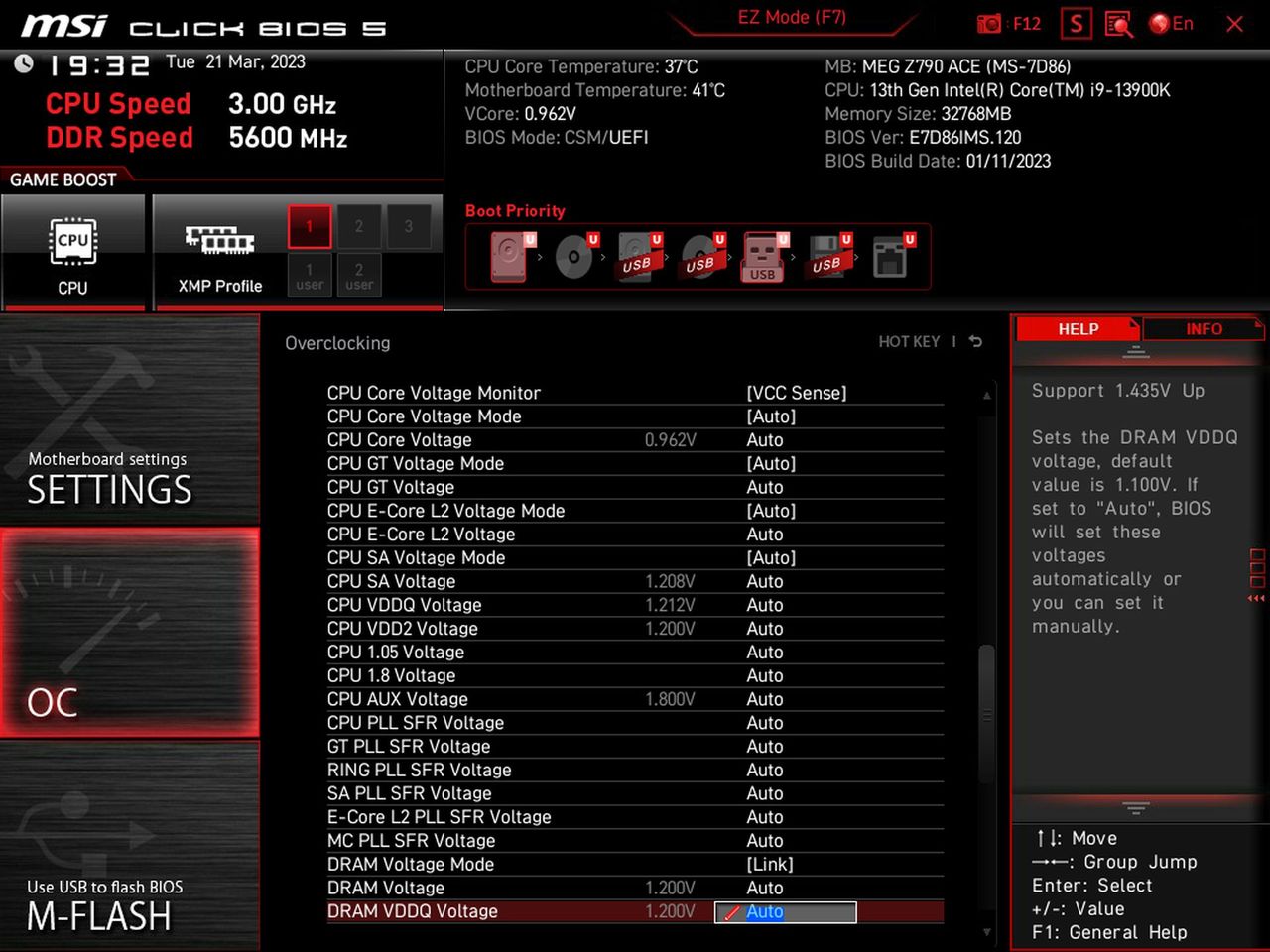

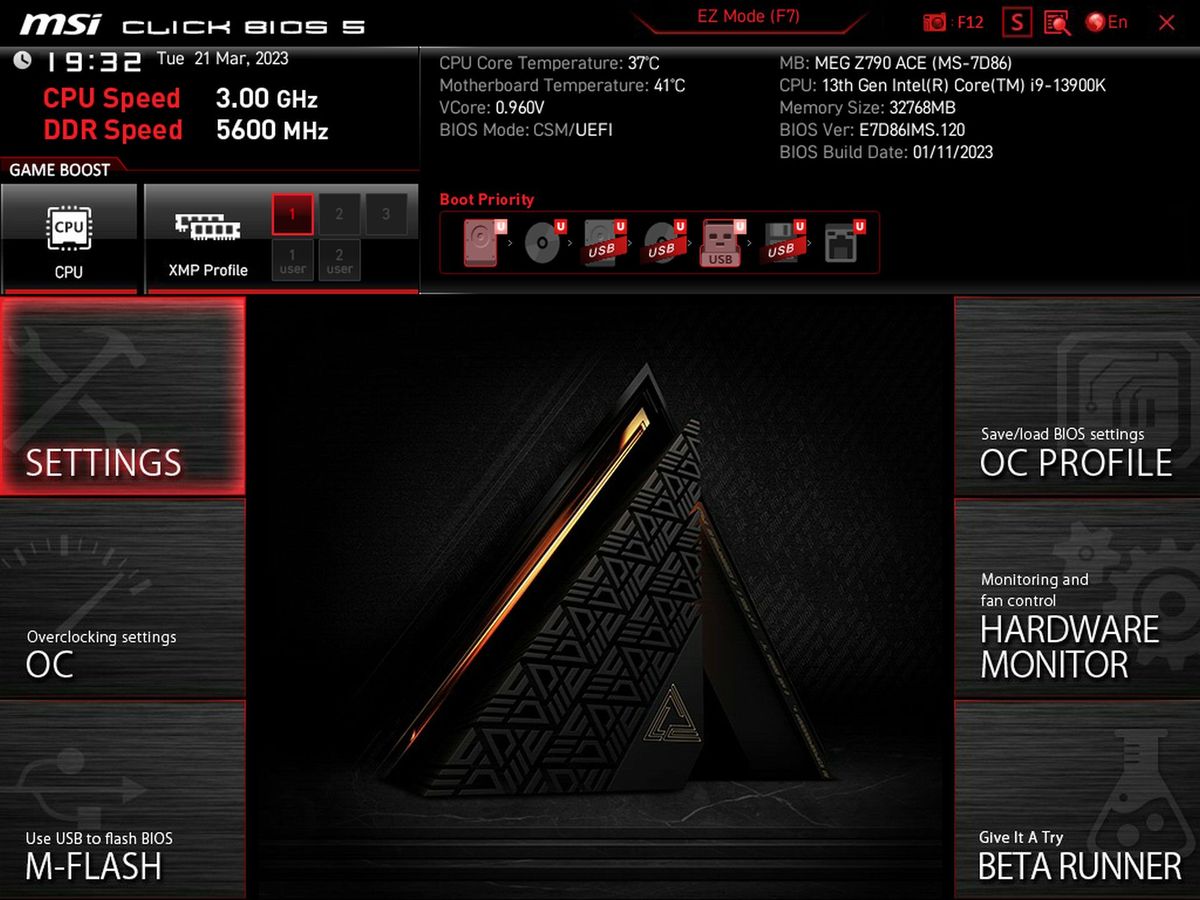

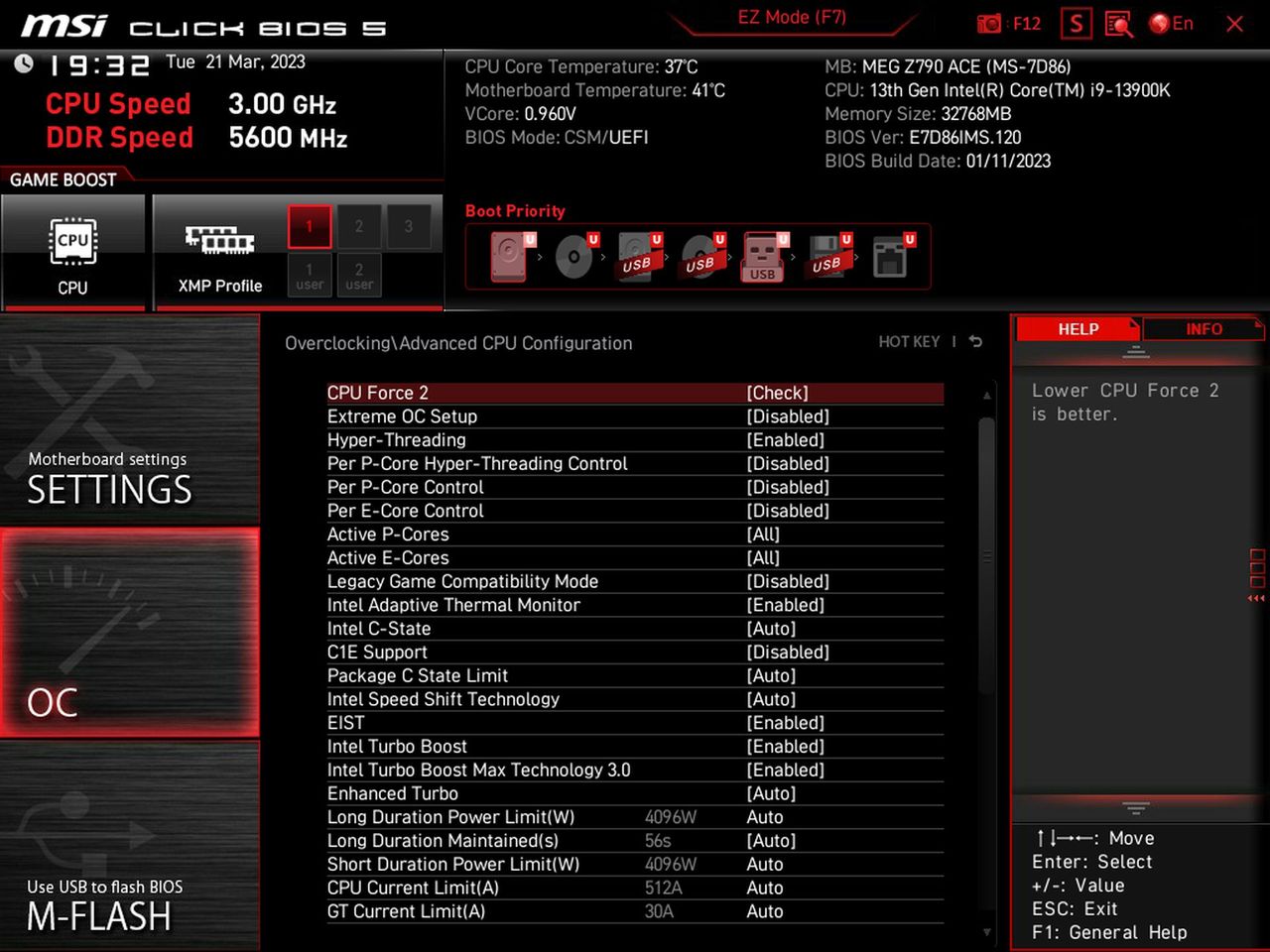

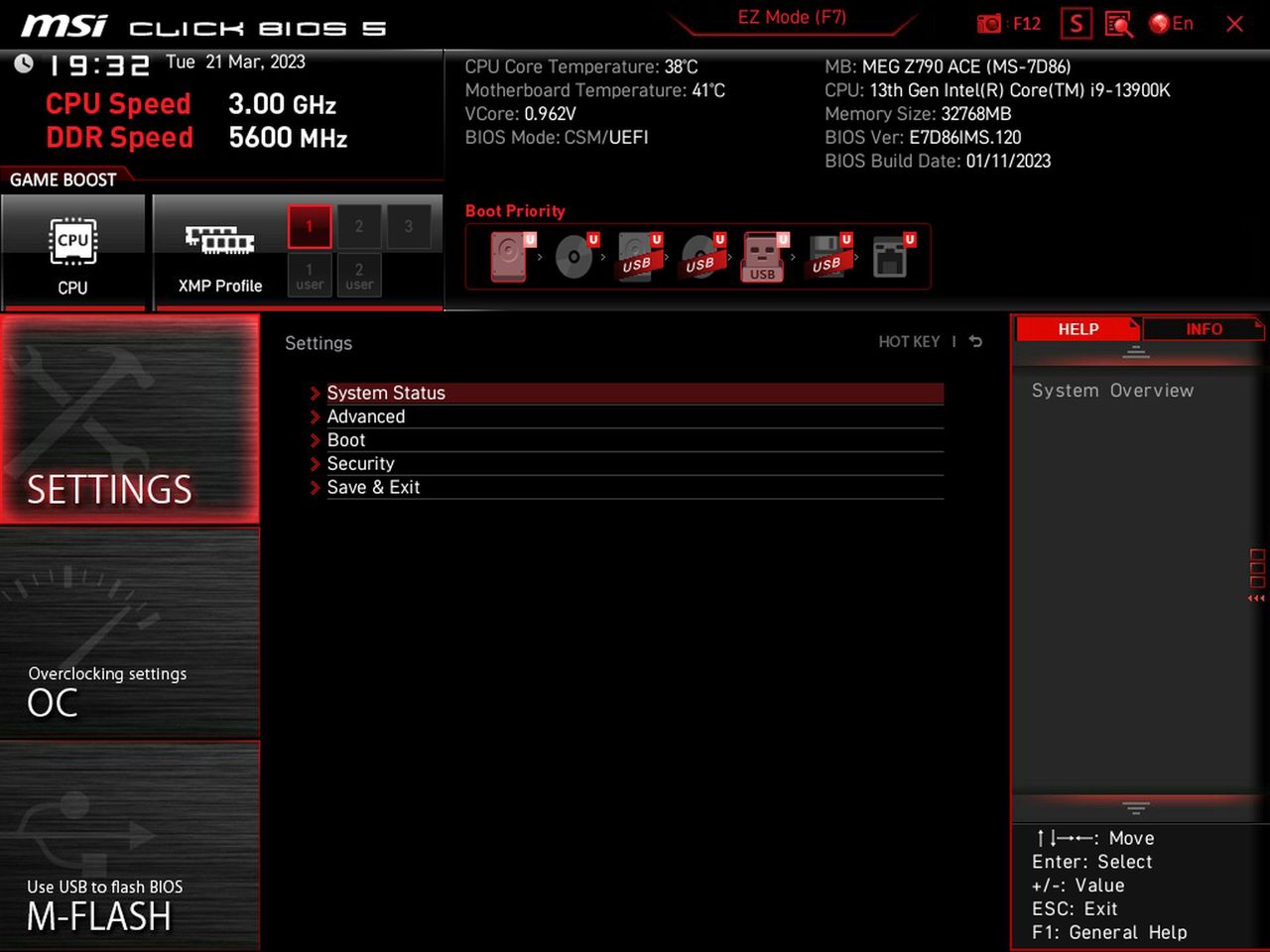

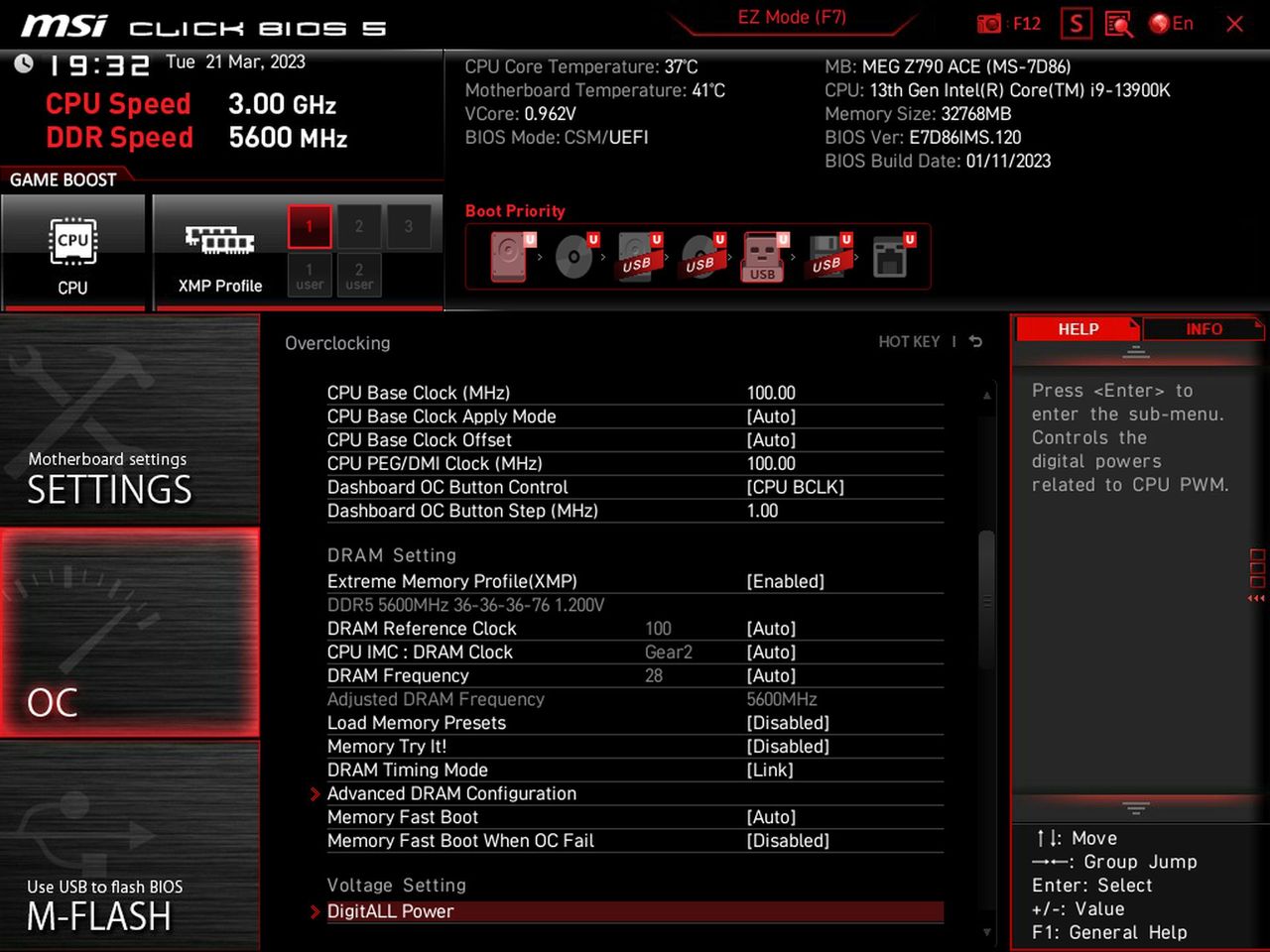

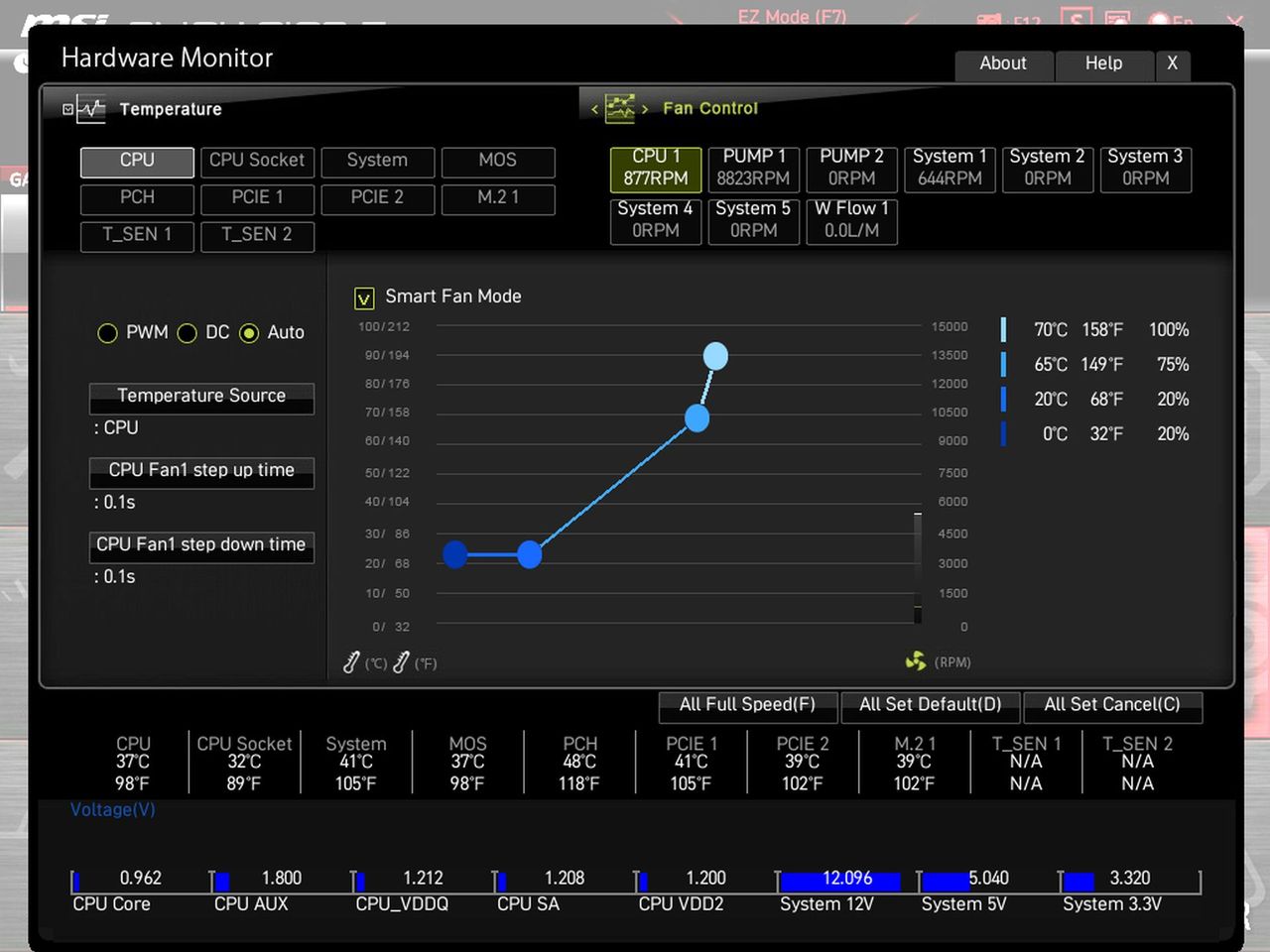

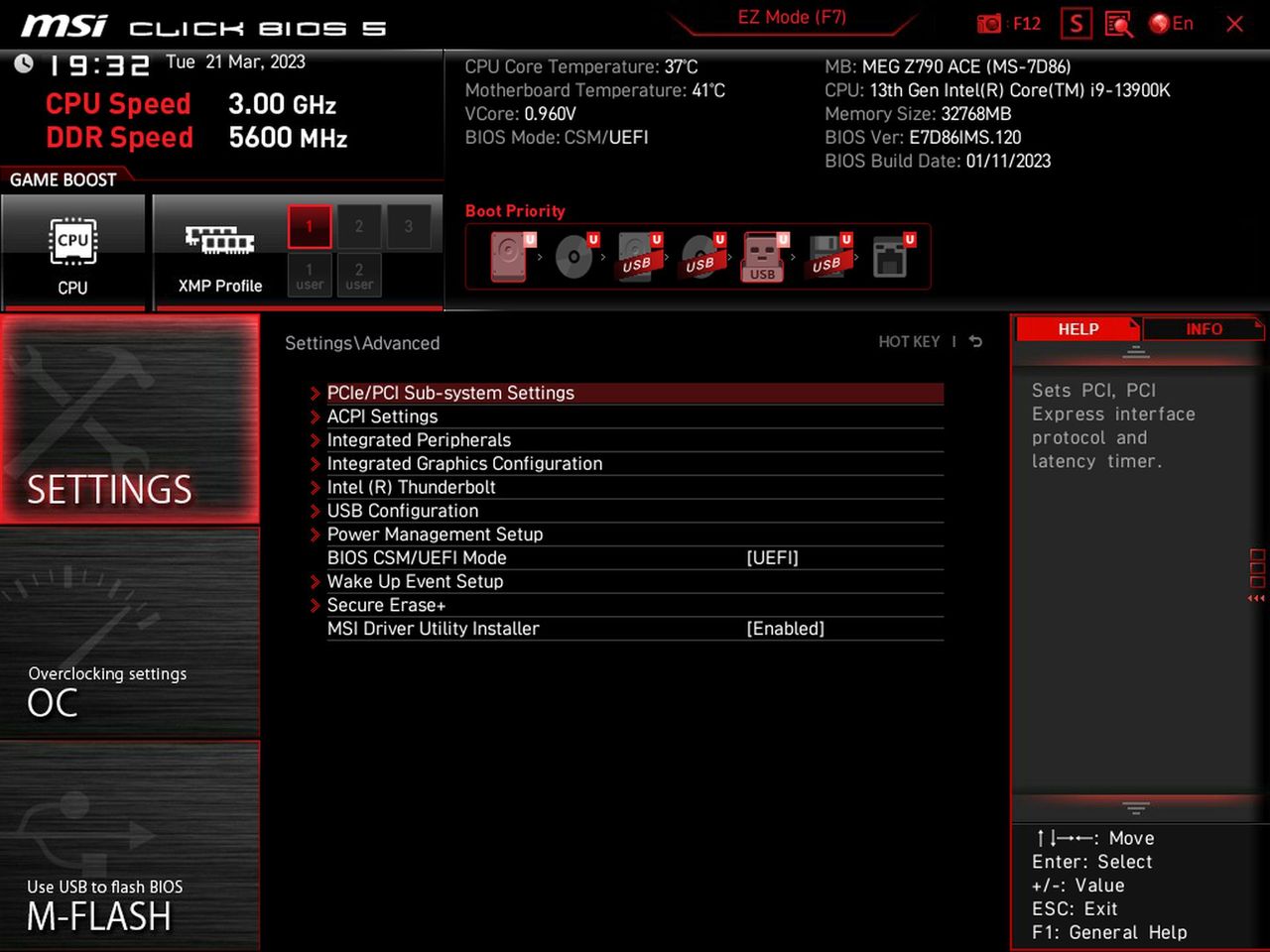

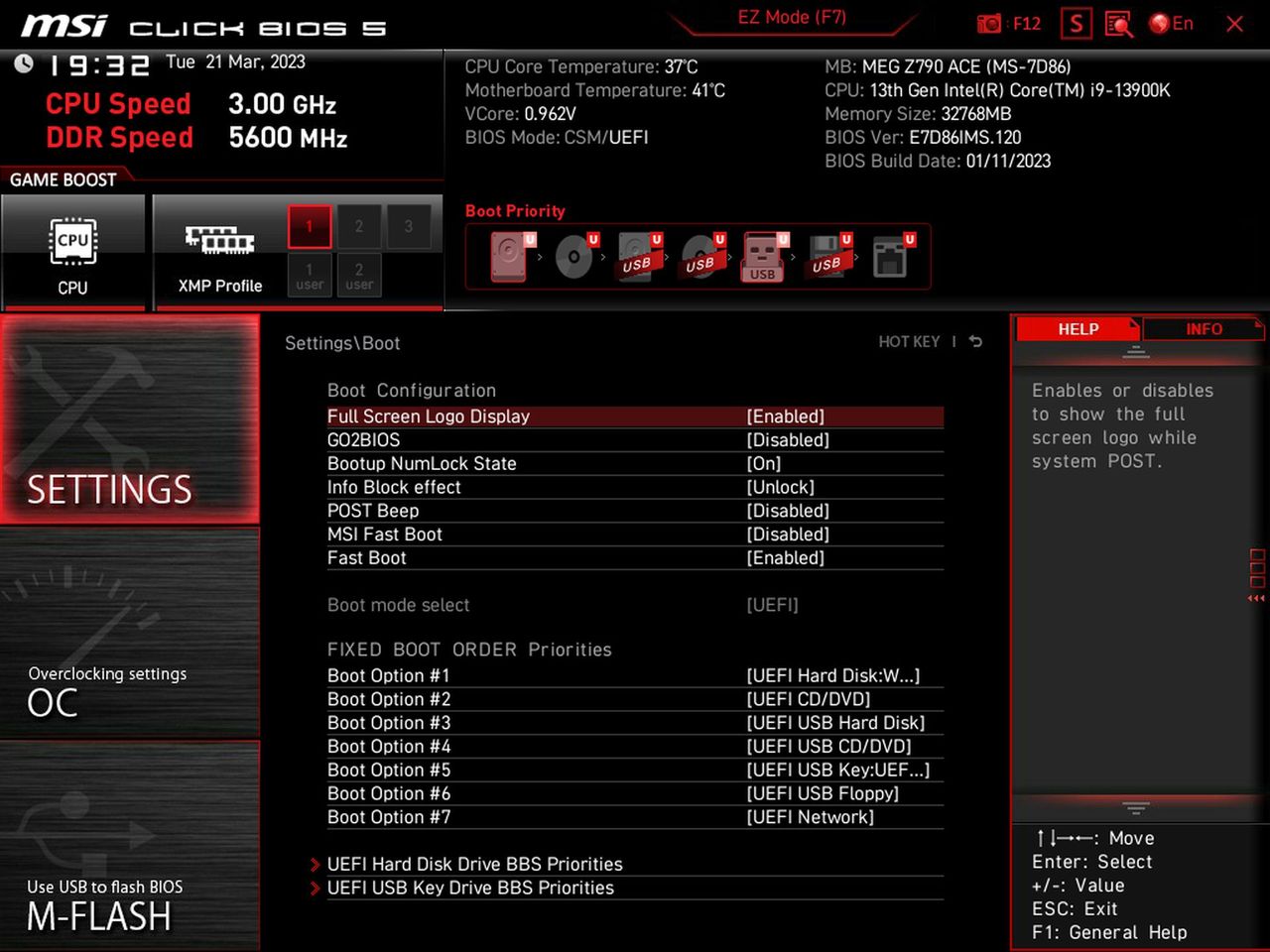

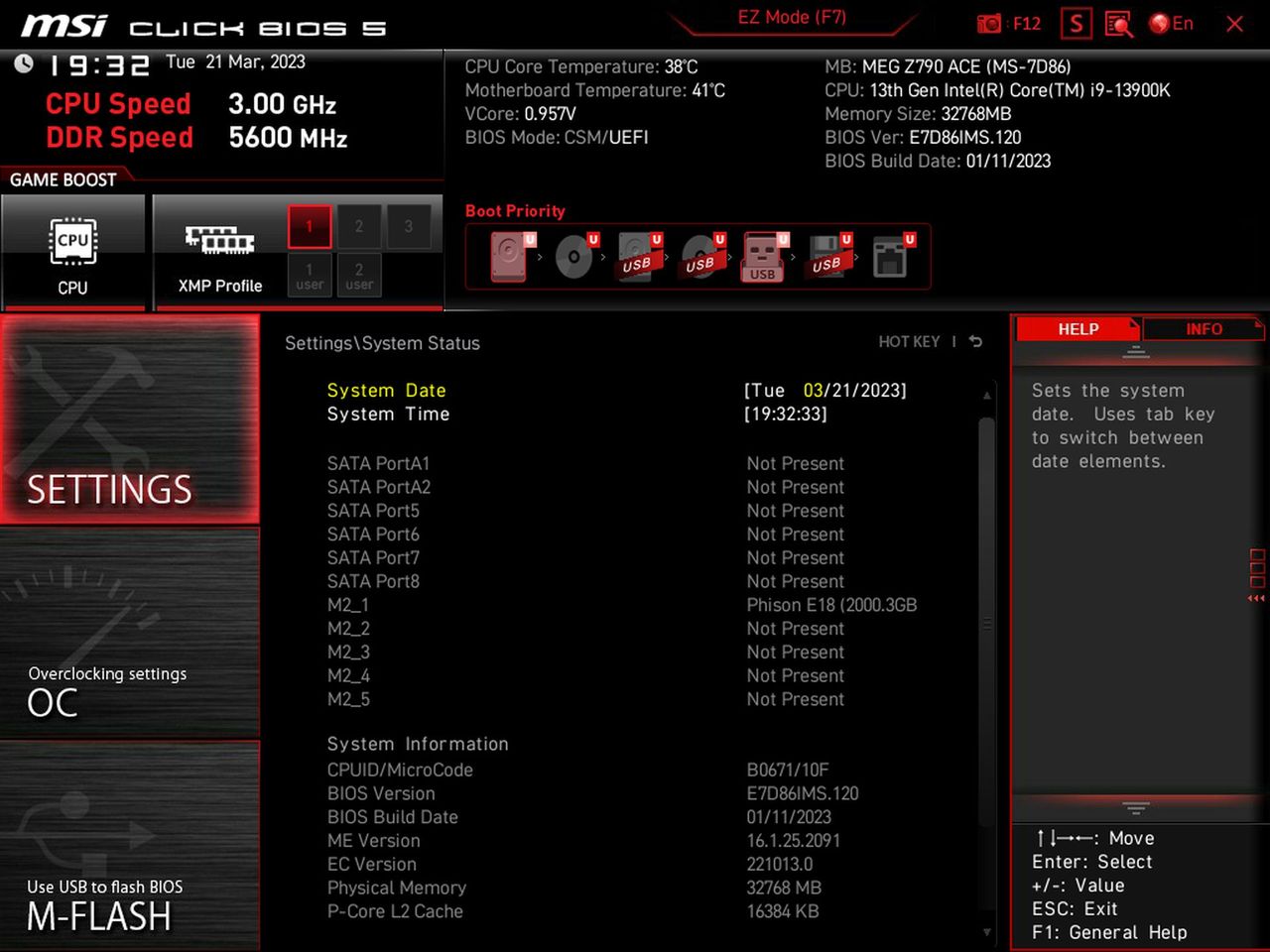

MSI’s BIOS for the Ace is the same as other Z790 we’ve seen before. The menus reside on the sides and information up top, a unique look compared to others. For Z790, the only updates were functionality for the new processors and chipset. It still has a black background with red highlights, making it easy to read. It also has an informative Easy Mode that displays various information about the system and allows for some changes (boot order and XMP enable). Though different than other UEFIs, it is easy to get around; everything has a place, and many frequently used options are readily available, not buried within sub-menus.

Image 1 of 15
MSI MEG Z790 Ace
(Image credit: Tom's Hardware)

Software

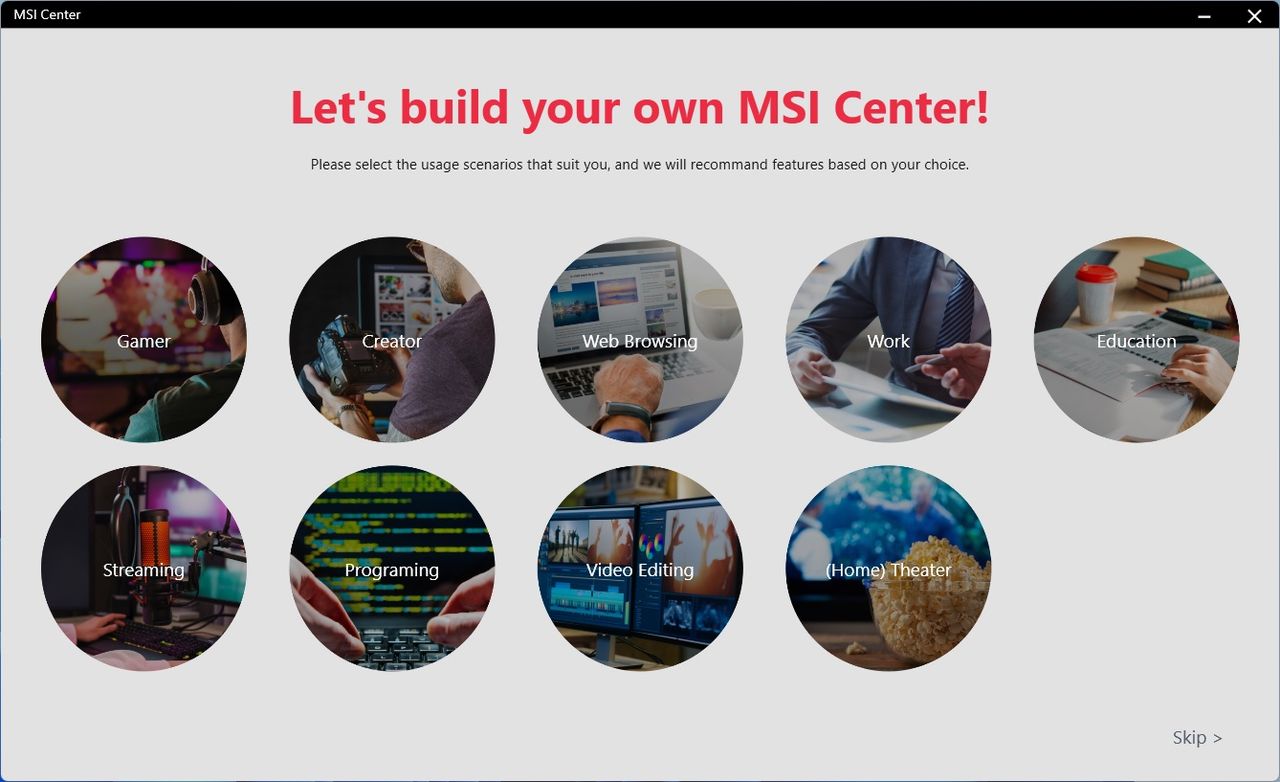

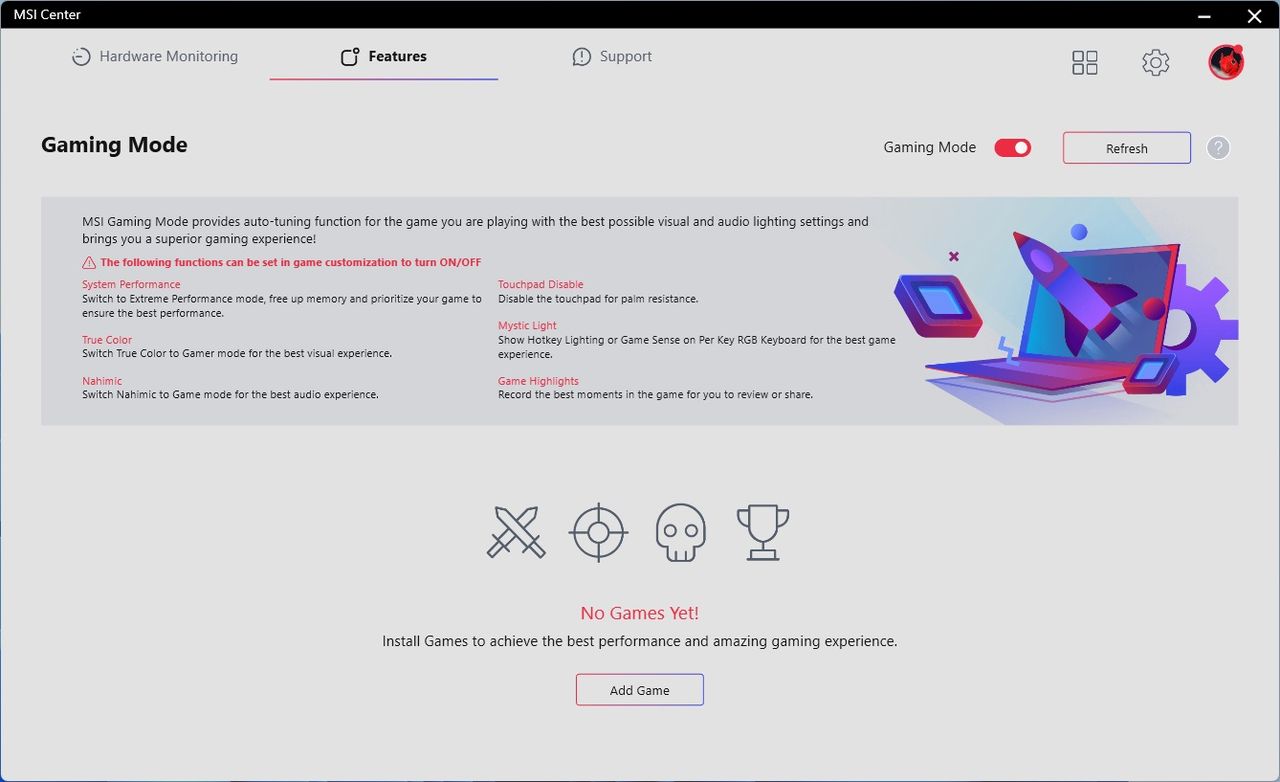

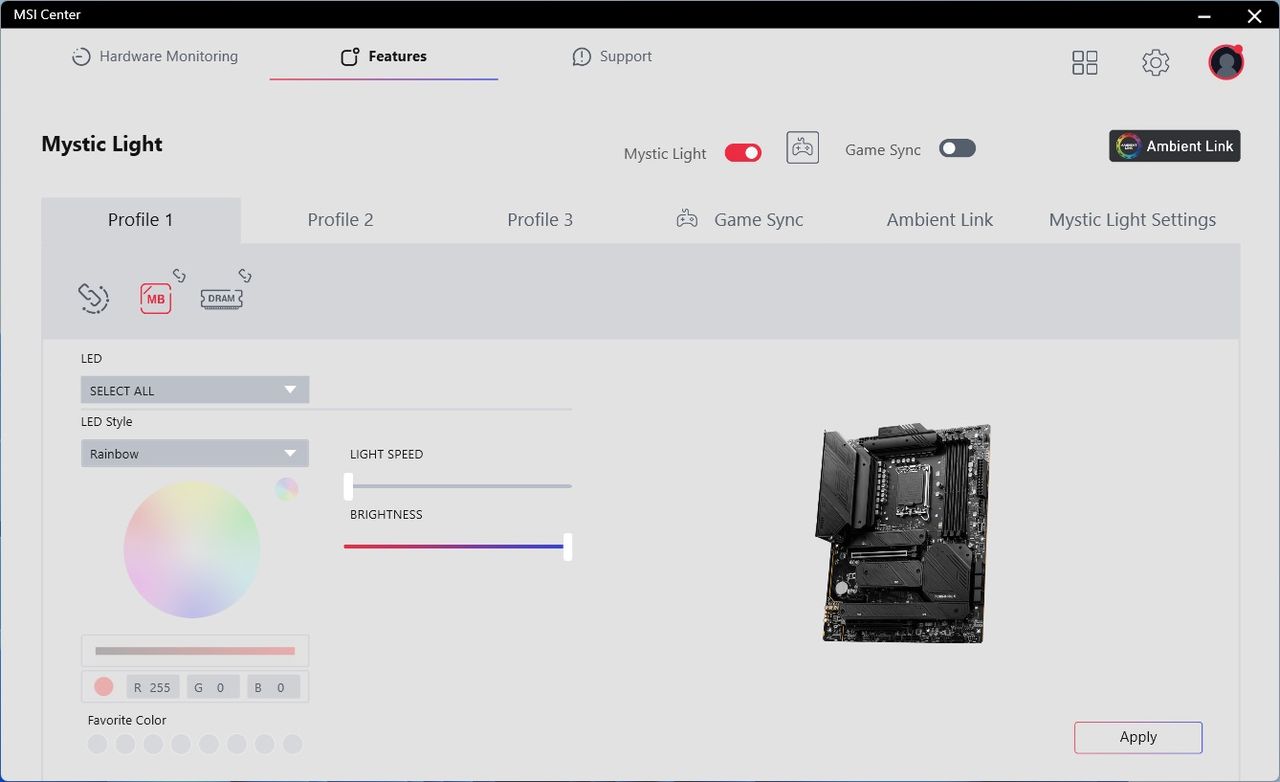

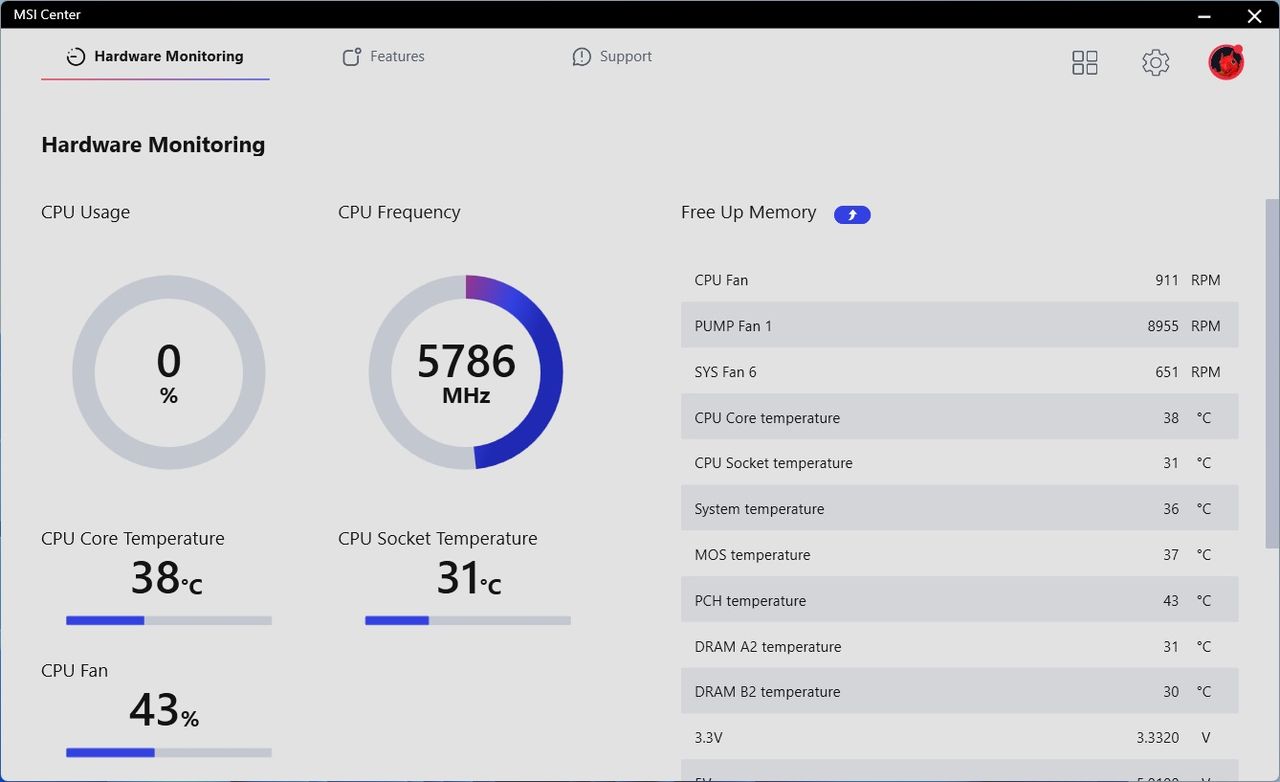

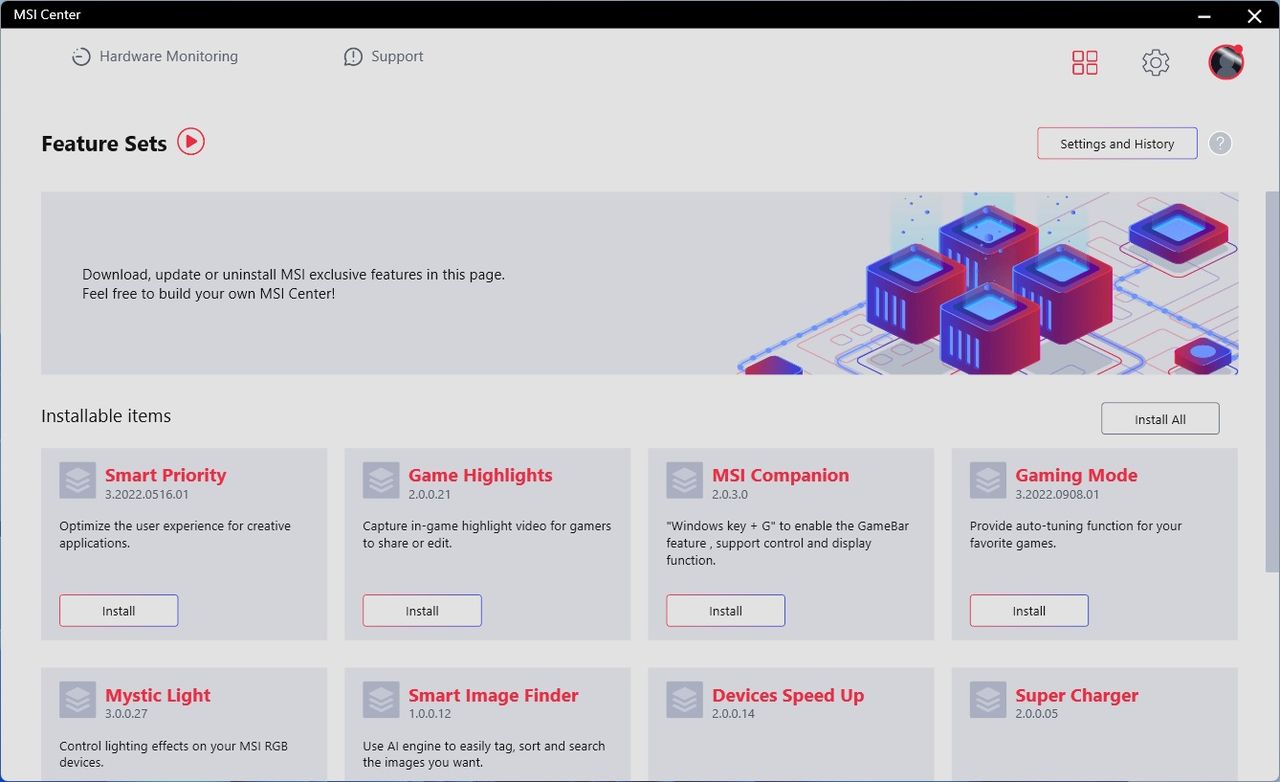

MSI has a single utility, MSI Center, that covers quite a bit of functionality. From hardware monitoring to RGB control with Mystic Light, there are many applets to choose from within the software and a one-stop shop to download all of their utilities. I wish there were some overclocking options, however. But for those looking to use the Gamebar feature, Super Charger, or any other utilities MSI offers will all be at your fingertips in MSI Center.

Image 1 of 5
MSI MEG Z790 Ace
(Image credit: Tom's Hardware)

Test System / Comparison Products

We’ve updated our test system to Windows 11 64-bit OS with all updates applied. We kept the same Asus TUF RTX 3070 video card from our previous testing platforms but updated the driver. We also updated to F1 22 for our games and kept Far Cry 6. We use the latest non-beta motherboard BIOS available to the public unless otherwise noted. The hardware we used is as follows:

Swipe to scroll horizontally
Test System Components
CPUIntel Core i9-13900K
MemoryKingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)
 GSkill Trident Z DDR5-5600 CL36 (F5-5600U3636C16GX2-TZ5RK)
GPUAsus TUF RTX 3070
CoolingCoolermaster MasterLiquid PL360 Flux
PSUEVGA Supernova 850W P6
SoftwareWindows 11 64-bit (22H2)
Graphics DriverNvidia GeForce Driver 522.25
SoundIntegrated HD audio
NetworkIntegrated Networking (GbE or 2.5 GbE)

(Image credit: Tom's Hardware)

EVGA supplied our Supernova 850W P6 power supply (appropriately sized and more efficient than the 1.2KW monster we used previously) for our test systems, and G.Skill sent us a DDR5-5600 (F5-5600U3636C16GX2-TZ5RK) memory kit for testing.

Image 1 of 7
Motherboard Testbed Components
(Image credit: EVGA)


Benchmark Settings

Swipe to scroll horizontally
Synthetic Benchmarks and Settings
ProcyonVersion 2.1.459 64
 Office Suite (Office 365), Video Editing (Premiere Pro 22.6.2.2), Photo Editing (Photoshop 23.5.1, Lightroom Classic 11.5)
3DMarkVersion 2.22.7359 64
 Firestrike Extreme and Time Spy Default Presets
Cinebench R23Version RBBENCHMARK330542
 Open GL Benchmark - Single and Multi-threaded
BlenderVersion 3.3.0
 Full benchmark (all 3 tests)
Application Tests and Settings
LAME MP3Version SSE2_2019
 Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLIVersion: 1.2.2
 Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
 Custom benchmark
7-ZipVersion 21.03-beta
 Integrated benchmark (Command Line)
Game Tests and Settings
Far Cry 6Ultra Preset - 1920 x 1080, HD Textures ON
F1 2022Ultra Preset - 1920 x 1080, Ultra High (default) Bahrain (Clear/Dry), FPS Counter ON
