Ιn these tests, we monitor the SPR-0850F-R's response in several scenarios. First, a transient load (10A at +12V, 5A at 5V, 5A at 3.3V, and 0.5A at 5VSB) is applied for 200ms as the PSU works at 20 percent load. In the second scenario, it's hit by the same transient load while operating at 50 percent load.
In the next sets of tests, we increase the transient load on the major rails with a new configuration: 15A at +12V, 6A at 5V, 6A at 3.3V, and 0.5A at 5VSB. We also increase the load-changing repetition rate from 5 Hz (200ms) to 50 Hz (20ms). Again, this runs with the PSU operating at 20 and 50 percent load.
The last tests are even tougher. Although we keep the same loads, the load-changing repetition rate rises to 1 KHz (1ms).
In all of the tests, we use an oscilloscope to measure the voltage drops caused by the transient load. The voltages should remain within the ATX specification's regulation limits.
These tests are crucial because they simulate the transient loads a PSU is likely to handle (such as booting a RAID array or an instant 100 percent load of CPU/GPUs). We call these "Advanced Transient Response Tests," and they are designed to be very tough to master, especially for a PSU with a capacity of less than 500W.
Advanced Transient Response at 20 Percent – 200ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 12.225V | 12.118V | 0.88% | Pass |
| 5V | 5.060V | 4.946V | 2.25% | Pass |
| 3.3V | 3.313V | 3.176V | 4.14% | Pass |
| 5VSB | 5.061V | 5.022V | 0.77% | Pass |
Advanced Transient Response at 20 Percent – 20ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 12.226V | 12.069V | 1.28% | Pass |
| 5V | 5.060V | 4.912V | 2.92% | Pass |
| 3.3V | 3.313V | 3.179V | 4.04% | Pass |
| 5VSB | 5.061V | 5.005V | 1.11% | Pass |
Advanced Transient Response at 20 Percent – 1ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 12.226V | 12.117V | 0.89% | Pass |
| 5V | 5.060V | 4.907V | 3.02% | Pass |
| 3.3V | 3.313V | 3.149V | 4.95% | Pass |
| 5VSB | 5.061V | 4.986V | 1.48% | Pass |
Advanced Transient Response at 50 Percent – 200ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 12.158V | 12.036V | 1.00% | Pass |
| 5V | 5.026V | 4.933V | 1.85% | Pass |
| 3.3V | 3.270V | 3.136V | 4.10% | Fail |
| 5VSB | 4.995V | 4.951V | 0.88% | Pass |
Advanced Transient Response at 50 Percent – 20ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 12.158V | 11.998V | 1.32% | Pass |
| 5V | 5.026V | 4.879V | 2.92% | Pass |
| 3.3V | 3.270V | 3.133V | 4.19% | Fail |
| 5VSB | 4.994V | 4.964V | 0.60% | Pass |
Advanced Transient Response at 50 Percent – 1ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 12.158V | 12.031V | 1.04% | Pass |
| 5V | 5.026V | 4.872V | 3.06% | Pass |
| 3.3V | 3.270V | 3.126V | 4.40% | Fail |
| 5VSB | 4.995V | 4.928V | 1.34% | Pass |

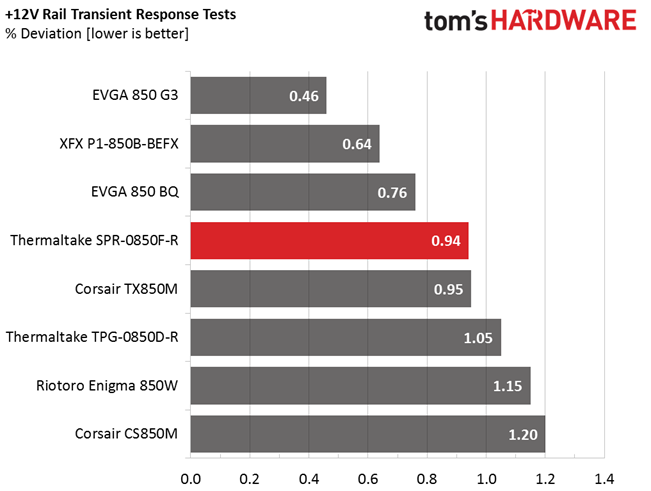

Deviations on the +12V rail are quite low, and the same goes for the 5VSB rail. On the contrary, the 5V rail's performance isn't particularly good, and the 3.3V rail fails in three out of six tests. Lousy regulation at 3.3V doesn't help its transient response, either.
Here are the oscilloscope screenshots we took during Advanced Transient Response Testing:

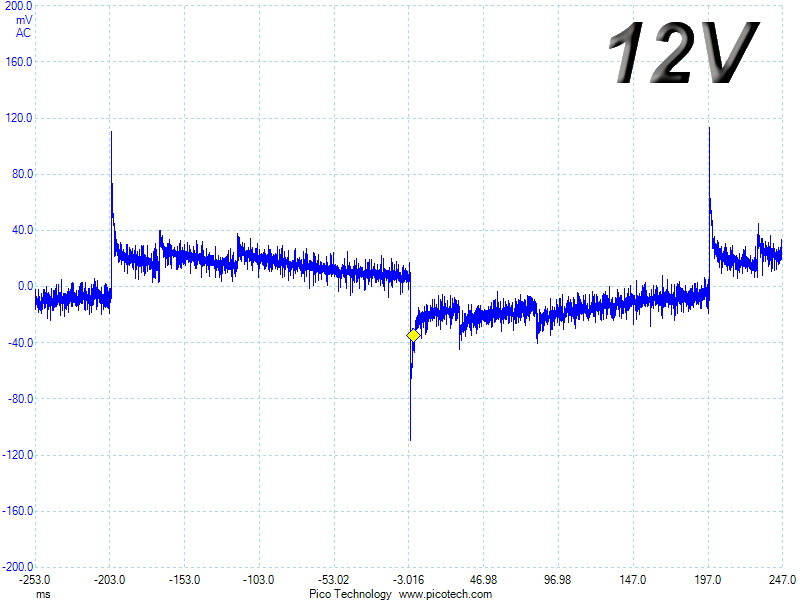

Transient Response At 20 Percent Load – 200ms
Transient Response At 20 Percent Load – 20ms
Transient Response At 20 Percent Load – 1ms
Transient Response At 50 Percent Load – 200ms
Transient Response At 50 Percent Load – 20ms
Transient Response At 50 Percent Load – 1ms
Turn-On Transient Tests
In the next set of tests, we measure the PSU's response in simpler transient load scenarios—during its power-on phase.
For the first measurement, we turned the SPR-0850F-R off, dialed in the maximum current the 5VSB could output and switched the PSU back on. In the second test, we dialed the maximum load the +12V could handle and started the 850W supply while it was in standby mode. In the last test, while the PSU was completely switched off, we dialed the maximum load the +12V rail could handle before switching it back on from the loader and restoring the power. The ATX specification states that recorded spikes on all rails should not exceed 10 percent of their nominal values (+10 percent for 12V is 13.2V, and 5.5 V for 5V).
The slopes at +12V are smooth enough, while we notice a small overshoot at 5VSB. That's nothing to worry about, though.
