Five Z87 Motherboards Under $220, Reviewed

By Thomas Soderstrom
published

Intel’s Haswell architecture displaces Ivy Bridge in its desktop line-up, bringing with it yet another new CPU interface. We tested six motherboards that claimed to be ready for your overclocking efforts, and included the five survivors in today’s review.

Z87H3-A2X Extreme Tuning Software

Users who want to configure an overclock through Windows might have better luck with Intel’s eXtreme Tuning Utility, as ECS’s eOC hasn’t caught up with its hardware.

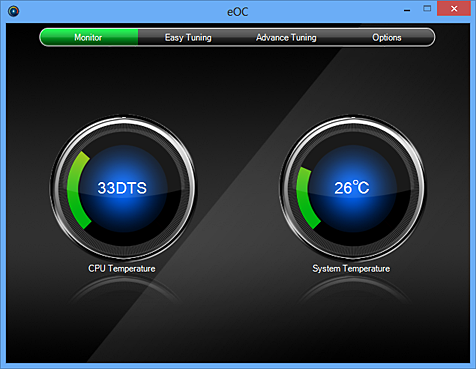

The application opens to CPU and motherboard thermal readings.

Easy Tuning is easy enough. There are no overclock settings for the new platform in this version of the software. We anticipate updates.

Voltage adjustment is limited to the parts outside the CPU. Perhaps the current version of eOC is designed to supplement Intel XTU?

Auto-execute probably doesn’t mean much when the clocks aren’t adjustable. Then again, anyone using both eOC and XTU can set eOC to launch first, providing the external voltage levels that might be required to sustain their XTU-based overclocks.

Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
92 Comments Comment from the forums
  • Someone Somewhere
    Who did you get the CPU from? Given the Haswell launch article said they were unlikely to be able to hit 4.5GHz+, is this a cherry-picked chip from Intel?
    Could we see some MBs around the $130-$140 mark? They're the interesting ones IMO, and would toast most of these in terms of value.
    Reply
  • Crashman
    10911132 said:
    Who did you get the CPU from? Given the Haswell launch article said they were unlikely to be able to hit 4.5GHz+, is this a cherry-picked chip from Intel?
    Intel says it doesn't cherry-pick chips for reviewers...
    Reply
  • Memnarchon
    Thank you. I was looking forward for a review like this. I read some reviews and the o/c was varying from mobo to mobo lot. So if the same cpu was used, 4,3Ghz to 4,7Ghz is a lot of difference. Because if your cpu would o/c to 4,3Ghz most we would tell its a crap sample Haswell sucks on o/c etc etc, but if it was be able to clock to 4,7Ghz we would say its a nice sample.
    Reply
  • cangelini
    10911132 said:
    Who did you get the CPU from? Given the Haswell launch article said they were unlikely to be able to hit 4.5GHz+, is this a cherry-picked chip from Intel?
    Could we see some MBs around the $130-$140 mark? They're the interesting ones IMO, and would toast most of these in terms of value.
    Yes, the CPU comes from Intel. Almost certainly it was cherry-picked. But this is why we didn't rely on these CPUs for our launch coverage--it makes a lot more sense to go to a source with hundreds of boxed processors on the bench to get a real sense for what Haswell will do in the wild. At least for this round-up, the variable changing is the motherboard. So, we derive as much meaning as possible with a review sample that hits 4.7 GHz on one board and 4.5 GHz on another.
    Reply
  • Someone Somewhere
    Yeah - but if people think that their chip is going to hit 4.7 on a good board, then find they can't get 4.5, they can be upset.

    OTOH, the launch coverage said that was at 1.2V, while this is 1.3V, so I guess a few hundred MHz extra is reasonable.

    Lot more variation than on IB's review: http://media.bestofmicro.com/X/O/335580/original/image019.png
    Reply
  • JOSHSKORN
    Isn't there a flaw in the Z87 technology regarding sleep mode? Was it mentioned in the article? I didn't see it.
    Reply
  • Jason Louie
    do these board suffer from the rumoured usb3 sleep issue? or are they the fixed B3 steppings ?
    Reply
  • Crashman
    10911218 said:
    Isn't there a flaw in the Z87 technology regarding sleep mode? Was it mentioned in the article? I didn't see it.
    Did you read the Haswell review? All current boards are affected, no future boards will be, there's nothing to update here, and the flaw is virtually meaningless.
    http://www.tomshardware.com/reviews/core-i7-4770k-haswell-review,3521-9.html

    If you have one of the affected drives and can't be bothered to reconnect it when it goes offline, wait a couple weeks and buy a board from the new batch.

    The differences between boards in today's review are overclocking, power consumption, and onboard features. None of those things will change with the new PCH batch, and firmware updates should improve both batches equally.



    Reply
  • Jason Louie
    do these board suffer from the rumoured usb3 sleep issue? or are they the fixed B3 steppings ?
    Reply
  • sna
    Hello,
    Can you guys please test 6 SSD in Raid 0 on these mobos ? this is the only Advantage of upgrading to a Haswell over ivy/sandy bridge.
    Reply
