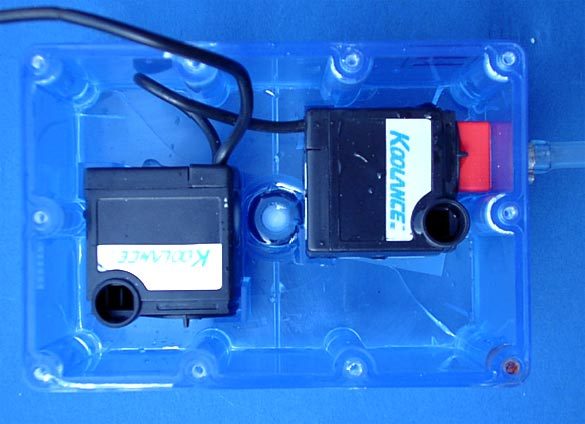

Built into the water tank, these circulate the water.

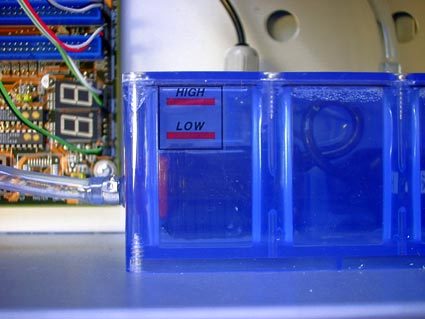

Fill level marks on the side of the water supply container.
The base of the Koolance case contains a supply container holding two electrical pumps. The container material itself, a type of Plexiglas, is not exactly an ideal solution: careless treatment or too much force applied to the screws can crack the plastic. Both pumps work very effectively - one pump provides suction, the other, pressure.

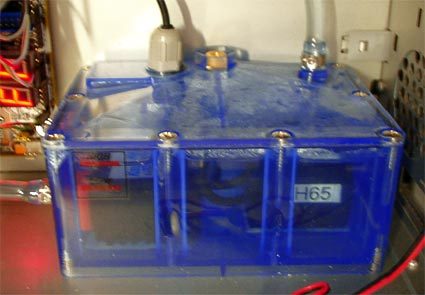

View of the water supply container.

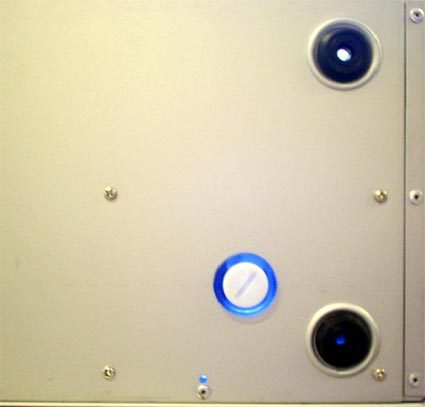

Drain plug for the cooling liquid.
