Asus ROG Strix Z790-I Gaming Wi-Fi Motherboard Review: ROG Features in Mini-ITX

A premium Mini-ITX board with Thunderbolt 4, PCIe 5.0 M.2, and unique Hive peripheral

Asus ROG Strix Z790-I Gaming Wi-Fi
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

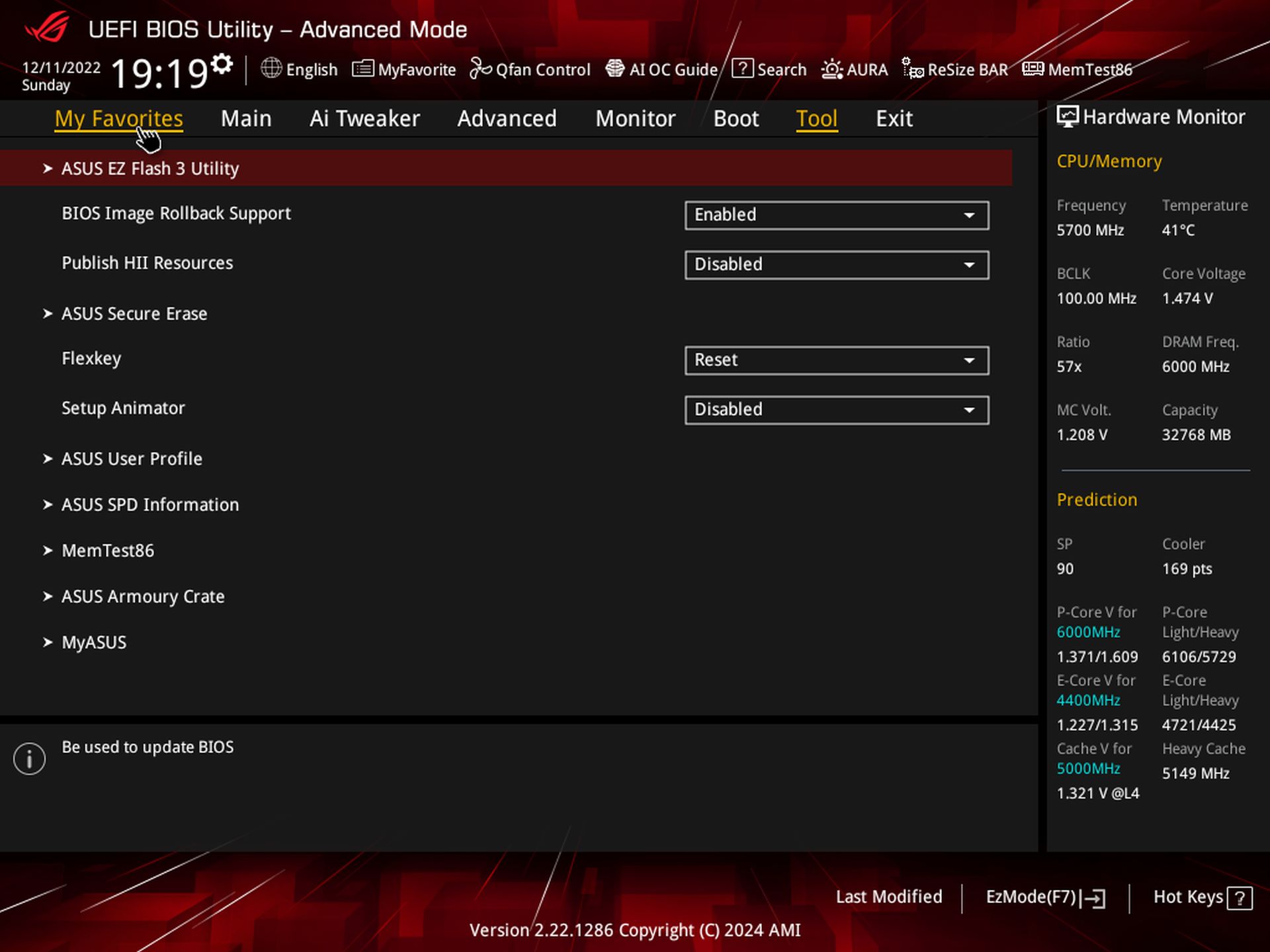

Asus’ BIOS on the Z790-I Gaming Wi-FI sports the familiar black, red, and yellow ROG theme that’s easy to read. Asus starts in an Easy Mode that displays high-level information, including CPU and memory clock speeds, temperatures, fan speeds, storage information, etc. Advanced Mode has several headers across the top that drop down additional options. The BIOS is one of my favorites, as almost everything you need isn’t buried deep within menus.

A unique feature of Asus BIOS is the integrated Memtest functionality. As the name implies, Memtest86, a memory testing application, is in the BIOS ready to use. This is most useful to the tweaker and overclocker, but even those who ‘just’ set XMP can find it useful.

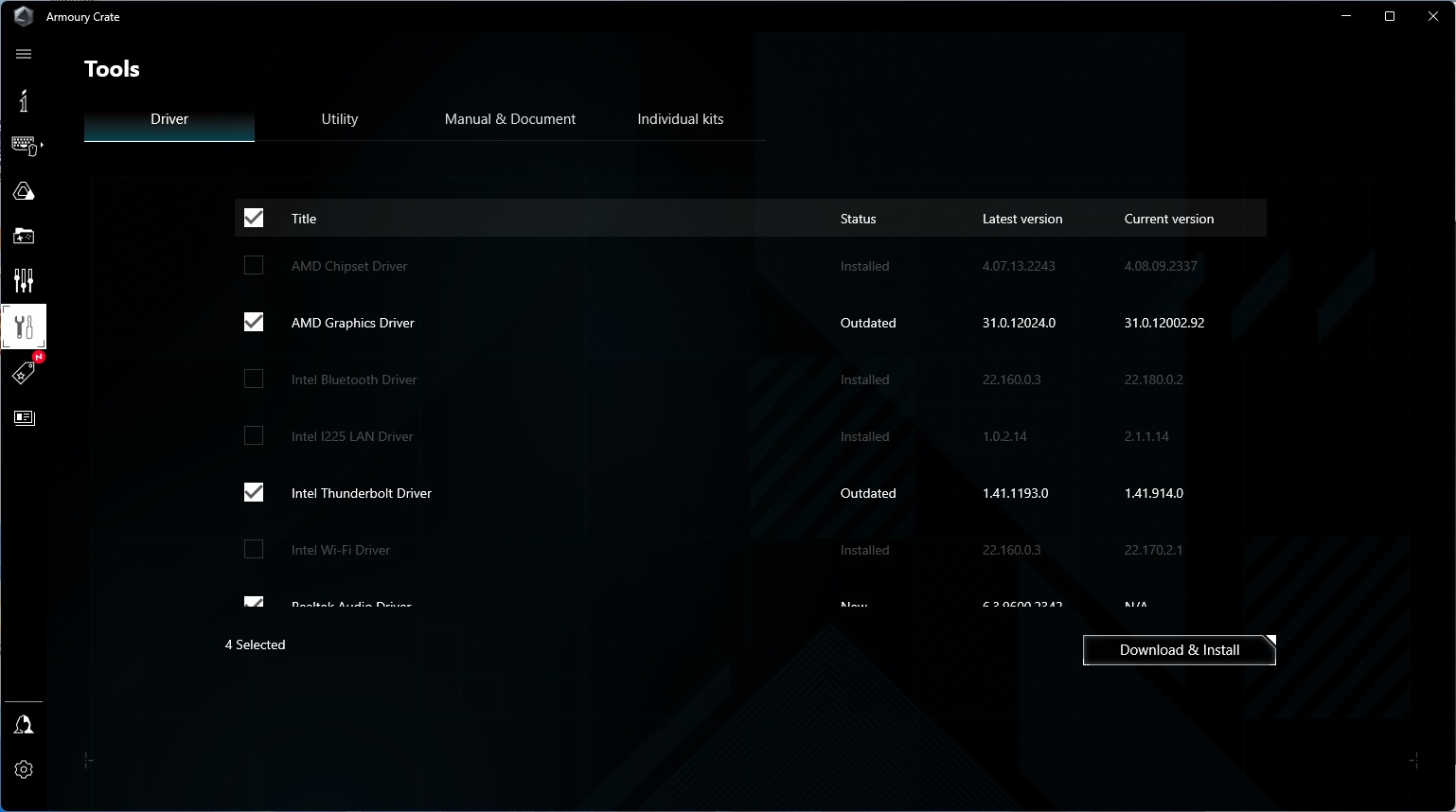

Armoury Crate for the Formula is the same as other ROG-based boards and follows the ROG-inspired theme. Several applications exist for various functions, ranging from RGB lighting control, audio, system monitoring, overclocking, etc. We’ve captured several screenshots of the applications below. Here’s a look at Ai Suite 3, Armoury Crate, Sonic Studio, and the Realtek Audio application.

Also worth mentioning is the included software. When buying Asus motherboards, you get a year of AV software (McAfee, not a trial). You also get a full 1-year license of AIDA64 - a good application for stress and performance testing and one free month of the Adobe Creative Cloud, which could bring additional value to the product.

Test System / Comparison Products

 We’ve updated our test system to Windows 11 64-bit OS with all updates applied as of mid-October 2023. We kept the same Asus TUF RTX 3070 video card from our previous testing platforms but have updated the driver to the latest, keeping our games, F1 22 and Far Cry 6, the same. Unless otherwise noted, we use the latest non-beta motherboard BIOS available to the public using ‘optimized default’ settings, except for the memory (XMP). The hardware and drivers we used are as follows:

Test System Components

Swipe to scroll horizontally
CPUIntel Core i9-14900K
MemoryKingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)
Row 2 - Cell 0 Teamgroup T-Force Delta RGB DDR5- 7200 CL34 (FF3D516G7200HC34ABK)
GPUAsus TUF RTX 3070
CoolingCoolermaster MasterLiquid PL360 Flux
PSUEVGA Supernova 850W P6
SoftwareWindows 11 64-bit (22H2)
GraphicsNVIDIA Driver 537.42

(Image credit: Tom's Hardware)

 Benchmark Settings

Swipe to scroll horizontally
Synthetic Benchmarks and SettingsRow 0 - Cell 1
ProcyonVersion 2.6.848 64
Row 2 - Cell 0 Office Suite (Office 365), Video Editing (Premiere Pro 23.6), Photo Editing (Photoshop 25.0, Lightroom Classic 12.5)
3DMarkVersion 2.27.8177 64
Row 4 - Cell 0 Firestrike Extreme (v1.1) and Time Spy (v1.2) Default Presets
Cinebench R24Version ‘build unknown’
Row 6 - Cell 0 Open GL Benchmark - Single and Multi-threaded
BlenderVersion 3.6.0
Row 8 - Cell 0 Full benchmark (all 3 tests)
Application Tests and SettingsRow 9 - Cell 1
LAME MP3Version SSE2_2019
Row 11 - Cell 0 Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLIVersion: 1.2.2
Row 13 - Cell 0 Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
Row 15 - Cell 0 Custom benchmark
7-ZipVersion 21.03-beta
Row 17 - Cell 0 Integrated benchmark (Command Line)
Game Tests and SettingsRow 18 - Cell 1
Far Cry 6Ultra Preset - 1920 x 1080, HD Textures ON
F1 2022Ultra Preset - 1920 x 1080, Ultra High (default) Bahrain (Clear/Dry), FPS Counter ON
