Apexgaming AG-850M PSU Review

Teardown & Component Analysis

Before proceeding with this page we strongly encourage you to a look at our PSUs 101 article, which provides valuable information about PSUs and their operation, allowing you to better understand the components we're about to discuss.

General Data
Manufacturer (OEM)Solytech
Primary Side

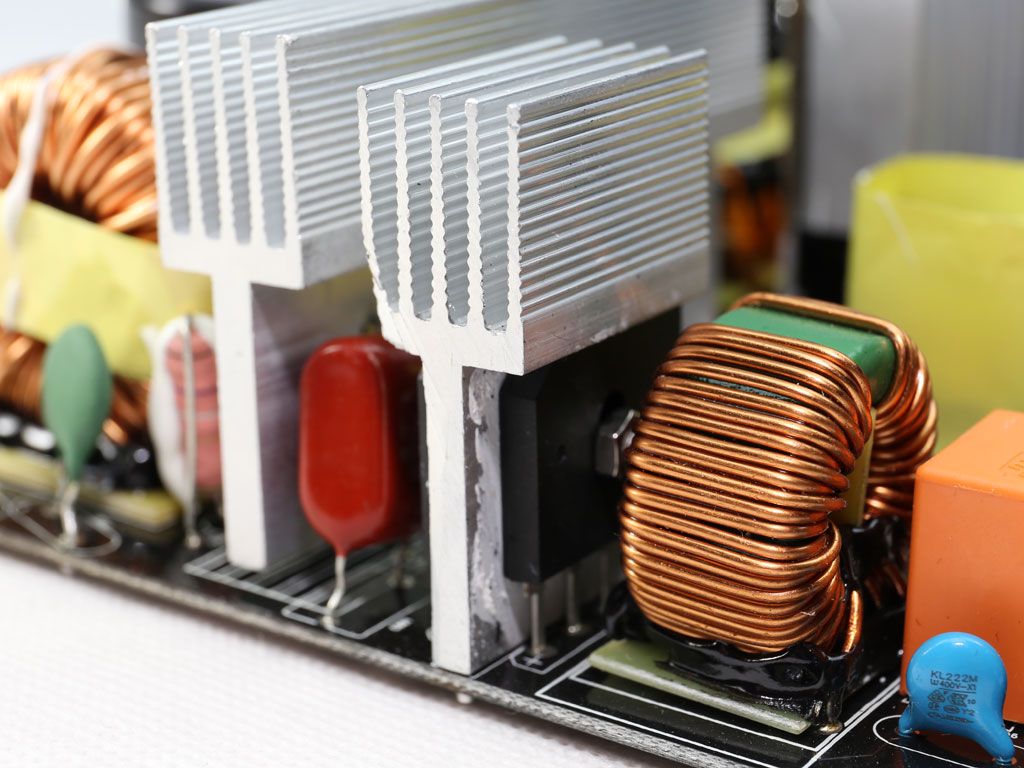

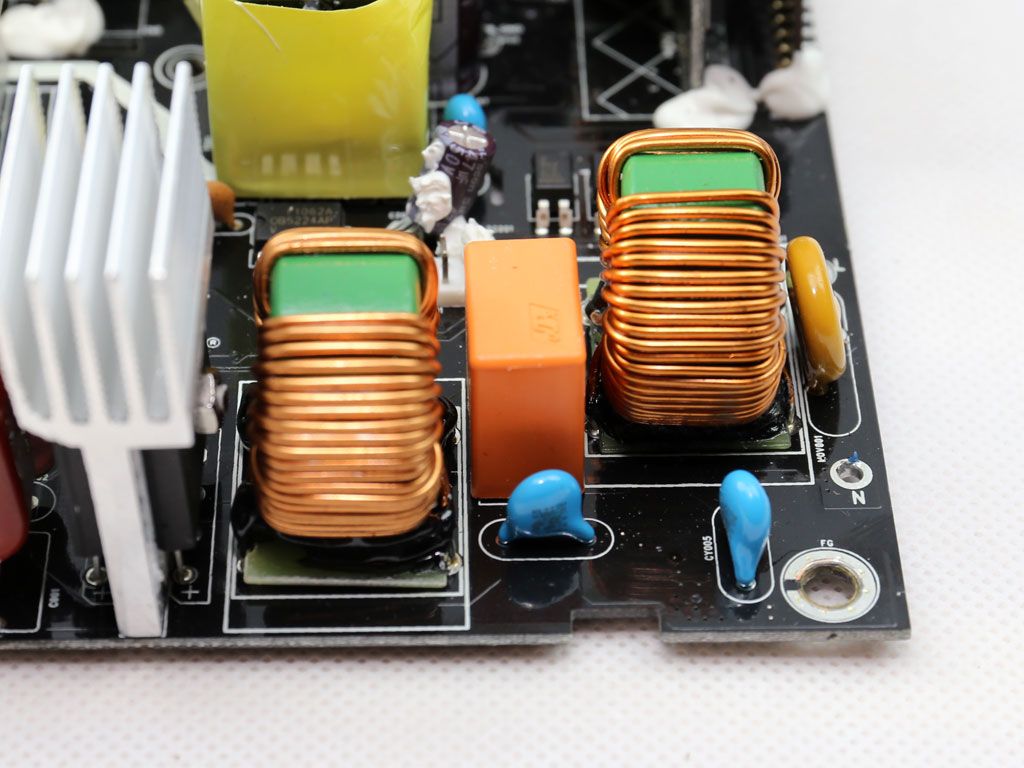

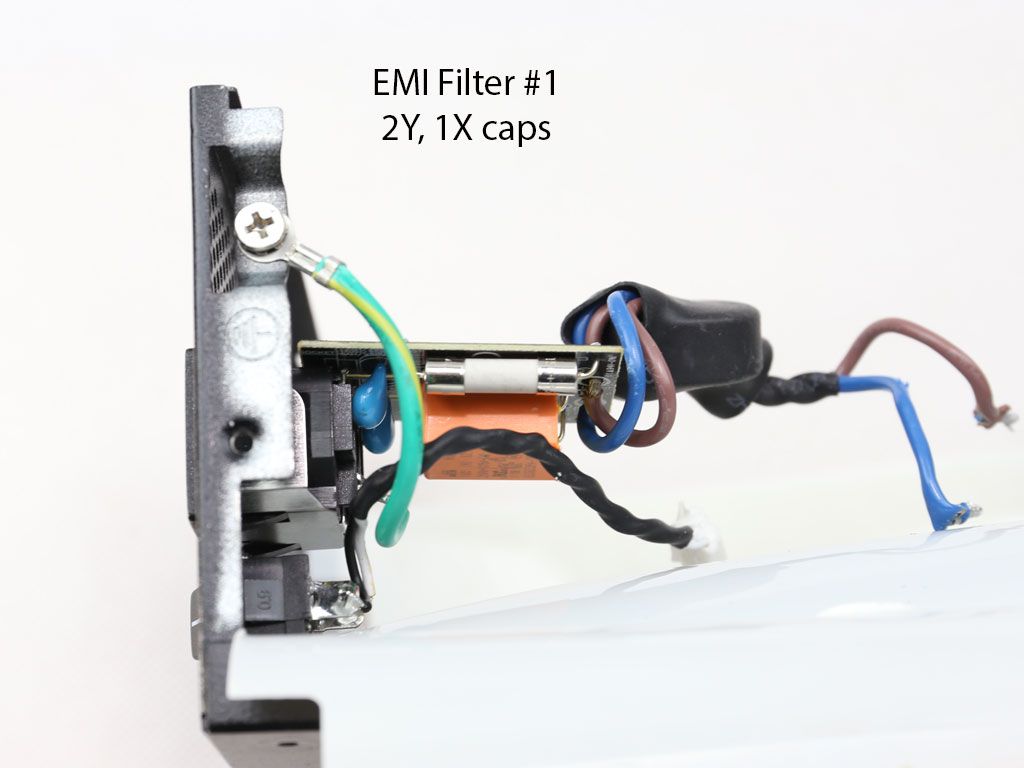

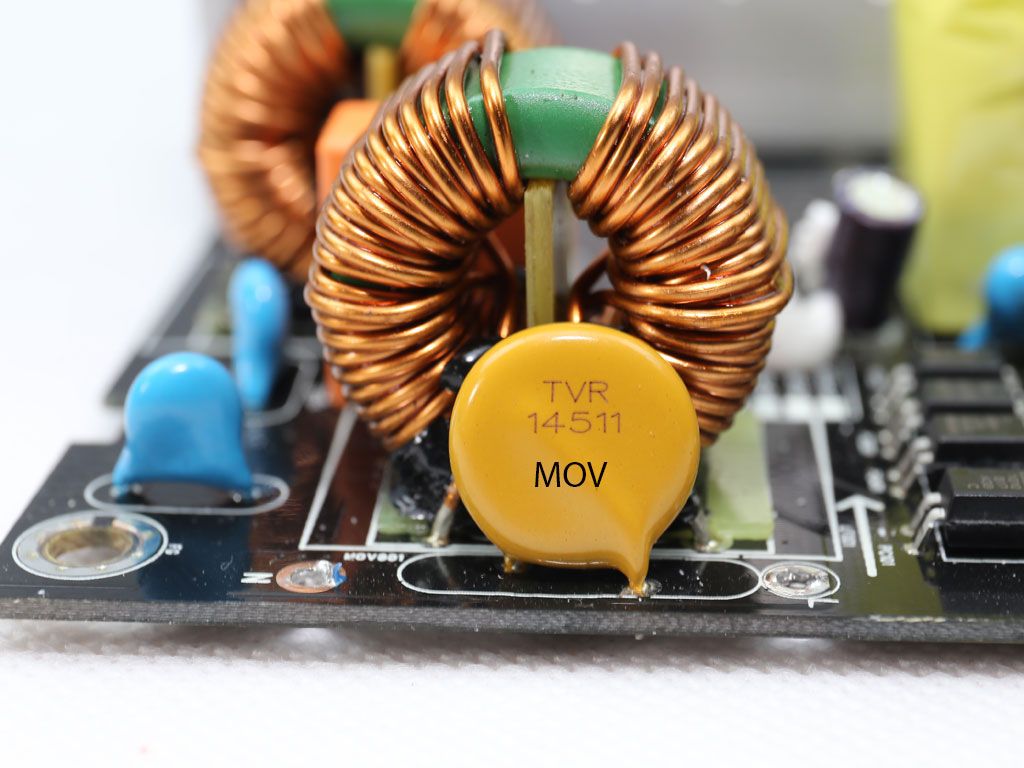

Transient Filter4x Y caps, 2x X caps, 2x CM chokes, 1x MOV

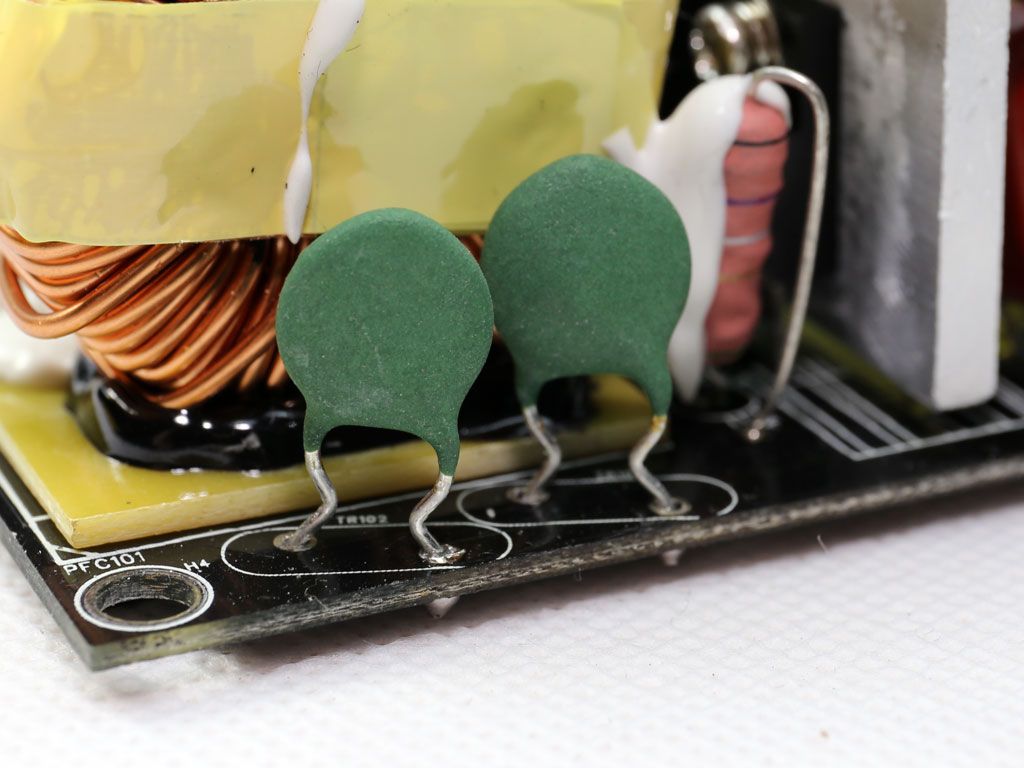

Inrush Protection2x NTC thermistors

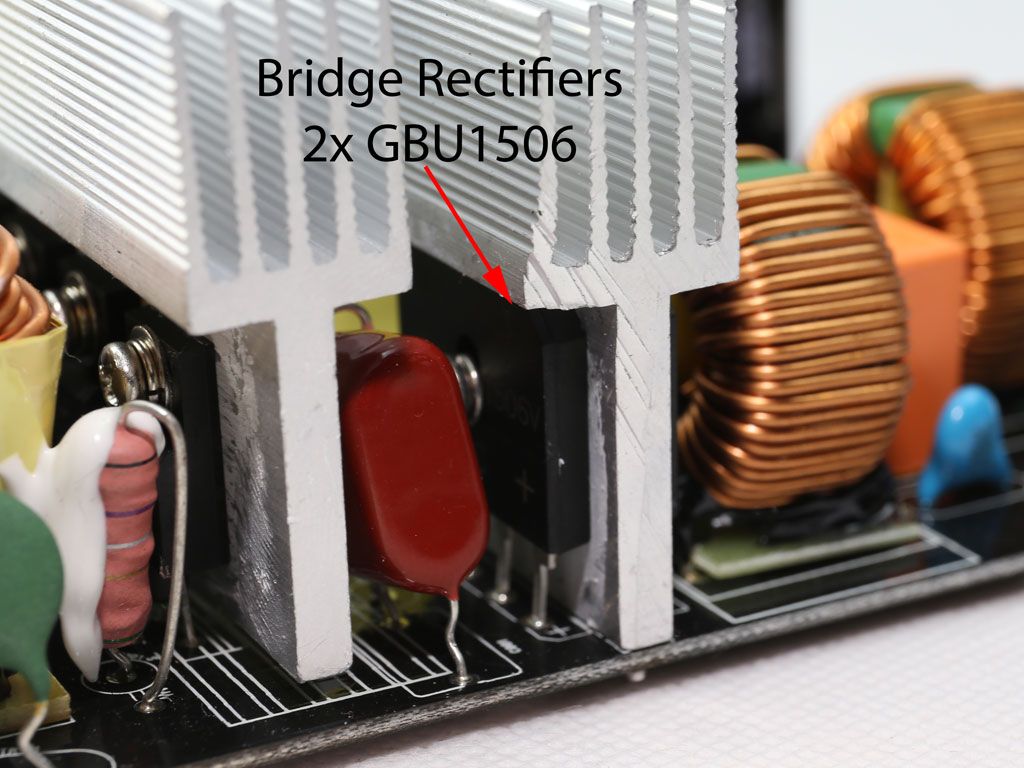

Bridge Rectifier(s)2x GBU1506 (600V, 15A @ 100°C)

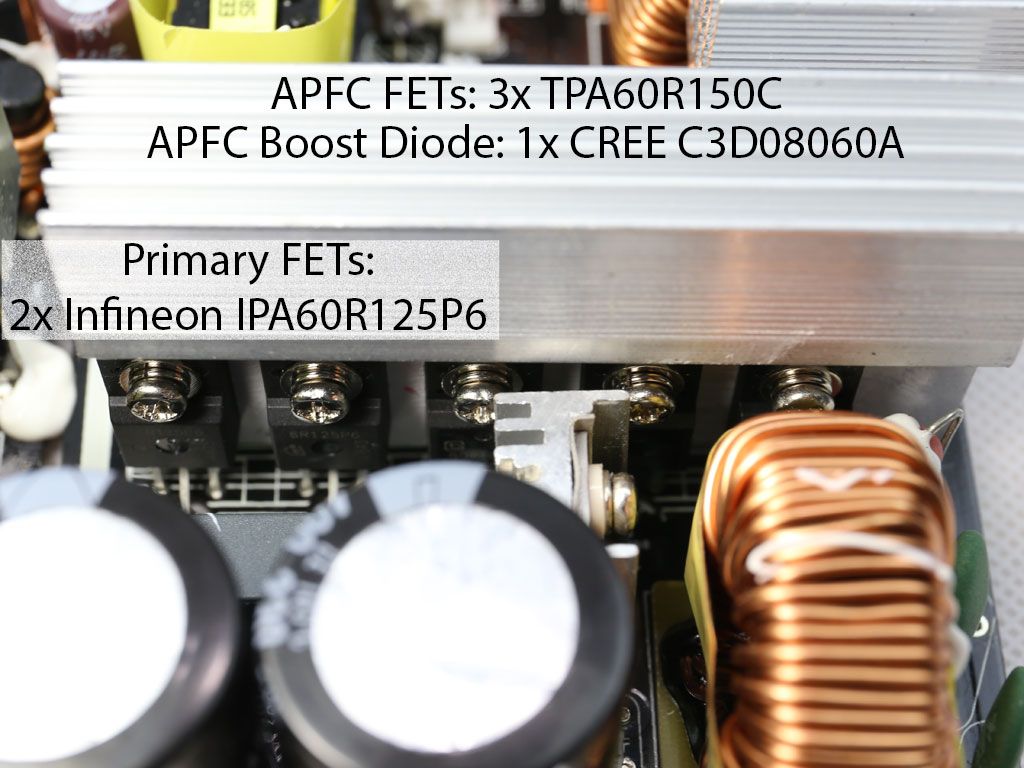

APFC MOSFETs3x Wuxi Tongfang Microelectronics TPA60R150C (600V, 20A @ 25°C, 0.15Ω)

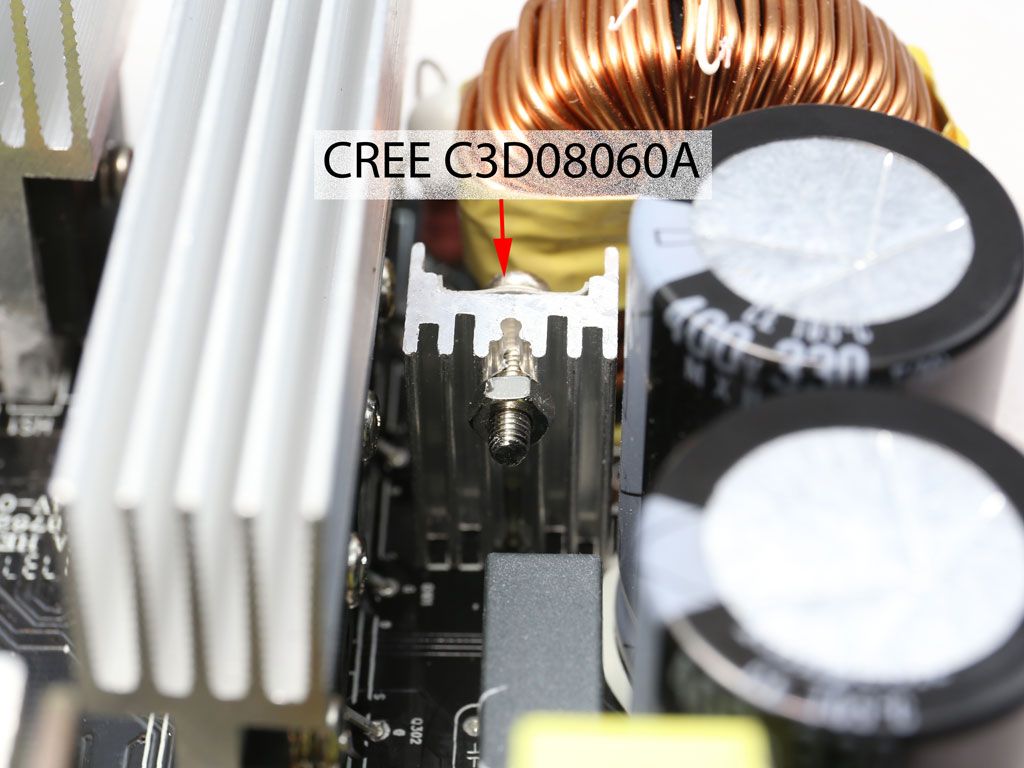

APFC Boost Diode1x CREE C3D08060A (600V, 8A @ 152°C)

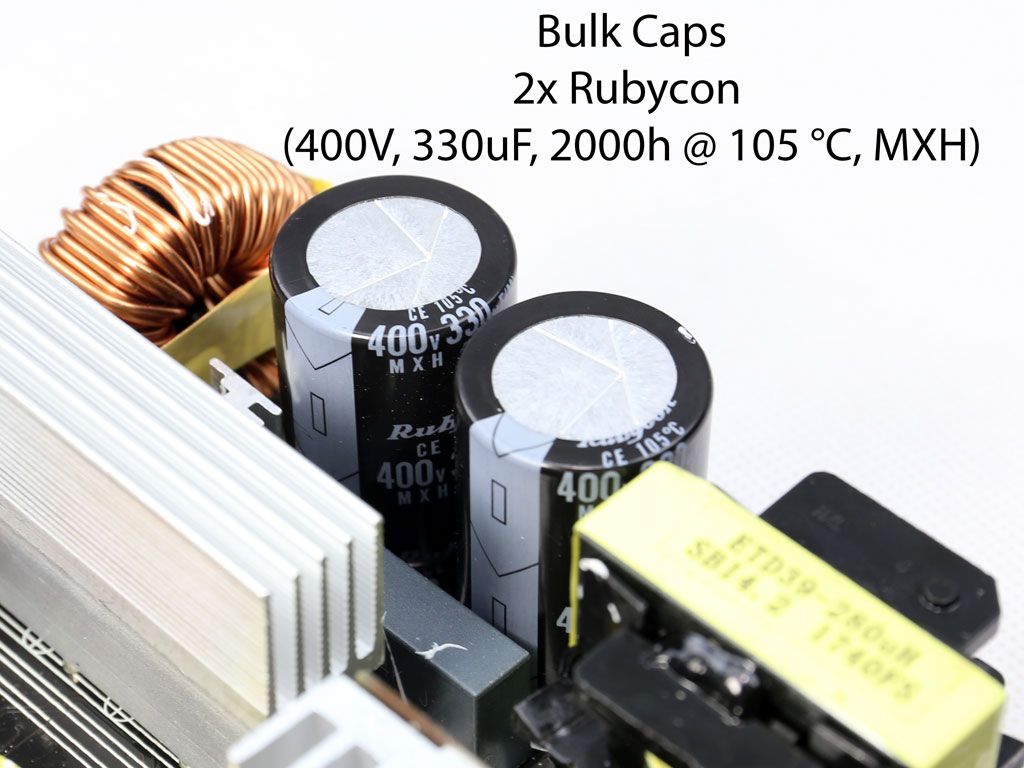

Hold-up Cap(s)2x Rubycon (400V, 330uF, 2000h @ 105°C, MXH)

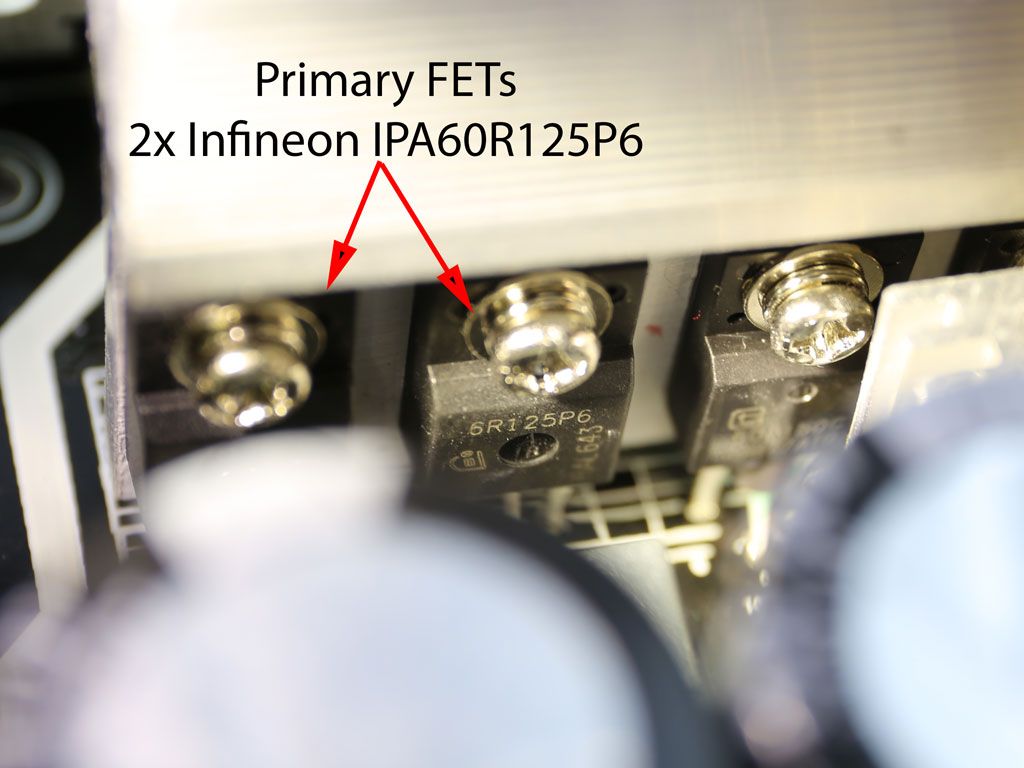

Main Switchers2x Infineon IPA60R125P6 (650V, 1A @ 100°C, 0.125Ω)

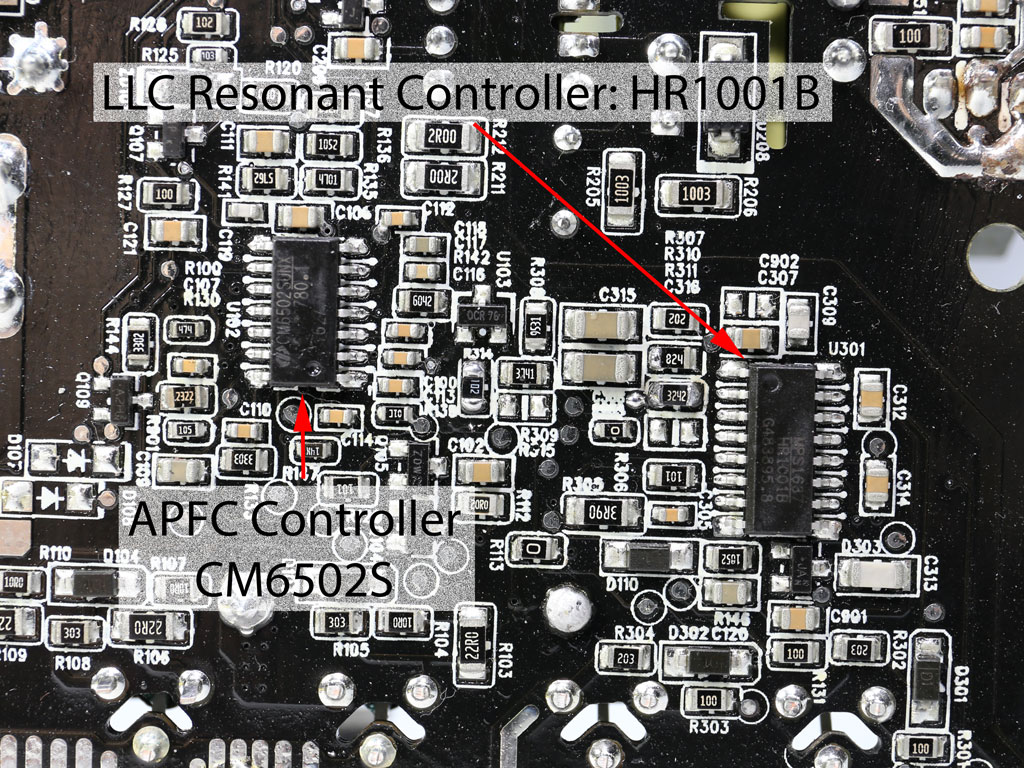

APFC ControllerChampion CM6502S
LLC Resonant ControllerMonolithic Power Systems HR1001B
TopologyPrimary side: Half-bridge & LLC resonant controller Secondary side: Synchronous rectification & DC-DC converters
Secondary Side

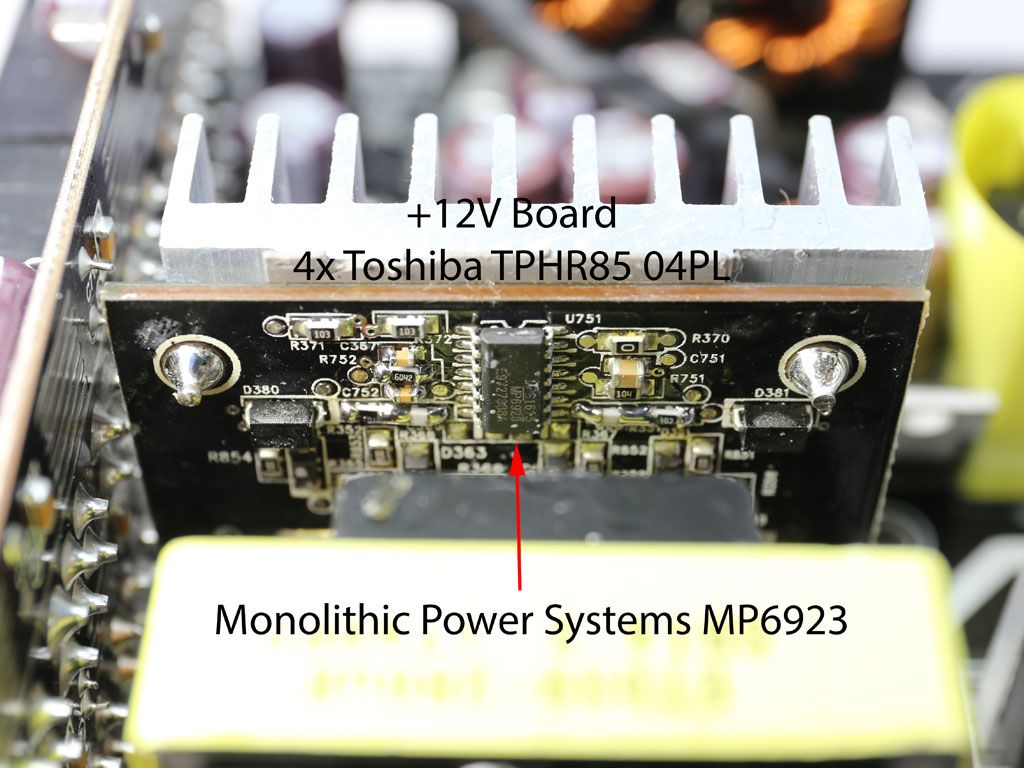

+12V MOSFETs4x Toshiba TPHR85 04PL (SOP Advance Series, 40V, 150A @ 25°C, 0.85mΩ )
Synchronous RectifierMonolithic Power Systems MP6923

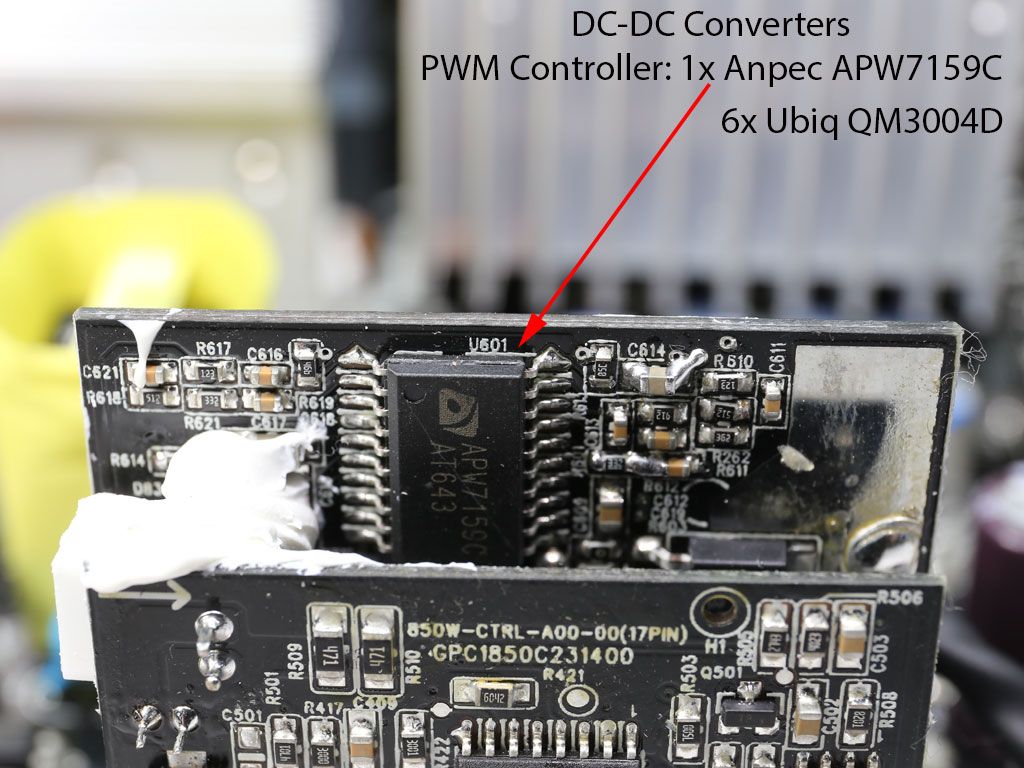

5V & 3.3VDC-DC Converters: 6x Ubiq QM3004D (30V, 40A @ 100°C, 8.5mΩ) PWM Controller: 1x Anpec APW7159C

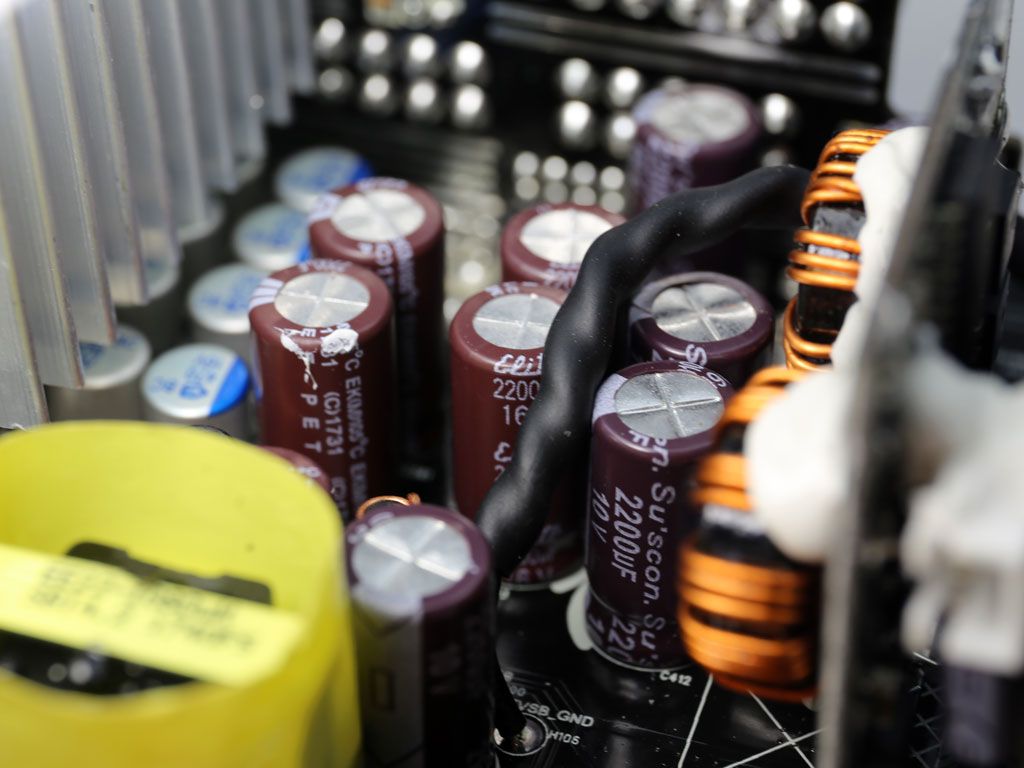

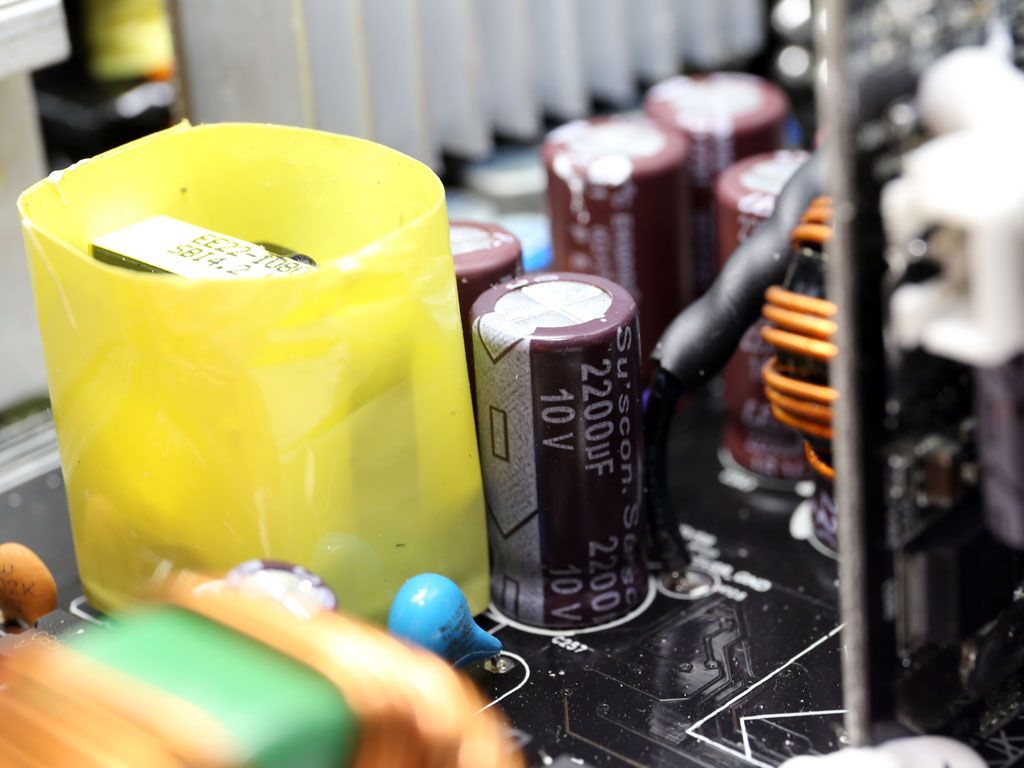

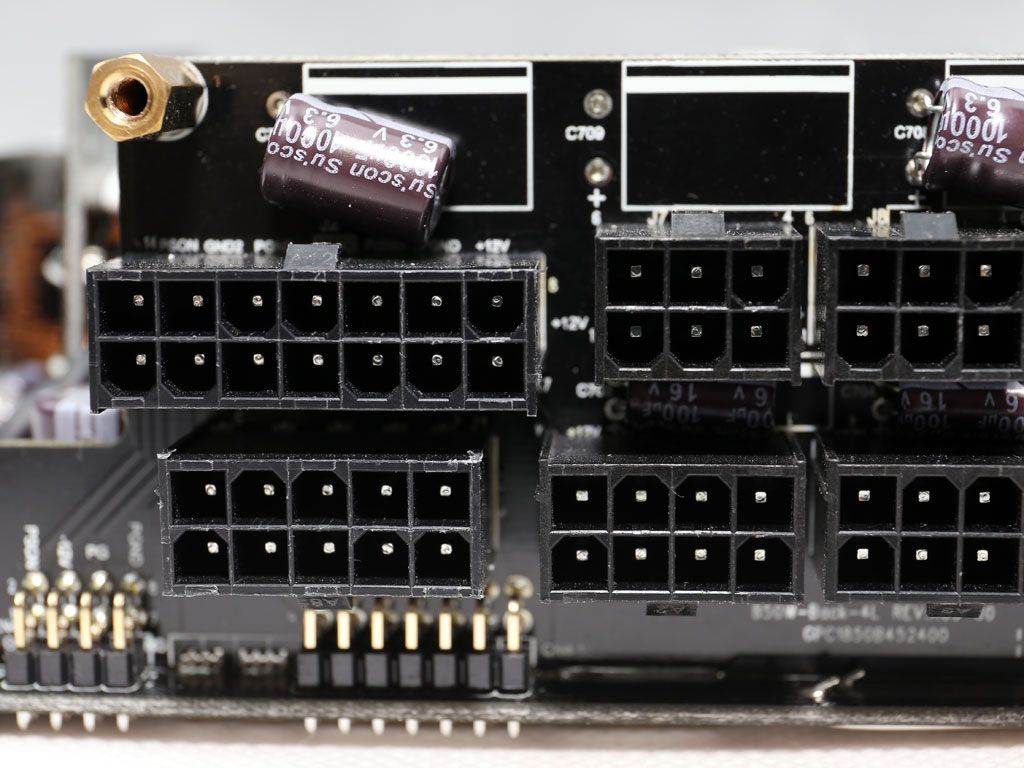

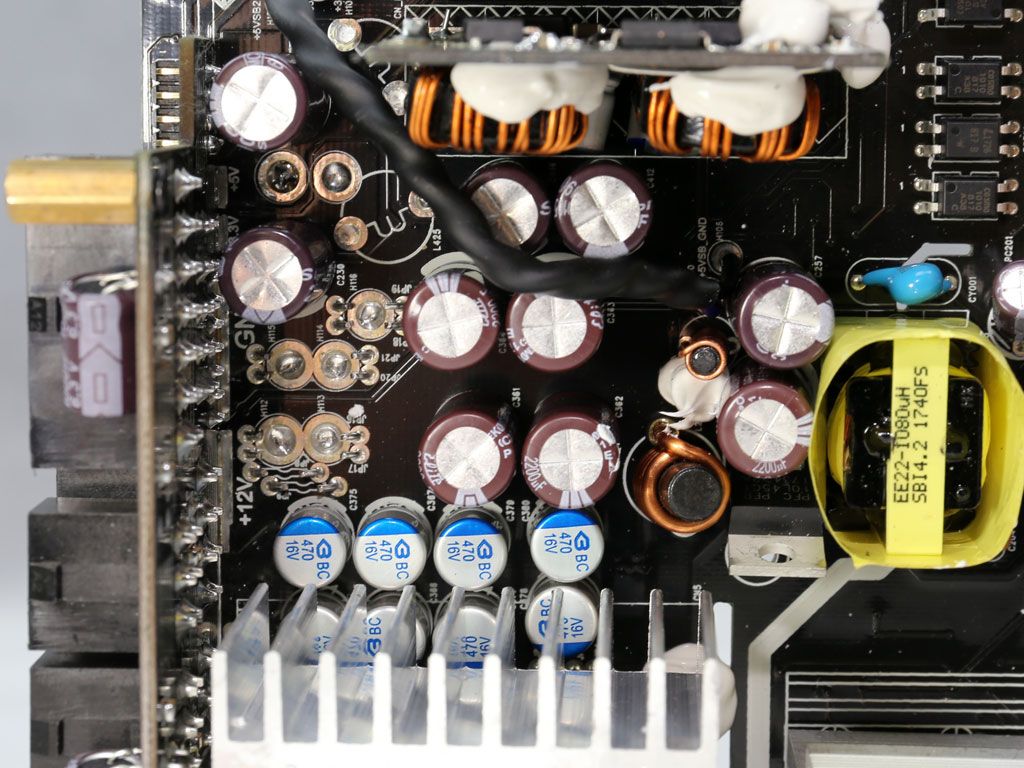

Filtering CapacitorsElectrolytics: 14x Su'scon (Chinese, 105°C), 5x Elite (Chinese, 105°C) Polymers: 8x

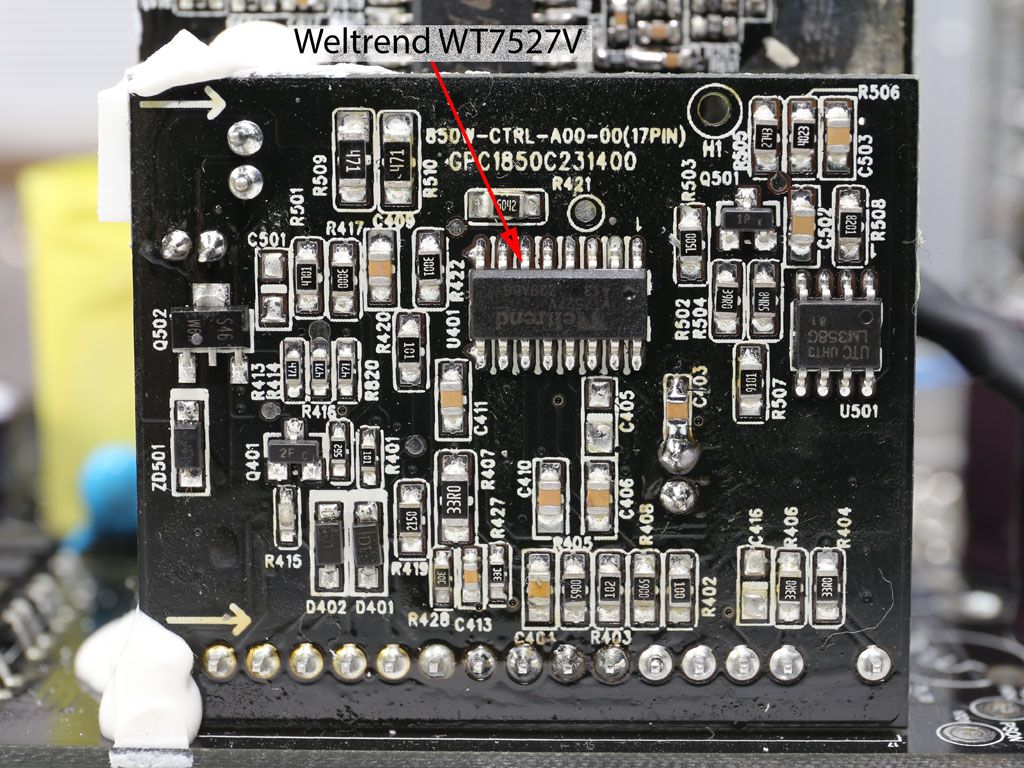

Supervisor ICWeltrend WT7527V (OCP, OVP, UVP, SCP, PG) & UTC LM358G

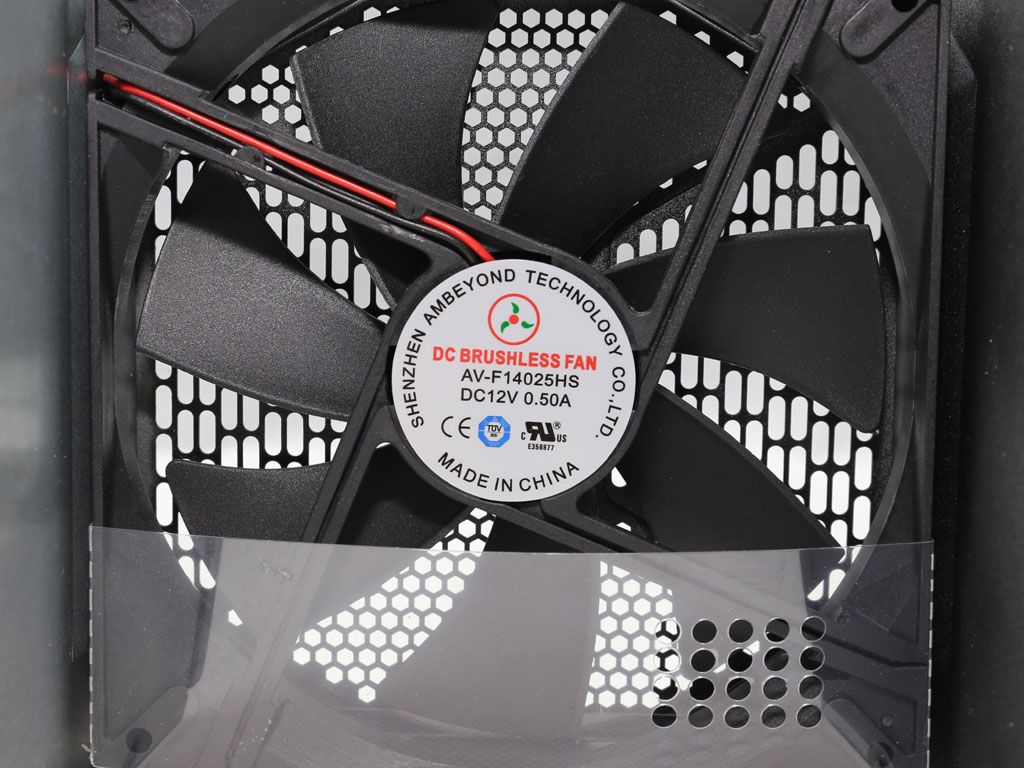

Fan ModelAV-F14025HS (140mm, 12V, 0.50A, Sleeve Bearing)

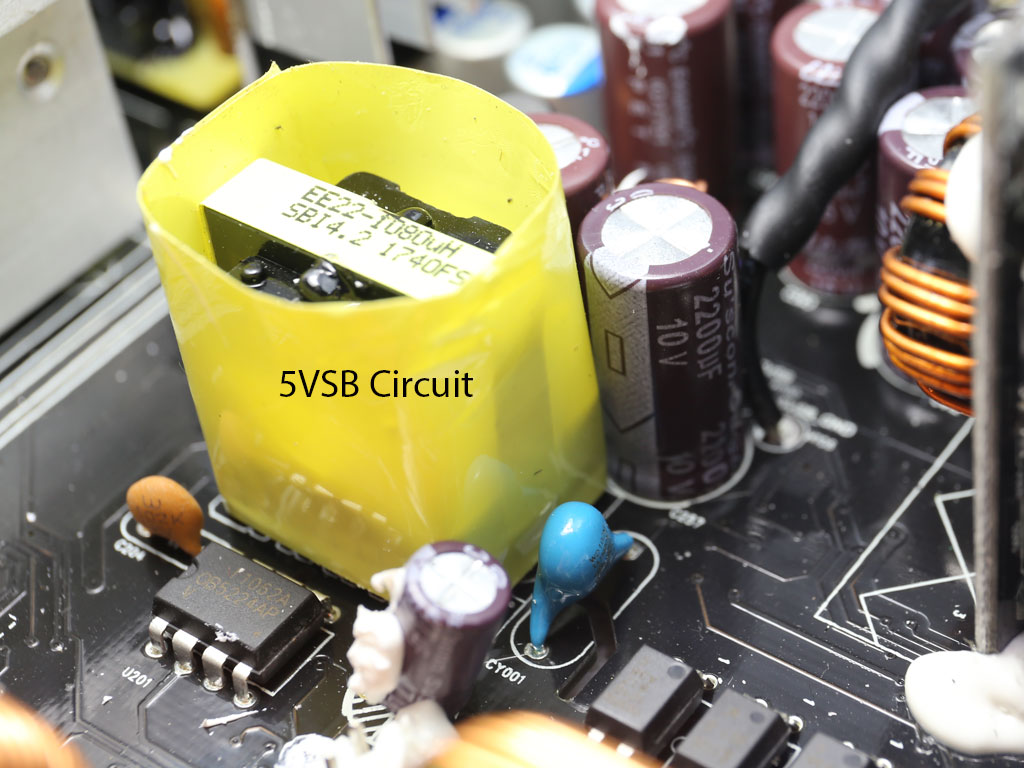

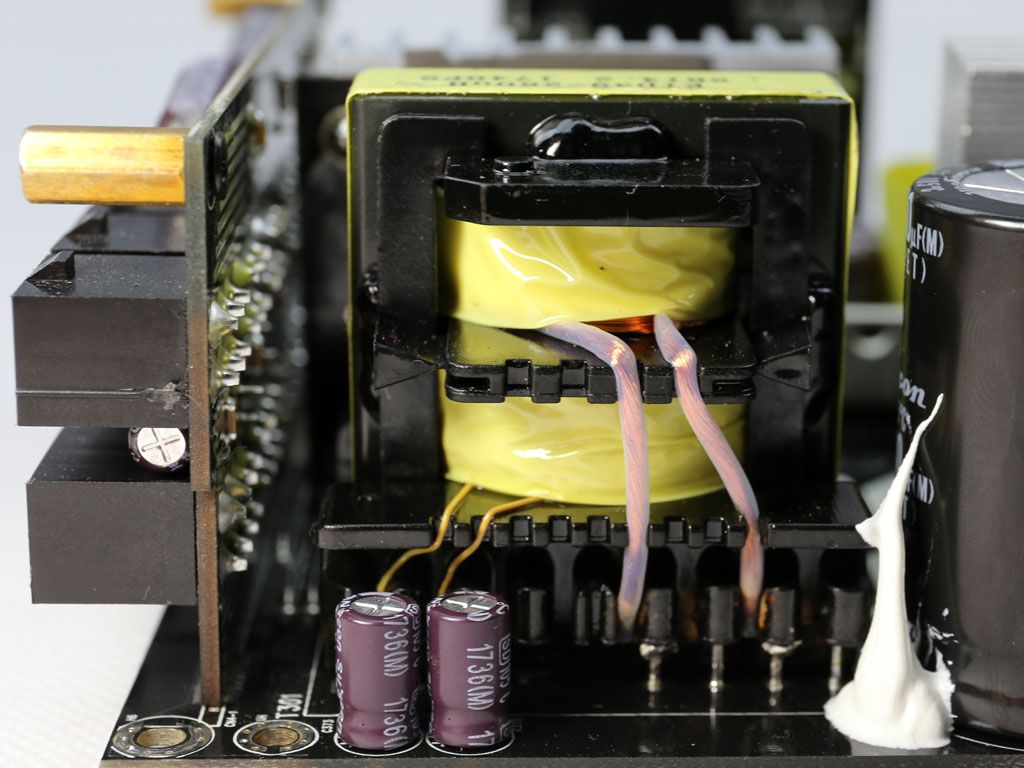

5VSB Circuit

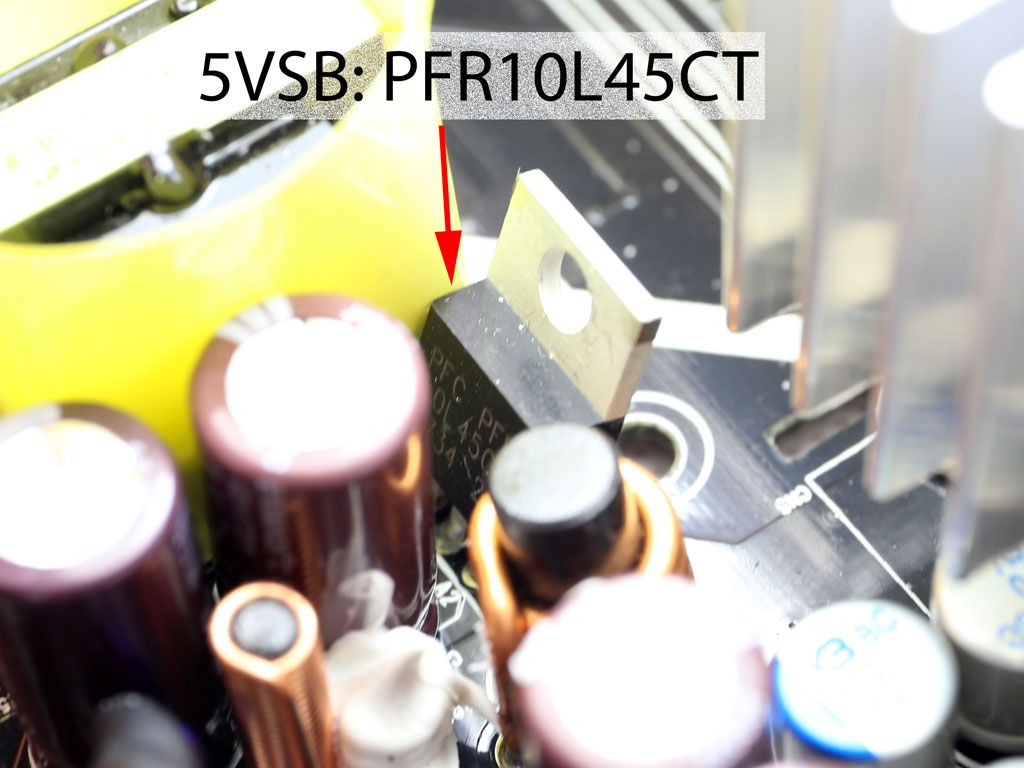

Rectifier1x PFR10L45CT SBR (45V, 10A)

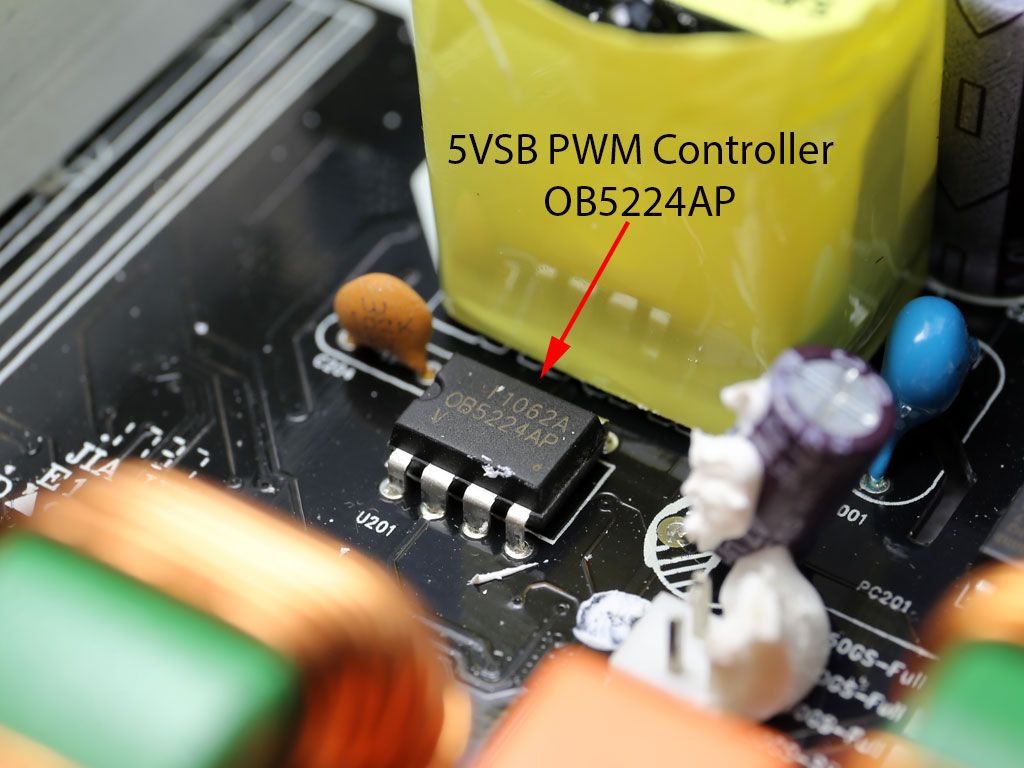

Standby PWM ControllerOB5224AP

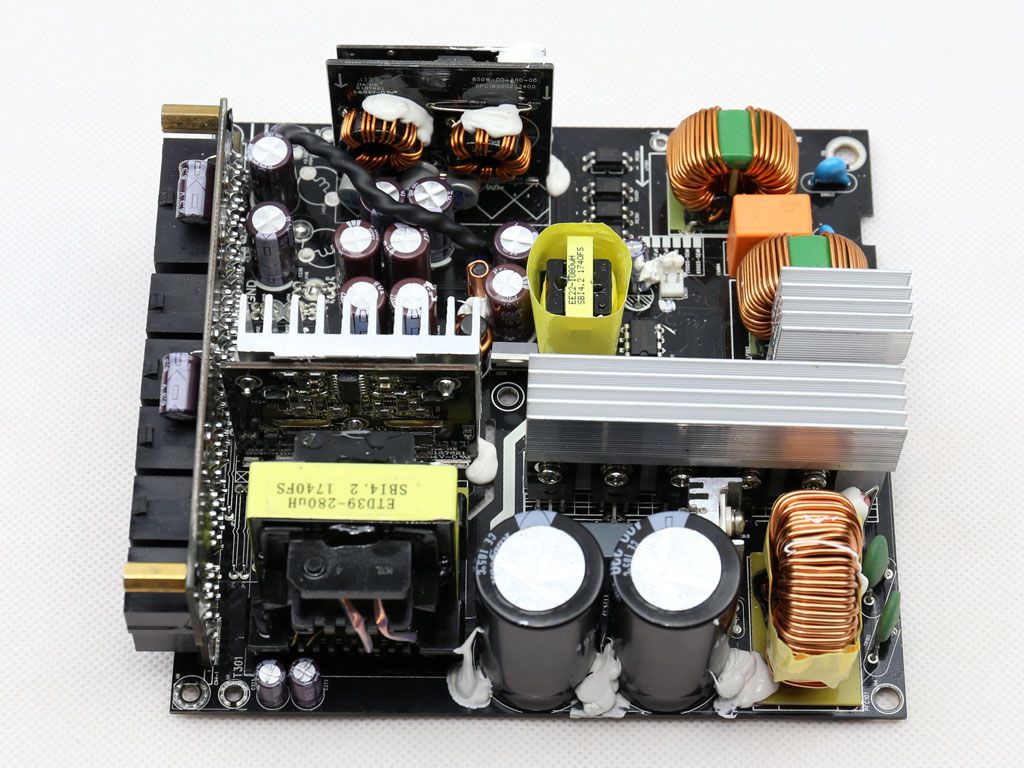

The AG-850M employs a modern platform based on an LLC resonant converter and specially-designed main transformer. The bulk caps' quality is pretty good, while the opposite is true for the secondary side. Solytech uses cheap Chinese caps not known for their reliability. In our opinion, no such capacitors belong in an 850W PSU selling for more than $100. This makes it even stranger that the AG-850M is covered by a 10-year warranty. We would like to see a higher quality fan as well.

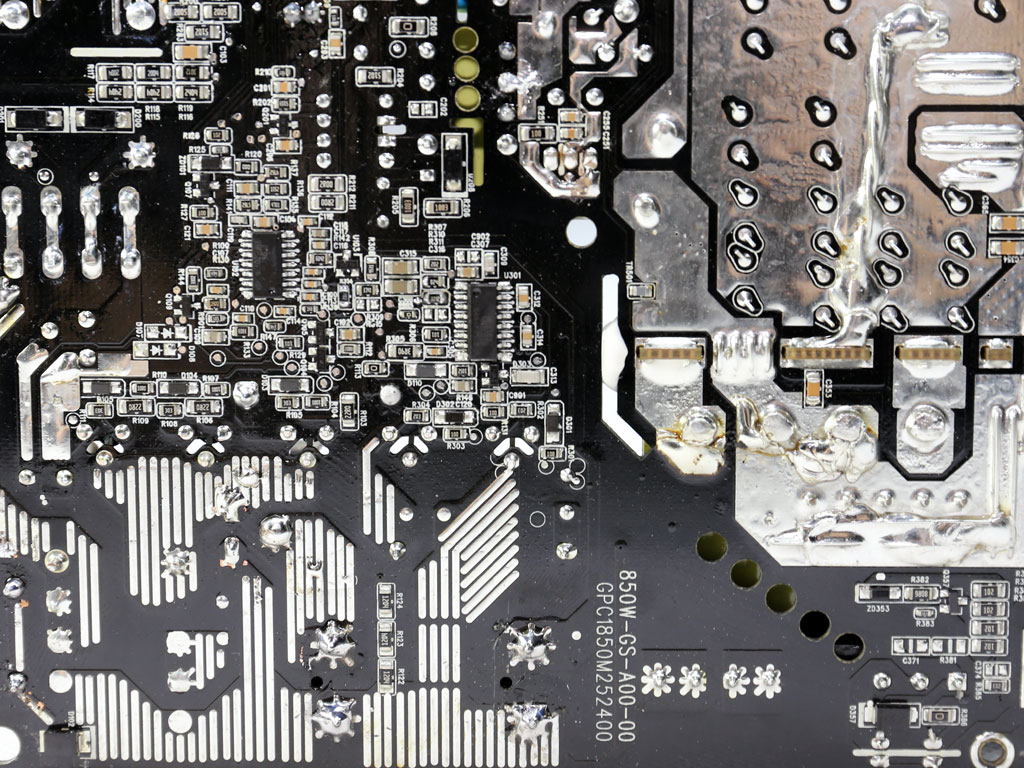

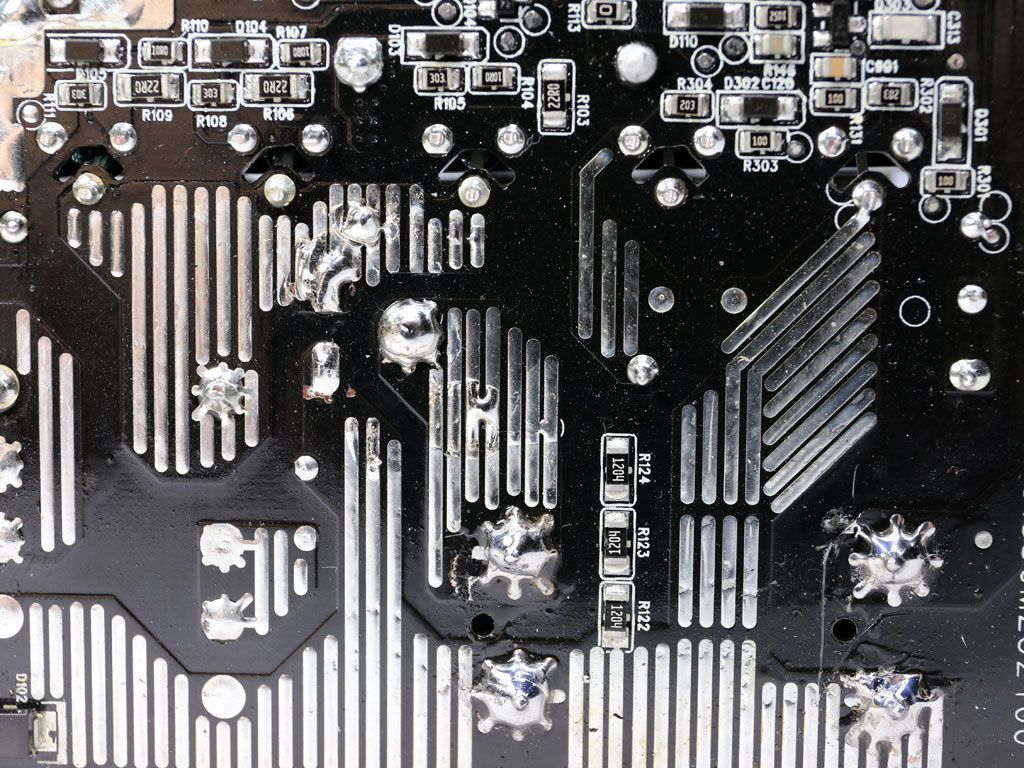

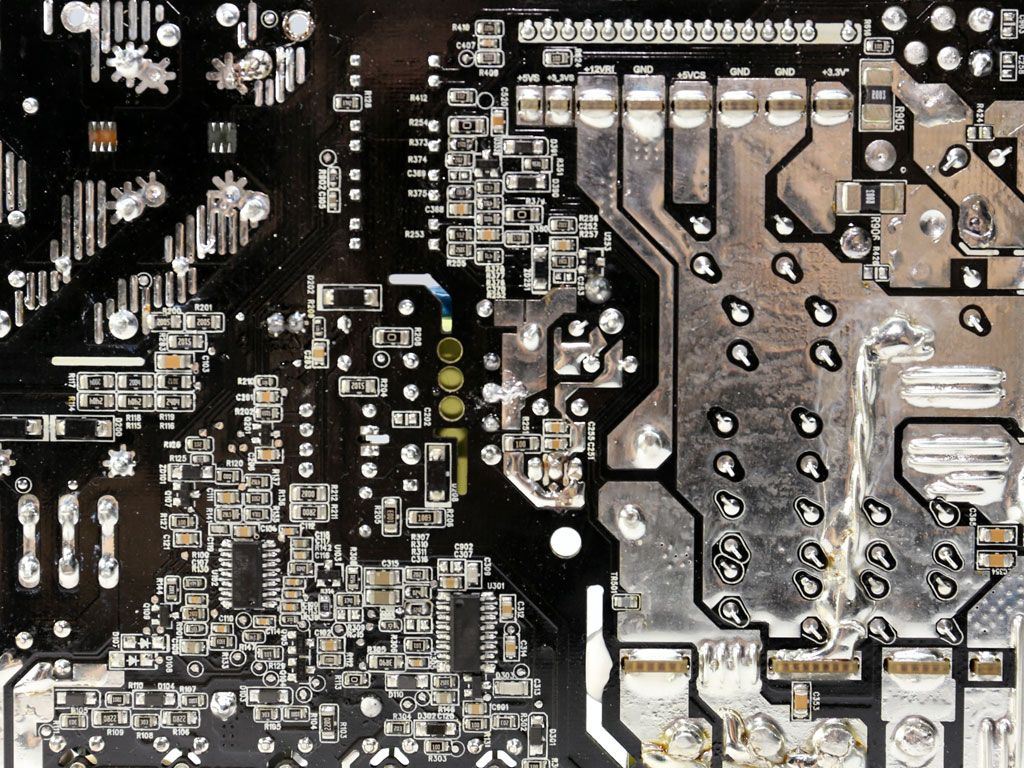

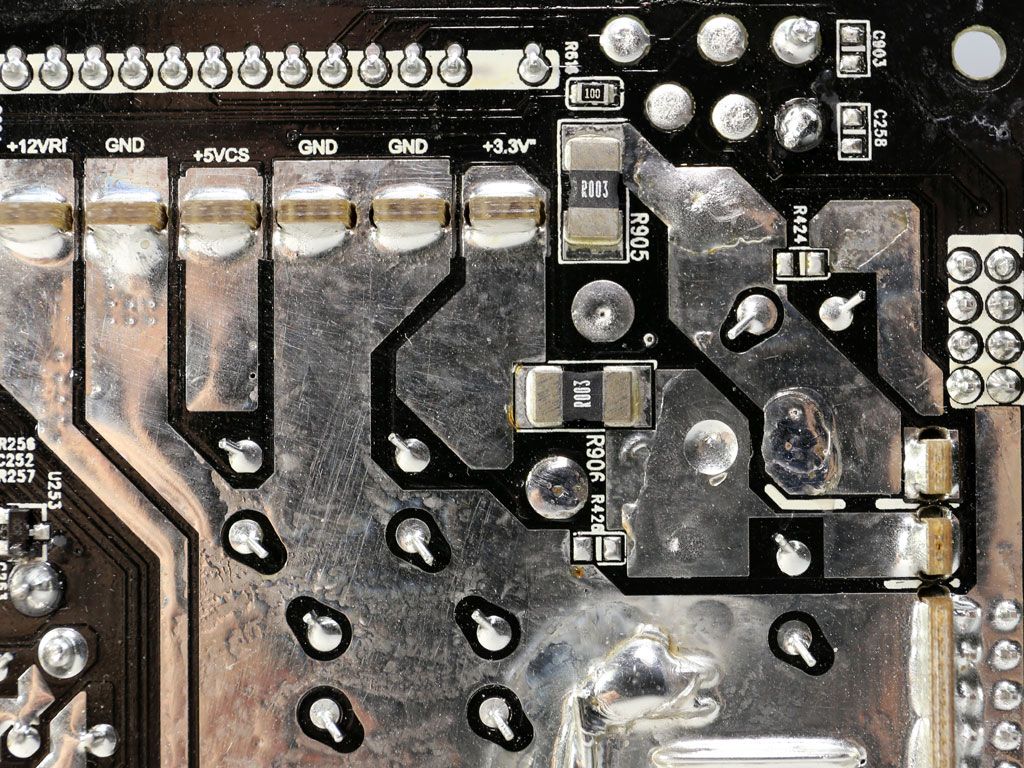

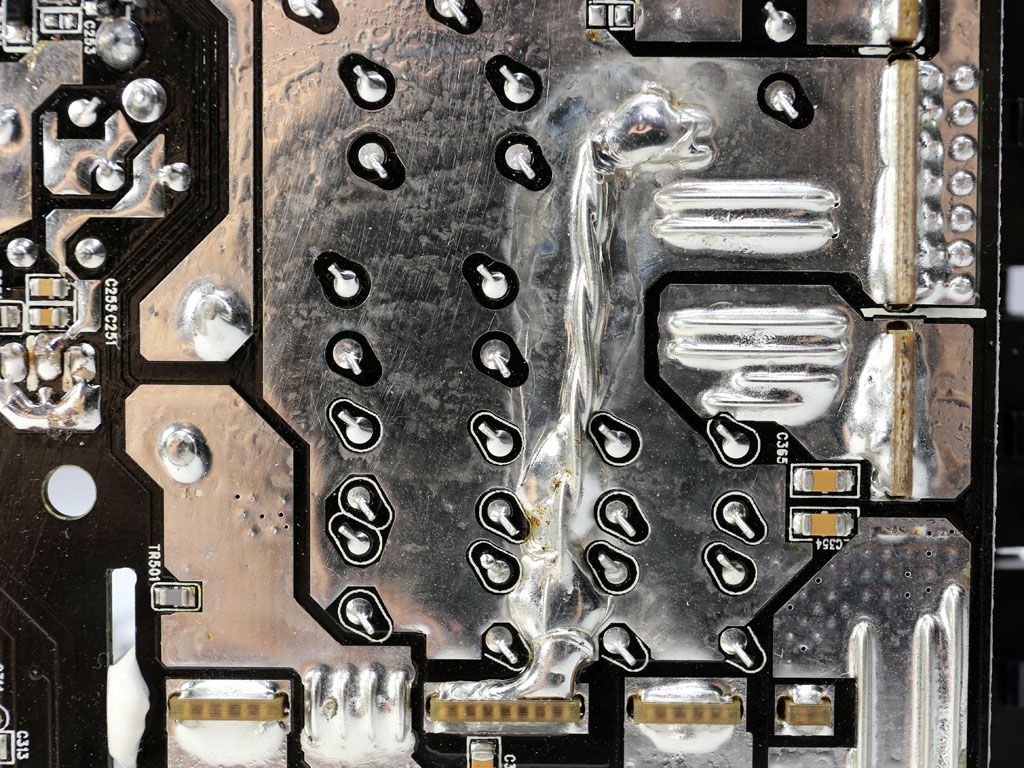

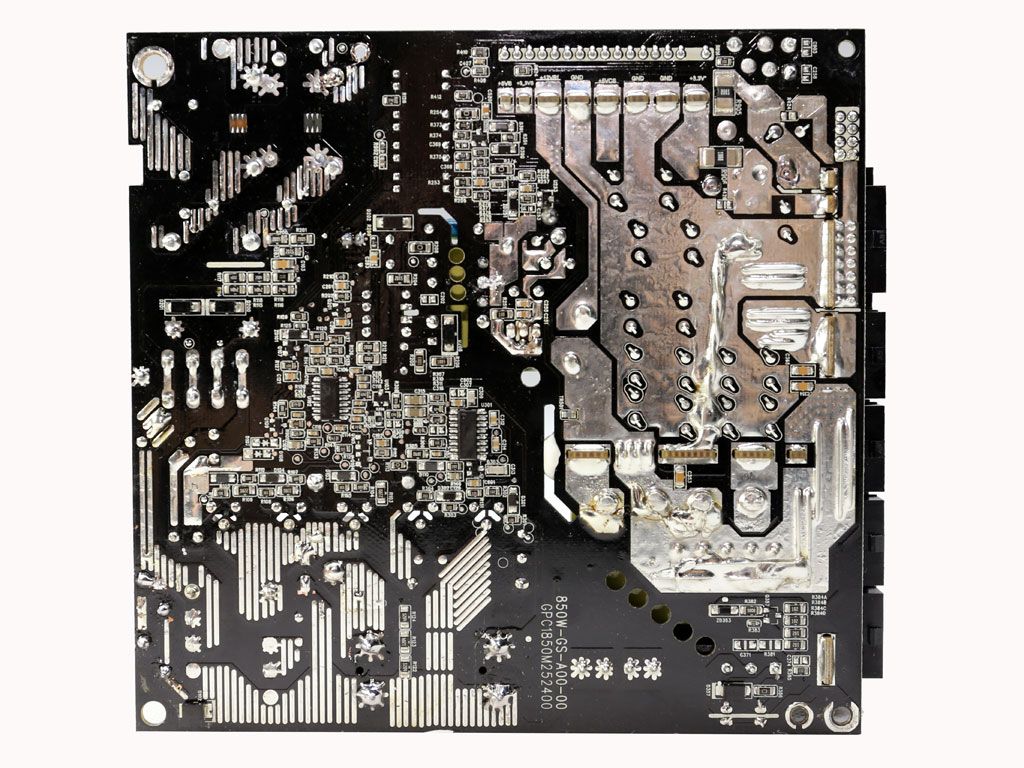

At least the main PCB's soldering quality is a pleasant surprise, though it should be combined with better filtering caps.

Image 1 of 41

Image 2 of 41

Image 3 of 41

Image 4 of 41

Image 5 of 41

Image 6 of 41

Image 7 of 41

Image 8 of 41

Image 9 of 41

Image 10 of 41

Image 11 of 41

Image 12 of 41

Image 13 of 41

Image 14 of 41

Image 15 of 41

Image 16 of 41

Image 17 of 41

Image 18 of 41

Image 19 of 41

Image 20 of 41

Image 21 of 41

Image 22 of 41

Image 23 of 41

Image 24 of 41

Image 25 of 41

Image 26 of 41

Image 27 of 41

Image 28 of 41

Image 29 of 41

Image 30 of 41

Image 31 of 41

Image 32 of 41

Image 33 of 41

Image 34 of 41

Image 35 of 41

Image 36 of 41

Image 37 of 41

Image 38 of 41

Image 39 of 41

Image 40 of 41

Image 41 of 41

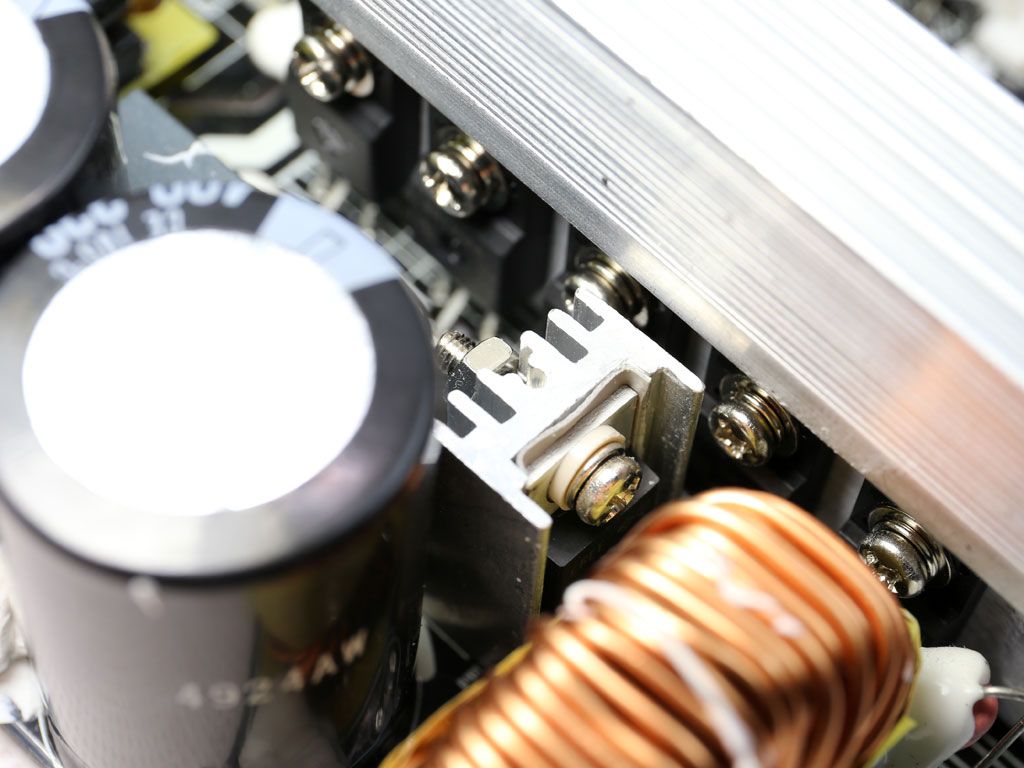

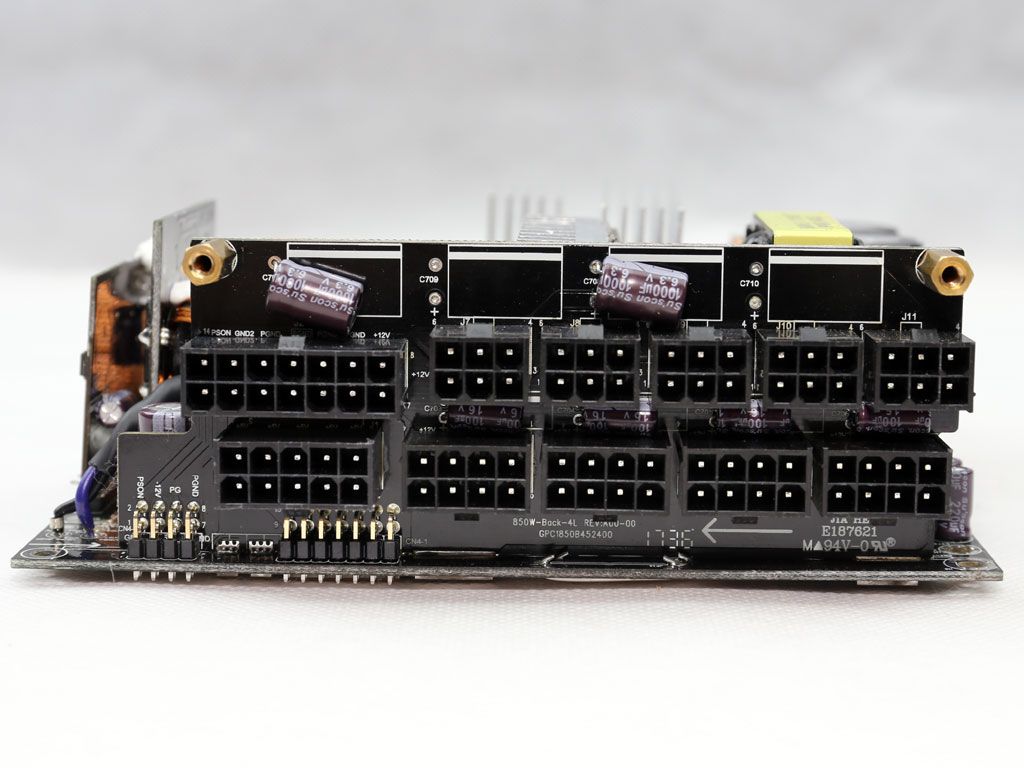

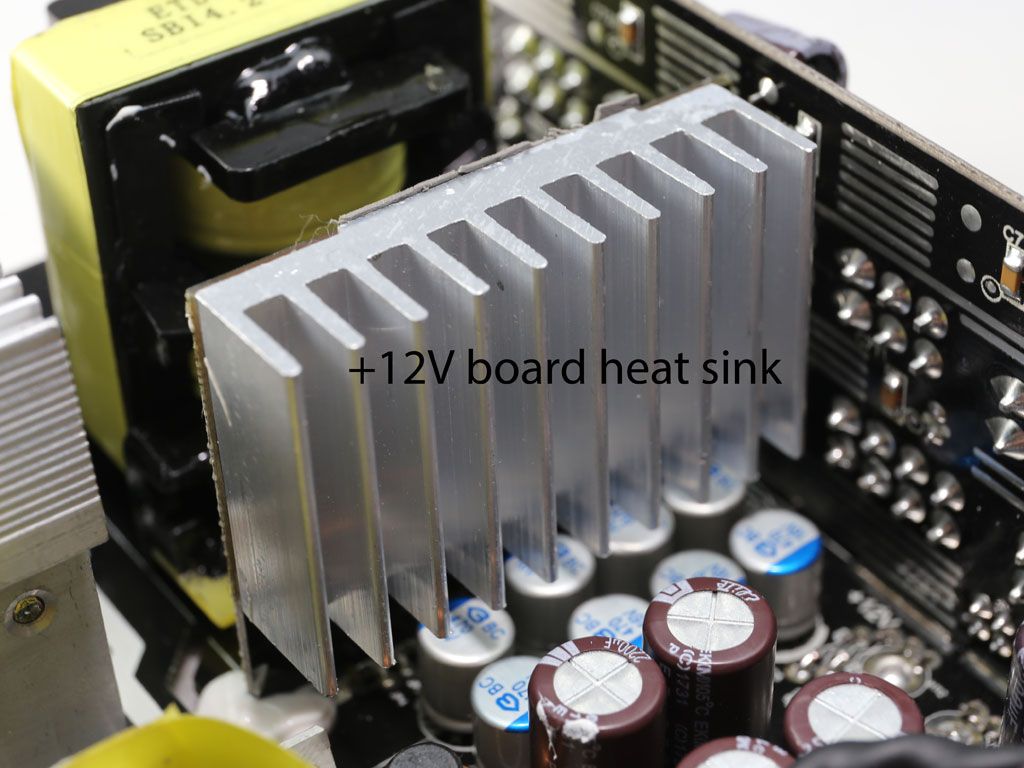

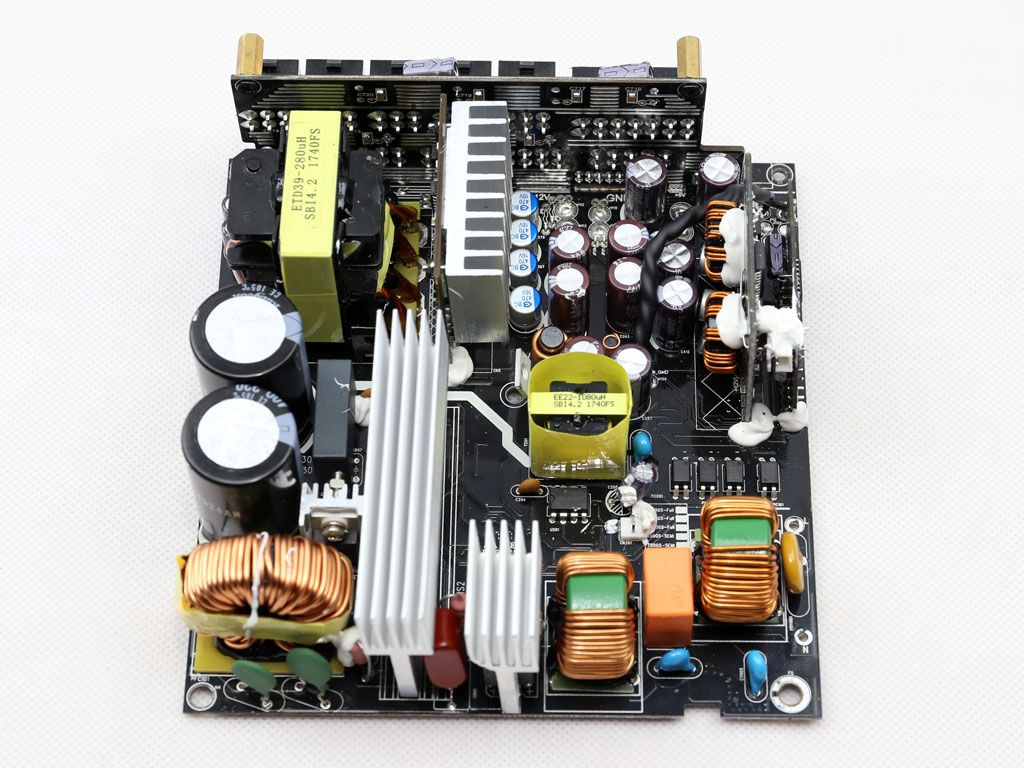

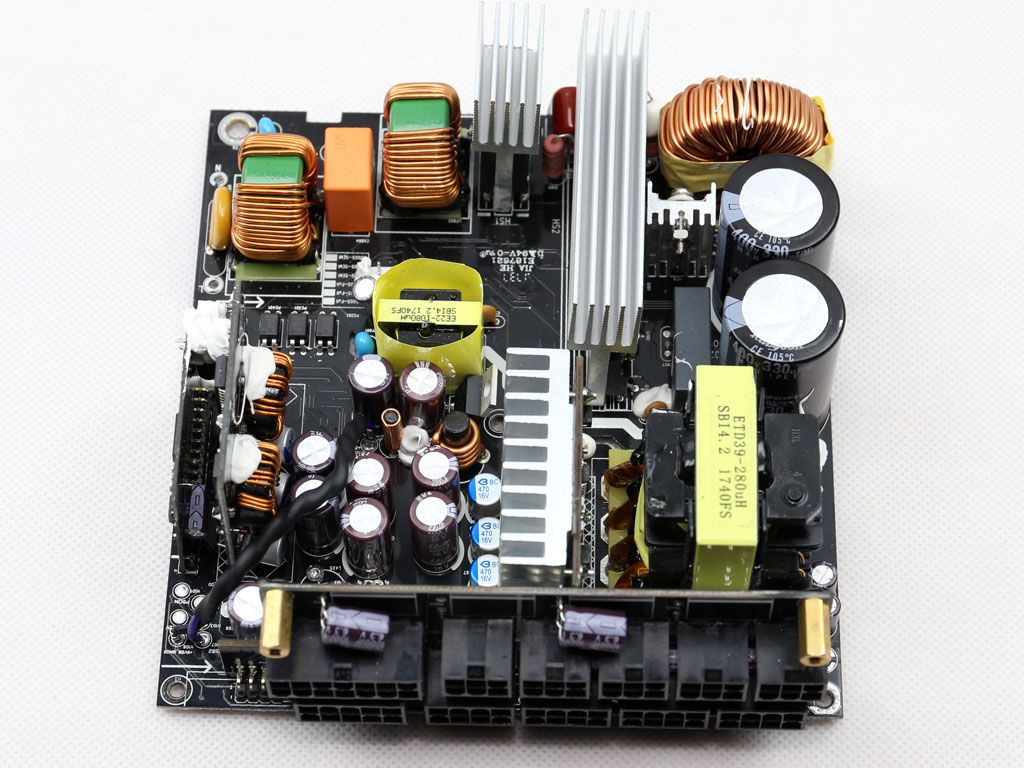

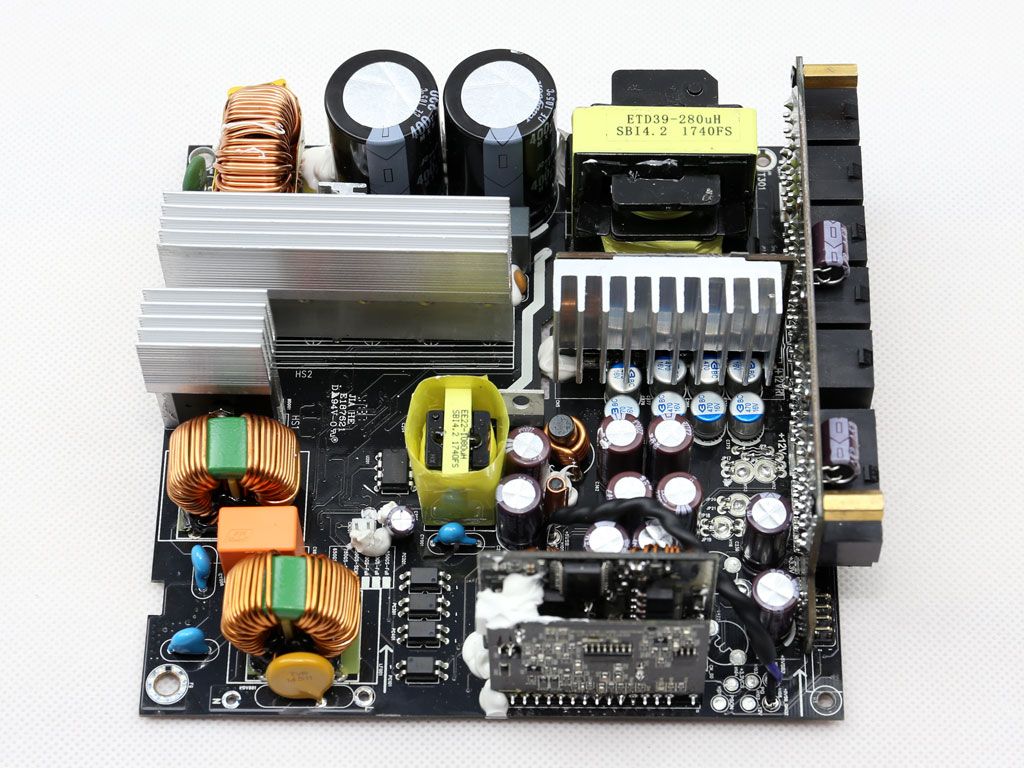

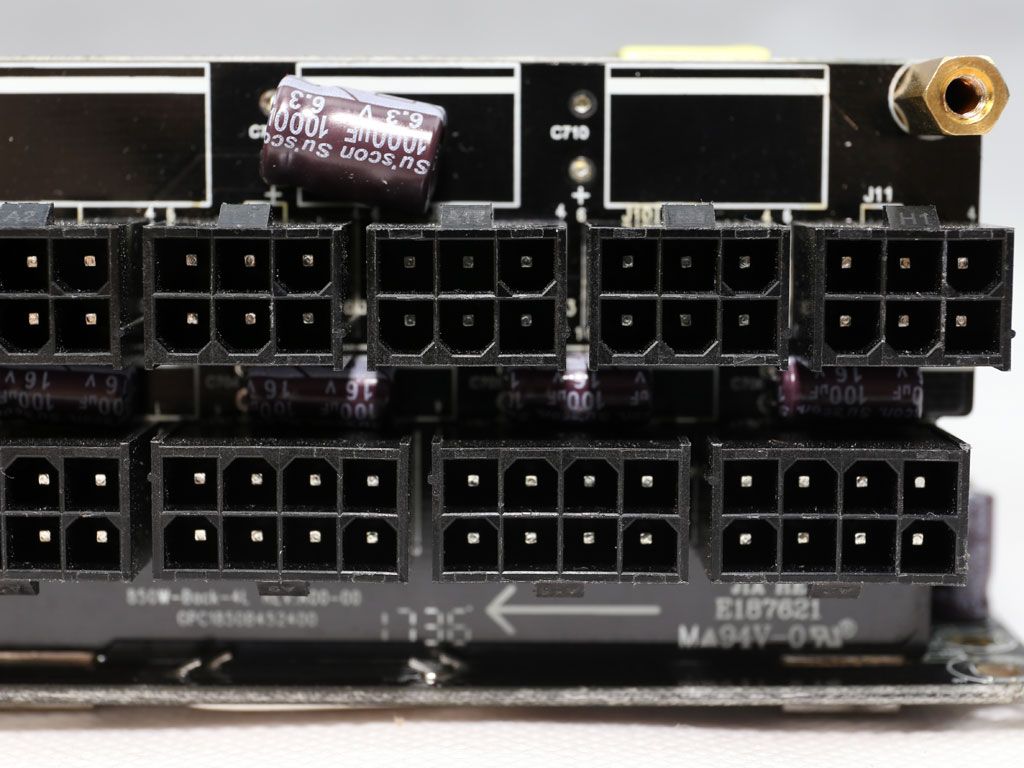

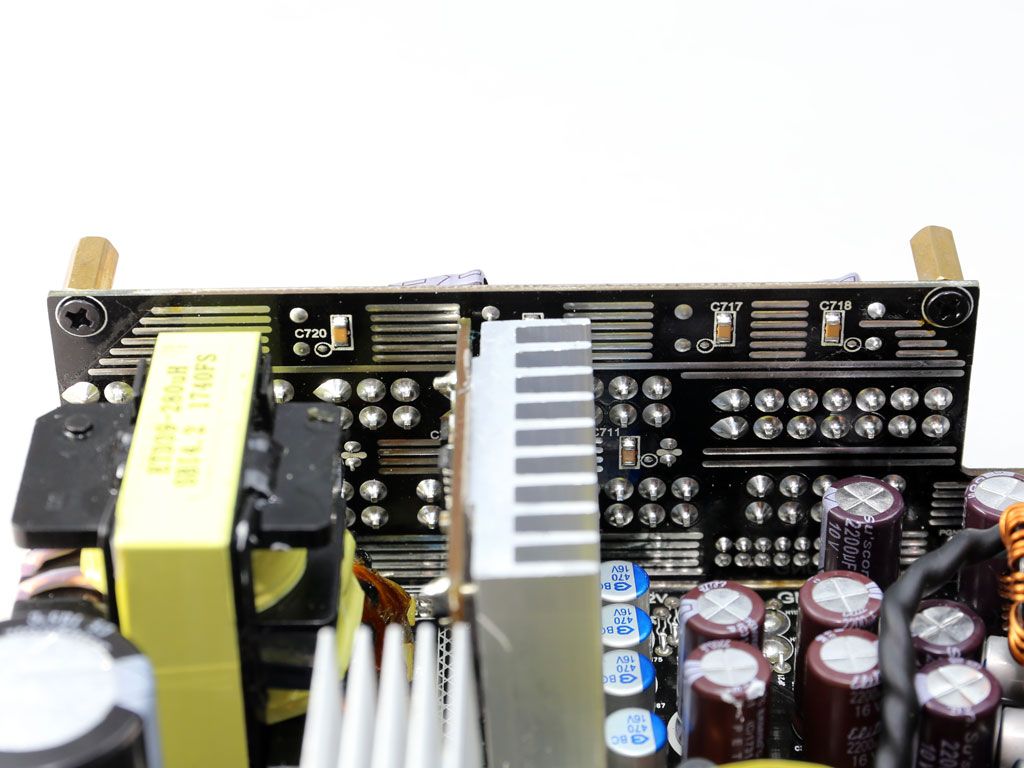

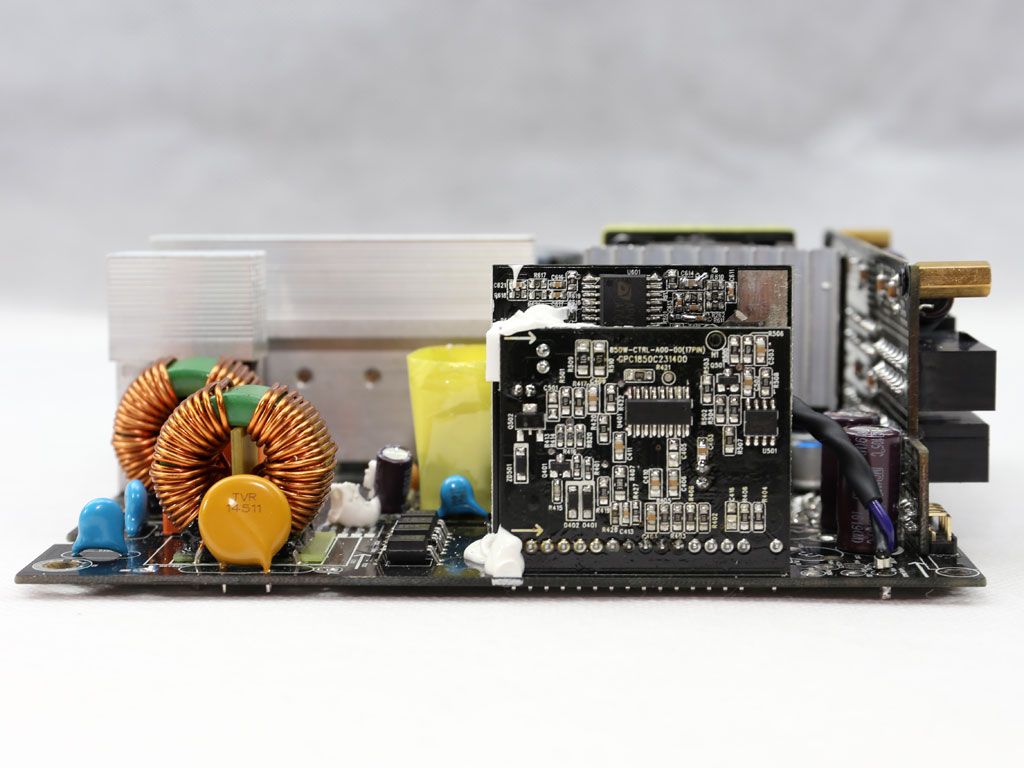

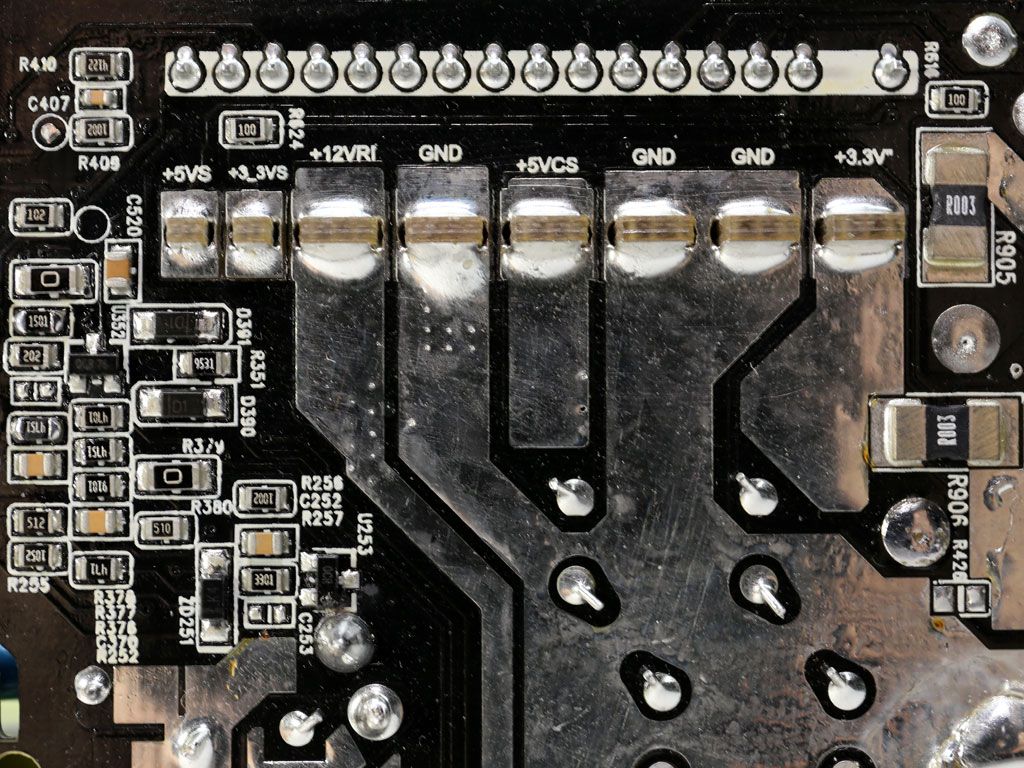

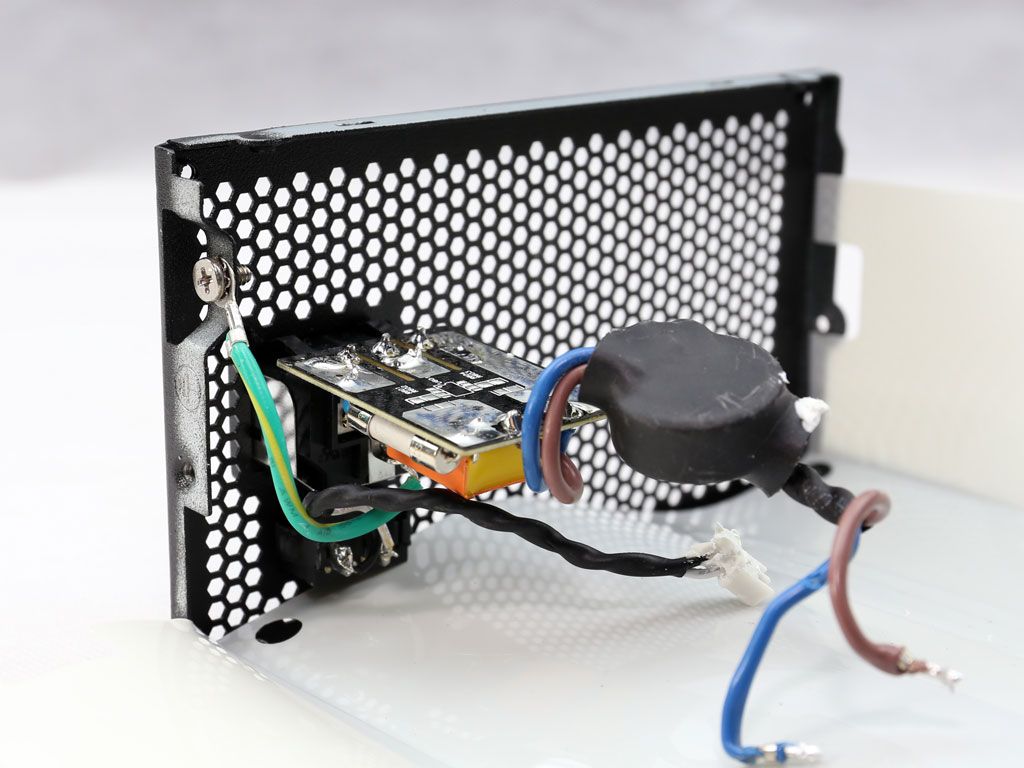

The photos above show the PSU’s major parts.

The following video shows the AG-850M’s internals.


MORE: Best Power Supplies


MORE: How We Test Power Supplies


MORE: All Power Supply Content
