80 PLUS Gold: Four Efficient 700-850 W Power Supplies

By Patrick Afschar, TG Publishing Team
published

Gamers and enthusiasts are always on the lookout for crème de la crème hardware. It's easy to pick winning CPUs and graphics cards; less so for PSUs. We put four 80 PLUS Gold devices from Antec, FSP, Seasonic, and SilverStone under the magnifying glass.

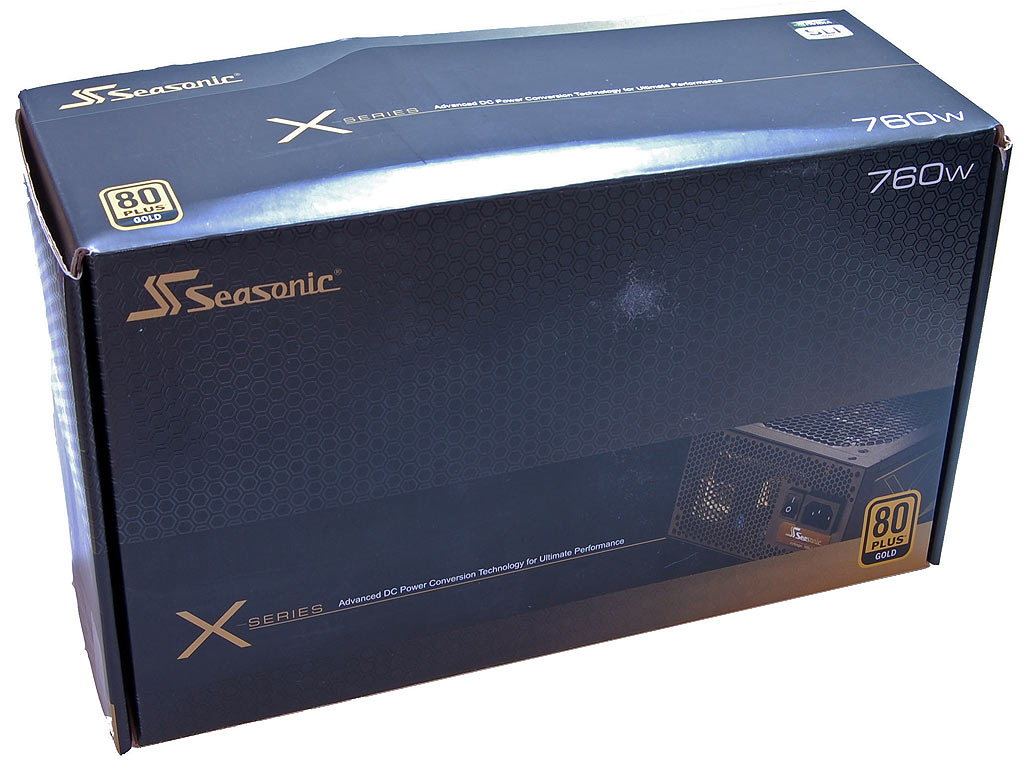

Seasonic X-760

The Seasonic X-760 (from the manufacturer's new X series) employs a high-quality, yet simple design. The 760 W PSU comes with fully-modular cabling.

Despite its respectable maximum output, the X-760 isn't the priciest option in our roundup given its street price under $200.

As with all the X-series models, the fan doesn't kick in until a load of around 20% is reached. On this particular model, this means that the PSU operates completely silently up until you hit about 150 W of load. And even when the fan is working, the noise level remains pleasantly low.

The modular cable harness is long enough for more enthusiasts, and the number of output connections is also sufficient. With four 6+2-pin PCIe plugs, eight SATA connectors, and eight four-pin Molex leads, the PSU should satisfy users with single- and dual-GPU graphics configs, plus a number of hard drives and fans. The Seasonic X-760's single 12 V rail can deliver up to 756 W and handle a maximum load of 63 A.

Swipe to scroll horizontally
Seasonic X-760
AC Input100-240 V, 50-60 Hz
DC Output+3.3 V+5 V+12 V (#1)+12 V (#2)+12 V (#3)+12 V (#4)-12 V+5 Vsb
25 A25 A63 An/an/an/a0.5 A3.0 A
Individual OutputRow 3 - Cell 1 Row 3 - Cell 2 Row 3 - Cell 3 Row 3 - Cell 4 Row 3 - Cell 5 6 W15 W
Rail UtilizationSysSysCPU & VGA
Combined Output125 W756 W
Total Continuous Output760 W
Peak Outputn/a
Image 1 of 3
Image 1 of 2
