The GP2711 includes a calibration data sheet and is reasonably close out of the box. But I found calibration improved it visibly. I also noted that I could adjust separately for multiple color gamuts, which is something very few monitors can do; it's pretty nice for $449!
Grayscale and Gamma Tracking
Our grayscale and gamma tests use Calman calibration software from Portrait Displays. We describe our grayscale and gamma tests in detail here.

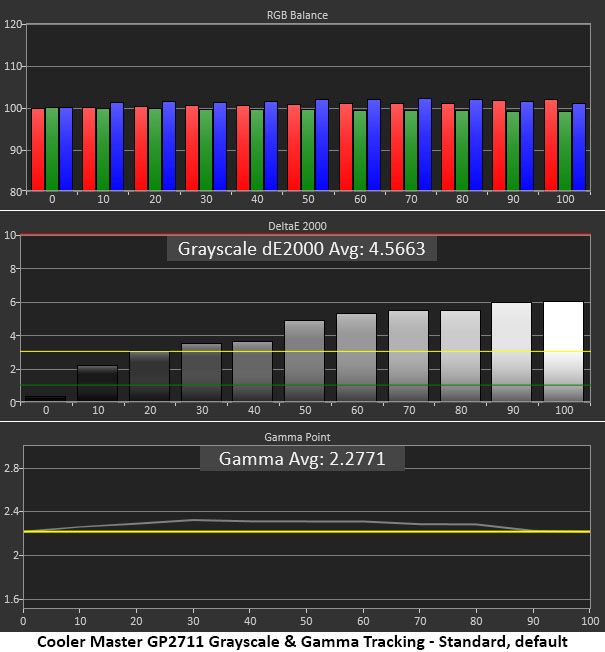

Regardless of gamut mode, the GP2711’s grayscale tracking stays consistent. That’s why I’ve only included one before and one after chart. I saw a slight purple tint in steps above 50%. Gamma runs a tad dark but has a tight range of values, so it doesn’t reduce detail or overall quality.

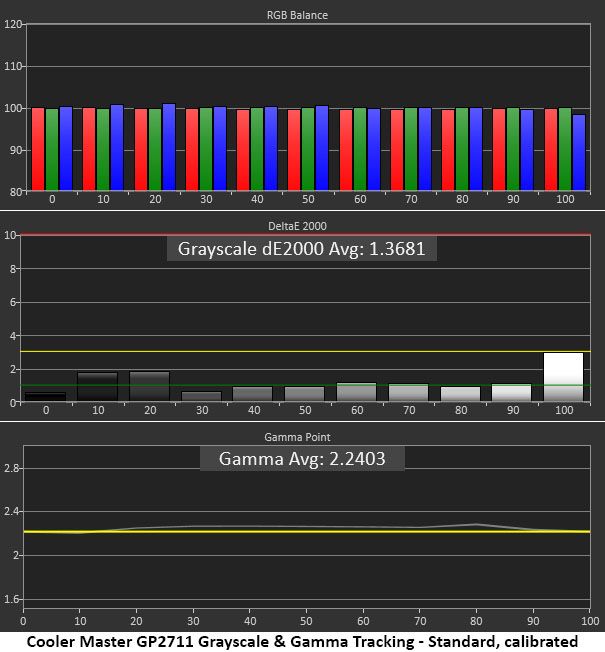

Calibration tightens up both gamma and grayscale tracking to where there are no visible errors. The differences between gamut modes are so small that there’s no point in showing the other charts. This is excellent performance.
Comparisons

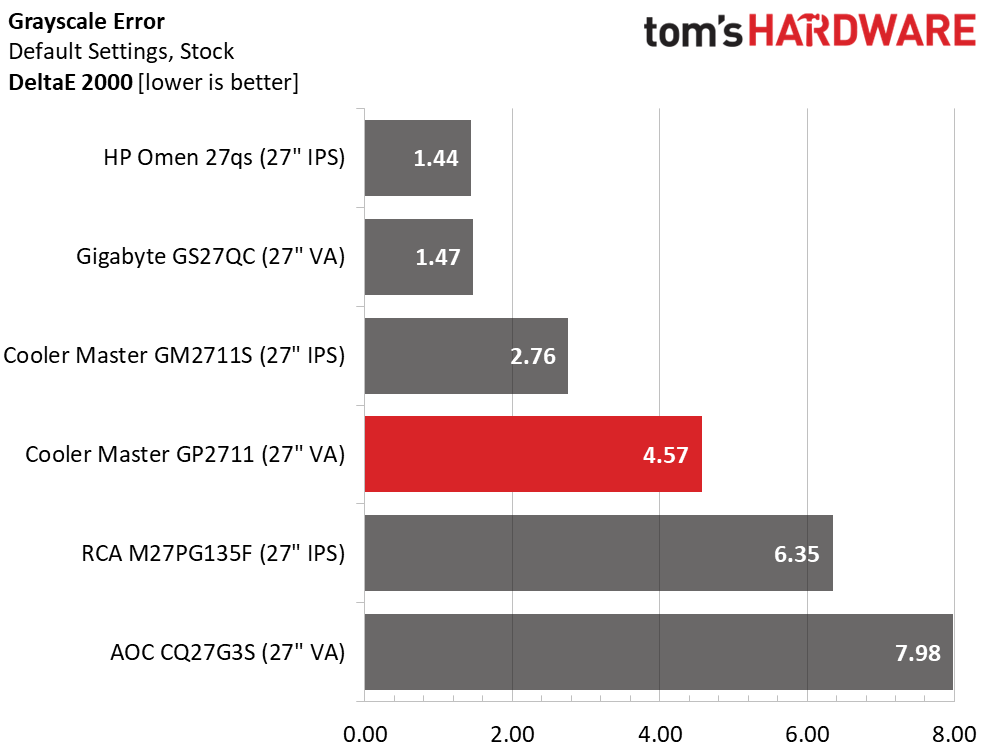

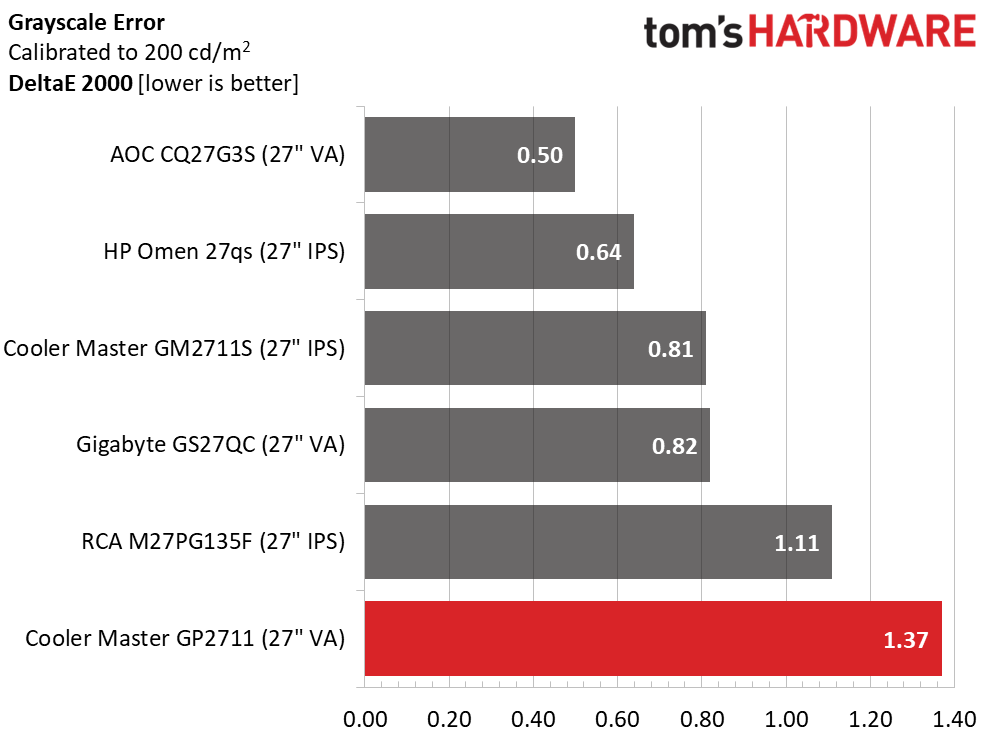

Regardless of gamut mode, the GP2711 will run around 4.57dE grayscale error out of the box. This is a level where I would definitely calibrate, though consistent gamma mitigates the anomalies somewhat. After a few tweaks to the RGB gain sliders, there are no visible problems. I saw no need to touch the bias controls.

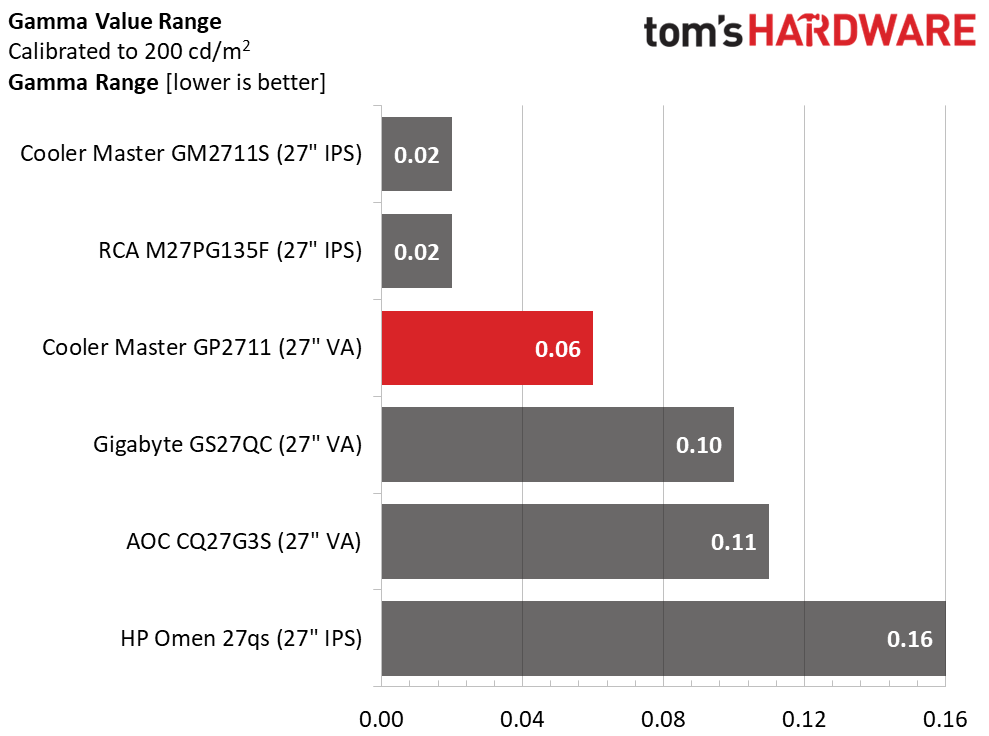

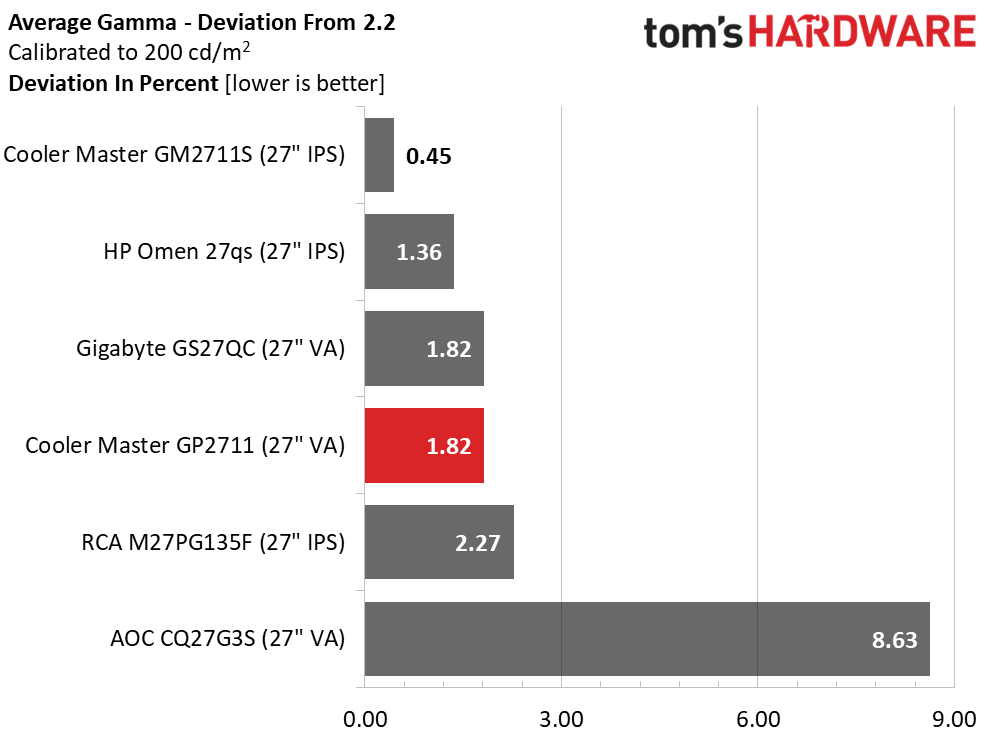

Gamma tracking is very tight, with a small 0.06 range of values and an average of 2.24, which is a 1.82% deviation. It’s a tad dark, which is fine in a high contrast monitor like the GP2711. I have no complaints here.
Color Gamut Accuracy
Our color gamut and volume testing use Portrait Displays’ Calman software. For details on our color gamut testing and volume calculations, click here.

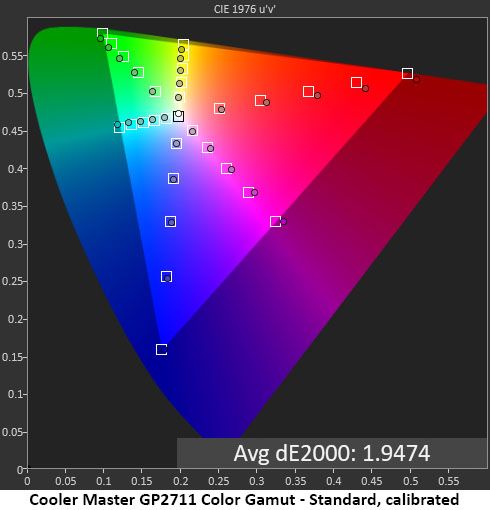

For the gamut results, I’m showing before and after charts for DCI-P3 and sRGB. The GP2711 has easy switching of color spaces and each one can be adjusted independently, so I set up two modes for testing. DCI-P3 is the default and before calibration, it’s a little off the mark thanks to the grayscale errors. Red and cyan are off hue and there is a general look of over-saturation. For most users, this isn’t a bad thing. sRGB is a little closer by default but also has a little room for improvement.

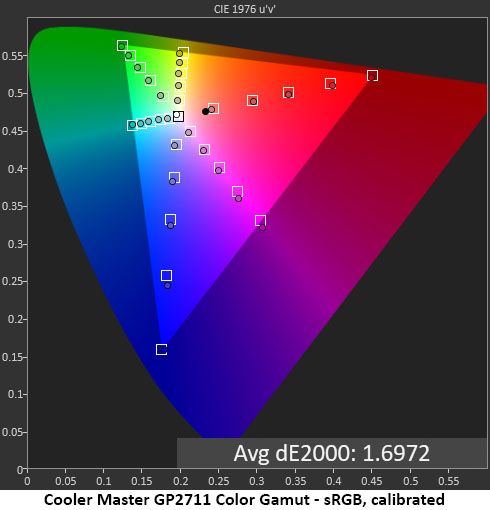

Calibration fixes these issues neatly and still leaves color a bit more vivid; again, not a bad thing. Error levels are below the visible threshold for DCI-P3 and sRGB. And the green primary is almost fully covered, indicating a wider-than-average gamut. This is excellent performance.
Comparisons

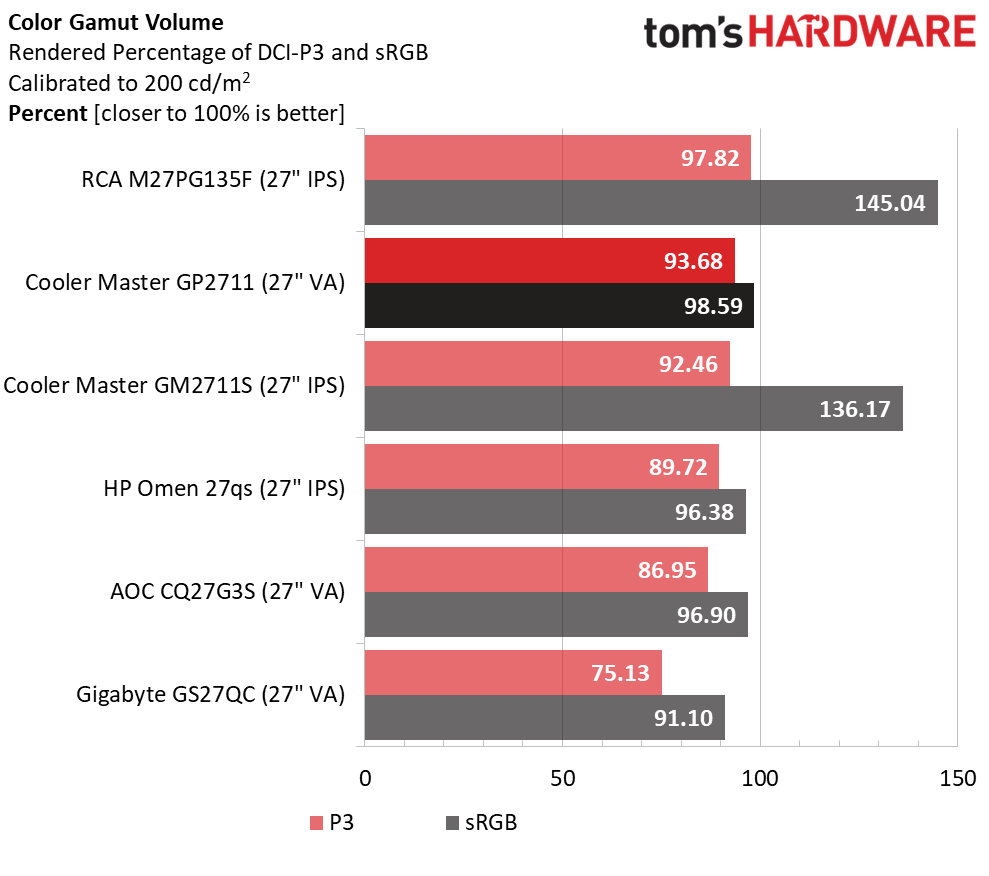

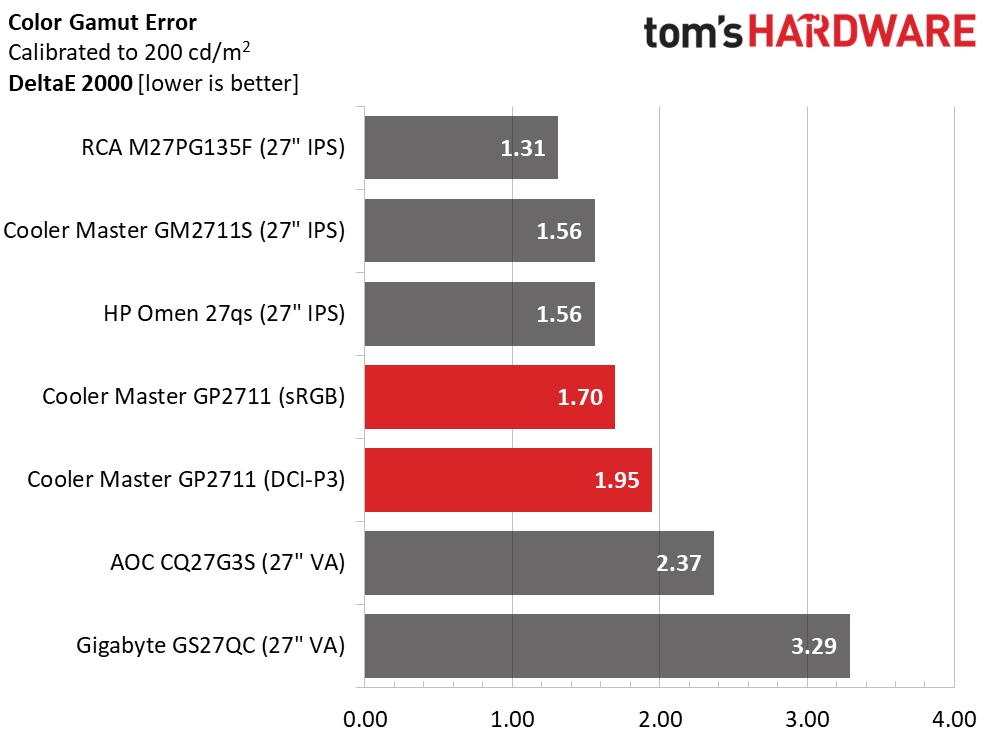

With sRGB and DCI-P3 color gamut errors under 2dE, the GP2711 delivers pro-level accuracy. Its wide coverage of DCI-P3 is a nice bonus. It’s a very colorful monitor that can easily serve as a reference display. There’s plenty of accurate color for gaming and entertainment, and photo or graphics work.
Test Takeaway: As one of the few monitors with selectable color gamuts, the GP2711 sets itself apart. Though I recommend calibration for best results, it delivers well for the price. Gamma is tight, which makes a positive impact. Coupled with high contrast, it has a premium quality image in its price class, and when compared to more expensive screens.
