Cross-Load Tests And Infrared Images
Our cross-load tests are described in detail here.
To generate the following charts, we set our loaders to auto mode through our custom-made software before trying more than 25000 possible load combinations with the +12V, 5V and 3.3V rails. The load regulation deviations in each of the charts below were calculated by taking the nominal values of the rails (12V, 5V and 3.3V) as point zero.

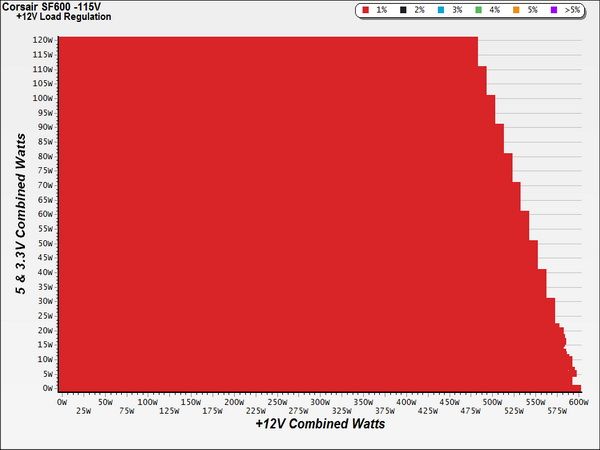

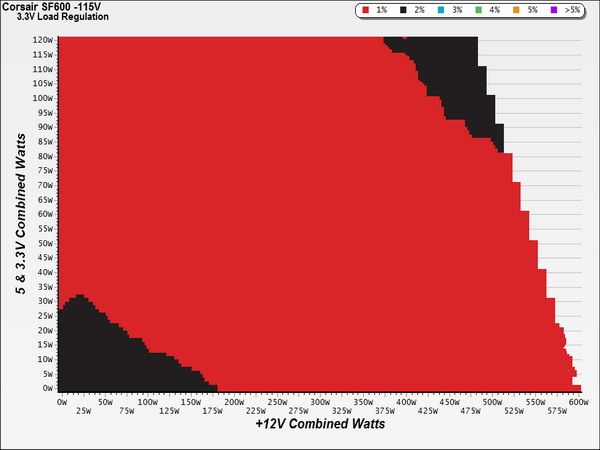

Load Regulation Charts
Efficiency Chart
Under light loads, efficiency isn't as high as other Gold-rated PSUs. However, for a significant part of the SF600's operational range, efficiency exceeds 90 percent, even with lots of load on the minor rails.

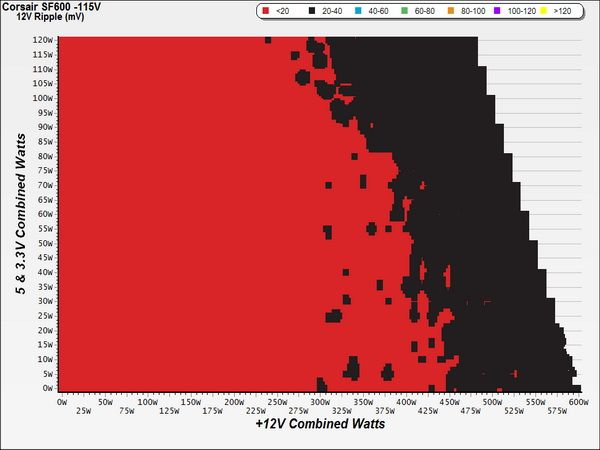

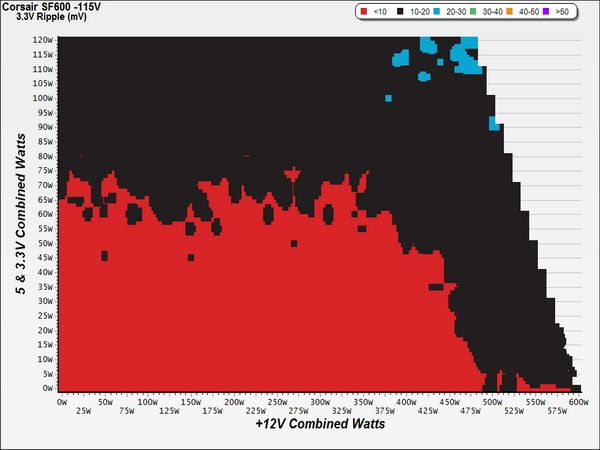

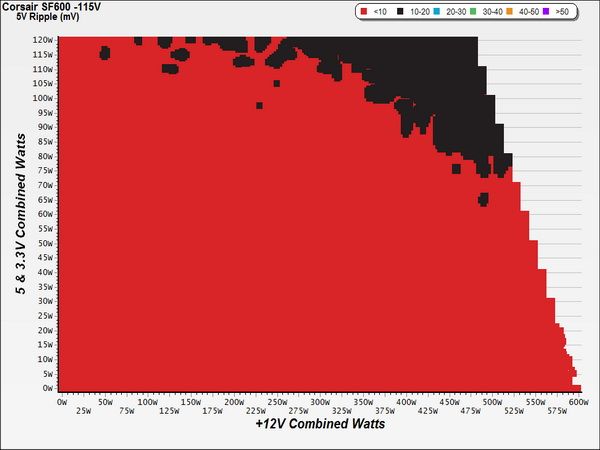

Ripple Charts
Infrared Images

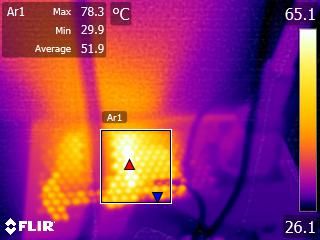

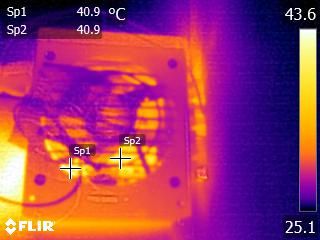

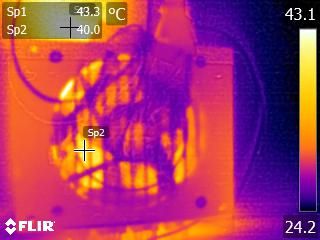

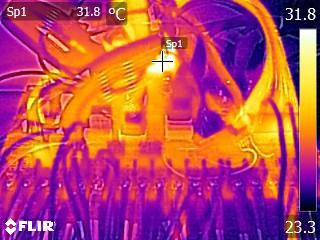

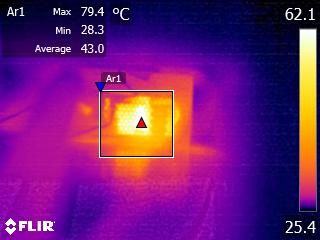

Toward the end of the cross-load tests, we took some photos of the PSU with our modified FLIR E4 camera that delivers 320x240 IR resolution (76,800 pixels).
Temperatures inside of the SF600 are normal given its high power density.
