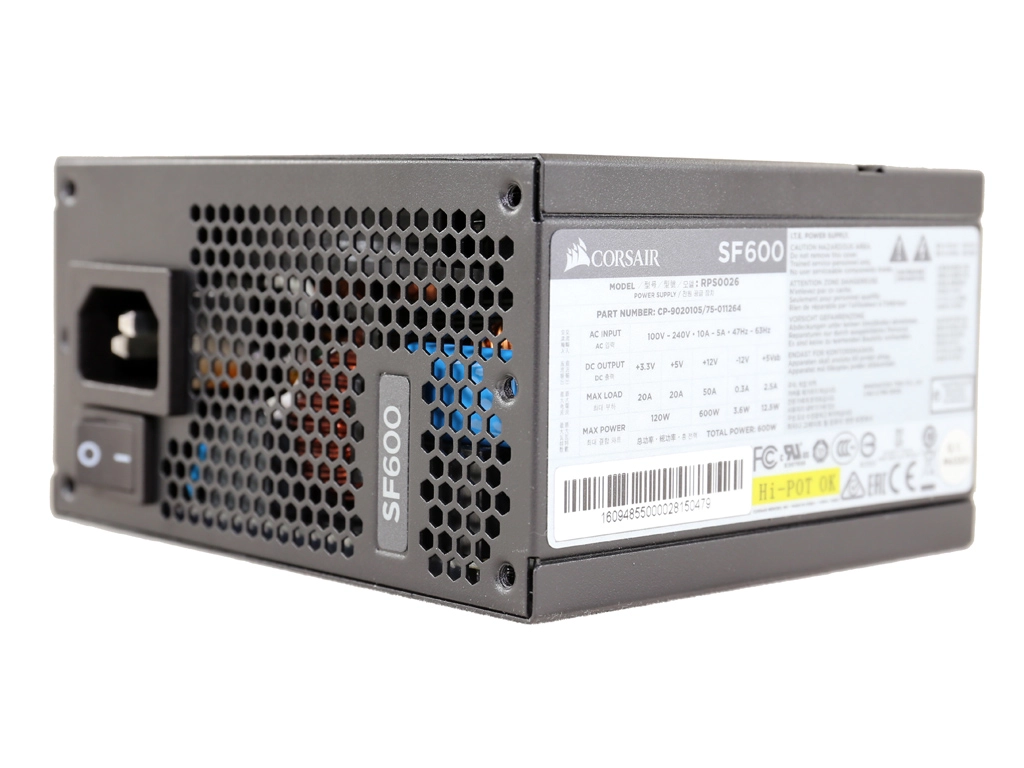

We recently evaluated Corsair's SF450, which left a good impression on us. Now it's time to test the family's flagship SF600, which can deliver 150W more power using exactly the same cable configuration.

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Performance, Performance Per Dollar, Noise And Efficiency Ratings

Performance Rating

The following graph quantifies the total performance rating, comparing Corsair's unit to other PSUs we've reviewed. To be more specific, the SF600 is shown as 100 percent, and every other unit's performance is shown relative to it.

Click Here To See More Products.

Sporting high performance, the compact SF600 easily matches high-end ATX PSUs with similar capacities. As you can see from the graph above, the competing SilverStone SX600-G is left way behind.

Performance Per Dollar

The following chart may be the most interesting to many of you because it depicts the SF600's performance-per-dollar score. We looked up the current price of each PSU on popular online shops and used those figures (along with relative performance data) to calculate the index. If the specific unit wasn't available in the United States, we searched for it in popular European Union shops, converting the listed price to USD (without VAT). Note that all of the numbers in the following graph are normalized by the rated power of each PSU.

Click Here To See More Products.

SFX PSUs are expensive, so it's tough for Corsair to compete in a measure of value.

Noise Rating

The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 28 °C and 30 °C (82 °F to 86 °F).

Click Here To See More Products.

We expected quieter operation, similar to what we heard from the SF450. However, Corsair decided to tune its fan profile more aggressively, leading to increased noise when the PSU is taxed (update 5/2/2016: According to Corsair's PSU PM, the fan profile of the SF600 should be much more relaxed. We are expecting for a second sample to confirm this). Delivering 600W from a compact platform isn't easy, and without adequate cooling reliability can be compromised. But given the SF600's efficiency numbers, we believe that a more relaxed fan profile could be offered.

Efficiency Rating

The following graph shows the average efficiency of the PSU throughout its entire operating range, with an ambient temperature between 28 °C and 30 °C.

Click Here To See More Products.

The SF600's overall efficiency is a tad lower than the SF450's. It's still high though, beating all of the other Gold-rated PSUs we used for comparison purposes.
