Ripple Measurements

To learn how we measure ripple, please click here.

The following table includes the ripple levels we measured on the PSU’s rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).

Swipe to scroll horizontally

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	5.9mV	11.2mV	11.4mV	7.7mV	Pass
20% Load	5.1mV	11.6mV	11.6mV	9.0mV	Pass
30% Load	6.2mV	12.4mV	12.4mV	8.4mV	Pass
40% Load	7.3mV	13.2mV	12.4mV	9.1mV	Pass
50% Load	8.6mV	14.3mV	13.7mV	9.1mV	Pass
60% Load	11.0mV	15.1mV	14.6mV	8.3mV	Pass
70% Load	13.6mV	16.4mV	16.2mV	9.3mV	Pass
80% Load	16.2mV	17.6mV	18.1mV	9.9mV	Pass
90% Load	19.1mV	18.7mV	18.6mV	10.5mV	Pass
100% Load	23.1mV	20.2mV	20.0mV	11.0mV	Pass
110% Load	27.1mV	21.6mV	19.8mV	10.8mV	Pass
Cross-Load 1	16.2mV	17.8mV	25.1mV	13.4mV	Pass
Cross-Load 2	24.4mV	18.6mV	13.3mV	9.3mV	Pass

Image 1 of 4

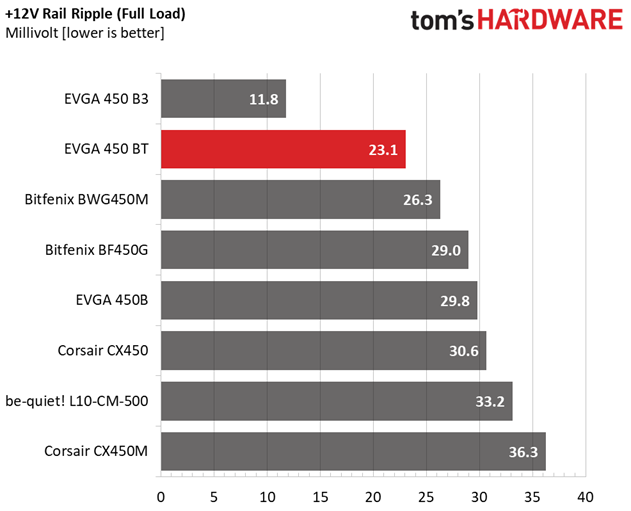

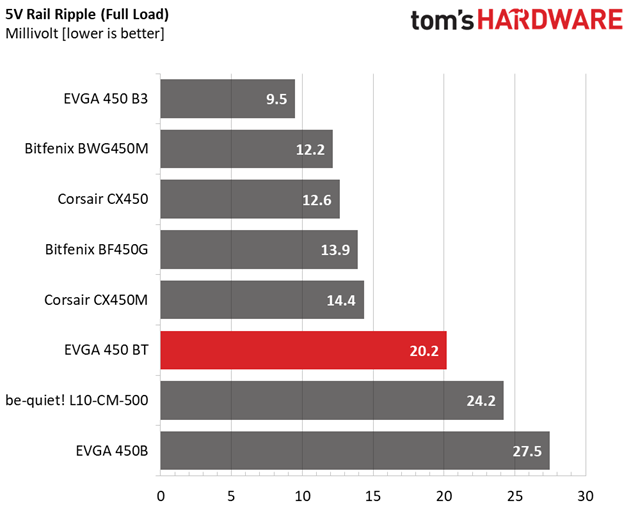

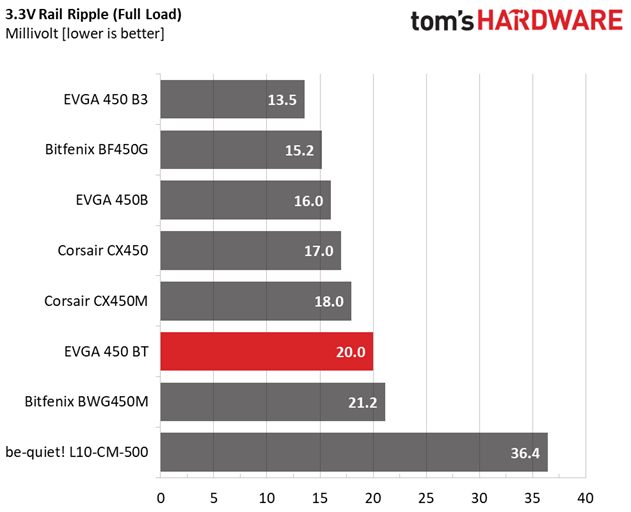

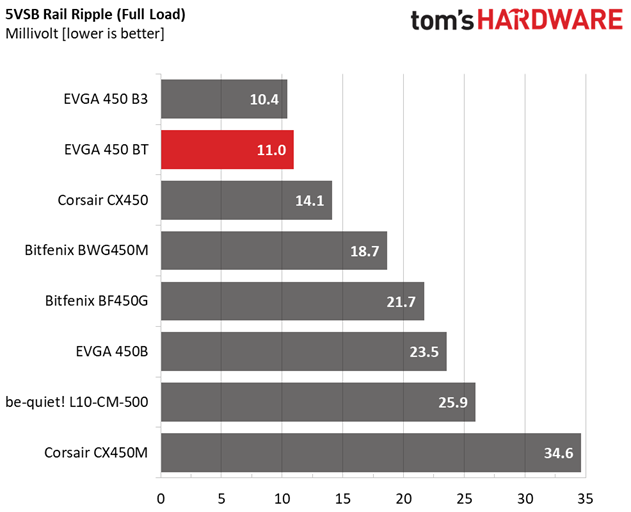

Right out of the box, we observed excellent ripple suppression. However, there's no way to know how long the 450 BT can maintain that performance, since its secondary side is populated with low-quality filtering caps. Those will age much faster than the Japanese caps found in EVGA's more expensive PSUs.

Ripple Oscilloscope Screenshots

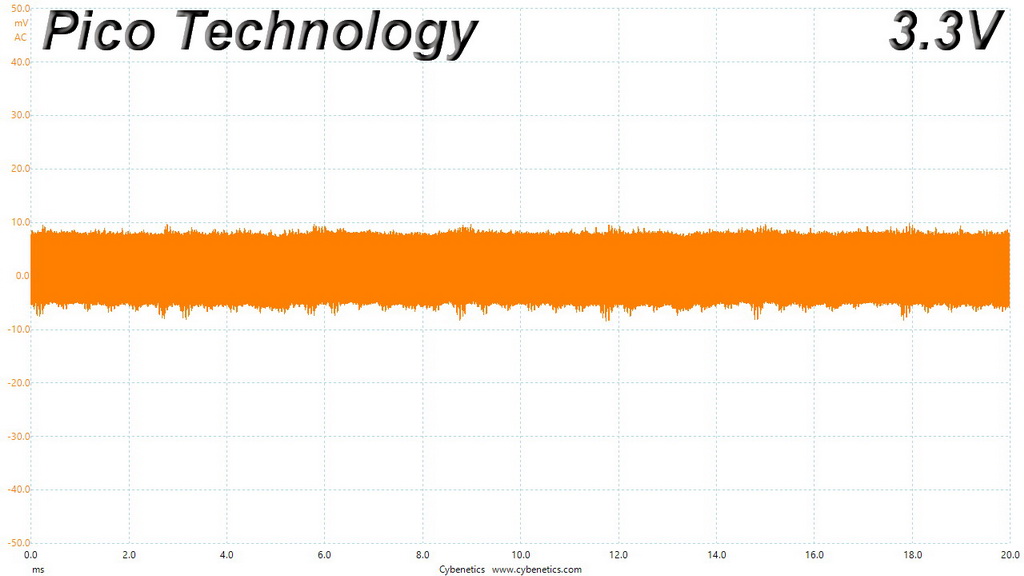

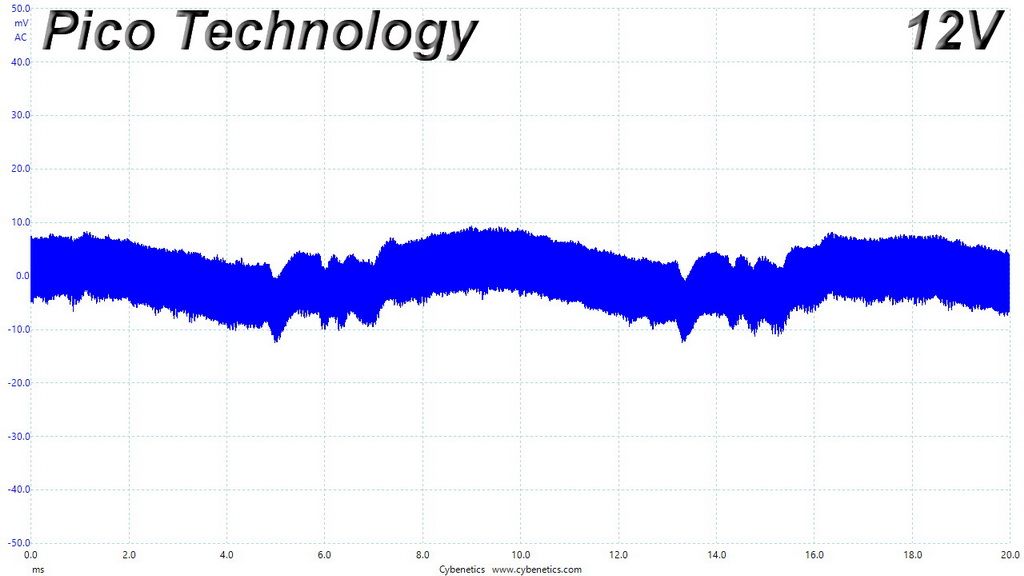

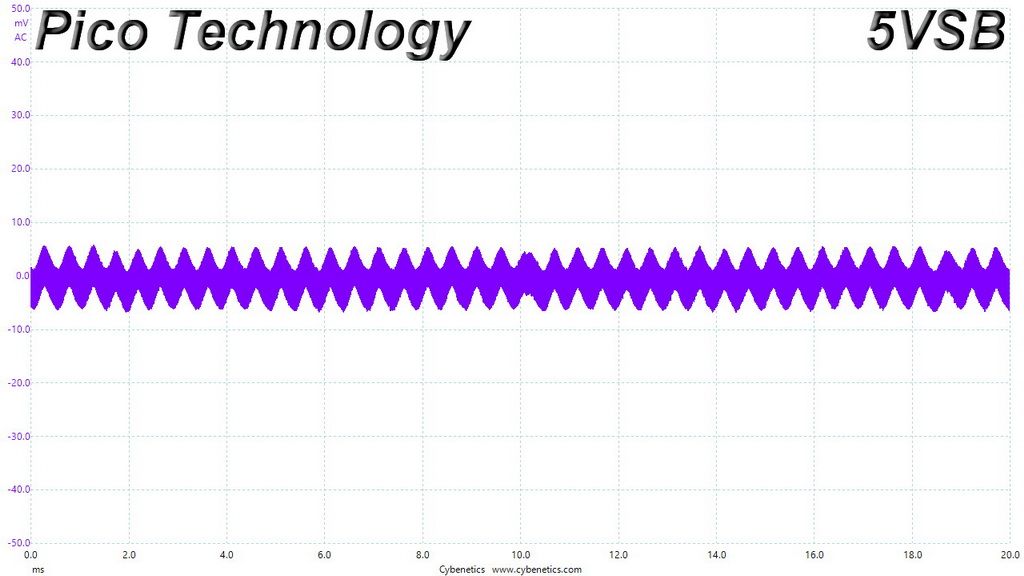

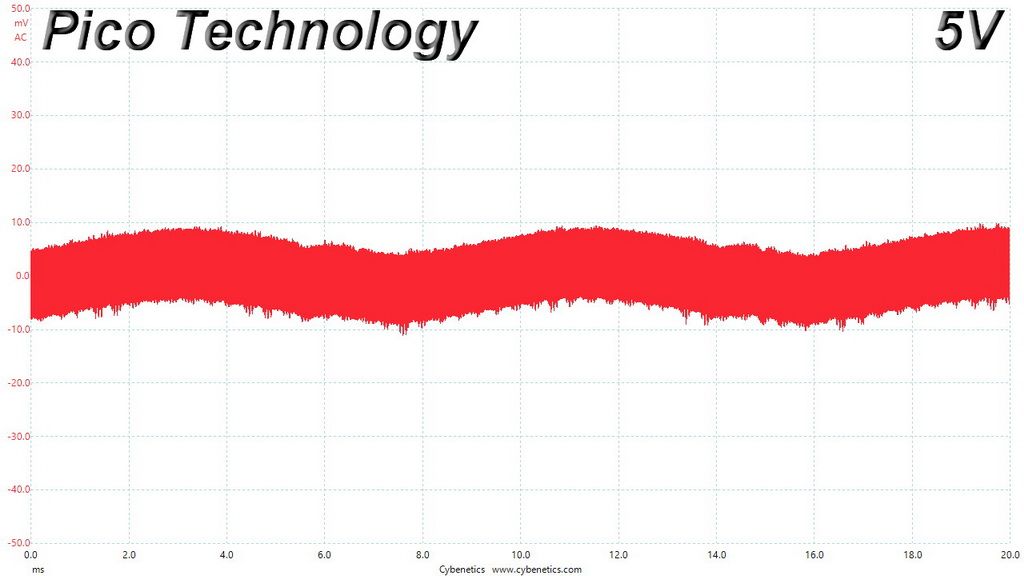

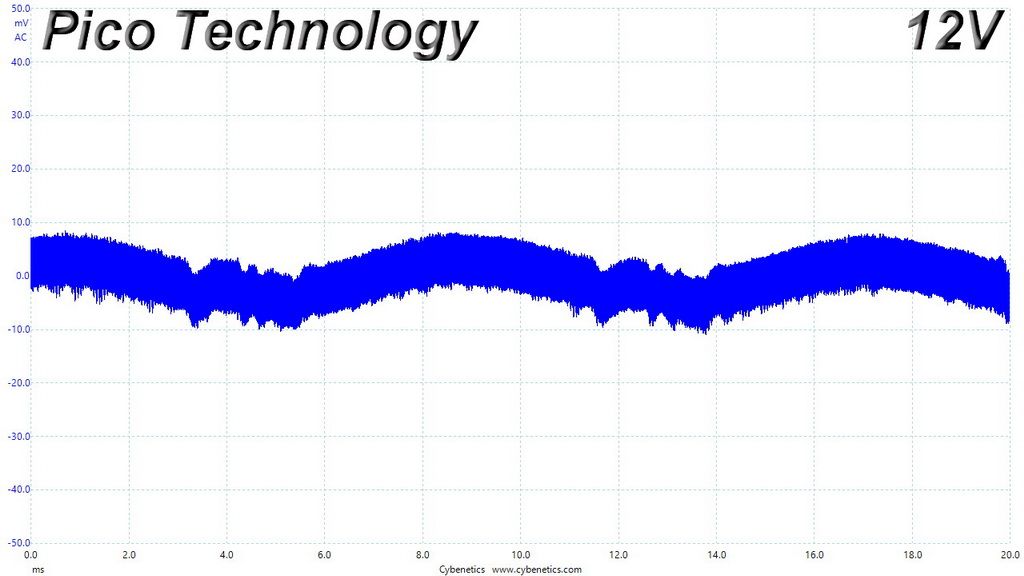

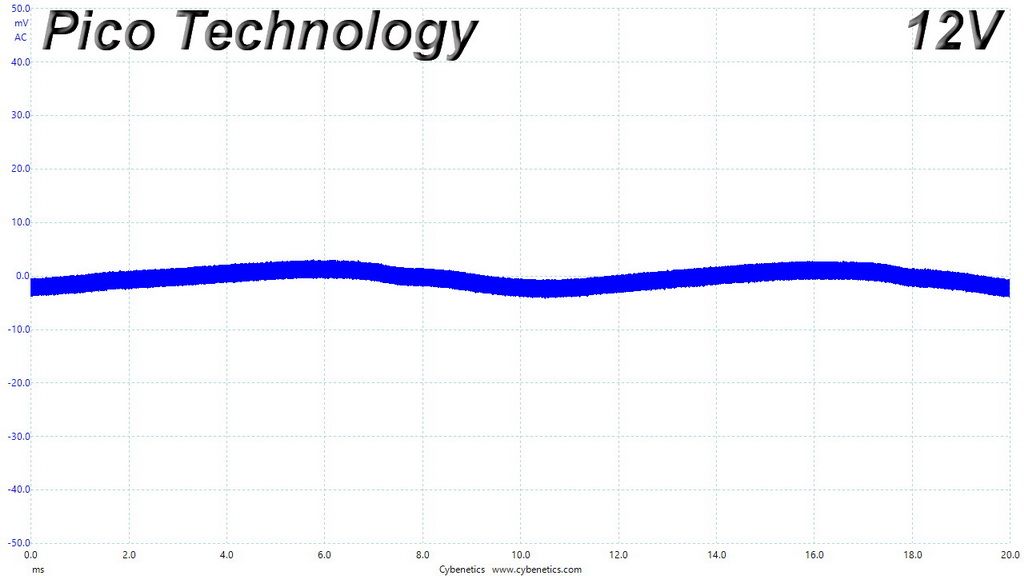

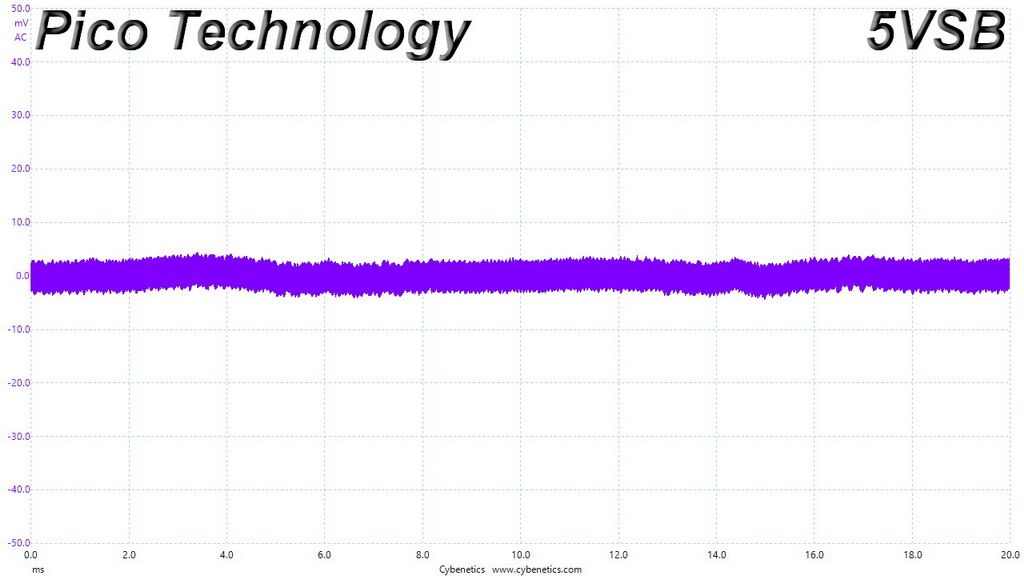

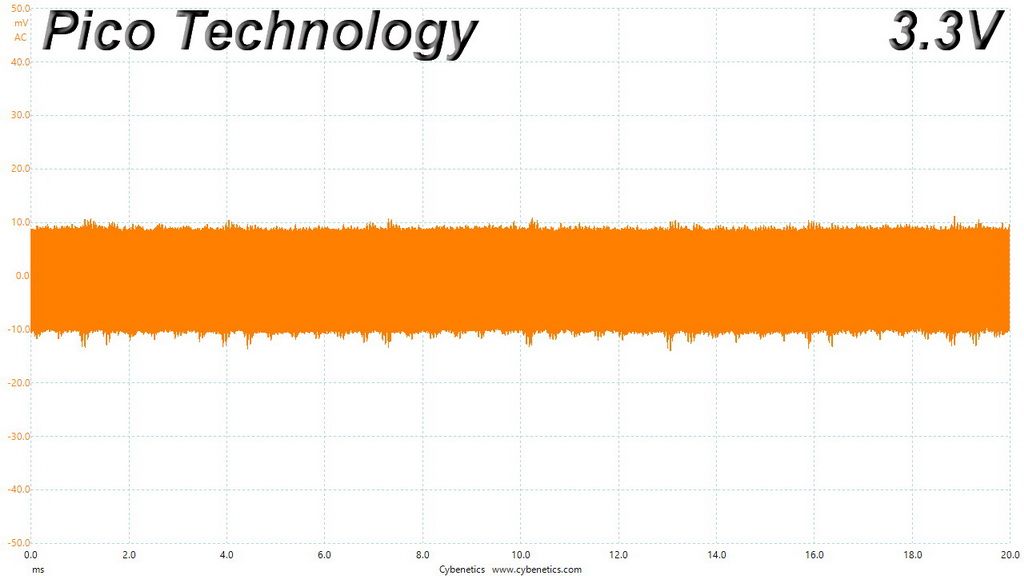

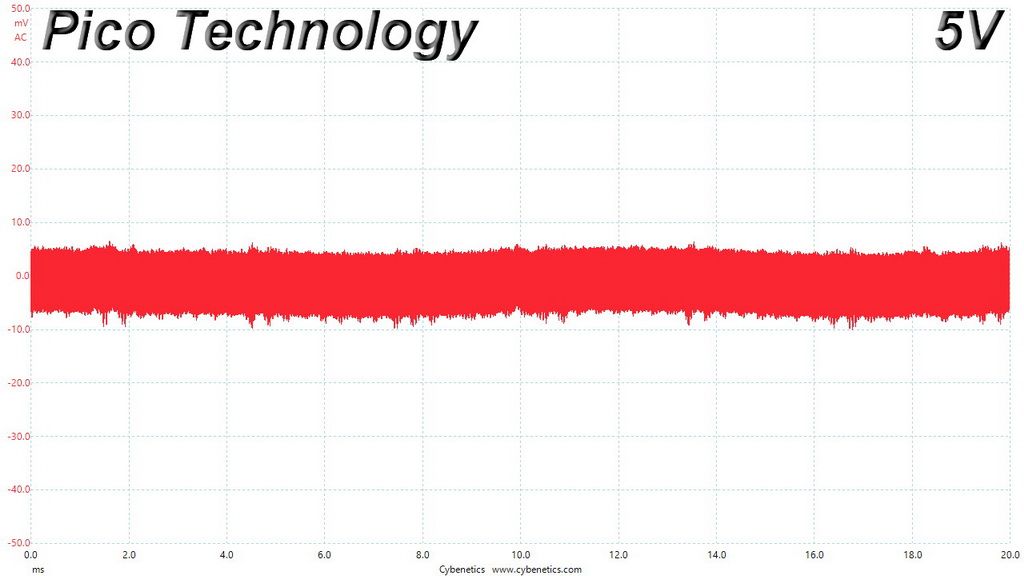

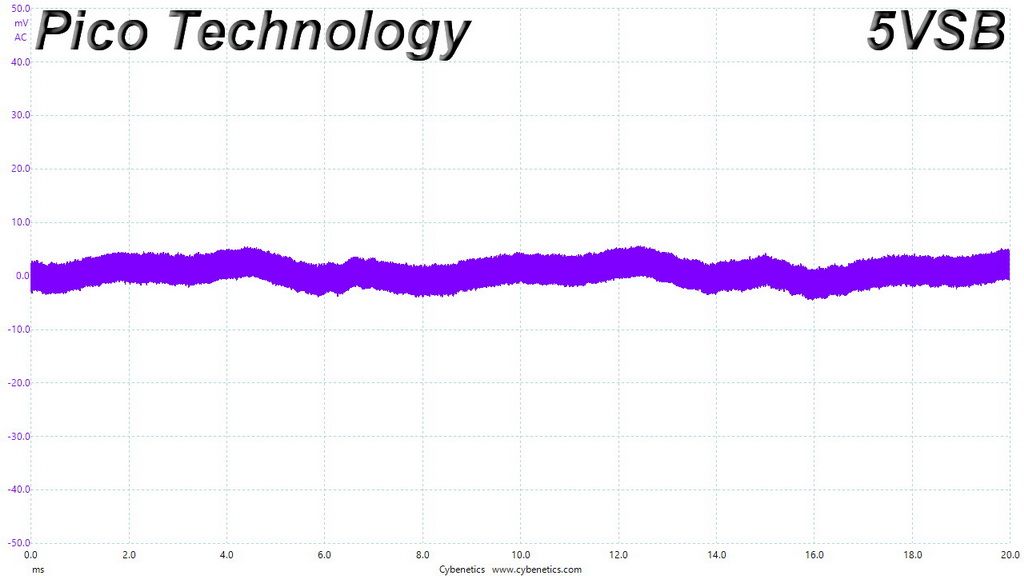

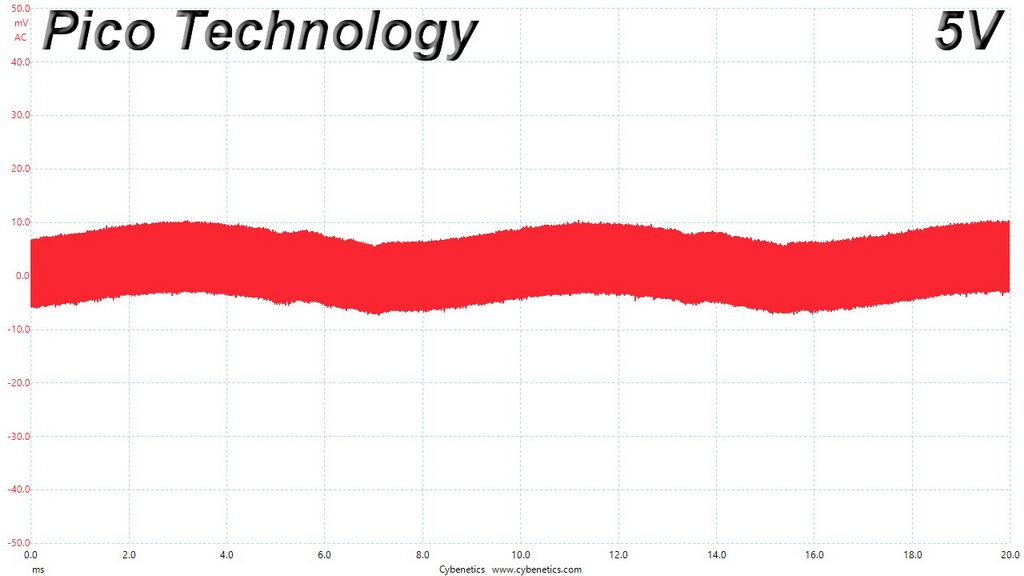

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

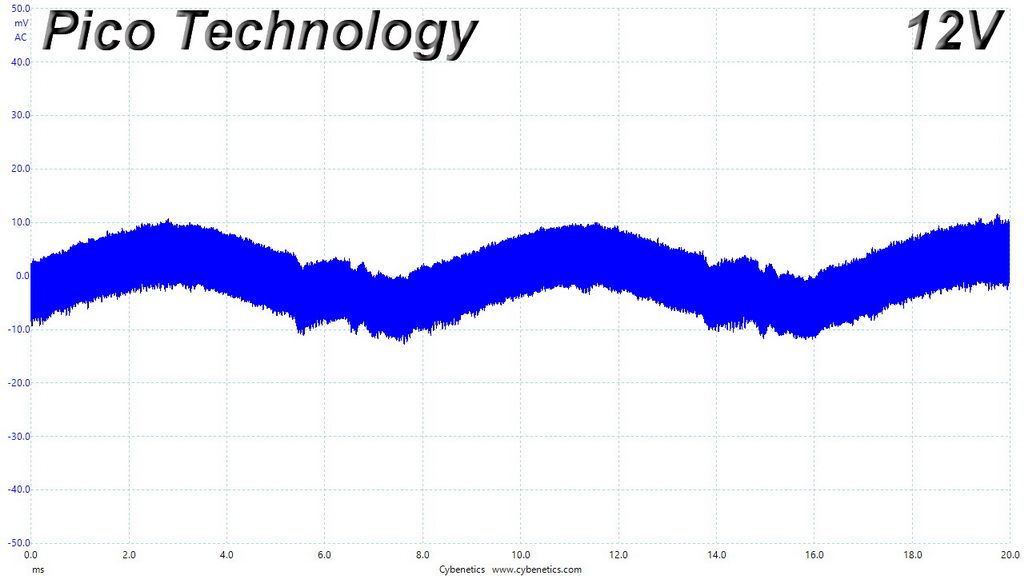

Ripple At Full Load

Image 1 of 4

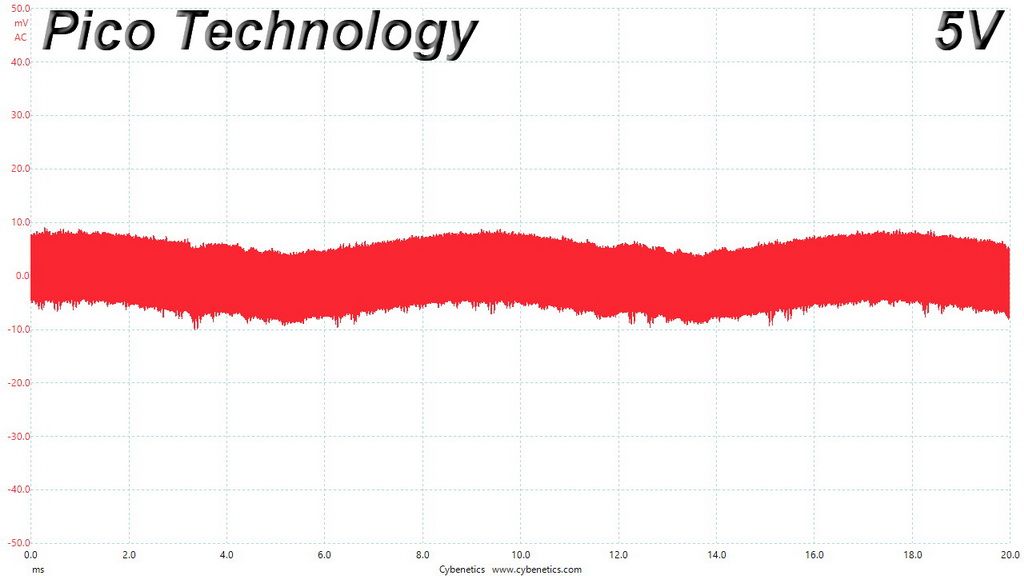

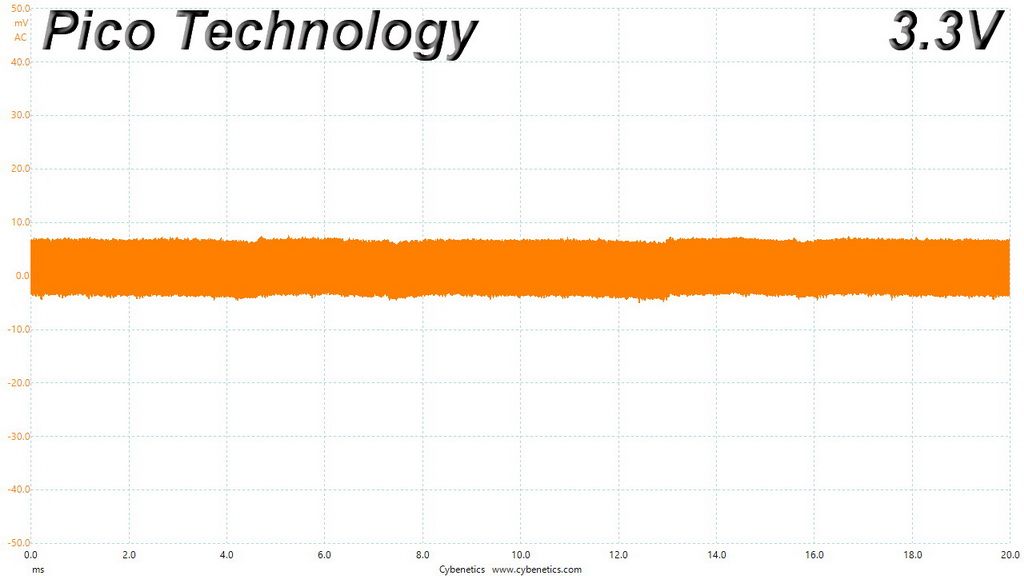

Ripple At 110-Percent Load

Image 1 of 4

Ripple At Cross-Load 1

Image 1 of 4

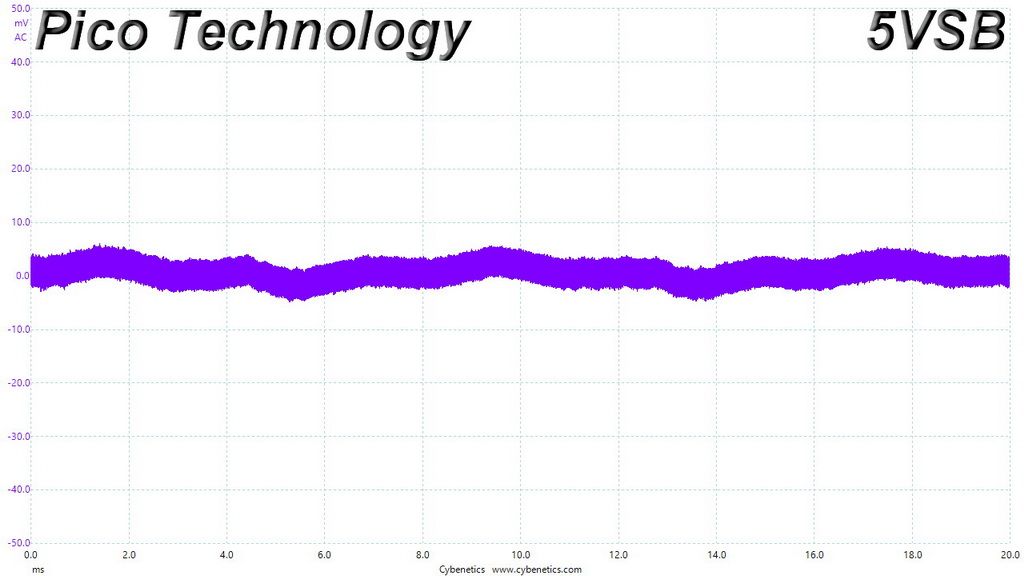

Ripple At Cross-Load 2

Image 1 of 4

MORE: Best Power Supplies

MORE: How We Test Power Supplies
