MSI MAG Z690 Tomahawk WIFI Review: Stealth Mode

MSI’s Z690 Tomahawk brings a stealthy black appearance, four M.2 ports and other updates to Alder Lake for $309.99.

MSI MAG Z690 Tomahawk WIFI
(Image: © MSI)

Firmware

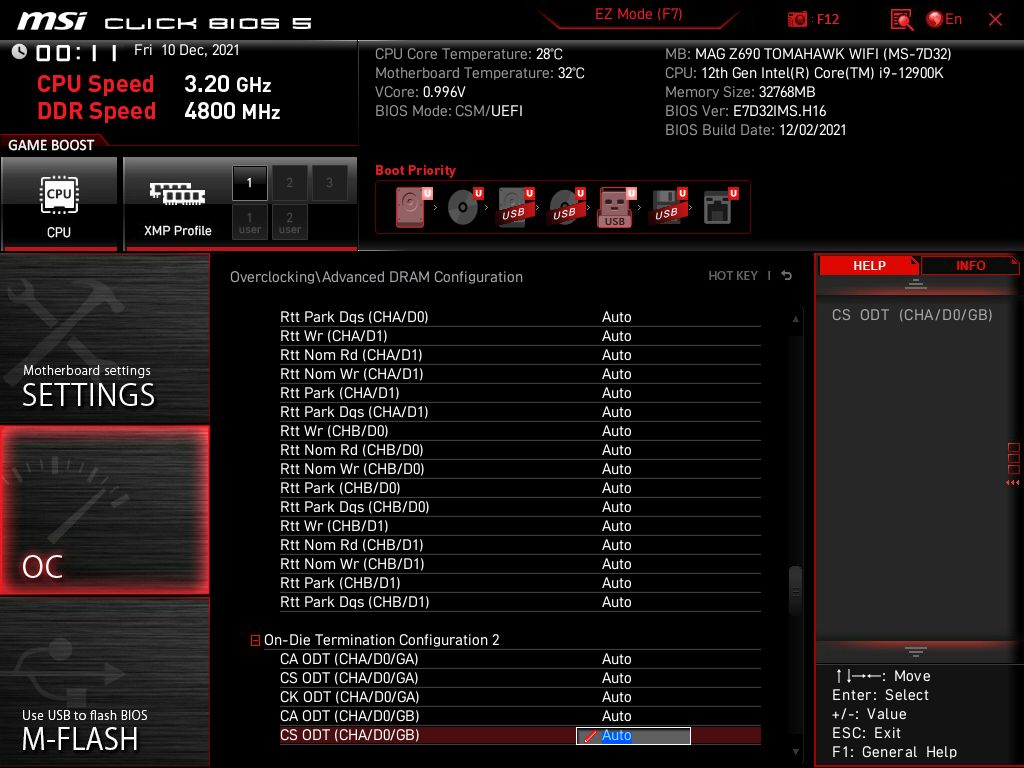

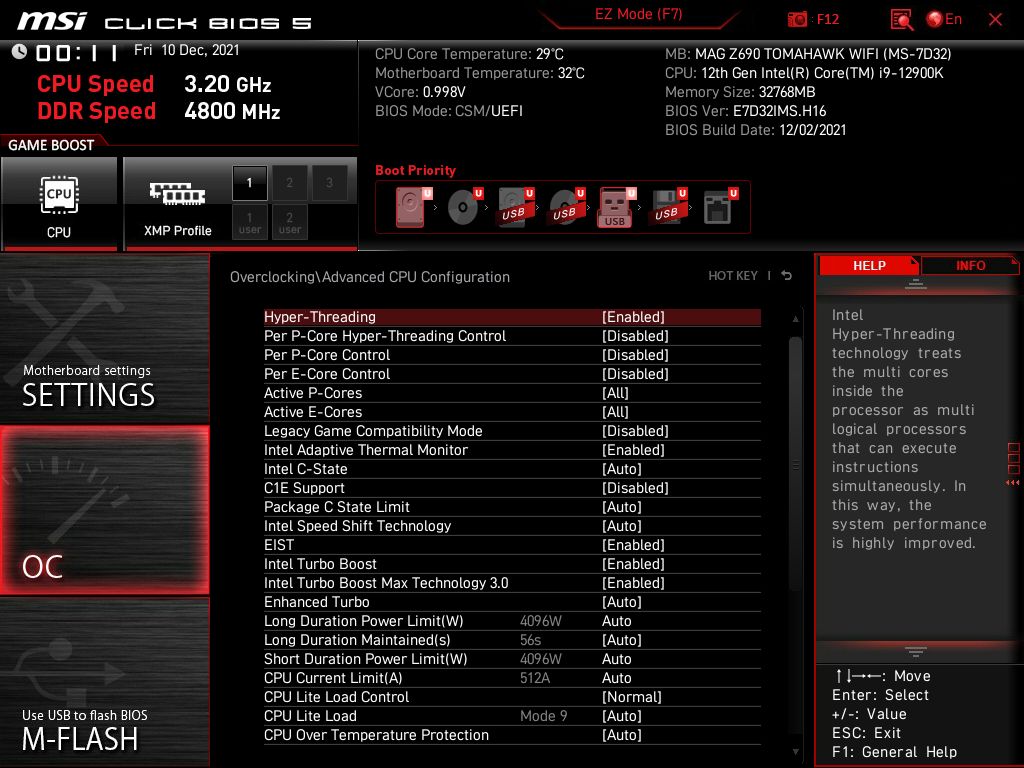

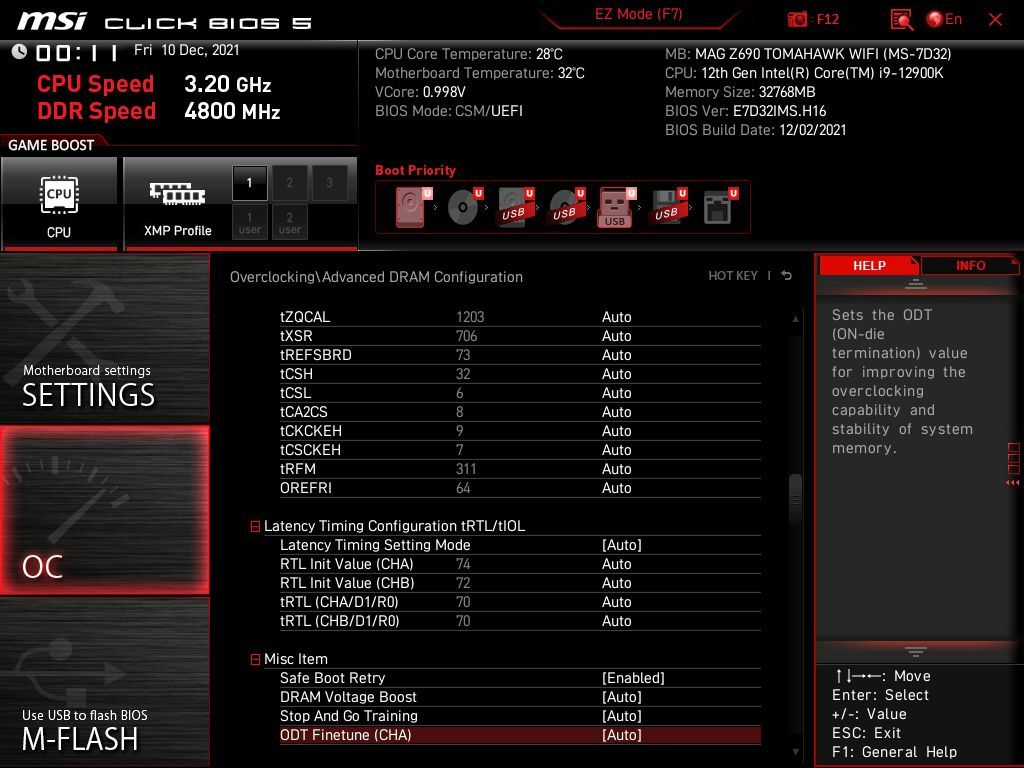

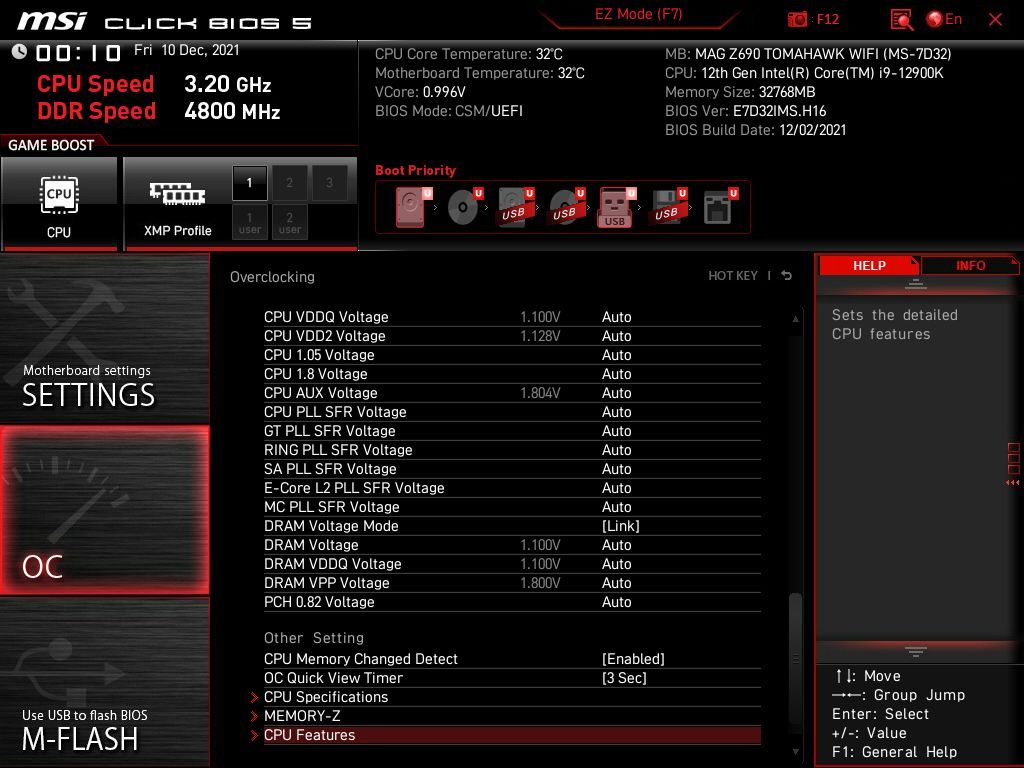

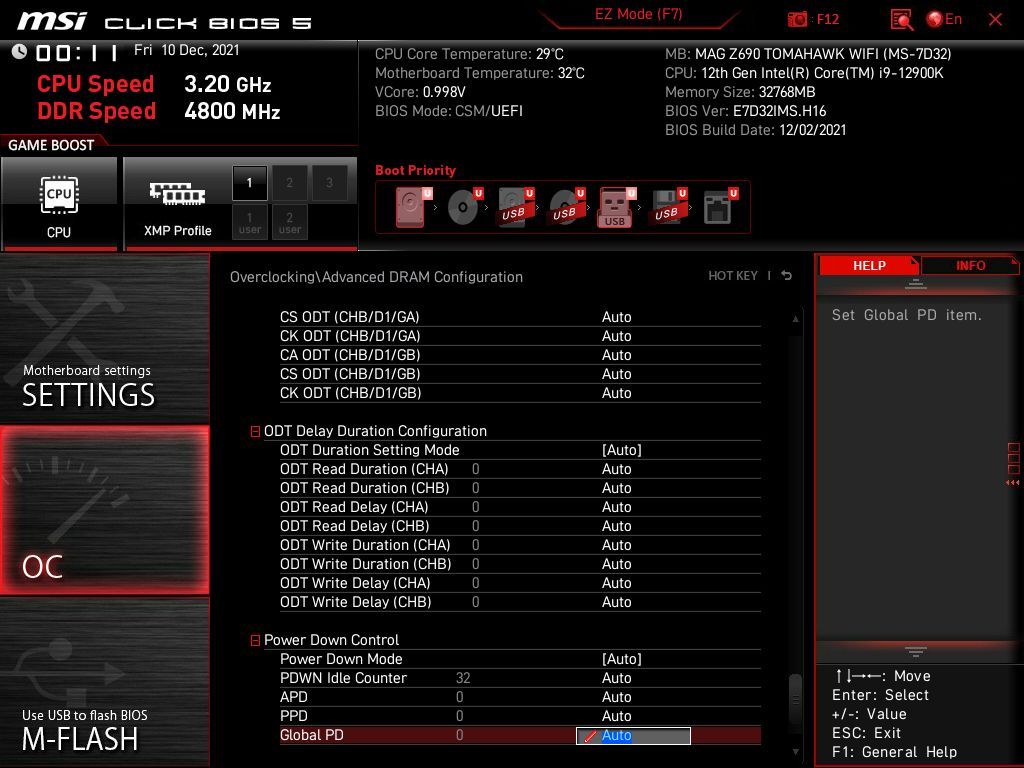

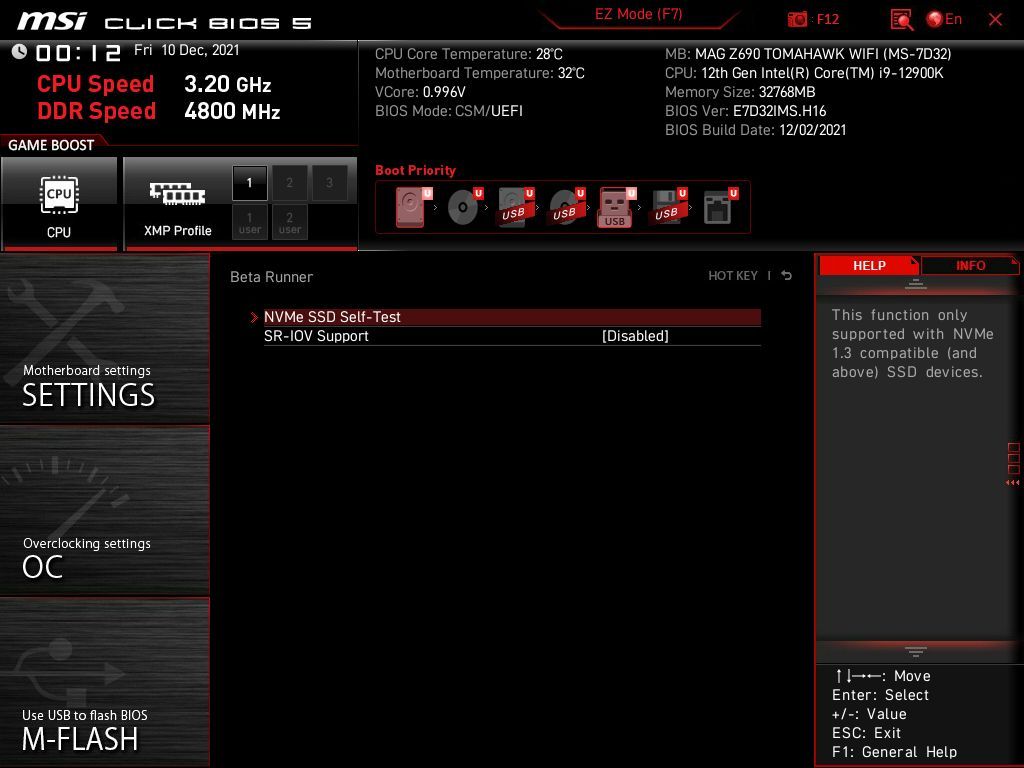

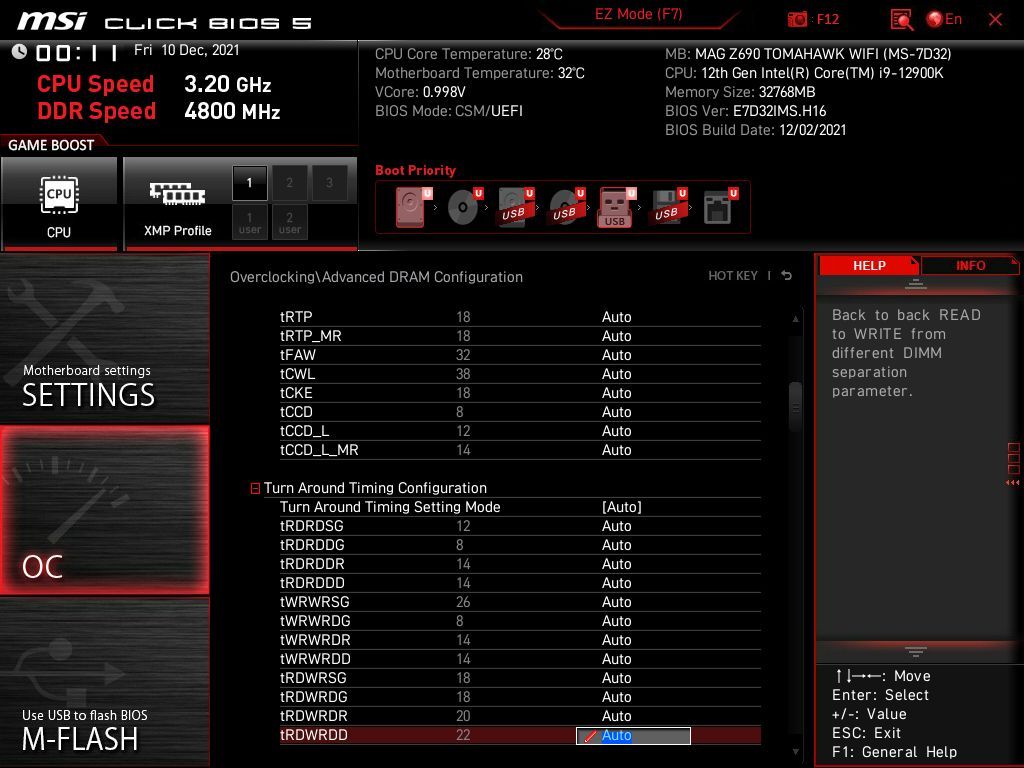

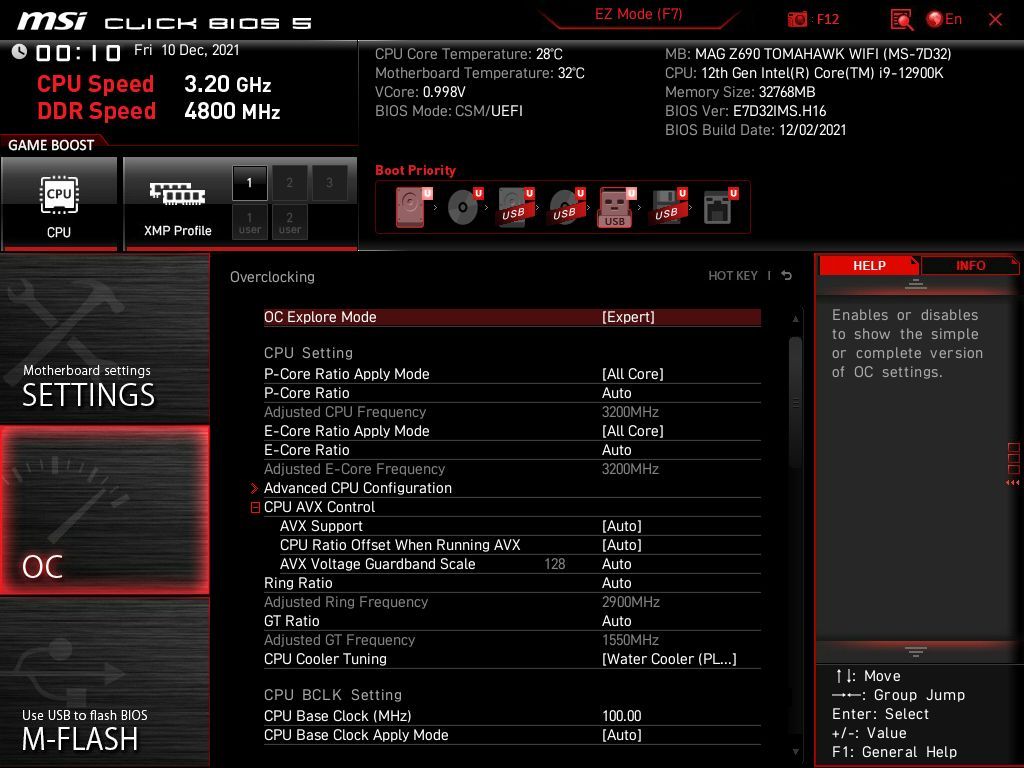

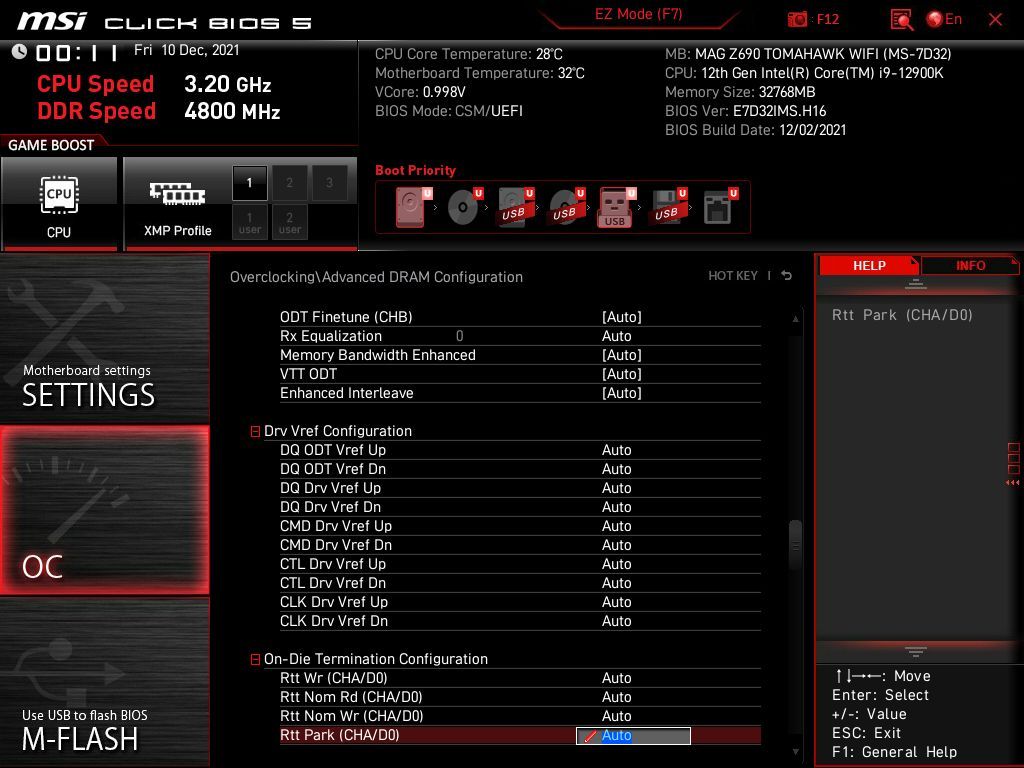

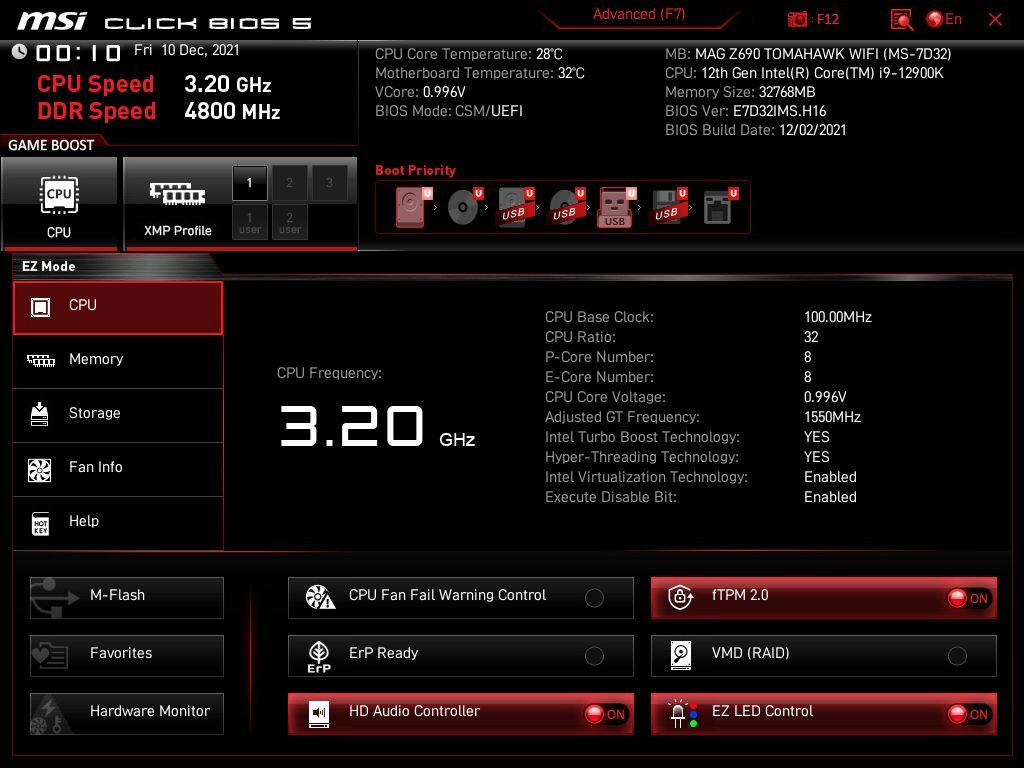

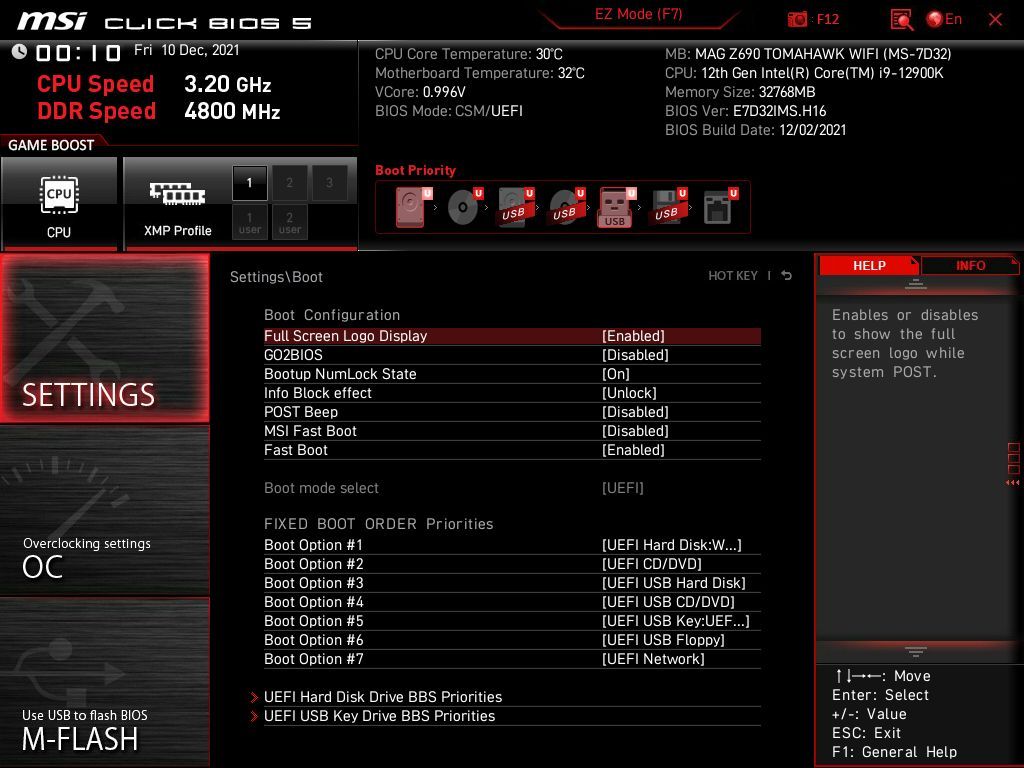

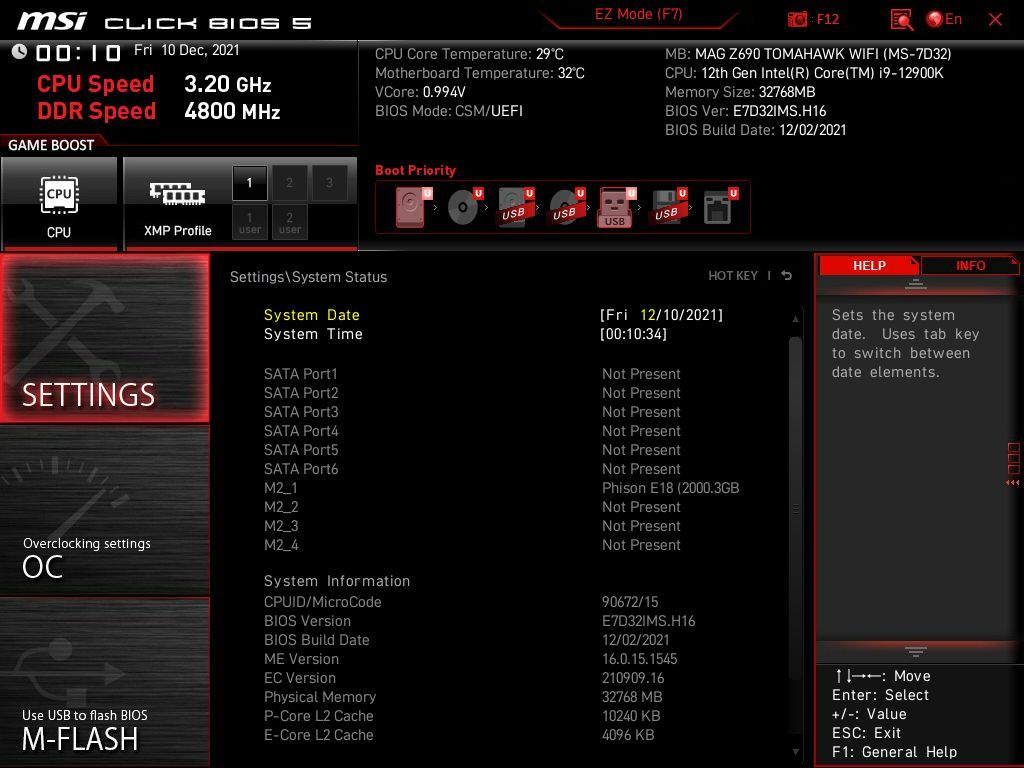

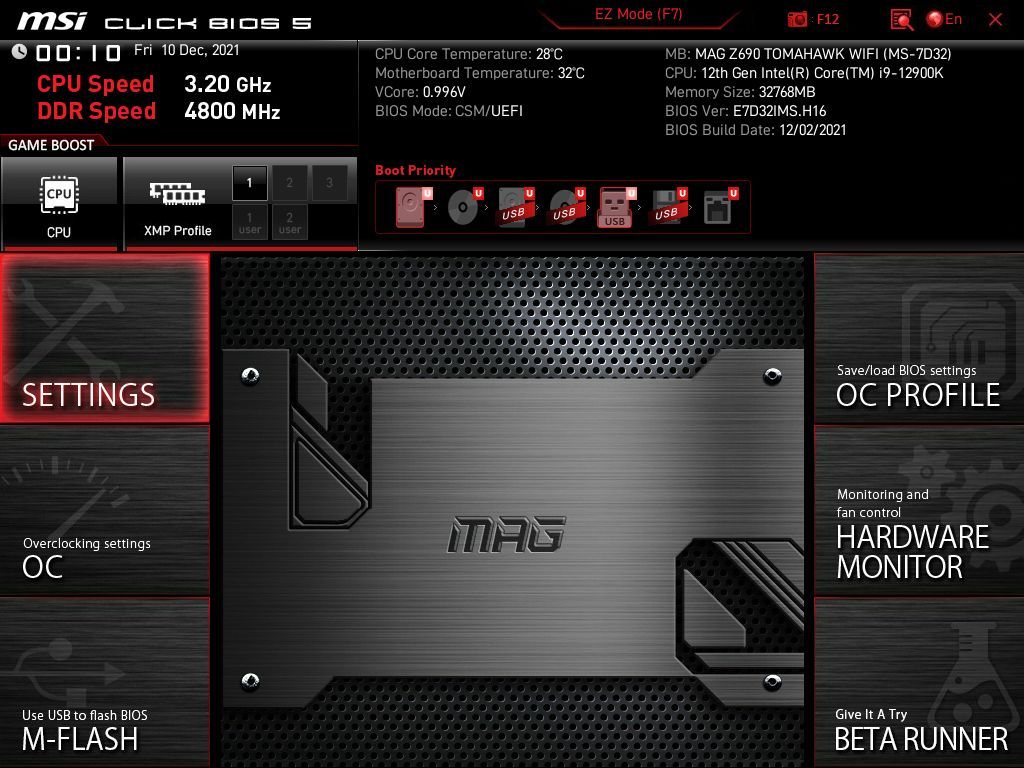

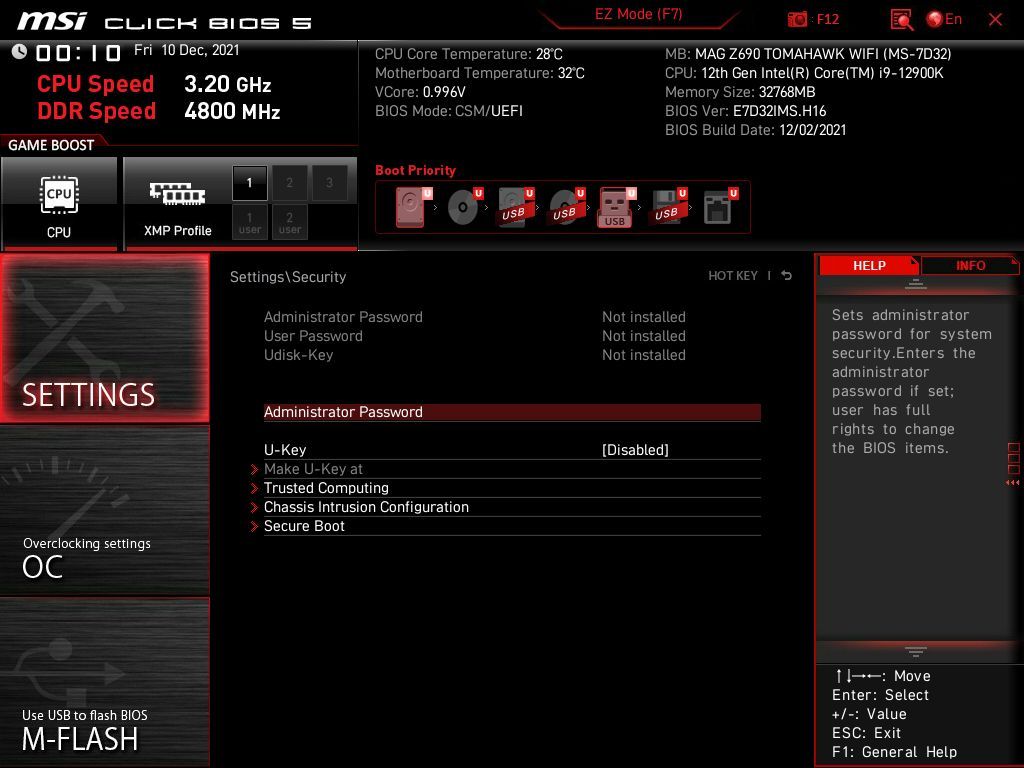

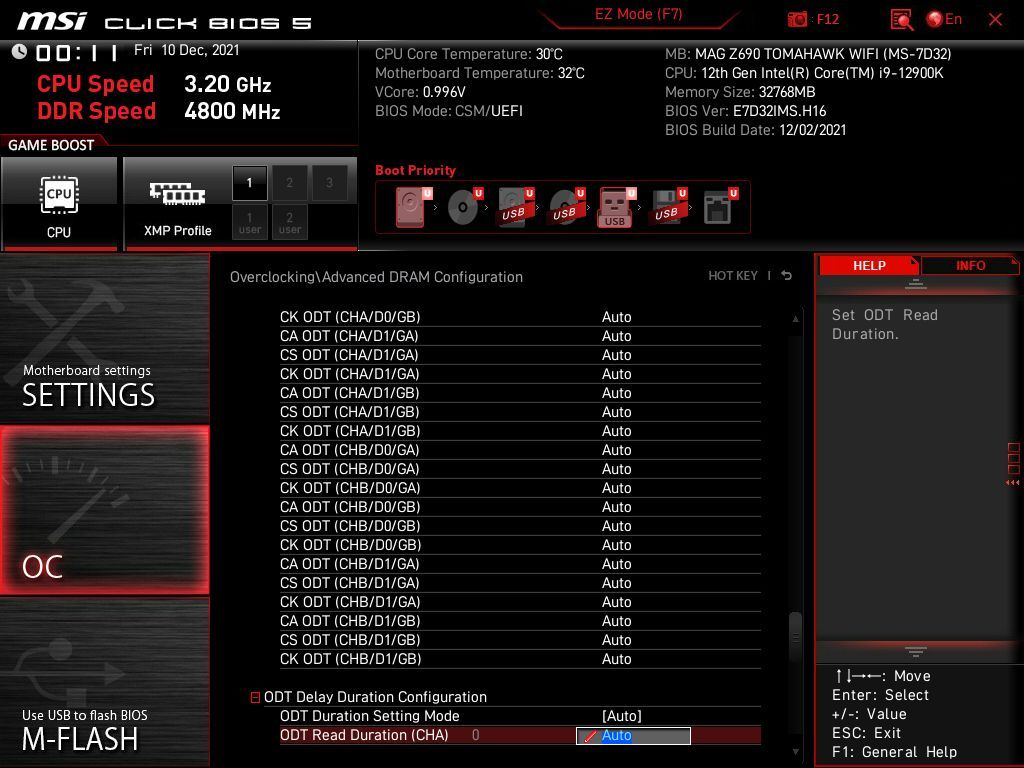

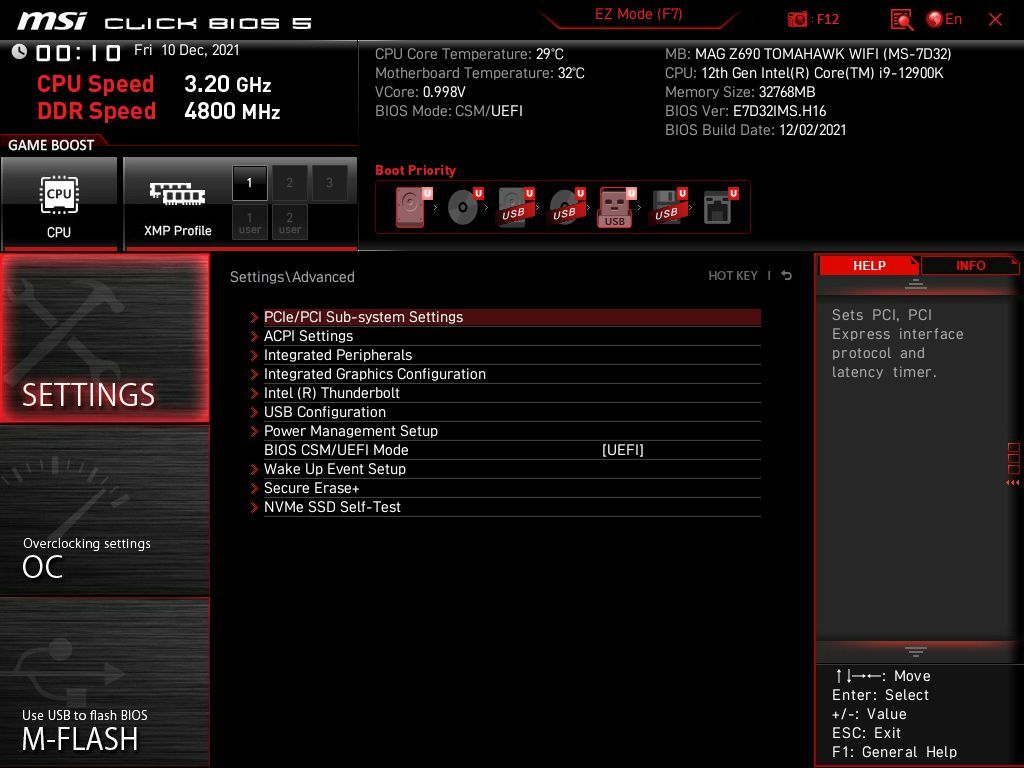

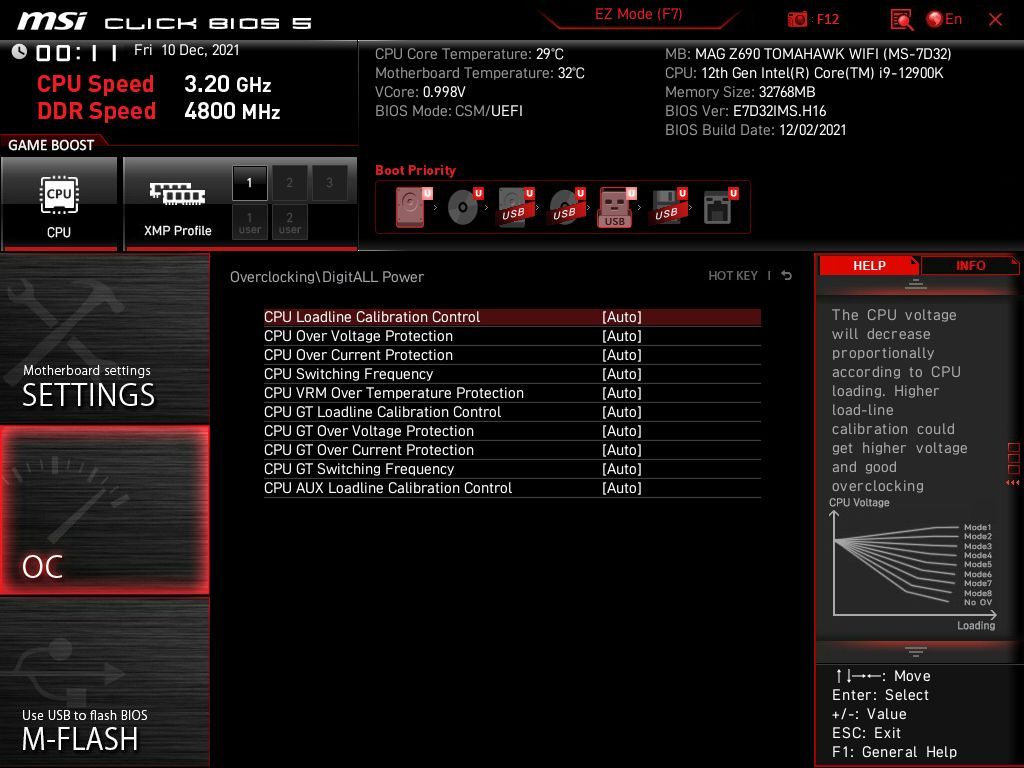

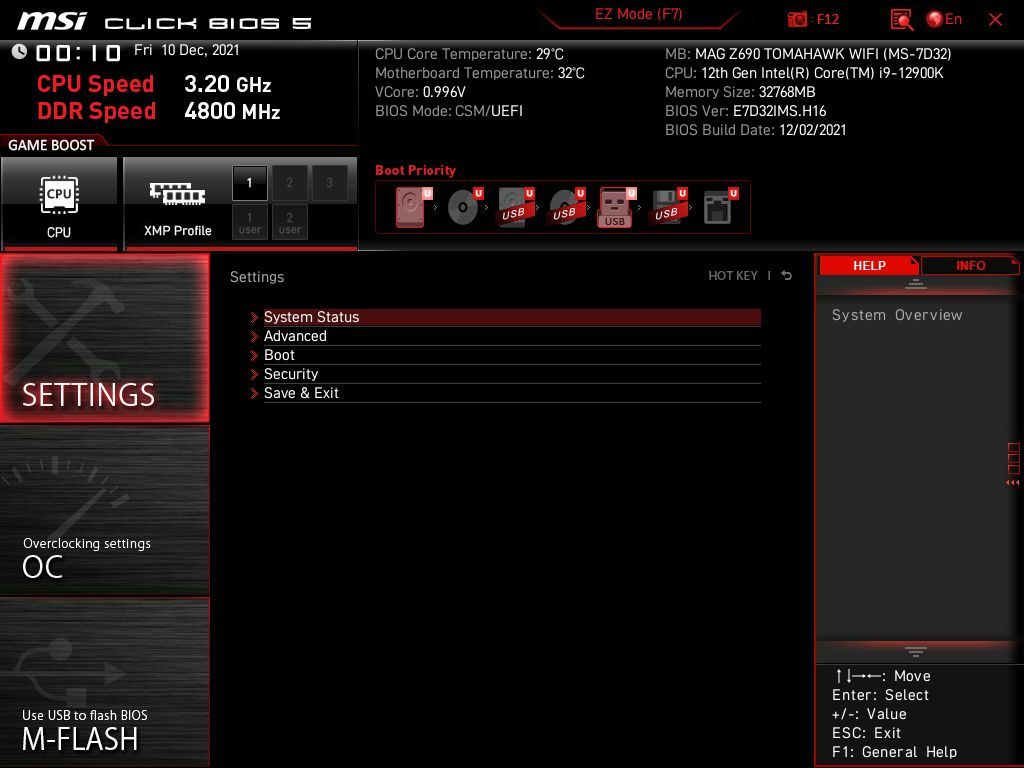

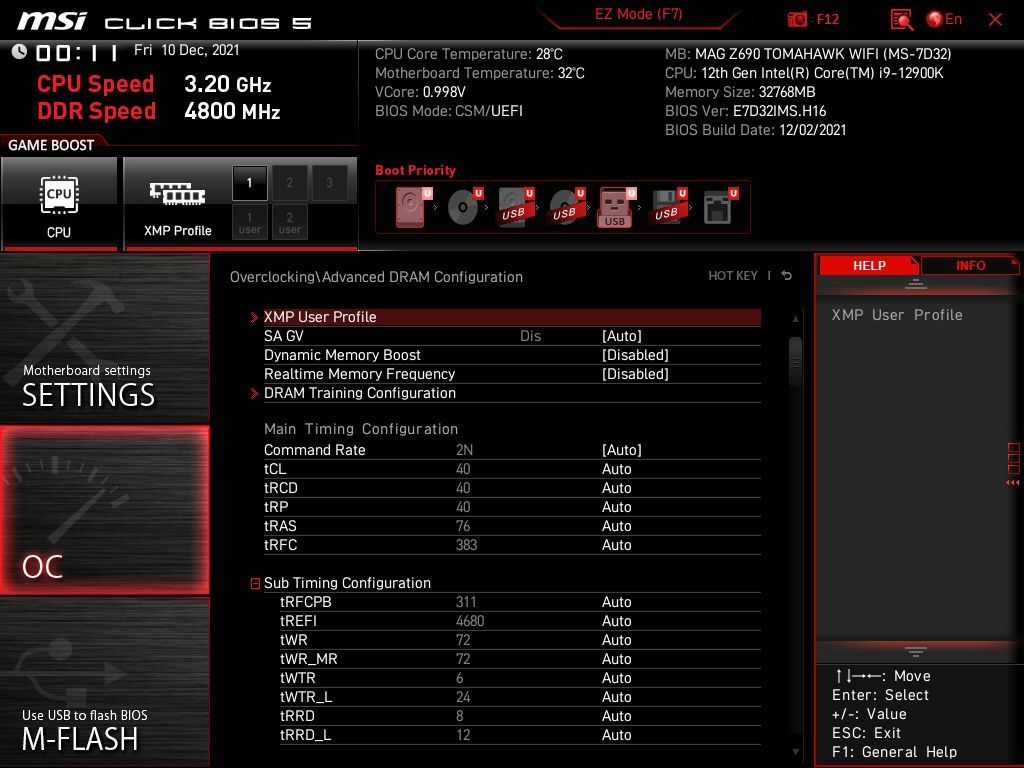

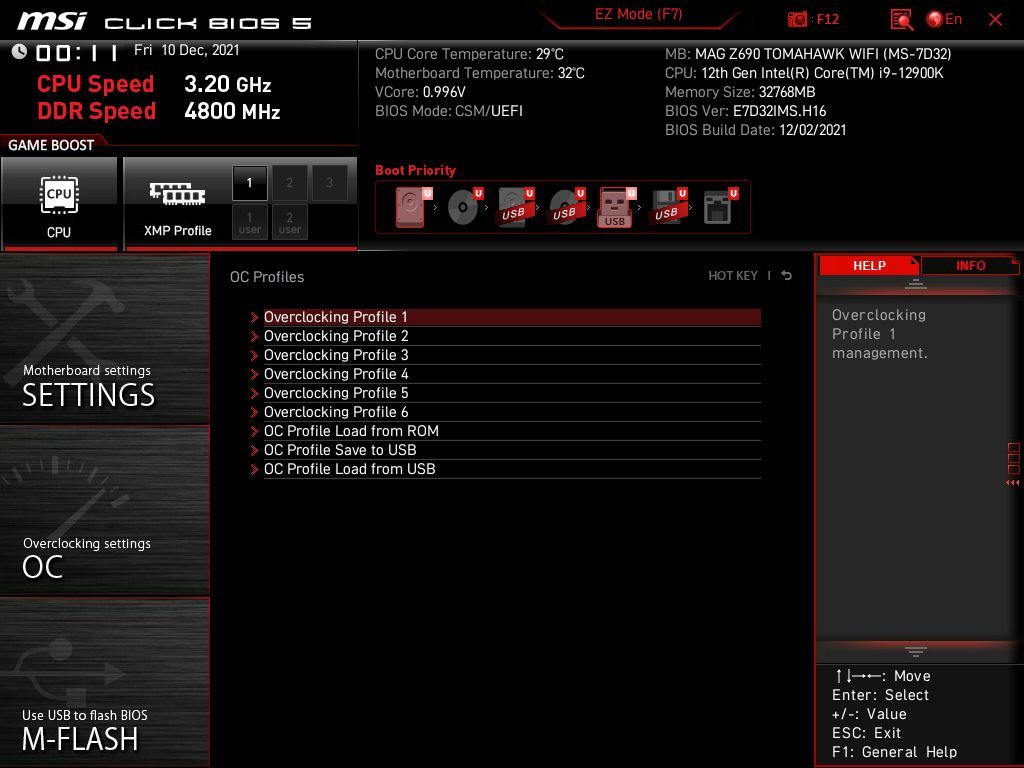

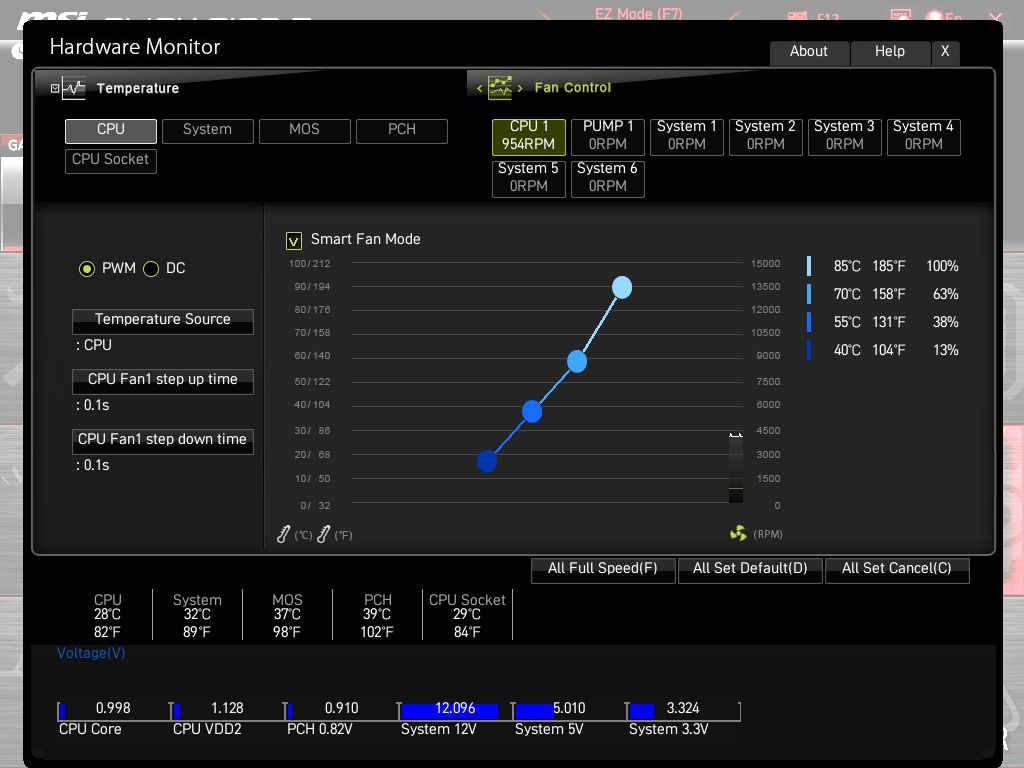

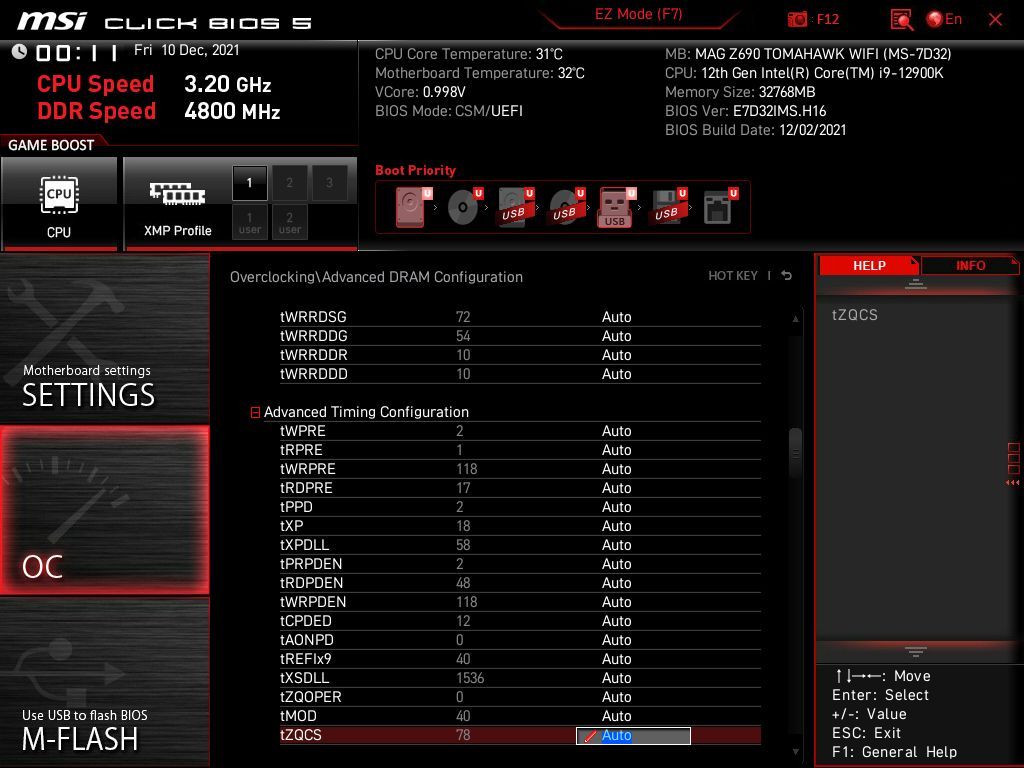

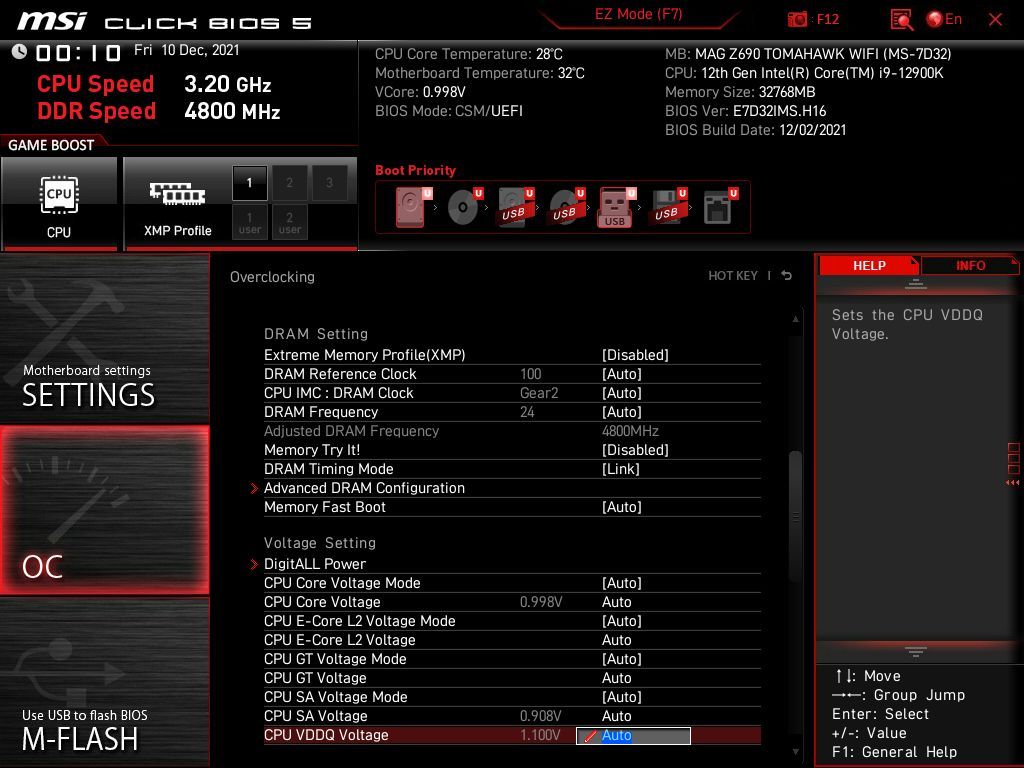

Like the other MSI BIOS configurations, you start with an informational EZ Mode that allows editing of some high-level functions that include enabling XMP profiles, adjusting fan speeds, and more. The main menu is informational up top, while the bottom two-thirds is where the adjustments happen. You select the section you want on the left or right sides, and the details show in the middle. You don’t have to dig down several screens to reach the overclocking options as they are mostly on the main page. Some digging is inevitable, but overall we find this BIOS full of options and easy to read and get around.

Image 1 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 2 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 3 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 4 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 5 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 6 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 7 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 8 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 9 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 10 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 11 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 12 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 13 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 14 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 15 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 16 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 17 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 18 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 19 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 20 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 21 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 22 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 23 of 23

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)

Software

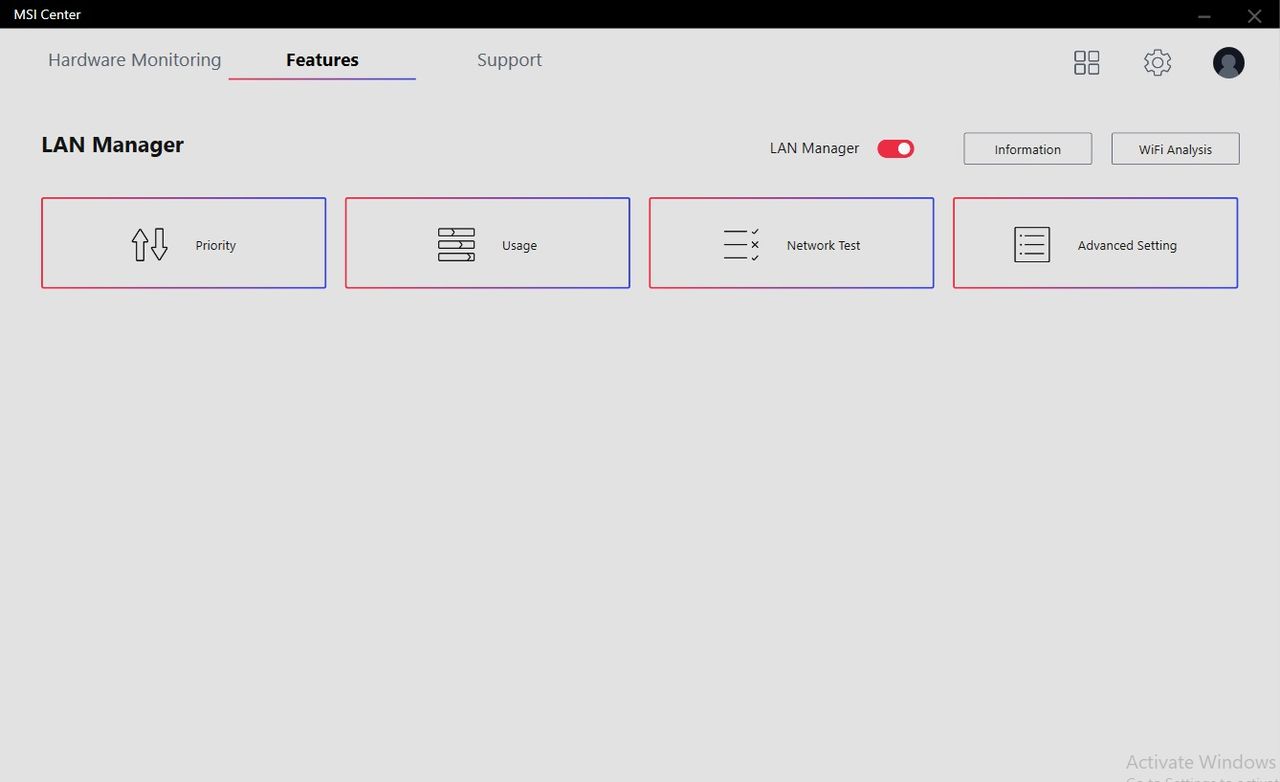

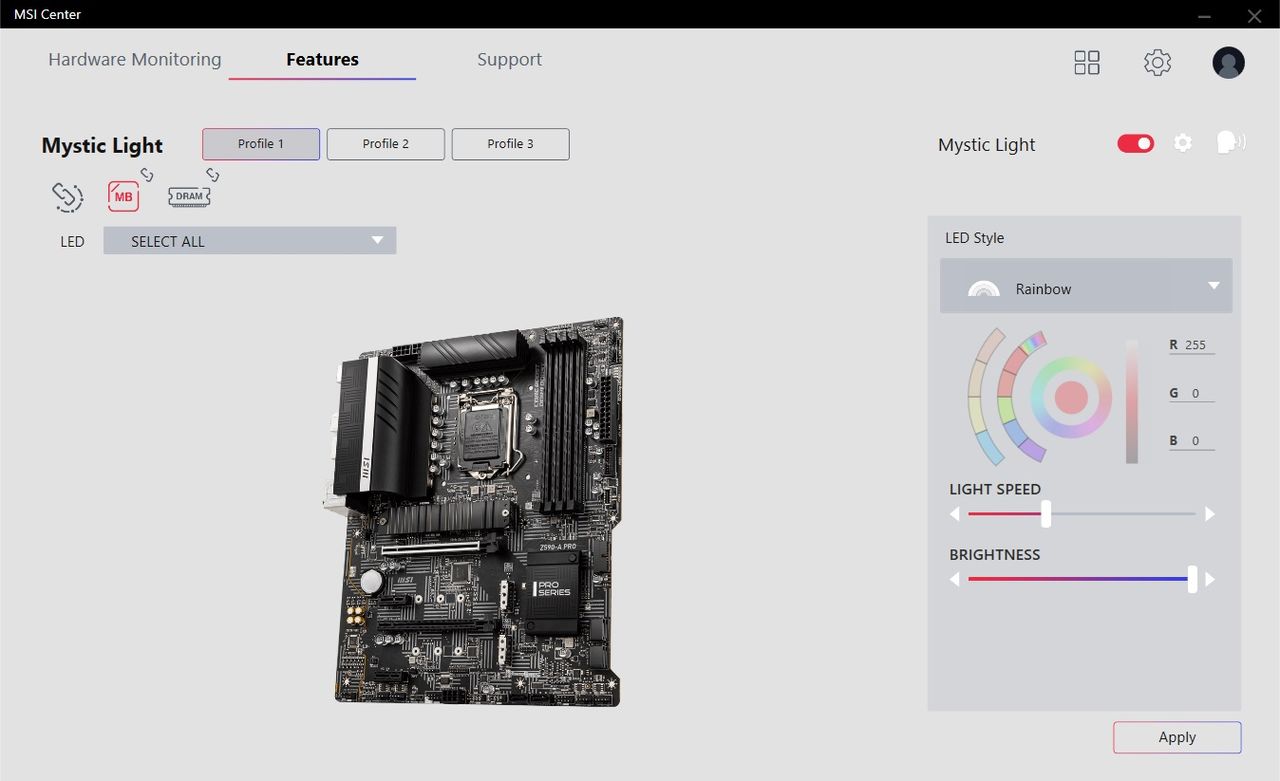

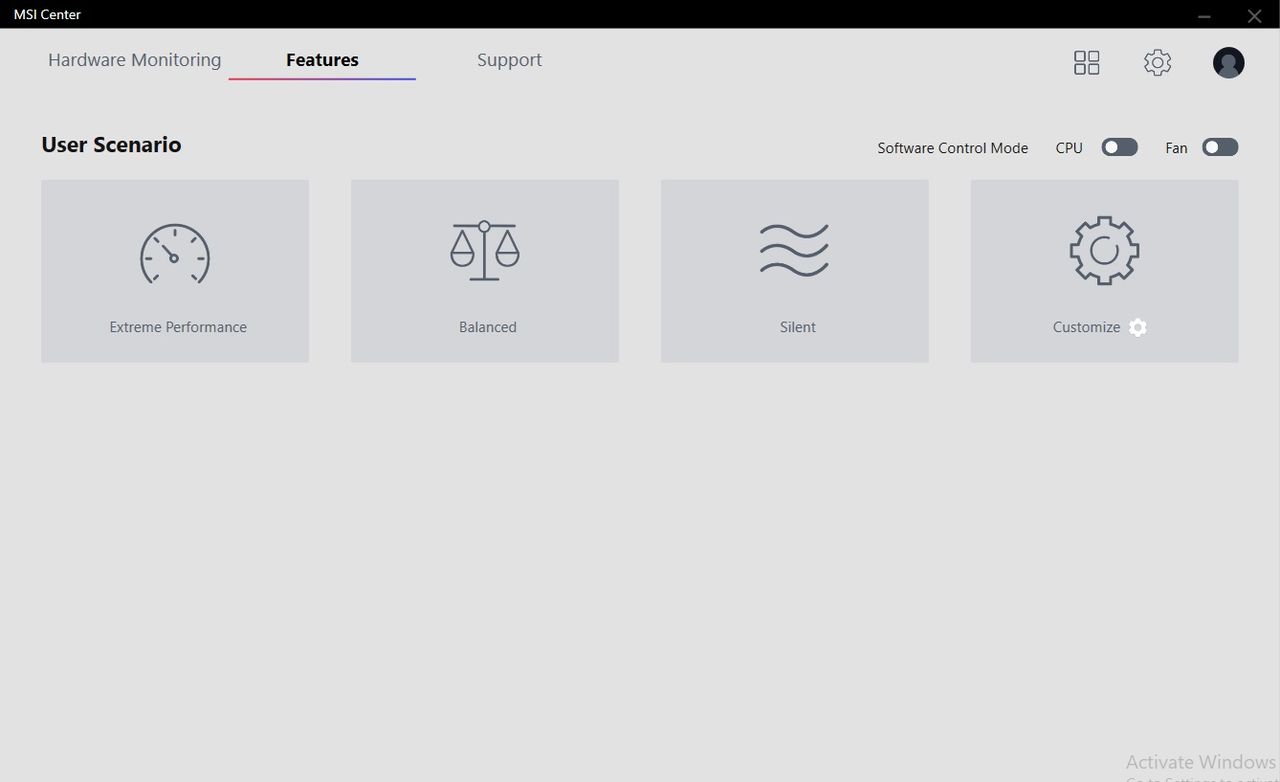

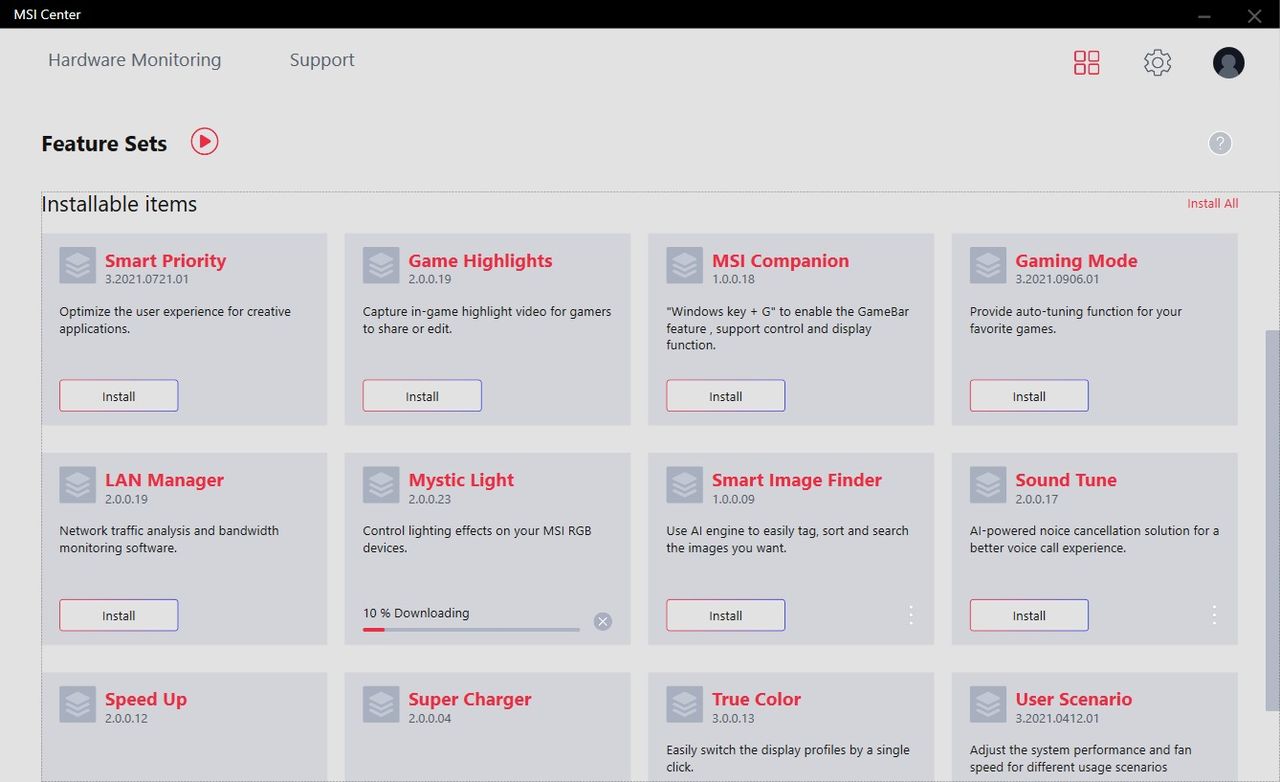

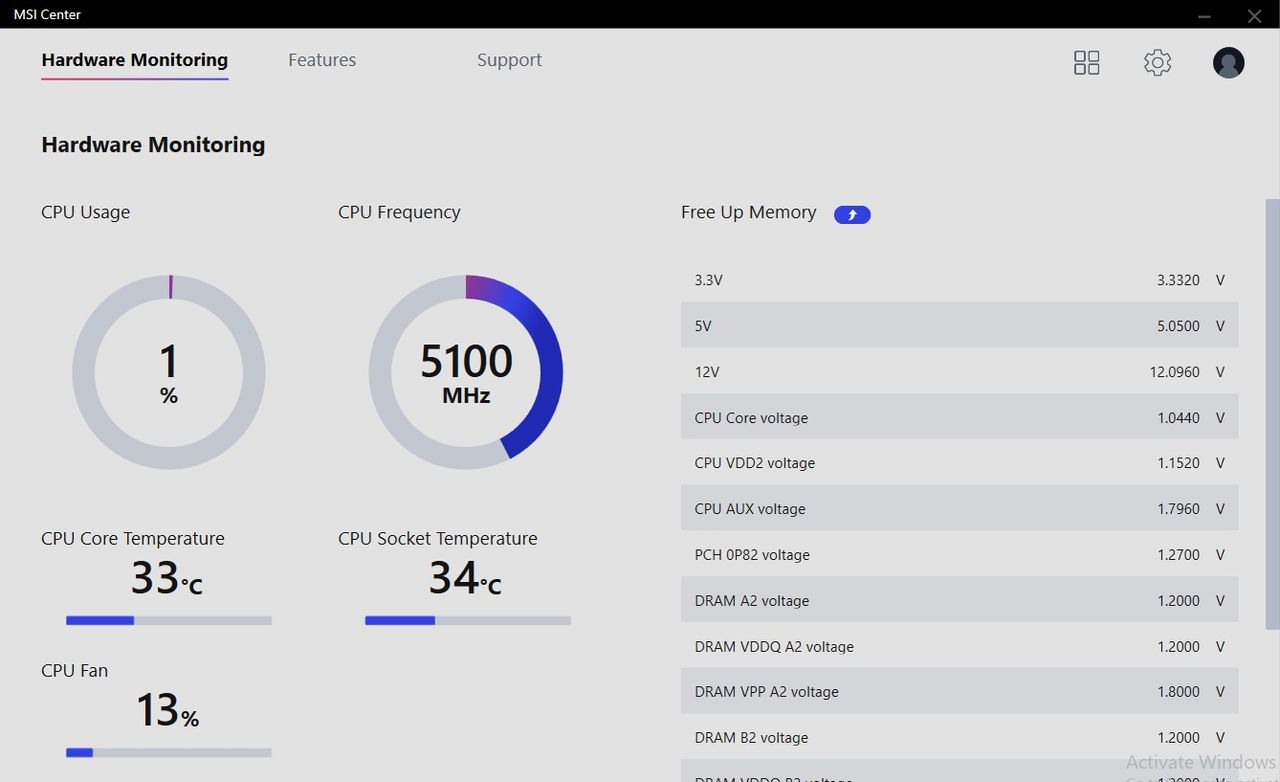

For software, the theme these days is to place a lot of the functionality in one program. MSI’s take on this is called Dragon Center software. This application allows you to download all or individual applets. Some of the programs include Mystic Light (RGB control), LAN Manager, User Scenario (overclocking, monitoring, and fan control), Super Charger, MSI Companion (help record games), and many more. Though updates should fix this down the road, it’s worth noting that you cannot overclock the system with the version I had.

Image 1 of 5

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 2 of 5

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 3 of 5

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 4 of 5

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)
Image 5 of 5

MSI MAG Z690 Tomahawk WIFI

(Image credit: Tom's Hardware)

Test System / Comparison Products

As of October 2021, we’ve updated our test system to Windows 11 64-bit OS with all updates applied. We kept the same Asus TUF RTX 3070 video card from our previous testing platforms but updated the driver to version 496.13. Additionally, our game selection was updated, as noted in the table below. We use the latest non-beta motherboard BIOS available to the public unless otherwise noted. The hardware used is as follows:

Test System Components

CPUIntel Core i9-12900K
MemoryKingston Fury DDR5 5200 CL40 (9KF552C40BBK2-32)
GSkill Trident Z DDR5 5600 CL36 (F5-5600U3636C16GX2-TZ5RK)
GPUAsus TUF RTX 3070
CoolingMSI MEG Coreliquid S360
PSUEVGA Supernova 850W P6
SoftwareWindows 11 64-bit (21H2, Build 22000.282)
Graphics DriverNVIDIA Driver 496.13
SoundIntegrated HD audio
NetworkIntegrated Networking (GbE or 2.5 GbE)
Image 1 of 7

MSI MAG Z690 Tomahawk WIFI

(Image credit: EVGA)
Image 2 of 7

MSI MAG Z690 Tomahawk WIFI

(Image credit: EVGA)
Image 3 of 7

MSI MAG Z690 Tomahawk WIFI

(Image credit: EVGA)
Image 4 of 7

MSI MAG Z690 Tomahawk WIFI

(Image credit: GSkill)
Image 5 of 7

MSI MAG Z690 Tomahawk WIFI

(Image credit: GSkill)
Image 6 of 7

MSI MAG Z690 Tomahawk WIFI

(Image credit: GSkill)
Image 7 of 7

MSI MAG Z690 Tomahawk WIFI

(Image credit: GSkill)

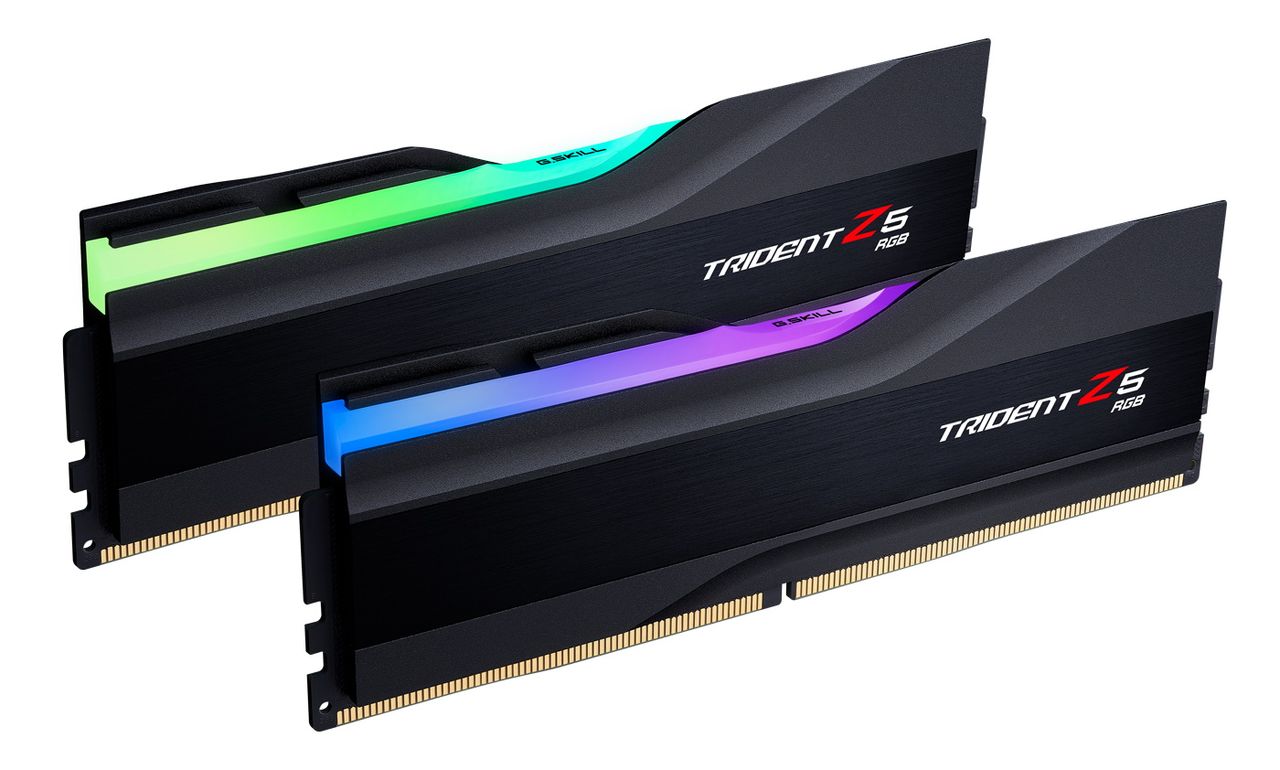

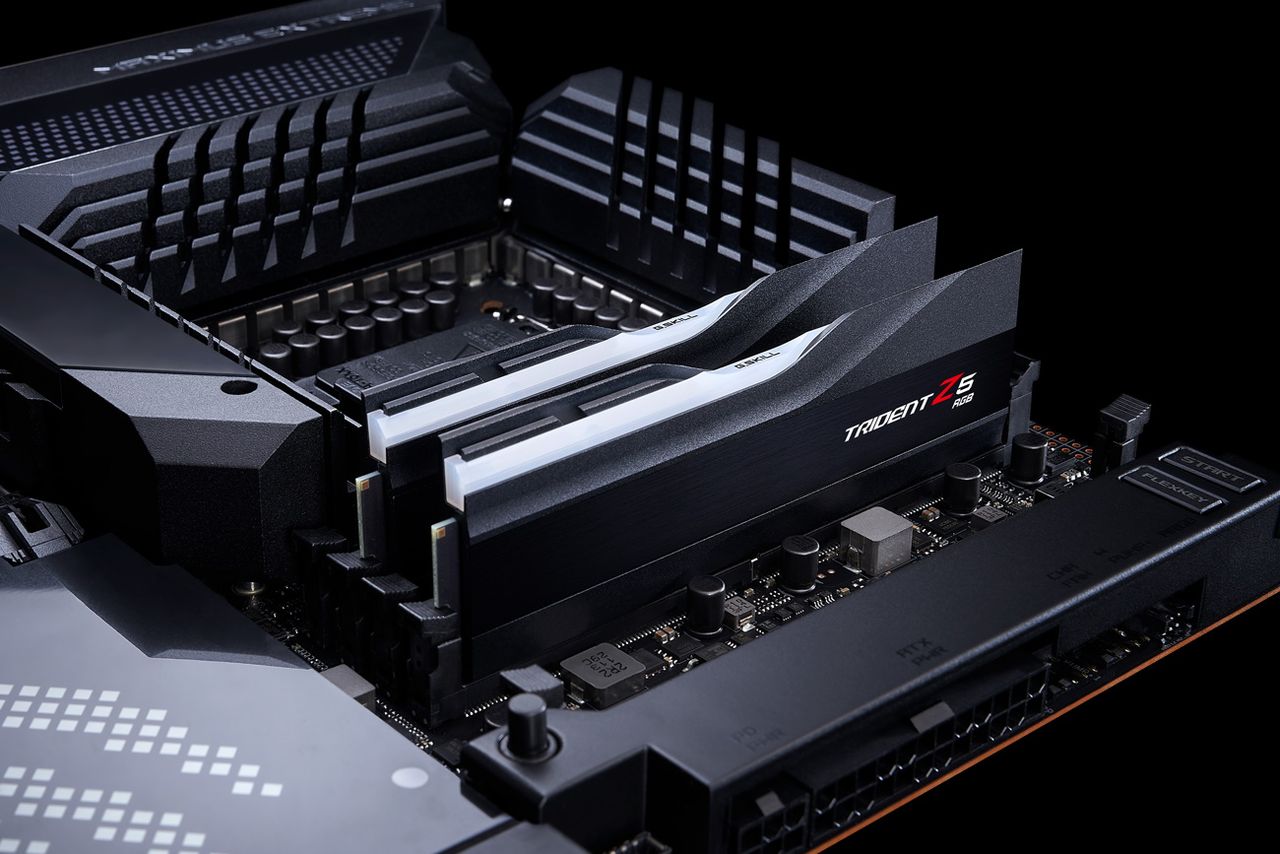

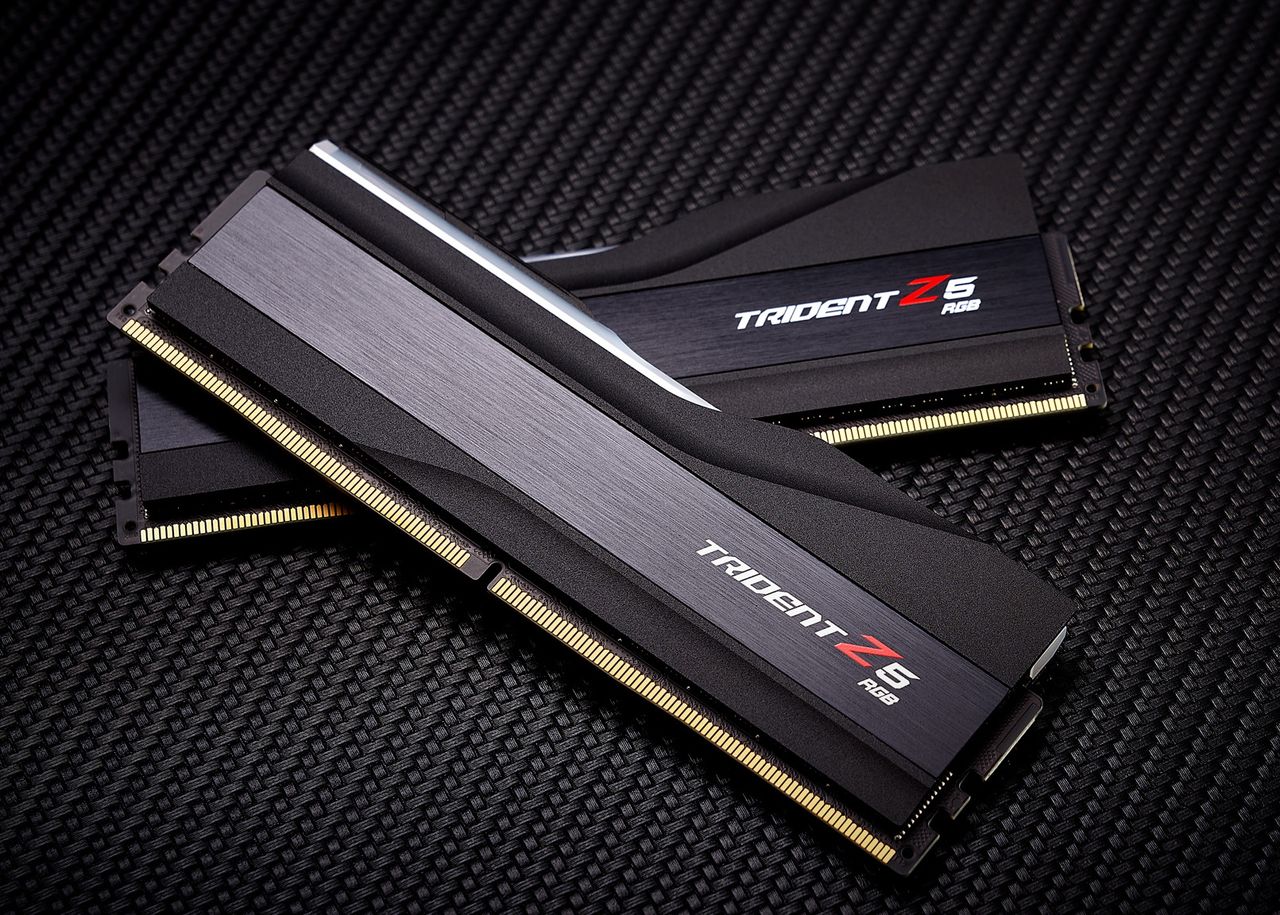

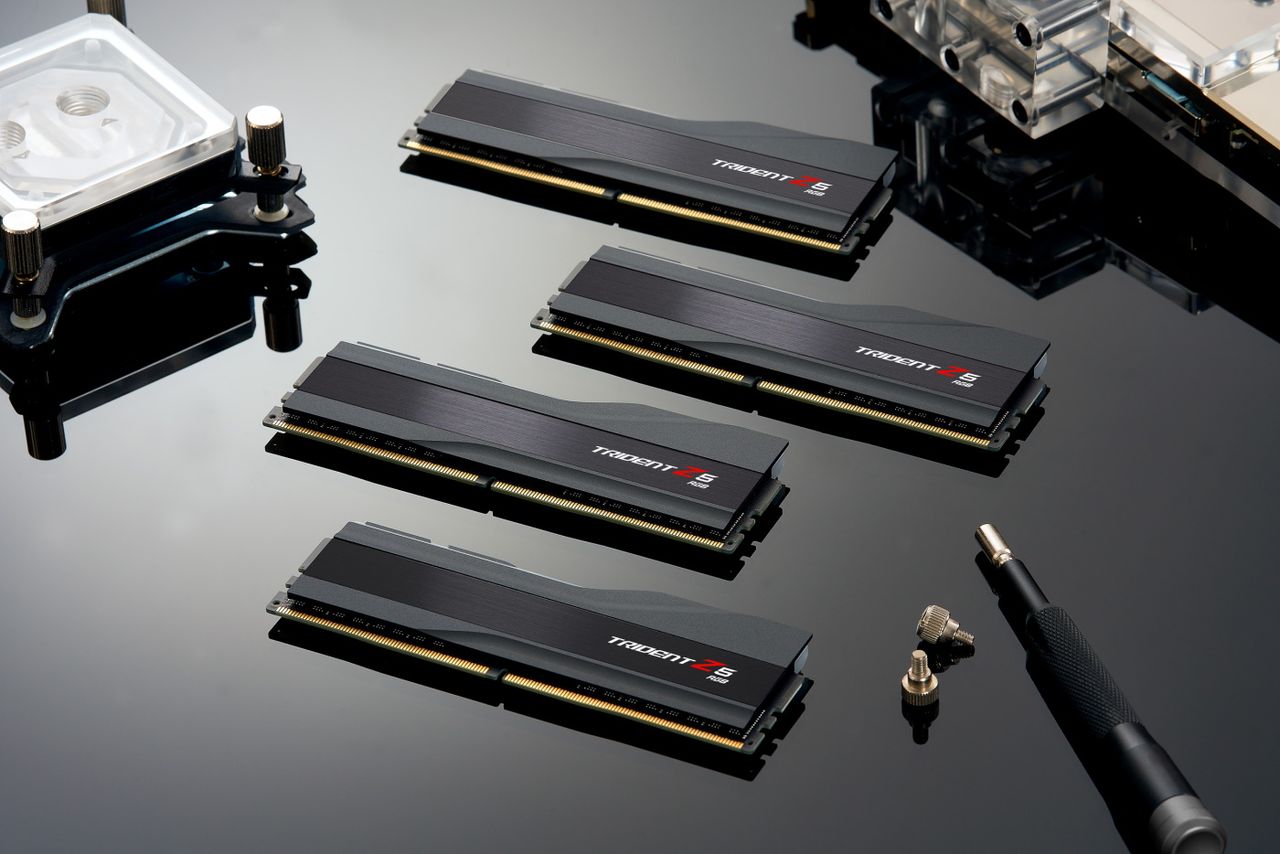

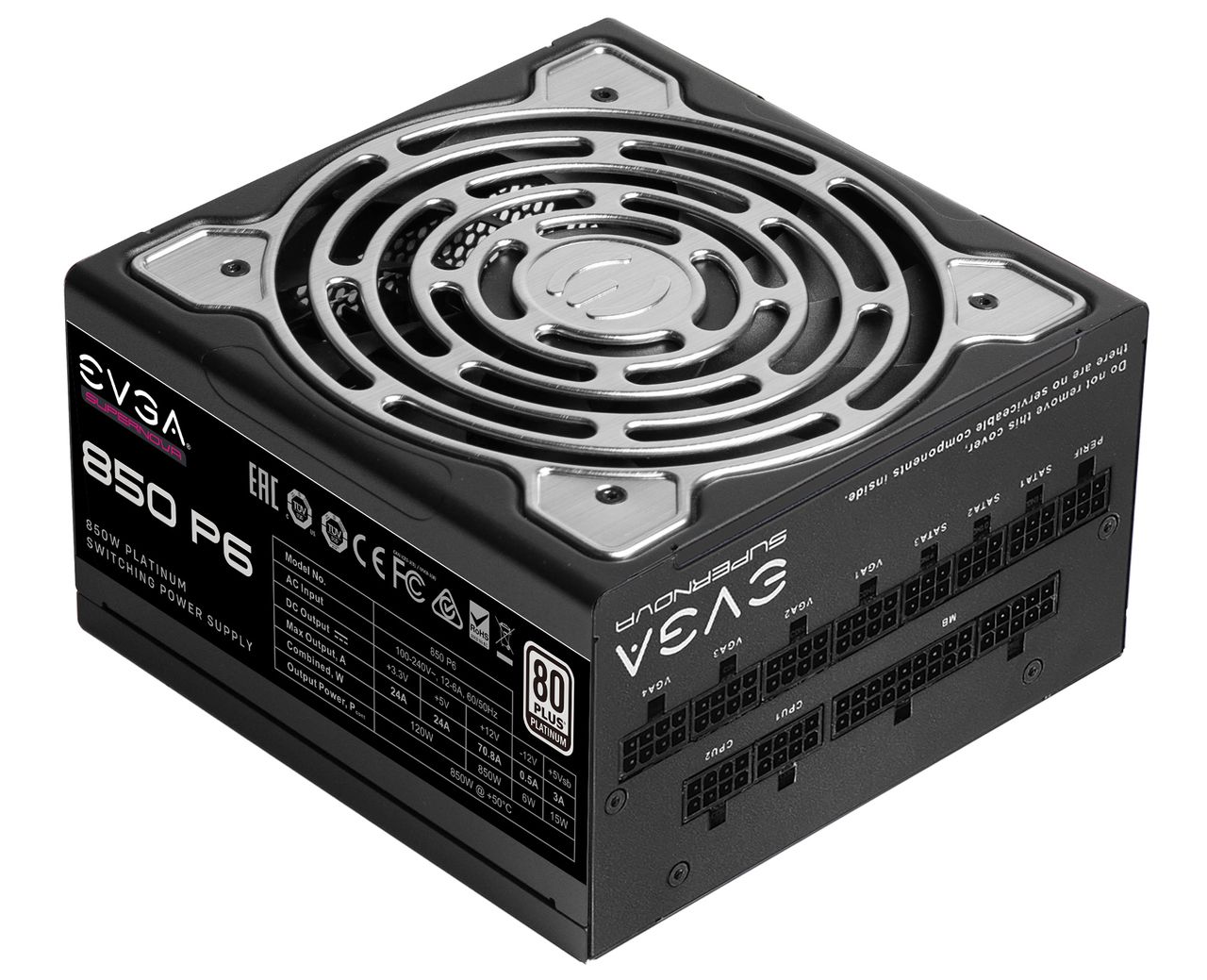

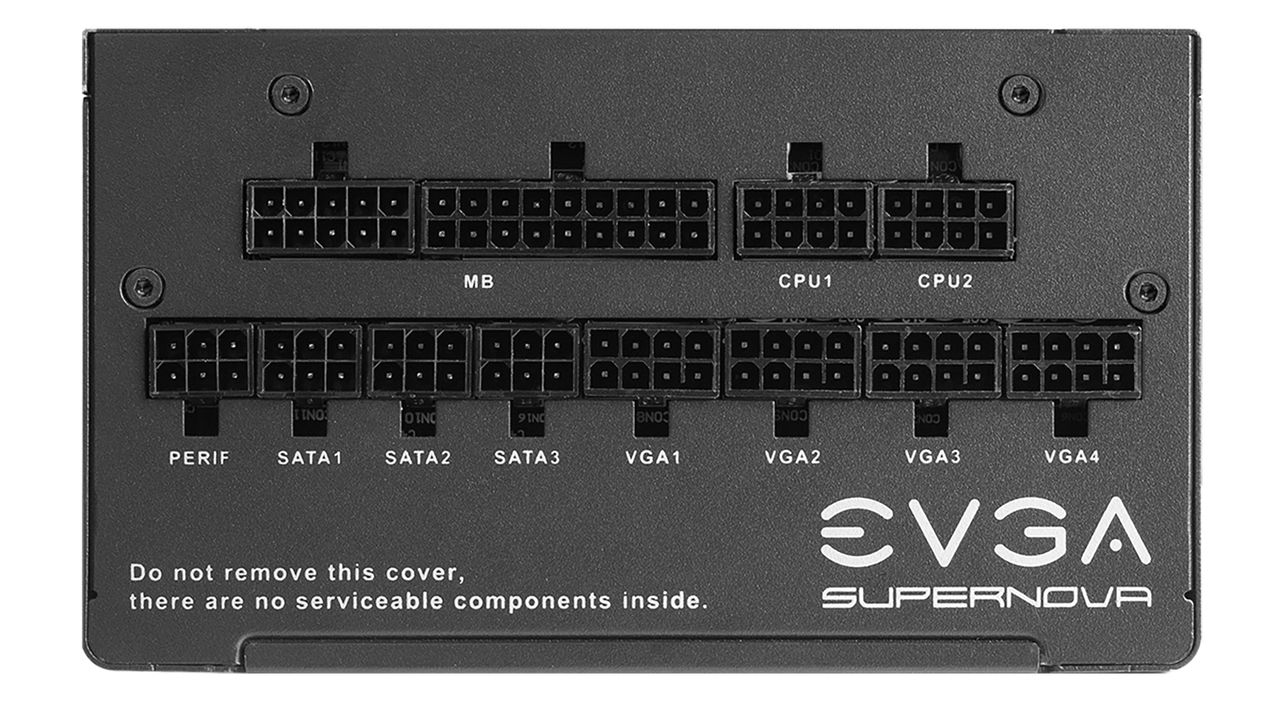

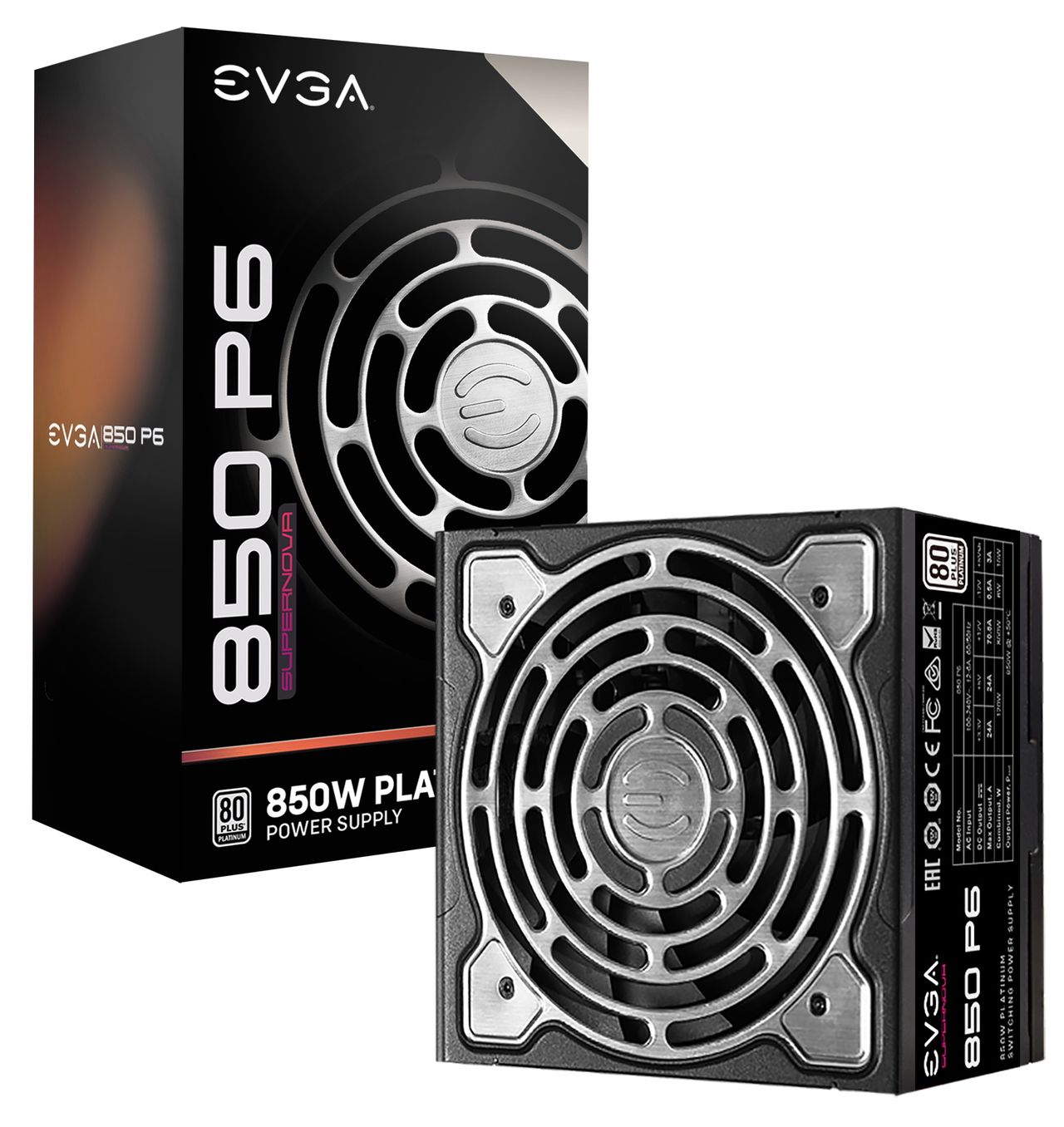

EVGA supplied our Supernova 850W P6 power supply (appropriately sized and more efficient than the outgoing 1.2KW monster we used) for our test systems, and GSkill sent us a fast and good-looking DDR5-5600 (F5-5600U3636C16GX2-TZ5RK) memory kit for launch day testing. MSI and Asus also sent launch day kits.

Benchmark Settings

Synthetic Benchmarks and Settings
ProcyonVersion 2.0.249 64
Office Suite, Video Editing (Premiere Pro), Photo Editing (Photoshop, Lightroom Classic)
3DMarkVersion 2.20.7290 64
Firestrike Extreme and Time Spy Default Presets
Cinebench R23Version RBBENCHMARK330542
Open GL Benchmark - Single and Multi-threaded
BlenderVersion 2.93.1
Full benchmark (all six sub-tests)
Application Tests and Settings
LAME MP3Version SSE2_2019
Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLIVersion: 1.2.2
Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
Custom benchmark
7-ZipVersion 21.03-beta
Integrated benchmark (Command Line)
Game Tests and Settings
Far Cry 6Ultra Preset - 1920 x 1080, HD Textures ON
F1 2021Ultra Preset - 1920 x 1080, HBAO+, RT Med, TAA + 16xAF, Bahrain, FPS Counter ON

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content
