Seasonic Focus Plus Gold 850 PSU Review
Why you can trust Tom's Hardware
Ripple Measurements
To learn how we measure ripple, please click here.

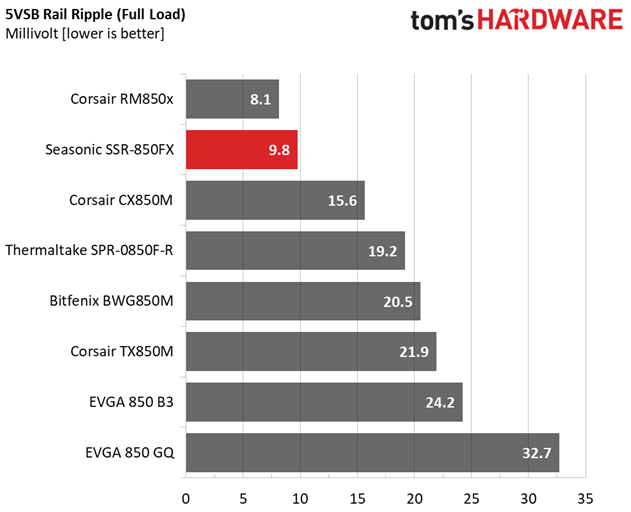

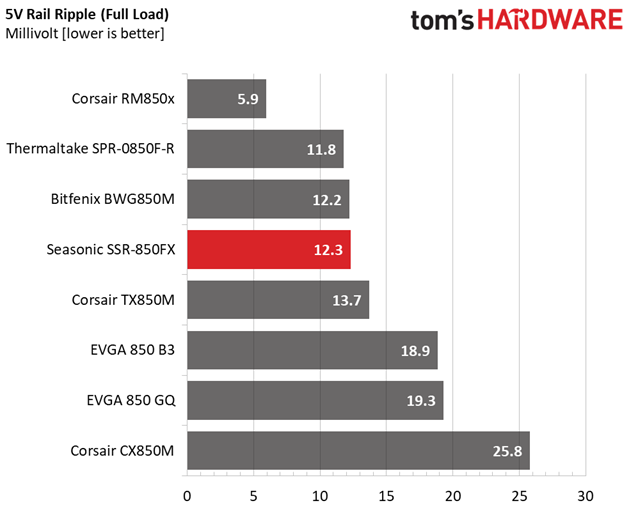

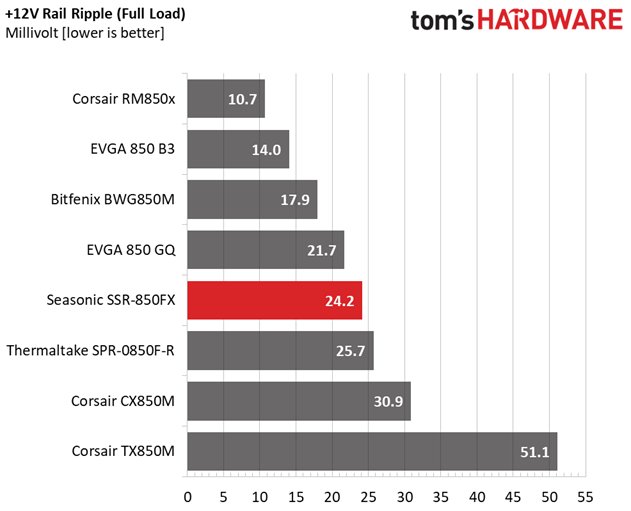

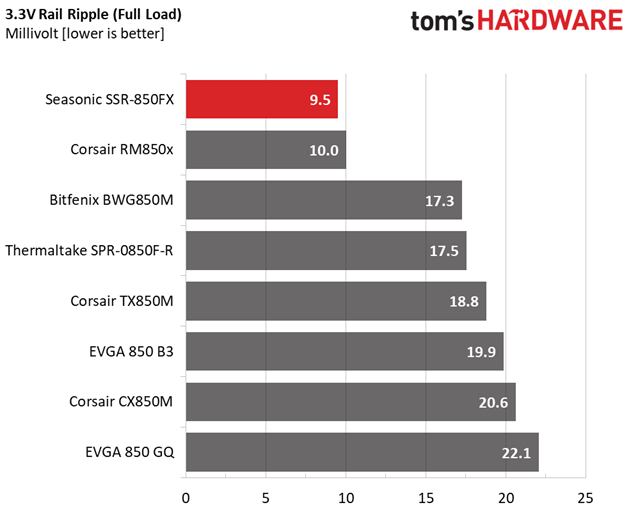

The following table includes the ripple levels we measured on the SSR-850FX's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).
Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
---|---|---|---|---|---|
10% Load | 7.0mV | 5.2mV | 3.6mV | 2.8mV | Pass |
20% Load | 10.4mV | 6.1mV | 4.5mV | 3.5mV | Pass |
30% Load | 13.3mV | 6.6mV | 5.0mV | 4.3mV | Pass |
40% Load | 15.2mV | 7.7mV | 5.7mV | 4.7mV | Pass |
50% Load | 15.7mV | 9.2mV | 6.7mV | 4.7mV | Pass |
60% Load | 15.1mV | 9.9mV | 7.3mV | 5.8mV | Pass |
70% Load | 16.5mV | 10.2mV | 7.8mV | 5.8mV | Pass |
80% Load | 18.3mV | 10.4mV | 8.7mV | 8.7mV | Pass |
90% Load | 21.2mV | 11.2mV | 9.0mV | 9.1mV | Pass |
100% Load | 24.2mV | 12.3mV | 9.5mV | 9.8mV | Pass |
110% Load | 26.9mV | 12.7mV | 9.7mV | 9.9mV | Pass |
Cross-Load 1 | 8.4mV | 10.6mV | 7.8mV | 3.3mV | Pass |
Cross-Load 2 | 24.0mV | 7.9mV | 5.8mV | 7.2mV | Pass |
Ripple suppression is great on every rail. Seasonic does a great job here, though we'd prefer to see this performance without the use of extra filtering caps on the modular cables.
Ripple Oscilloscope Screenshots

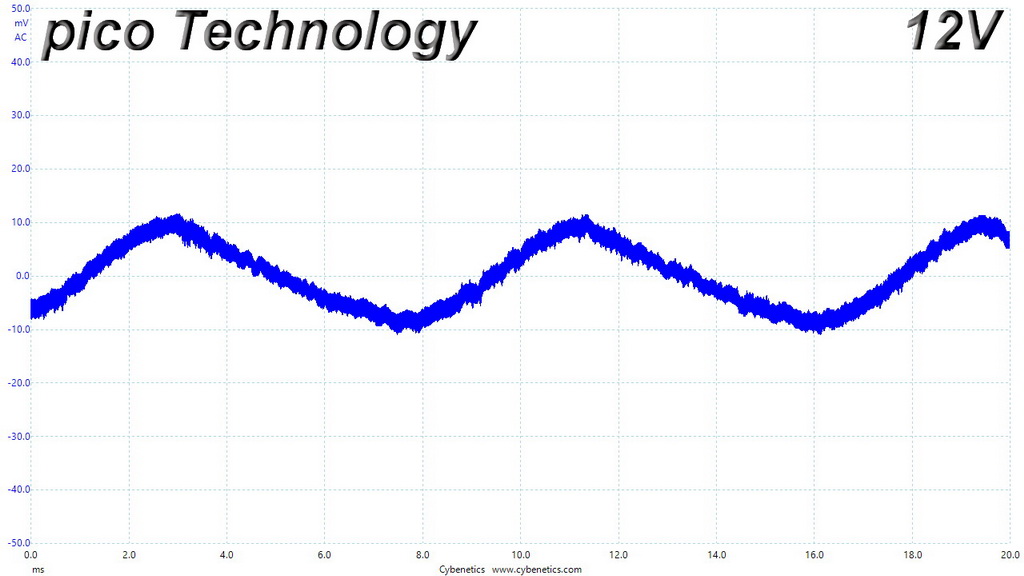

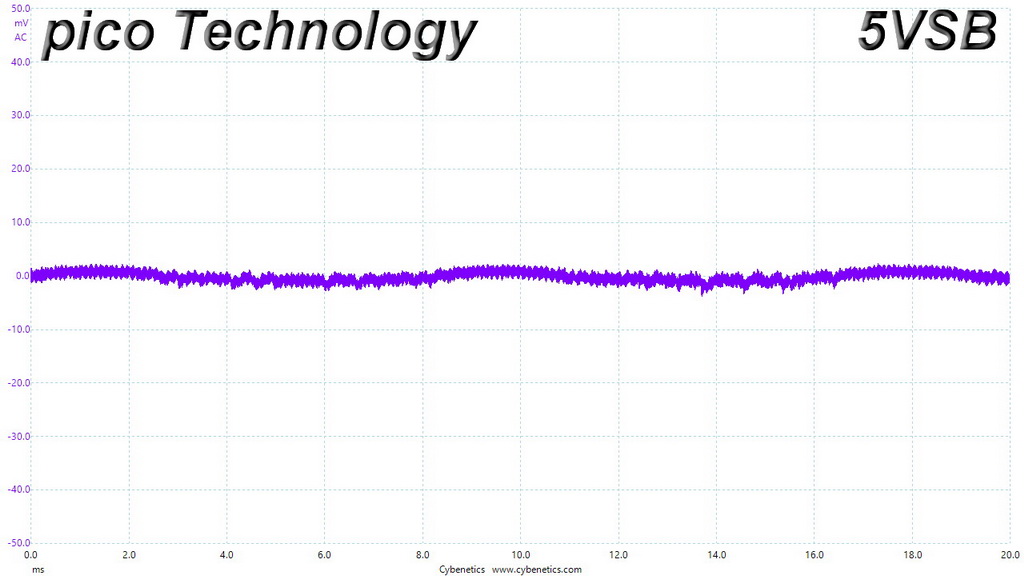

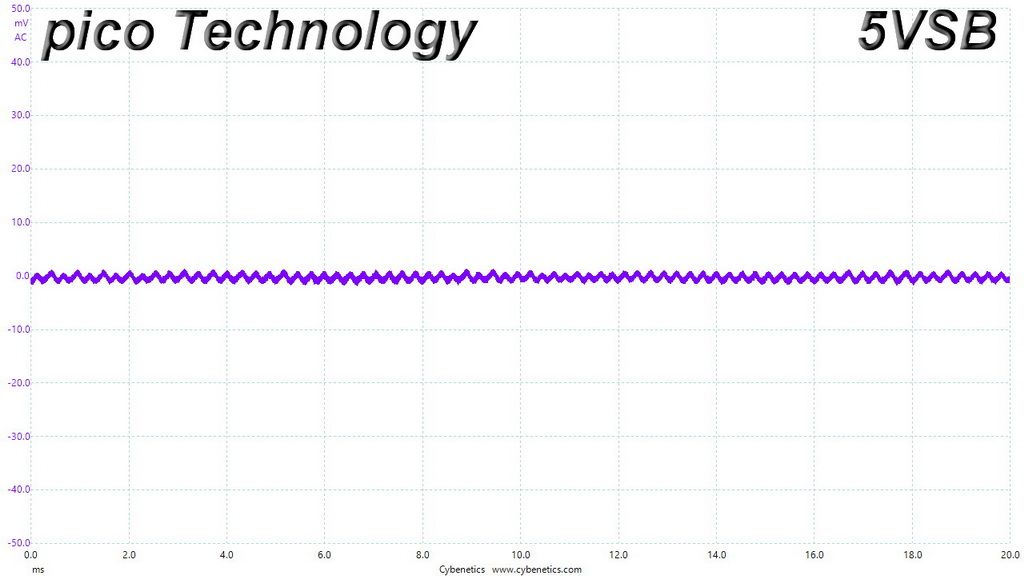

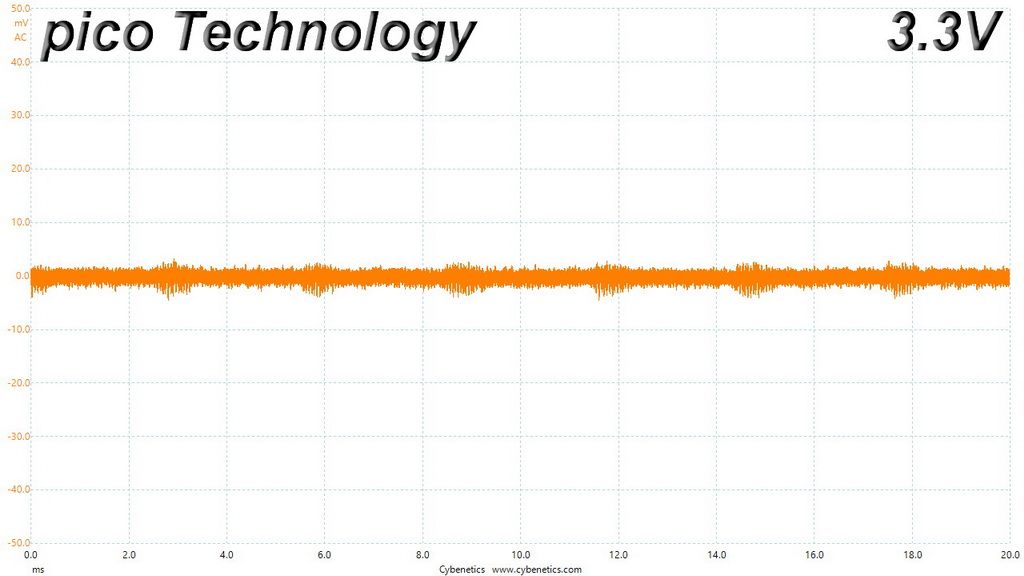

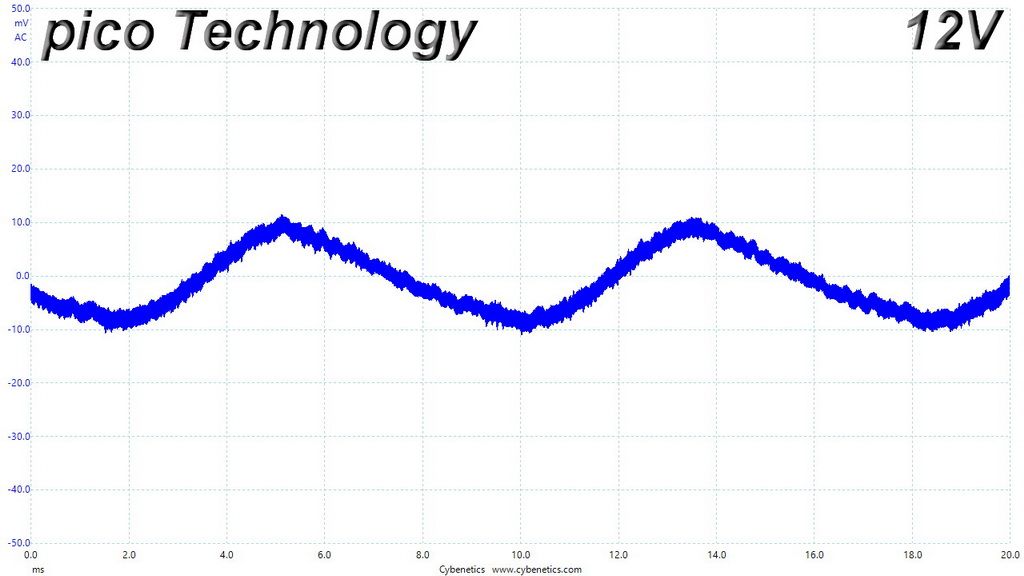

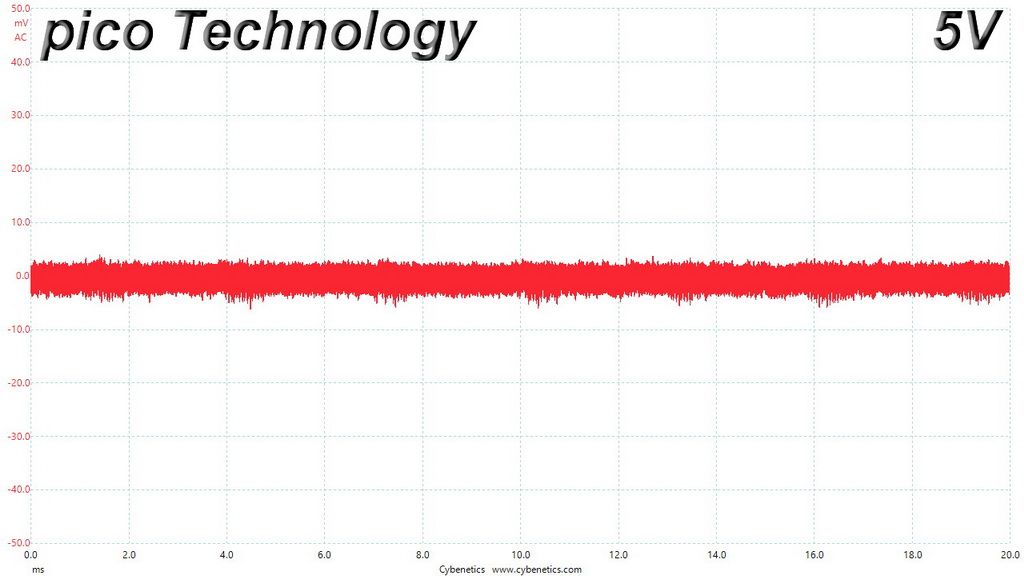

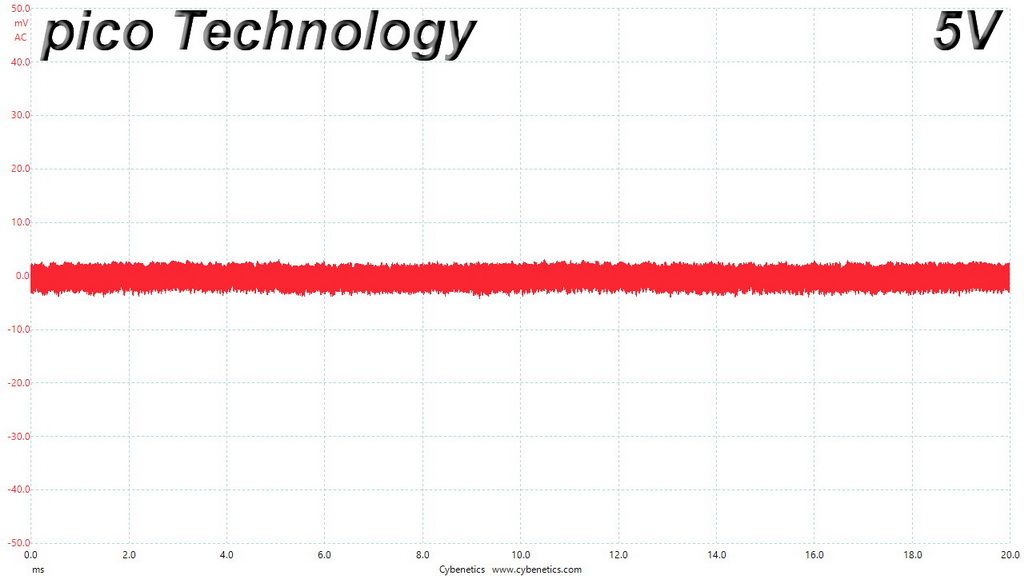

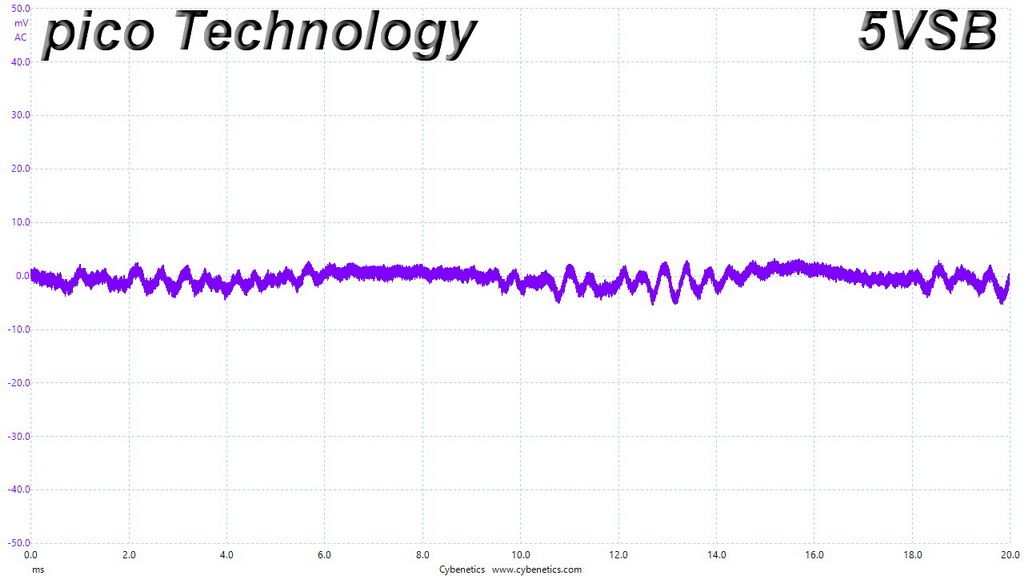

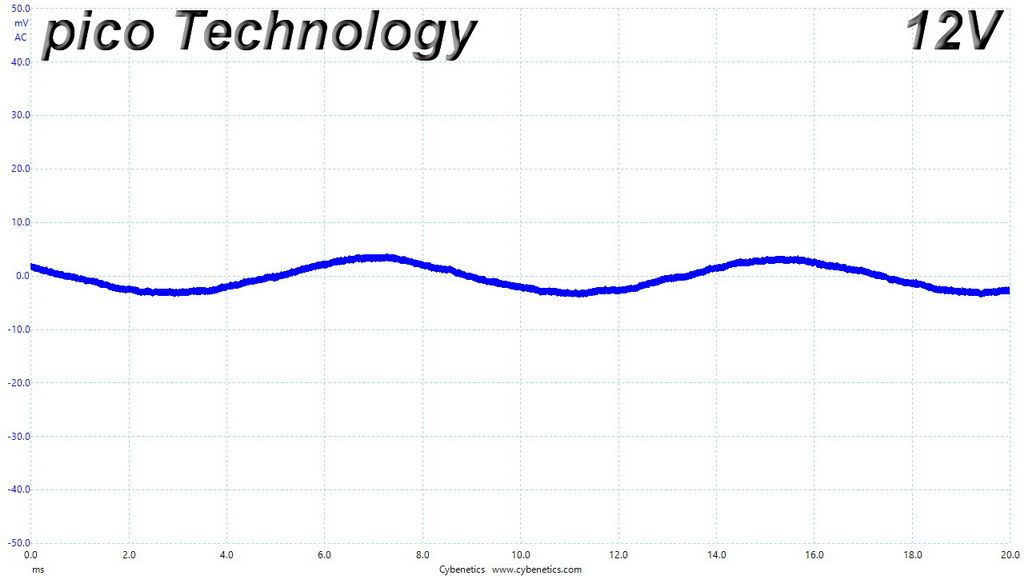

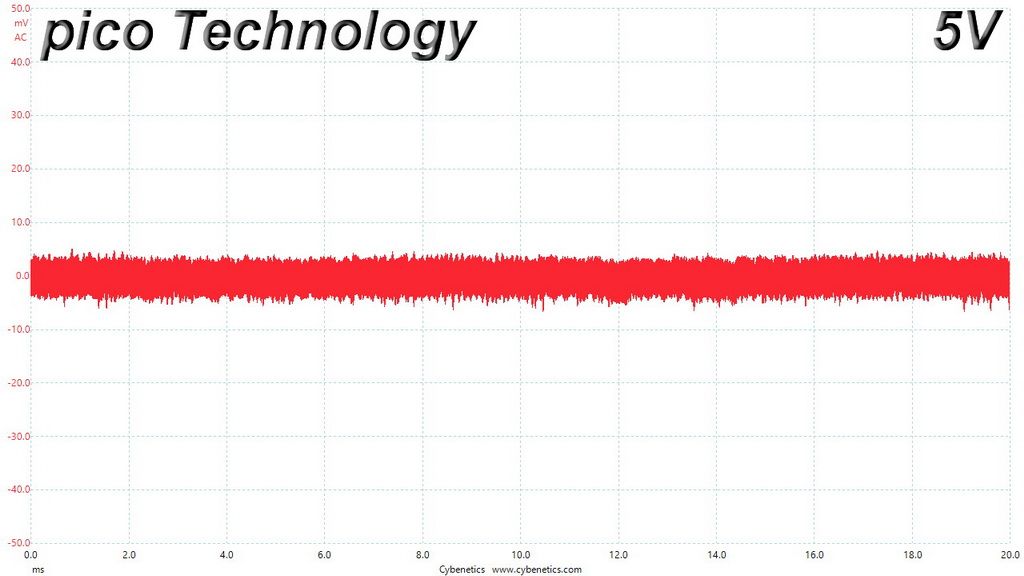

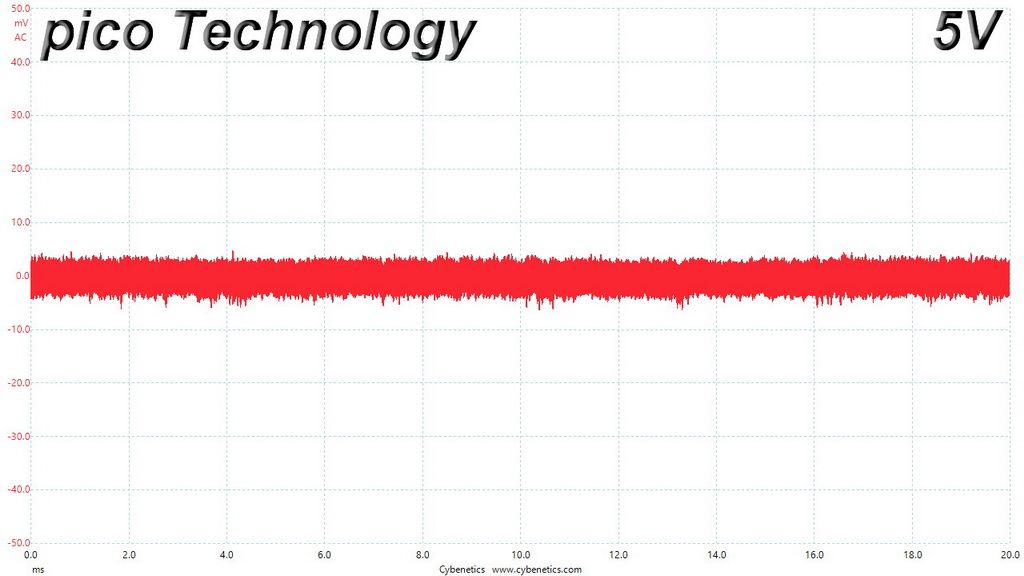

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V, and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.
Ripple At Full Load
Ripple At 110-Percent Load
Ripple At Cross-Load 1
Ripple At Cross-Load 2
