SilverStone Strider Gold S 1500W PSU Review

SilverStone has a long tradition of offering small PSUs, and the new ST1500-GS is an excellent example of this, achieving an impressive 646 watt per liter power density score.

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Cross-Load Tests And Infrared Images

Our cross-load tests are described in detail here.

To generate the following charts, we set our loaders to auto-mode through our custom-made software before trying more than 1,000 possible load combinations with the +12V, 5V and 3.3V rails. The load regulation deviations in each of the charts below were calculated by taking the nominal values of the rails (12V, 5V and 3.3V) as point zero.

Load Regulation Charts

Efficiency Chart

Ripple Charts

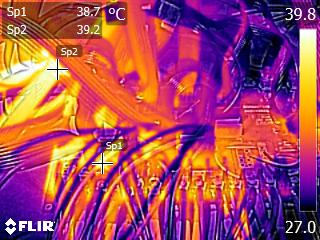

Infrared Images

Toward the end of the cross-load tests, we took some photos of the PSU with our modified FLIR E4 camera that delivers 320x240 IR resolution (76,800 pixels).

Aris Mpitziopoulos
Contributing Editor

Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.

  • Eggz
    Too bad for this model, but I can't wait to see what this watt-per-litre ratio does for SFX!
    Reply
  • InvalidError
    I would not be that bothered by the lack of a physical switch: most people plug their PC in a power strip, surge protector or UPS and these usually have their own switch.

    Someone bothered enough by the 5VSB power draw to bend under their desk or reach over wherever the switch ends up being in their setup to switch the PSU off should be similarly bothered by the standby power draw of their displays, USB hub, external HDDs and other devices enough to want to turn them all off as well. The simplest way to achieve that is plugging everything into one power strip and turning everything on/off at once from there.

    Also, leaving the 5VSB supply on 24/7 costs less than $0.20/year in power. How much does a replacement CR2032 battery cost and how many power-off hours does it last? It might be cheaper to leave the 5VSB power on.

    The only time where I cut power completely off is during power outages to spare my components all the surges and sags over the first few seconds after power comes back on.
    Reply
  • Blueberries
    I don't think I'll ever have a use personally for a 1500w PC, but if I need that kind of juice this is exactly what I'd be looking at.

    Not the best option, clearly, but what you'd expect from a Gold rated PSU and solid build integrity that should last a long time. I would test this PSU without a fan or with a low noise Noctua fan.
    Reply
  • jimmysmitty
    I would not be that bothered by the lack of a physical switch: most people plug their PC in a power strip, surge protector or UPS and these usually have their own switch.

    Someone bothered enough by the 5VSB power draw to bend under their desk or reach over wherever the switch ends up being in their setup to switch the PSU off should be similarly bothered by the standby power draw of their displays, USB hub, external HDDs and other devices enough to want to turn them all off as well. The simplest way to achieve that is plugging everything into one power strip and turning everything on/off at once from there.

    Also, leaving the 5VSB supply on 24/7 costs less than $0.20/year in power. How much does a replacement CR2032 battery cost and how many power-off hours does it last? It might be cheaper to leave the 5VSB power on.

    The only time where I cut power completely off is during power outages to spare my components all the surges and sags over the first few seconds after power comes back on.

    While I agree with you for the most part, I have had a set of Creative Labs speakers for 10 years that have a remote that use a CR2032 and it is still good with plenty of use and standby time.

    I do agree though that it is annoying not to have the switch on the PSU. Of course I look at it from a repair point of view where having that option is faster than pulling the plug every time I would need to test something.
    Reply
  • InvalidError
    16447176 said:
    While I agree with you for the most part, I have had a set of Creative Labs speakers for 10 years that have a remote that use a CR2032 and it is still good with plenty of use and standby time.
    A good battery-operated remote tries very hard to minimize leakage and standby current while a computer RTC which may expect to have 5VSB power available all the time except during power outages has little reason to go to extremes to minimize battery power draw.

    My old Sears TV's remote drains 4xAA in less than a year.
    Reply
  • mctylr
    I would not be that bothered by the lack of a physical switch: most people plug their PC in a power strip, surge protector or UPS and these usually have their own switch.

    In my experience the power supply switch is primarily a convenience, used to ensure a power supply and connected system is de-energized when servicing the computer; inserting or removing components, such as swapping video cards, installing storage drives, etc. This is because the 5VSB (5 volt stand-by) is supplied by the motherboard to PCI and PCI express slots, as well as obviously flowing across a few of the PCB traces, so it is recommended to disconnect power, including stand-by voltage to prevent accidents.
    Reply
  • Frozen Fractal
    Errrm, there's a typo in the article. Look at page 3, the same paragraph has been repeated :)
    Reply
  • Frozen Fractal
    While I don't bother about in-build power switches so much since I always switch off/on via the main wall socket anyway, but it's a nice addition to cater to everyone's need, which is especially expected in these kind of high-wattage PSUs. When we talk about 1.5kW, compromise is what people would reluctantly want.

    Judging by the actual results of the PSU, I think "80+ Silver" should've fitted nicely with it. That way, it wouldn't defame "80+ Gold" Standard :P What I mean actually is, it's barely holding on to the 80+ gold standard. While it doesn't actually translate to significant deal breaker, it's somewhat disappointing to see 550W-approved things in this 1.5kW unit.

    However, the PCB neatness certainly gets my thumbs up. Among the most units I've seen from different distributors and OEMs, this one looks very neat (apart from the gooey use of solder there, Ewwww!), components are arranged very nicely, and there aren't any glue (or whatever you wanna say them) oozing out from or underneath heatsinks and FETs.
    Reply
