SilverStone has a long tradition of offering small PSUs, and the new ST1500-GS is an excellent example of this, achieving an impressive 646 watt per liter power density score.

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Ripple Measurements

To learn how we measure ripple, please click here.

The following table includes the ripple levels we measured on the rails of the ST1500-GS unit. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).

Swipe to scroll horizontally
Test12V5V3.3V5VSBPass/Fail
10% Load17.1 mV13.1 mV20.3 mV12.7 mVPass
20% Load12.2 mV13.0 mV23.0 mV16.5 mVPass
30% Load25.1 mV12.9 mV21.9 mV19.9 mVPass
40% Load22.1 mV13.9 mV19.7 mV22.6 mVPass
50% Load24.3 mV16.2 mV22.6 mV24.3 mVPass
60% Load31.6 mV17.4 mV23.6 mV27.2 mVPass
70% Load33.6 mV19.6 mV24.1 mV31.8 mVPass
80% Load33.1 mV20.9 mV25.2 mV34.5 mVPass
90% Load37.9 mV21.4 mV25.9 mV37.8 mVPass
100% Load38.1 mV23.1 mV26.2 mV42.8 mVPass
110% Load39.6 mV25.9 mV27.7 mV47.9 mVPass
Cross-Load 127.3 mV17.6 mV17.5 mV17.9 mVPass
Cross-Load 238.1 mV31.9 mV39.8 mV29.8 mVPass
Image 1 of 4

Ripple suppression was adequate on the +12V, 5V and 3.3V rails, but it definitely wasn't among the best in this category. The performance of the high-capacity Super Flower platforms in this and other sections made us very picky when it comes to ripple performance. On the 5VSB rail ripple was at high levels, especially during the higher load tests.

Ripple Oscilloscope Screenshots

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

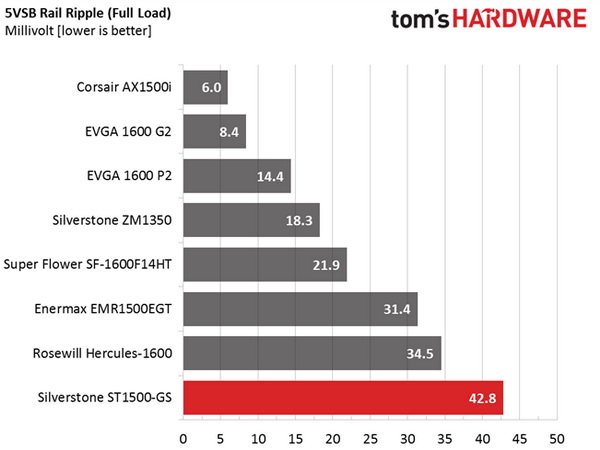

Ripple At Full Load

Image 1 of 4

Ripple At 110-Percent Load

Image 1 of 4

Ripple At Cross-Load 1

Image 1 of 4

Ripple At Cross-Load 2

Image 1 of 4
