Microsoft Posts In-Depth AMD EPYC Milan-X Benchmarks

AMD 3D V-Cache
AMD 3D V-Cache (Image credit: AMD)

AMD officially announced the company's latest EPYC Milan-X processors with 3D V-Cache, among other interesting things, such as the Instinct MI200 and a roadmap for Zen 4. The chipmaker didn't list the specifications for the cache-stacked chips, though, but Microsoft has shared Milan-X benchmarks to show the performance uplift that 3D V-Cache brings to the table.

Microsoft will tap into Milan-X to power its new Azure HBv3 Series VMs, which are based on a pair of EPYC 7V73X processors. Each processor delivers up to 64 Zen 3 cores for a total of 128 cores per server. However, eight cores from each server are reserved to feed the Azure hypervisor and other orchestration routines. As a result, Microsoft offers its customers up to five configurations with different core counts: 120 cores, 96 cores, 64 cores, 32 cores, and 16 cores. The EPYC 7V73X sports a peak clock speed up to 3.5 GHz.

Milan-X features up to 768MB of L3 cache (L3 + 3D V-Cache) per chip, so a dual-socket configuration delivers up to 1.5GB of L3 cache per system, or in Microsoft's case, per VM. Logically, the L3 allocation will depend on the setup. For example, the 16-core VM has access to 96MB per core, whereas the 32-core setup drops to 48MB per core. At any rate, Milan-X's L3 capacity represents a 3x upgrade over current Milan chips, or a 6x improvement over the previous Rome processors.

The Azure HBv3's other hardware has not been changed. There's still 448GB of memory with a bandwidth of 350 GBps (measured with STREAM TRIAD). In addition, two 900GB NVMe SSDs provide high-speed storage with read and write speeds up to 6.9 GBps and 2.9 GBps, respectively, and a Mellanox ConnectX-6 NIC provides 200 Gbps Ethernet connectivity.

Microsoft Azure HBv3 Specifications

Swipe to scroll horizontally
VM Size120 CPU cores96 CPU cores64 CPU cores32 CPU cores16 CPU cores
VM Namestandard_HB120rs_v3standard_HB120- 96rs_v3standard_HB120- 64rs_v3standard_HB120- 32rs_v3standard_HB120- 16rs_v3
InfiniBand200 Gb/s HDR200 Gb/s HDR200 Gb/s HDR200 Gb/s HDR200 Gb/s HDR
Peak CPU Frequency3.5 GHz3.5 GHz3.5 GHz3.5 GHz3.5 GHz
RAM per VM448 GB448 GB448 GB448 GB448 GB
RAM per core3.75 GB4.67 GB7 GB14 GB28 GB
Memory B/W per VM350 GB/s350 GB/s350 GB/s350 GB/s350 GB/s
Memory B/W per core2.91 GB/s3.65 GB/s5.46 GB/s10.9 GB/s21.9 GB/s
L3 Cache per VM1.5 GB1.5 GB1.5 GB1.5 GB1.5 GB
L3 Cache per core12.8 MB16 MB24 MB48 MB96 MB
SSD Perf per VM2 * 960GB NVMe - 6.9 GB/s (Read) / 2.9 GB/s (Write), 200K IOPS (Read) / 190K IOPS (Write)2 * 960GB NVMe - 6.9 GB/s (Read) / 2.9 GB/s (Write), 200K IOPS (Read) / 190K IOPS (Write)2 * 960GB NVMe - 6.9 GB/s (Read) / 2.9 GB/s (Write), 200K IOPS (Read) / 190K IOPS (Write)2 * 960GB NVMe - 6.9 GB/s (Read) / 2.9 GB/s (Write), 200K IOPS (Read) / 190K IOPS (Write)2 * 960GB NVMe - 6.9 GB/s (Read) / 2.9 GB/s (Write), 200K IOPS (Read) / 190K IOPS (Write)

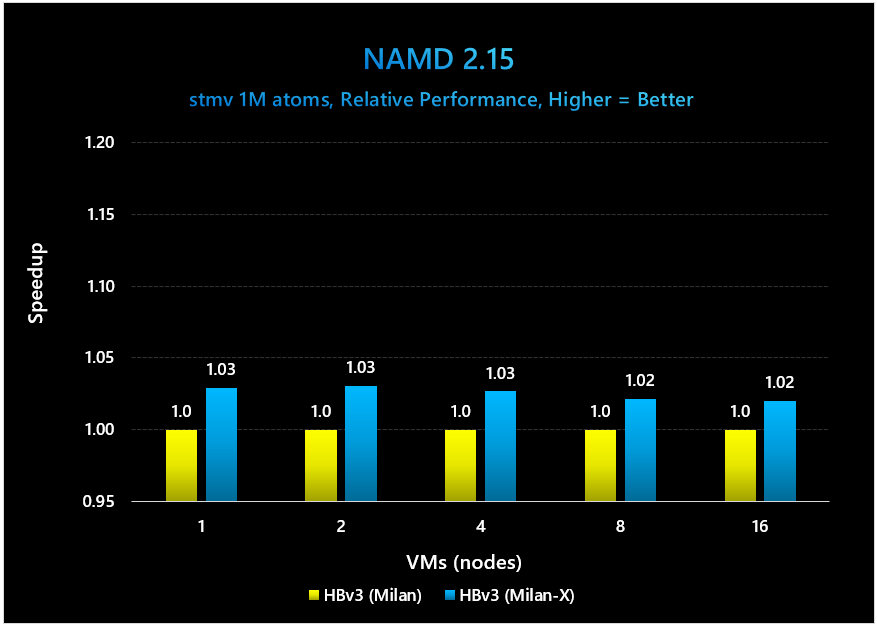

Microsoft noted that a large cache obviously boosts effective memory bandwidth and latency. Workloads, such as computational fluid dynamics (CFD), explicit finite element analysis (FEA), weather simulation, and EDA RTL simulation will benefit from Milan-X's generous helping of L3 cache. On the contrary, workloads that are dependant on peak FLOPS, clock speeds, or memory capacity are immune to large L3 caches. These include molecular dynamics, EDA full-chip design, EDA parasitic extraction, and implicit finite element analysis.

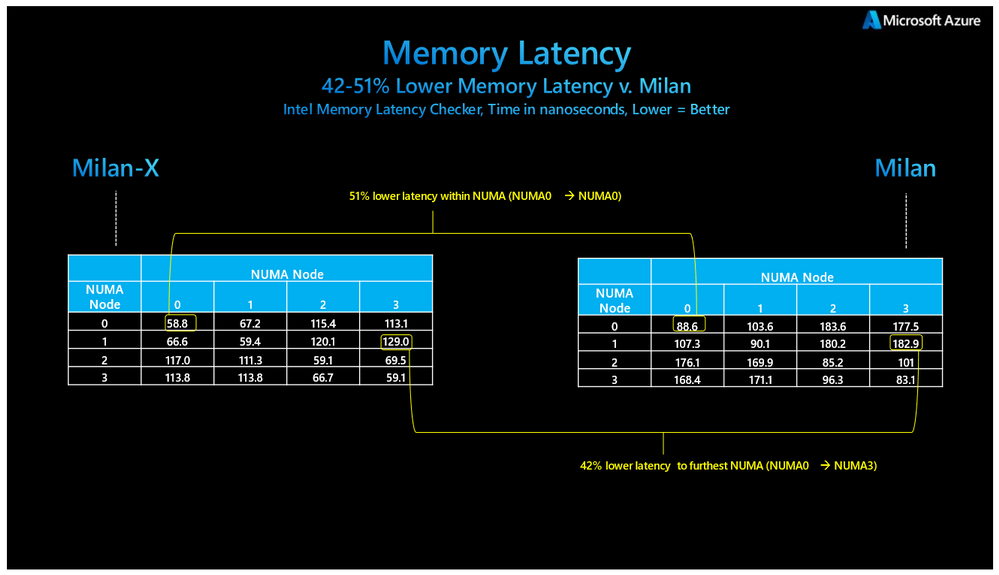

The results revealed that Milan-X (EPYC 7V73X) had between 42% to 50% lower memory latency than the current-gen Milan (EPYC 7V13). Milan-X presents one of the biggest jumps in relative performance in terms of memory latency ever since memory controllers have transitioned into the processor. It's essential to mention that Microsoft's results aren't indicative that Milan-X has improved the latency of DRAM accesses.

According to Microsoft, large caches allow for higher cache hit rates and create a combination of L3 and DRAM latencies for improved effective real-world results. Due to the way AMD stacked the L3 cache, the width of the L3 latency distribution has expanded. Nonetheless, Microsoft believes that Milan-X should have an L3 memory latency in the same ballpark as Milan. In a worst-case scenario, Milan-X may present slightly slower L3 latency.

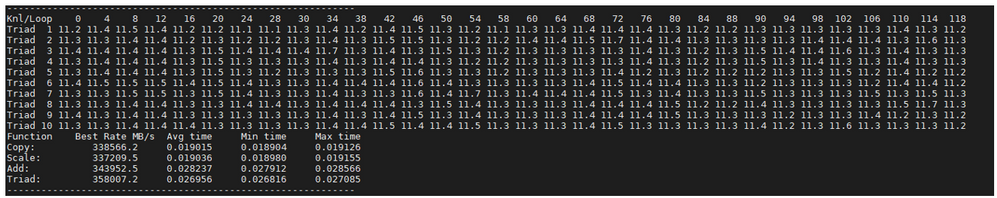

Memory on Milan-X follows a similar story. Milan-X puts up around 358 GB/s of throughput on the STREAM TRIAD benchmark. The result is identical to a conventional dual-socket server with Milan chips paired with DDR4-3200 memory in a single-DIMM-per-channel setup.

Microsoft put the EPYC 7V73X through its paces and compared the Milan-X chip to the company's Azure HBv3 VMs with EPYC Milan, EPYC Rome and Xeon Platinum (Skylake) processors. Needless to say, Milan-X's performance is nothing short of amazing.

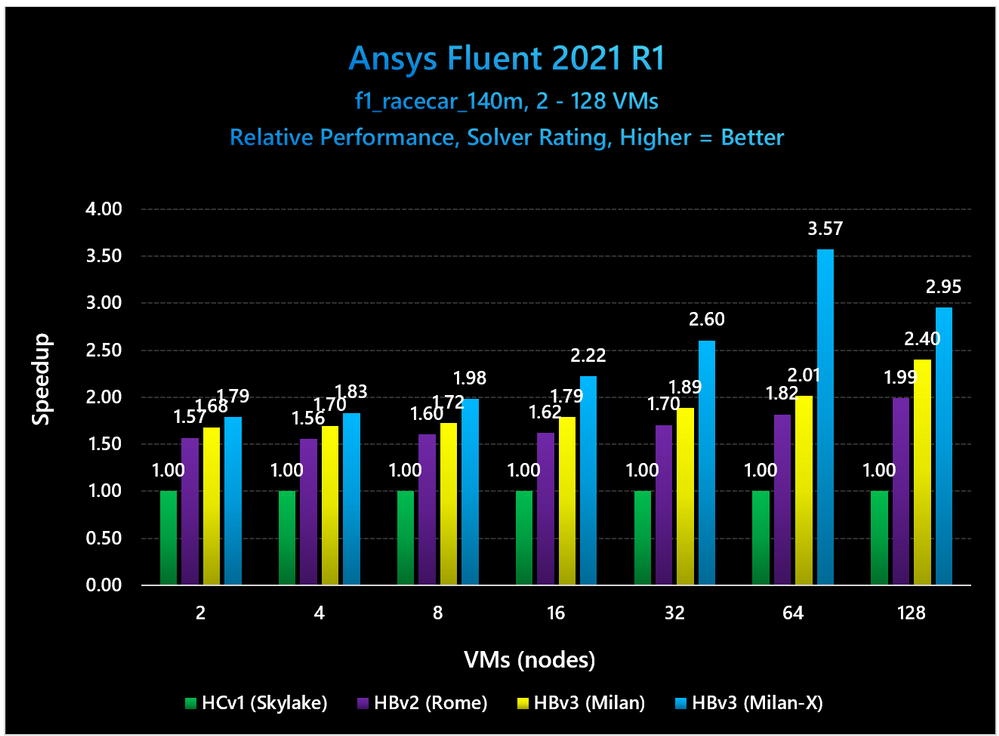

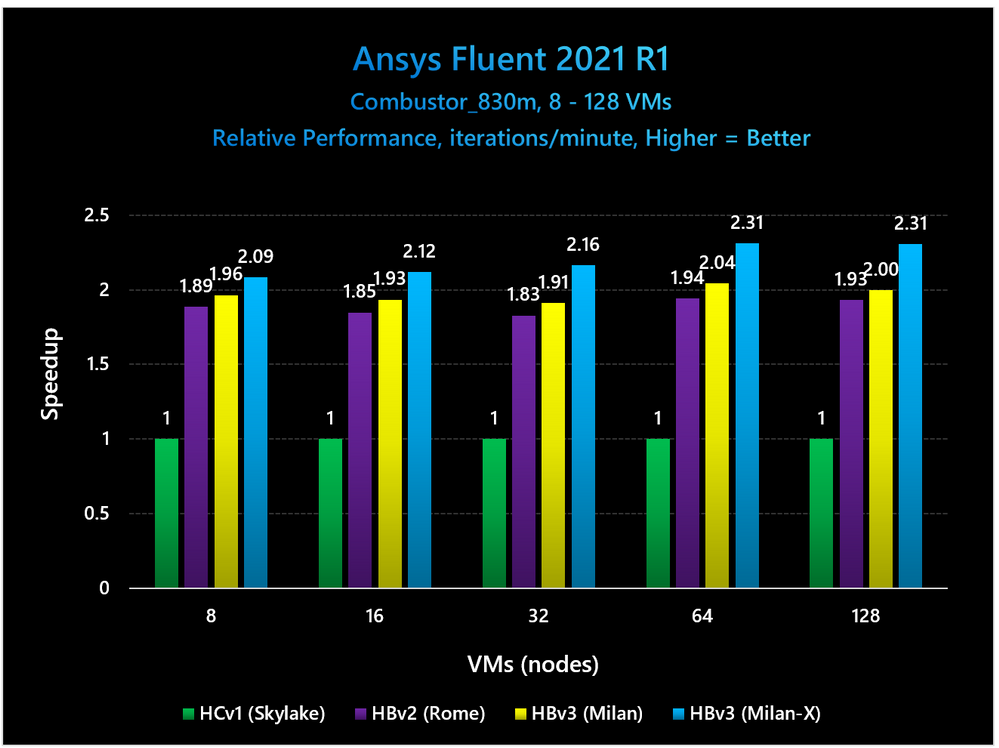

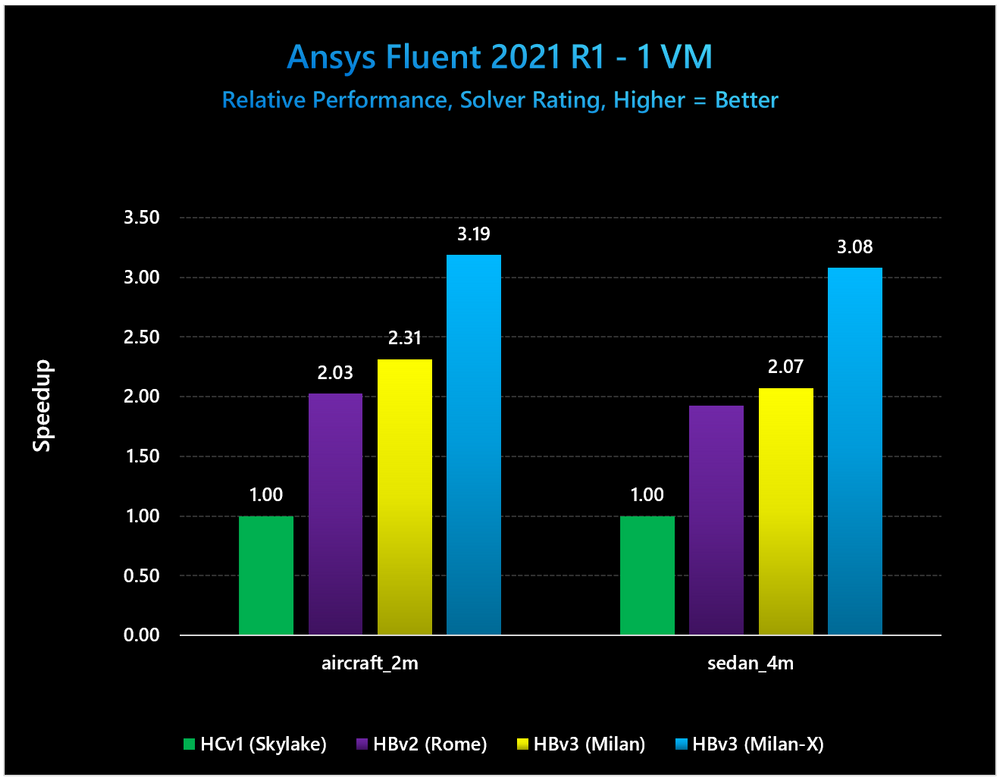

At the 64 VM configuration, Milan-X delivered up to 77% higher performance than Milan and was up to 257% faster than Skylake with the f1_racecar_140 model on Ansys Fluent 2021 R1. With the combustor_830m model, Milan-X posted 16% and 131% higher performance numbers than Milan and Skylake, respectively, with the 128 VM arrangement.

Under the OpenFOAM Motorbike benchmark, Milan-X was up to 60% faster than Milan and 305% faster than Skylake at the 8 VM setup. The trend was clear as Milan-X boasted double-digit performance improvements over its predecessor and triple-digit enhancements over Skylake.

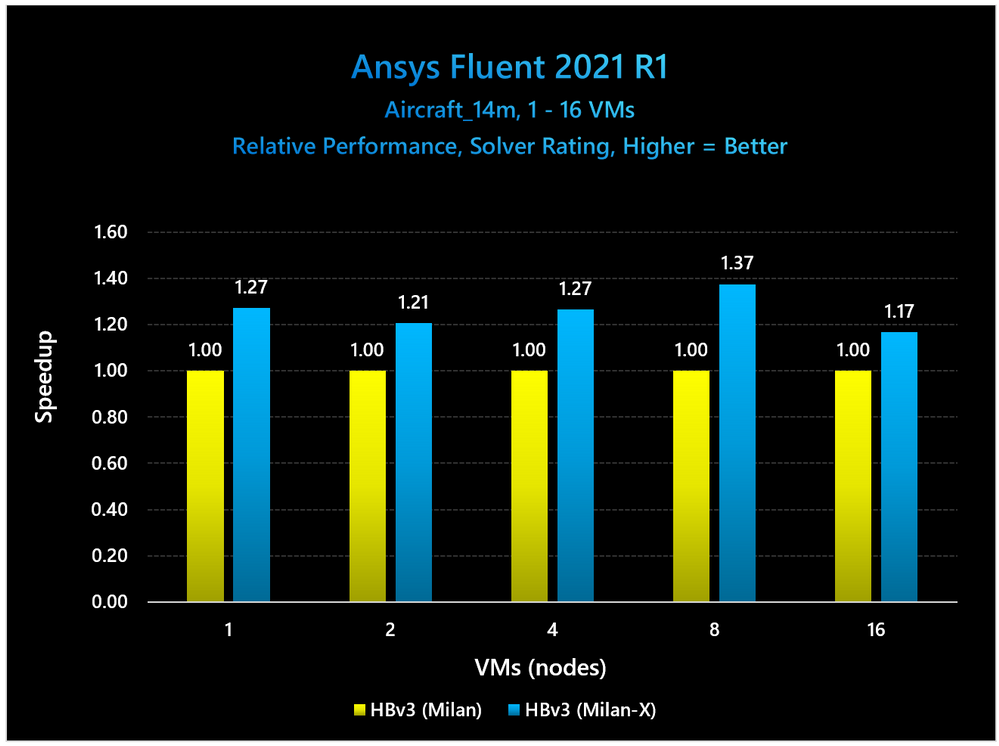

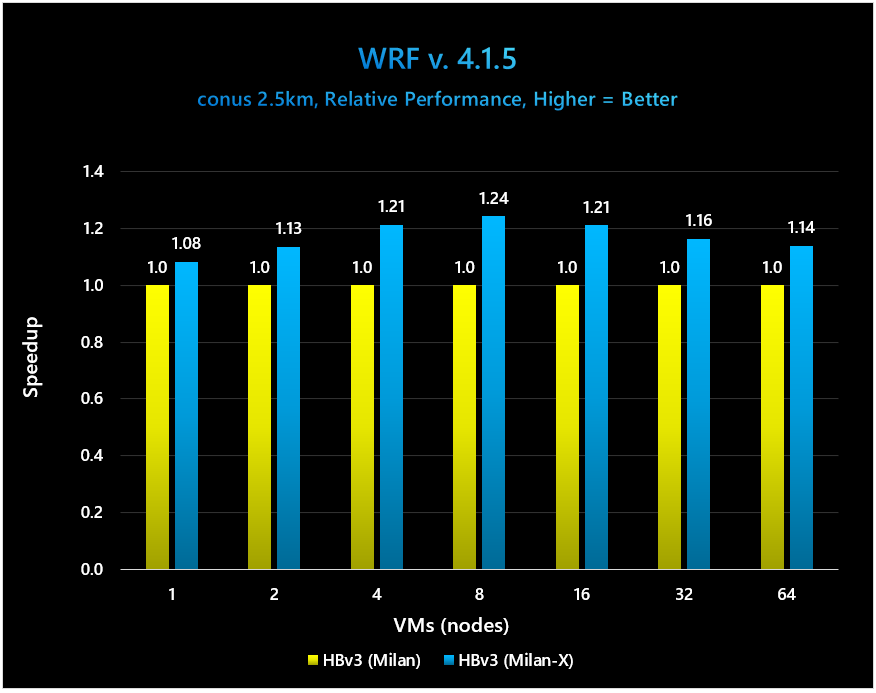

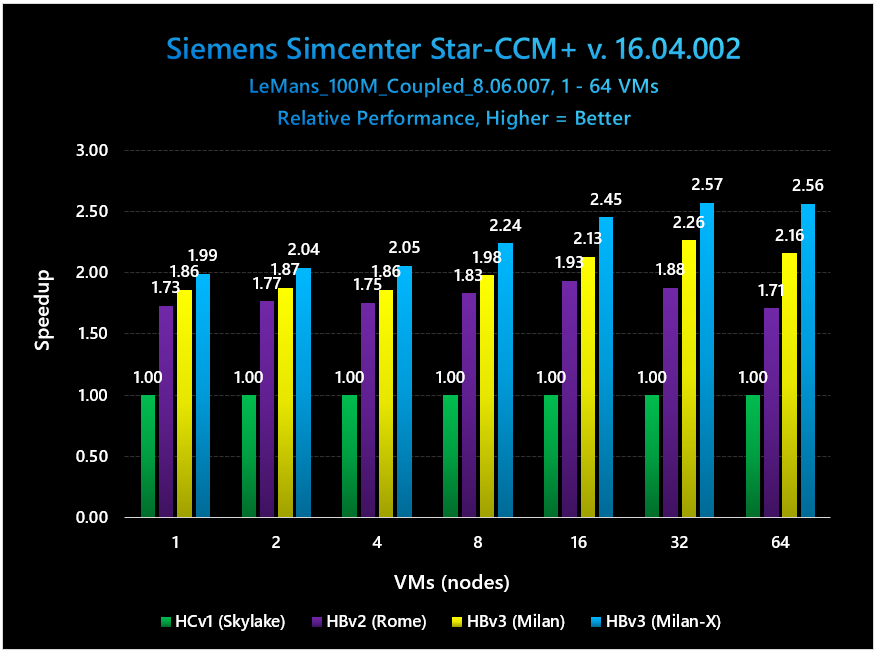

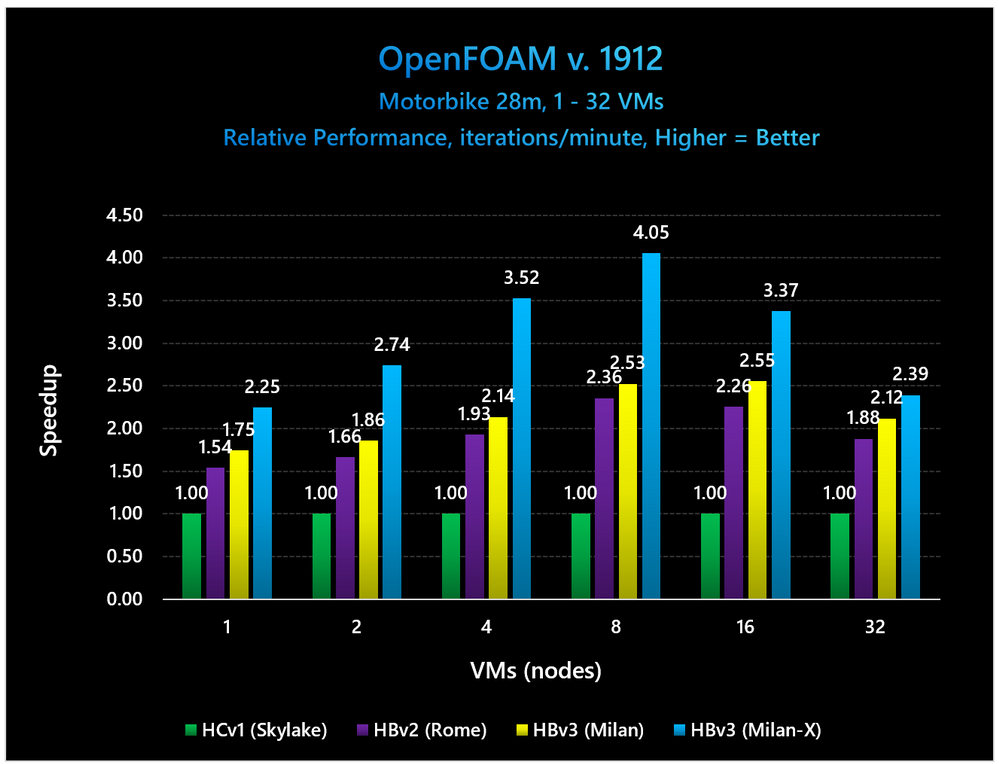

Milan-X Benchmarks (Image credit: Microsoft)

Thanks to the implementation of AMD's 3D V-Cache, Milan-X's scaling efficiency was off the charts. Utilizing the Ansys Fluent 2021 R1 benchmark with the f1_racecar_140 model as a point of reference, Milan-X demonstrated a scaling efficiency of up to 200% when comparing 64 VMs to 1 VM. In other words, 64 HBv3 VMs with Milan-X get the job done in half as long as it would take one HBv3 instance. At the end of the day, customers benefit from a 50% reduction in VM costs at the rate of a 127x faster solution time.

Microsoft has always prided itself in offering its customers linear performance increases. Linear efficiency, which is considered the gold standard in HPC, is when performance increases linearly with cost in comparison to one VM (or the minimum number of VMs to solve a problem). With Milan-X, Microsoft's customers can enjoy substantially faster solution times and lower VM costs.
