440BX Motherboard Review - Summer 1999

Overclocking Test Suite, Continued

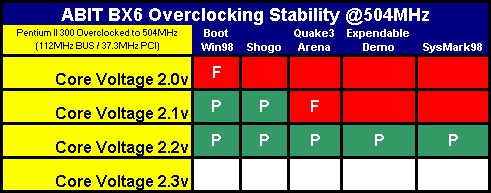

ABIT BX6 Overclockability

The BX6 did quite well with the ability to make it through the overclocking test suite at 2.2v.

ASUS P3B-F Overclockability

The P3B-F tied the ABIT BX6 @504 MHz with a core voltage of 2.2v. It almost, but didn't quite, cut the mustard @504 MHz a 2.1v. It tried for fun 517 MHz but the P3B-F and our SL2W8 CPU couldn't boot Windows 98.

BIOSTAR Overclockability

The M6 TBA is not intended to be overclockable.
