Benchmark Results: Fallout 3

This game mixes the role playing and 3D shooter genres, employing an improved version of the Oblivion graphics engine. Fallout 3 supports HDR rendering using Shader Model 3.0. The graphics engine renders the game world fluidly and interior game scenes present no challenge to reasonably modern GPUs.

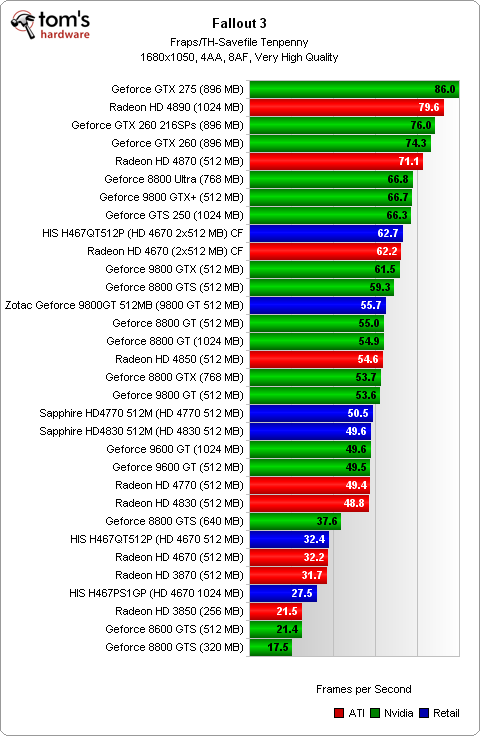

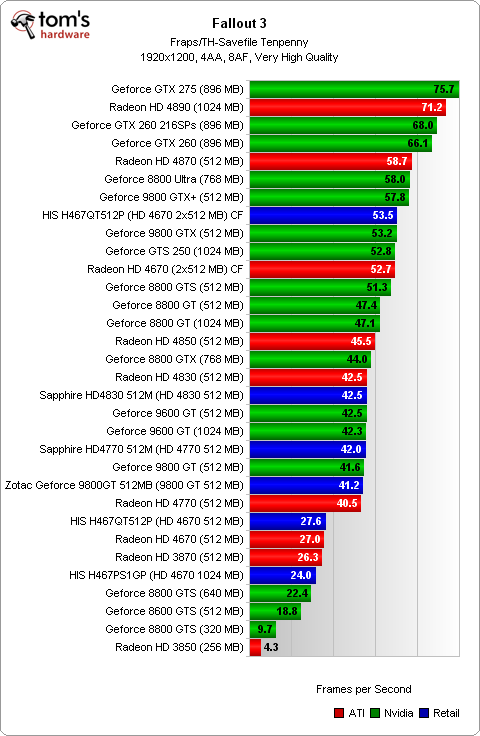

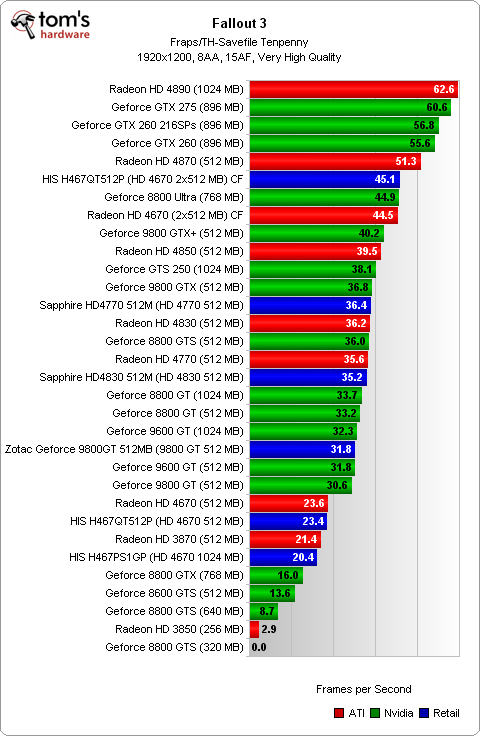

For high-end tests, we set the graphics-quality slider to Very High (the maximum possible setting), and the highest setting for AA, 8x. We ran a sequence at the Tenpenny Tower scene for our FRAPS measurements. This scene takes place outdoors, in a space with a distant horizon and many objects and ruins in the visible landscape.
