Cooler Master MasterWatt Maker 1200 MIJ PSU Review
Why you can trust Tom's Hardware
Ripple Measurements
To learn how we measure ripple, please click here.
The following table includes the ripple levels we measured on the MasterWatt Maker 1200 MIJ's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).
Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
---|---|---|---|---|---|
10% Load | 17.4mV | 8.9mV | 9.8mV | 5.2mV | Pass |
20% Load | 15.4mV | 9.5mV | 10.0mV | 5.5mV | Pass |
30% Load | 17.4mV | 9.2mV | 9.7mV | 6.1mV | Pass |
40% Load | 17.5mV | 10.3mV | 9.3mV | 6.5mV | Pass |
50% Load | 22.5mV | 12.4mV | 14.7mV | 10.4mV | Pass |
60% Load | 18.5mV | 10.5mV | 9.9mV | 9.3mV | Pass |
70% Load | 23.3mV | 12.5mV | 11.5mV | 10.1mV | Pass |
80% Load | 23.0mV | 13.0mV | 11.8mV | 11.4mV | Pass |
90% Load | 25.5mV | 13.5mV | 12.3mV | 13.1mV | Pass |
100% Load | 30.5mV | 15.9mV | 14.6mV | 16.7mV | Pass |
110% Load | 34.6mV | 17.5mV | 16.1mV | 18.3mV | Pass |
Cross-Load 1 | 22.9mV | 11.5mV | 11.3mV | 9.3mV | Pass |
Cross-Load 2 | 30.9mV | 13.3mV | 15.3mV | 15.2mV | Pass |

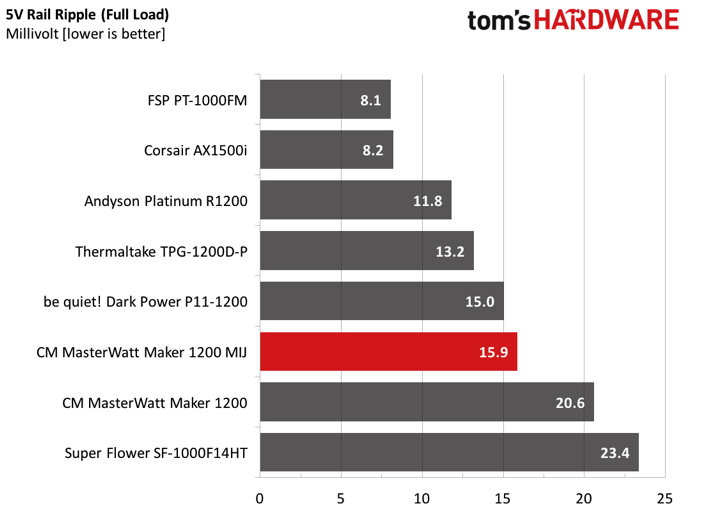

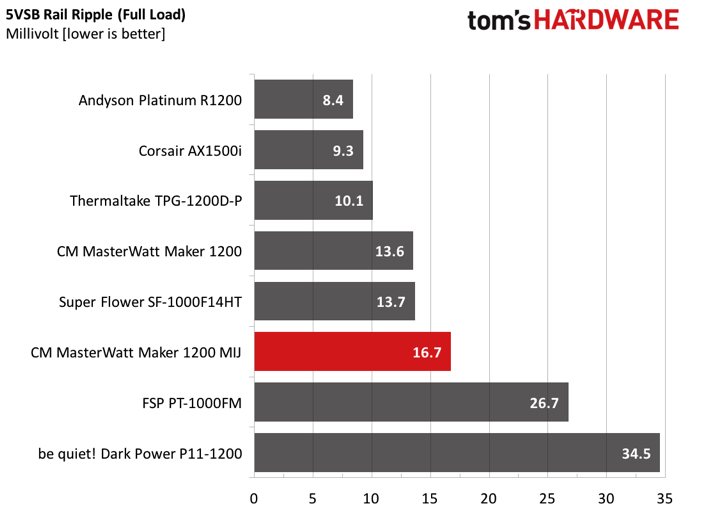

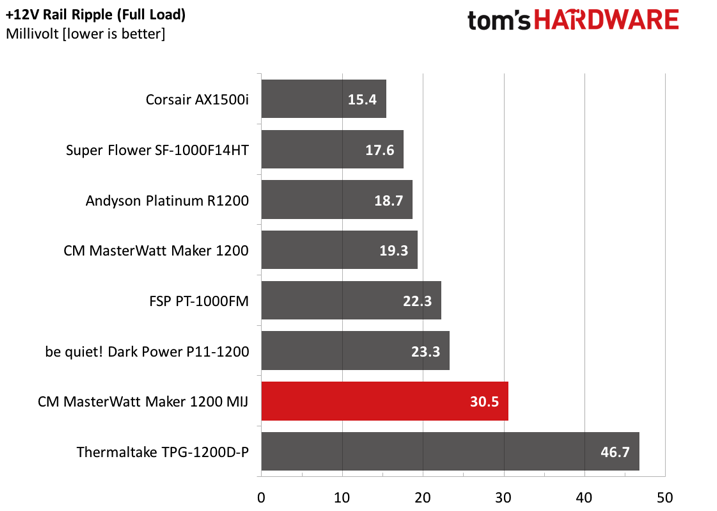

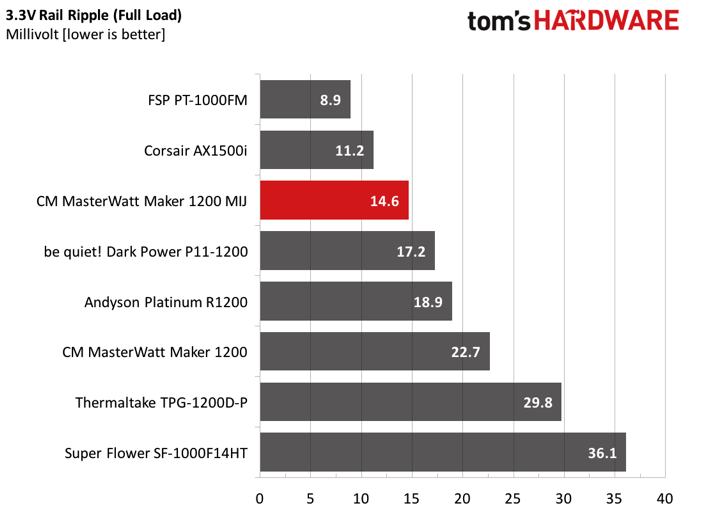

Ripple suppression is great on the minor rails and 5VSB, and satisfactory at +12V. We don't see Super Flower- or Seasonic-class ripple suppression on the most important (+12V) rail. However, 30.5mV under full load and high ambient temperatures still represents good performance.
Ripple Oscilloscope Screenshots

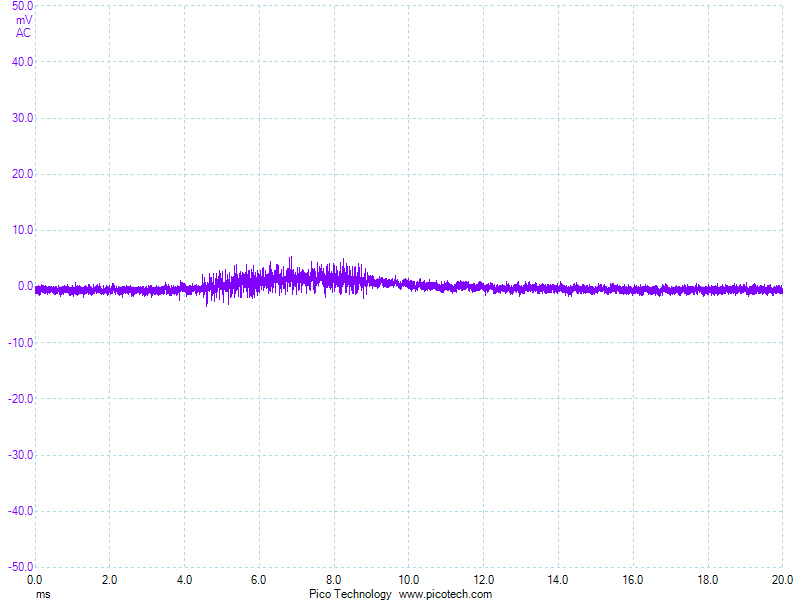

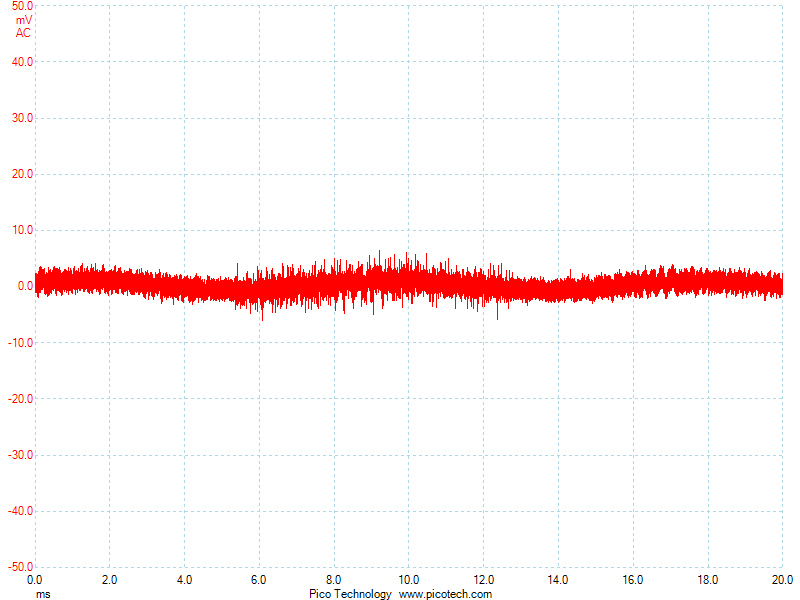

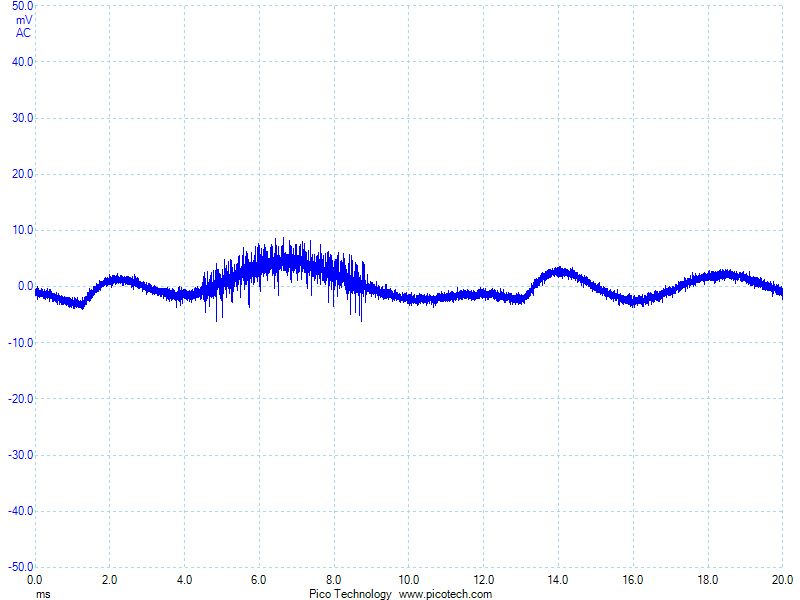

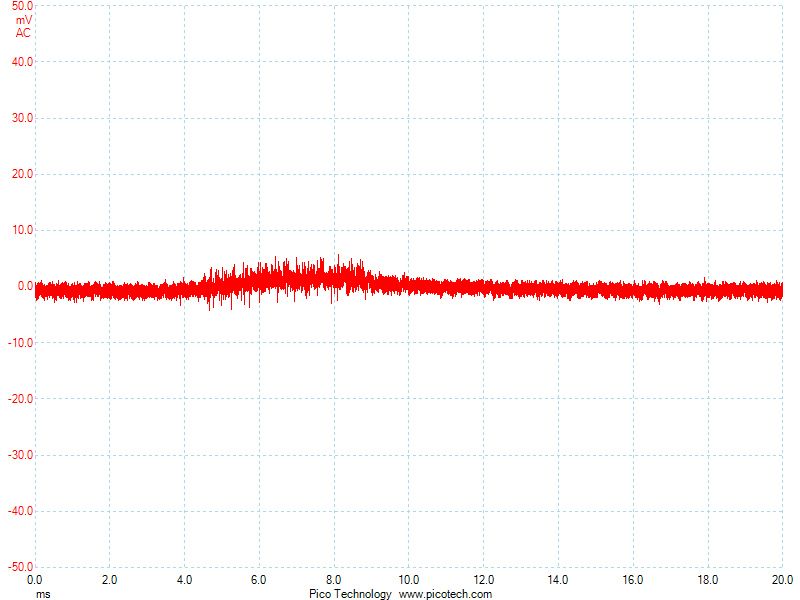

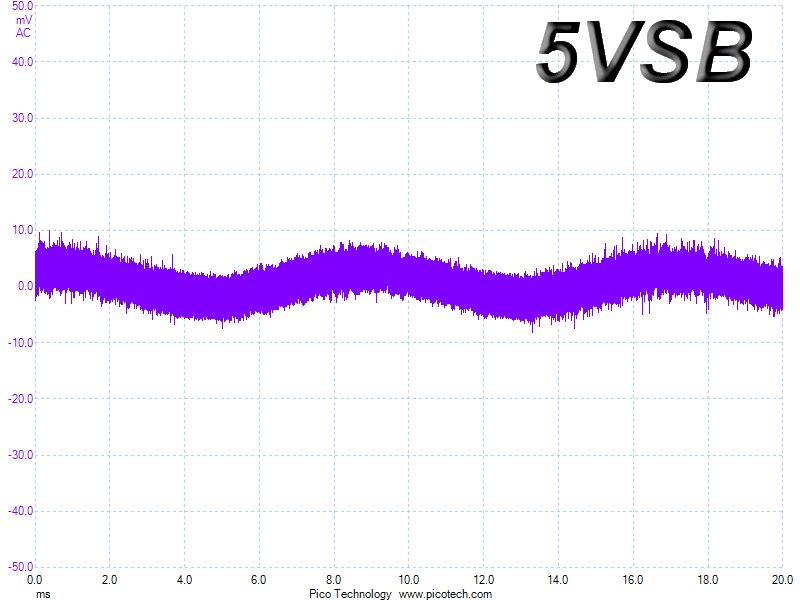

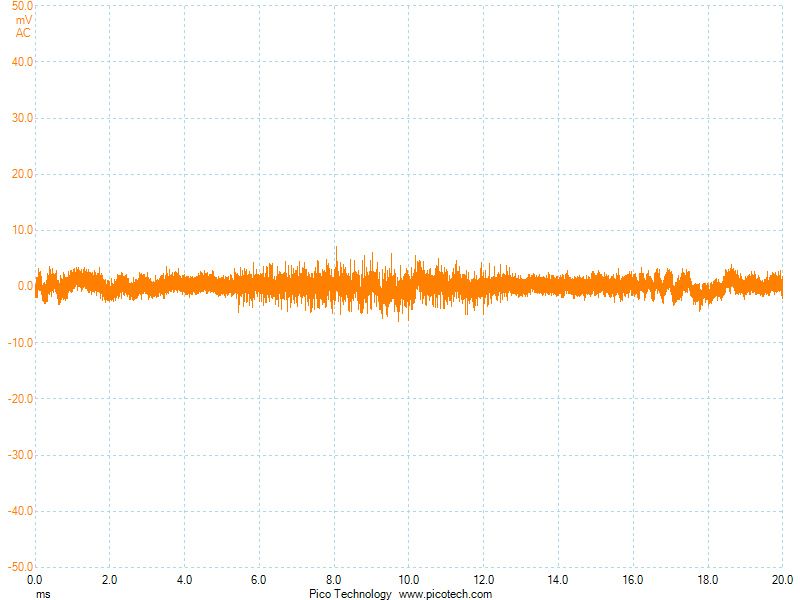

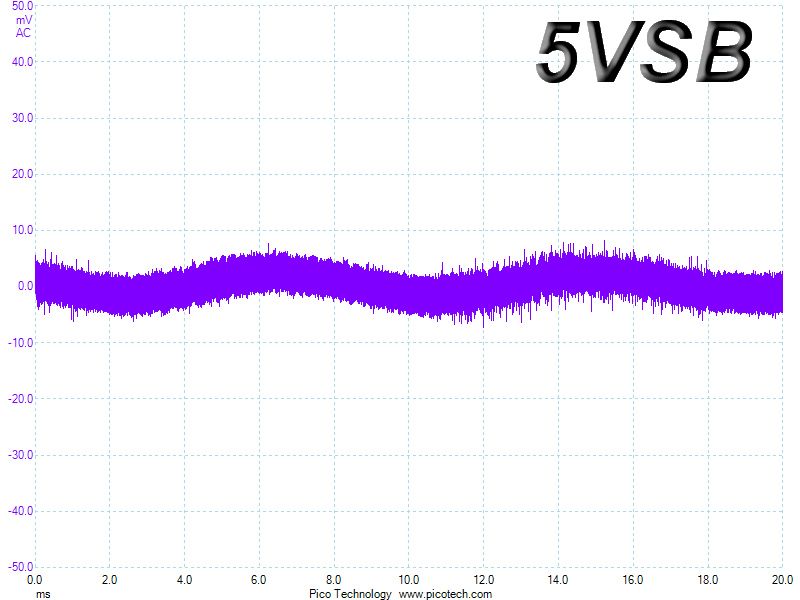

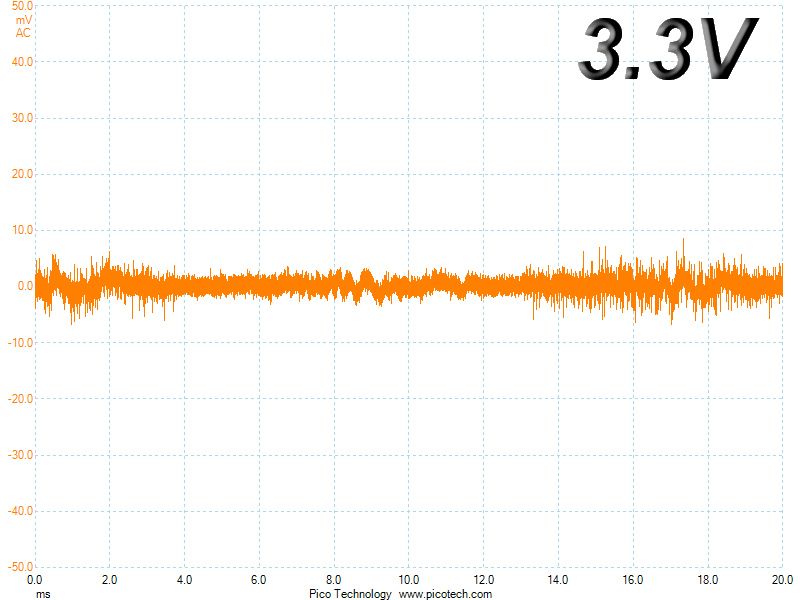

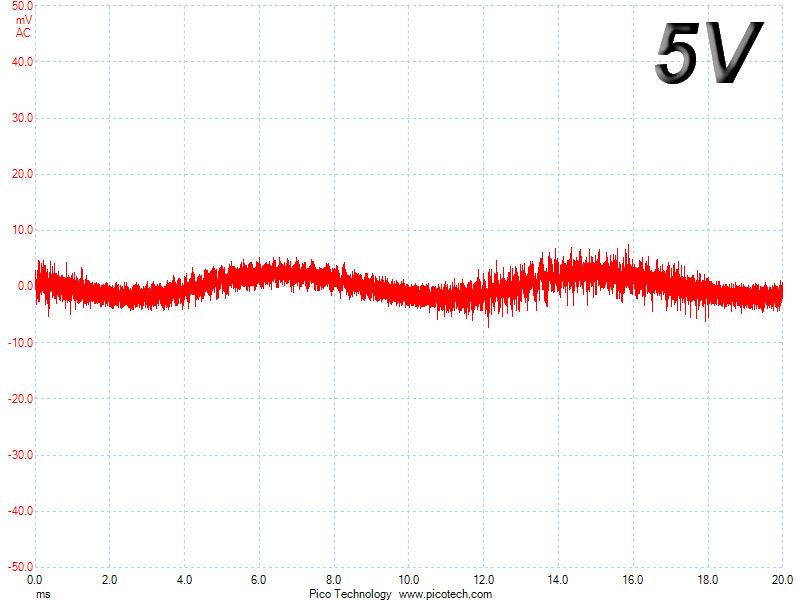

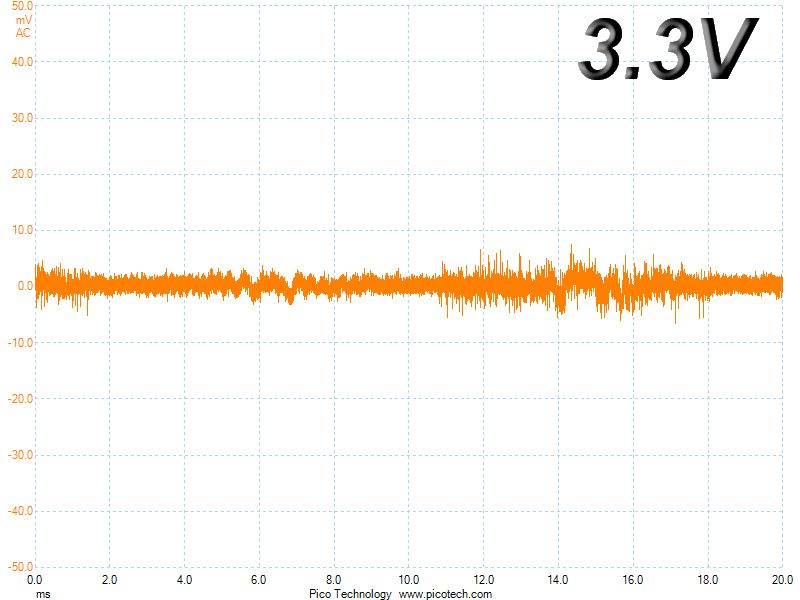

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

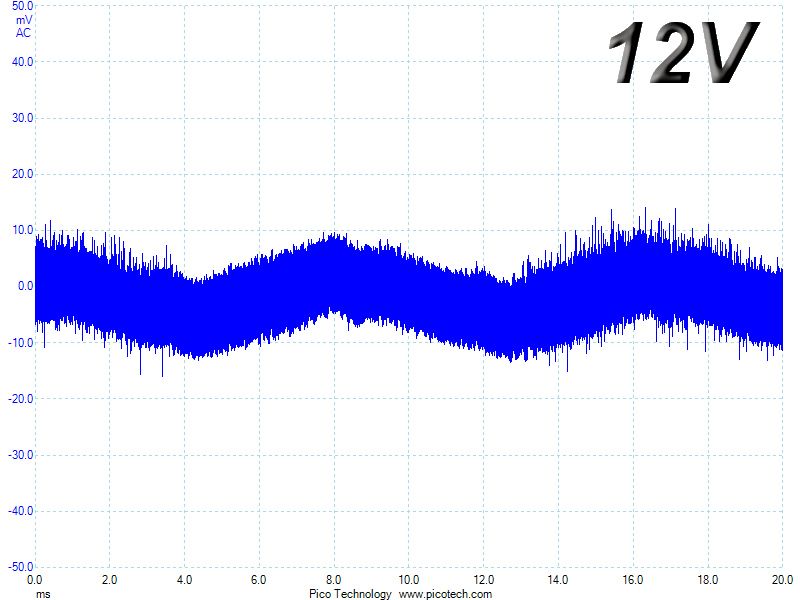

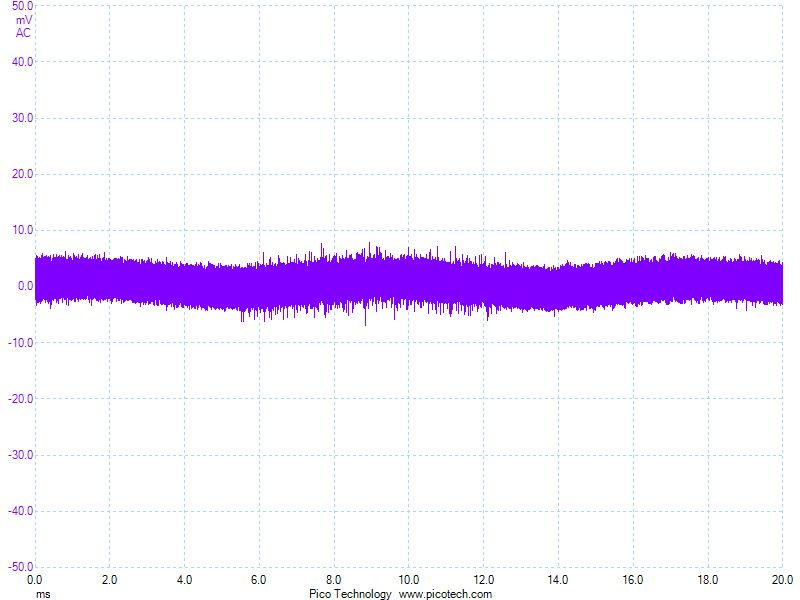

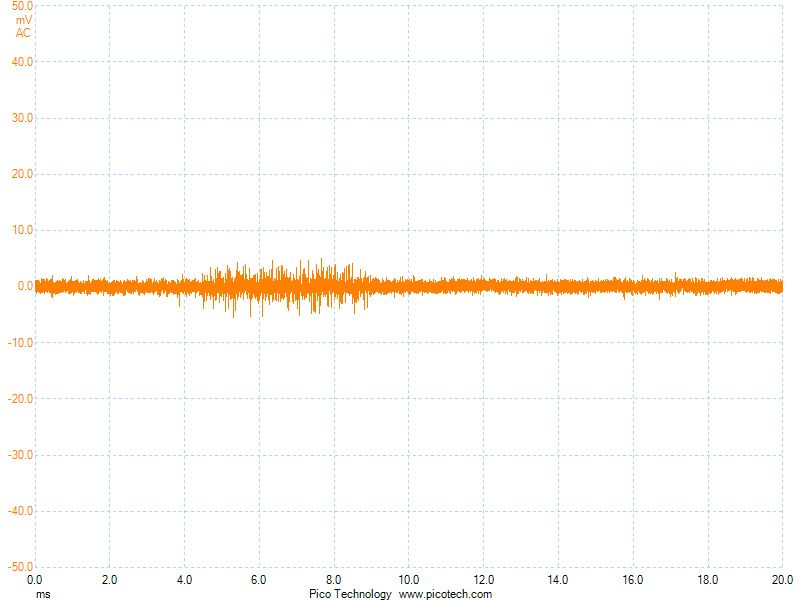

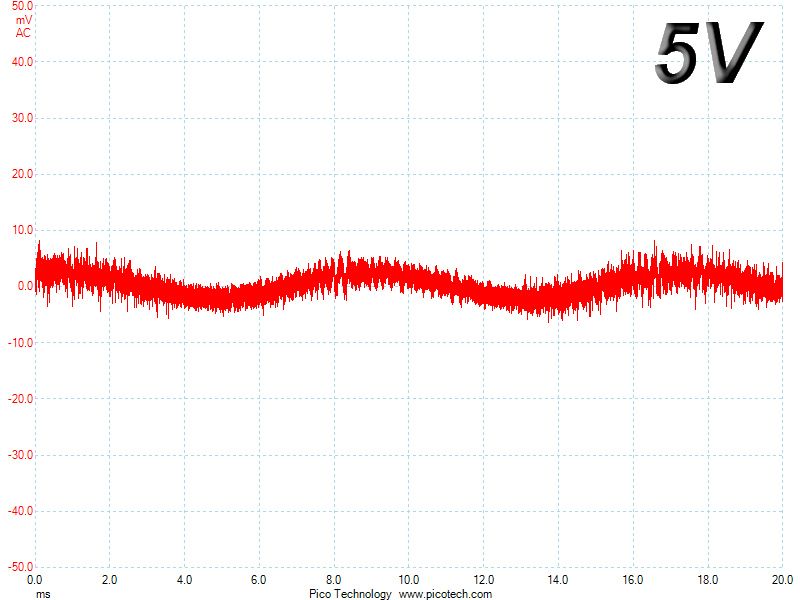

Ripple At Full Load

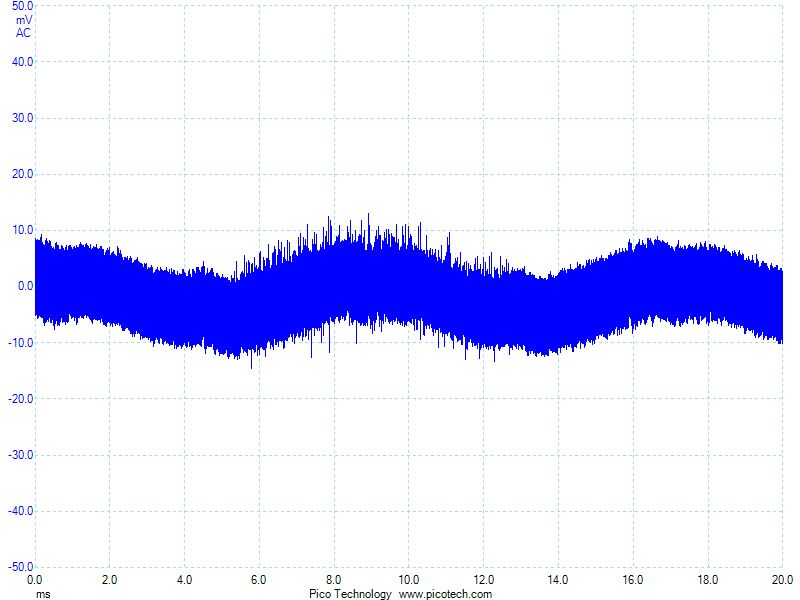

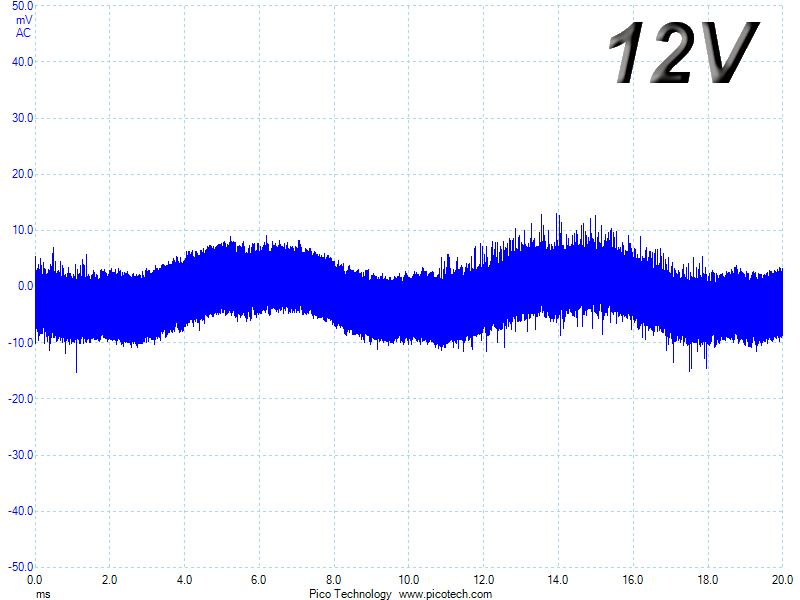

Ripple At 110-Percent Load
Ripple At Cross-Load 1
Ripple At Cross-Load 2
