Transient Response Tests

Advanced Transient Response Tests

For details on our transient response testing, please click here.

Ιn these tests, we monitor the MasterWatt Maker 1200 MIJ's response in several scenarios. First, a transient load (10A at +12V, 5A at 5V, 5A at 3.3V, and 0.5A at 5VSB) is applied for 200ms as the PSU works at 20 percent load. In the second scenario, it's hit by the same transient load while operating at 50 percent load.

In the next sets of tests, we increase the transient load on the major rails with a new configuration: 15A at +12V, 6A at 5V, 6A at 3.3V, and 0.5A at 5VSB. We also increase the load-changing repetition rate from 5 Hz (200ms) to 50 Hz (20ms). Again, this runs with the PSU operating at 20 and 50 percent load.

The last tests are even tougher. Although we keep the same loads, the load-changing repetition rate rises to 1 kHz (1ms).

In all of the tests, we use an oscilloscope to measure the voltage drops caused by the transient load. The voltages should remain within the ATX specification's regulation limits.

These tests are crucial because they simulate the transient loads a PSU is likely to handle (such as booting a RAID array or an instant 100 percent load of CPU/GPUs). We call these "Advanced Transient Response Tests," and they are designed to be very tough to master, especially for a PSU with a capacity of less than 500W.

Advanced Transient Response at 20 Percent – 200ms

VoltageBeforeAfterChangePass/Fail
12V12.012V11.938V0.62%Pass
5V5.104V4.974V2.55%Pass
3.3V3.336V3.126V6.29%Fail
5VSB5.077V5.034V0.85%Pass

Advanced Transient Response at 20 Percent – 20ms

VoltageBeforeAfterChangePass/Fail
12V12.012V11.900V0.93%Pass
5V5.104V4.953V2.96%Pass
3.3V3.336V3.070V7.97%Fail
5VSB5.077V5.022V1.08%Pass

Advanced Transient Response at 20 Percent – 1ms

VoltageBeforeAfterChangePass/Fail
12V12.012V11.913V0.82%Pass
5V5.104V4.958V2.86%Pass
3.3V3.336V3.068V8.03%Fail
5VSB5.077V5.016V1.20%Pass

Advanced Transient Response at 50 Percent – 200ms

VoltageBeforeAfterChangePass/Fail
12V11.995V11.924V0.59%Pass
5V5.103V4.973V2.55%Pass
3.3V3.315V3.117V5.97%Fail
5VSB5.066V5.019V0.93%Pass

Advanced Transient Response at 50 Percent – 20ms

VoltageBeforeAfterChangePass/Fail
12V11.996V11.896V0.83%Pass
5V5.103V4.968V2.65%Pass
3.3V3.315V3.054V7.87%Fail
5VSB5.066V5.002V1.26%Pass

Advanced Transient Response at 50 Percent – 1ms

VoltageBeforeAfterChangePass/Fail
12V11.995V11.897V0.82%Pass
5V5.103V4.952V2.96%Pass
3.3V3.315V3.051V7.96%Fail
5VSB5.066V5.014V1.03%Pass

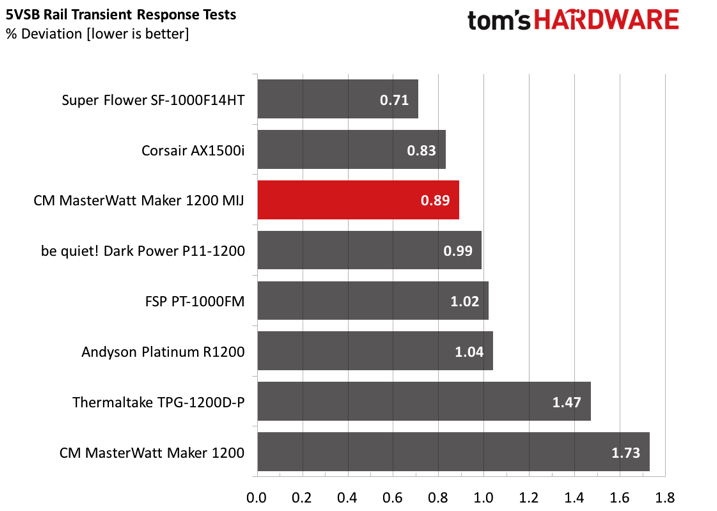

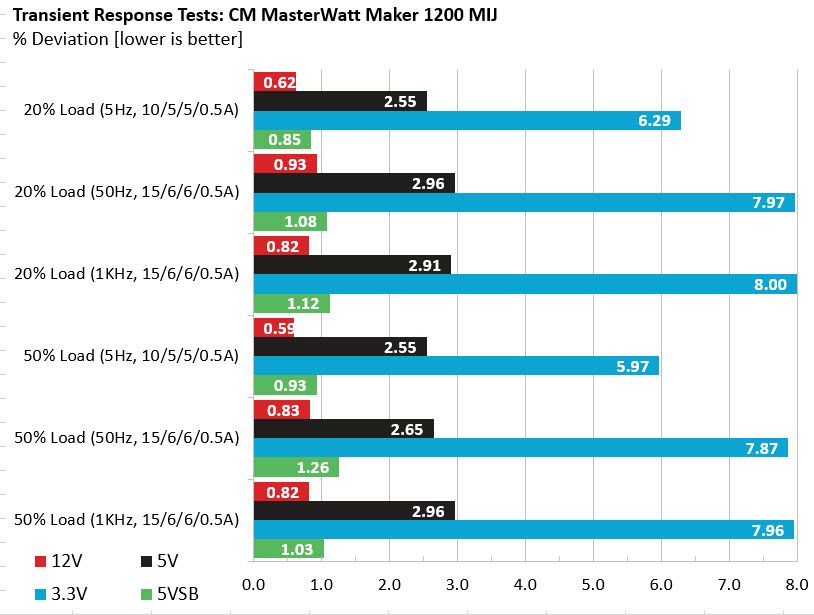

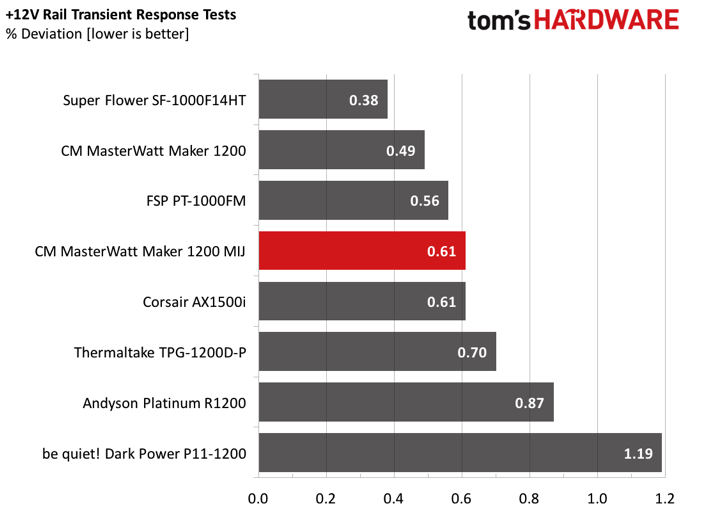

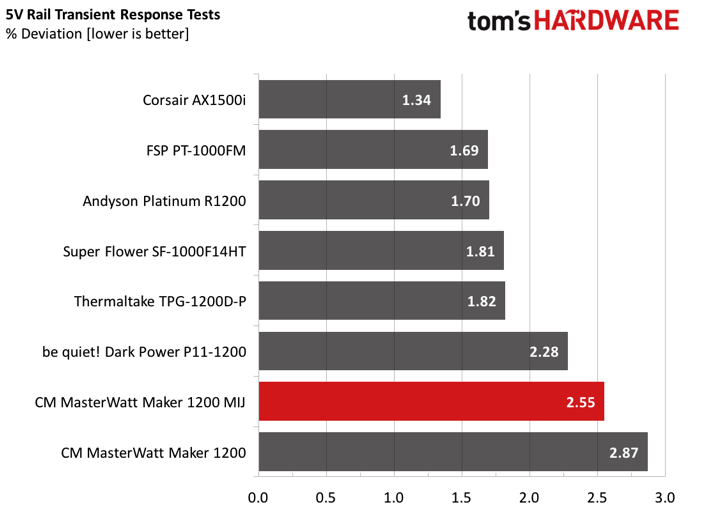

Image 1 of 5

Image 2 of 5

Image 3 of 5

Image 4 of 5

Image 5 of 5

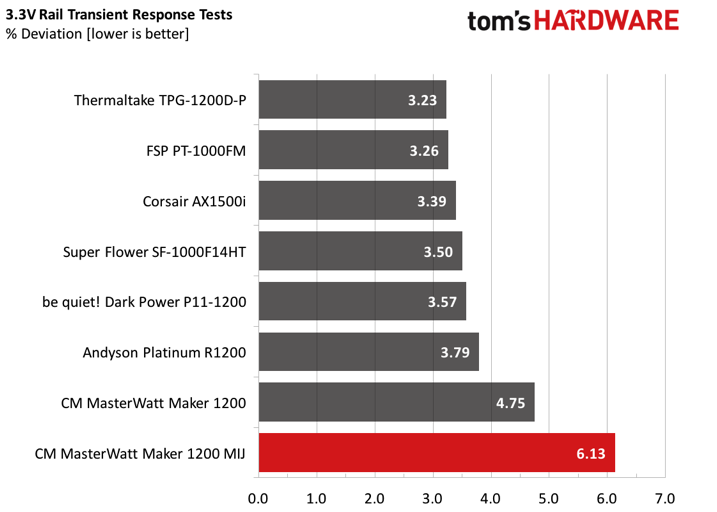

The +12V rail performs well enough, and the 5V and 5VSB rails are fare fairly. We're really disappointed in the 3.3V rail, though, which exhibits huge deviations that lead to failures in every test. It is sad to see poor performance at 3.3V from such an expensive PSU. Murata and Cooler Master needed to catch this before the MasterWatt Maker 1200 MIJ went into production.

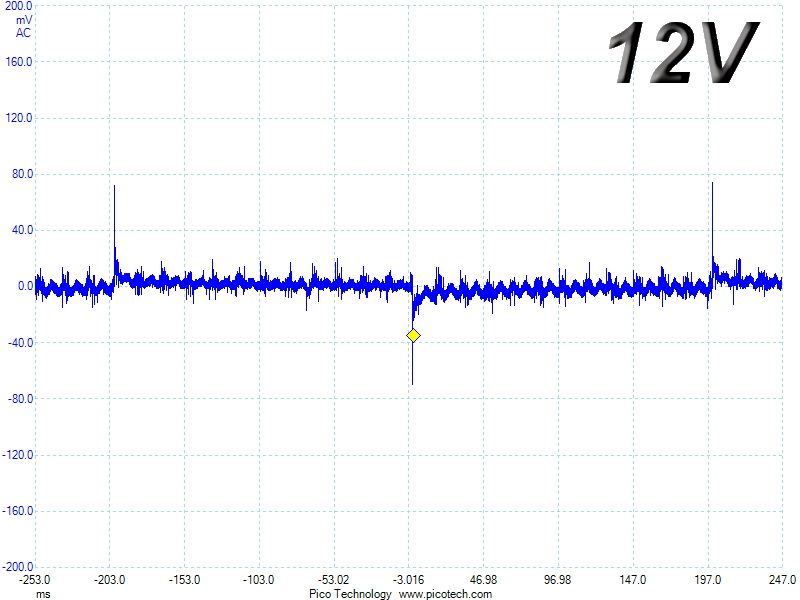

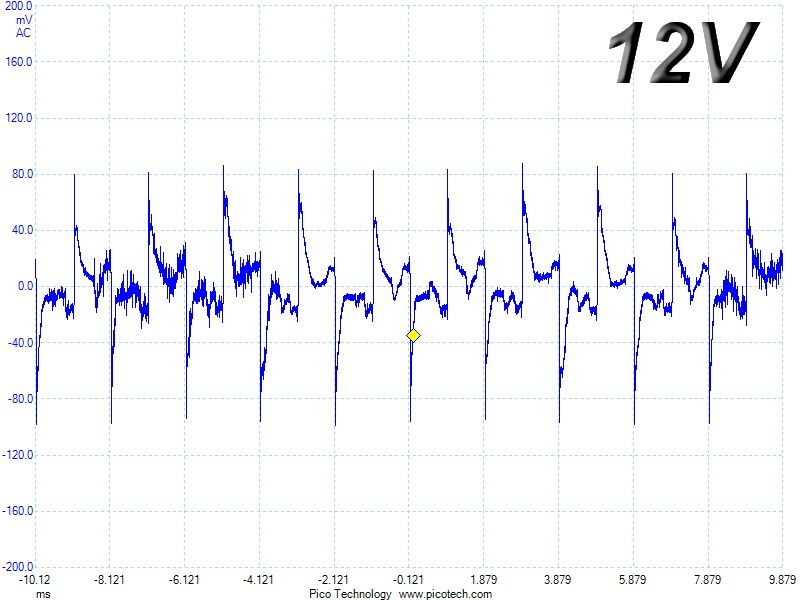

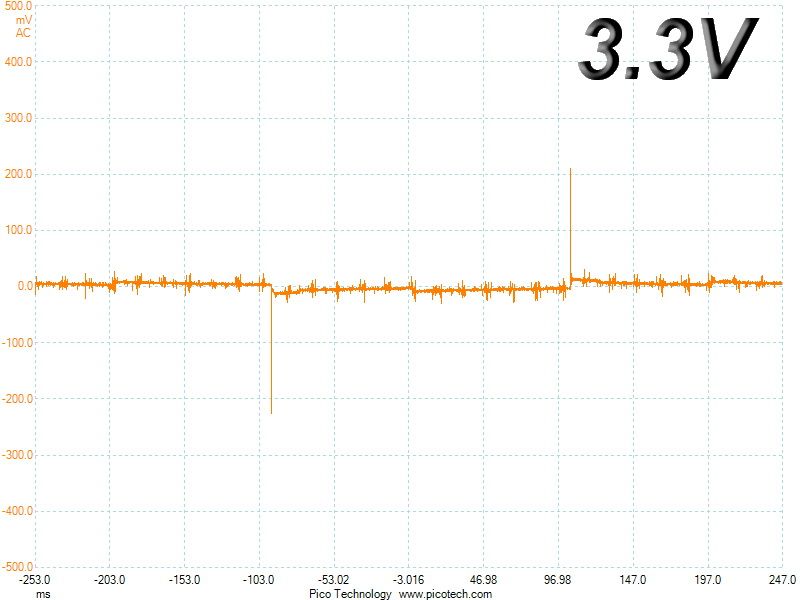

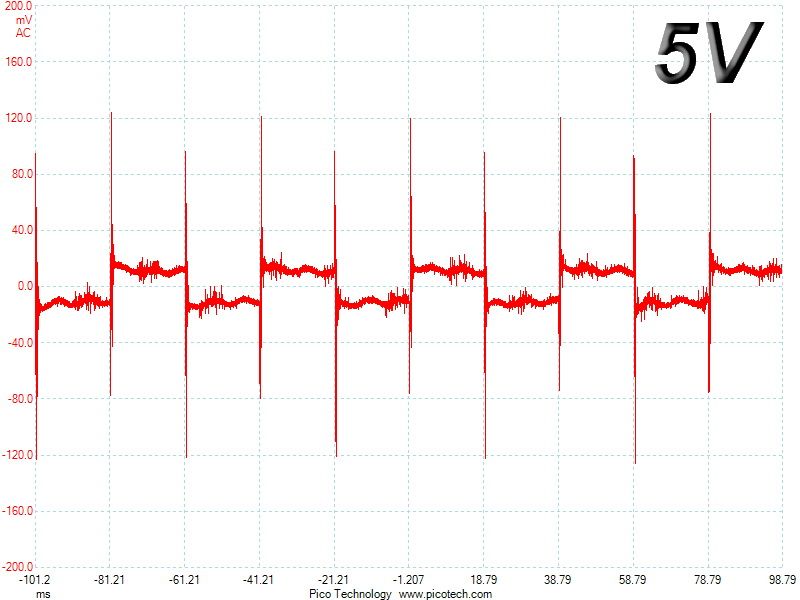

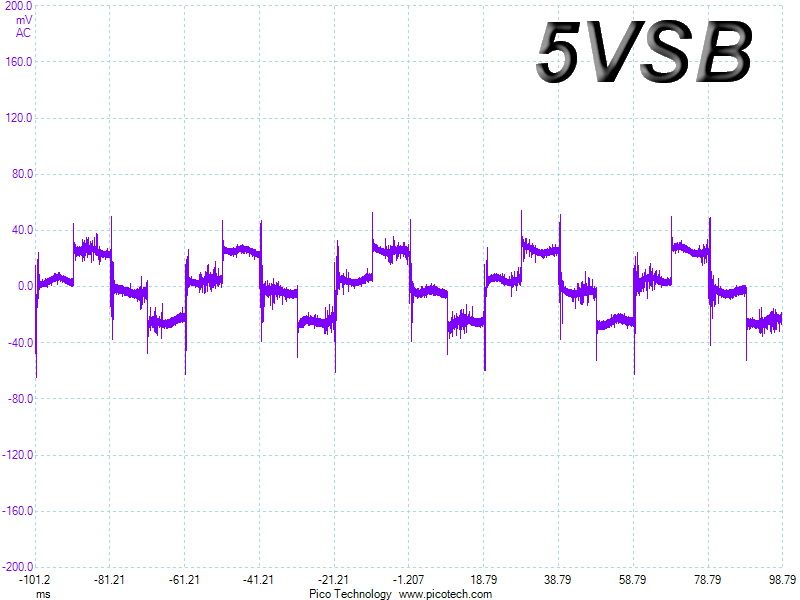

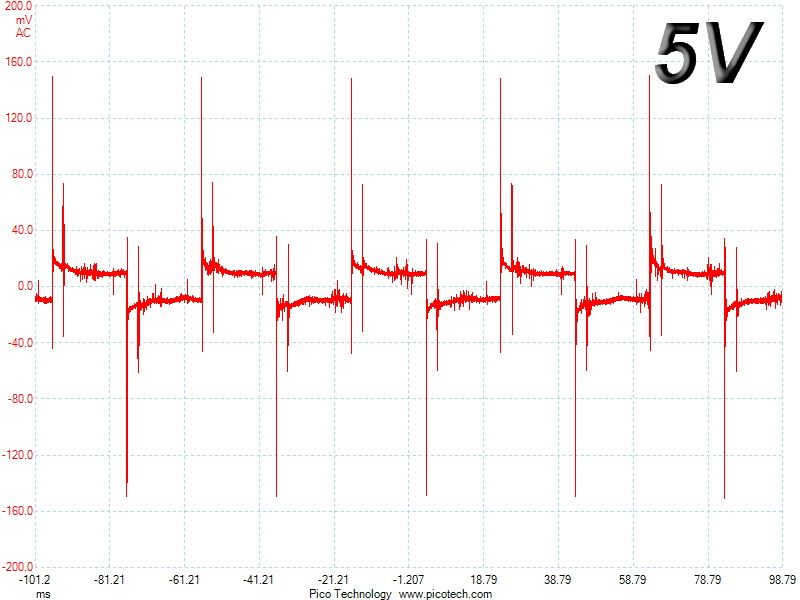

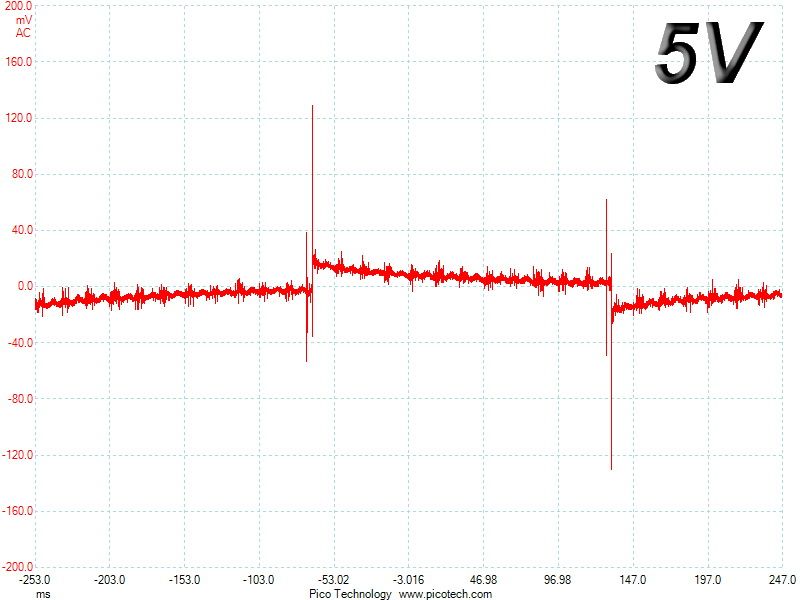

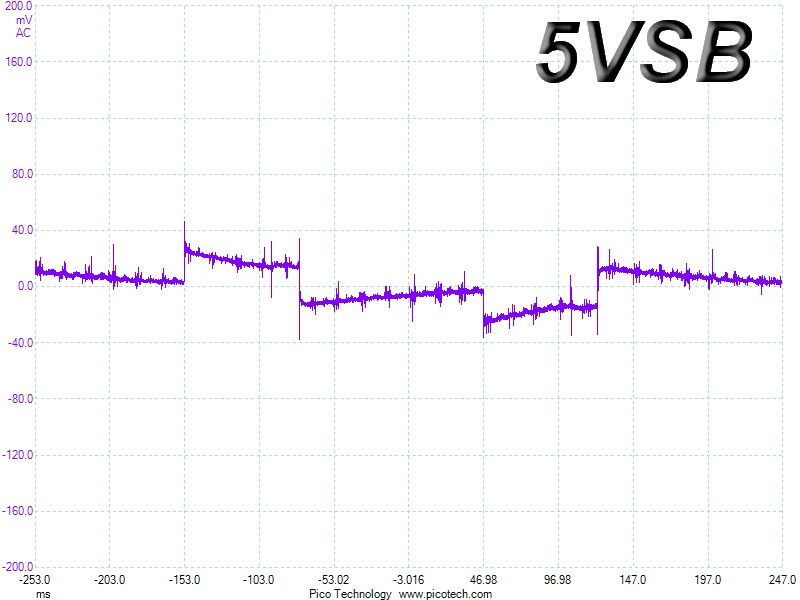

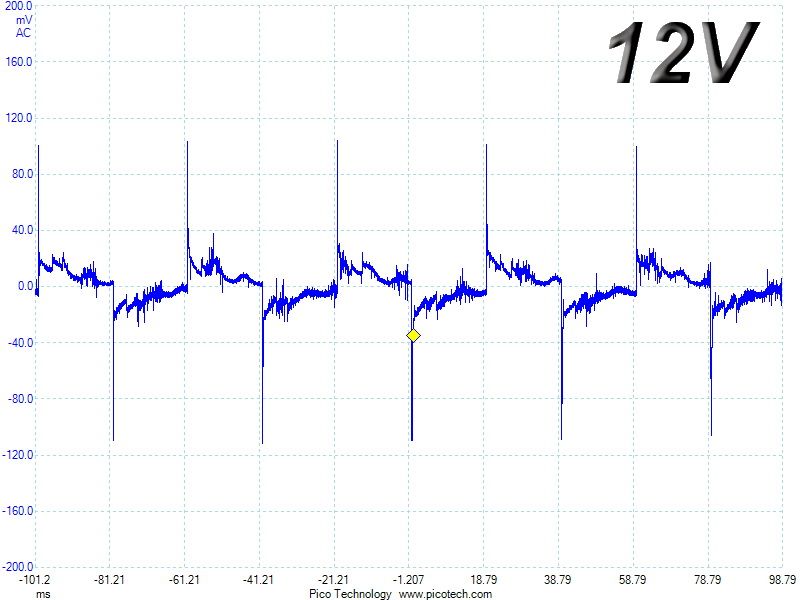

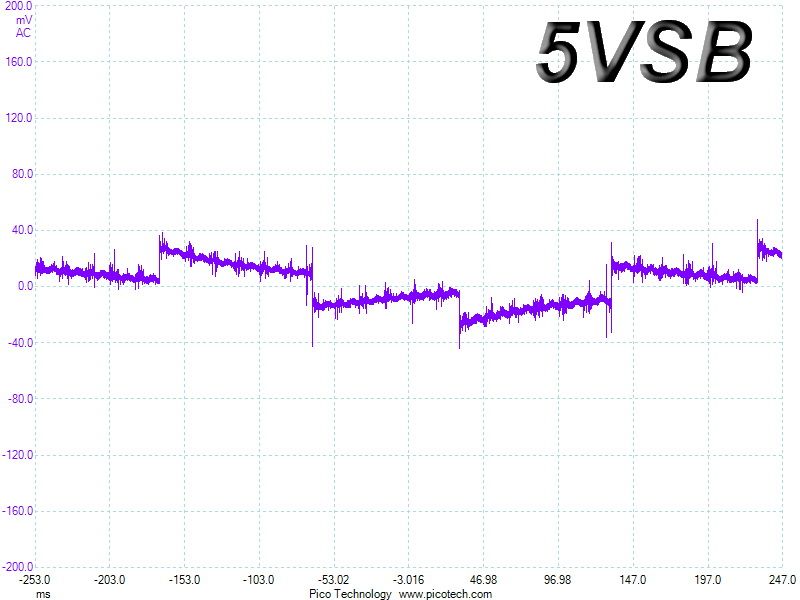

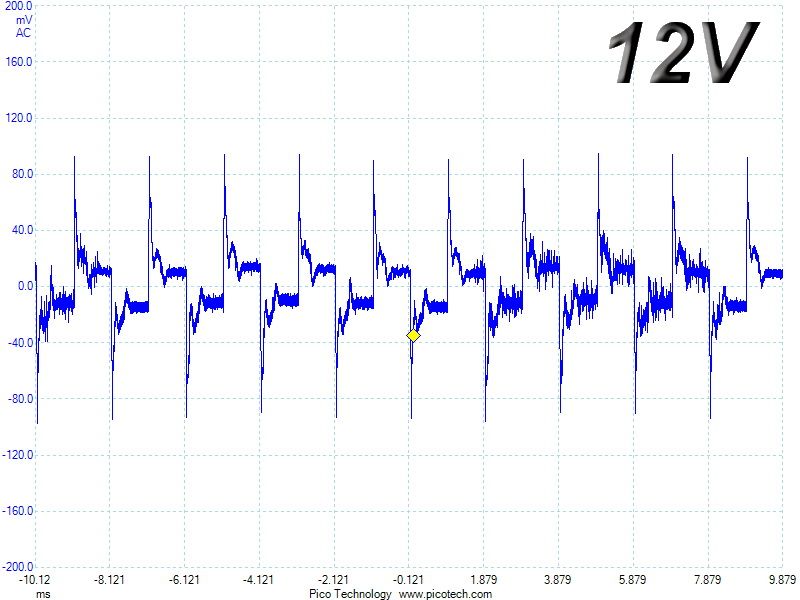

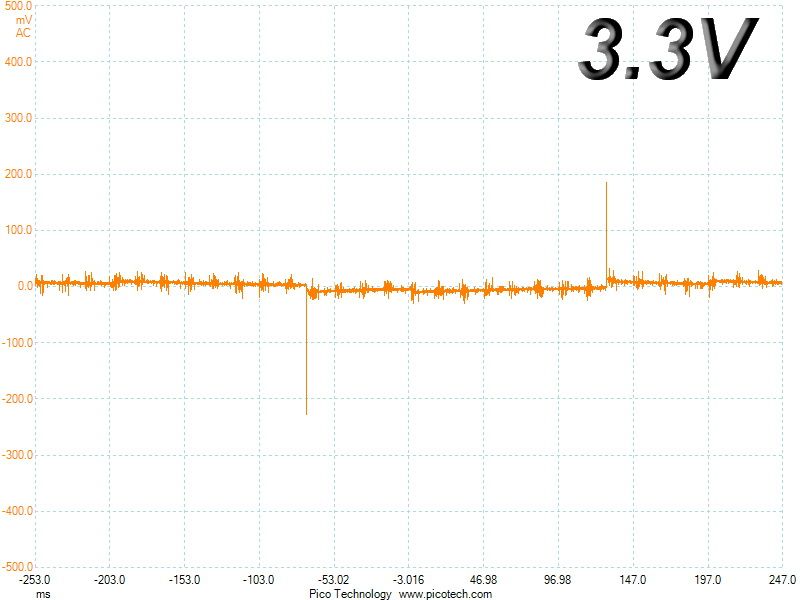

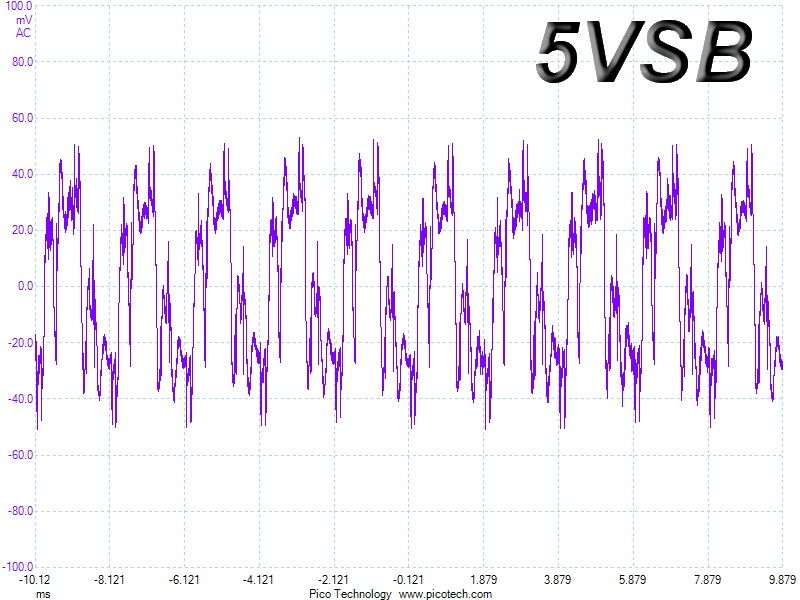

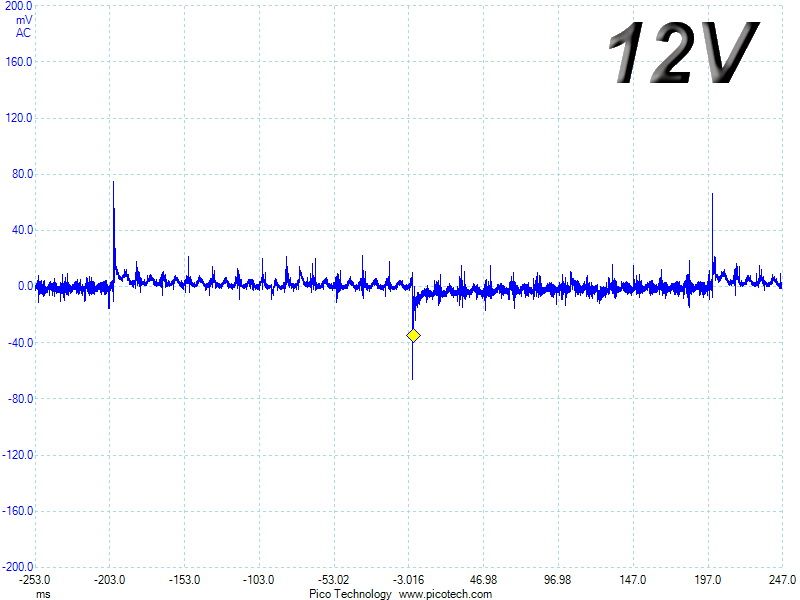

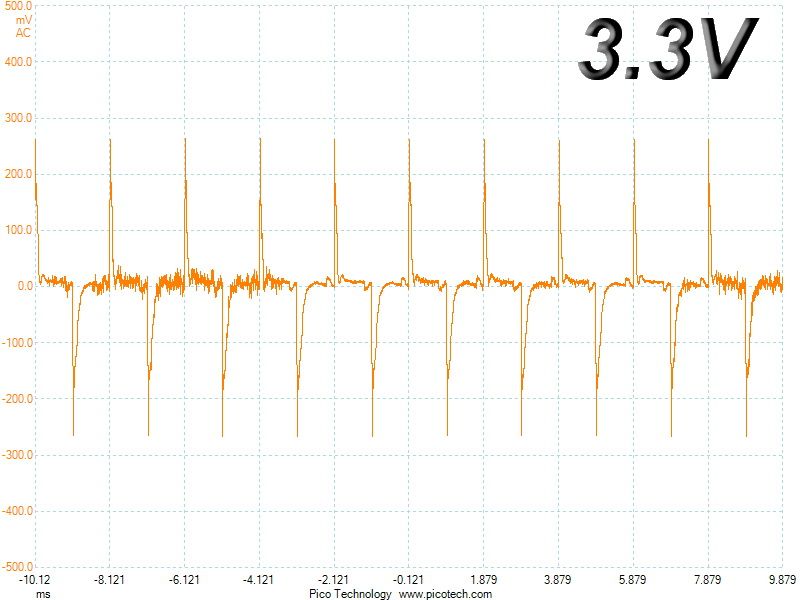

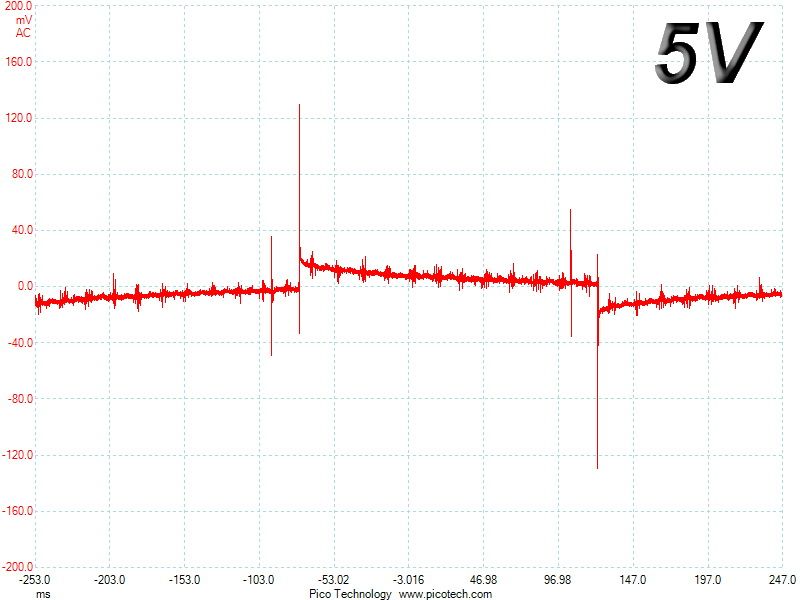

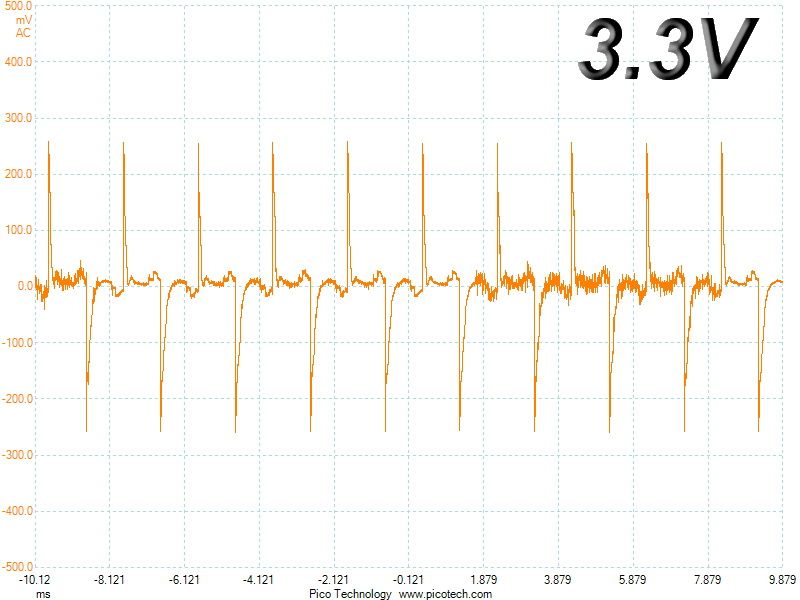

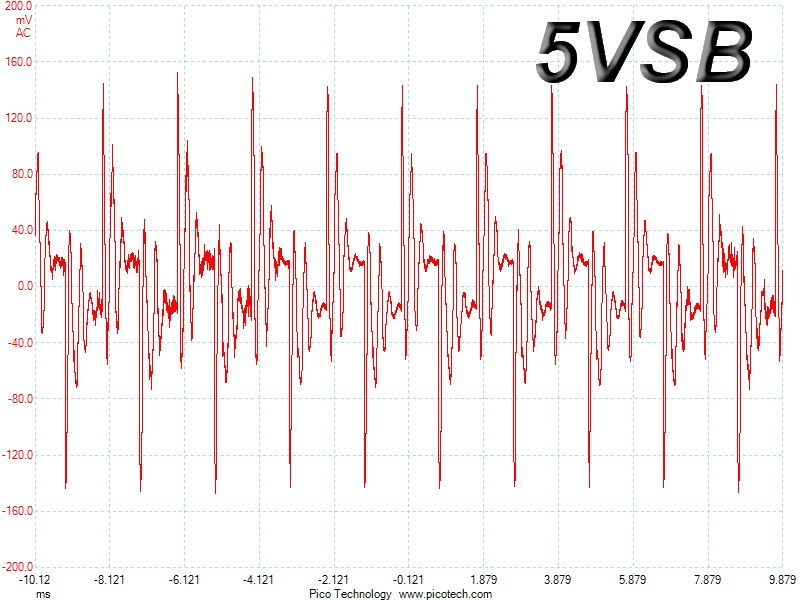

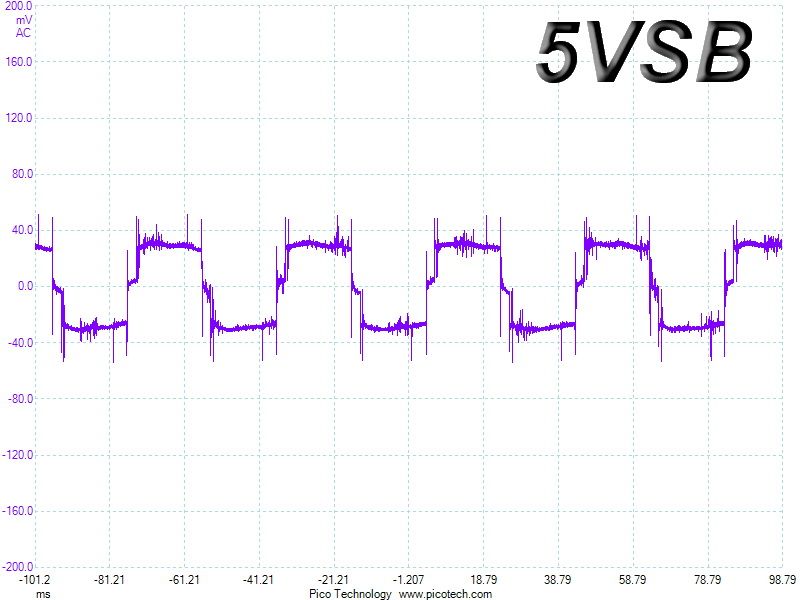

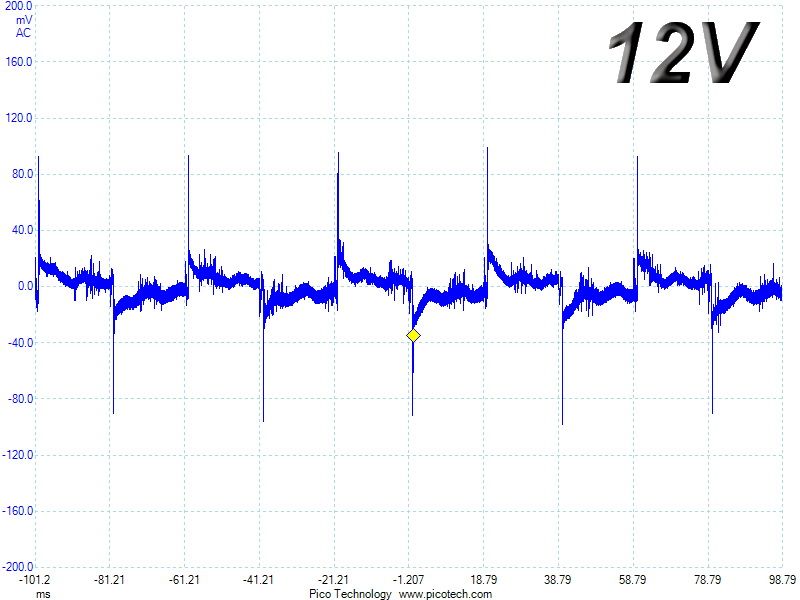

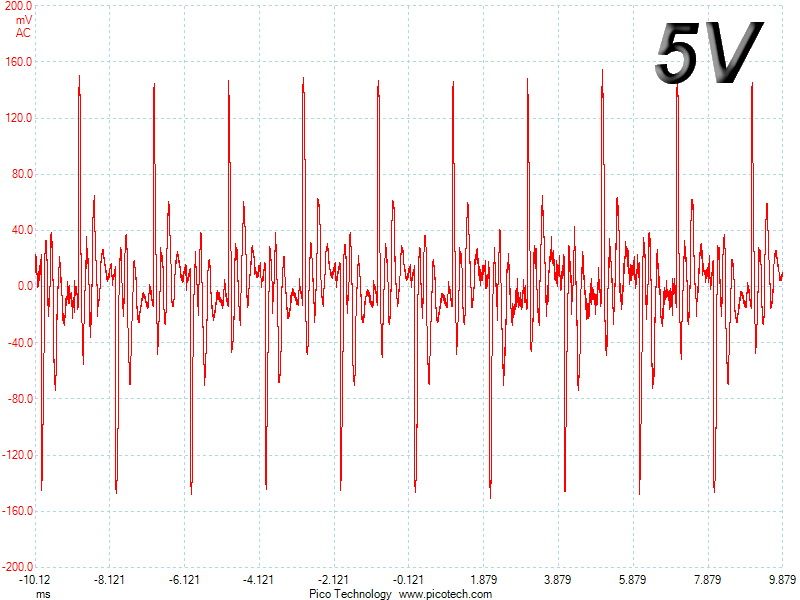

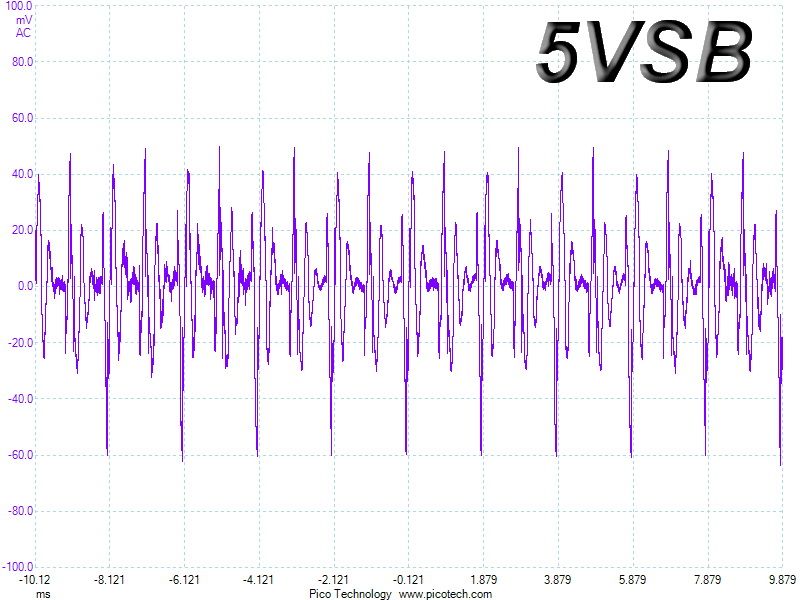

Here are the oscilloscope screenshots we took during Advanced Transient Response Testing:

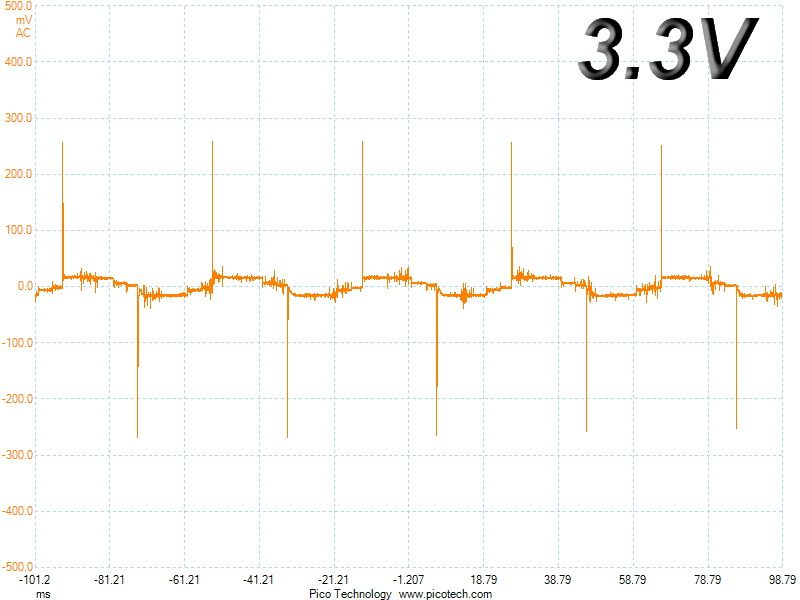

Transient Response At 20 Percent Load – 200ms

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

Transient Response At 20 Percent Load – 20ms

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

Transient Response At 20 Percent Load – 1ms

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

Transient Response At 50 Percent Load – 200ms

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

Transient Response At 50 Percent Load – 20ms

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

Transient Response At 50 Percent Load – 1ms

Image 1 of 4

Image 2 of 4

Image 3 of 4

Image 4 of 4

Turn-On Transient Tests

In the next set of tests, we measured the PSU's response in simpler transient load scenarios—during its power-on phase.

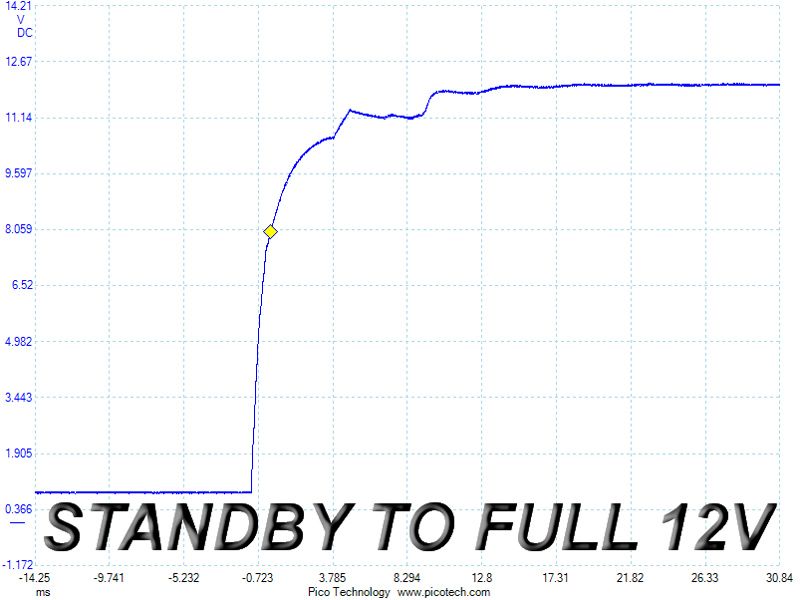

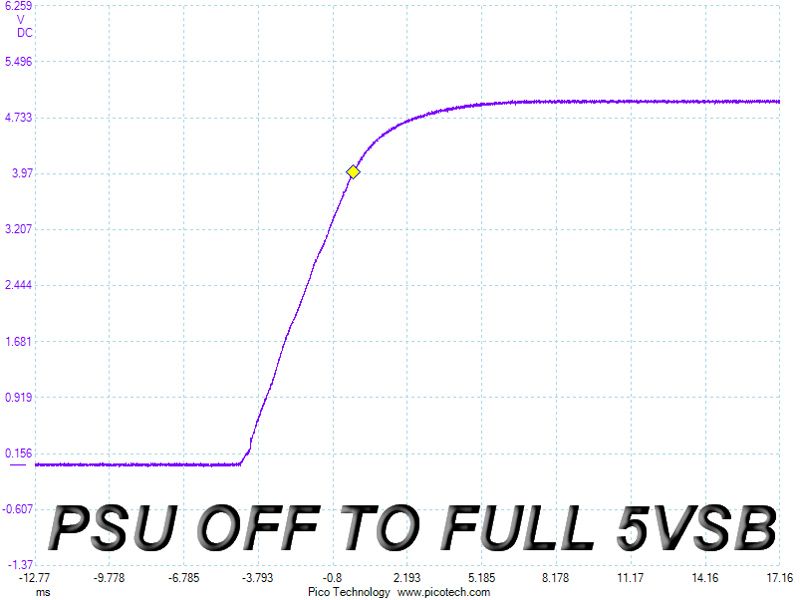

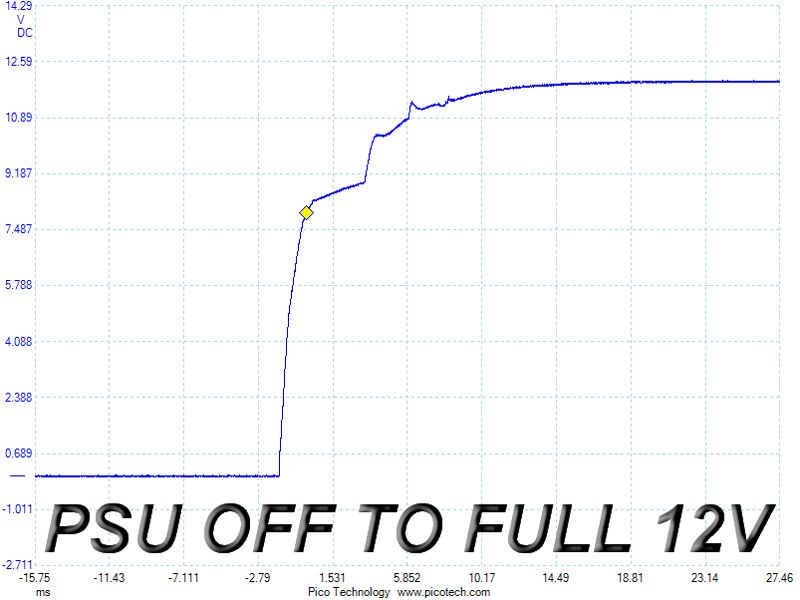

For the first measurement, we turned the MasterWatt Maker 1200 MIJ off, dialed in the maximum current the 5VSB could output and switched the PSU back on. In the second test, we dialed the maximum load the +12V could handle and started the 1.2kW supply while it was in standby mode. In the last test, while the PSU was completely switched off, we dialed the maximum load the +12V rail could handle before switching it back on from the loader and restoring the power. The ATX specification states that recorded spikes on all rails should not exceed 10 percent of their nominal values (+10 percent for 12V is 13.2V, and 5.5 V for 5V).

Image 1 of 3

Image 2 of 3

Image 3 of 3

The 5VSB rail performs great in these tests. On the other hand, we'd like to see smoother slopes in the +12V tests.


MORE: Best Power Supplies


MORE: Power Supplies 101


MORE: How We Test Power Supplies


MORE: All Power Supply Content
