Protection Features
Check out our PSUs 101 article to learn more about PSU protection features.
Protection Features | |
OCP |
12V: 88.4A (124.86%), 12.073V 5V: 25A (125%), 5.101V 3.3V: 25.1A (125.5%), 3.309V 5VSB: 4.9A (163.33%), 4.891V |
OPP |
1080.37W (127.1%) |
OTP |
✓ (134°C @ secondary side) |
SCP | 12V to Earth: ✓5V to Earth: ✓3.3V to Earth: ✓5VSB to Earth: ✓-12V to Earth: ✓ |
PWR_OK |
Proper operation |
NLO |
✓ |
SIP |
Surge: MOV Inrush: NTC Thermistor & Bypass Relay |
The OCP triggering points are correctly set on all major rails, and the same goes for OPP. Moreover, there is over temperature protection, and the rest protection features are present, as well.
DC Power Sequencing
According to Intel’s most recent Power Supply Design Guide (revision 1.4), the +12V and 5V outputs must be equal to or greater than the 3.3V rail at all times. Unfortunately, Intel doesn't mention why it is so important to always keep the 3.3V rail's voltage lower than the levels of the other two outputs.

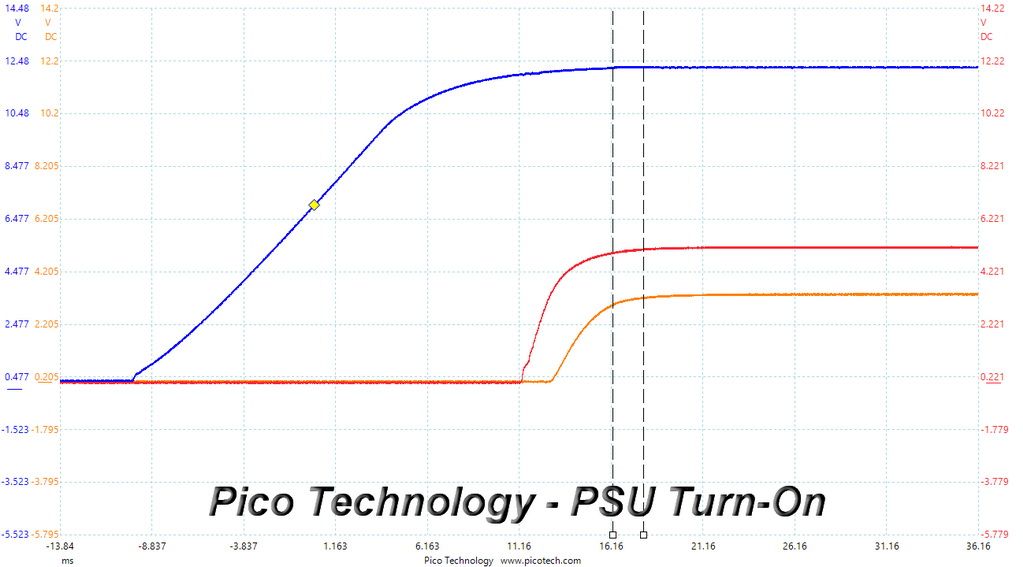

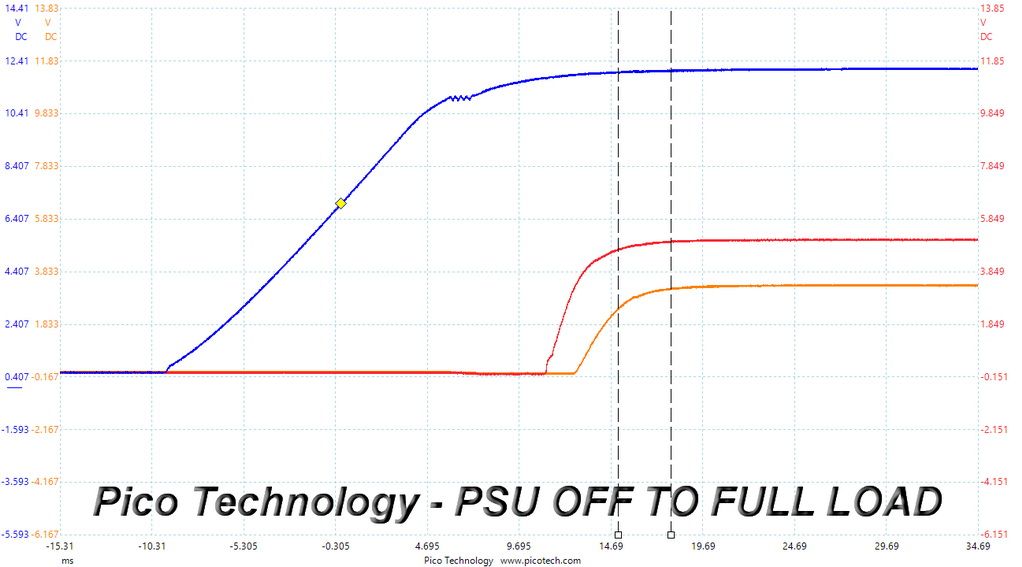

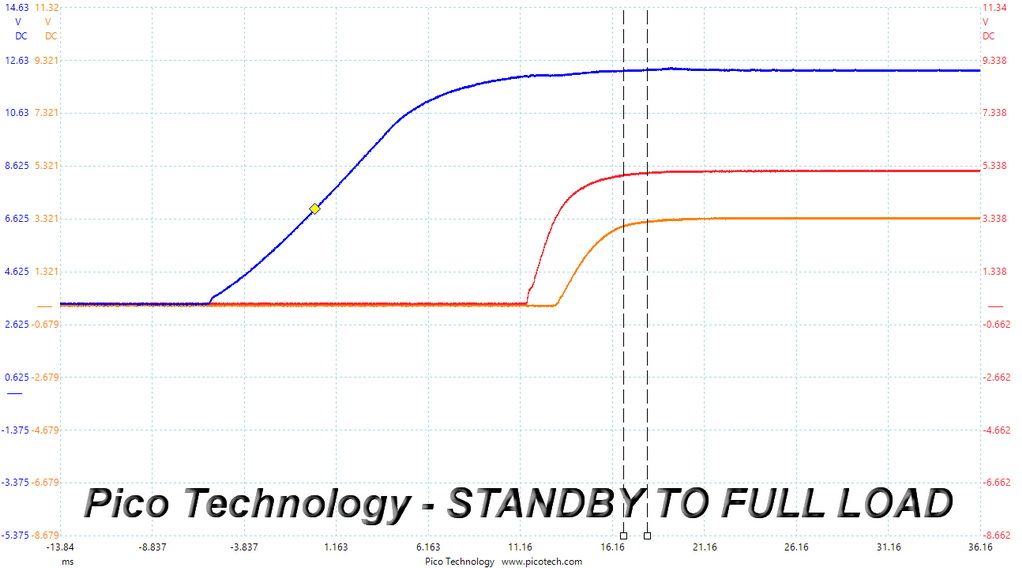

DC Power Sequencing Scope Shots
The 3.3V rail is always lower than the other two, so everything is fine here.
Cross Load Tests
To generate the following charts, we set our loaders to auto mode through custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V, and 3.3V rails. The deviations in each of the charts below are calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature during testing was between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).

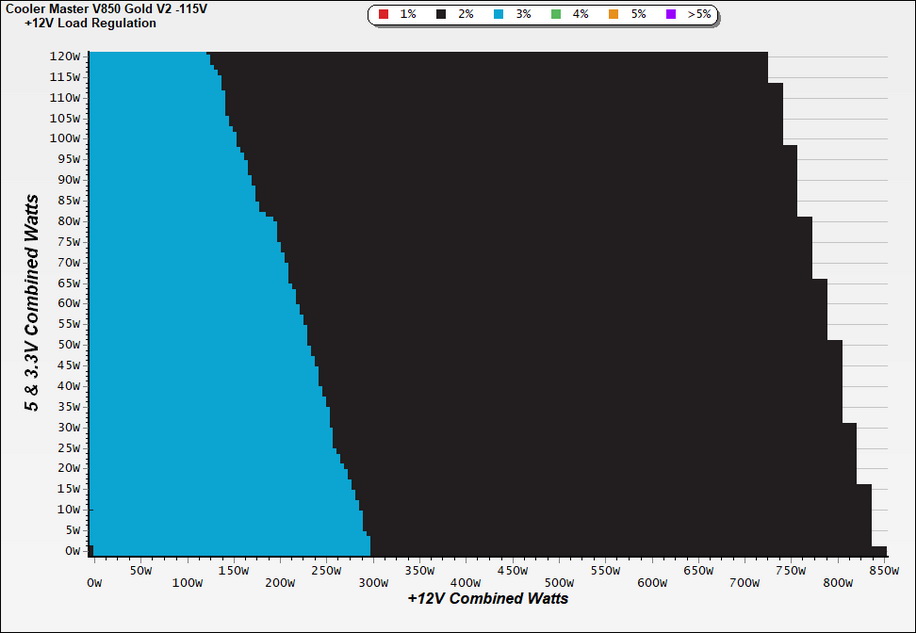

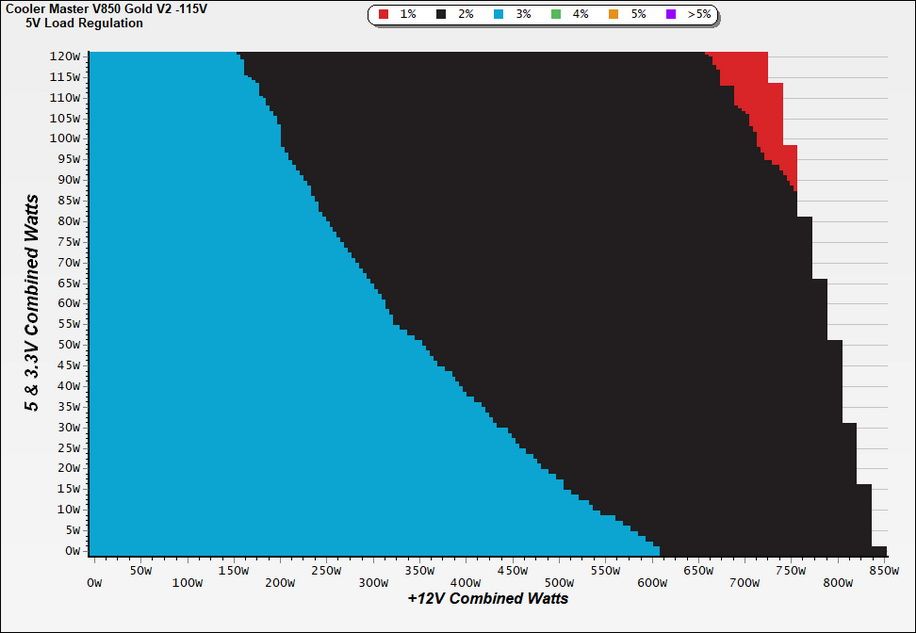

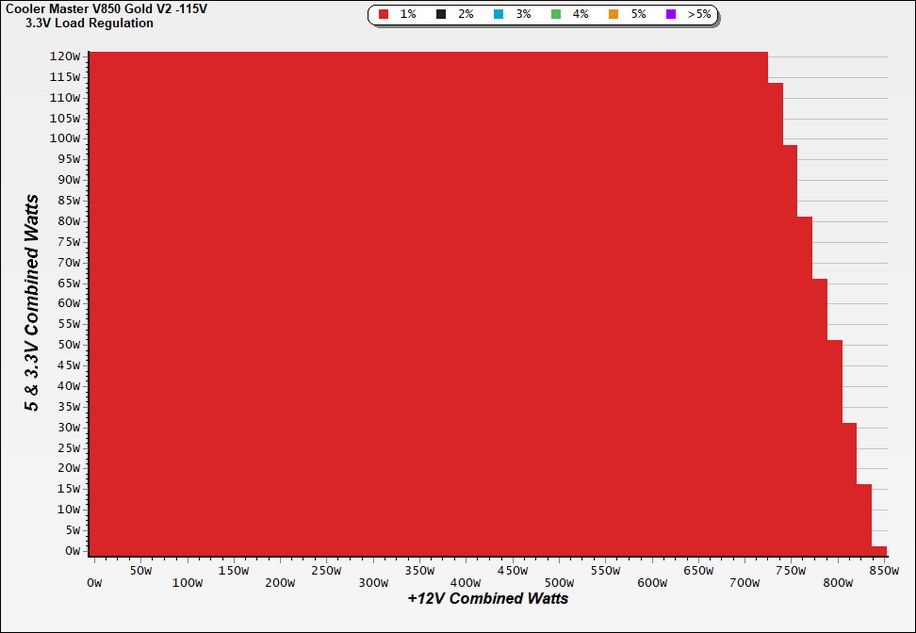

Load Regulation Charts
Load Regulation Graphs
Efficiency Graph

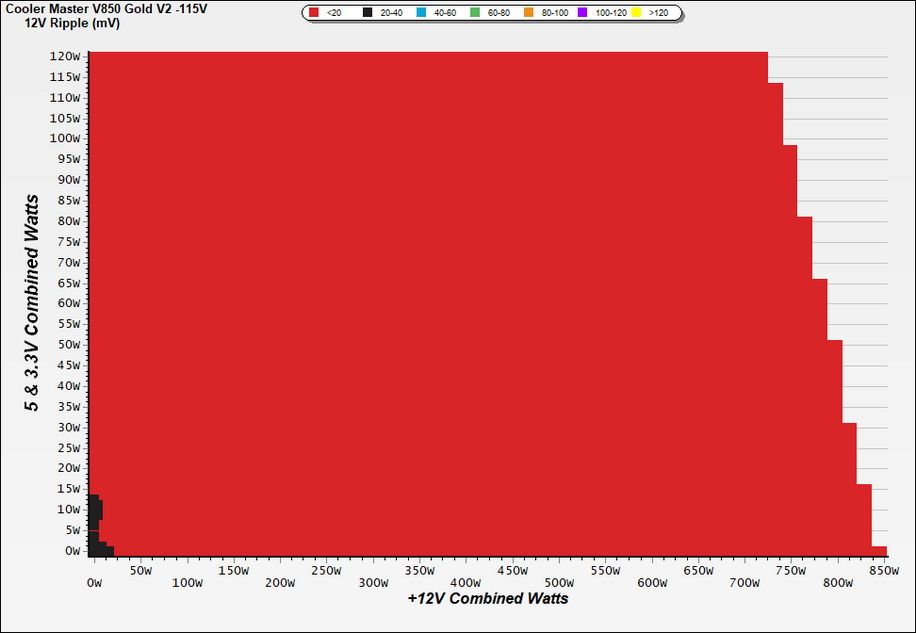

Ripple Graphs

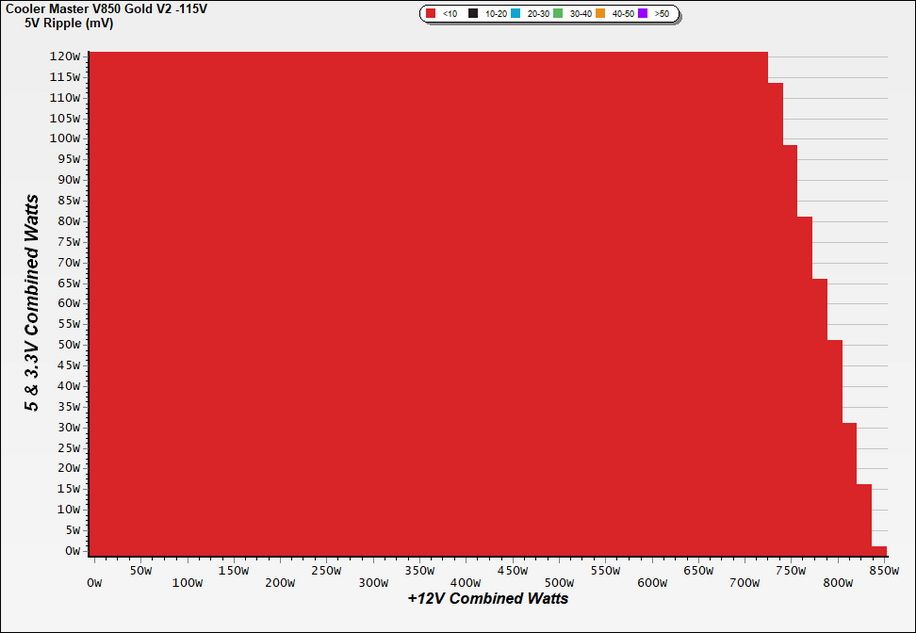

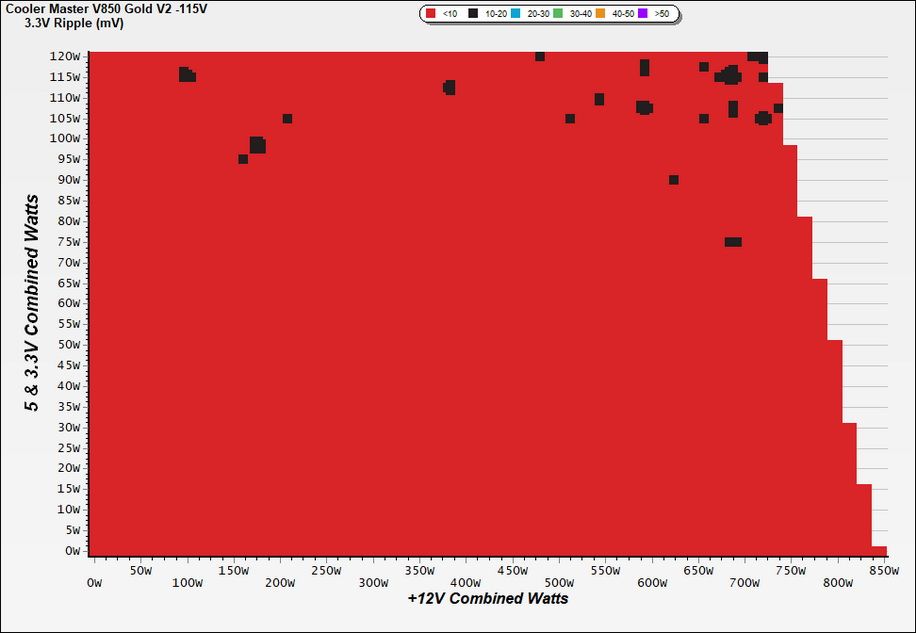

The lower the power supply's ripple, the more stable the system will be and less stress will also be applied to its components.
Ripple Suppression Graphs

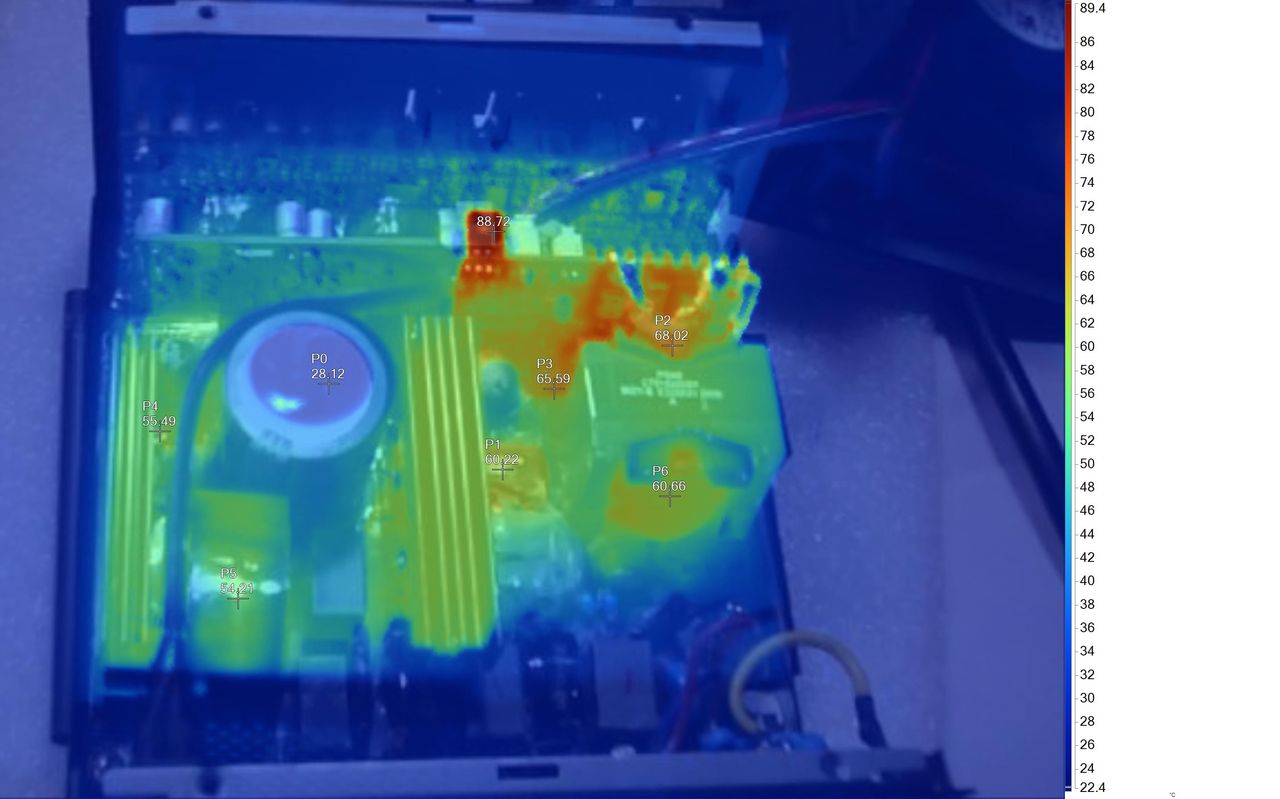

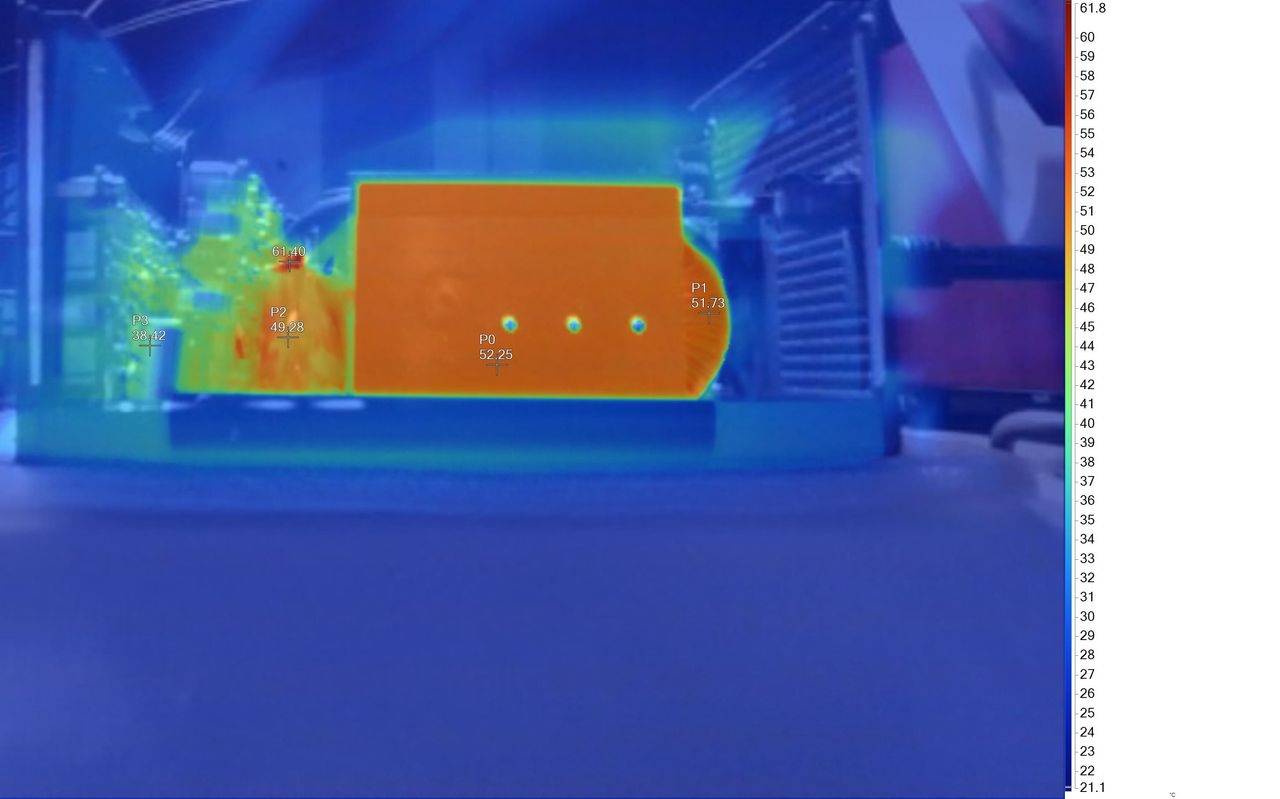

Infrared Images

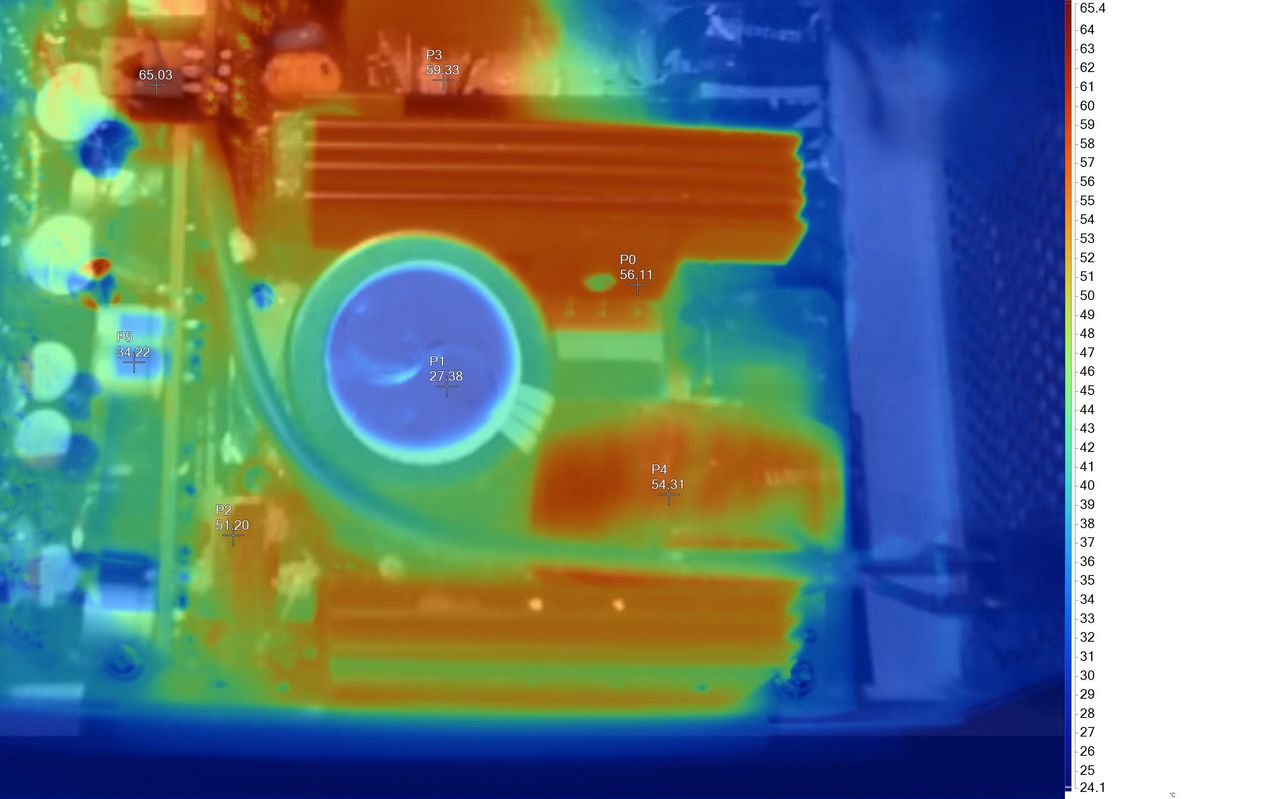

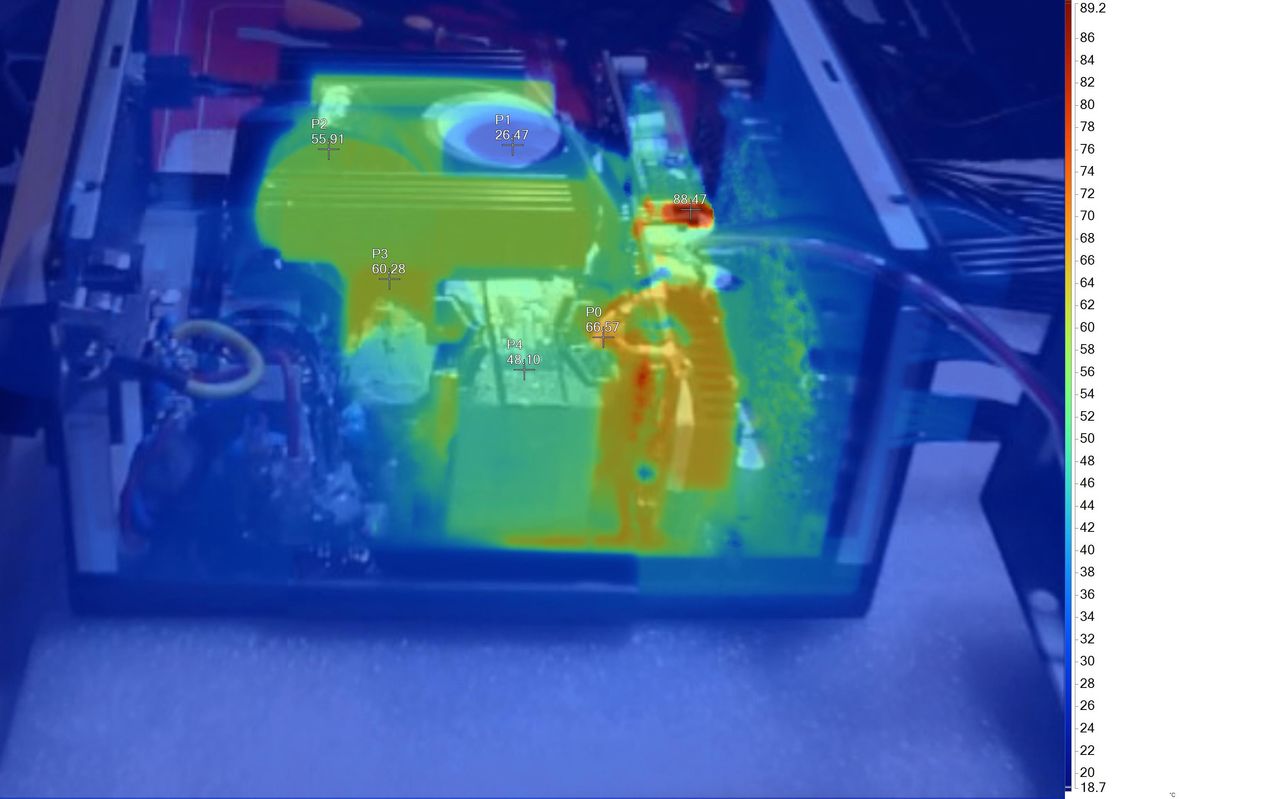

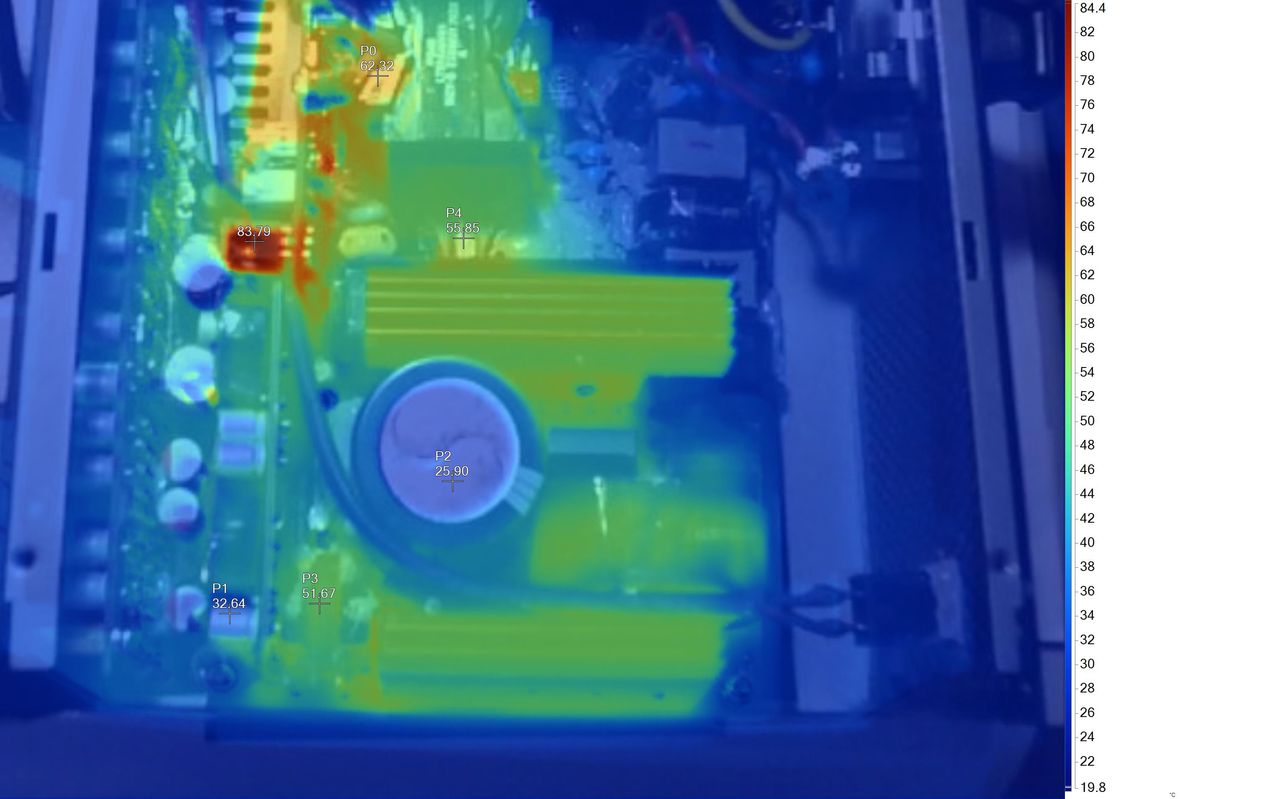

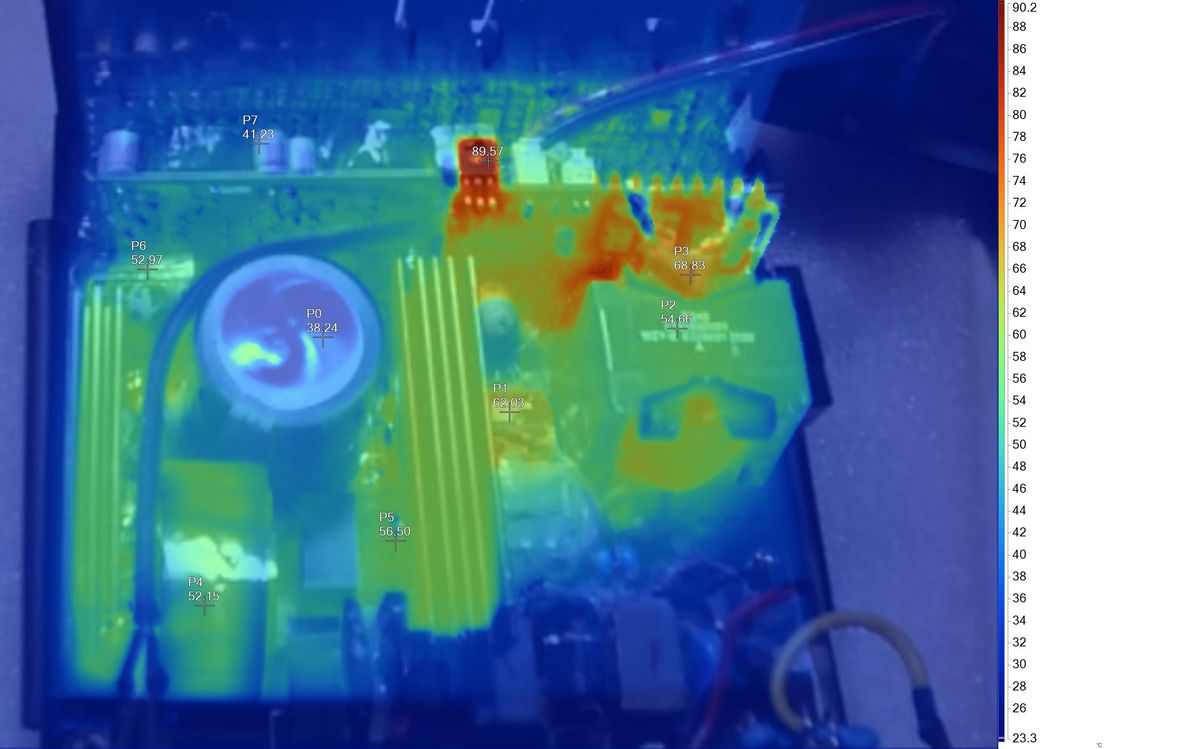

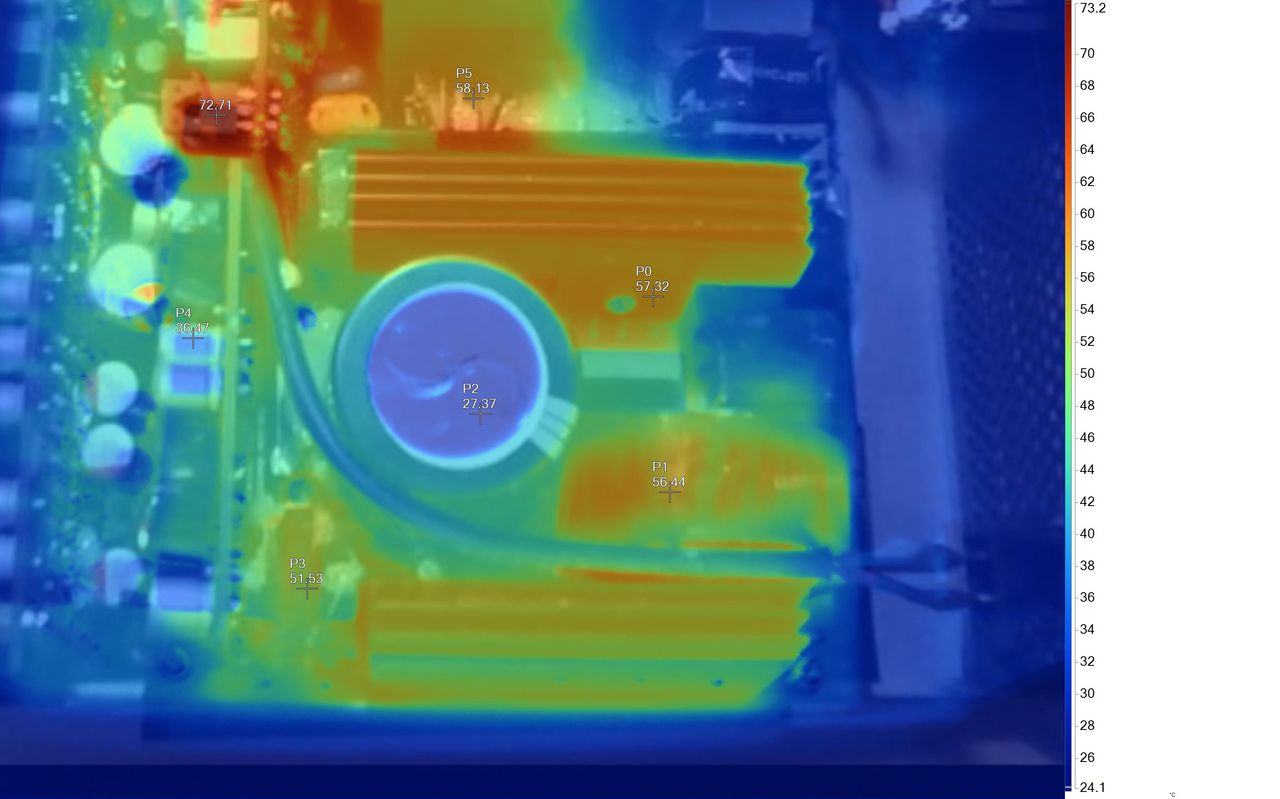

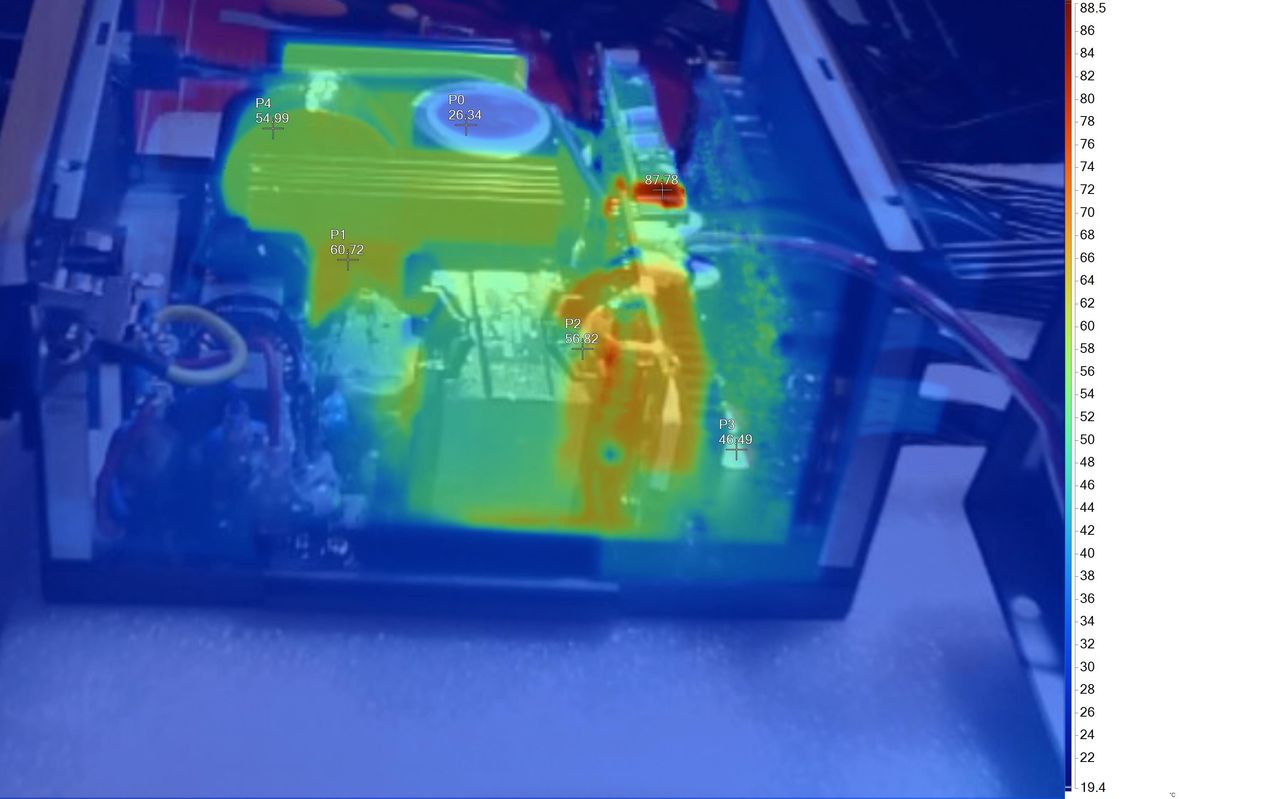

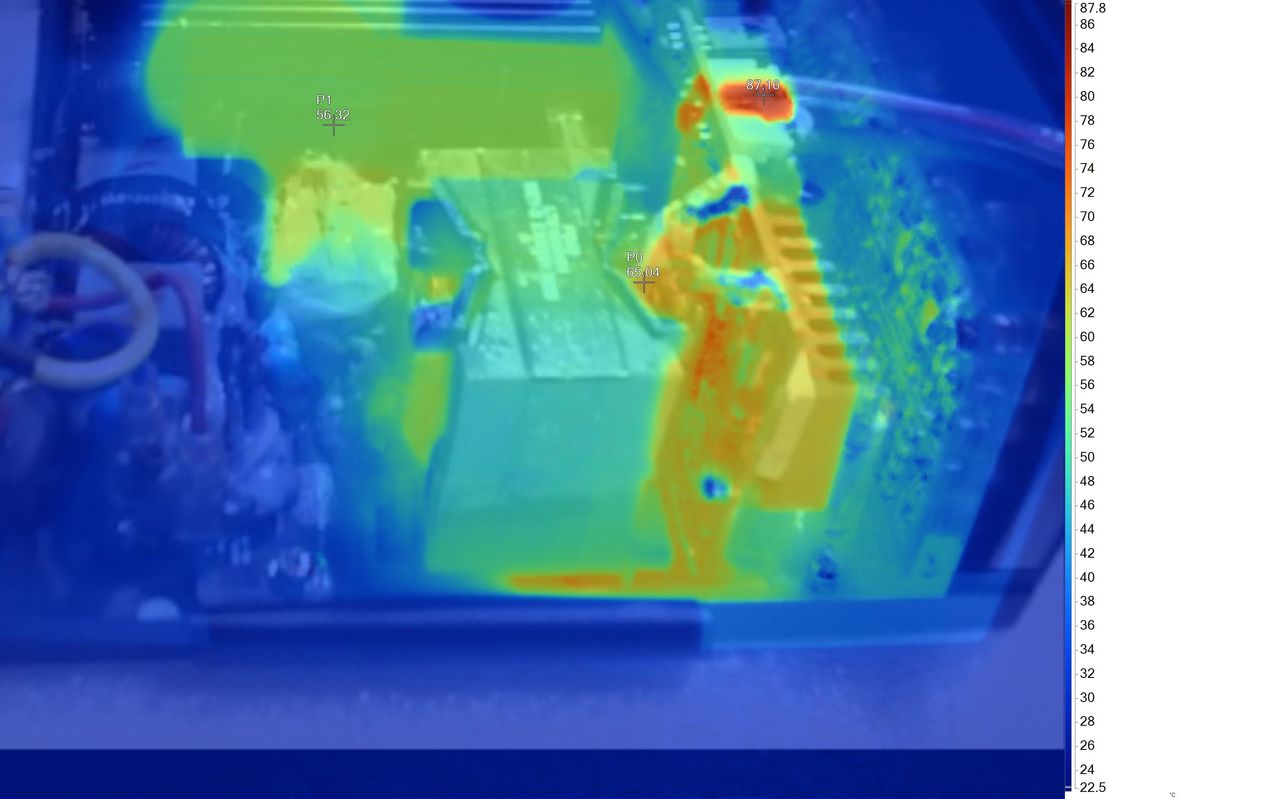

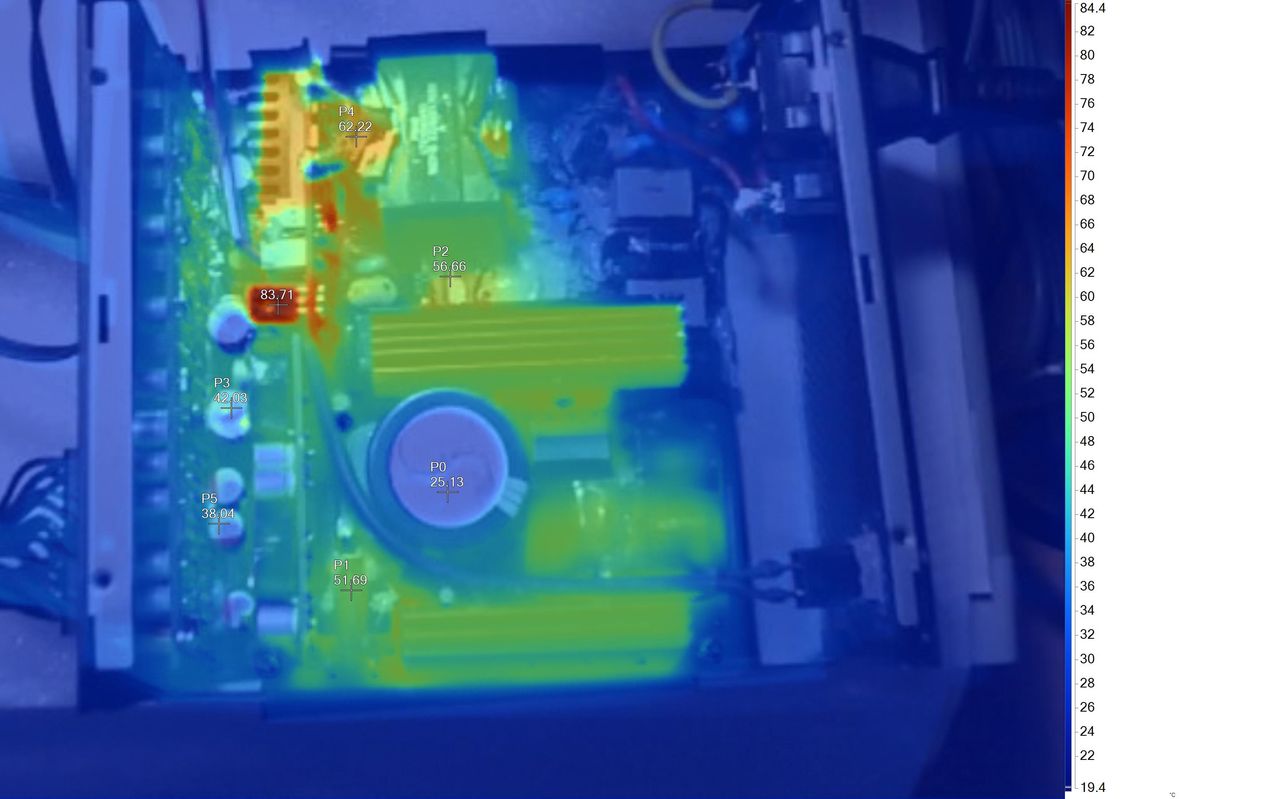

We apply a half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with a modified FLIR E4 camera able to deliver an IR resolution of 320x240 (76,800 pixels).
IR Images

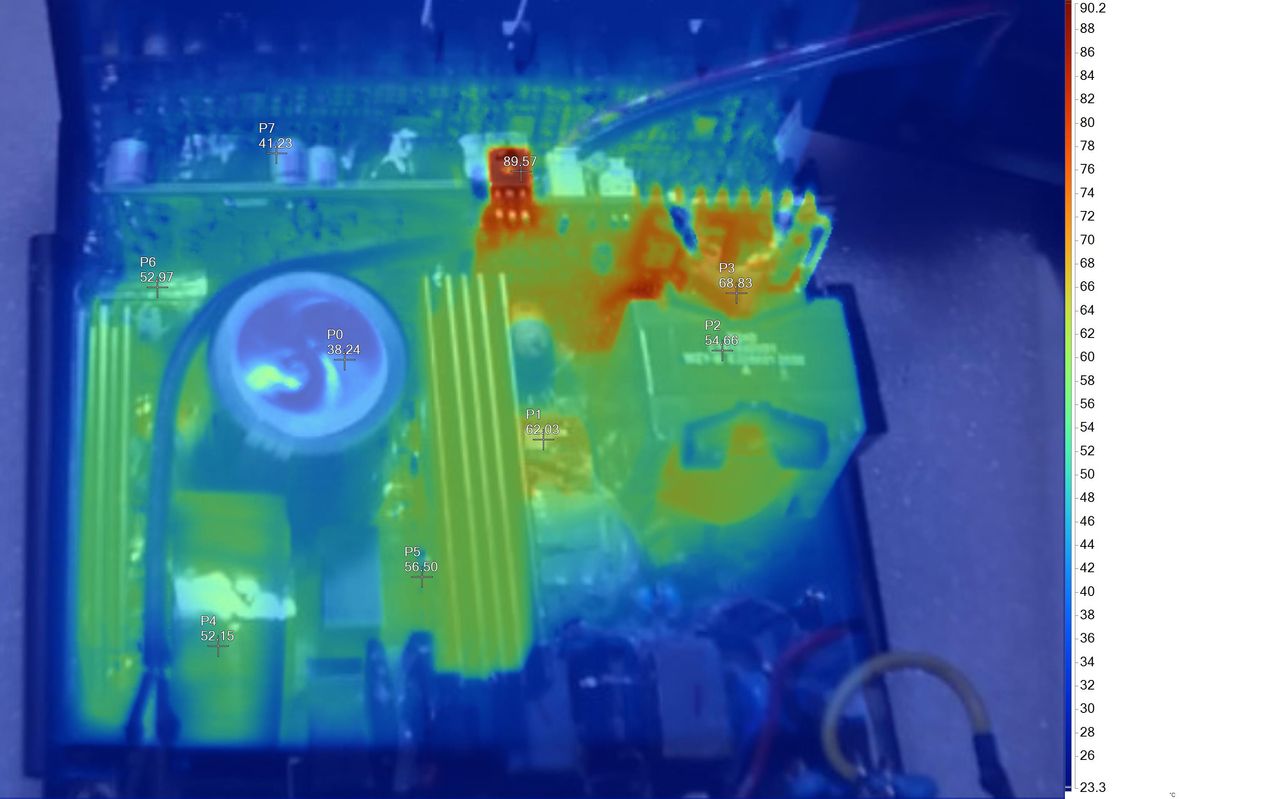

The temperatures are kept low, with the highest recorded on the main transformer that transfers power to the 12V board.

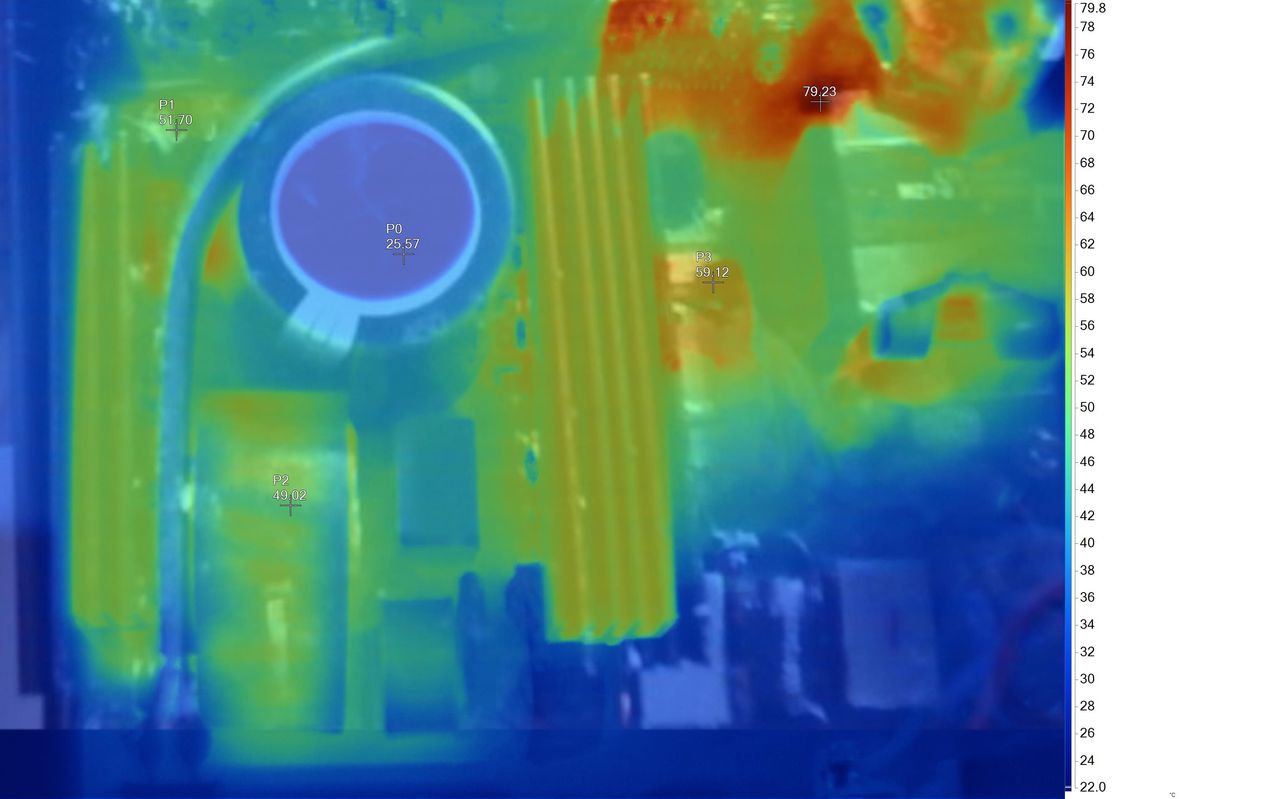

It makes an impression of the fan control transistor's high temperature, but with the fan cooling it down, its temperature will be notably lower.
MORE: Best Power Supplies
MORE: How We Test Power Supplies
MORE: All Power Supply Content
