Three Down-Draft Heat Sinks: The Last Of A Dying Breed?

Features
By Patrick Afschar
published

There’s an enormous amount of aftermarket coolers available to those wanting more performance or lower temperatures. The market’s currently dominated by tower coolers, and top coolers have fallen out of favor. Rightfully so? We find out.

Benchmark Overview

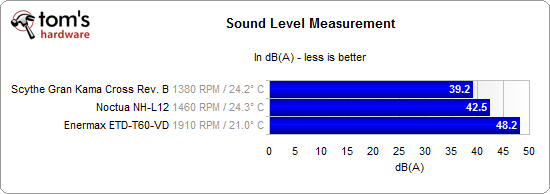

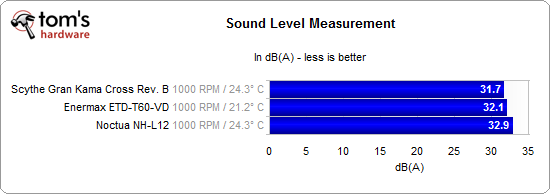

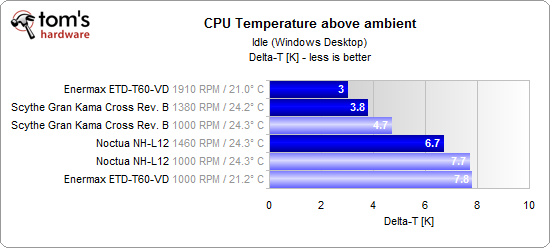

Enermax's ETD-T60-VD has the best cooling performance at idle, but only when its fan is spinning as fast as it'll go. The downside of this quickly becomes apparent in the face of a 48.2 dB(A) noise level, which is the loudest in our round-up. Scythe's SCKC-2100 performs slightly worse with its fan going all-out, but it generates a much less obnoxious 39.2 dB(A). You can further slow the fan speed down to 1000 RPM without losing much cooling performance and get to a nice 32 dB(A).

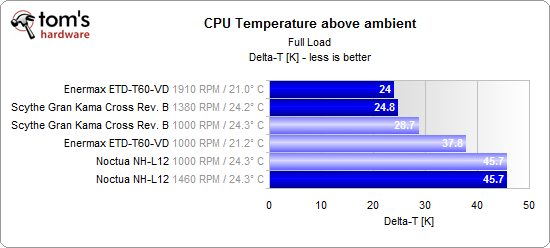

The finishing order looks the same under full load. Enermax and Scythe lead, as Noctua's NH-L12 can’t quite compete with them. As we pointed out before, it's interesting that the Noctua NH-L12 cooler performs similarly with a fan speed of 1000 and 1460 RPM.

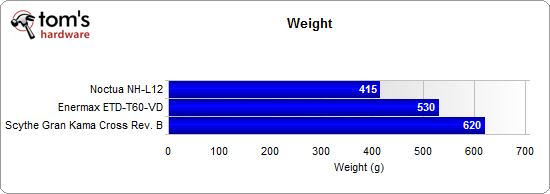

Noise and Weight
