Ripple Measurements
To learn how we measure ripple, please click here.
The following table includes the ripple levels we measured on the EVGA 1000 G3's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 5.7mV | 4.2mV | 7.4mV | 4.6mV | Pass |
| 20% Load | 7.2mV | 4.3mV | 8.0mV | 5.4mV | Pass |
| 30% Load | 6.9mV | 5.1mV | 8.4mV | 5.6mV | Pass |
| 40% Load | 7.7mV | 4.8mV | 9.0mV | 5.8mV | Pass |
| 50% Load | 7.9mV | 5.0mV | 9.3mV | 6.1mV | Pass |
| 60% Load | 8.6mV | 4.9mV | 10.2mV | 6.1mV | Pass |
| 70% Load | 8.3mV | 5.2mV | 10.7mV | 7.2mV | Pass |
| 80% Load | 9.8mV | 5.9mV | 11.0mV | 8.5mV | Pass |
| 90% Load | 10.1mV | 6.1mV | 11.9mV | 9.6mV | Pass |
| 100% Load | 12.0mV | 7.1mV | 12.2mV | 12.6mV | Pass |
| 110% Load | 12.1mV | 8.4mV | 13.0mV | 13.7mV | Pass |
| Cross-Load 1 | 6.4mV | 5.8mV | 8.6mV | 17.8mV | Pass |
| Cross-Load 2 | 10.5mV | 7.0mV | 12.4mV | 11.0mV | Pass |

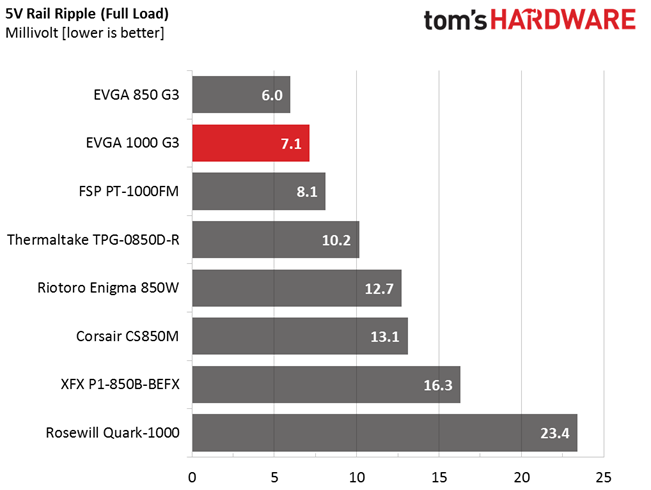

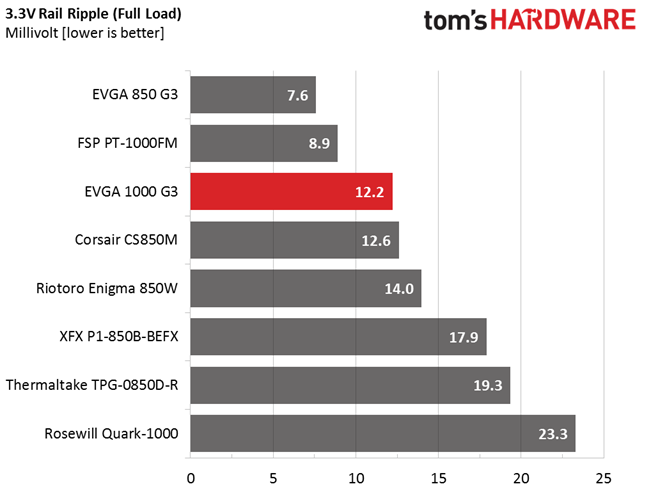

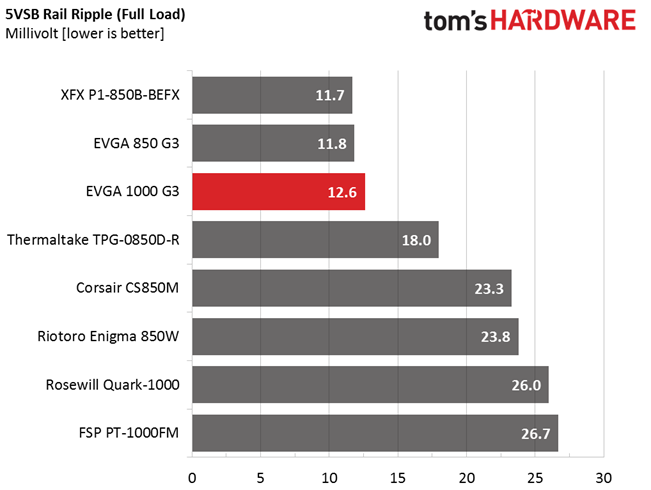

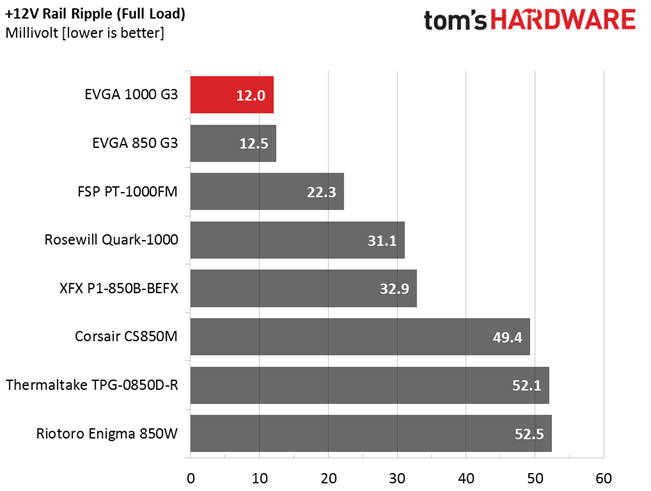

Ripple suppression is outstanding! Super Flower's platforms never cease to amaze us in this discipline.
Ripple Oscilloscope Screenshots
The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

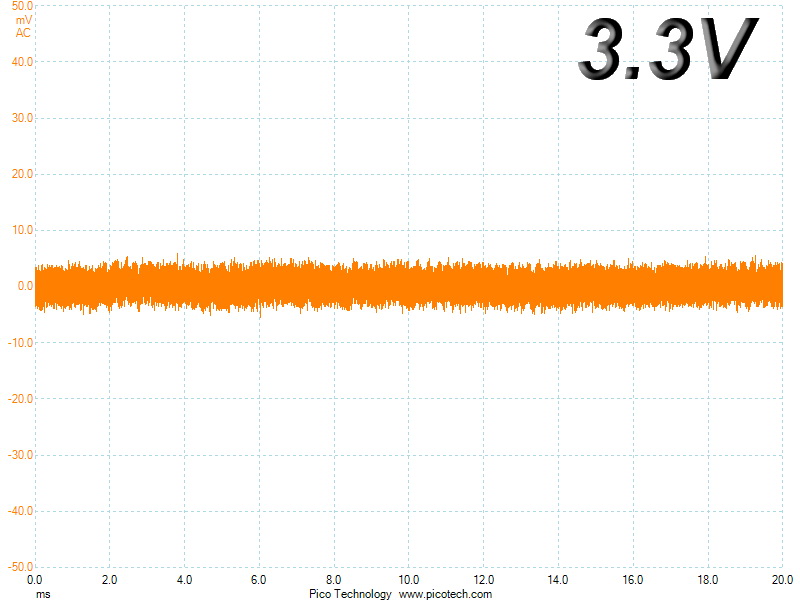

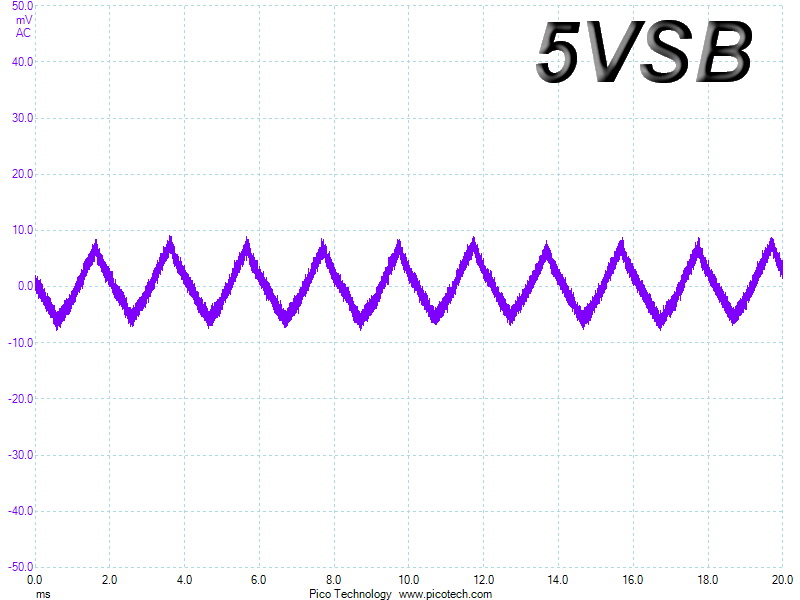

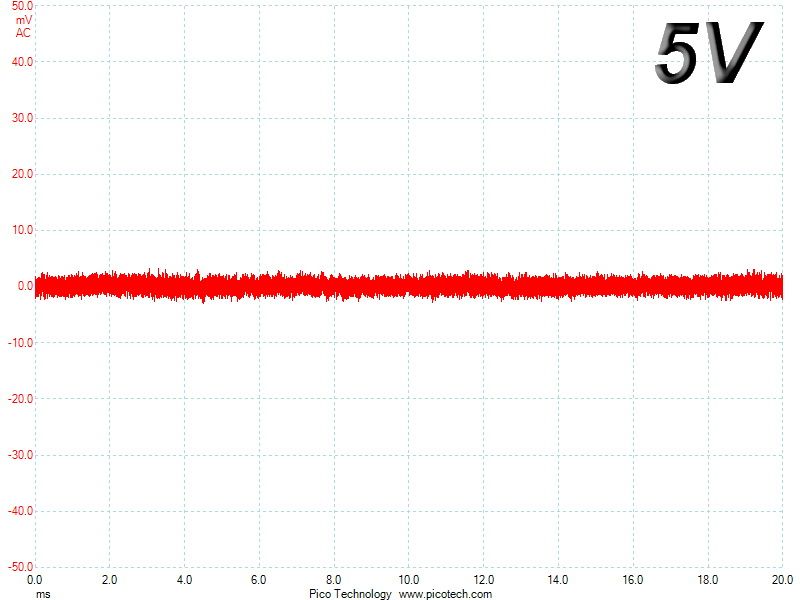

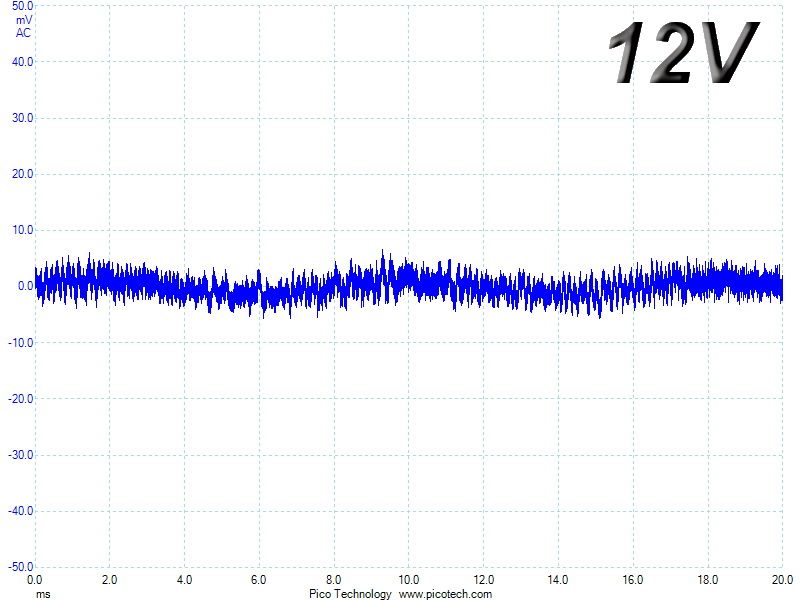

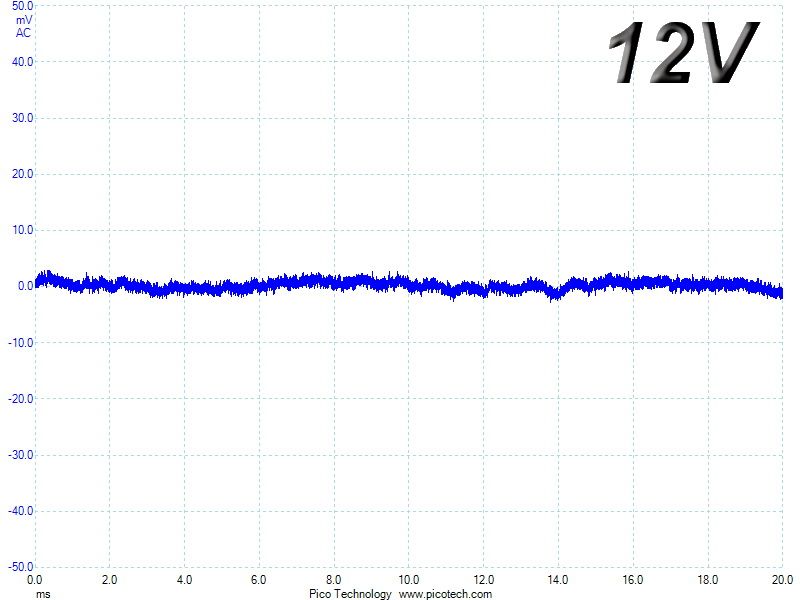

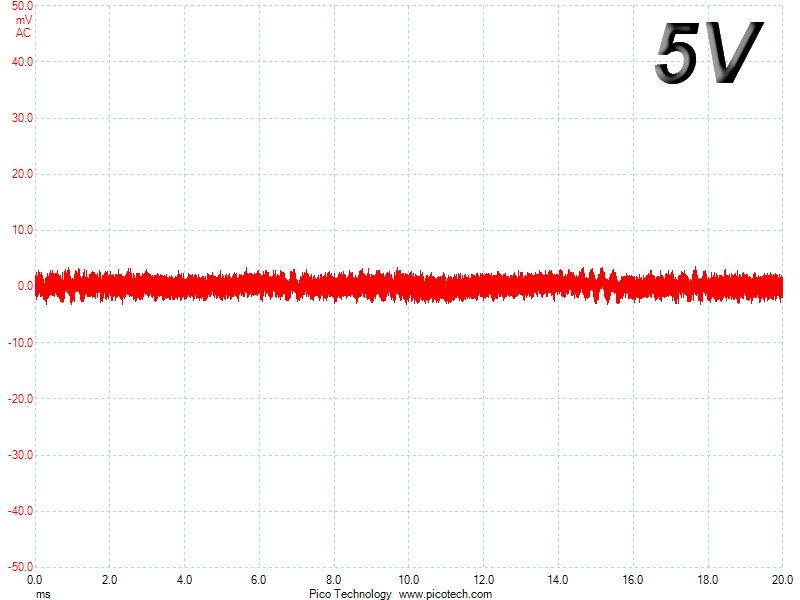

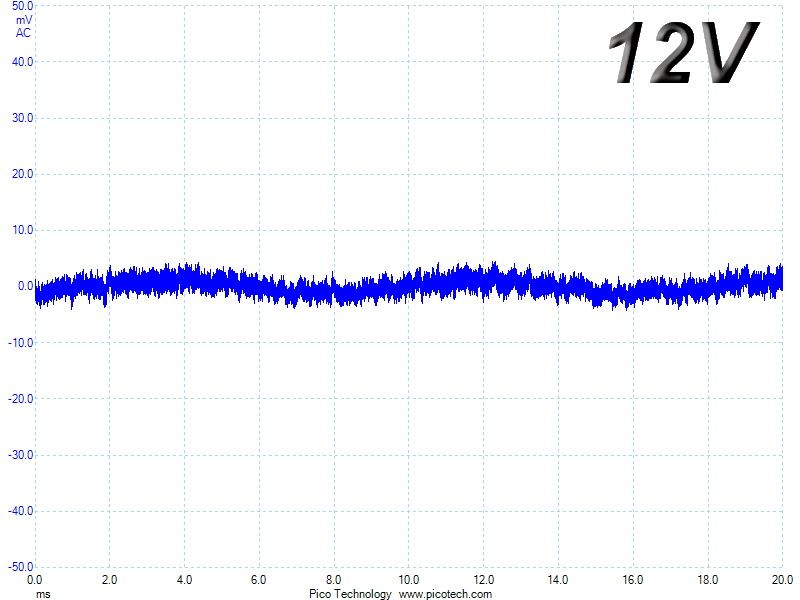

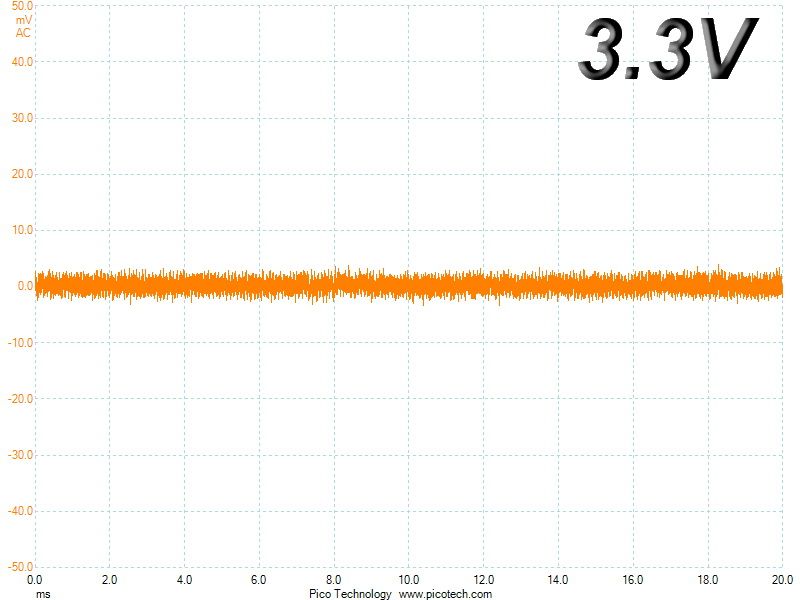

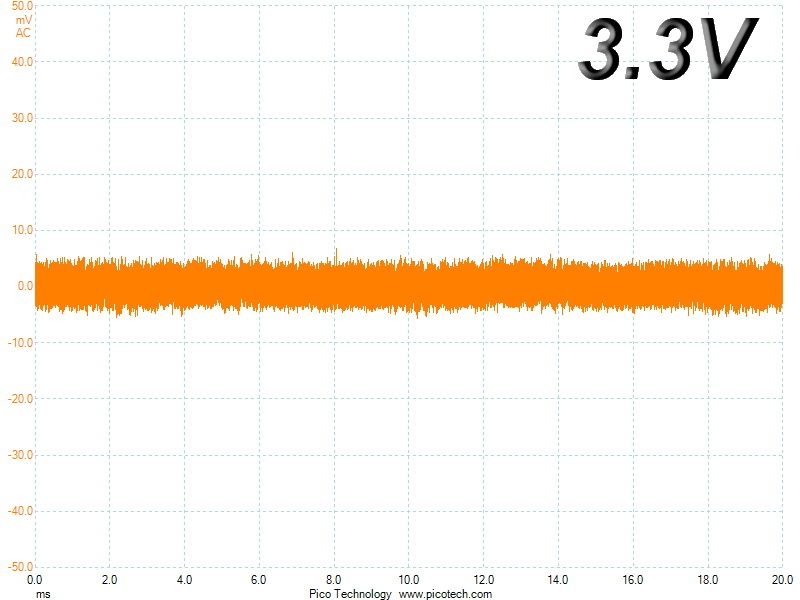

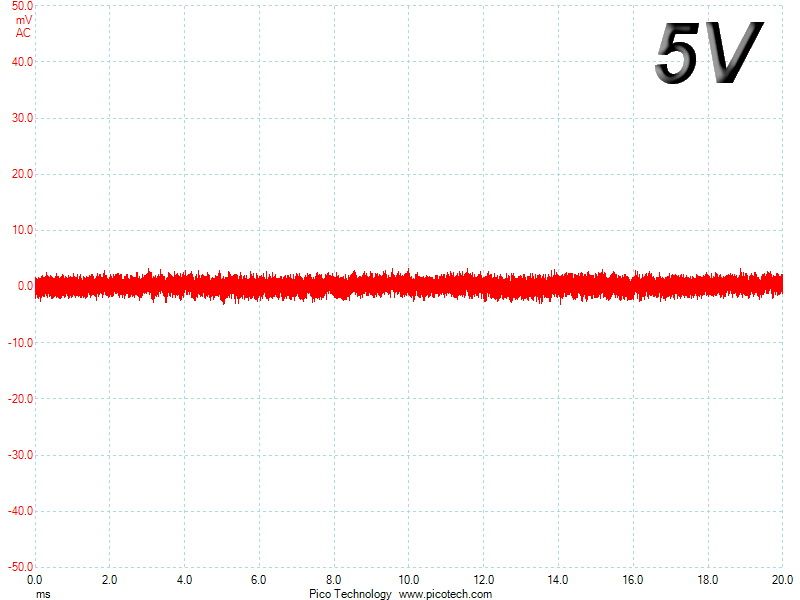

Ripple At Full Load

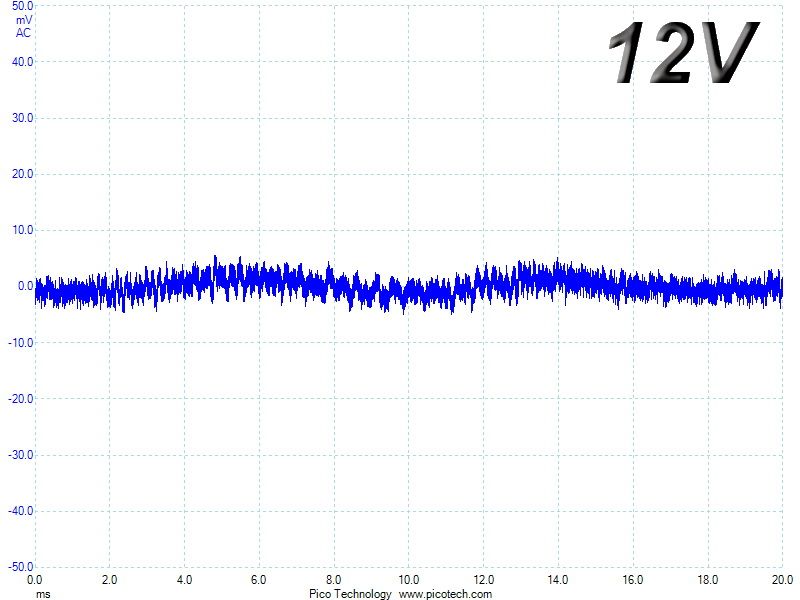

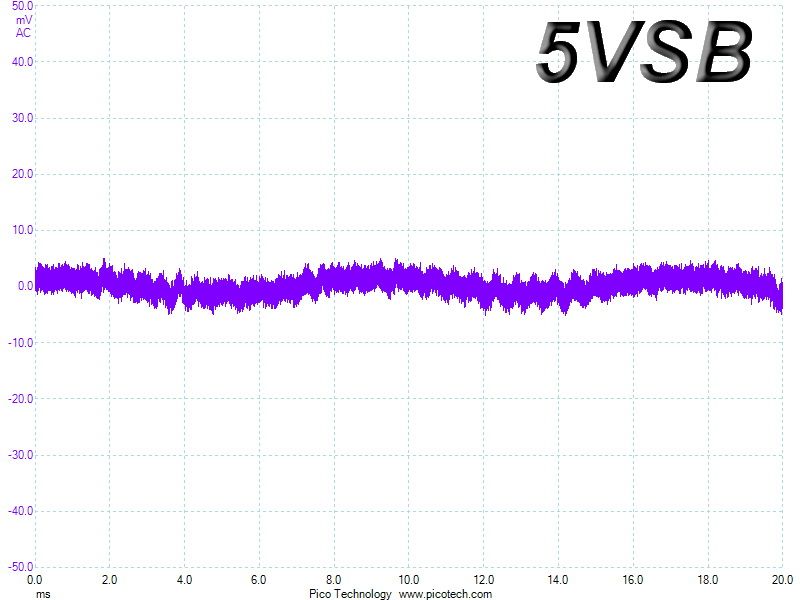

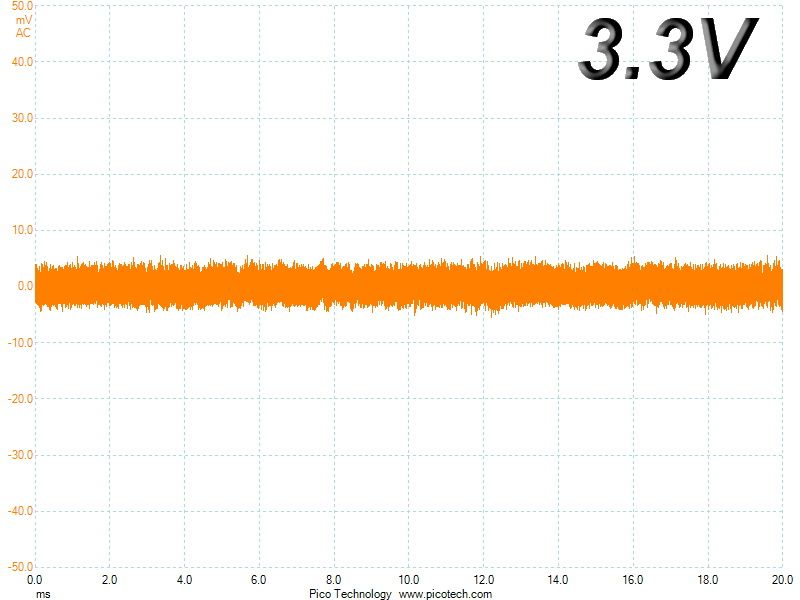

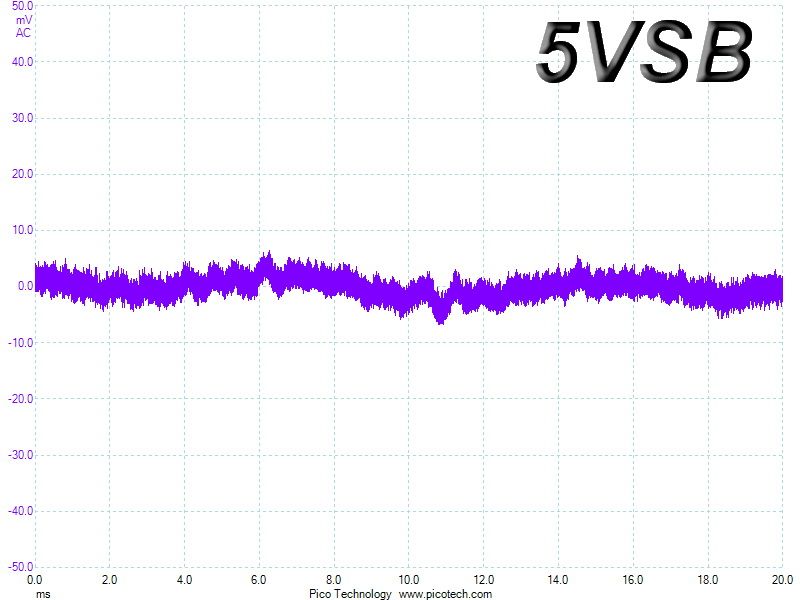

Ripple At 110-Percent Load

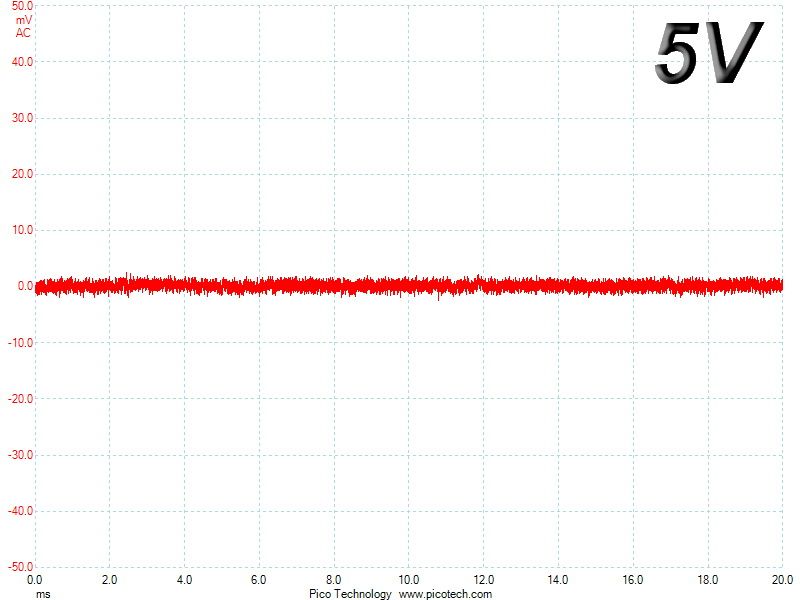

Ripple At Cross-Load 1

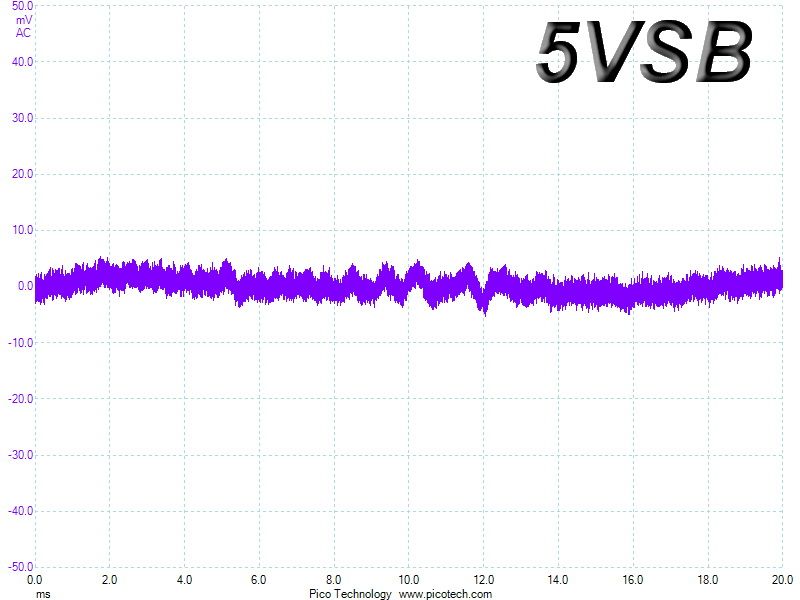

Ripple At Cross-Load 2
