Software

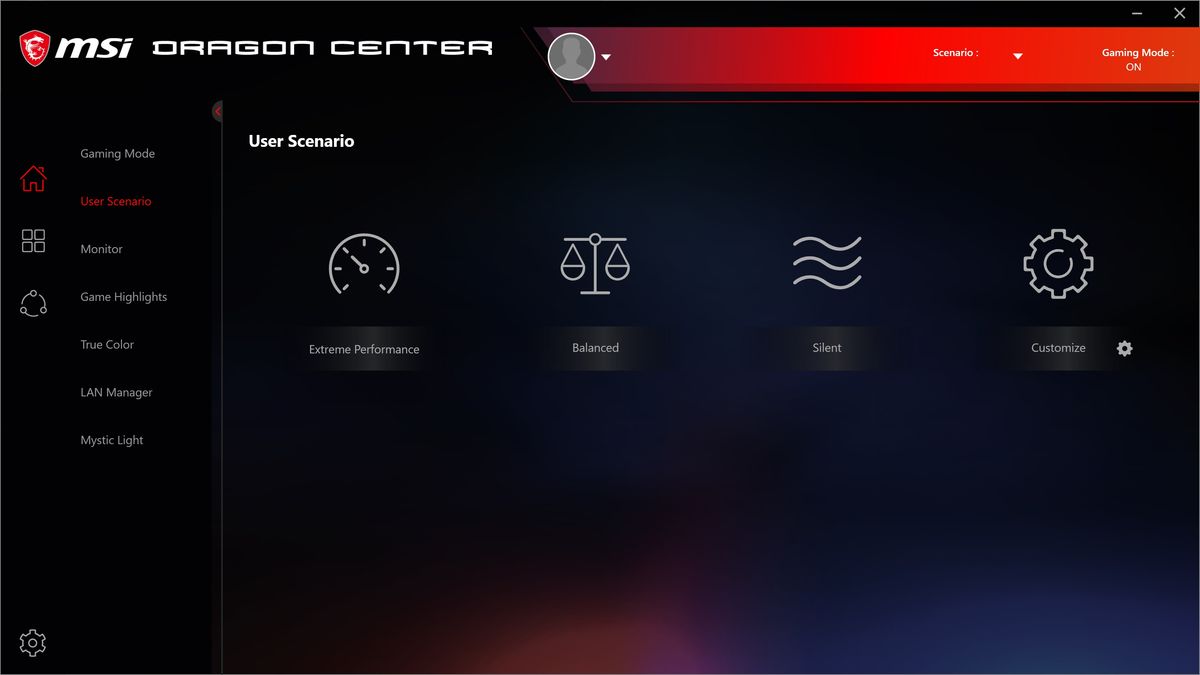

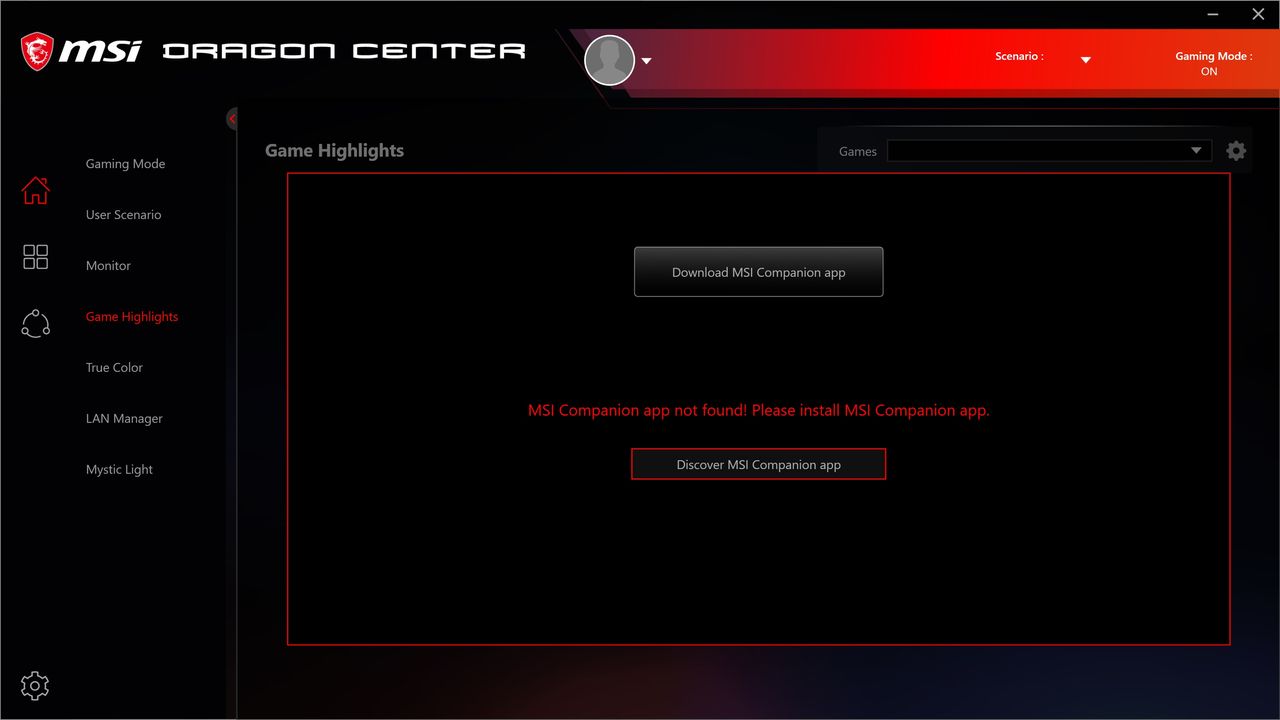

MSI doesn’t offer an excessive amount of software, but it covers all the bases. In the utility section of MSI’s support section for this board is an MSI-skinned version of CPUz, Nahimic Audio control and Dragon Center. Dragon Center (DC) is a one-stop-shop to monitor the system, control RGB lighting (Mystic Light), LAN, and gaming highlights. DC is relatively comprehensive, though it is missing software-based overclocking and fan control.

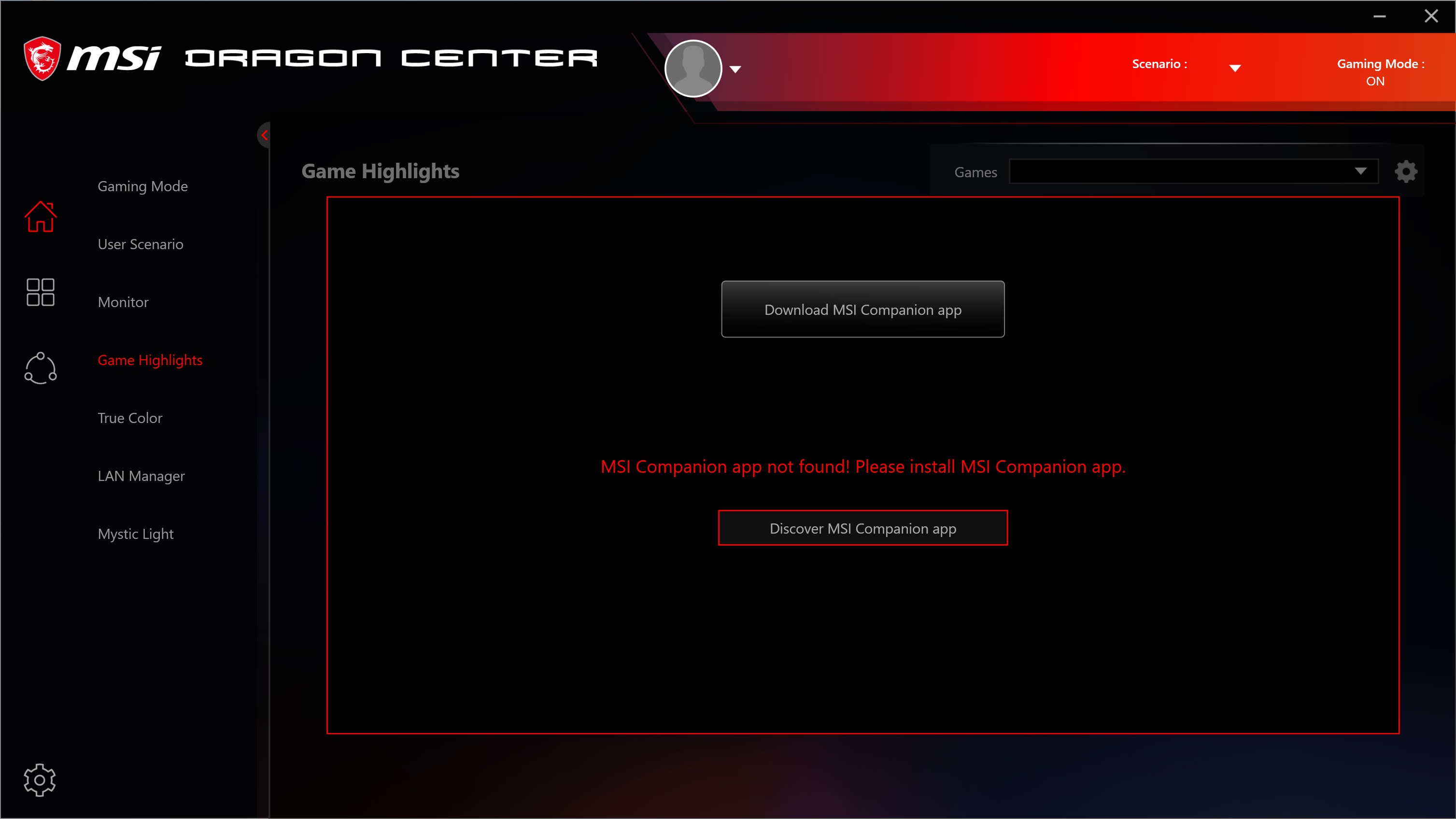

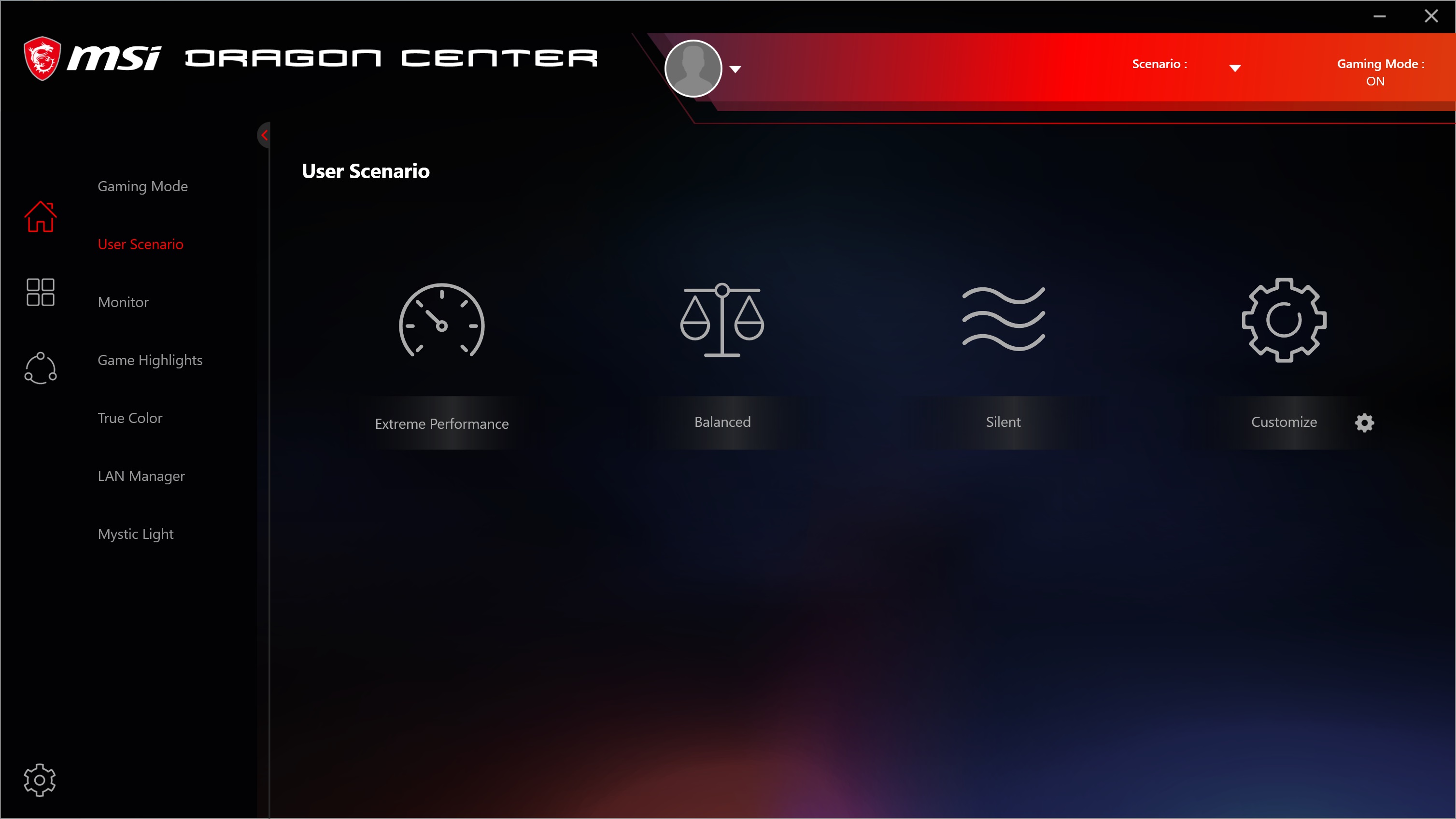

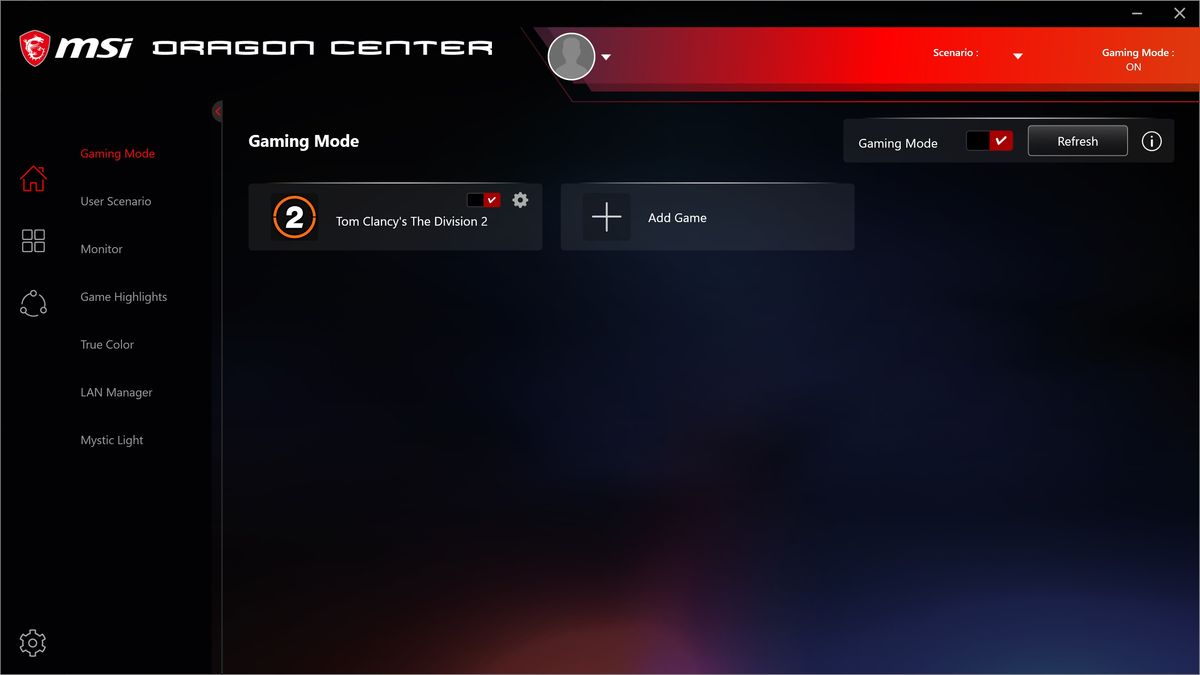

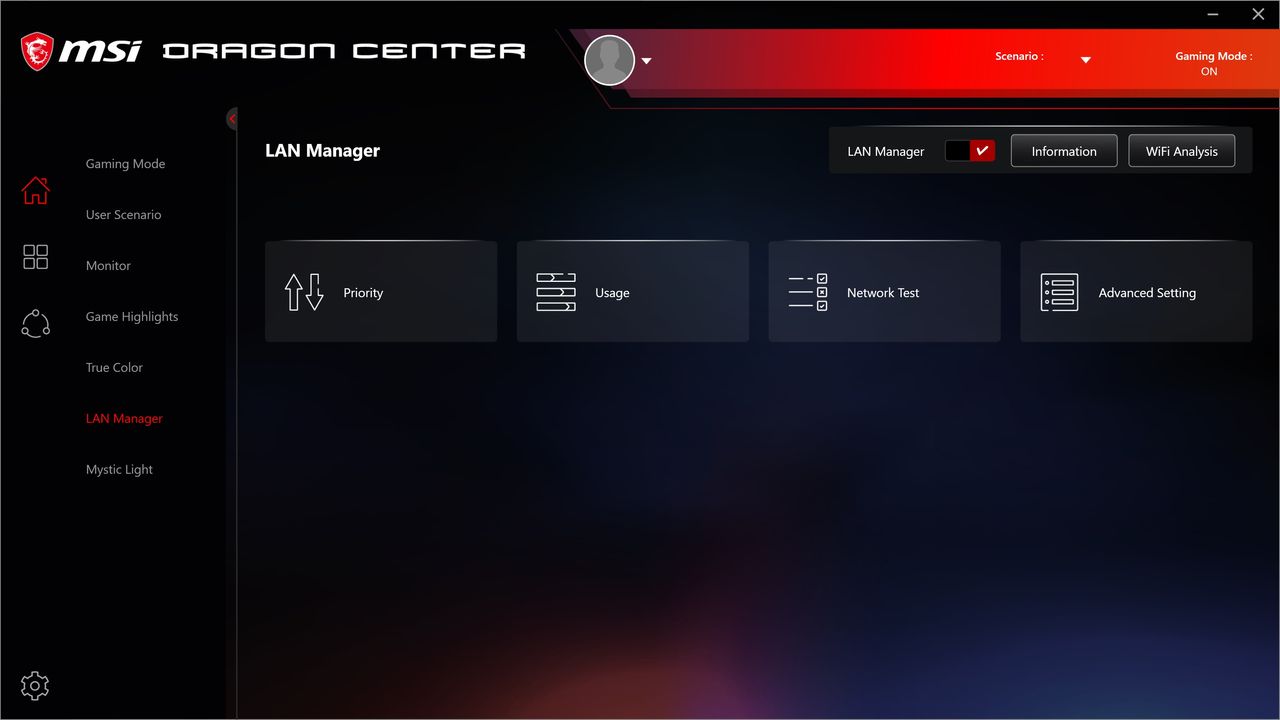

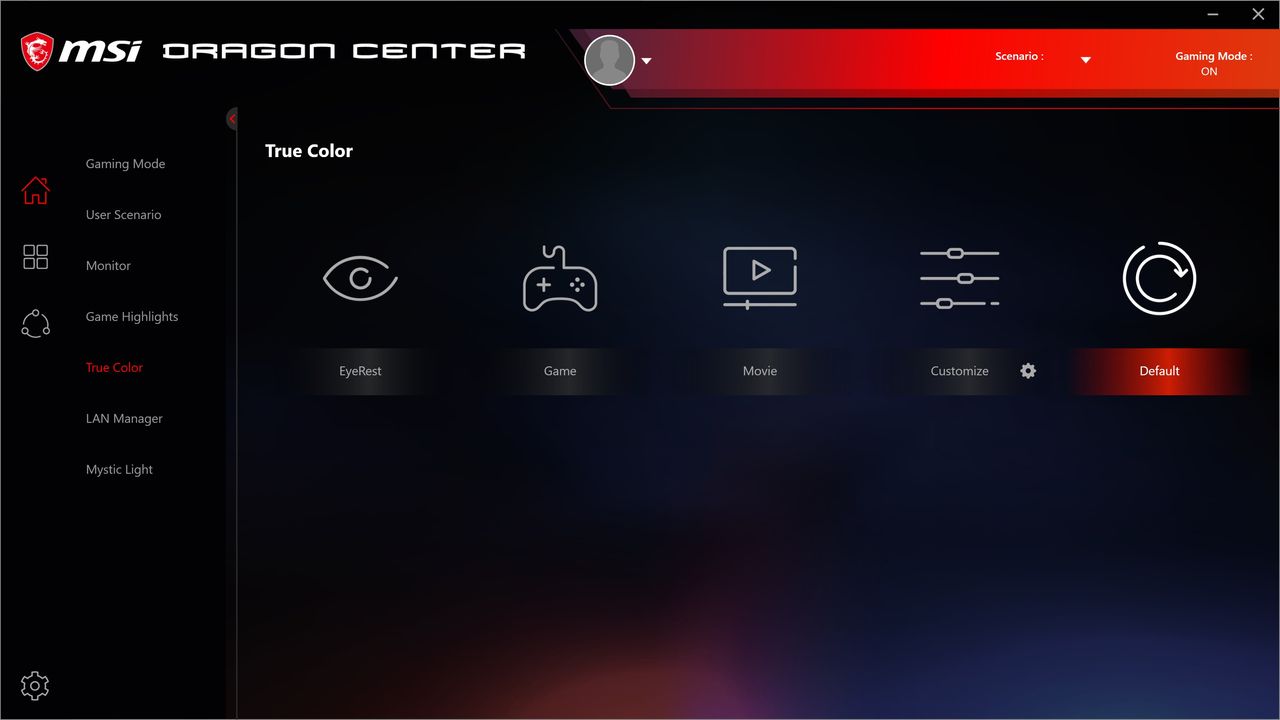

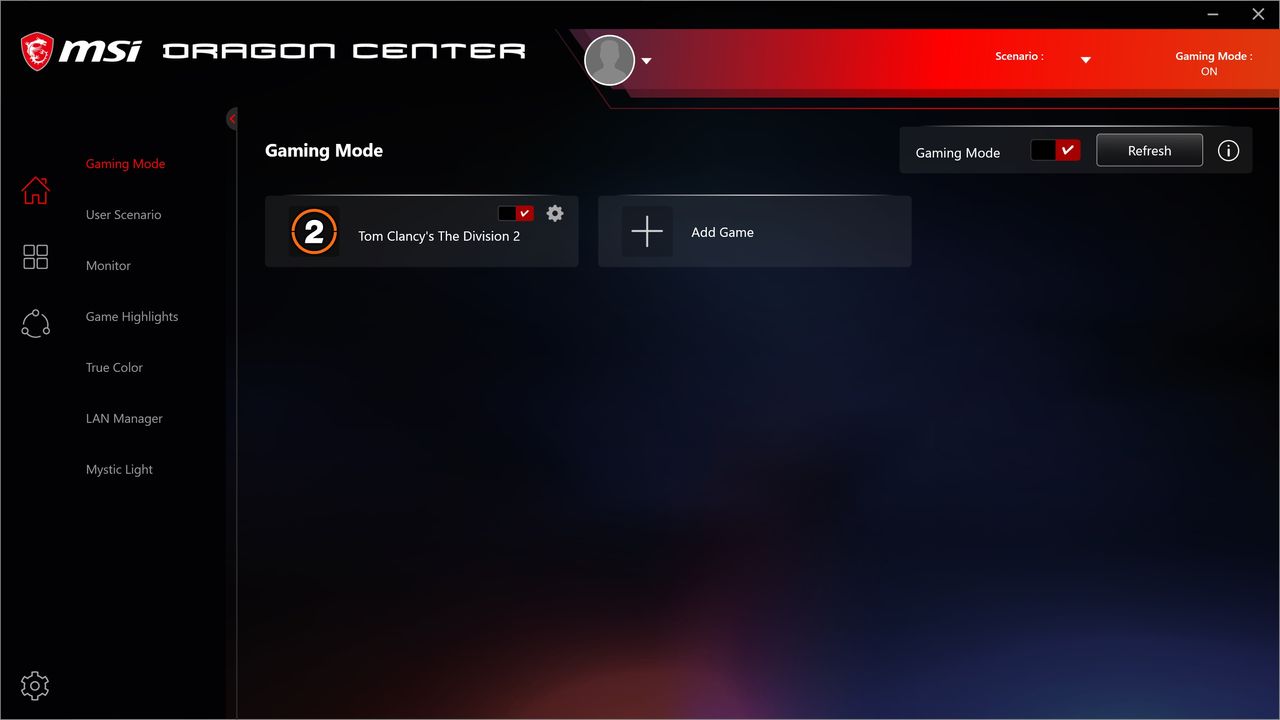

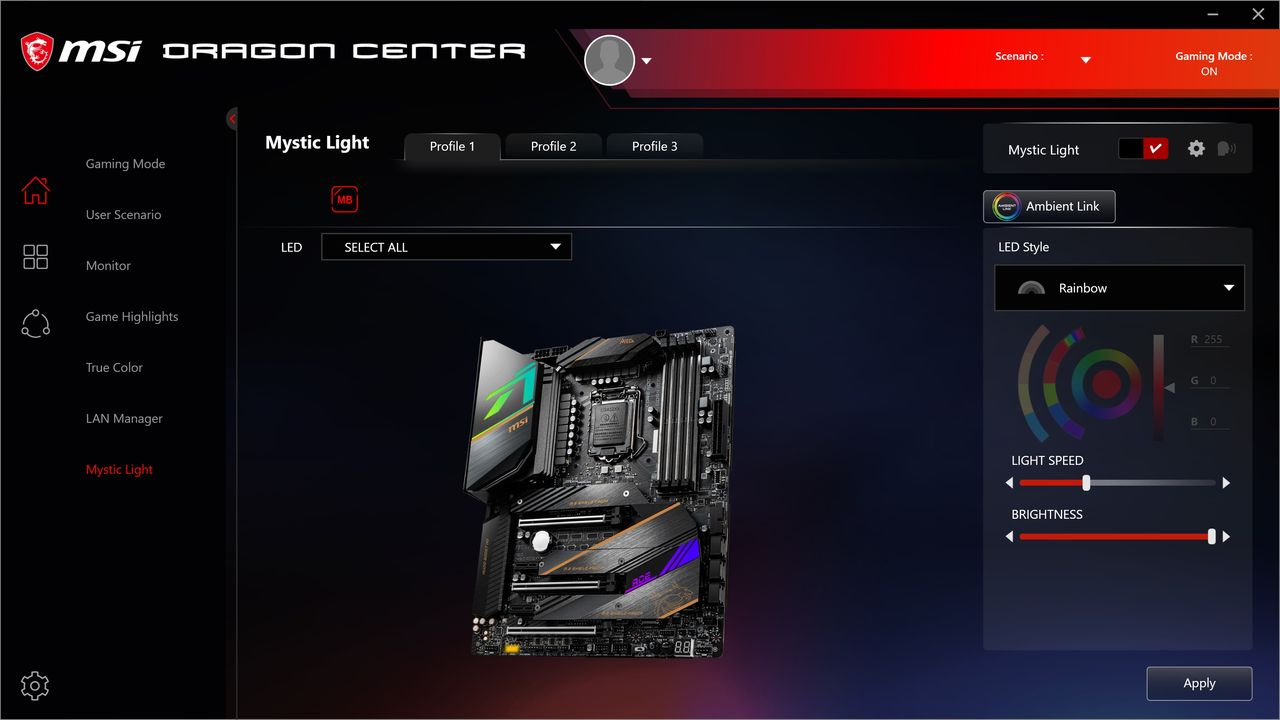

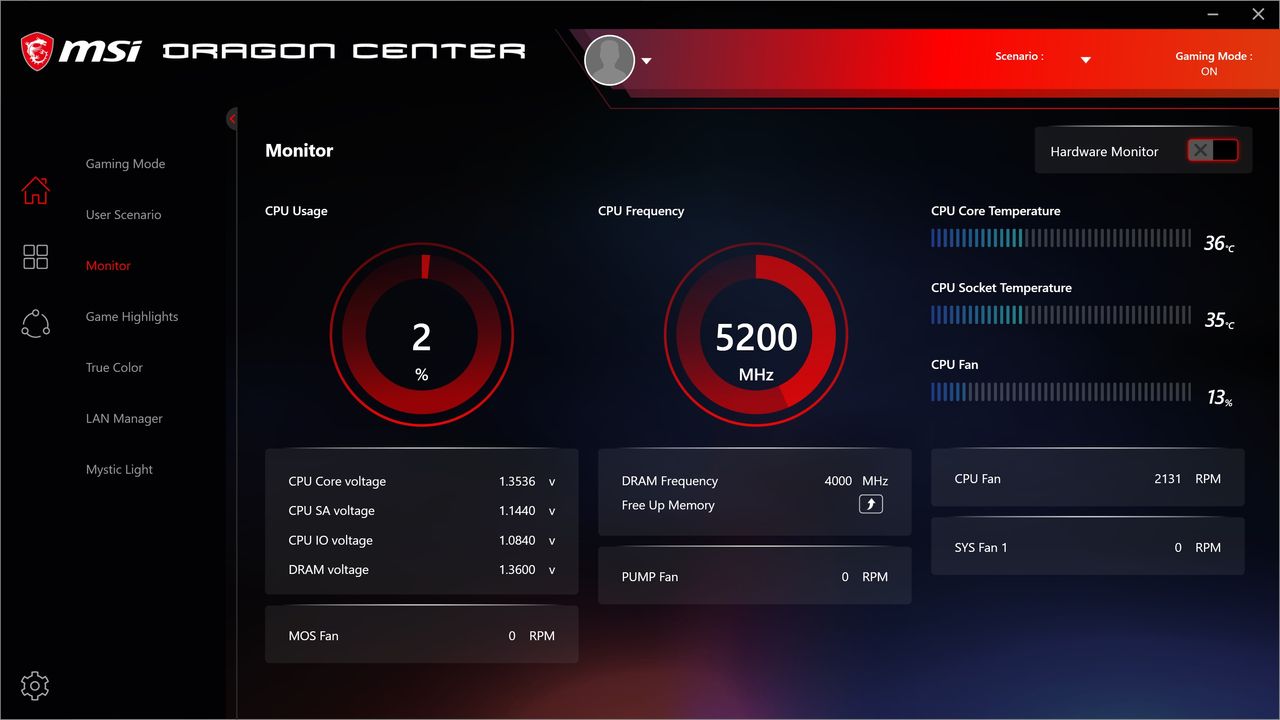

Dragon Center

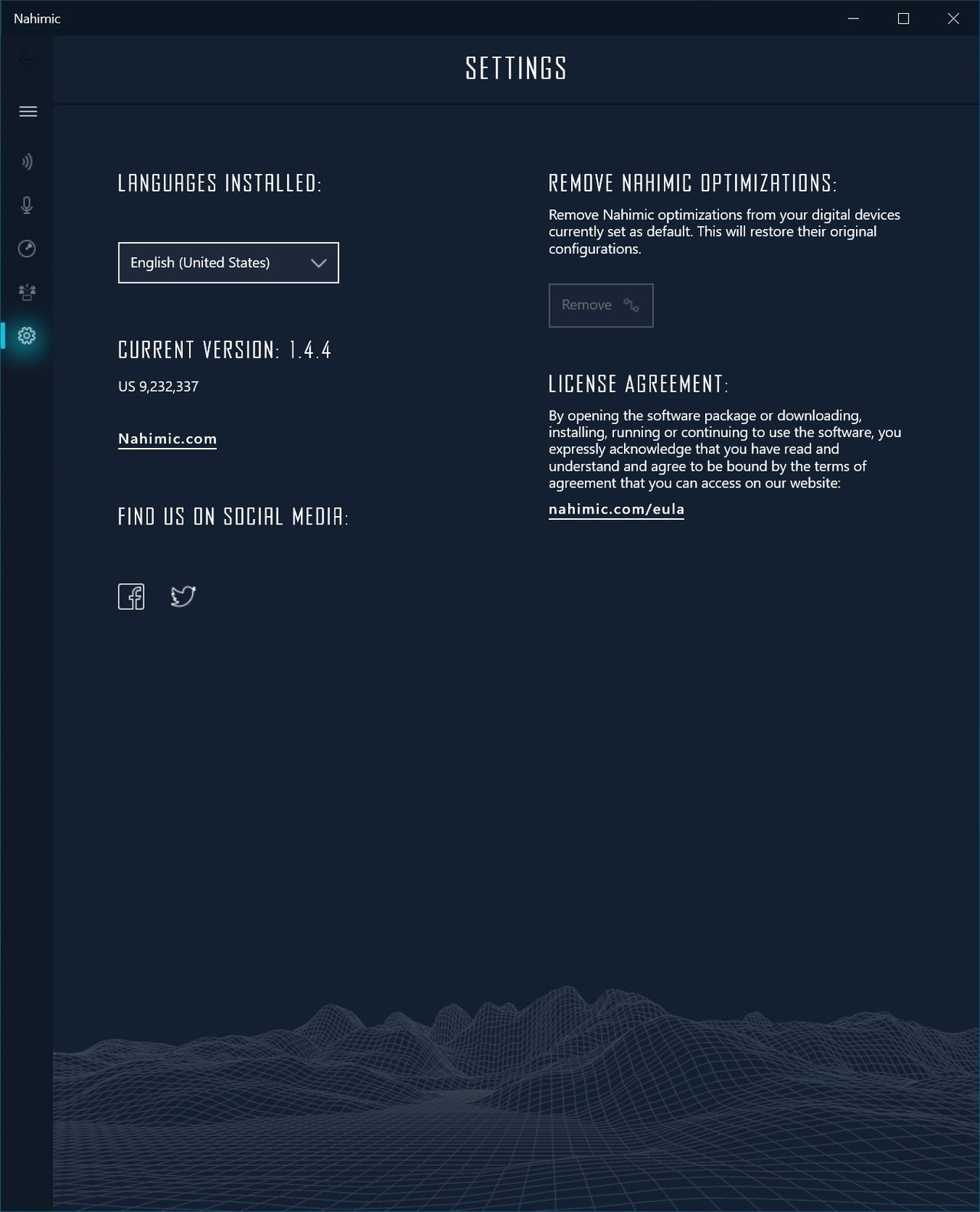

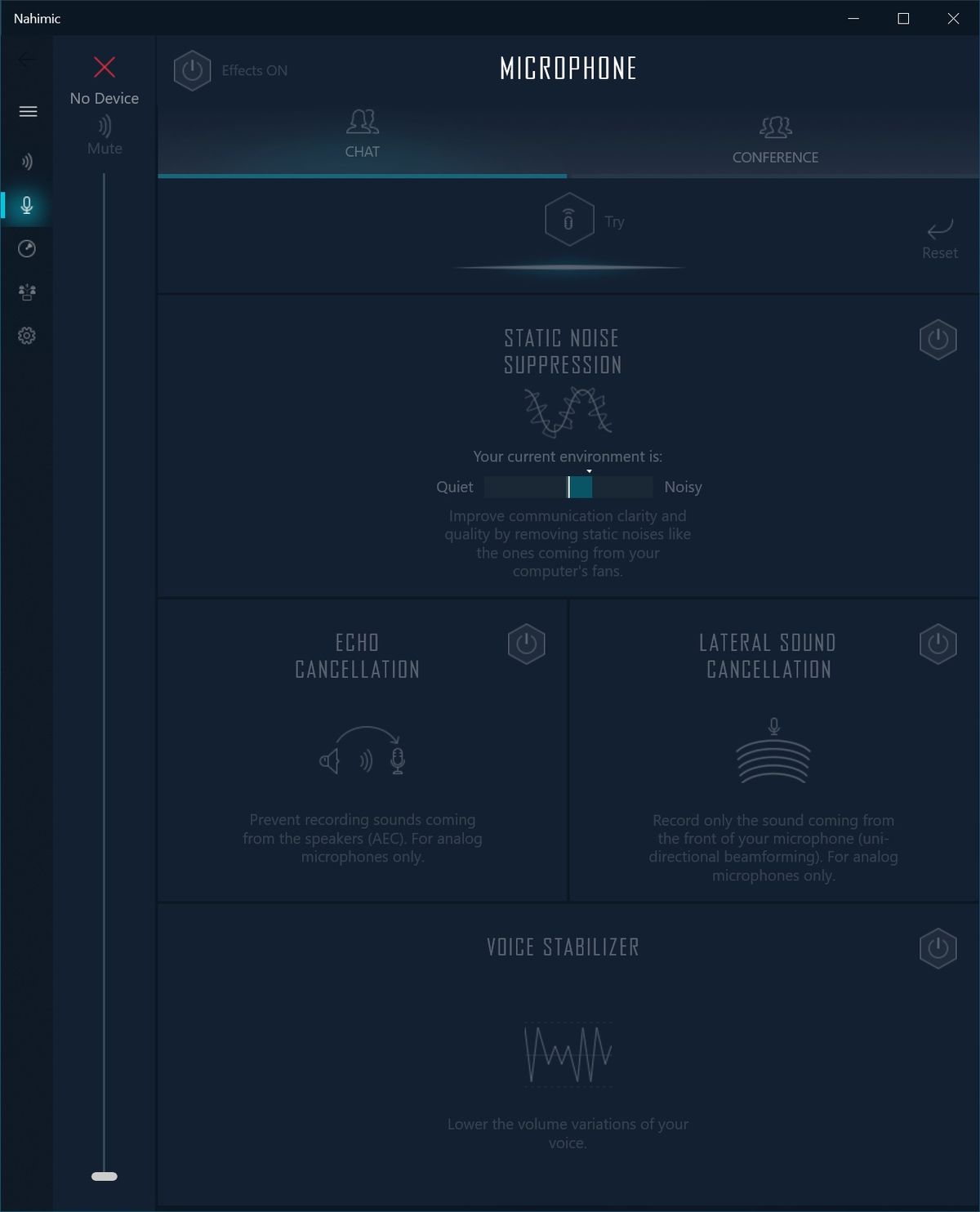

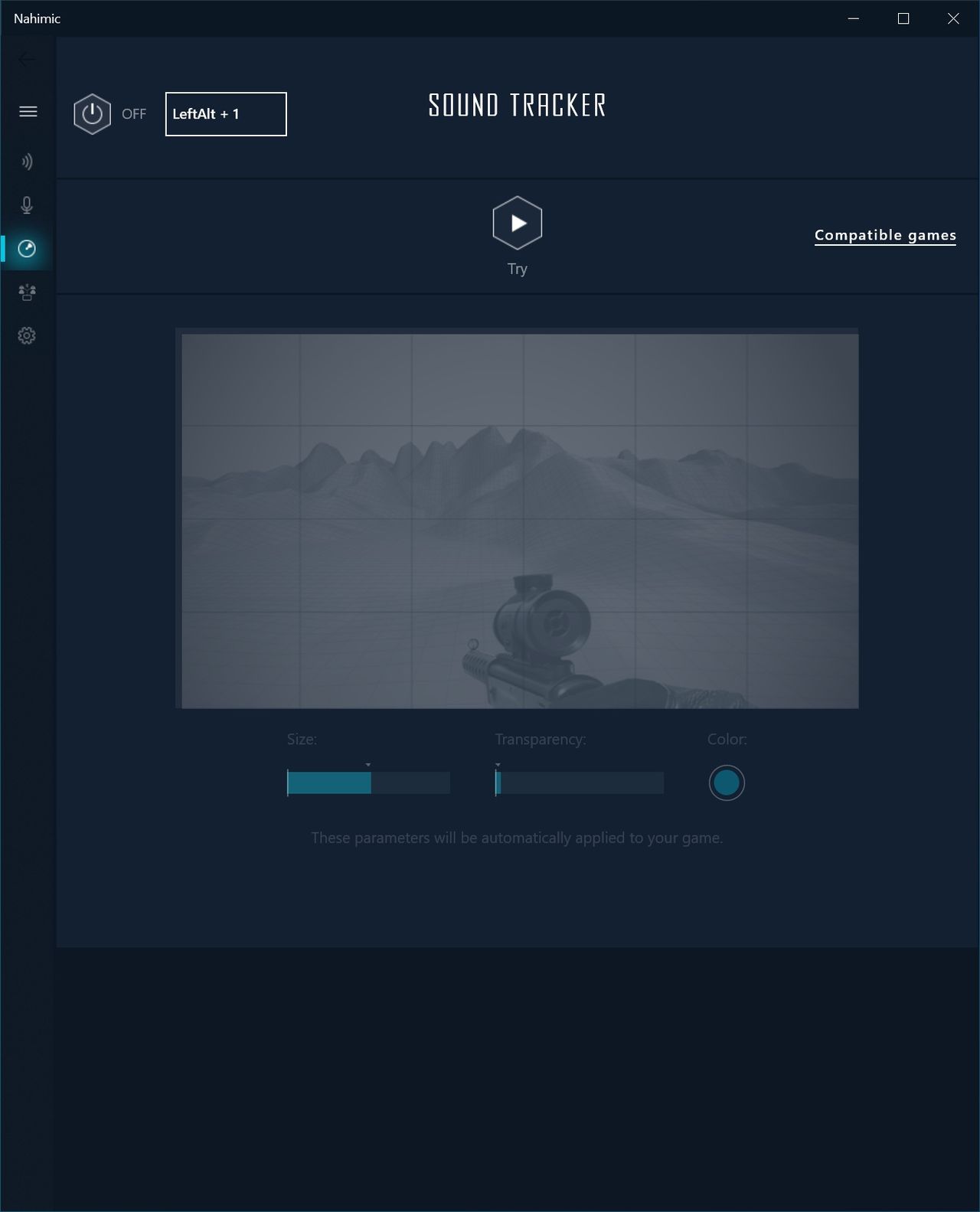

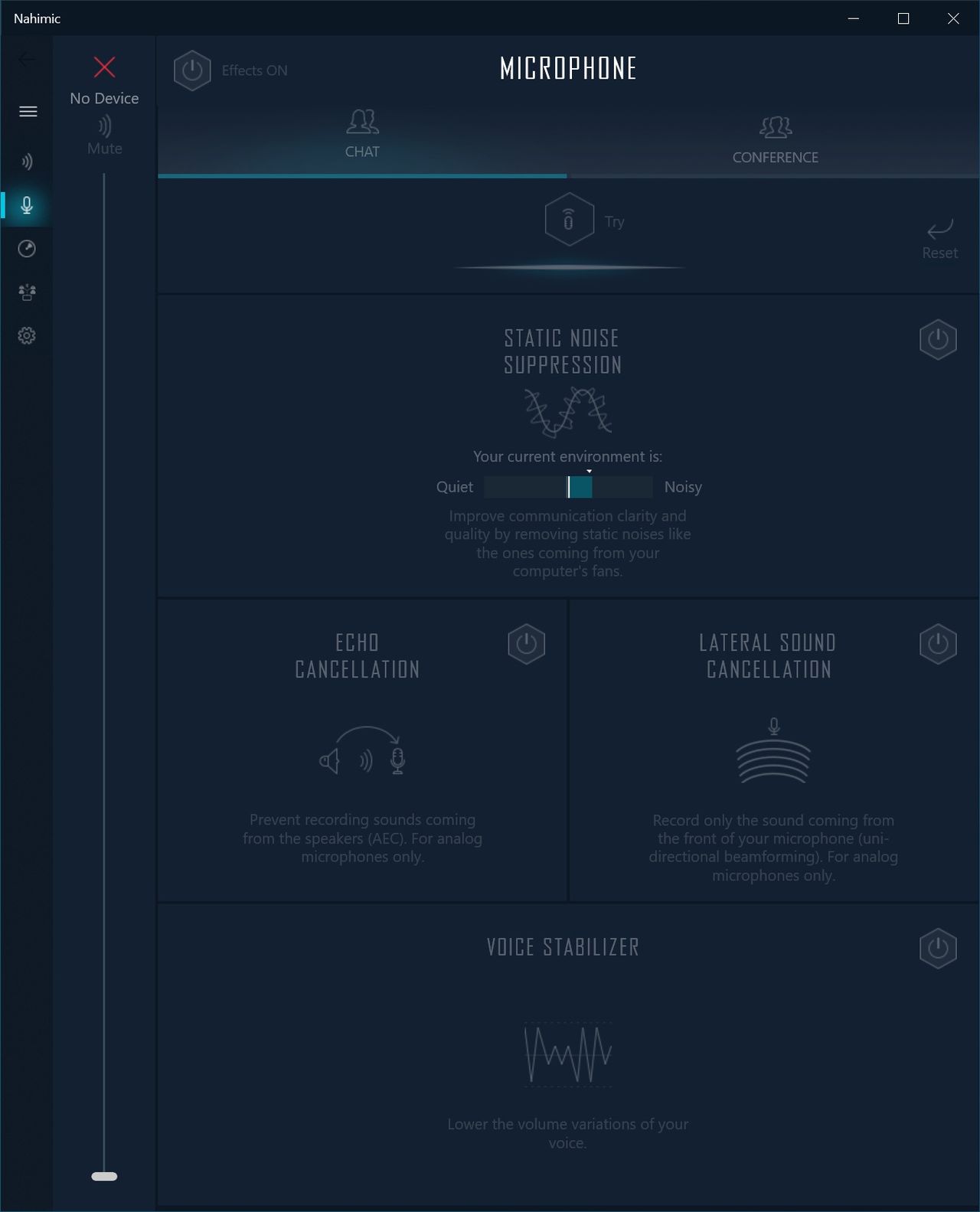

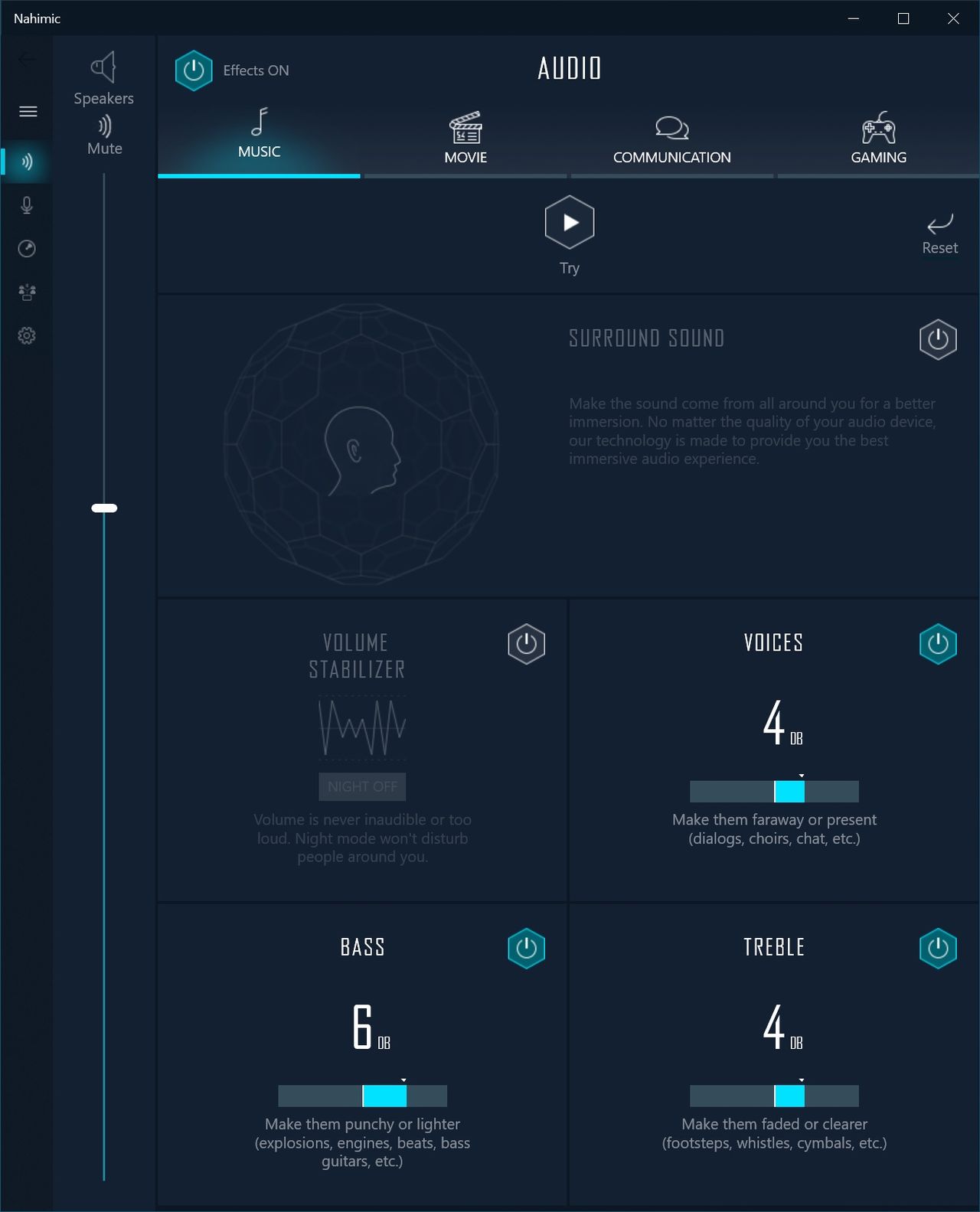

Nahimic Audio
Firmware

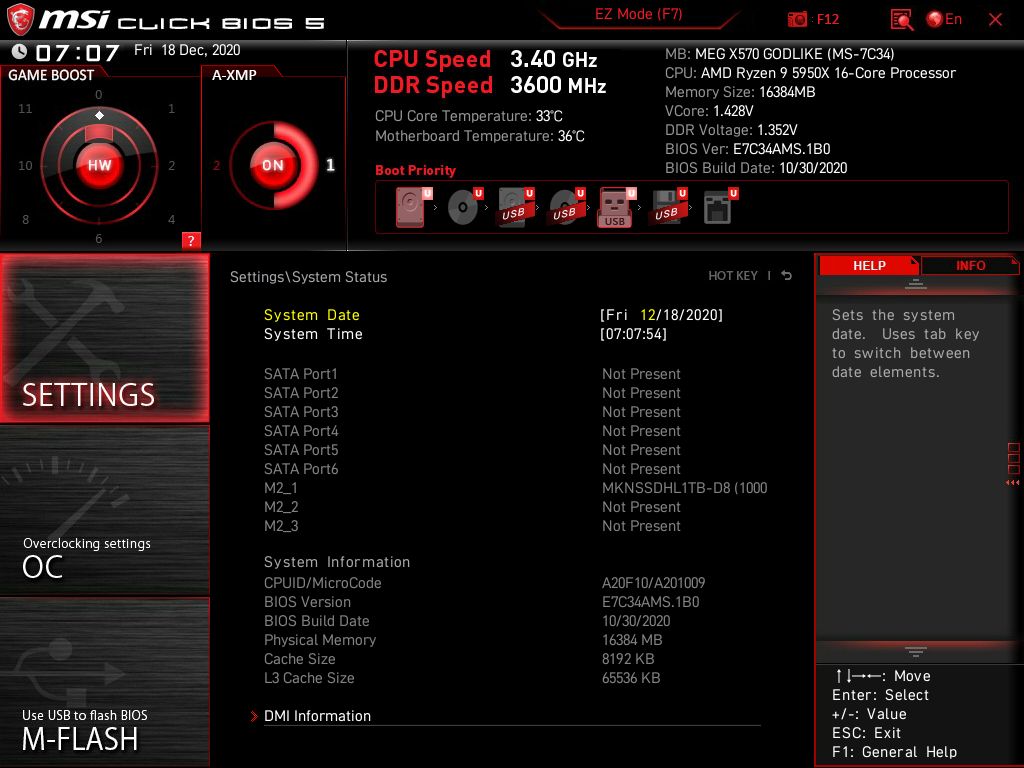

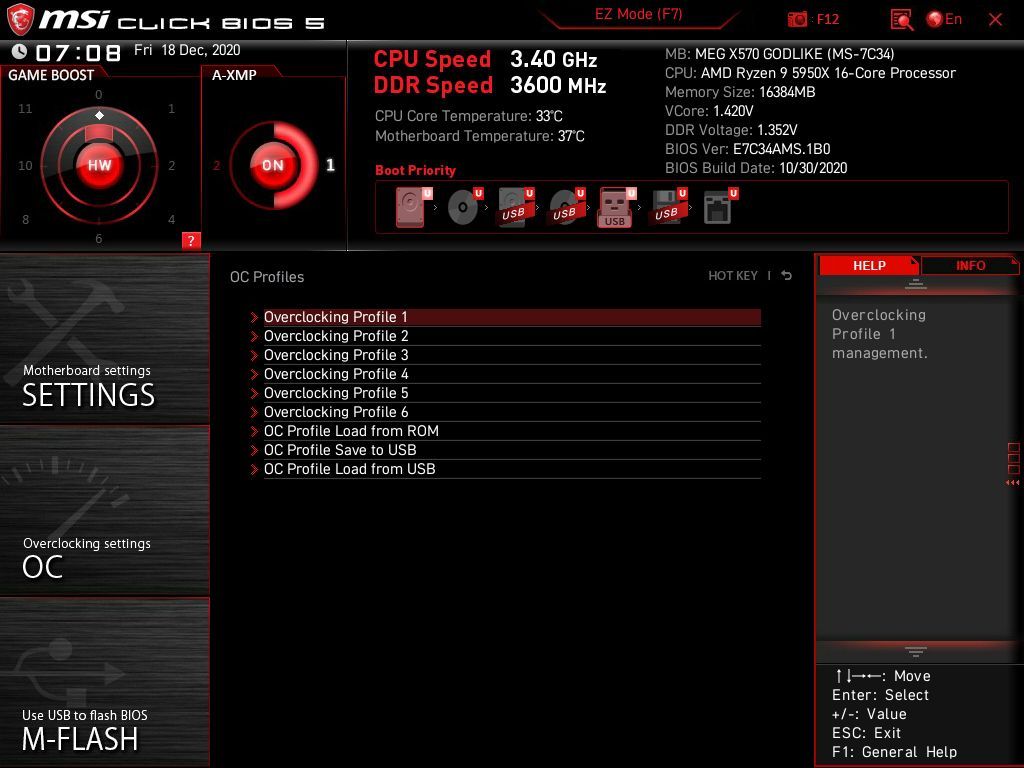

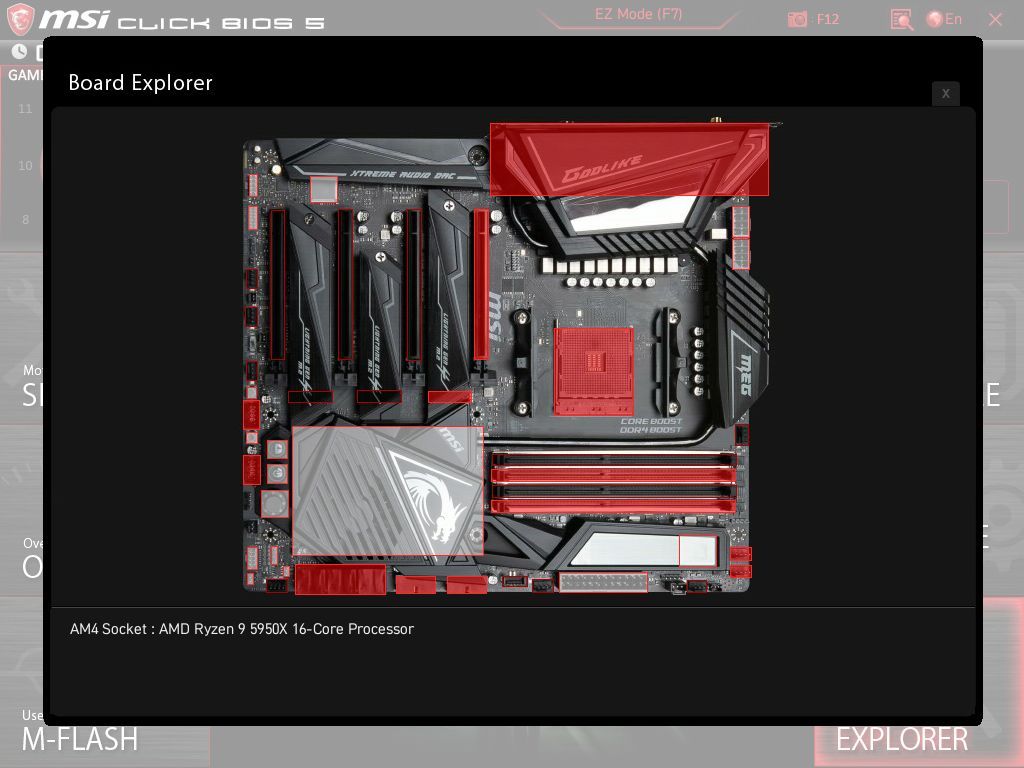

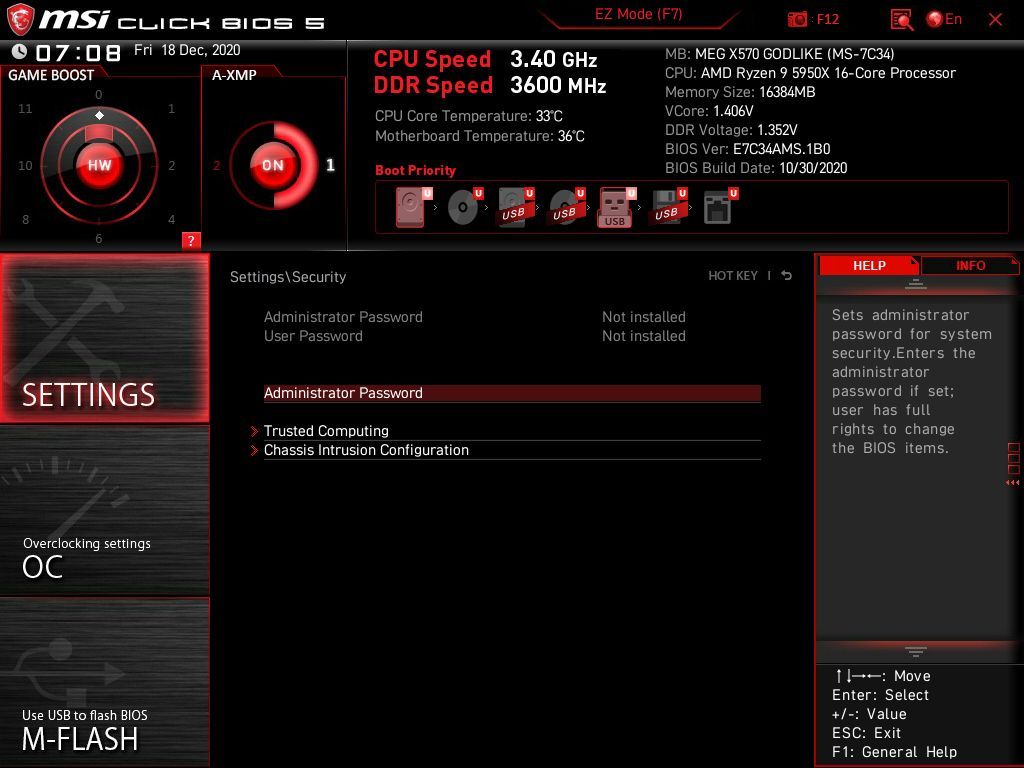

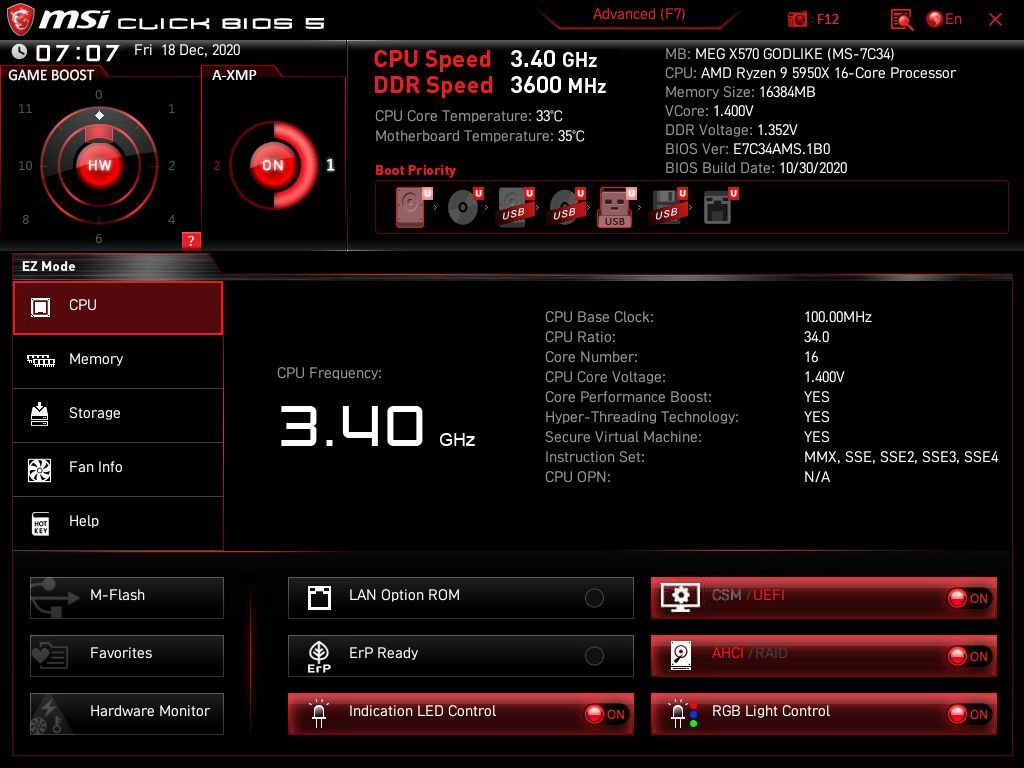

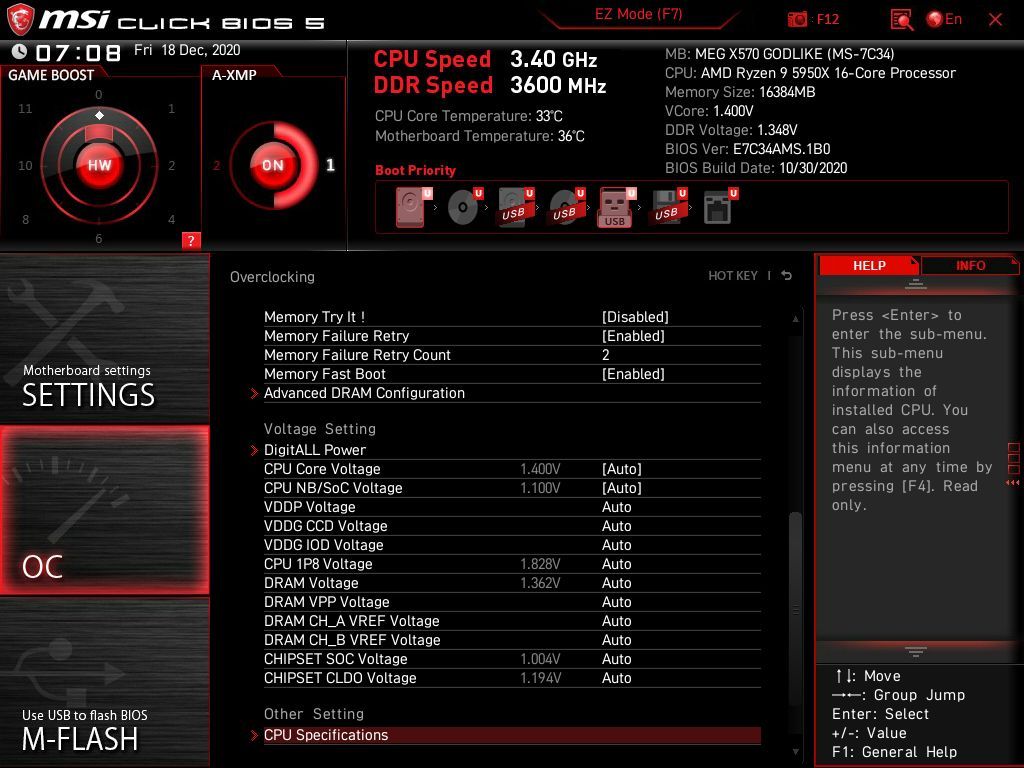

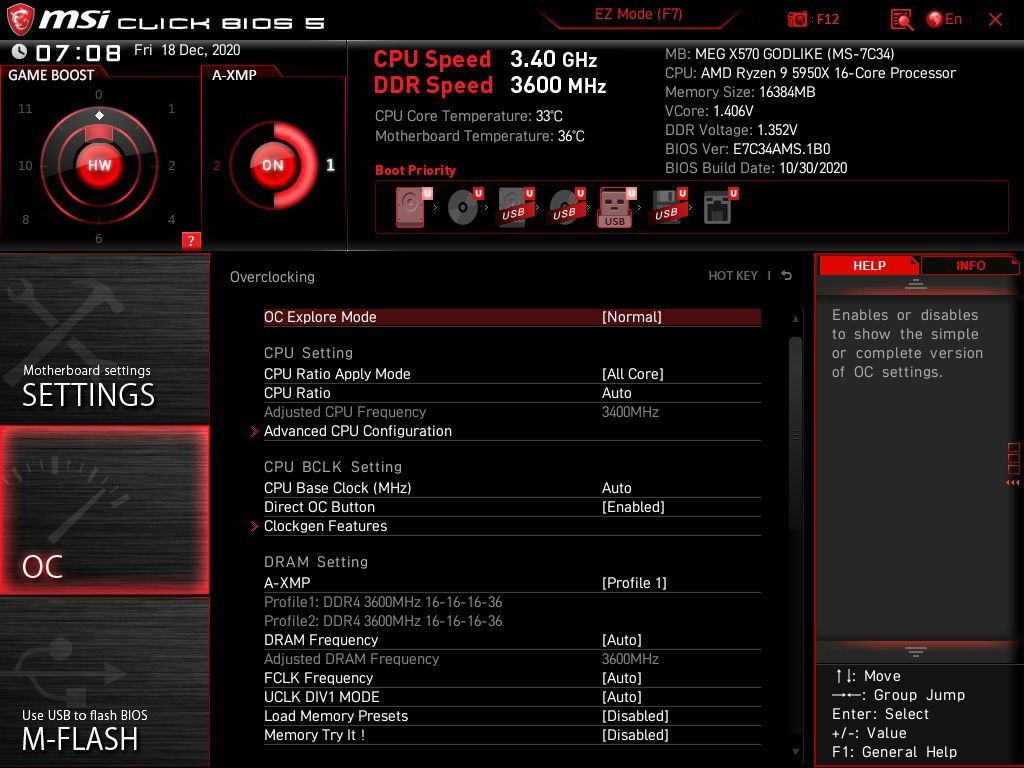

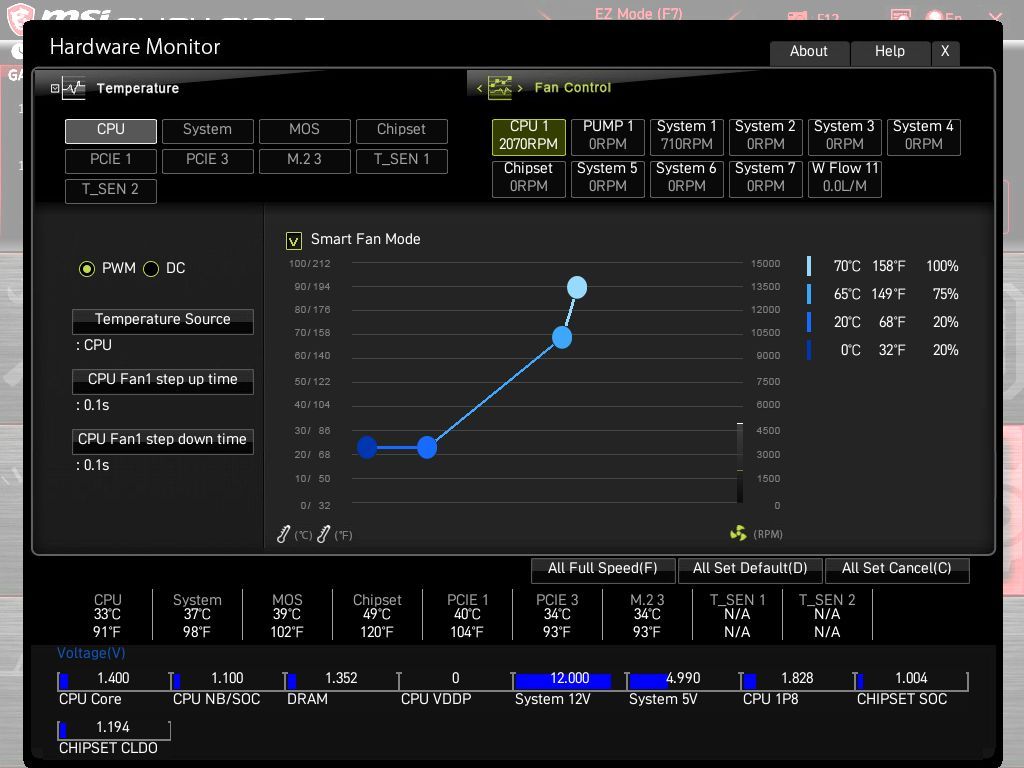

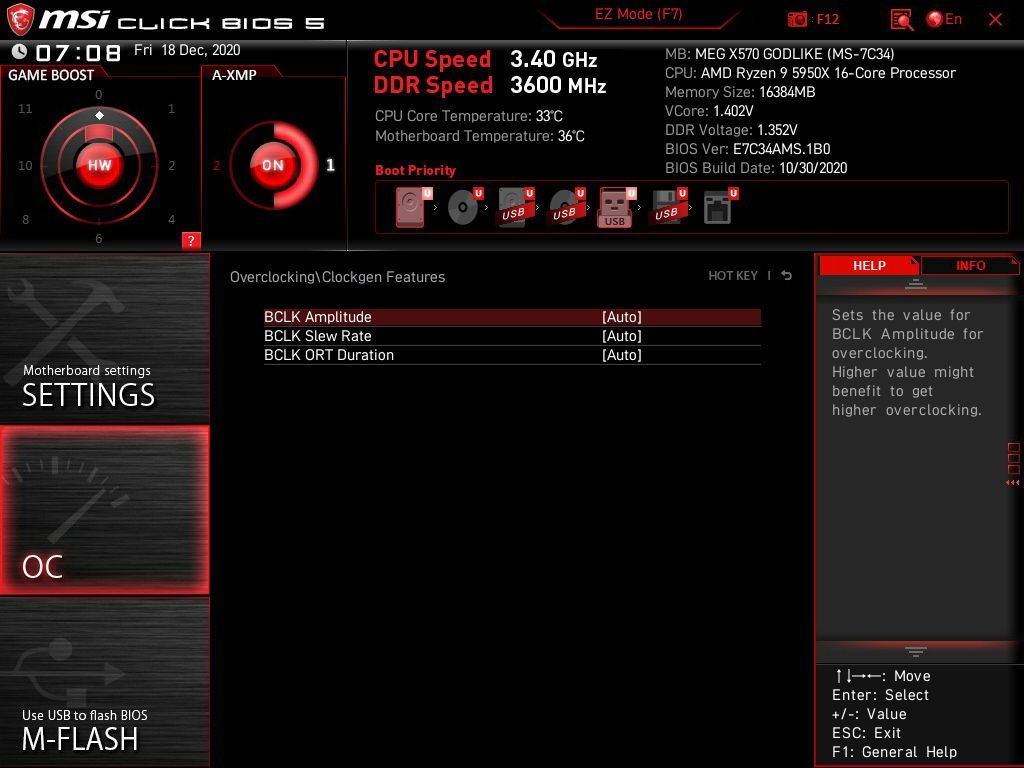

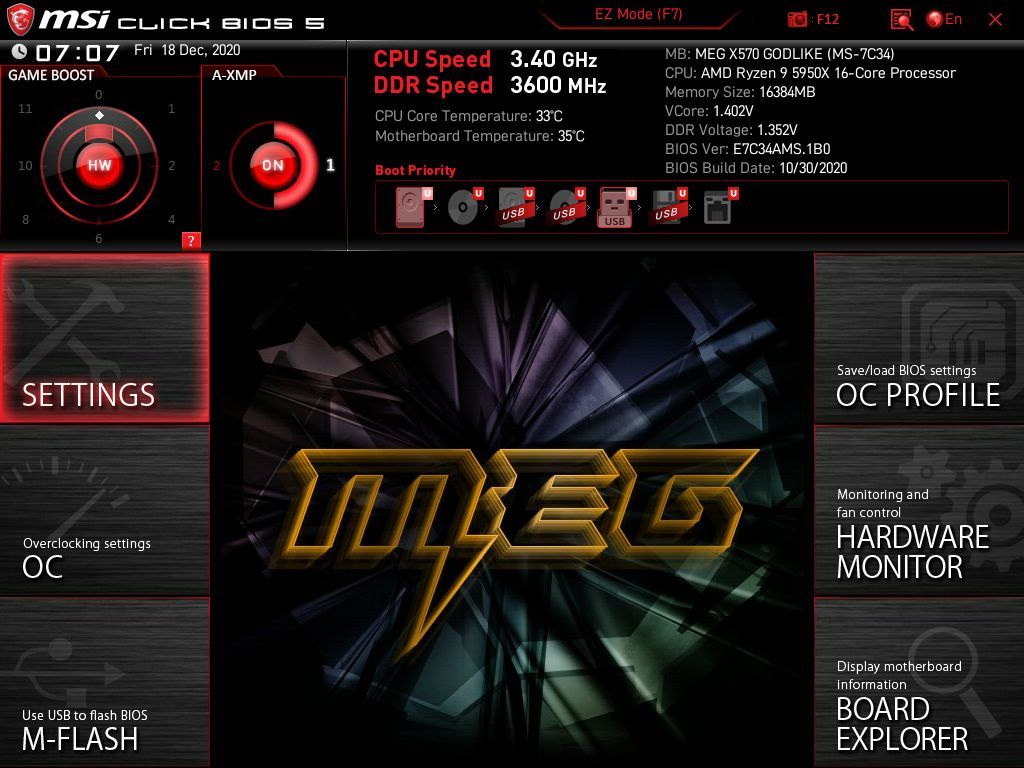

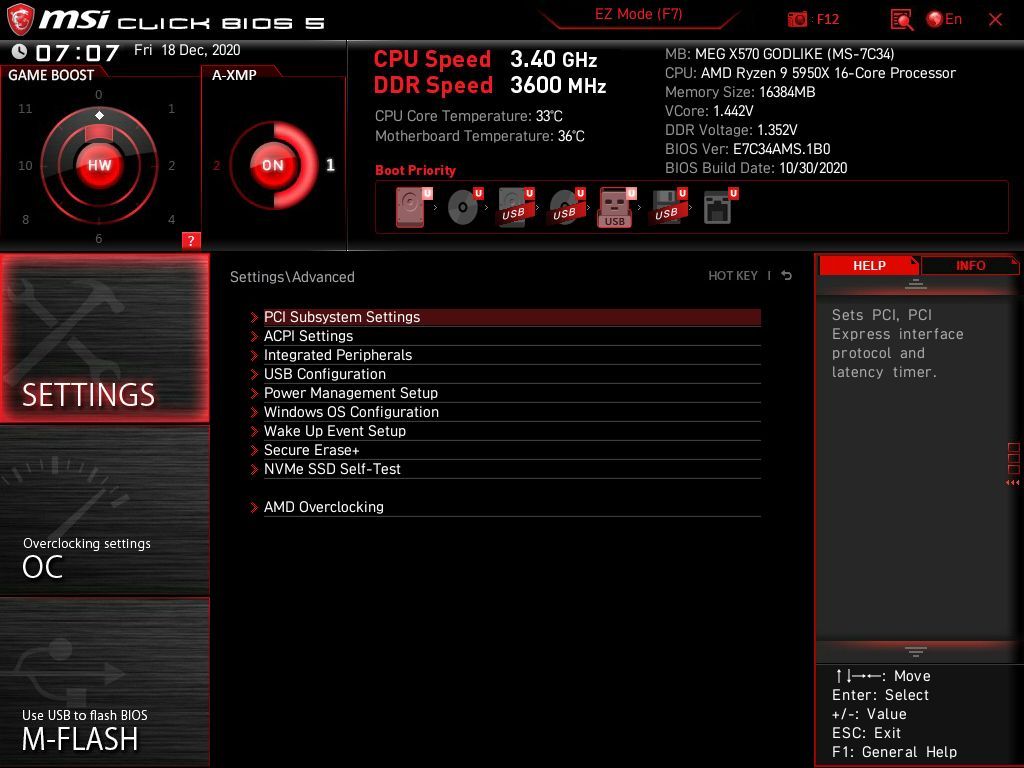

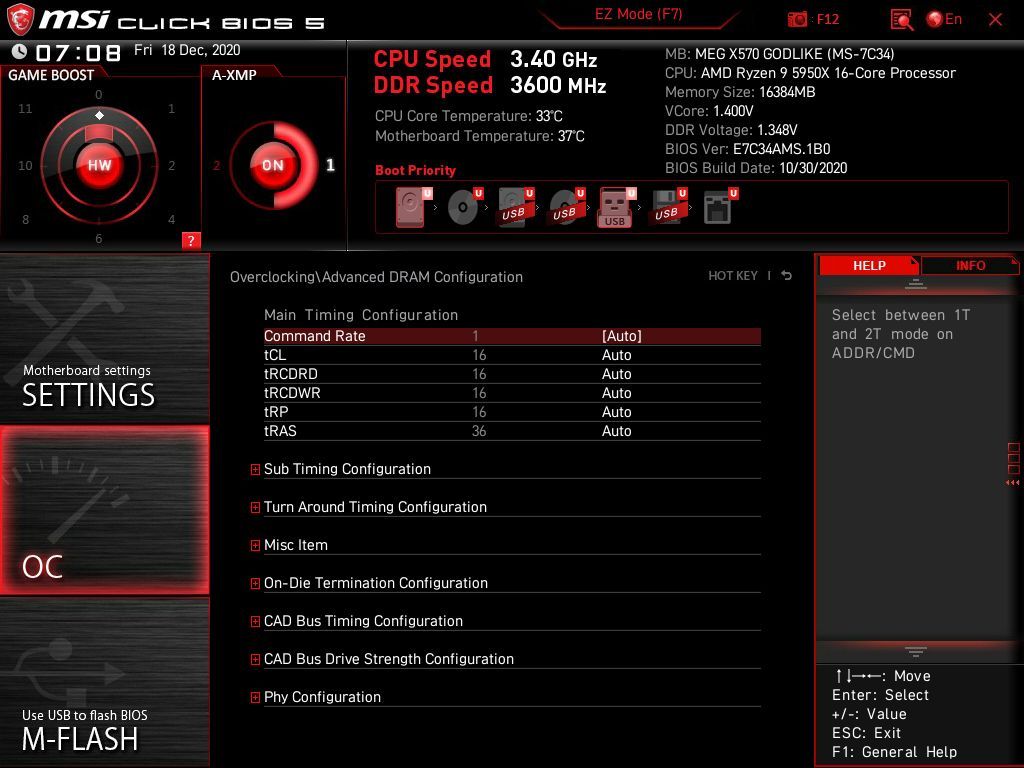

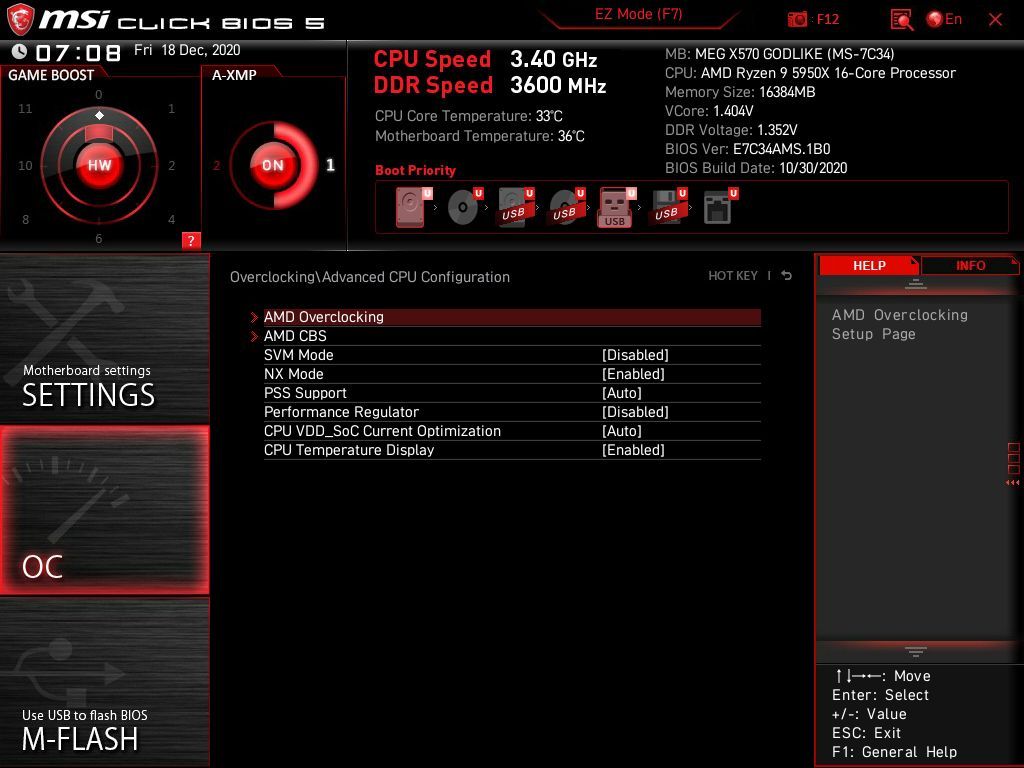

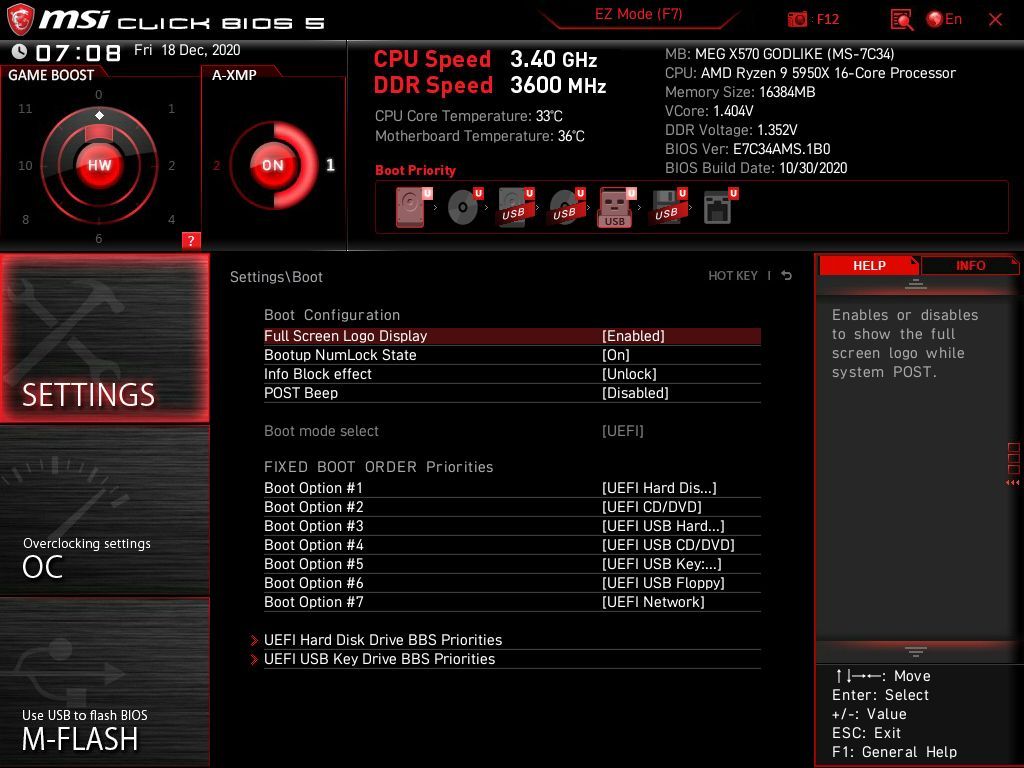

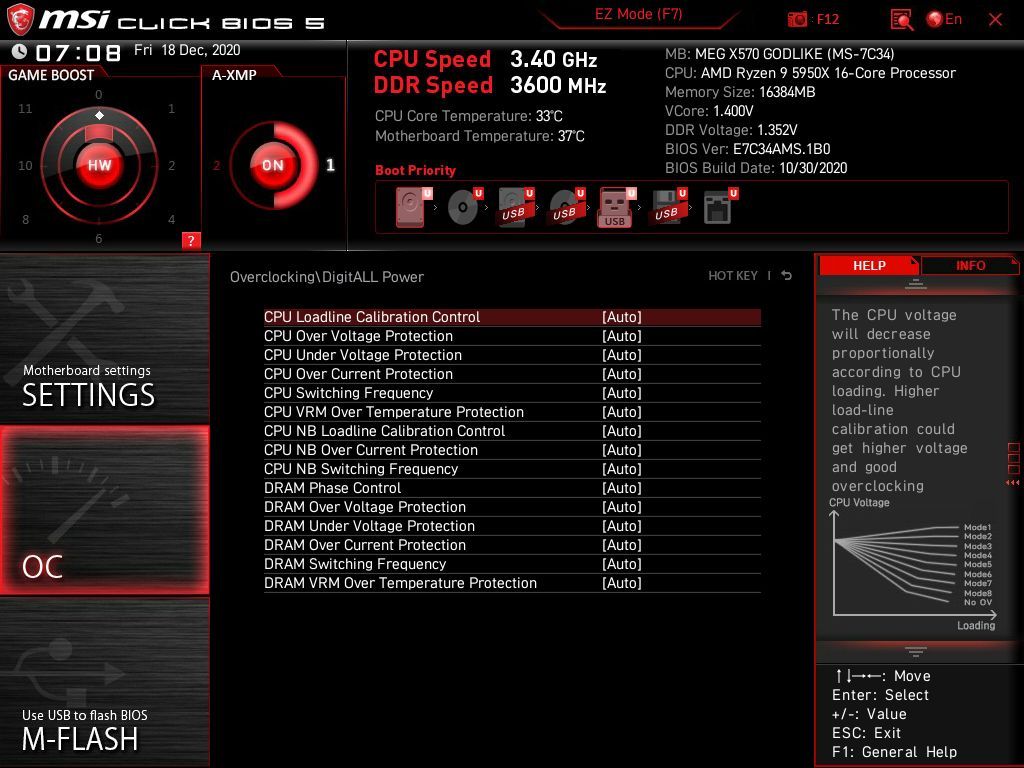

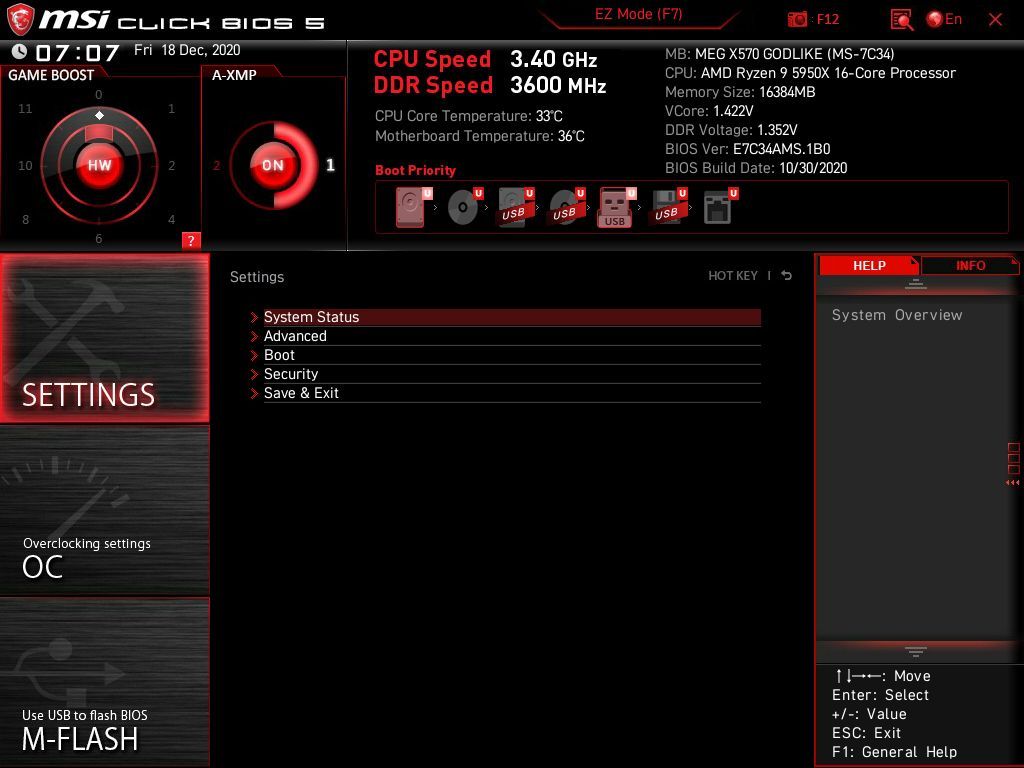

To give you a taste of the Firmware, we’ve gathered screenshots showing most BIOS screens. MSI’s layout is informative and straightforward to use in EZ Mode or Advanced, with the latter separated into the more familiar sections on the main page. When overclocking, the most frequently used options are located on the opening BIOS screen in the OC section, so you don’t have to dig down for the most common functions. Overall, the MSI BIOS is easy to navigate and read with plenty of options to tweak your system.
Test System
We’ve updated our test system to Windows 10 64-bit OS (20H2) with all threat mitigations applied. We also upgraded our video card driver to 457.30 and reran all the game tests moving to the new 5000 series CPU. We use the latest non-beta motherboard BIOS available to the public unless otherwise noted. The hardware used is as follows:
| CPU | AMD Ryzen R9 5950X |
| Memory | GSkill Trident Z Neo 2x8GB DDR4 3600 (F4-3600C16Q-32GTZN) |
| GPU | Asus ROG Strix RTX 2070 |
| CPU Cooler | Corsair H150i |
| PSU | Corsair AX1200i |
| Software | Windows 10 64-bit 20H2 |
| Graphics Driver | NVIDIA Driver 457.30 |
| Sound | Integrated HD audio |
| Network | Integrated Networking (GbE or 2.5 GbE) |
Benchmark Settings
| Synthetic Benchmarks and Settings | Row 0 - Cell 1 |
| PCMark 10 | Version 2.1.2177 64 |
| Row 2 - Cell 0 | Essentials, Productivity, Digital Content Creation, MS Office |
| 3DMark | Version 2.11.6866 64 |
| Row 4 - Cell 0 | Firestrike Extreme and Time Spy Default Presets |
| Cinebench R20 | Version RBBENCHMARK271150 |
| Row 6 - Cell 0 | Open GL Benchmark - Single and Multi-threaded |
| Application Tests and Settings | Row 7 - Cell 1 |
| LAME MP3 | Version SSE2_2019 |
| Row 9 - Cell 0 | Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s) |
| HandBrake CLI | Version: 1.2.2 |
| Row 11 - Cell 0 | Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX) |
| Corona 1.4 | Version 1.4 |
| Row 13 - Cell 0 | Custom benchmark |
| 7-Zip | Version 19.00 |
| Row 15 - Cell 0 | Integrated benchmark |
| Game Tests and Settings | Row 16 - Cell 1 |
| The Division 2 | Ultra Preset - 1920 x 1080 |
| Forza Horizon 4 | Ultra Preset - 1920 x 1080 |
