ASRock P67 Transformer: P67 Gets LGA 1156 Compatibility

By Thomas Soderstrom
published

Upgrading to Intel’s P67 will certainly require a new motherboard, but the fact that you won’t need a new CPU appears to be Intel’s dirty-little-secret. ASRock found the secret and exploited it, bringing next-generation performance to today’s processors.

System Performance: DX10 Games

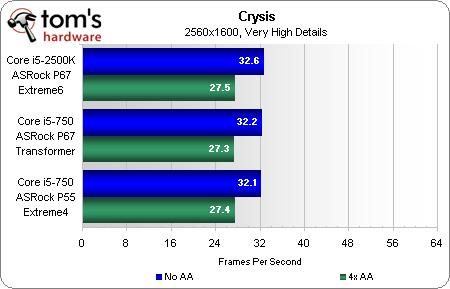

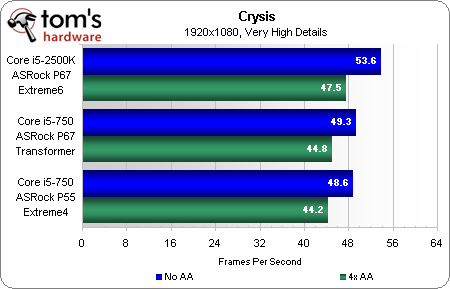

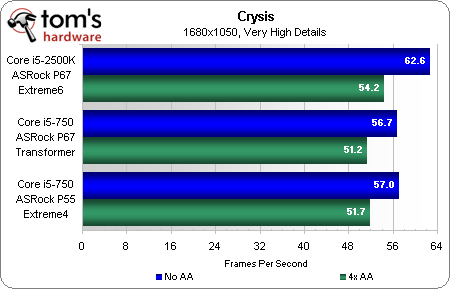

Crysis is an excellent system test because its affected by CPU performance, GPU performance, DRAM performance, and even HDD performance (though not so much when an SSD is installed). It’s also the oldest gaming benchmark around to bring modern hardware to its knees.

With memory performance locked in through the use of consistent settings and HDD performance muted through the use of an SSD, Crysis shows the clock-for-clock performance advantage of Intel’s newer CPU. That difference grows smaller at higher resolution due to increased GPU bottlenecking.

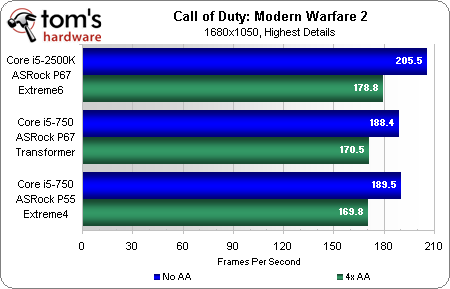

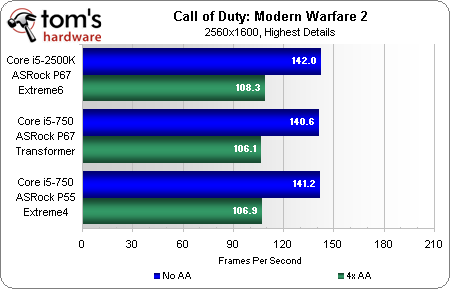

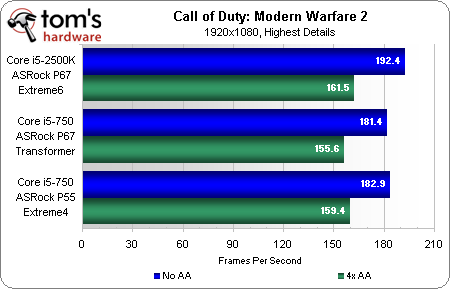

Though the frame rates are higher, Call of Duty: Modern Warfare 2 shows a similar performance pattern as Crysis, with the newer CPU pulling ahead when GPU bottlenecks are reduced.
