V3 Voltair V3TEC120-FC01 CPU TEC Cooler Review
V3 Components claims it can deliver innovative technologies to rival the performance of liquid cooling. We test these claims on an overclocked Haswell-E.
Why you can trust Tom's Hardware
Test Results

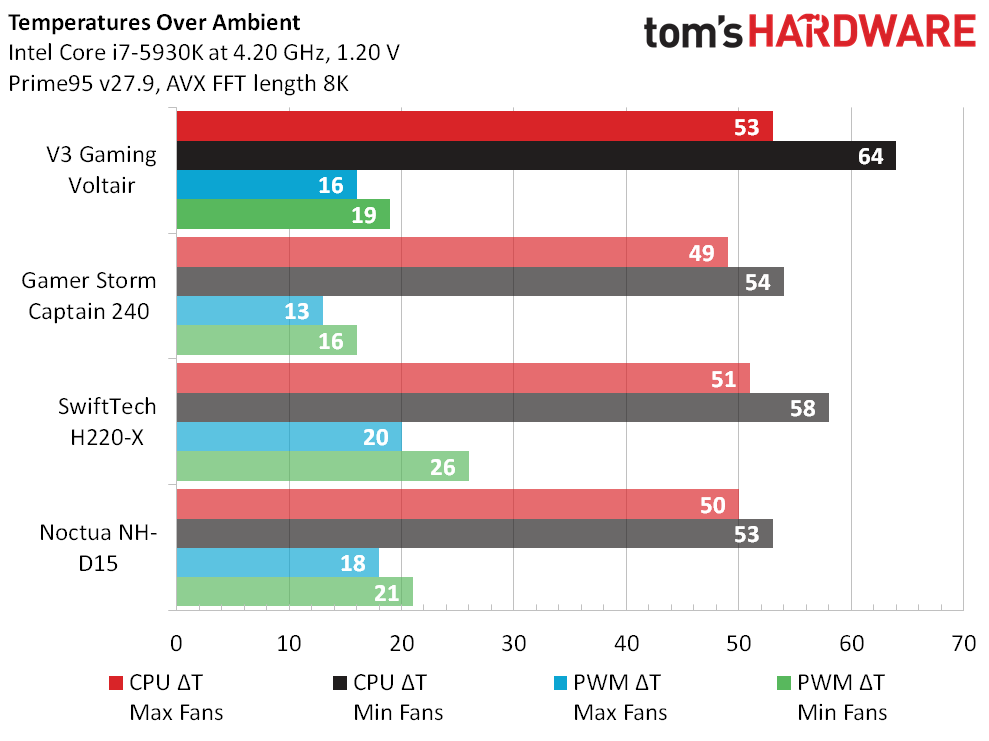

The premise of V3’s Voltair is that it could potentially provide liquid-cooling performance levels without the risk of leaks, but it doesn’t quite catch up to the two 2x120mm liquid coolers we’ve recently tested. Perhaps a single-width radiator would be more appropriate? For perspective, Noctua’s NH-D15 big air cooler is larger than both of the liquid coolers and has two oversized (150mm) fans.
The Voltair doesn’t have a secondary RPM reading, but its single reading is close to that of the NH-D15. We’re looking forward to a little quiet.
The Voltair is noticeably noisier than the NH-D15, falling between the quiet-liquid H220-X and inexpensive-liquid Captain 240.
Mid-pack noise pairs poorly with a slight temperature increase to give the Voltair a third-place cooling-to-noise ratio. That’s important, since we believe this to be the true measure of overall performance.
Stay On the Cutting Edge: Get the Tom's Hardware Newsletter
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.
Maxsun makes a GPU with two built-in M.2 SSD ports — Intel Arc B580 graphics card leverages unused PCIe lanes on the PCIe x16 slot
Supermicro to help Musk scale xAI supercomputer to a million GPUs — Supermicro will set up local operations in Memphis to facilitate operations
Microsoft Flight Simulator 2024 PC performance testing and settings analysis — we tested 23 GPUs, the game is even more demanding than its predecessor
-
ingtar33 surprise surprise, an undersized air tower can't cool the Peltier (TEC) unit they attached it to.Reply
I think the only thing surprising is it even managed to keep up at all with those "real" cpu coolers. The problem with using Peltier based cooling is typically if you want to cool 80W of power you need to be able to disperse around 160W-240W of heat energy; it's clear they went with an under powered peltier to avoid condensation, but of course that defeats the whole purpose to one as well; because then you end up with a cooler not strong enough to cool on one side and too hot to cool on the other (with the undersized heatsink)
really the only sensible use for a peltier in a computer would be through some sort of heat exchange method, like paired with a large custom water loop, and lots of radiator space, while at the same time, insulating the connection point and BACK OF THE MOTHERBOARD to prevent condensation damage to your system.
throw in the fact that Peltier or TEC cooling wears out over time, and this just looks like a terrible product. too little radiator space, too little voltage going into the Peltier, too much noise generated by the undersized fans, not enough cooling ability... just a mediocre product -
PaulBags Several times now I've read in a tom's review references to past experience with big coolers coming loose and/or damaging boards. Would you mind linking us to those examples?Reply -
atheus Several times now I've read in a tom's review references to past experience with big coolers coming loose and/or damaging boards. Would you mind linking us to those examples?
I know this is not what you're asking for, but after building a computer for a friend and shipping it across the country I'm fairly convinced that at least when designing a computer that you intend to ship it's probably best to use a closed loop liquid cooler. I just had a Hyper 212 EVO mounted on an ASUS Z97 GRYPHON, and evidently the USPS dropped it from a substantial height, causing the heat sink to break free and damage the CPU, plus the graphics card tore the PCIE slot in half. I think from now on any time I ship a computer that has a big air cooler, I'll remove the cooler (and graphics cards, if any) and pack them separately. For someone who doesn't have the skills to mount a CPU cooler, I'll just have to stick to closed loop water.
USPS eventually paid for the damaged computer ($1300), but it took over a month to get the check, and there were tons of hoops she had to jump through. For a while it was even starting to look like they weren't going to pay up. Not worth the headache. From now on I'll make sure any computer I ship is ready to be dropped from an airplane at 500 MPH without a chute, as much as possible. -
Crashman
Linking you? You do know that there's a real world out there, where photos of damaged systems that we packed could be evidence in a lawsuit. And I don't go after the suppliers of prebuilt systems when theirs arrive damaged either, because that feels like adding insult to financial injury. The only ONLINE proof that any of this has happened is in restricted-access servers, though I can't stop anyone from hacking my email ;)16106597 said:Several times now I've read in a tom's review references to past experience with big coolers coming loose and/or damaging boards. Would you mind linking us to those examples?
Most things in this world don't happen online. I think it's nice that someone can tell me "this part got wrecked in shipping" and I can say "send it to me, I'll evaluate it before I replace it". I realize that its unbelievable to some that this still happens in the age of snapchat...
As for the less spectacular (warped board) failures, they're mentioned in an SBM article where the motherboard was a Z77 Extreme4.
-
OcelotRex 16106917 said:
Linking you? You do know that there's a real world out there, where photos of damaged systems that we packed could be evidence in a lawsuit. And I don't go after the suppliers of prebuilt systems when theirs arrive damaged either, because that feels like adding insult to financial injury. The only ONLINE proof that any of this has happened is in restricted-access servers, though I can't stop anyone from hacking my email ;)16106597 said:Several times now I've read in a tom's review references to past experience with big coolers coming loose and/or damaging boards. Would you mind linking us to those examples?
Most things in this world don't happen online. I think it's nice that someone can tell me "this part got wrecked in shipping" and I can say "send it to me, I'll evaluate it before I replace it". I realize that its unbelievable to some that this still happens in the age of snapchat...
As for the less spectacular (warped board) failures, they're mentioned in an SBM article where the motherboard was a Z77 Extreme4.
I am not very sure you sufficiently answered his concerns with hypothetical situations that you cannot prove/disprove. I think that the OP was looking for something concrete since an occurrence has been referenced (in their experience) a few times on the same site.
I had the same concern when purchasing a larger air cooler - I had settled on the Cooler master 212 on a non-overclocked build to keep it cool/quiet but had been building with smaller, older Zalman fans. To alleiviate those concerns I when with a Silverstone case that inverted the motherboard and added an adjustable stand for the heatsink to take the vertical strain off the MB:
But to your point shipping a PC is a whole other issue as you cannot control the orientation or handling of the item throughout the process so I can see how bending/warping/snapping could happen. for such large coolers the safest bet would be to disassemble the heavy parts prior to shipping. -
atheus
Here you go. If it's computer snuff you want:16106597 said:Several times now I've read in a tom's review references to past experience with big coolers coming loose and/or damaging boards. Would you mind linking us to those examples?
Yeah, that CPU fan is spinning. -
ubercake At the beginning of the article I was excited about the technology.Reply
At the end of the article, I was sad that it couldn't really compete (but I did feel well informed!). -
Blueberries Even when they made these twice the size it wasn't enough. Vapor chambers are the future of heat-sink design, not this.Reply -
Crashman
I'm not trying to prove or disprove a hypothetical situation. I'm testifying to real-world occurrences. Does anyone really need the testimony of Chris and Don to prove that things he or she knows can happen, did happen?16107269 said:I am not very sure you sufficiently answered his concerns with hypothetical situations that you cannot prove/disprove.
This one shouldn't be all that controversial. It's like if I told you about that time I went to Florida and my wife fed squirrels at the park from her hand, and rather than argue about the behavior of the squirrels you began arguing about whether I'd ever been to Florida.
If I said it rained yesterday you'd probably believe it. On the other hand, if I said it didn't rain you'd probably believe that. Both solutions are equally possible, one solution is actual and the other potentially "hypothetical" (IF it hadn't rained...). The reason you'd have believed either one is that neither option is particularly controversial, and I don't have anything to gain by lying.
-
kristi_metal I have only one problem with this cooler: the "space" between the heatpipes that form the base of the radiator. The heat is only absorbed by the heatpipes, but the aluminium strips just keep the heat there, it is not that efficient in removing heat from the CPU.Reply
