X48 Motherboard Comparison

Additional BIOS Features

The BIOS of the MSI X48 Platinum doesn't contain any advanced features for flashing from within the BIOS GUI, but it does provide the option of returning to previous settings following a missed boot. We had to flash the BIOS the old-fashioned way, using bootable media and a flash program downloaded from the MSI website.

Our choice of media during the BIOS update was a USB "thumb drive", which was made bootable using Hewlett Packard's USB Disk Storage Format Toll V2.0.6.

Getting the new BIOS files was very easy from MSI's global site, where a top menu bar on each motherboard's product page has direct links to BIOS, driver, utility and user manual files. Both the global and U.S. sites respond quickly, but the global site is often required to find recently-released motherboard models.

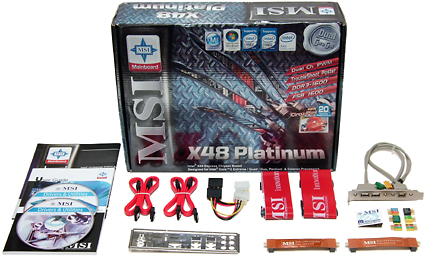

Accessories

Swipe to scroll horizontally
Accessories
Documentation & SoftwareMotherboard ManualQuick Installation GuideMotherboard Driver CD (Windows XP)Motherboard Driver CD (Windows Vista)
Hardware1x 80-conductor Ultra ATA cable, Round1x Floppy Cable4x SATA Data Cable1x eSATA to SATA Data Cable2x Four-Pin to SATA Power Adapter1x Front Panel Quick Connector Kit1x Port Breakout Plate (2x USB, 1x IEEE-1394)2x CrossFire Bridge1x I/O Panel Shield

MSI's "Platinum" accessory set is a little less elaborate than its "Diamond" kit, simply because the Diamond series is meant to be a little more "upscale". Yet we find a fairly good cable set providing four out of six SATA cables, two 4-pin to SATA power adapters, a quick-connector kit for easing the installation of front panel cables, and even a pair of Crossfire bridges for ATI graphics cards.

Rather than put Windows XP and Windows Vista drivers and applications together on a single DVD, MSI uses two CDs. Applications include the MSI Live Update BIOS utility, MSI Dual Core Center overclocking utility and PC Alert hardware monitoring utility.

Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
  • Help please.Can this board be configured with the first two (SATA) HDs mirrored and the other drives JBOD? Thank you in advance.
    Reply
  • oblivionspell
    Great review, very detailed and informative. But I must say that either you were lucky that your X38 P5E3 Deluxe came with a better-than-average chipset or that I wasn't so lucky and got a malfunctioning one.

    I have an Asus Maximus Formula which is, as you know, the Republic of Gamer's solution for the X38 and recently bought a Patriot Extreme Performance 1150mhz PC2-9600. Whenever I try anything above 1020mhz for the RAM my PC reboots; the higher it is the less time it takes to do it. At 1020mhz it'll only reboot if I run something more demanding like 3dMark06 or any new game, at 1100mhz it'll barely show the Windows loading screen then reboot, above 1120mhz it'll not even load windows and freeze. But in every case it boots up fine.

    The Asus forums are full of users who can't get stability in any way with >=1066mhz ram on X38 boards. A selected few have come to accomplish it however, which leads me to think those were the lucky ones who got the good shipment, like you. The Patriot forums are the same, X38 users can't get their system stable with RAMS over 1066 or not even that.

    Maybe that X48 "official" support is something to consider, it might be the fix to the X38 we users are looking for. Even if it's only to make sure it'll run RAMs at >=1066mhz, it's good enough already.
    Reply
  • oblivionspell - Have you tried manually setting your RAM voltage to the correct value for the performance setting(s)?

    I had to do this on my Asus Crosshair, even though EPP is supposed to take care of it for you. Without manually setting the voltage, I had memory corruption and crashes, but could use the non-EPP mode. With the voltage bumped to the correct 2.1V,
    the EPP modes work perfectly.
    Reply
  • Crashman
    oblivionspellGreat review, very detailed and informative. But I must say that either you were lucky that your X38 P5E3 Deluxe came with a better-than-average chipset or that I wasn't so lucky and got a malfunctioning one.I have an Asus Maximus Formula which is, as you know, the Republic of Gamer's solution for the X38 and recently bought a Patriot Extreme Performance 1150mhz PC2-9600. Whenever I try anything above 1020mhz for the RAM my PC reboots; the higher it is the less time it takes to do it. At 1020mhz it'll only reboot if I run something more demanding like 3dMark06 or any new game, at 1100mhz it'll barely show the Windows loading screen then reboot, above 1120mhz it'll not even load windows and freeze. But in every case it boots up fine.The Asus forums are full of users who can't get stability in any way with >=1066mhz ram on X38 boards. A selected few have come to accomplish it however, which leads me to think those were the lucky ones who got the good shipment, like you. The Patriot forums are the same, X38 users can't get their system stable with RAMS over 1066 or not even that.Maybe that X48 "official" support is something to consider, it might be the fix to the X38 we users are looking for. Even if it's only to make sure it'll run RAMs at >=1066mhz, it's good enough already.
    It's just a matter of having the right RAM and using the correct timings and voltage. All X38 and X48 motherboards that support DDR2 memory can run DDR2-1066 speeds with stability, so long as the RAM is set up right in BIOS.
    Reply
  • "Inside, users will find a GUI based on the Smart Common Input Method (SCIM) platform."

    This is not accurate. SCIM is an "input method" -- a scheme for entering internationalized text. Not sure what the GUI is really based on. GTK2, maybe?
    Reply
  • Crashman
    "Inside, users will find a GUI based on the Smart Common Input Method (SCIM) platform."

    This is not accurate. SCIM is an "input method" -- a scheme for entering internationalized text. Not sure what the GUI is really based on. GTK2, maybe?

    I see your point, but that's the same arguement as "Windows 98SE is a GUI based on DOS". Which is innacurate only in wording. It would be better to say "Windows 98SE is a GUI for DOS".

    So, you'd be happier to read "Users will find a GUI for the Smart Common Input Method (SCIM) platform" correct?
    Reply
  • chill70
    It's not only the wording. SCIM is not an operating system, so even your example is not analogous (won't even mention that DOS and Windows are separate operating systems with distinct kernels, etc).

    This statement is as correct as saying Vista has a GUI based on a 105-key keyboard.

    SCIM is an input method platform independent on the GUI. GTK GUI is an widget toolkit, independent on SCIM (although they *may* used each other). Neither is "based" on the other.

    If you want to emphasize that the Express Gate supports users of many different languages and nationalities you can mention that the GUI USES SCIM.
    Reply
