Atom Platform: ECS 945GCT-D

Atom, Athlon, or Nano? Energy-Savers Compared
By

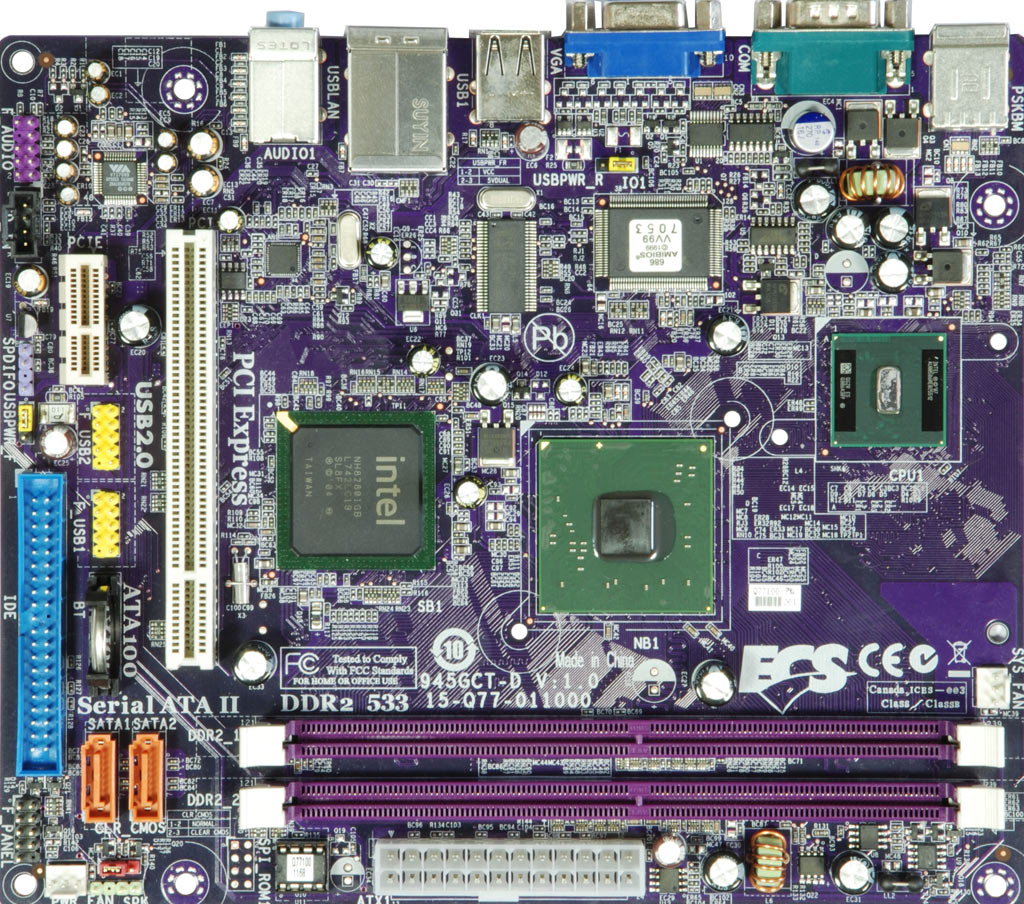

ECS puts Intel’s 945G chipset and the Atom 230 processor on a mini-DTX form factor, which is somewhat funny given that AMD introduced DTX. The mini-DTX dimensions are only slightly larger than those of mini-ITX, which is used by VIA. The increased footprint is large enough to accommodate a x1 PCI Express slot and a 32-bit PCI slot for expansion cards. The VIA EPIA board only offers one x16 PCI Express slot.

945G Is A Curse And A Blessing

Intel’s chipset strategy in the low-power segment is questionable—while the Atom processor represents the maximum power savings on an x86 processor, the chipset is already three generations old. The 945G supports most of the necessary features such as DDR2 memory, plenty of USB 2.0 ports, PCI Express, and an UltraATA/100 channel for legacy devices, and it is extremely compatible thanks to its age and maturity. You’ll be able to run virtually any system on an Atom processor based on the 945 chipset family.

However, the aged chipset does not match the Atom’s efficiency in any way. It is a desktop chipset that has desktop power requirements, which means that it is in the area of 15 W or even more. Compared to the processor’s 4 W TDP, this almost makes a mockery out of Intel’s platform approach. We understand that using 945G makes perfect sense from a business standpoint, but it does by no means reflect Intel’s claims of providing balanced platforms. It more about low cost than it is low-power.

Average Features

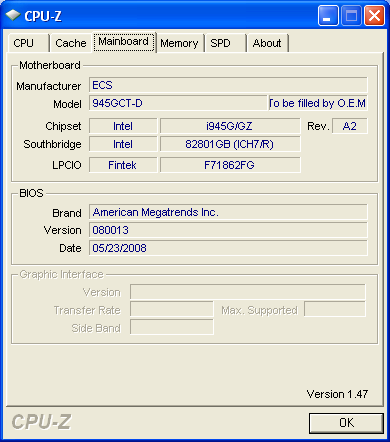

The ECS 945GCT-D offers all the 945G chipset features including multiple USB 2.0 ports, two SATA ports, Gigabit networking, HD audio, and UltraATA/100, but it does not offer digital display outputs. The serial port may be helpful for some applications-–VIA has one, too. Gigabyte doesn’t offer this on the 780G board for the Athlon 64 2000+.

Display all 46 comments.
This thread is closed for comments
  • 0 Hide
    jawshoeaw , October 3, 2008 7:19 AM
    I'd like to see how much electricity you would save in a year by having an efficient machine for basic home use - the one you could leave on 24/7 guilt free
  • 6 Hide
    alexander , October 3, 2008 7:53 AM
    There are some things with this test review that pussles me. Why did you use 3,5" drives? They draw about 10 watt instead of 2 watt for 2,5" drives. Also, I think you could have used a much more energy efficent power supply. That is probably why they all had the same idle watt; the psu was the bottleneck.

    I use a setup with the following:
    Jetway VIA C7 1.2 GHz
    picoPSU 60 watt power supply
    1 GB Kingston DDR2 667 Mhz RAM
    250 GB Samsung 2,5" drive

    This setup only draws about 20 watt when working and even less when idle (measured with a wall socket device, so I know it's accurate and total).

    http://www.mini-pc.de/catalog/il/420
    http://www.mini-pc.de/catalog/il/338

    /Alex
  • 4 Hide
    alexander , October 3, 2008 8:00 AM
    By the way, It would have been interesting also to see you review the dual core Atom.

    And maybe also compared to a more modest "normal" computer instead of a gaming rig, to see how low you can get with a normal PC.

    Otherwise an interesting article, as they most often are.

    /Alex
  • 0 Hide
    alexander , October 3, 2008 8:04 AM
    My last entry for today... ;)

    http://www.mini-pc.de/catalog/il/941

    (And no, I don't work for the company...)

  • 0 Hide
    faithful , October 3, 2008 8:07 AM
    Here is a very nice review including the dual core Atom 330. I also has many more benchmarks.

    http://www.xbitlabs.com/articles/cpu/display/intelatom-vianano.html
  • 0 Hide
    faithful , October 3, 2008 8:09 AM
    This review could be seen by some as using very selective benchmarks.
  • 0 Hide
    Anonymous , October 3, 2008 8:20 AM
    my underclocked ADO5400IAA5DO consumes ~5W more than athlon in ths reaview, but I have 2x1000Mhz :D  as a bonus I can always relax minimum power requirement and take performance route a step or two :D

    I sugest to try "AMD NPT Family 0Fh Desktop Processor Power and Thermal Data Sheet" document on the www.amd.com - interesting read

    by the way, my geode lx800 (500MHz) board on the full load fits into 6W :D
  • 0 Hide
    Anonymous , October 3, 2008 8:21 AM
    It would be nice to build Core2 Duo (or even Solo) and under-clock it to similar power envelope (not very much unlike AMD system)... I wonder how It would compare with the rest of the bunch.
  • 0 Hide
    alexander , October 3, 2008 8:26 AM
    n/a, what power supply do you use?
  • 2 Hide
    randomizer , October 3, 2008 8:27 AM
    The WinRAR graph is wrong, or the comment about it is wrong. There's a typo in the Winzip comment.

    WinRAR: "Still, VIA’s Nano still is more powerful."
    Well, it looks to me like Atom won.

    Winzip: "Hence VIA’s Atom does well again."
    Oops :kaola:
  • 1 Hide
    Anonymous , October 3, 2008 8:56 AM
    Really stupid test setup ...
    Using slowest AMD clocked 1Ghz vs 1.6Ghz Atom and 1.8Ghz via ... You should use faster x2 losing only few more watts but gaining fastest and best platform in test.

    Atom is including old platform slow crap, but this "test" is obviously aimed to show that AMD is bad, buy intel. Choosing BEST cpu from intel and VIA and testing it against SLOWEST AMD ... what is the point???

    This AMD 1Ghz/8W will have aprox 12W on 1.5Ghz ... and then including excellent 780G chipset will be total winner of all test including price, performance per watt etc.
  • 1 Hide
    randomizer , October 3, 2008 9:00 AM
    pifChoosing BEST cpu from intel...

    If Atom is the best, Intel is screwed.
  • 1 Hide
    faithful , October 3, 2008 9:33 AM
    Does CPU manufacturers sometimes pay reviewers for reviews? I was just wondering because I have it on other websites but fortunately not here.
  • 0 Hide
    cangelini , October 3, 2008 10:16 AM
    faithfulDoes CPU manufacturers sometimes pay reviewers for reviews? I was just wondering because I have it on other websites but fortunately not here.

    Have what, Faithful?
  • 0 Hide
    cangelini , October 3, 2008 10:18 AM
    randomizerThe WinRAR graph is wrong, or the comment about it is wrong. There's a typo in the Winzip comment.WinRAR: "Still, VIA’s Nano still is more powerful."Well, it looks to me like Atom won.Winzip: "Hence VIA’s Atom does well again."Oops

    Nice catch Random, fixed.
  • 1 Hide
    eugenparaschiv , October 3, 2008 10:50 AM
    The AMD processor is clocked at 1000MHz. One ideea for the next article would be to take a real 2000+ Lima (or even an X2) and underclock it until it reaches 10-15 W (not 8). This would be a much more fair comparasion with VIA, because that particular solution needs 18W, so you could argue that the bast comparison would be a VIA at 18W and a AMD also at 18W (probably a Lima at 1600Mhz, or a X2 at 1000Mhz). Any chance at this article being done?
  • 1 Hide
    faithful , October 3, 2008 10:59 AM
    Quote:
    Have what, Faithful?

    ..because I have seen it.."
  • -1 Hide
    zodiacfml , October 3, 2008 11:31 AM
    the atom processor would always win in this segment.
    the price. the design and manufacturing technology for the atom will allow intel and consumers on a win-win situation. profitable for intel and low prices for consumers while offering adequate performance for net use.
    i am sure the atom can still use less power.
    its as if, intel drove the atom to maximum clockspeed for the given die space and architecture so that it can achieve that adequate performance.
  • 2 Hide
    Anonymous , October 3, 2008 12:33 PM
    CPU-Z memory speed for Athlon X2 is right. K8 processors have minimum divider 1/5 from clock speed, so at 1000 MHz it just cant go above 200 MHz physical clock or 400 MT/s (DDR2-400). You can check it with C&C on any Athlon - drop to 800 MHz, and the memory goes DDR2-320 (160 MHz physical). So i wonder why you use horrible 6-6-6 timings for the memory? At DDR2-400 it should have no problems with 3-3-3.
  • 1 Hide
    coldmast , October 3, 2008 2:07 PM
    Quote:
    Some PSUs are most efficient for low loads, while others are better for high loads. However, if you use an 800 W PSU and only use 28-50 W, the efficiency will certainly not be in an ideal range. This is why we used the FSP220—it guarantees that the PSU runs within an efficient load corridor.


    I'm glad this was mentioned!
    I had problems with other reviewers that would insist on using 1000W power supplies for low power consumption hardware, the P/S efficiency is only around 50-65% on low power conversion.
