Benchmark Results: Access Time And I/O Performance

by

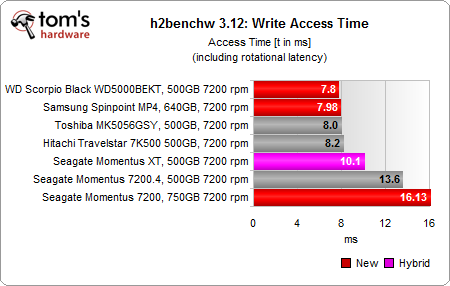

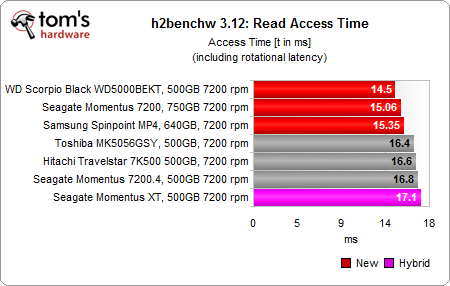

Access Time

The access time test is dominated by WD, but Samsung and Seagate are not far behind. We find it interesting to see that access time actually speed up a bit compared to previous product generations.

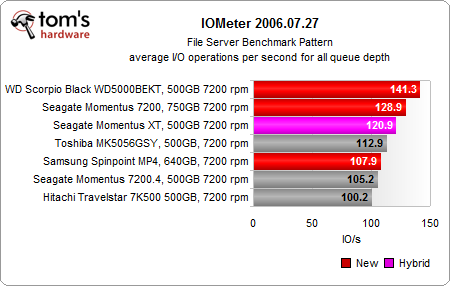

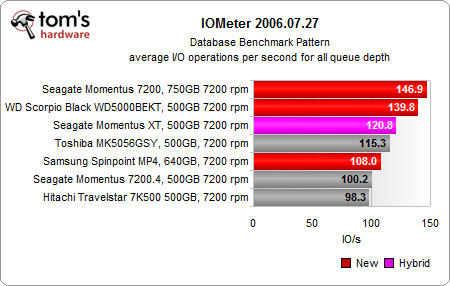

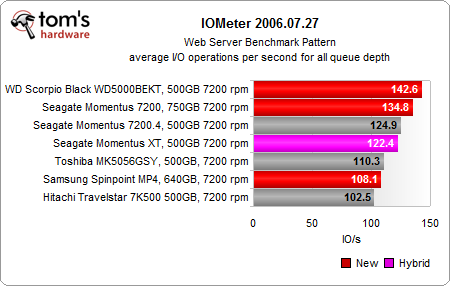

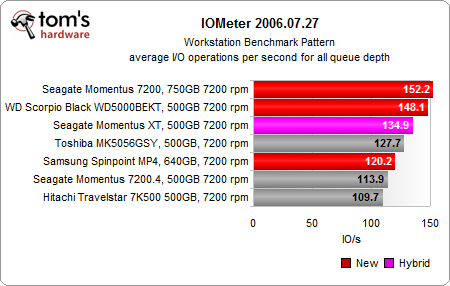

I/O Performance

I/O performance is not extremely relevant for consumers, but worth considering if you multitask a lot or if you want to maximize responsiveness. Seagate and WD are equally strong in this test.

Share:
24
Comments
X
Submit

Comments
apache_lives 01/27/2011 6:49 AM
Show
amk09 01/27/2011 7:57 AM
Hide
--1+

I have the spinpoint mp4 and am very happy with it.

JohnnyLucky 01/27/2011 10:18 AM
Hide
-1+

Interesting report. You're right, $200 or more for a fast ssd is too expensive for most pc users. For the time being I have a difficult time justifying the cost.

cknobman 01/27/2011 12:53 PM
Hide
-0+

Regardless of how fast the 7200 rpm hard drives are I have absolutely no plans of ever buying one of these (unless I come across the rare situation where I just have to have huge file storage capabilities for my laptop that cannot go on my file server).

I can and will wait until the cost of a 128GB SSD is $1/GB (needs to be one with a good controller not some crappy jmicron controller).

So until the day comes I will just sit and wait.

dgingeri 01/27/2011 1:33 PM
Hide
-1+

Well, I can assure you that the caviar black is available in 750GB capacity.

http://www.newegg.com/Product/Prod [...] 6822136835

I have been considering replacing my 3 750GB 3.5" drives with 4 7200rpm laptop drives for better performance with lower power requirements. Would you guys ever do a story on such things? The Samsung looks promising for this purpose. I know the server space is going this way for the same reasons. Why wouldn't desktop DIY go the same way?

dgingeri 01/27/2011 1:34 PM
Hide
-0+

oops, the post above should be Scorpio Black in 750 capacity.

oxxfatelostxxo 01/27/2011 1:59 PM
Hide
-0+

Quote :7200rpm..... speed for these devices doesnt really matter at all anymore - its either SSD, or it aint (performance wise

Hmm is that the case... So lets say someone has a ton of games music and movies, you actualy think its viable to use ssd's?

Ill take my hardware raid 5 of 4- 2tb drives anyday for all my storage needs( which btw puts out more than most ssd's). SSD's only are really viable as a OS drive for the cost,
Not to mention nobody needs over 300mb/s for a video game/movies or music. Only thing that needs that kind of output are professional programs

dgingeri 01/27/2011 2:03 PM
Hide
-0+

oxxfatelostxxo :
Hmm is that the case... So lets say someone has a ton of games music and movies, you actualy think its viable to use ssd's?Ill take my hardware raid 5 of 4- 2tb drives anyday for all my storage needs( which btw puts out more than most ssd's). SSD's only are really viable as a OS drive for the cost, Not to mention nobody needs over 300mb/s for a video game/movies or music. Only thing that needs that kind of output are professional programs




The big difference there is access time. Believe me, WoW loads up faster from my single Vertex 120GB drive (at 200MB/s) than it does from my 3X 750GB Caviar Black raid array (300MB/s). The system boots in about the same amount of time (about 15 seconds) with either, so I use the raid array for my boot drive, but my games are loaded on my SSD.

utengineer 01/27/2011 2:35 PM
Hide
-0+

cknobman :
I can and will wait until the cost of a 128GB SSD is $1/GB (needs to be one with a good controller not some crappy jmicron controller). So until the day comes I will just sit and wait.


Be prepared to wait a long, long time. As long as hard drives are manufactured, SSD pricing is not going to go down much more. Come back in about 5 years and NAND + latest controller might net you $1/GB on a retail SSD.

masterasia 01/27/2011 3:33 PM
Hide
-0+

I'm surprised by the Seagate XT hybrid. It sucks.

noblerabbit 01/27/2011 4:26 PM
Hide
-0+

Which one of these puppies should I slap into my PS3? However, I am contemplating on just putting an OCZ 90GB SSD for quicker access to the sludging GT5 game. I don't care for space, I want improved performance over the current fat 60GB drive in there.

LordConrad 01/27/2011 6:08 PM
Hide
-0+

noblerabbit :
Which one of these puppies should I slap into my PS3? However, I am contemplating on just putting an OCZ 90GB SSD for quicker access to the sludging GT5 game. I don't care for space, I want improved performance over the current fat 60GB drive in there.


Even the modern 5400rpm drives will be faster than the original 60GB drive from the PS3. With a PS3 fat I wouldn't use a 7200rpm anyways, 5400rpm or SSD only for temperature and fan noise reasons.

WR2 01/27/2011 6:17 PM
Hide
-0+

Most of the time a HDD/SDD just needs to be fast enough to load data/files/programs into RAM before it's needed by the system. Getting a few extra seconds faster boot or game level upload isn't that important to most people to justify the premium cost of a SSD.

mikem_90 01/27/2011 10:22 PM
Hide
-0+

dgingeri :
Well, I can assure you that the caviar black is available in 750GB capacity.



Yeah, the story that they were released was a few weeks ago (Jan05 2011). It seems though to ask for drives to review might have taken a bit of time from the testing and review of the hardware though.

3 weeks is not insubstantial, but they might want to have updated the story "750gb was not available at the time of testing".

alextheblue 01/28/2011 3:08 AM
Hide
-0+

What firmware are you using with the XT drive?

oxxfatelostxxo 01/28/2011 3:18 AM
Hide
-0+

Quote :The big difference there is access time. Believe me, WoW loads up faster from my single Vertex 120GB drive


Ive played wow, loading off a single WD black drive, and load time were very small even with that, Shaving 2 seconds off a already low load time just doesnt matter to me.

So unless that small 1-2 seconds really matter to you, having a hdd raid array is a much better solution, as i dont see the fast access time dropping a already low load time that much lower.

Also (thanks to steam) the amount of games i have just isnt suited to using a small ssd drive.

tmc 01/29/2011 12:34 AM
Hide
-0+

One point, slightly less than 90% of laptop owners dont' upgrade/replace the original drive.
Also, FYI.. netbooks won't see a 320gb drive let along 640 or 750gb in 2011.

BulkZerker 01/29/2011 11:03 PM
Hide
-1+

soldier37 :
Lets see 12 second boot time versus 1 min 20 second. First to load in online games or middle of the road to last. 2 seconds to load Photoshop versus 7-10 seconds. I'll take the SSD route thanks. 355 Write 275 read speeds owns mechanical drives all day long, cost more yeh but I can do that. 7200 rpm drives are falling by the wayside except for your casual ignorant pc users..ie people that buy their PCs at Walmart and only browse the net and email.



Must be nice to have Daddy's gold card to pay for your spending habits.

Owning a 150GB WD raptor and a 640 Cav Black here I can say that a 20sec boot time (once i get past ASUS's retarded long boot up sequence) to desktop with Win 7 on the Raptor, vs 12 seconds isn't going to warrant me to switch over any time soon on that front. Also how many games does it honestly matter loading the level first when there's a 30 - 60 round start timer? (Anyone that plays BAD company 2, Black ops, TF2, DoW2, ect can vouch for this. Either you wait or you wait for the timer to expire or the map to load and have 5 sec on the timer to wait out.)

SSDs are great, but the price is still steep as hell for one compared to a RAID array.

Oh and BTW Kingstons 16 GB SSD is heaven for a cheap netbook upgrade.

anonymous 02/03/2011 1:25 PM
Hide
-0+

Yeah, except it is hard to jam a raid array into your notebook.

I want a conventional 750GB 7200RPM drive with 40-60GB of SSD built into it that appears as a single drive partitioned into a 40-60GB partition and a 750GB partition.

That way my OS and core apps (Adobe products and 3DS Max) can go into the SSD part and the apps into the traditional HDD and I only need one drive in my laptop, rather than having to remove the optical drive or have an external HDD. The momentus XT is pointless, give it 40GB or SS and I'll bite.
