Sapphire Launches Fanless Radeon RX 5700 XT Compute GPU

GPRO X070 8GB GDDR6
GPRO X070 8GB GDDR6 (Image credit: Sapphire)

Sapphire (via Coelacanth Dream) has released the GPRO X070 8GB GDDR6. The specialized graphics card, based on the AMD Radeon RX 5700 XT, targets professional and graphics-intensive workloads.

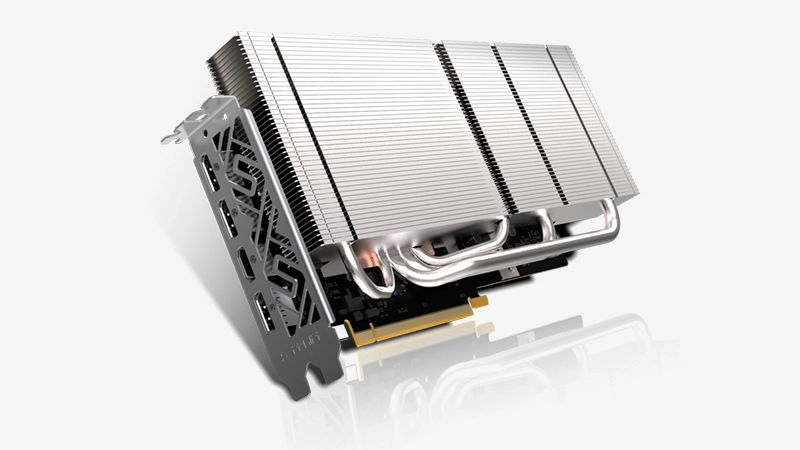

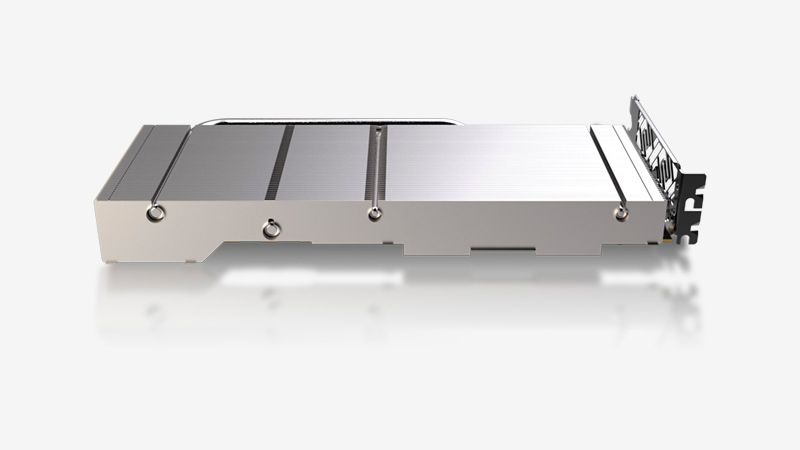

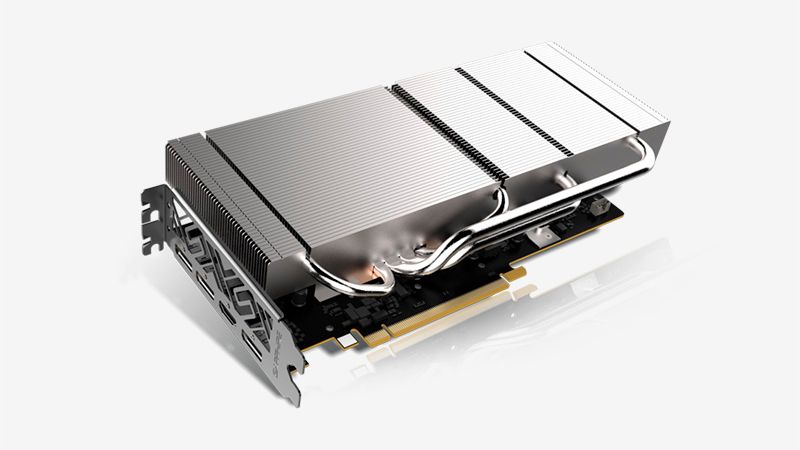

The GPRO X070 8GB GDDR6 features a passive cooling system consisting of a herculean heatsink with four heatpipes. Sapphire specifically designed the dual-slot graphics card for GPU compute system,s so it relies on the system's active airflow to remain cool. Weighing in at 800g, the graphics card has dimensions of 281.94 x 133.75 x 34.5mm.

The Navi 10 silicon resides inside the GPRO X070 8GB GDDR6 and provides the graphics card with 40 Compute Units, which amounts to 2,560 shaders in total. Identical to the Radeon RX 5700 XT, the GPRO X070 8GB GDDR6 is also equipped with 8GB of GDDR6 memory across a 256-bit memory bus. The memory continues to operate at 14 Gbps to offer maximum memory bandwidth of up to 448 GBps.

Sapphire implemented a dual-BIOS system on the GPRO X070 8GB GDDR6. The default mode has the graphics card running according to AMD's reference specification. That would mean a 1,605 MHz base clock, 1,755 MHz game clock, and 1,905 MHz boost clock. The efficiency mode downclocks the graphics card to a 1,500 MHz base clock, 1,700 MHz game clock, and 1,750 MHz boost clock.

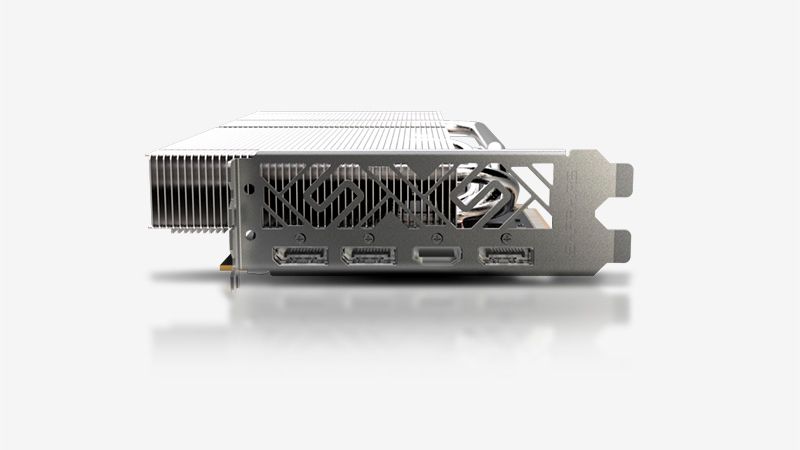

While the standard Radeon RX 5700 XT comes with a 225W TDP (thermal design power), the GPRO X070 8GB GDDR6 has a power consumption rating below 180W. Besides the PCIe slot, the graphics card draws its power from one 8-pin and one 6-pin PCIe power connector. Despite being a compute graphics card, the GPRO X070 8GB GDDR6 lands with three video outputs. There is one HDMI port and three DisplayPort outputs.

Due to the nature of the graphics card, consumers will have to contact Sapphire for a quote.

Zhiye Liu
RAM Reviewer and News Editor

Zhiye Liu is a Freelance News Writer at Tom’s Hardware US. Although he loves everything that’s hardware, he has a soft spot for CPUs, GPUs, and RAM.

  • Nemesia
    What's the temperatures tho? Like.... :P
    Reply
  • King_V
    While I do wonder if a standard PC case with good airflow could work with this, the temperatures are going to be very much dependent on the case and cooling. As the article says:

    Sapphire specifically designed the dual-slot graphics card for GPU compute systems so it relies on the system's active airflow to remain cool.
    Reply
  • pocketdrummer
    Nemesia said:
    What's the temperatures tho? Like.... :p

    It's whatever they claim it is. Nobody will ever get their hands on one to test anyway...
    Reply
  • Nemesia
    pocketdrummer said:
    It's whatever they claim it is. Nobody will ever get their hands on one to test anyway...

    Well we are not stupid either. They could say 15C at idle and we would all know this is BS. So at least they could have said what kind of temperature it had. What they didn't test it?....

    You're right tho. No one will ever buy one ;p
    Reply
  • neojack
    that would be the most powerfull passive GPU on the market.

    i still have my pair of passive Radeon HD6850. beautifull beasts.
    it's better to slap a quiet fan on them though, massive difference in temps, while still quiet.
    Reply
  • lazyabum
    Why worry about heat absorption when these growing hunks of metal reach 50 lbs and Tears the GPU away from the card, a loud bang hitting the bottom of the case and that midsize hole where your GPU used to be.
    Reply
  • FunSurfer
    Is this card good for Bitcoin mining? If so, what is its performance/power consumption ratio?
    Reply
  • DonGato
    FunSurfer said:
    Is this card good for Bitcoin mining? If so, what is its performance/power consumption ratio?
    FYI so you can troll more effectively GPUs haven't been used for bitcoin mining in 6 or 7 years.
    Reply
