ASRock X870E Taichi OCF Motherboard Review: The right formula for extreme AMD overclocking

Great for extreme overclocking and breaking records. Overkill for the PBO overclocker

Reviews
By published
ASRock X870E Taichi OCF
(Image: © Future)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Firmware

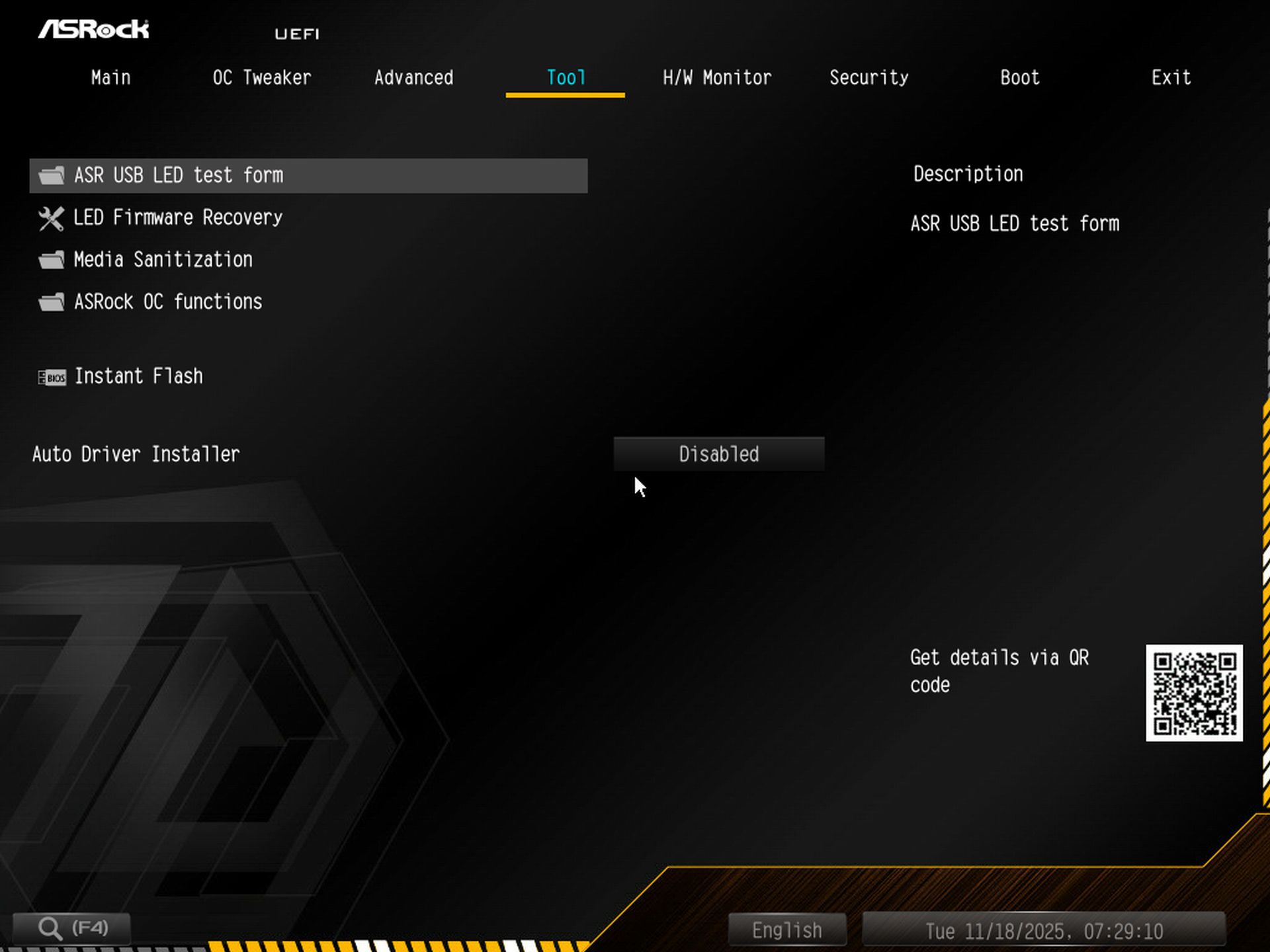

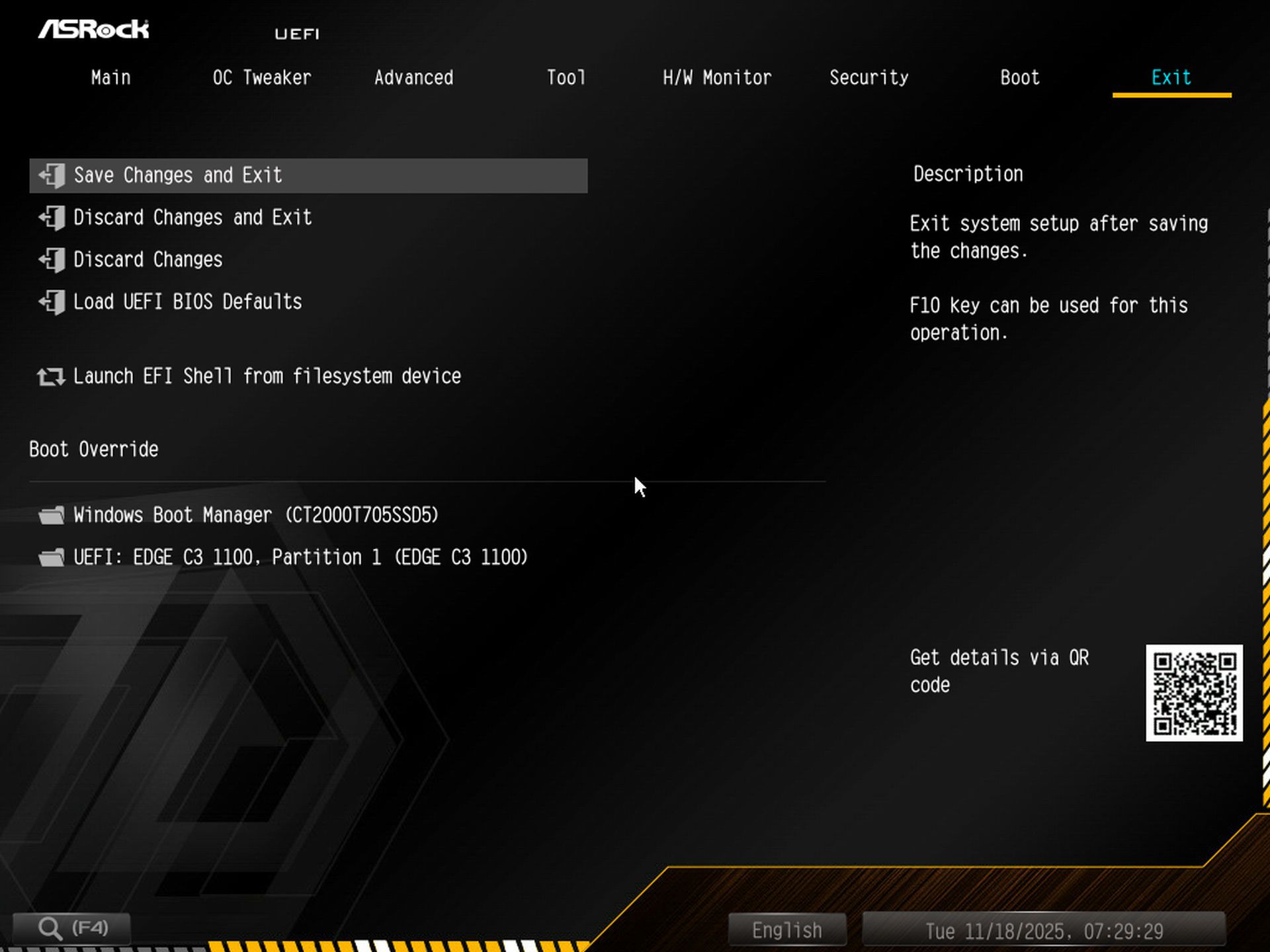

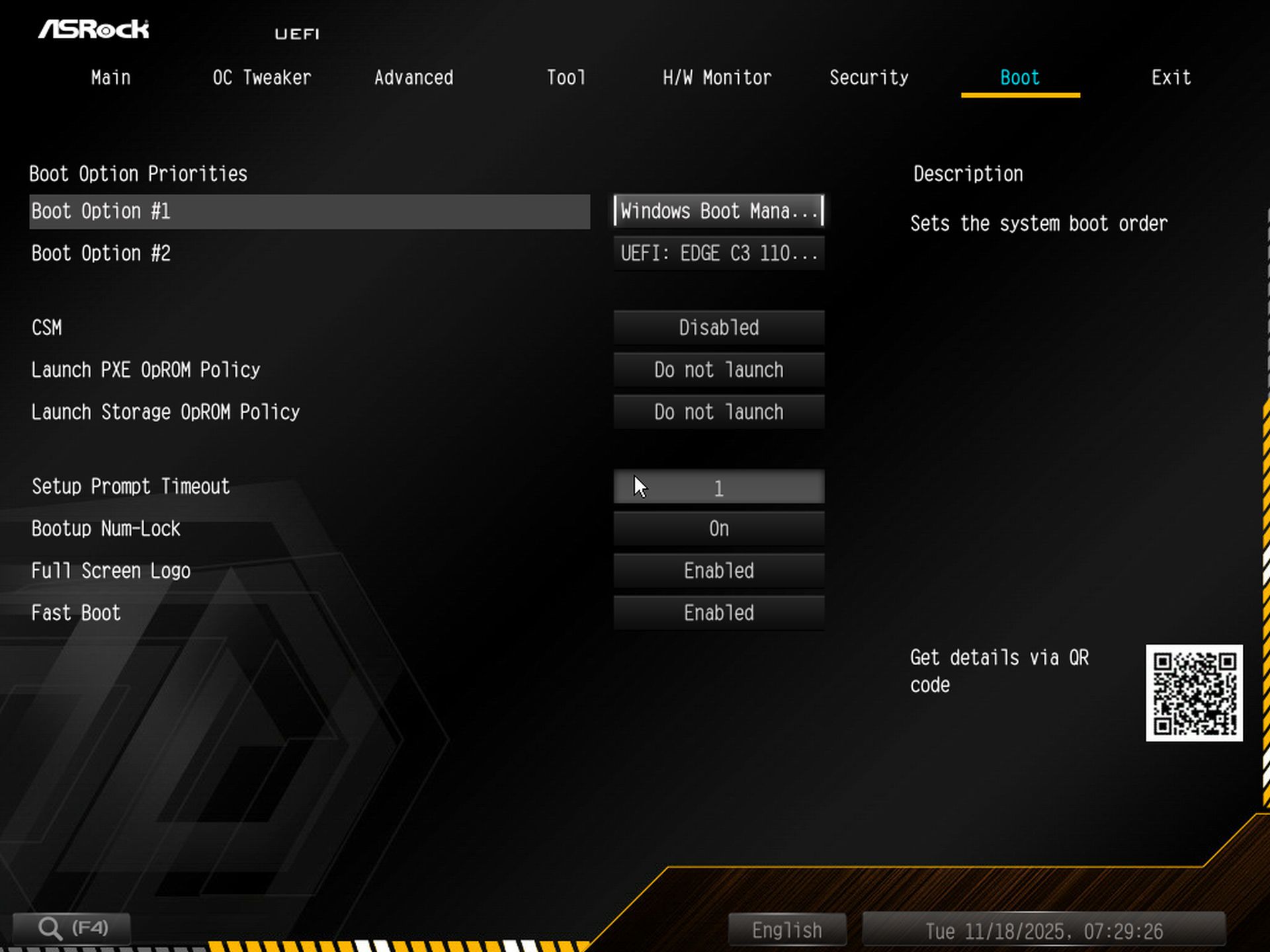

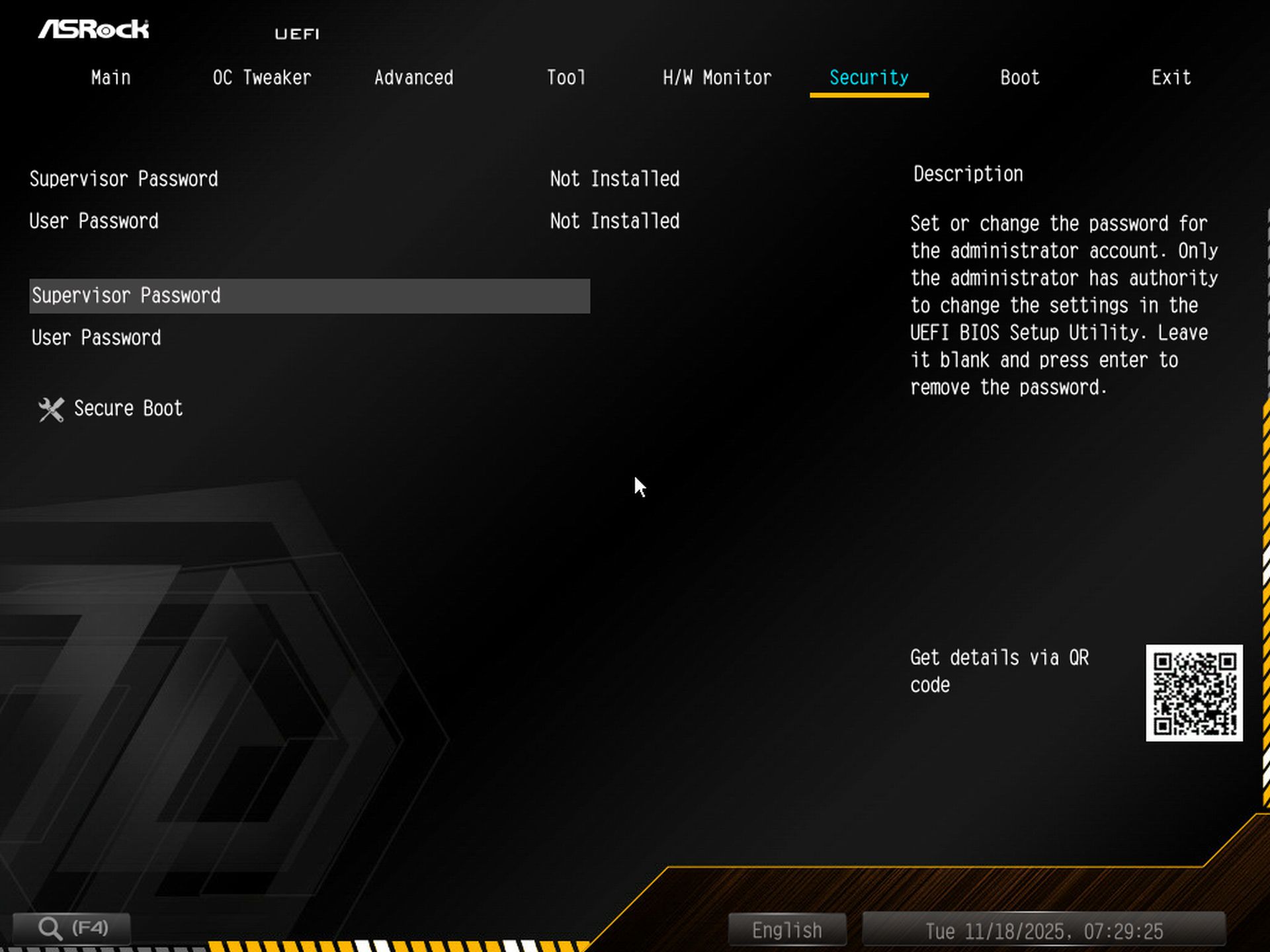

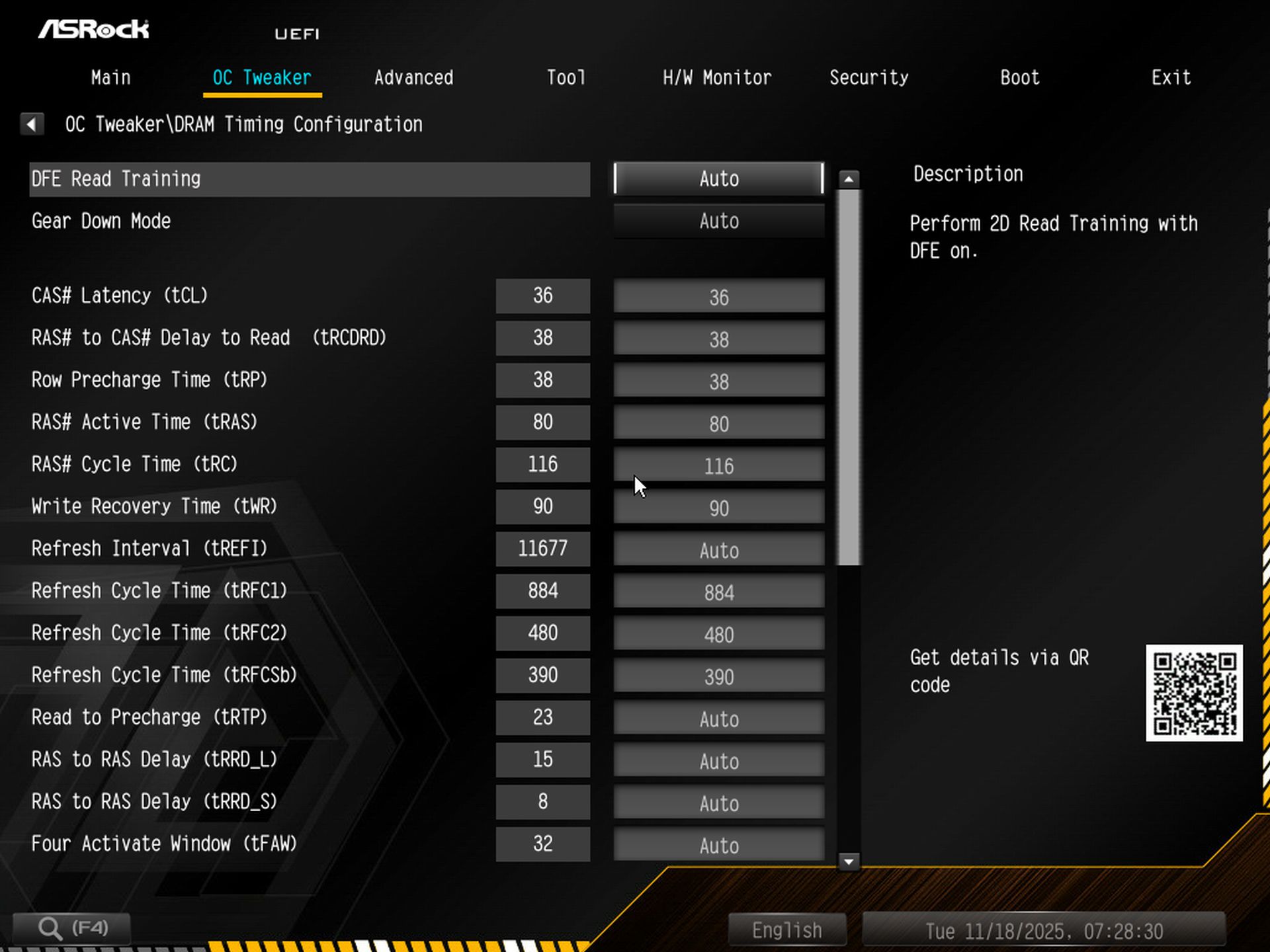

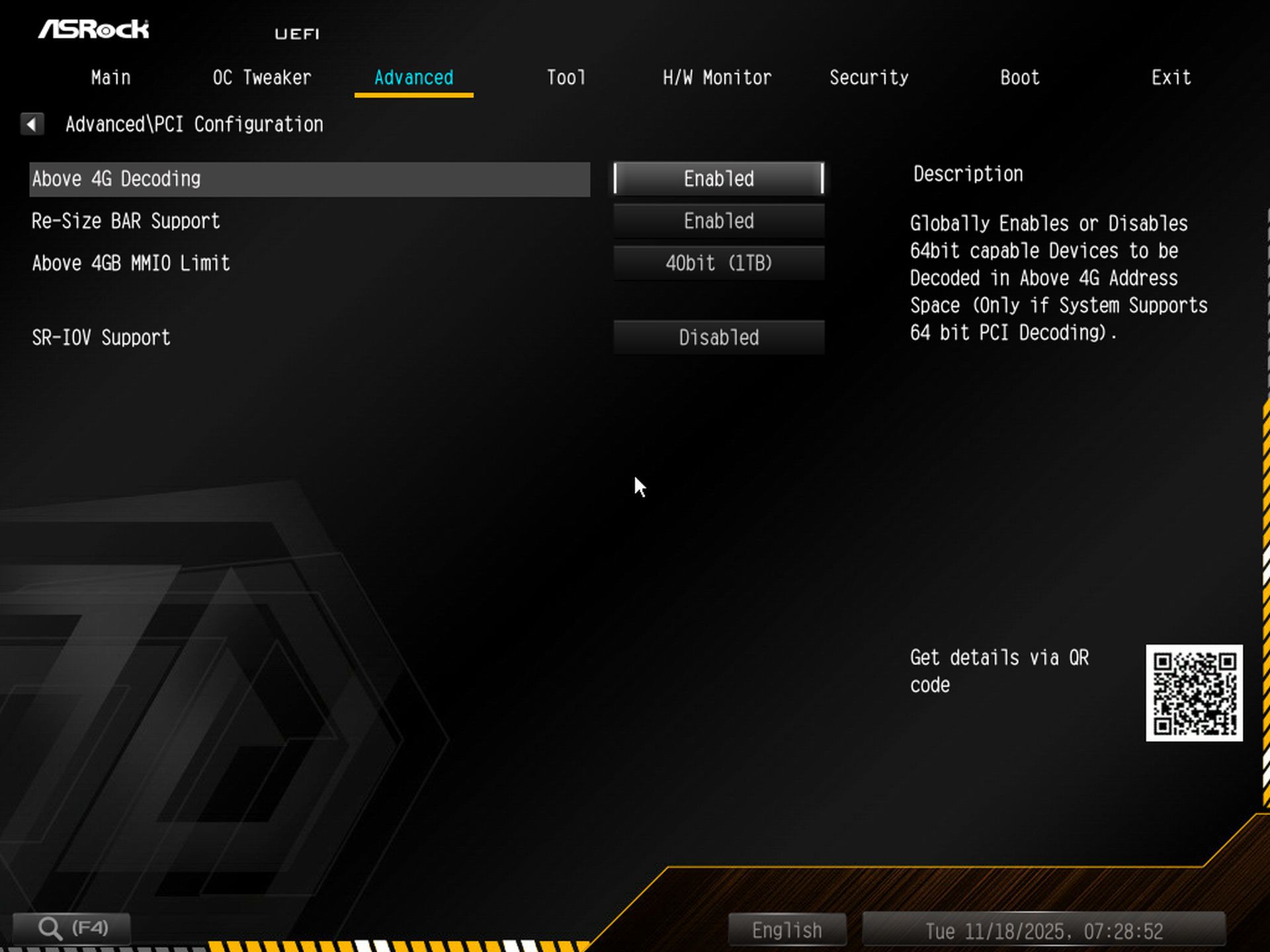

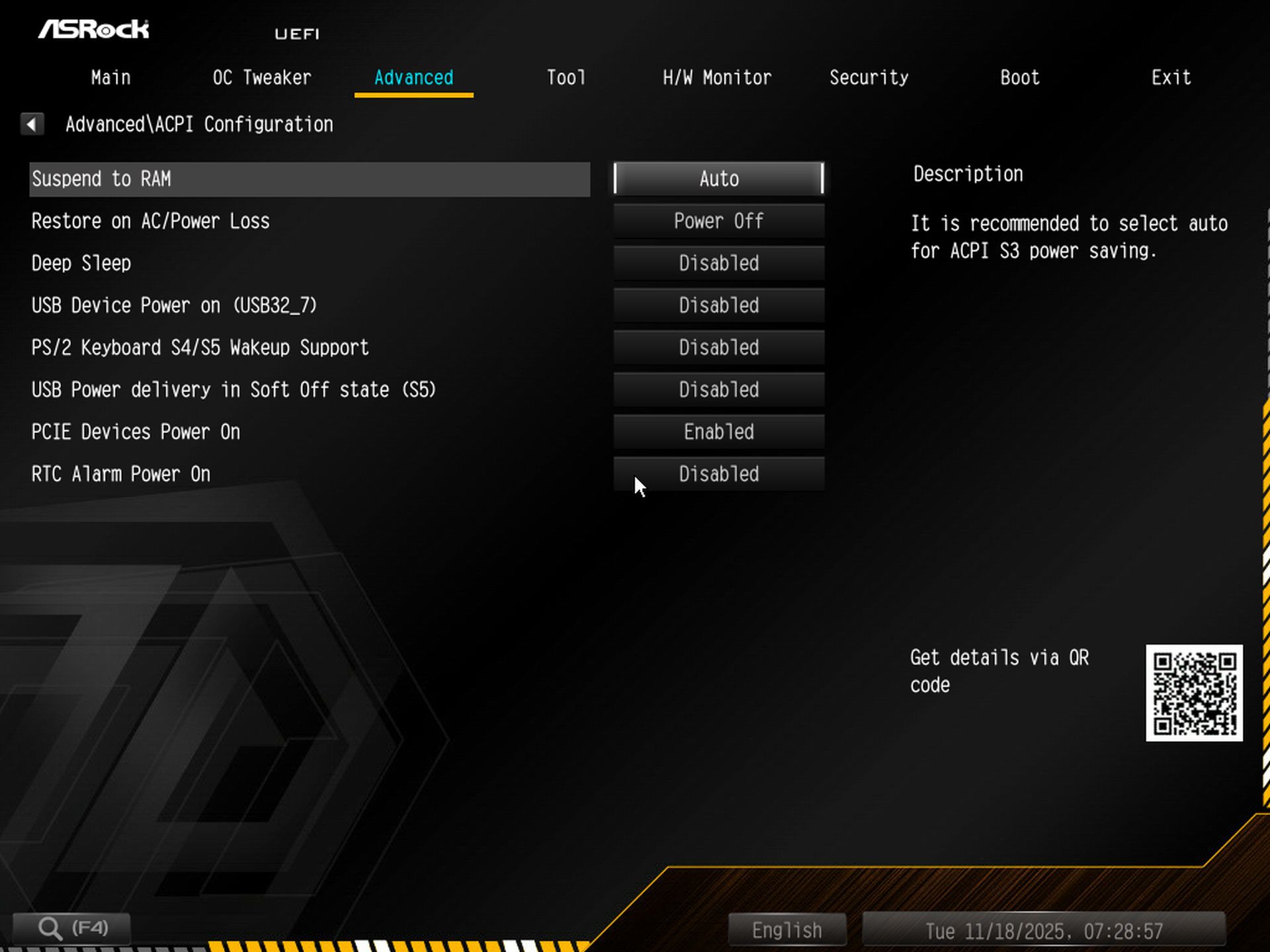

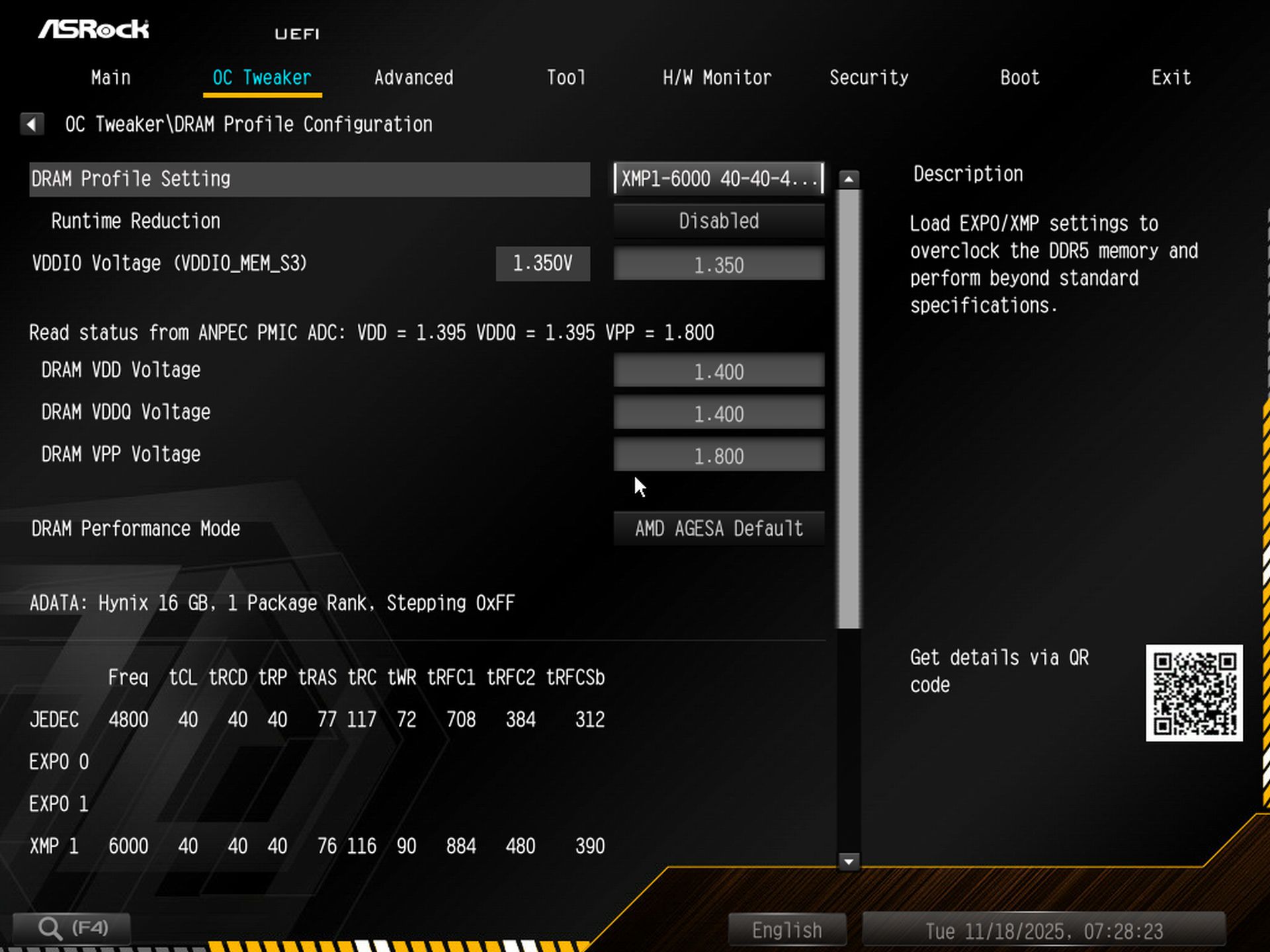

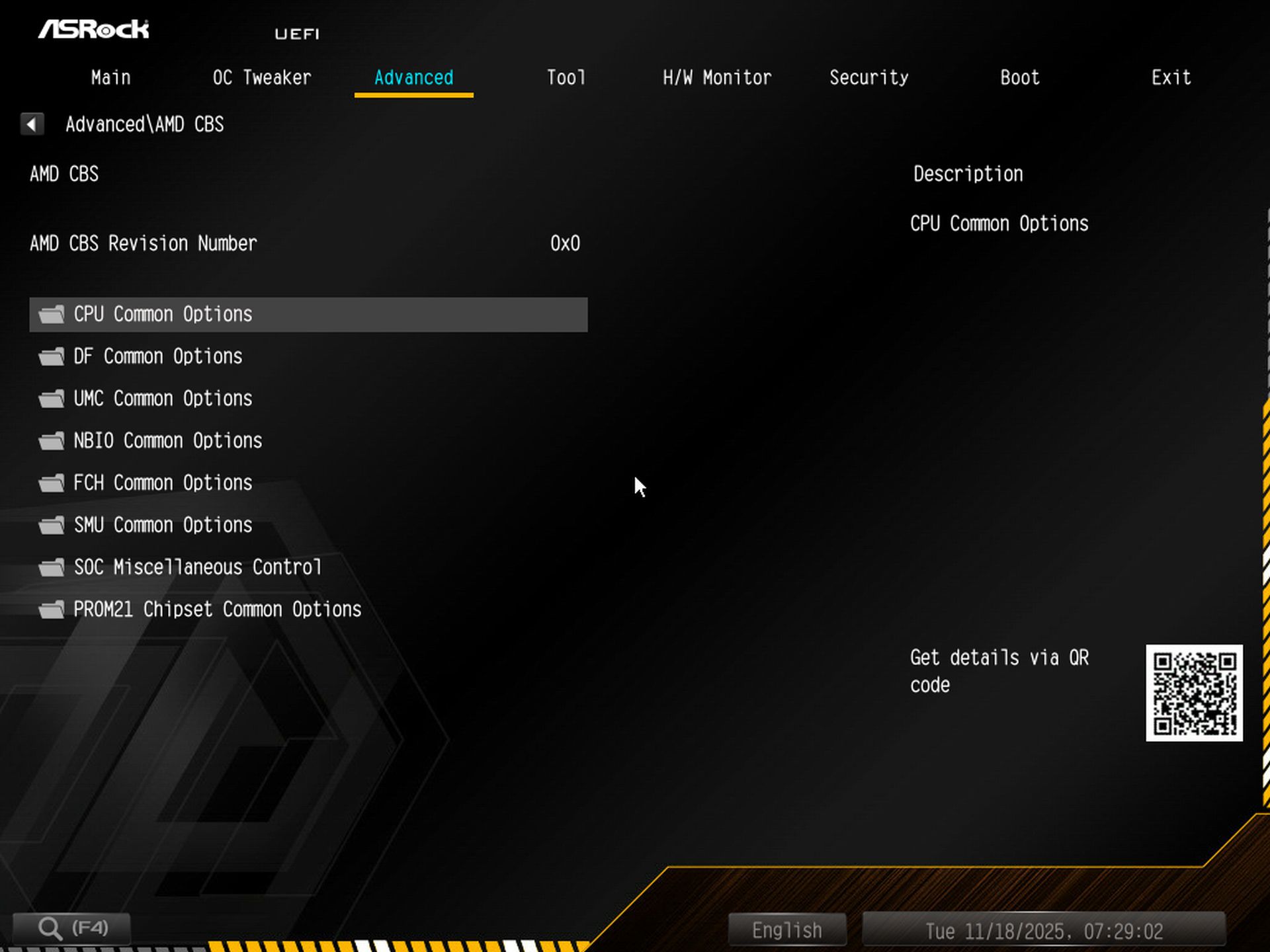

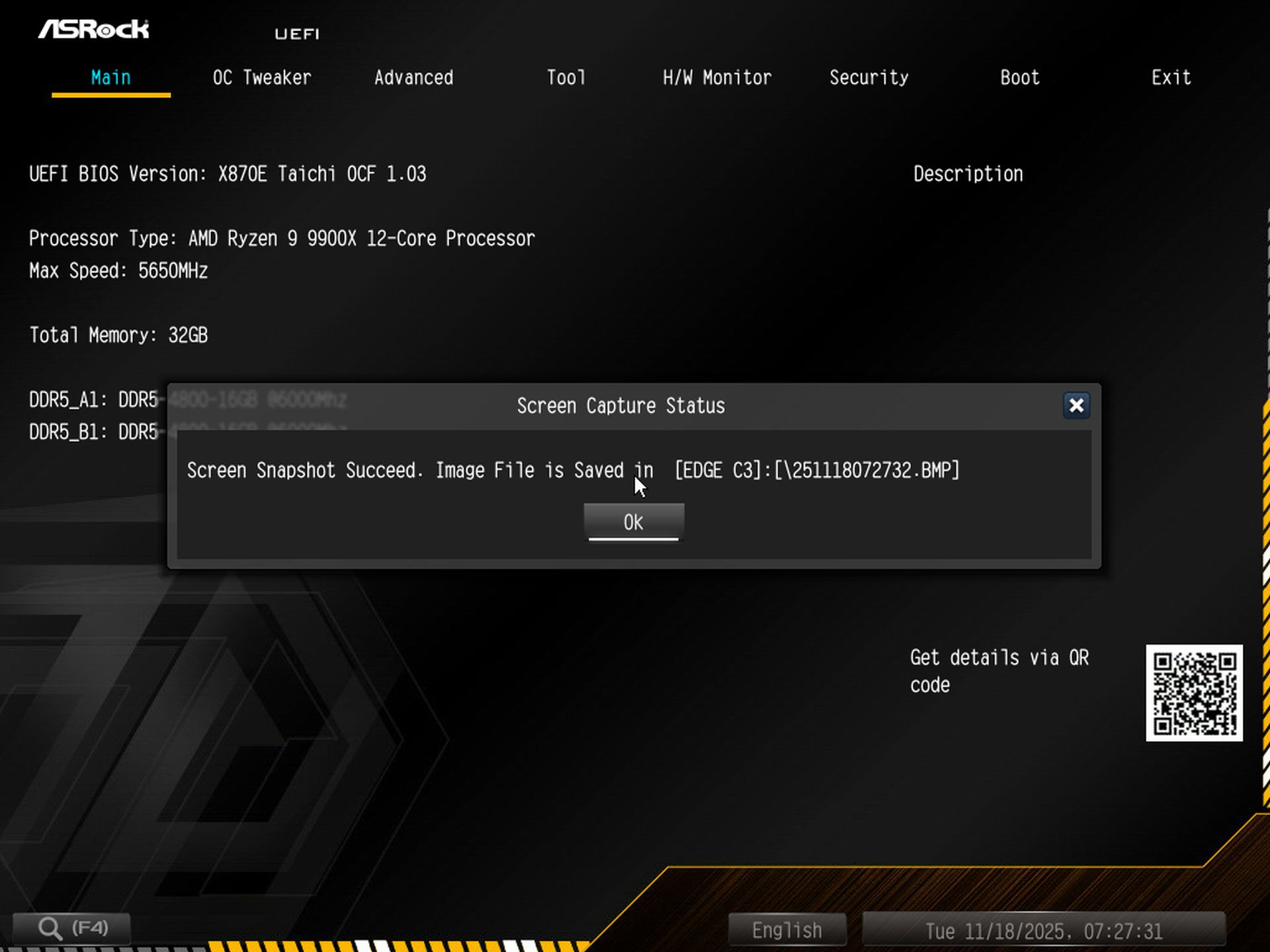

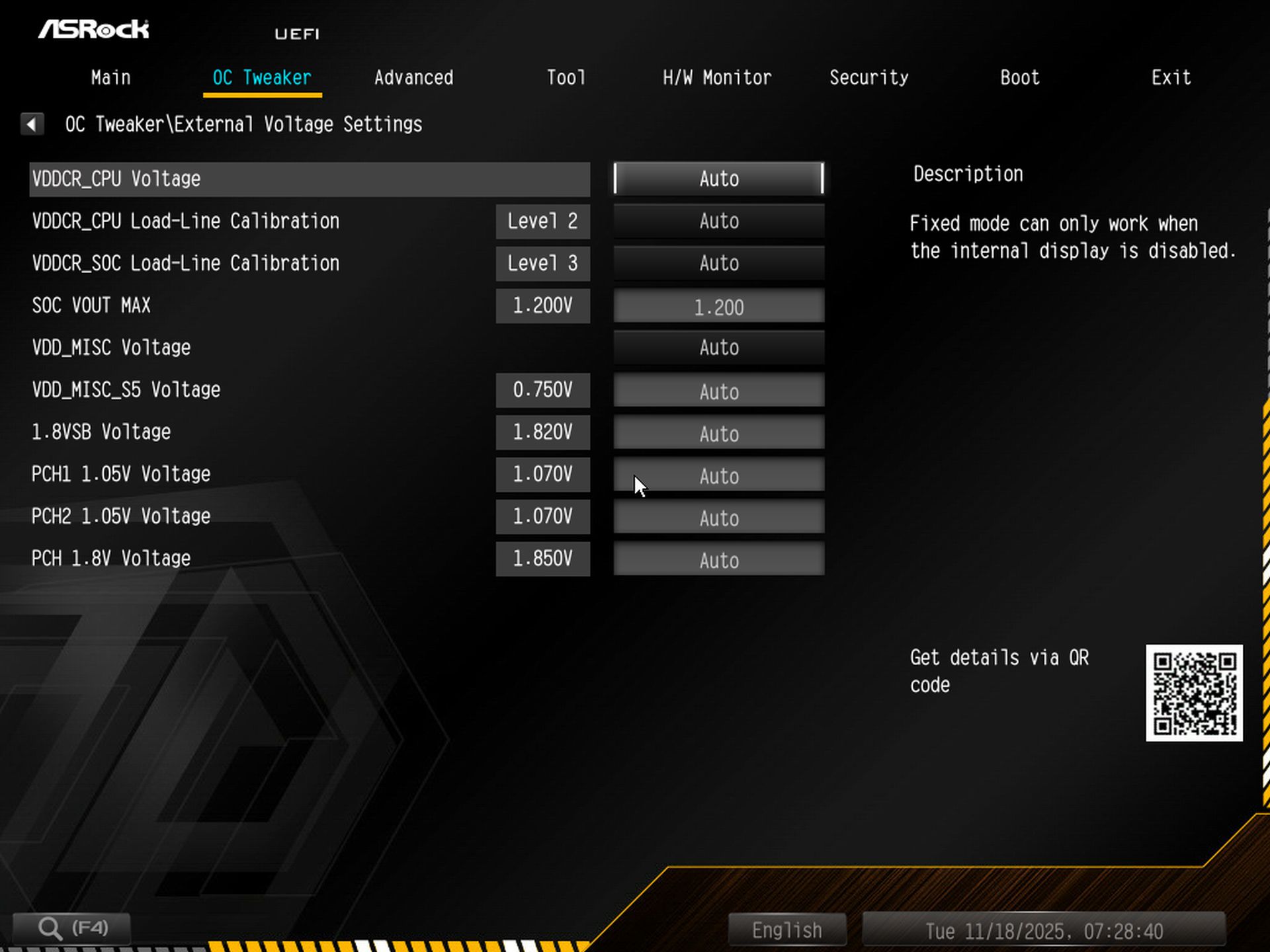

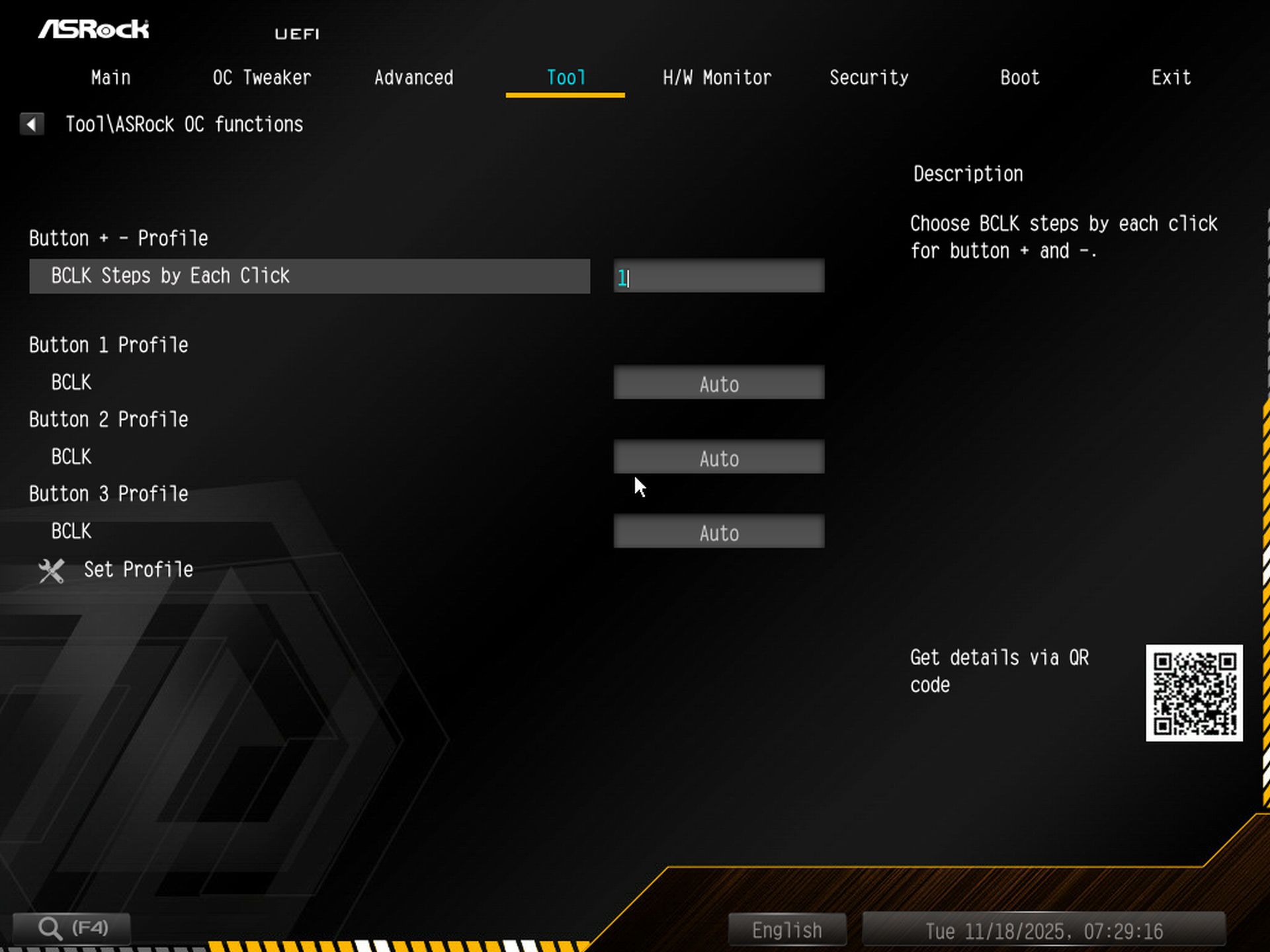

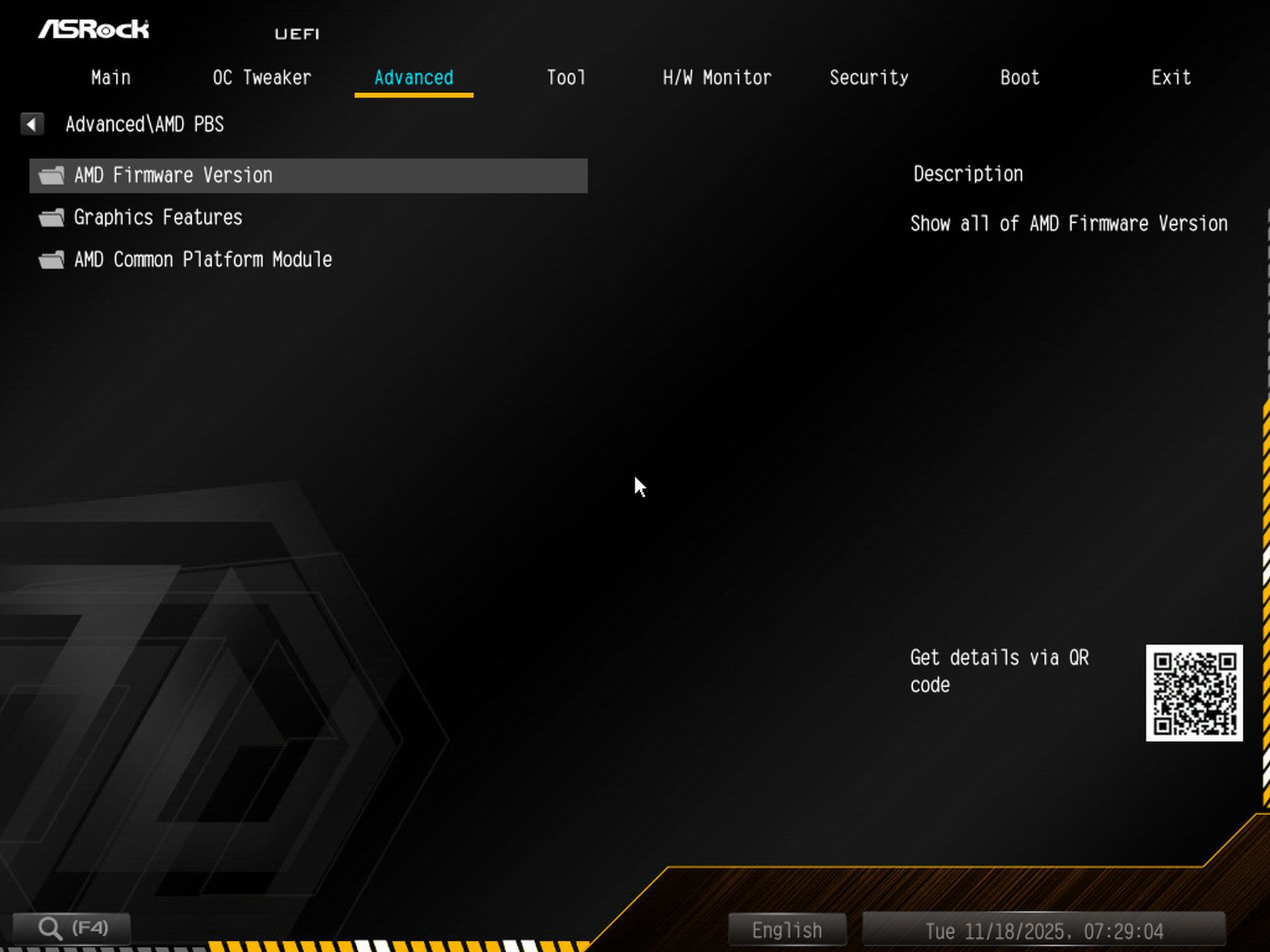

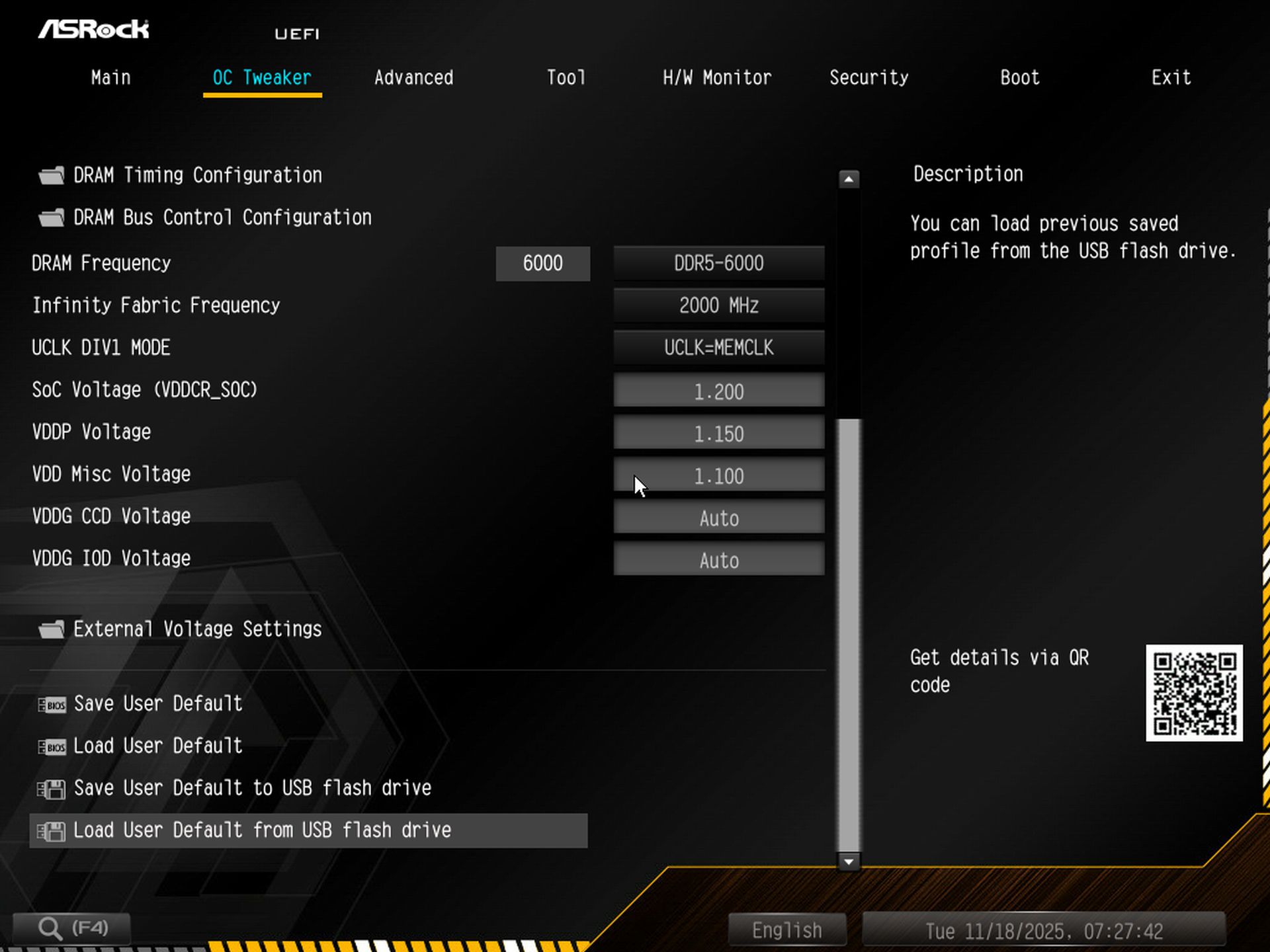

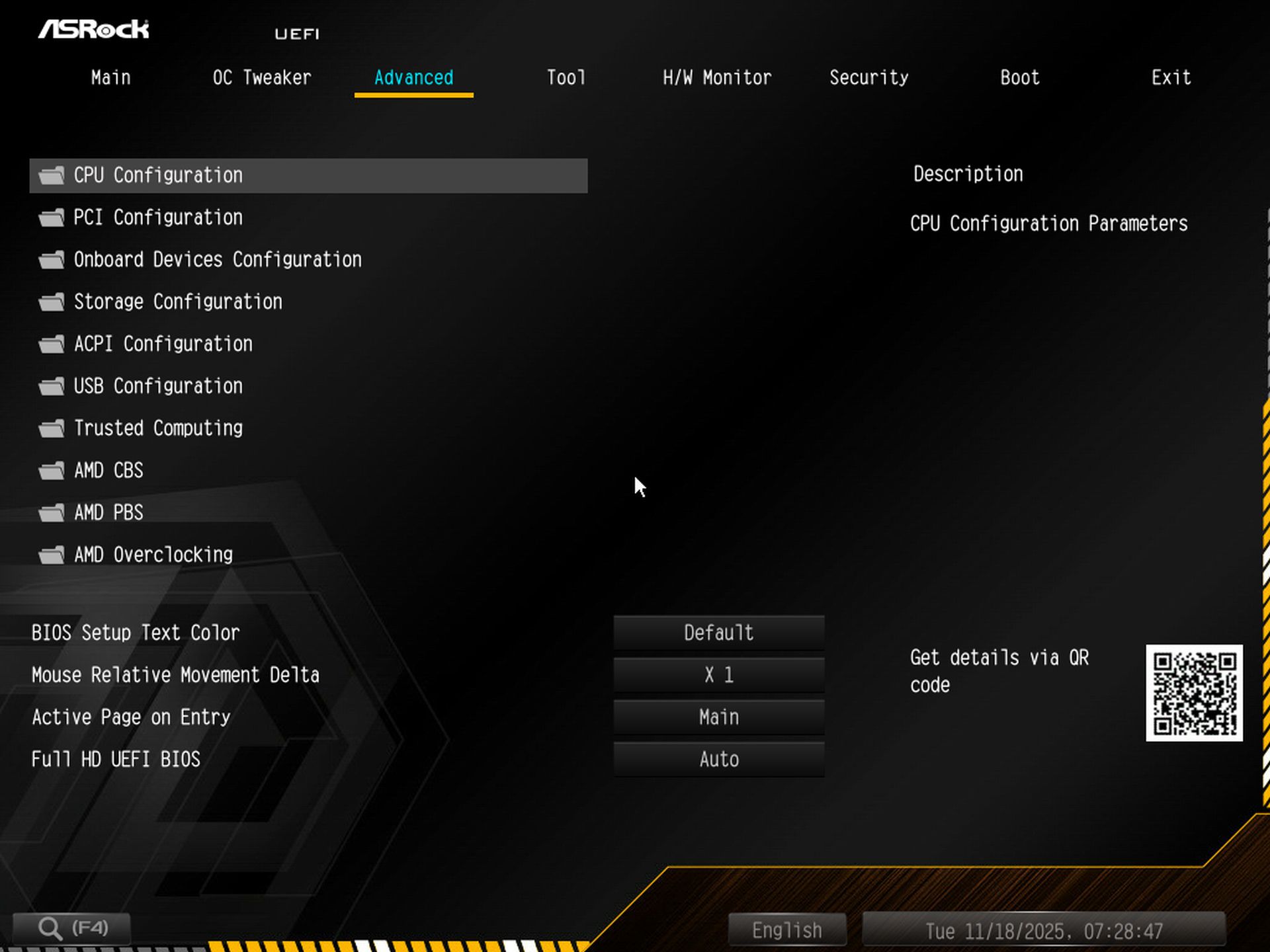

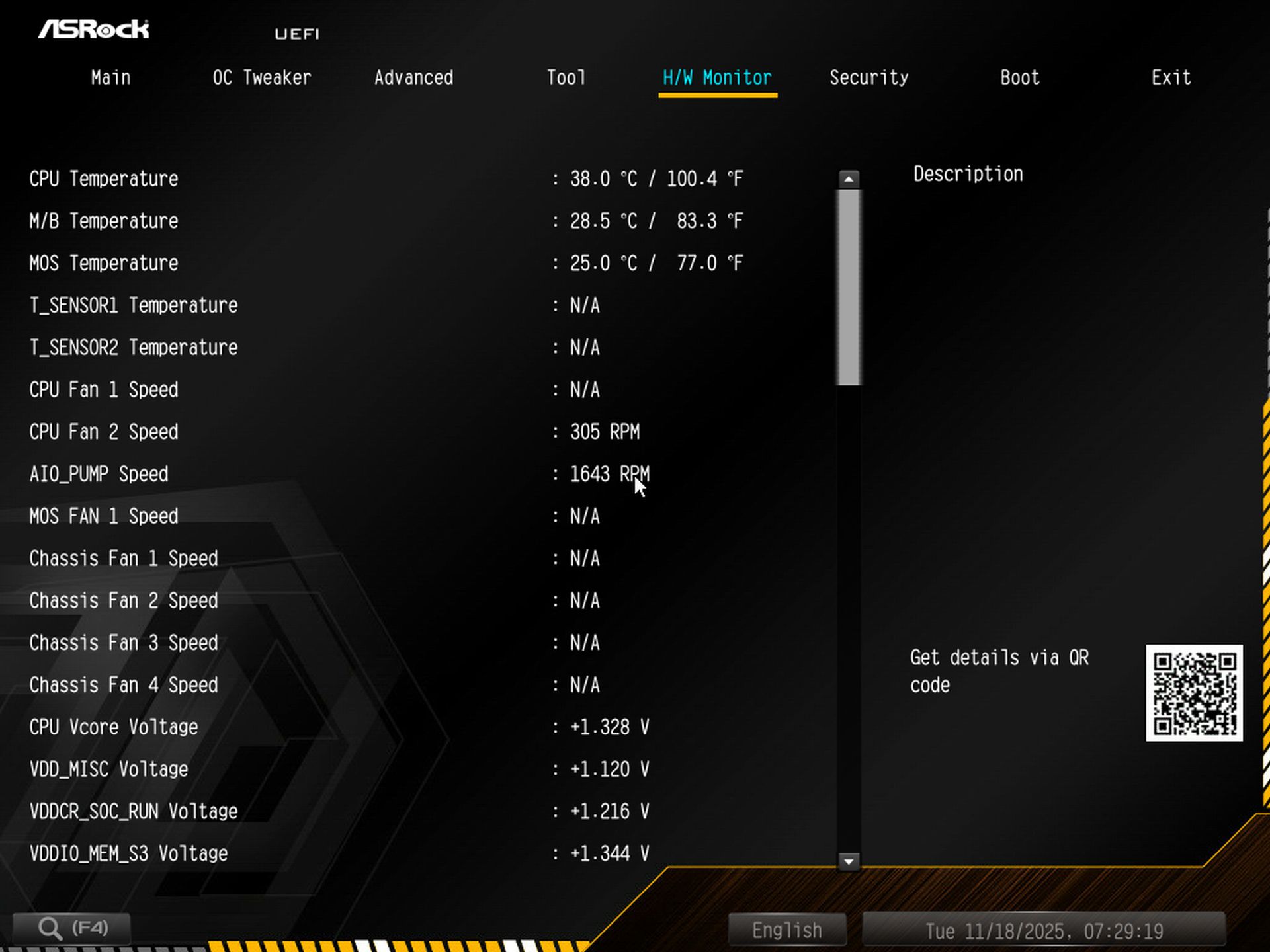

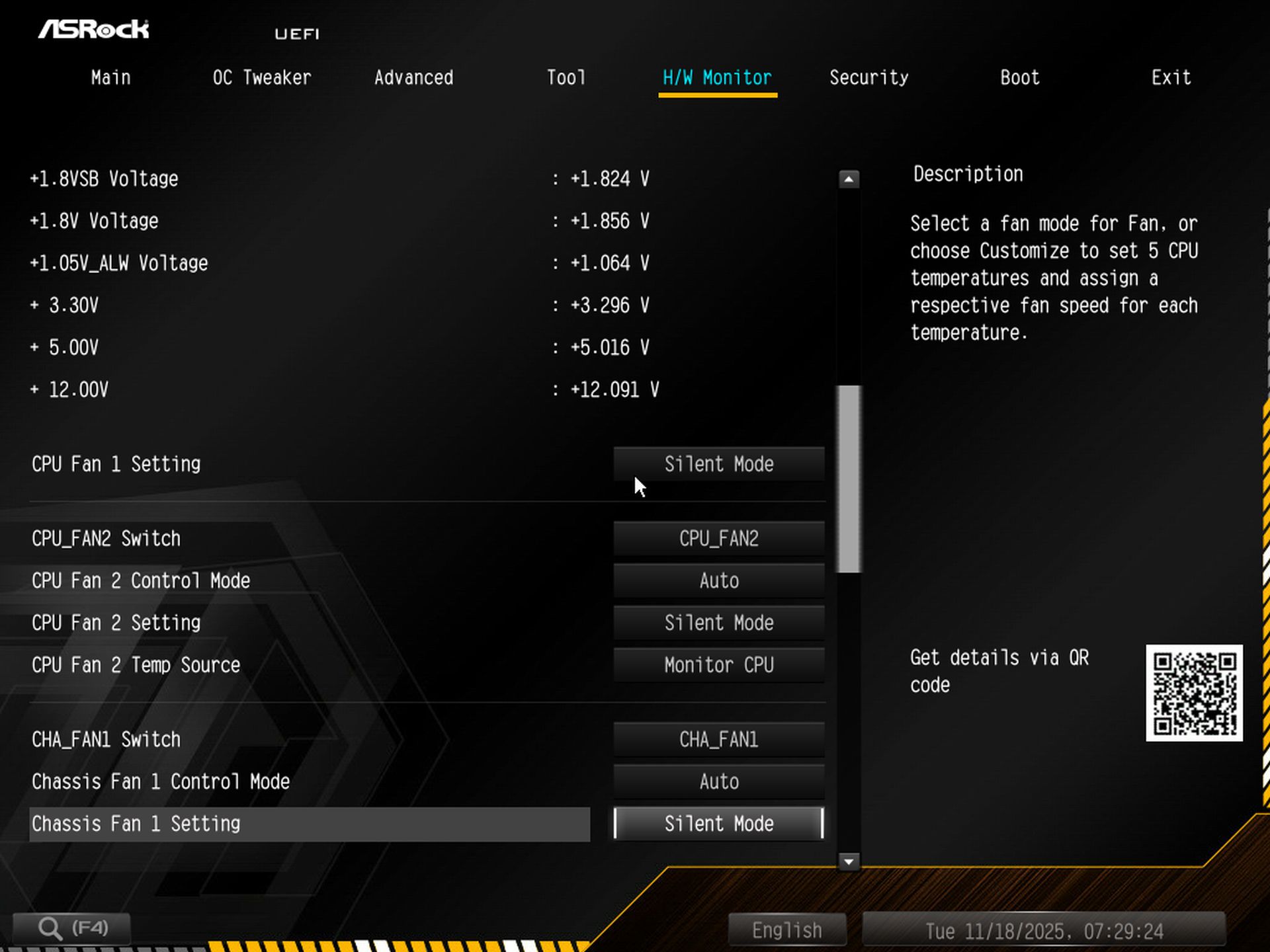

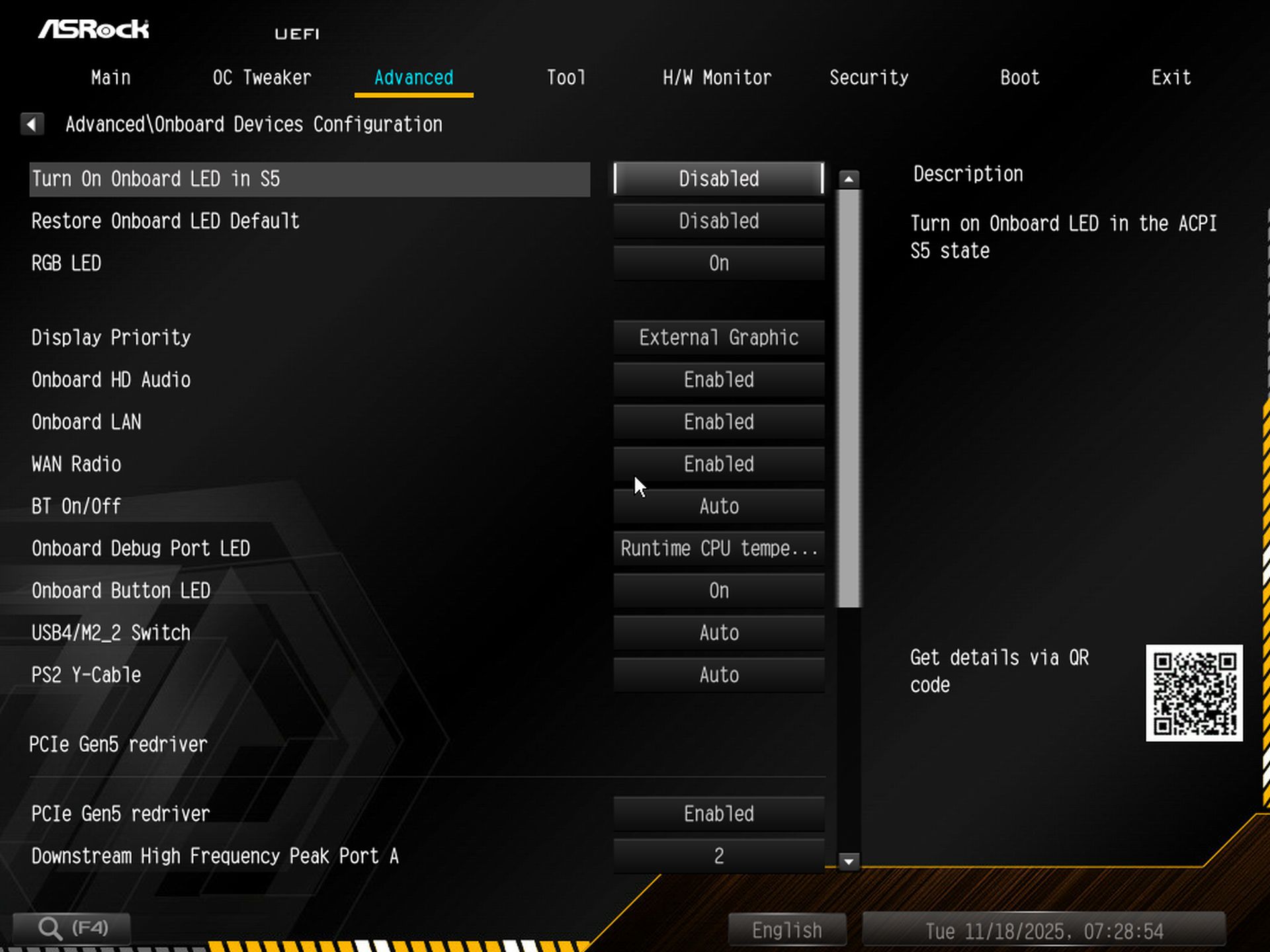

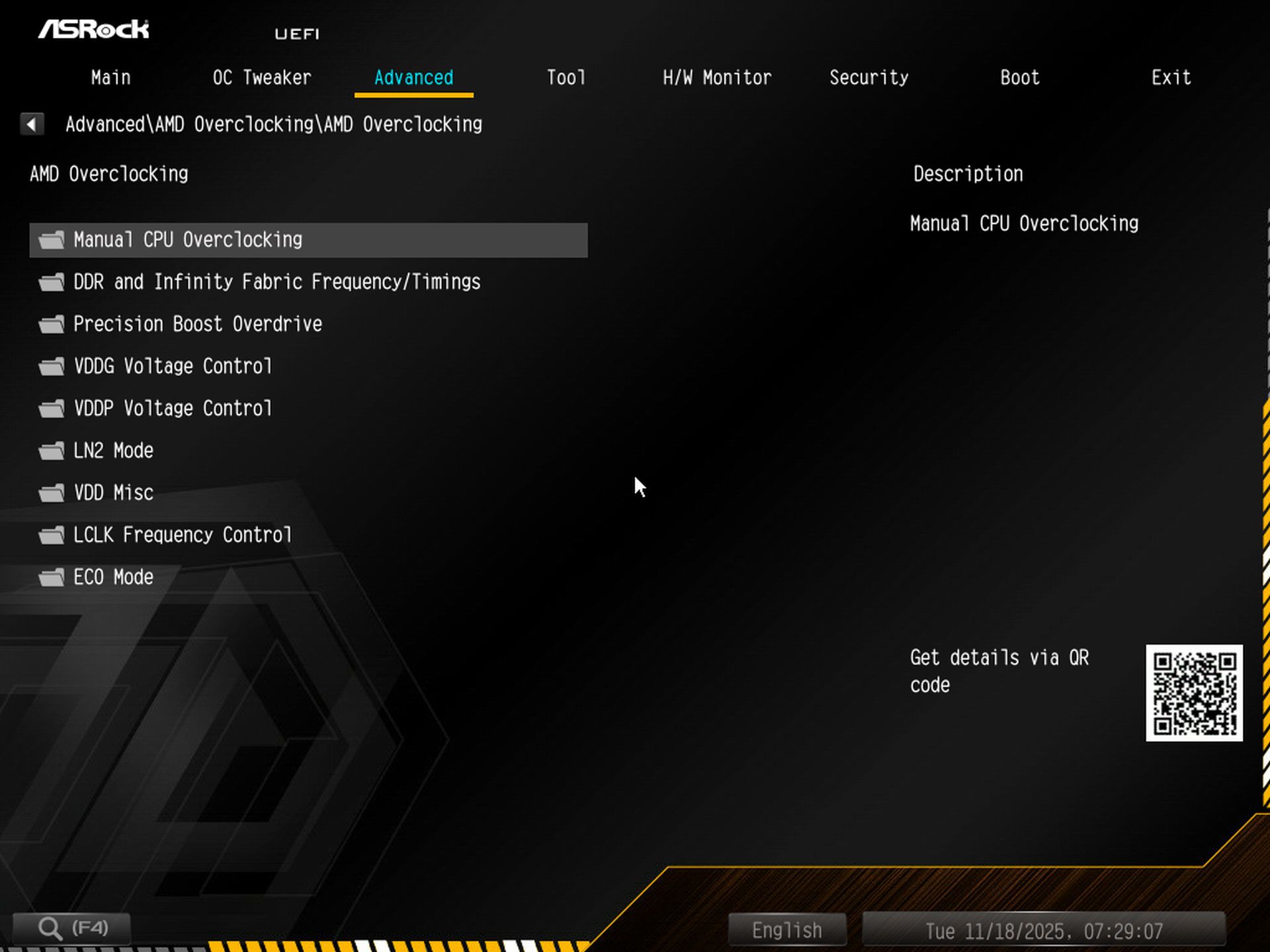

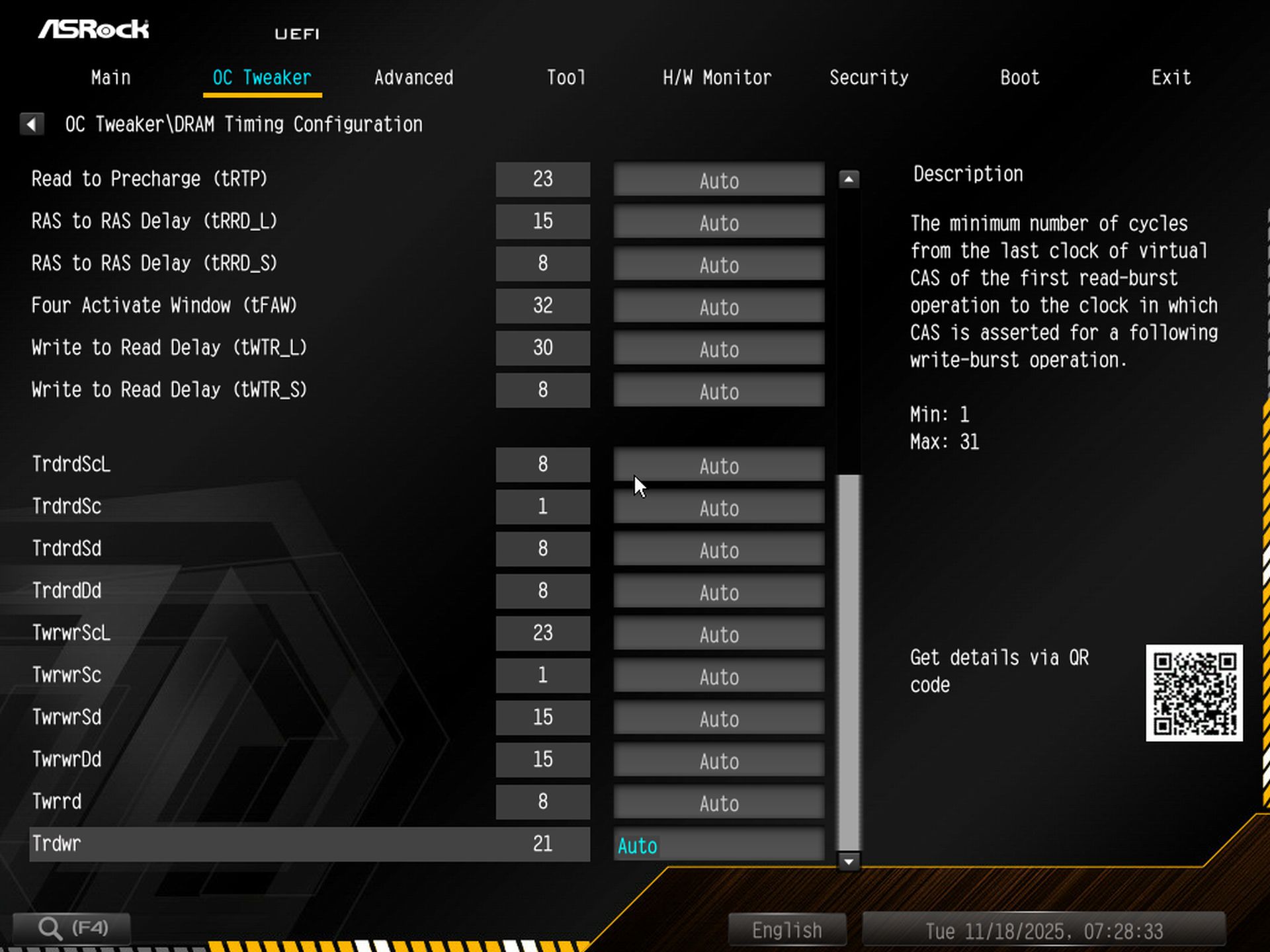

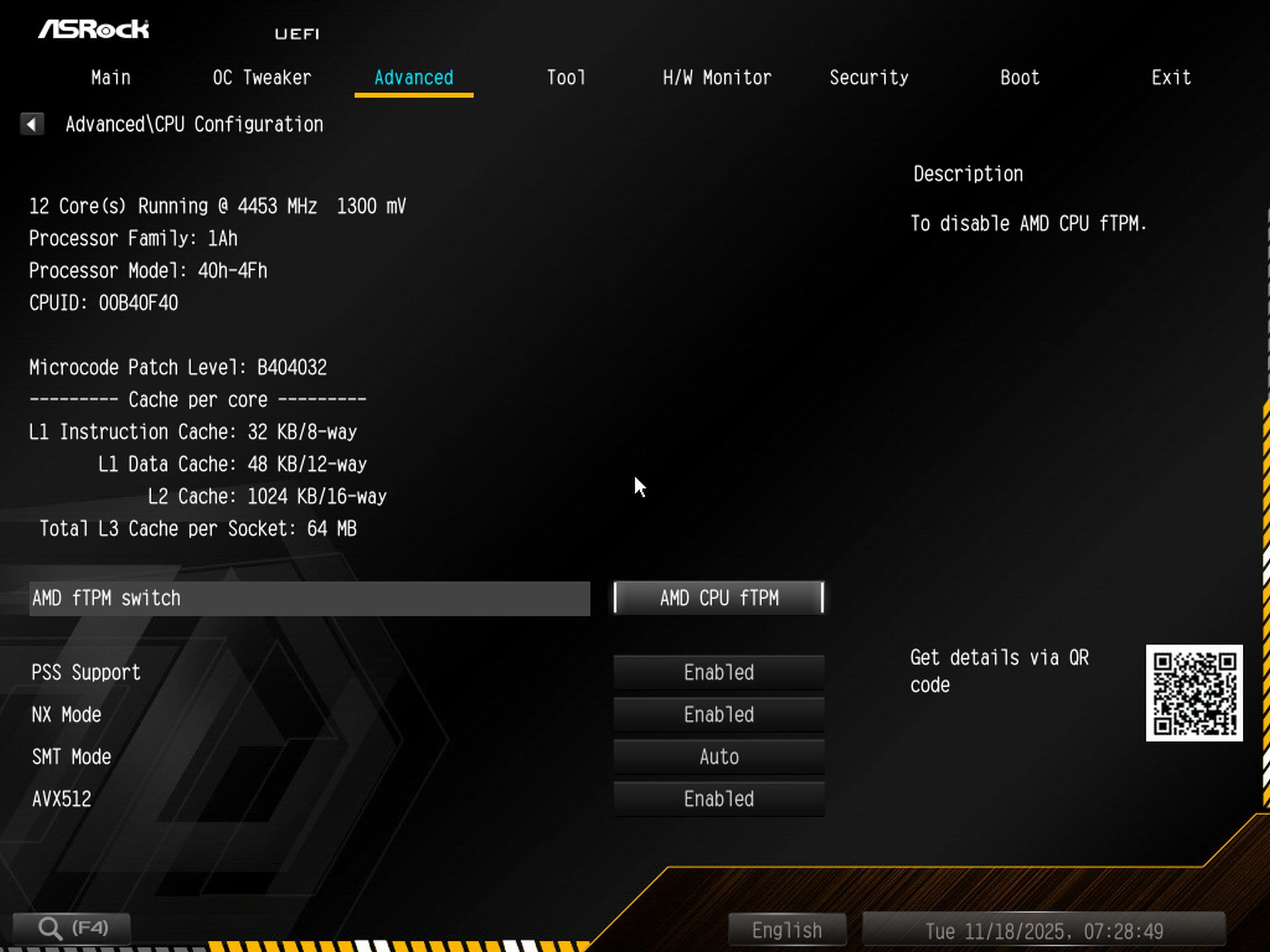

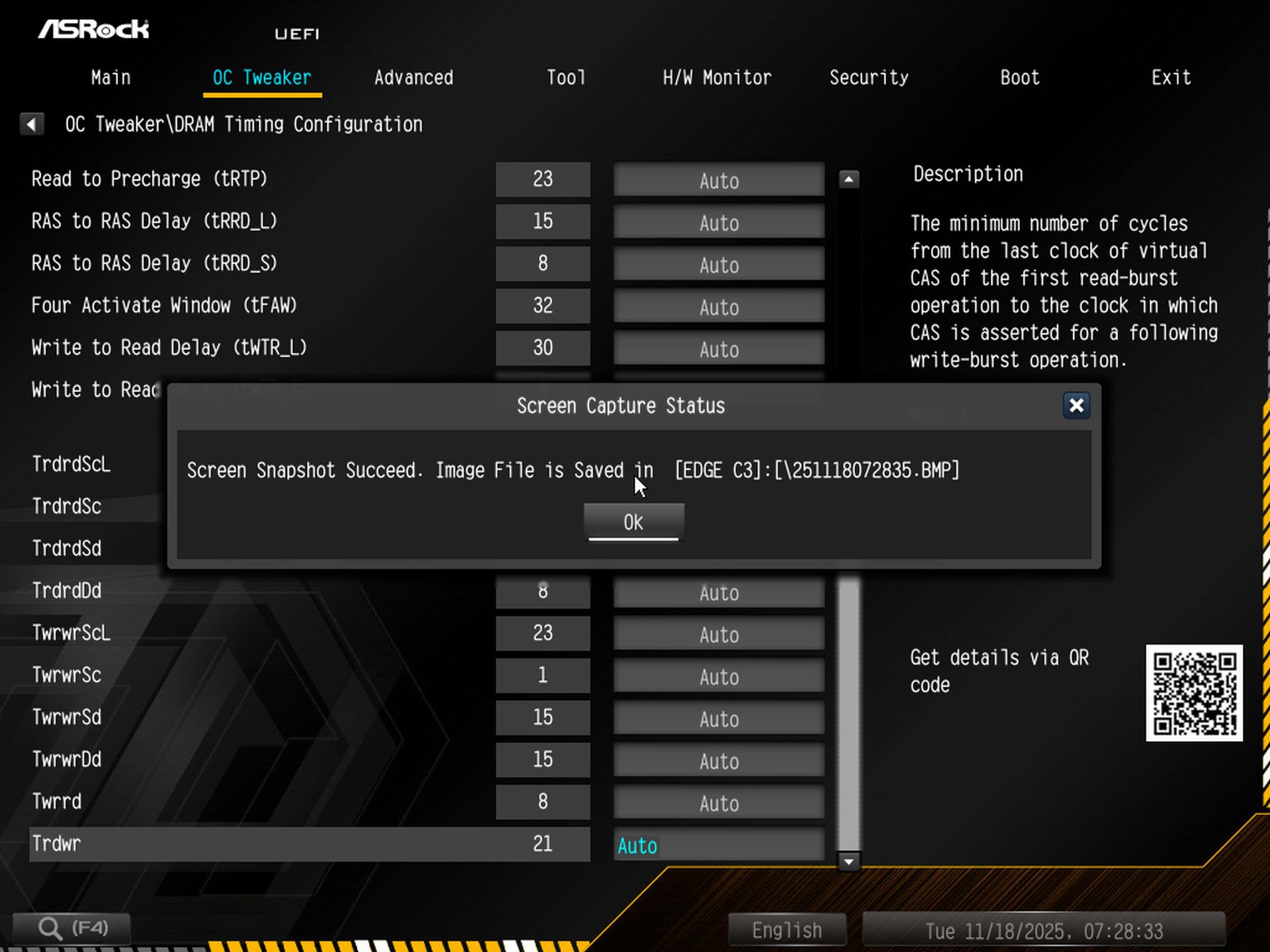

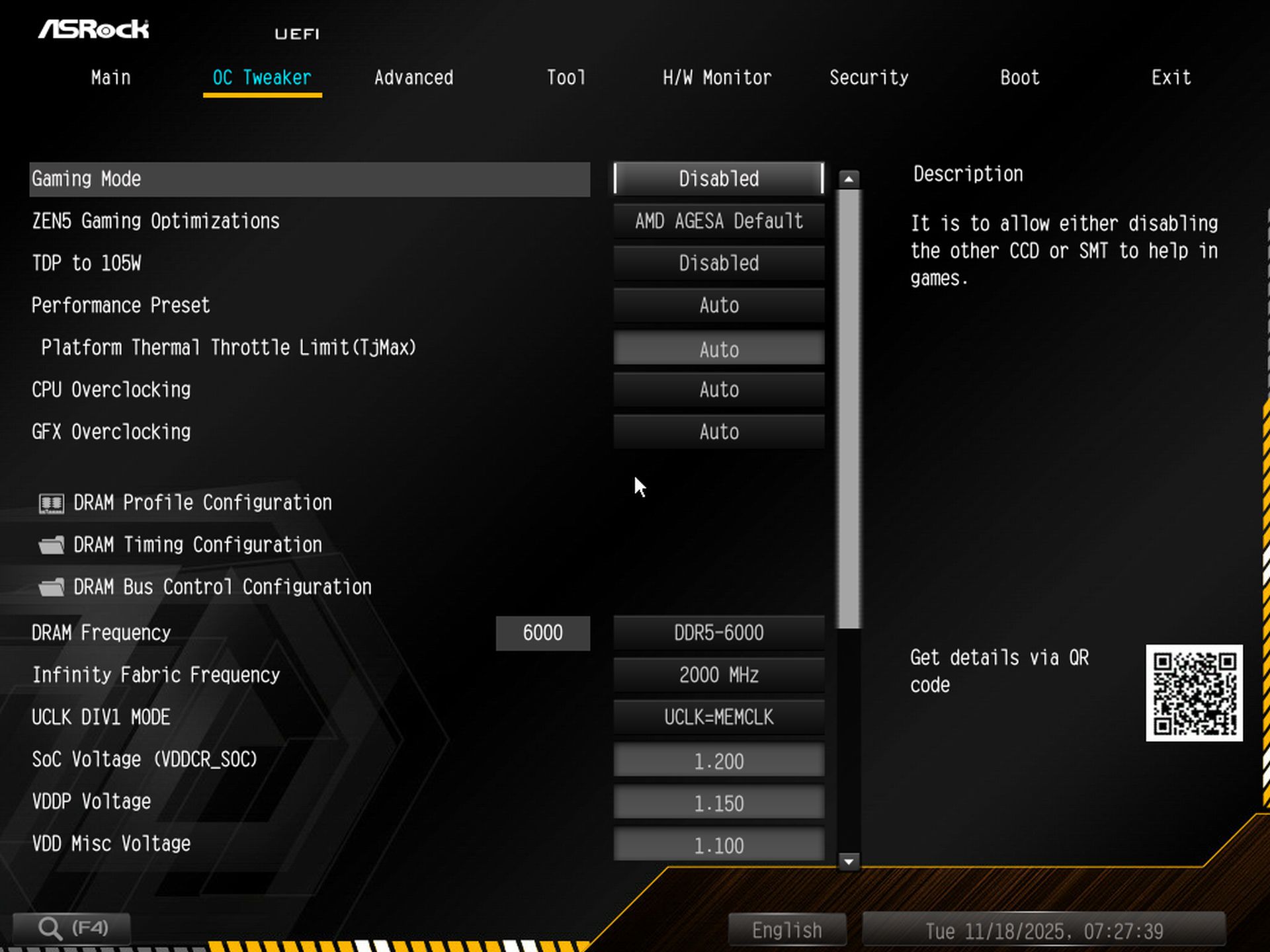

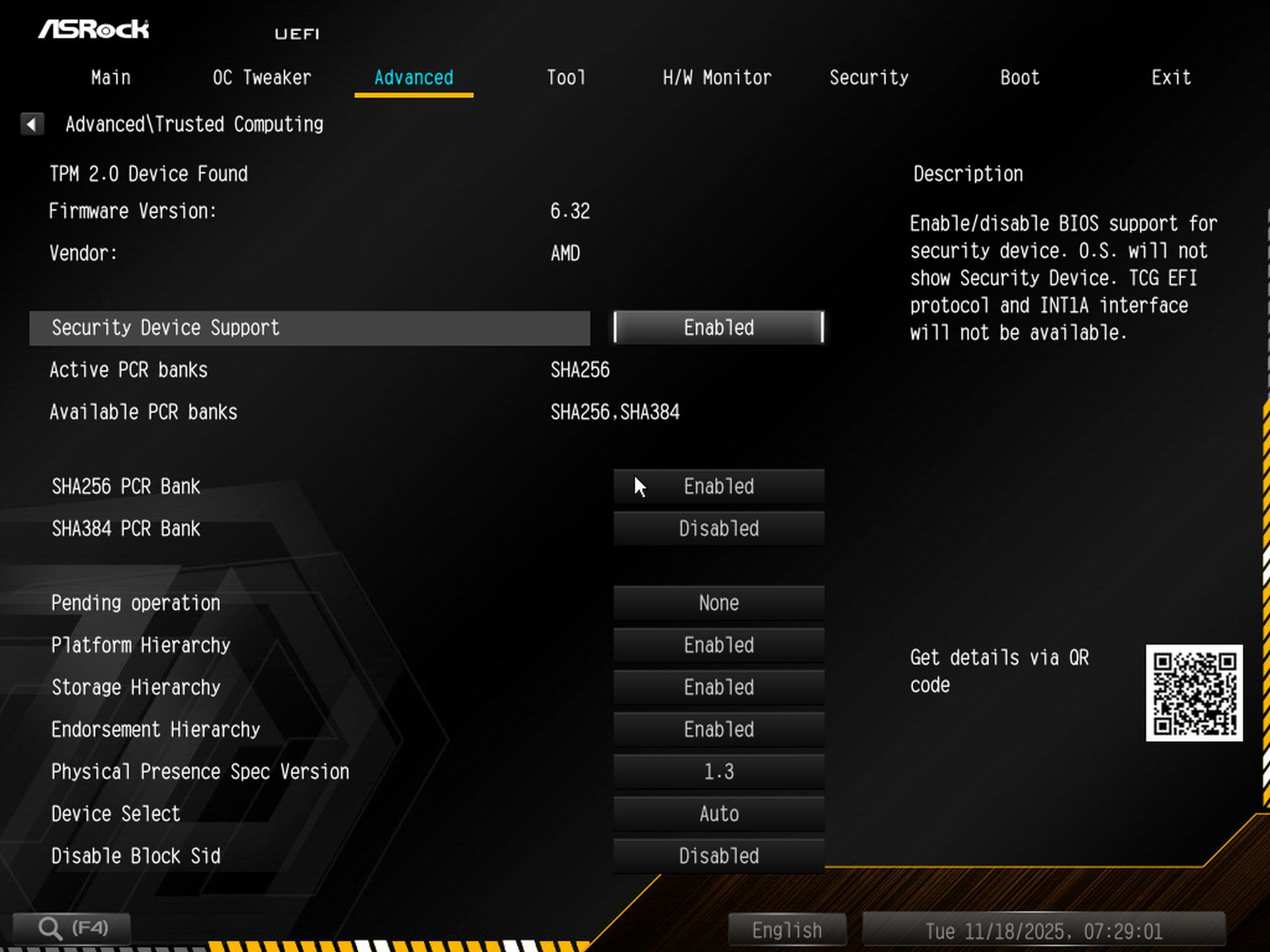

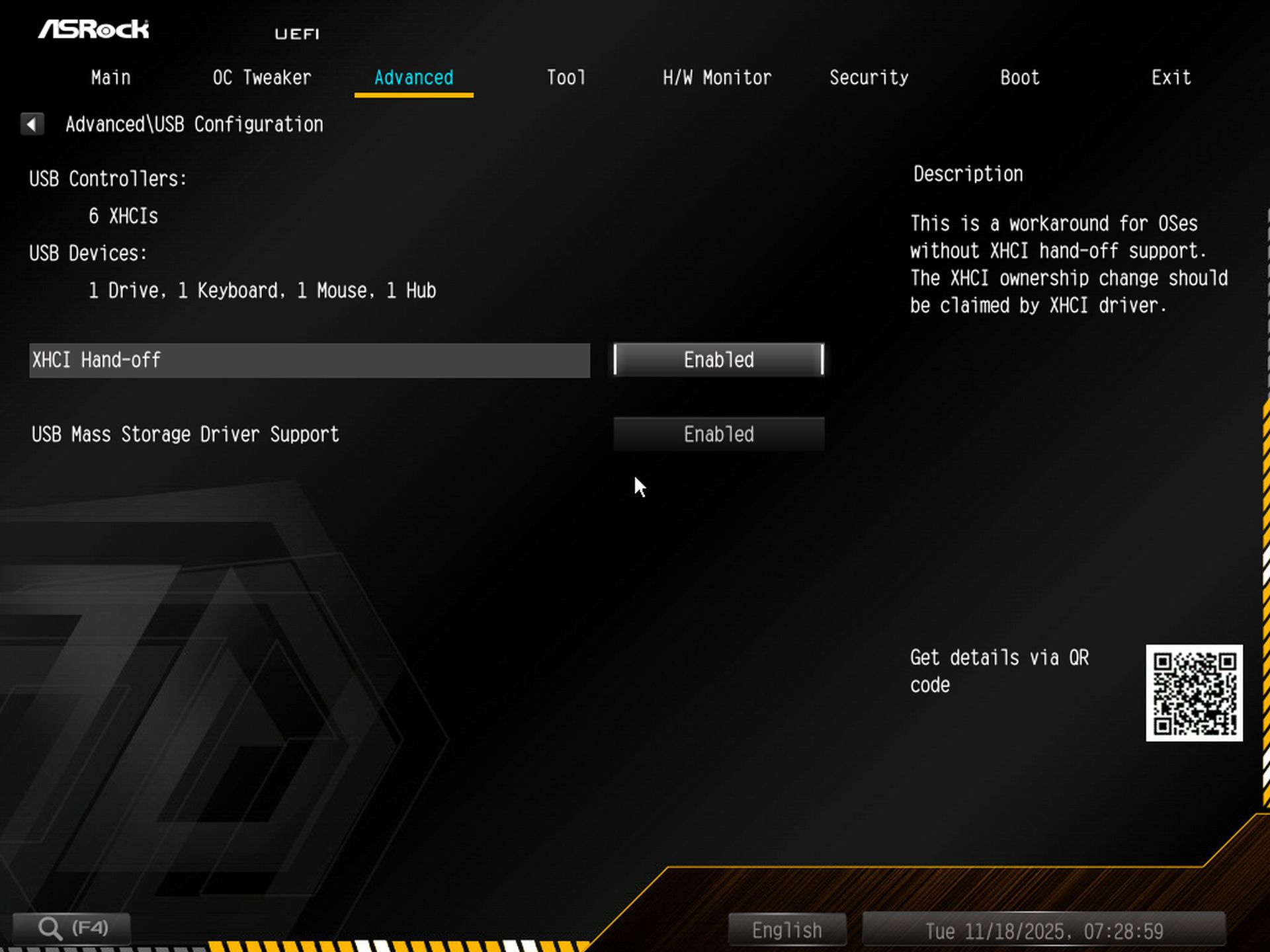

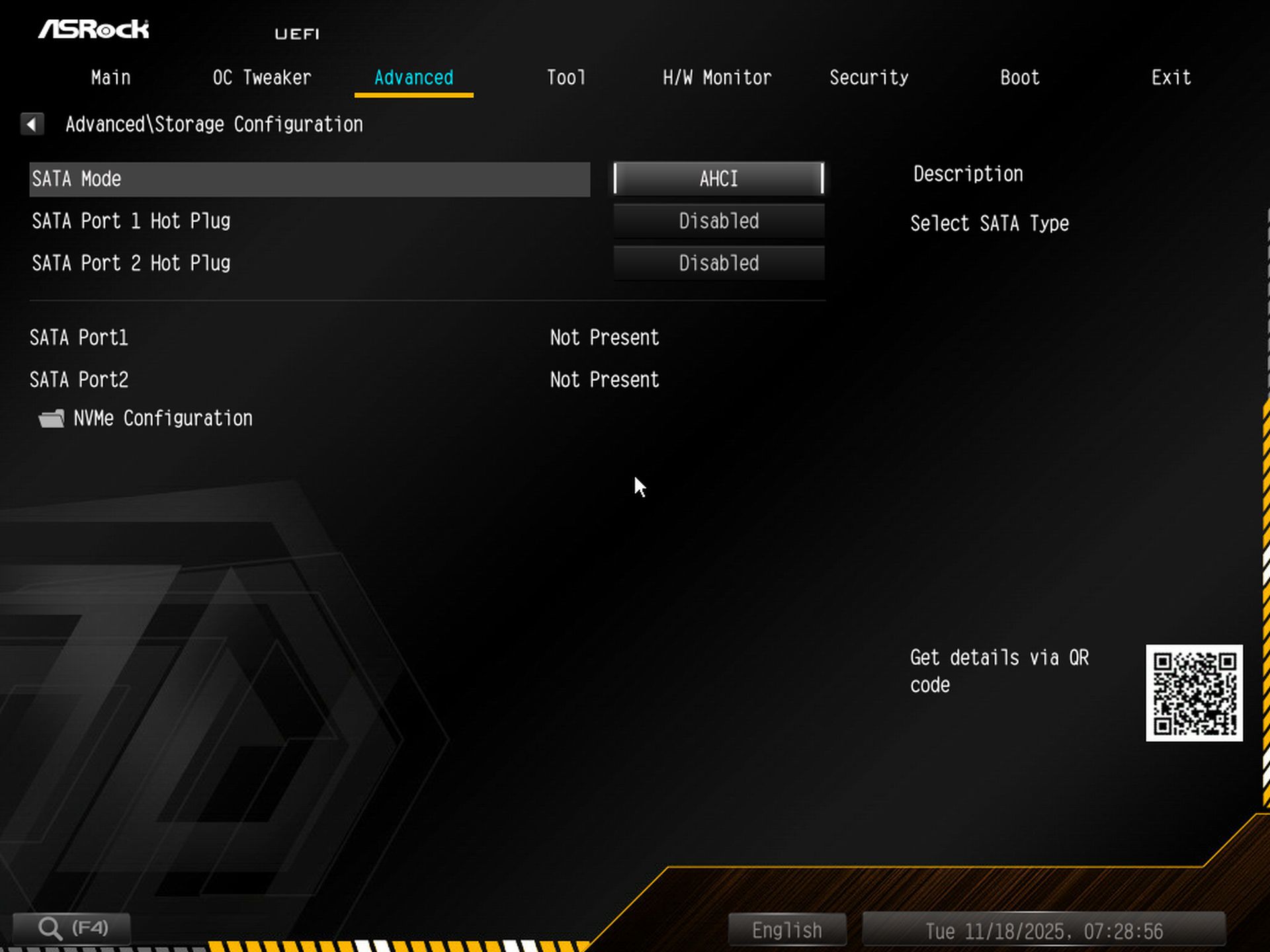

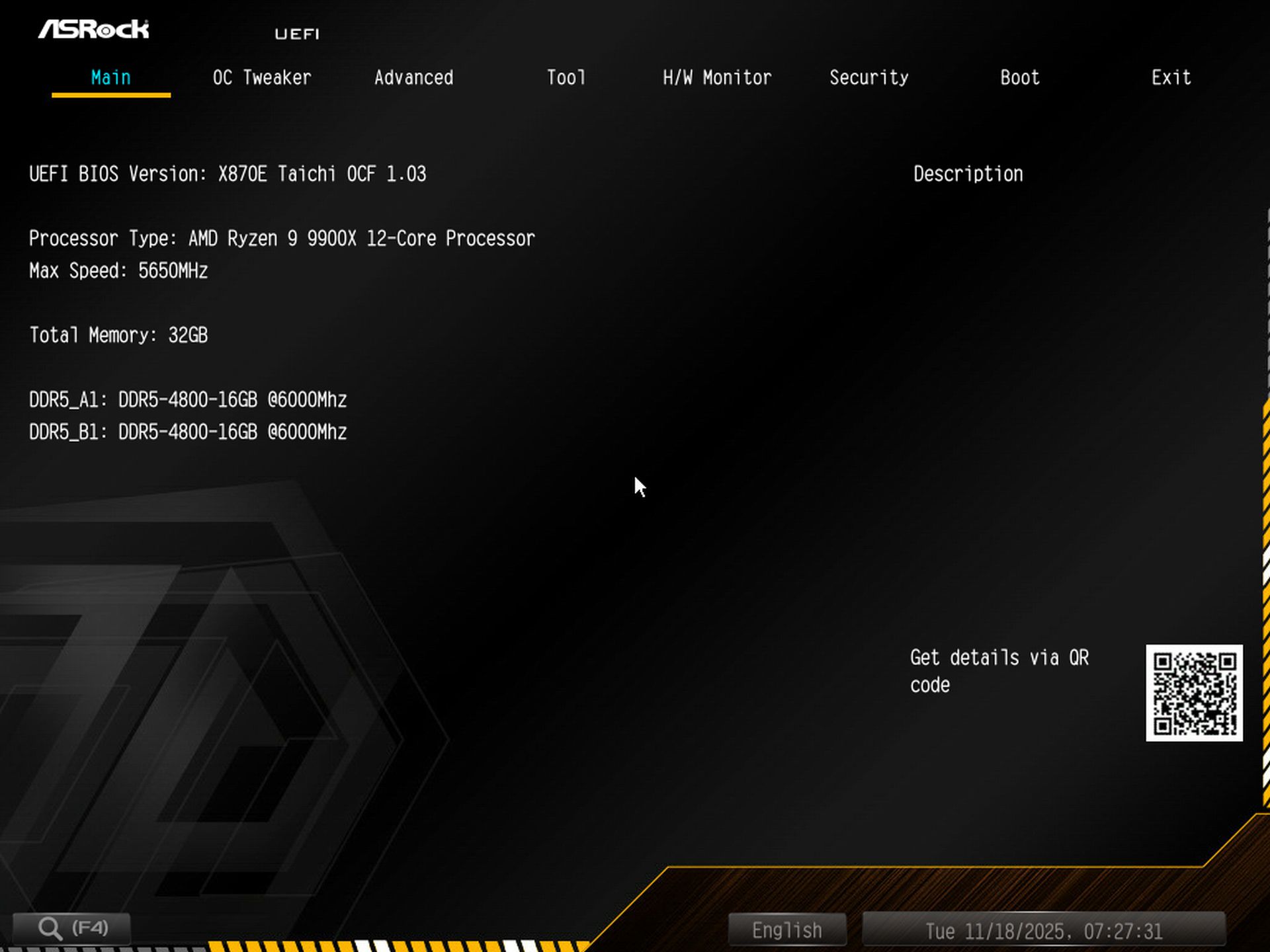

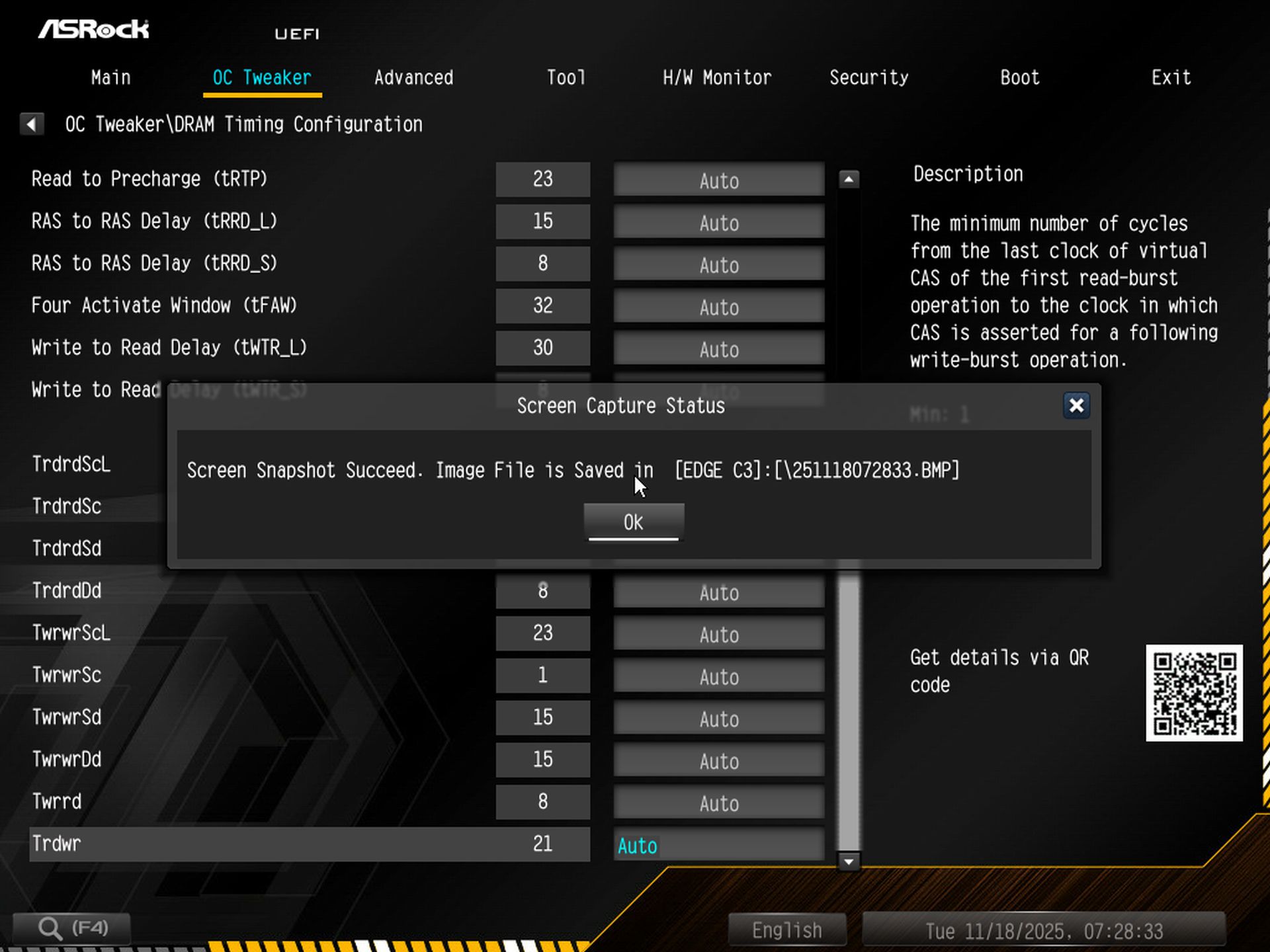

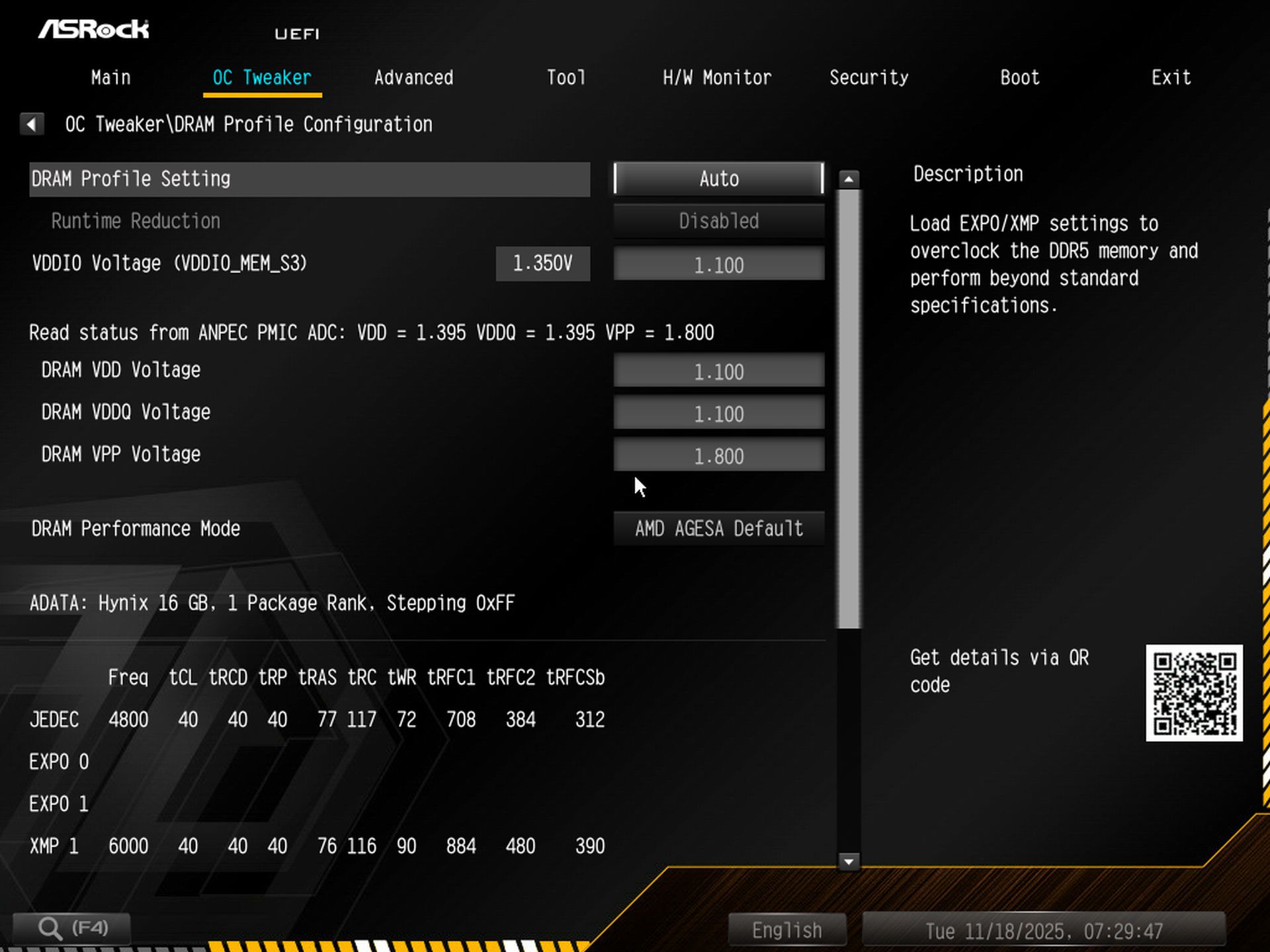

Like other ASRock boards, the X870 Taichi OCF starts in the informative Easy Mode, but it also lets you adjust several options (XMP, profiles, boot order, access to Fan-Tastic Tuning, etc.). The OCF uses a black background with white characters and yellow highlights, matching the OCF theme and making it easy to read. The standard BIOS displays headings across the top, with subheadings and details below.

Image 1 of 29
ASRock X870E Taichi OCF - BIOS
(Image credit: Future)

Software

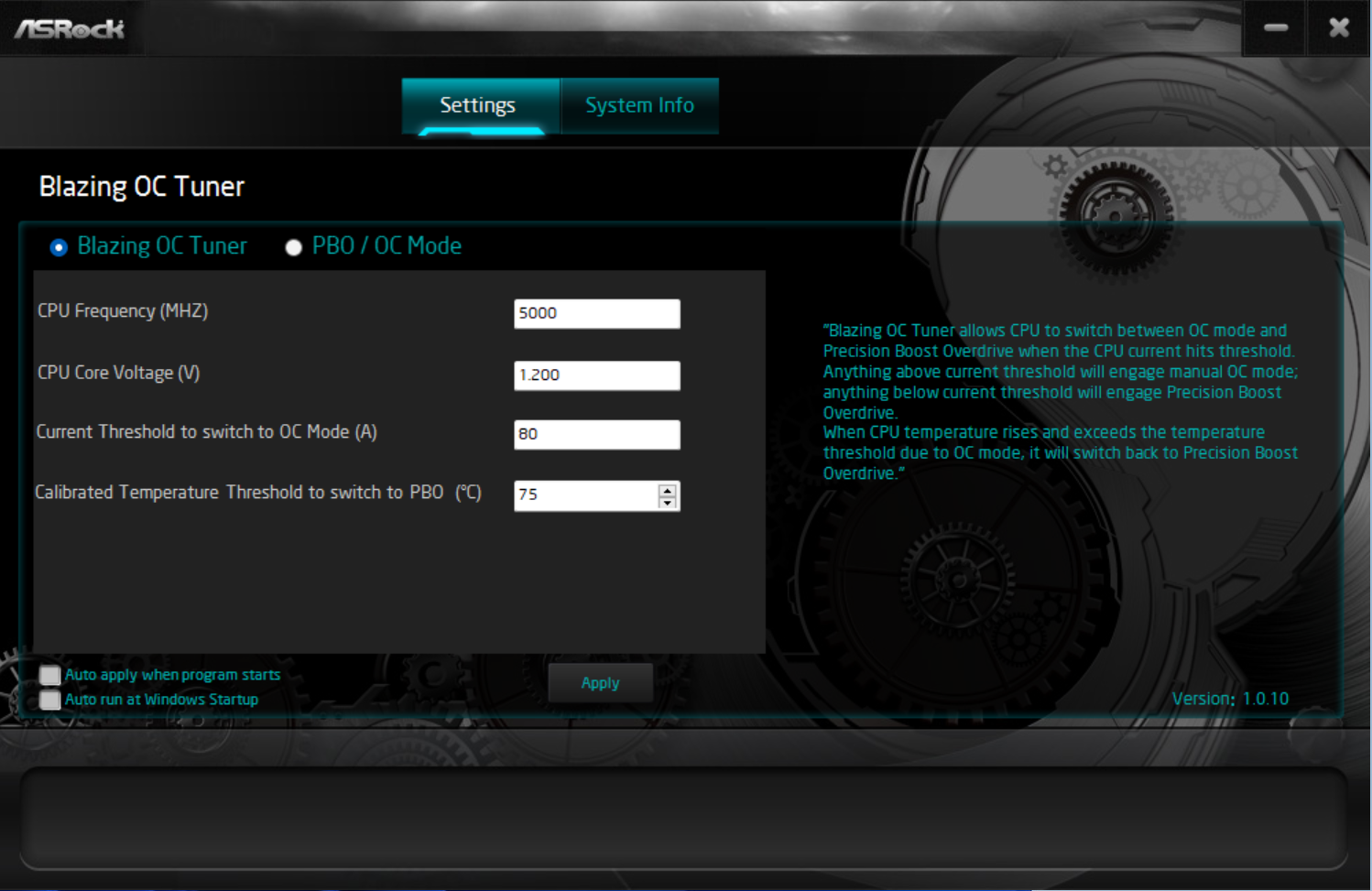

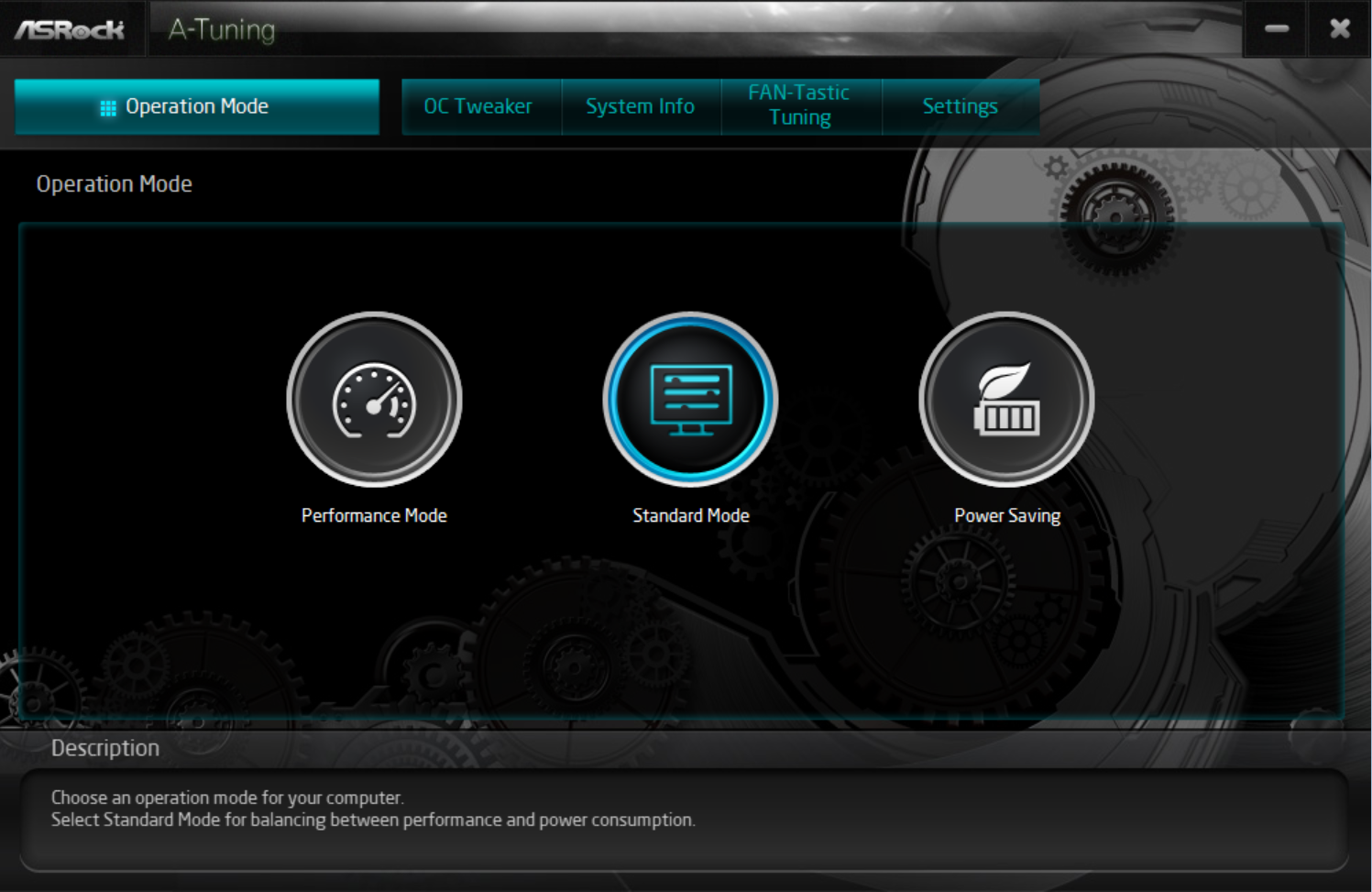

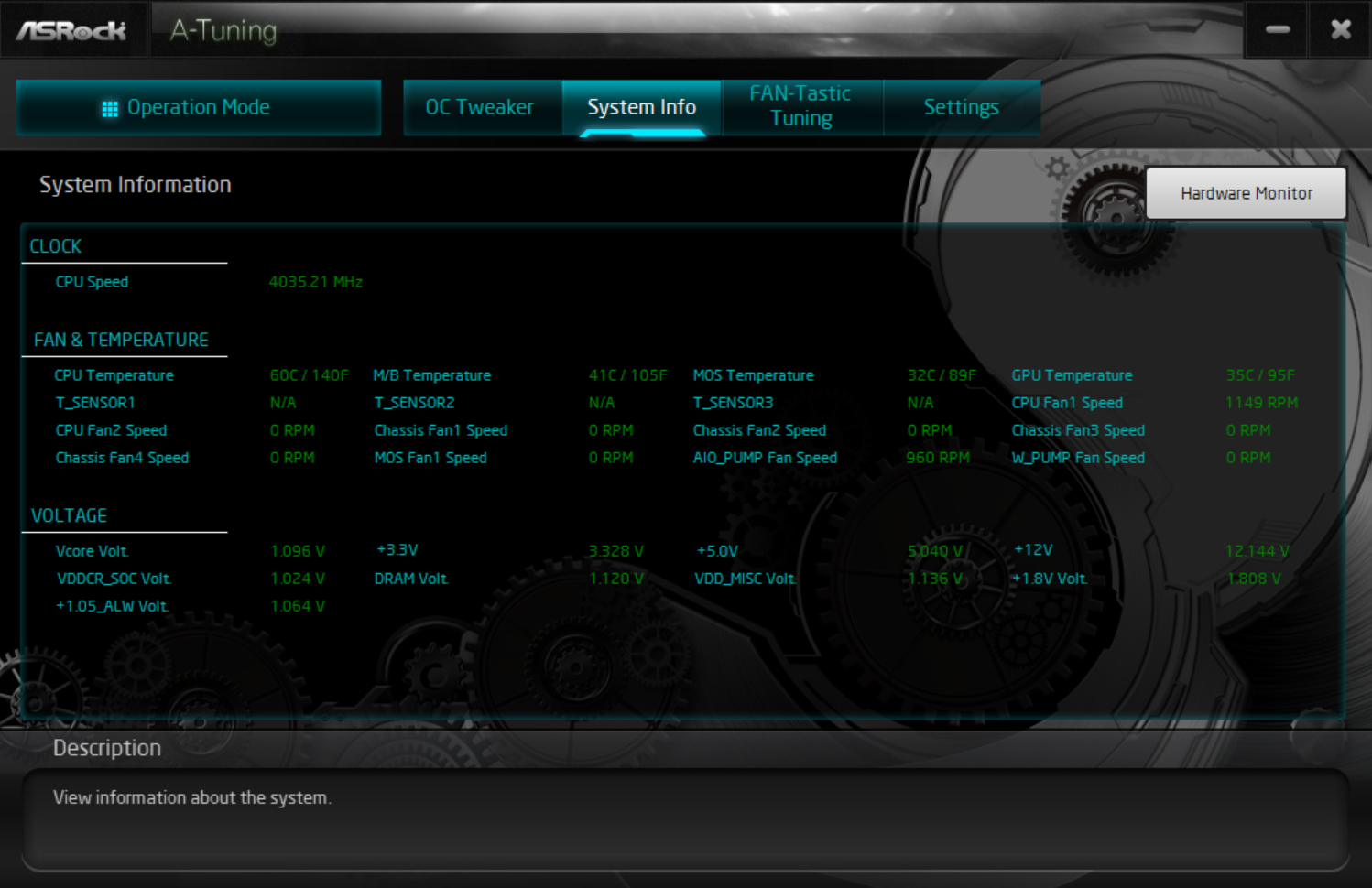

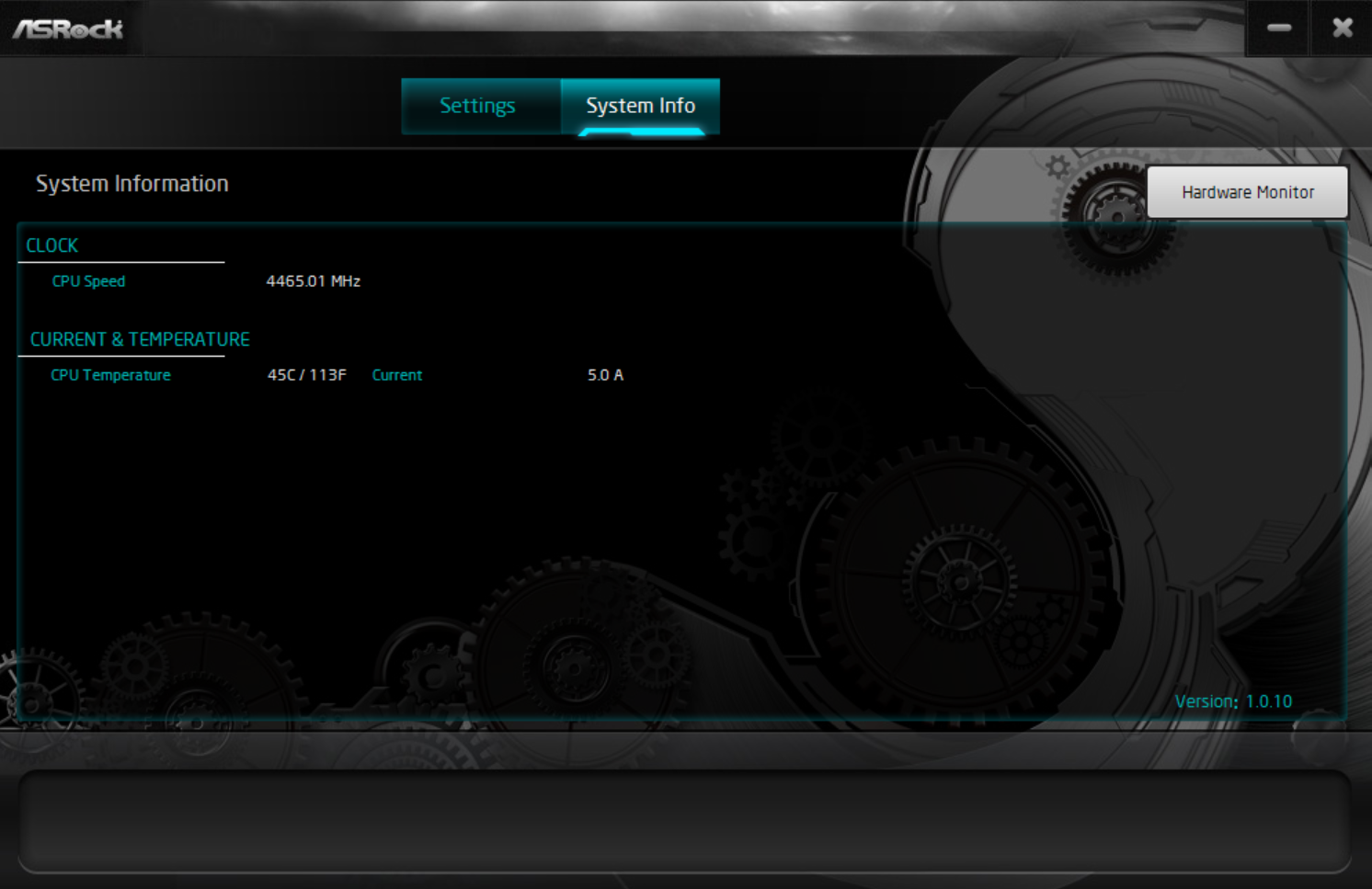

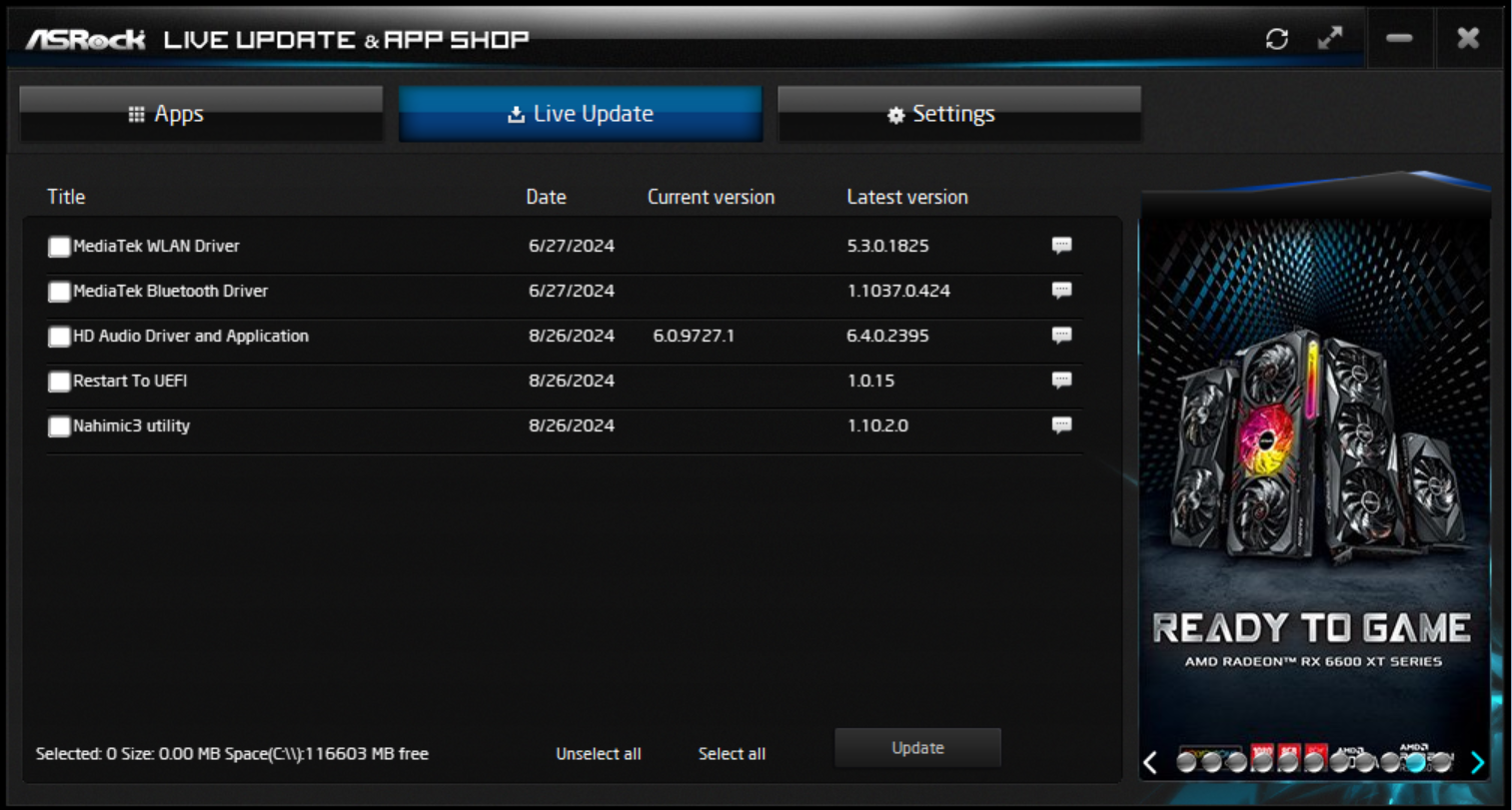

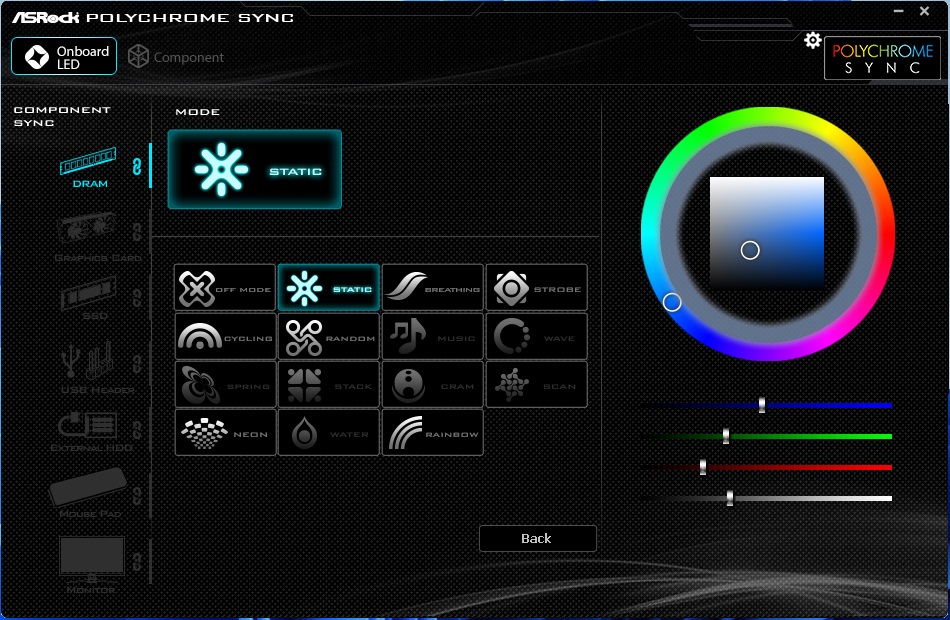

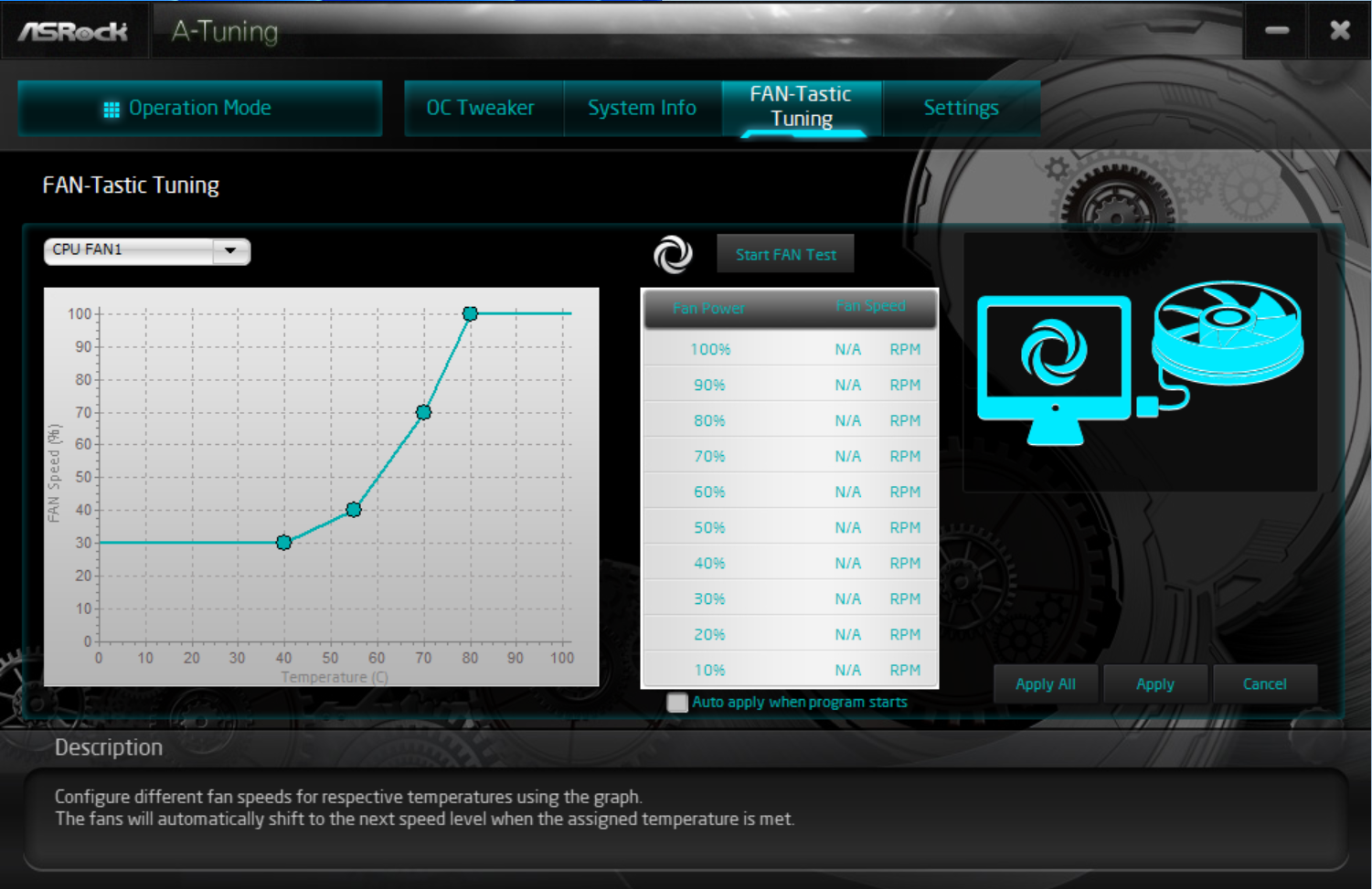

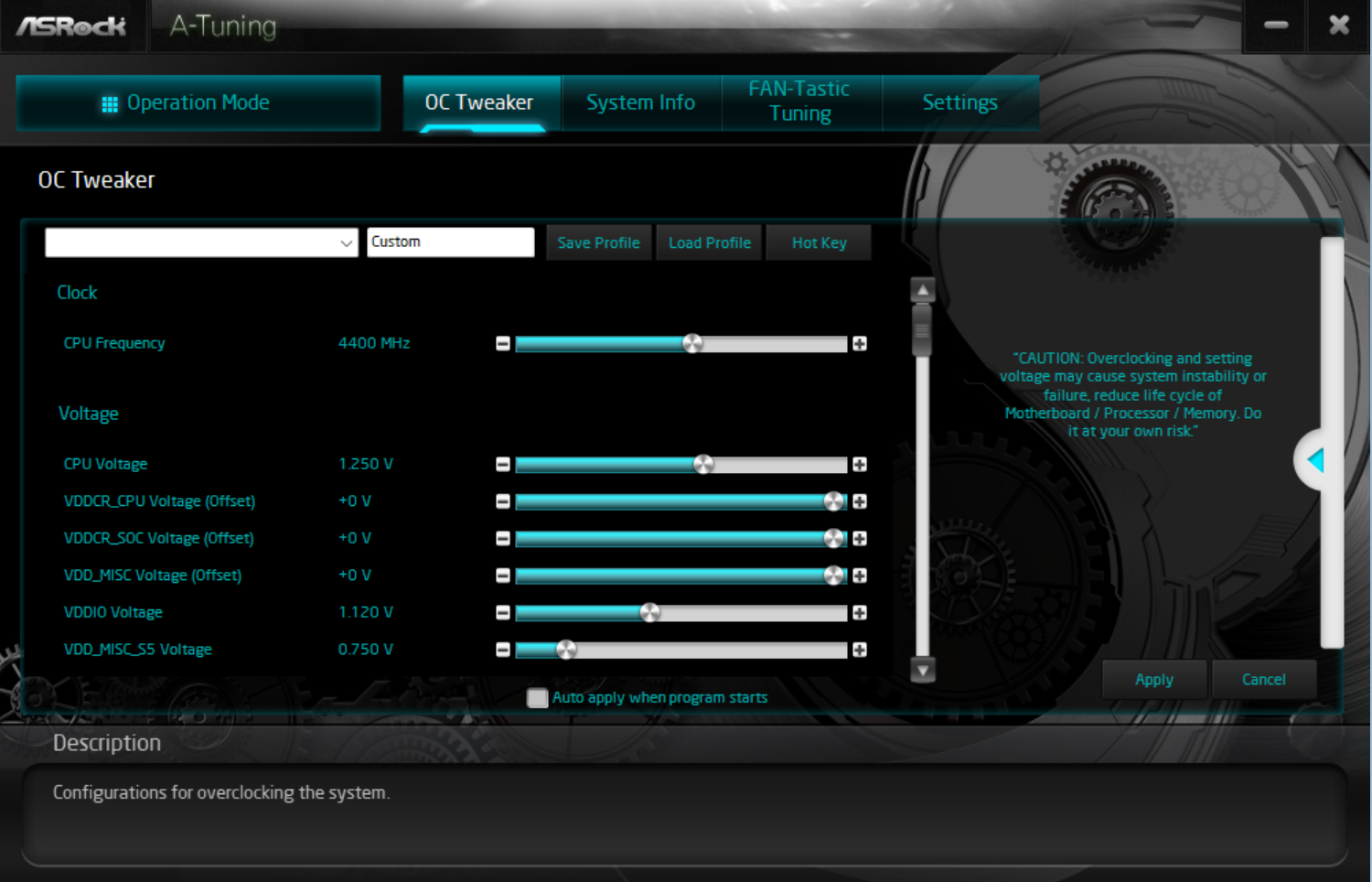

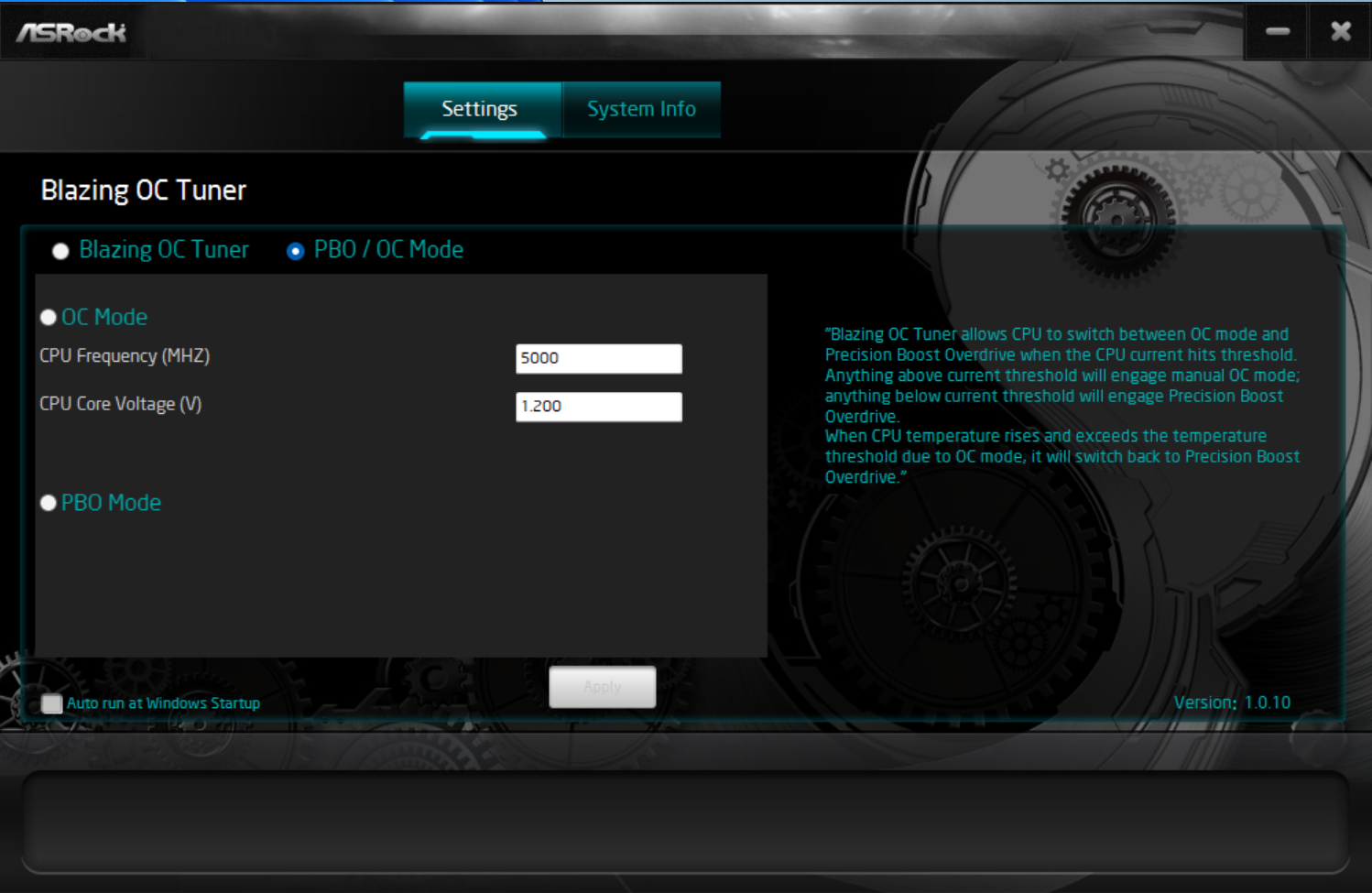

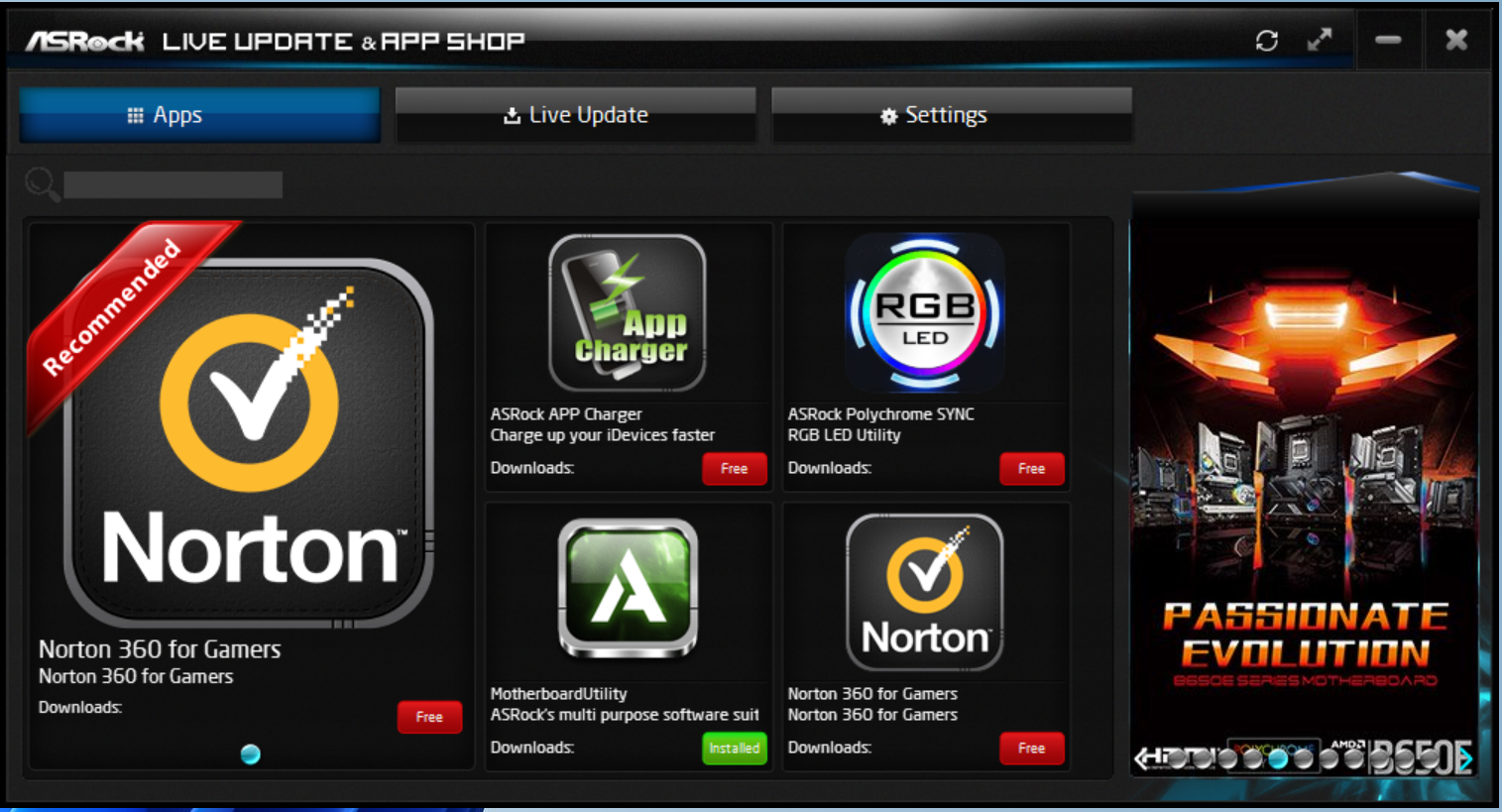

ASRock offers several different software options. These include the App Shop, which lets users install drivers and software; the Nahimic 3 audio control panel; the A-Tuning application that lets you overclock and control fans; the Polychrome RGB software; and more. There’s also a Blazing OC Tuner and a pop-up to install drivers when the system first boots. ASRock’s software provides everything users need to manage and tweak their systems.

Image 1 of 10
ASRock X870E Taichi OCF - ASRock App Shop
(Image credit: Future)

Test System / Comparison Products

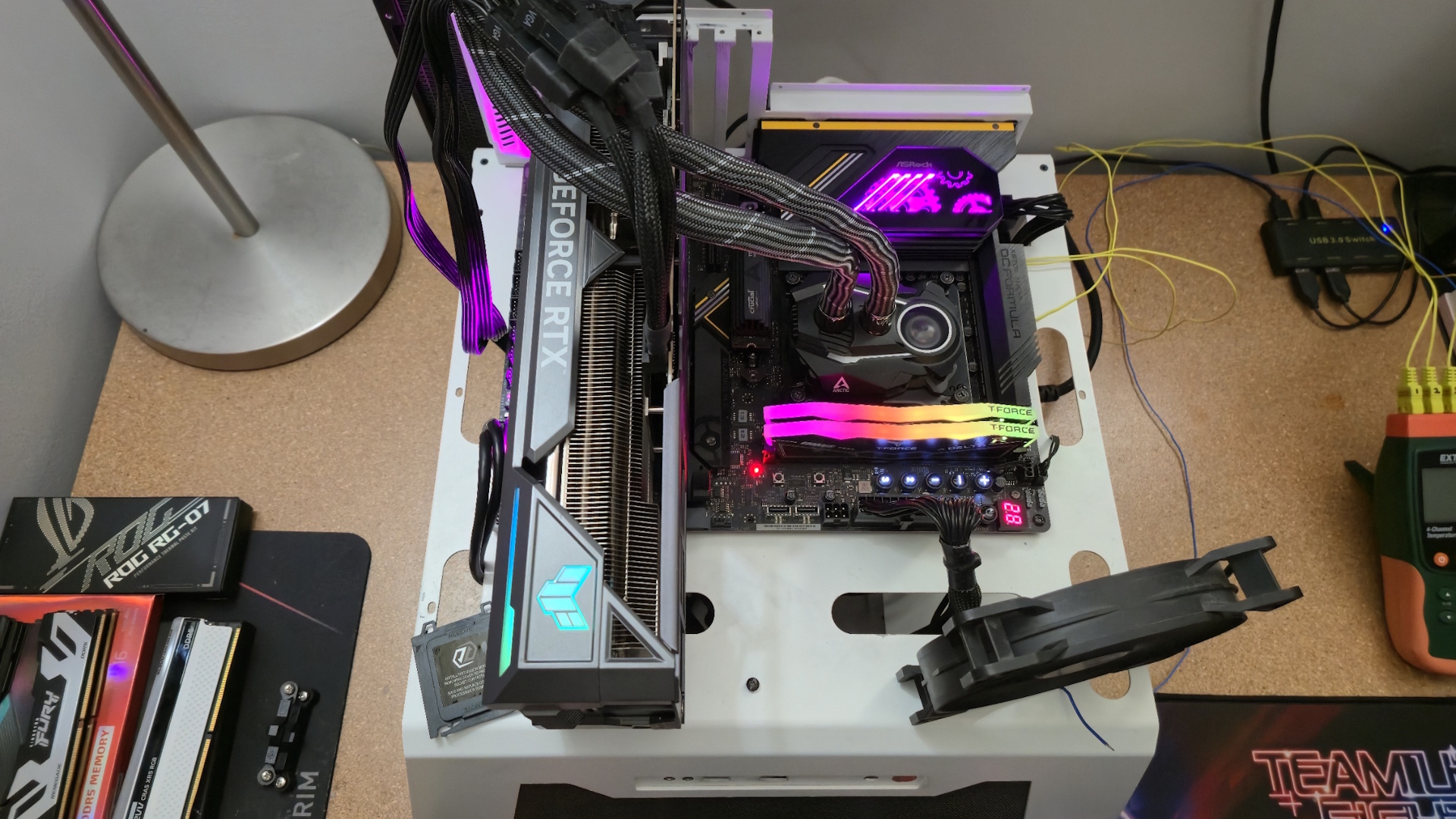

We’ve updated our test system to Windows 11 (23H2) 64-bit OS with all updates applied as of late September 2024 (this includes the Branch Prediction Optimizations for AMD). Hardware-wise, we’ve updated the RAM kits (matching our Intel test system), cooling, storage, and video card. Unless otherwise noted, we use the latest publicly available non-beta motherboard BIOS. The hardware we used is as follows:

TEST SYSTEM COMPONENTS

ASRock X870E Taichi OCF - Test bench

(Image credit: Future)
Swipe to scroll horizontally

Sound

Integrated HD audio

Network

Integrated Networking (GbE to 10 GbE)

Graphics Driver

GeForce 561.09

Benchmark Settings

Swipe to scroll horizontally

Synthetic Benchmarks and Settings

Procyon

Version 2.8.1352 64

Office 365, Video Editing (Premiere Pro 24.6.1), Photo Editing (Photoshop 25.1.2, Lightroom Classic 13.5.1)

3DMark

Version 2.29.8294.0 64

Speed Way and Steel Nomad (Default)

Cinebench R24

Version 2024.1.0
Open GL Rendering Benchmark - Single and Multi-threaded

Blender

Version 4.2.0
Full benchmark (all 3 tests)

Application Tests and Settings

LAME MP3

Version SSE2_2019

Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)

HandBrake CLI

Version: 1.8.2

Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)

Corona 1.4

Version 1.4

Custom benchmark

7-Zip

Version 24.08

Integrated benchmark (Command Line)

Game Tests and Settings

Cyberpunk 2077

Ultra RT: - 1920 x 1080, DLSS - Balanced.

F1 2024

Ultra High Preset - 1920 x 1080, 16xAF/TAA, Great Britain (Clear/Dry), FPS Counter ON

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content
