Antec HCG1000 Extreme 1000W PSU Review: Good Looks For $150
Why you can trust Tom's Hardware
Teardown & Component Analysis
Before proceeding with this page we strongly encourage you to a look at our PSUs 101 article, which provides valuable information about PSUs and their operation, allowing you to better understand the components we're about to discuss.
General Data | |
---|---|
Manufacturer (OEM) | Seasonic |
Platform Model | FX |
Primary Side | |

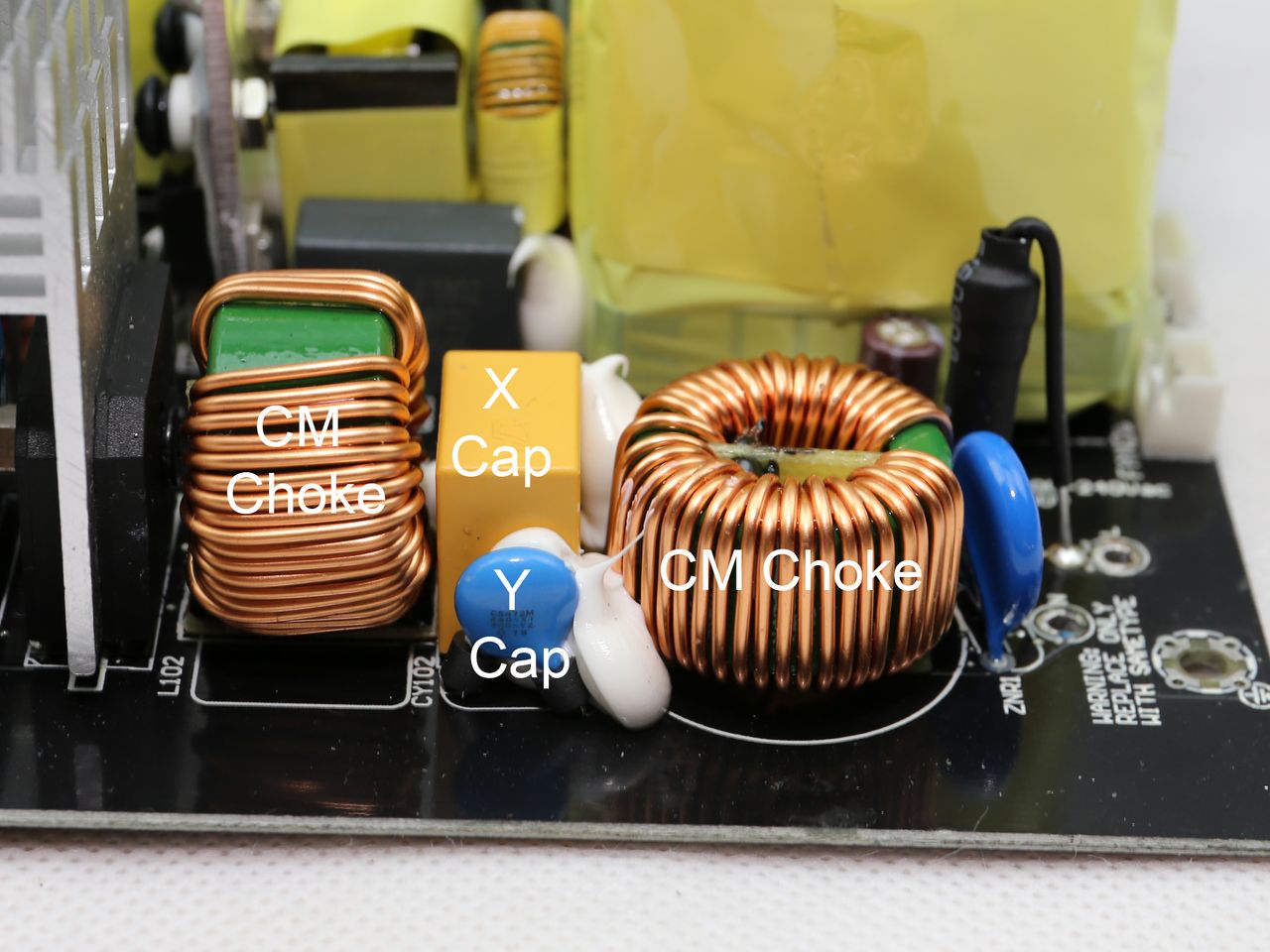

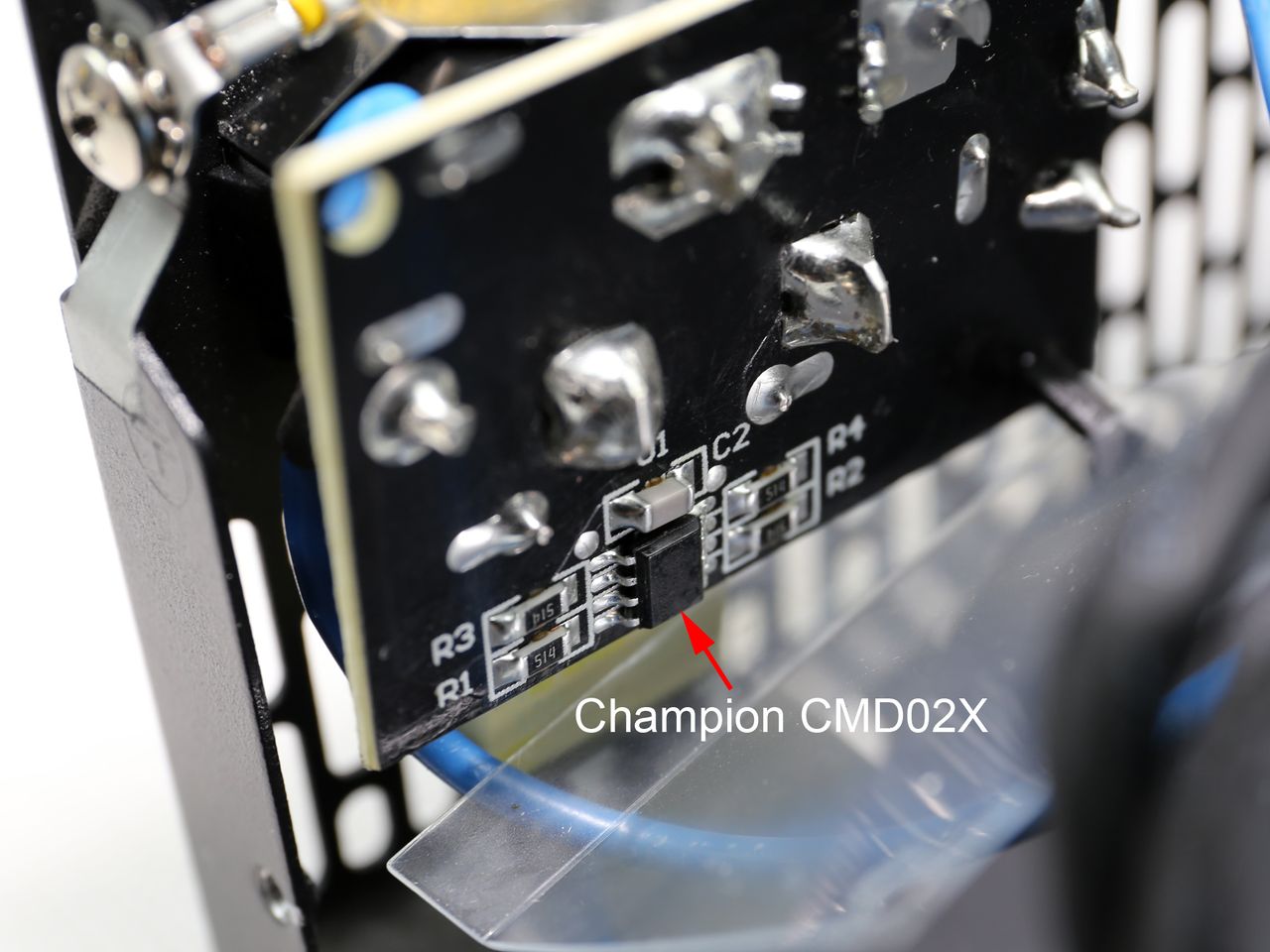

Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Champion CMD02X |

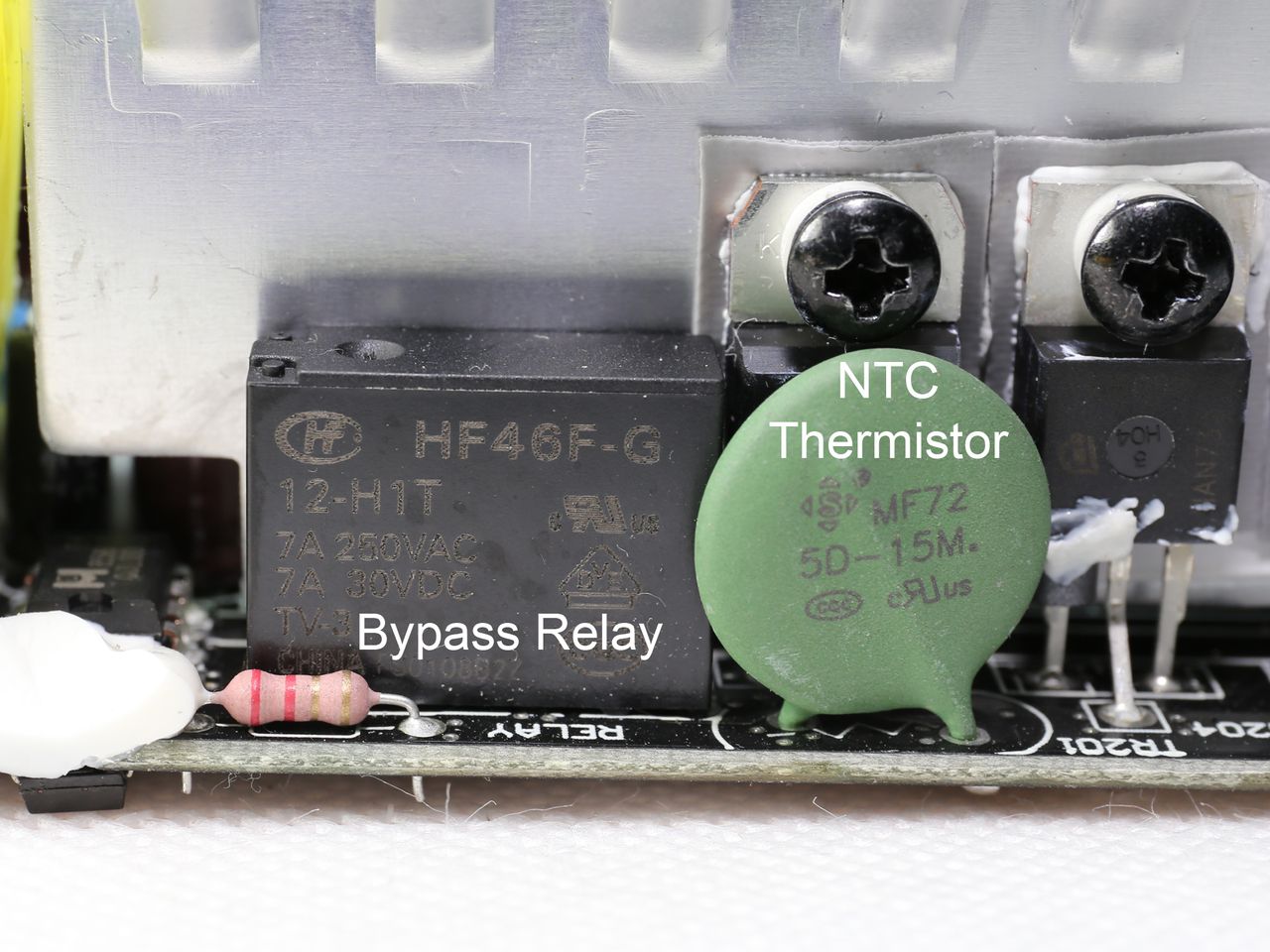

Inrush Protection | NTC thermistor & diode |

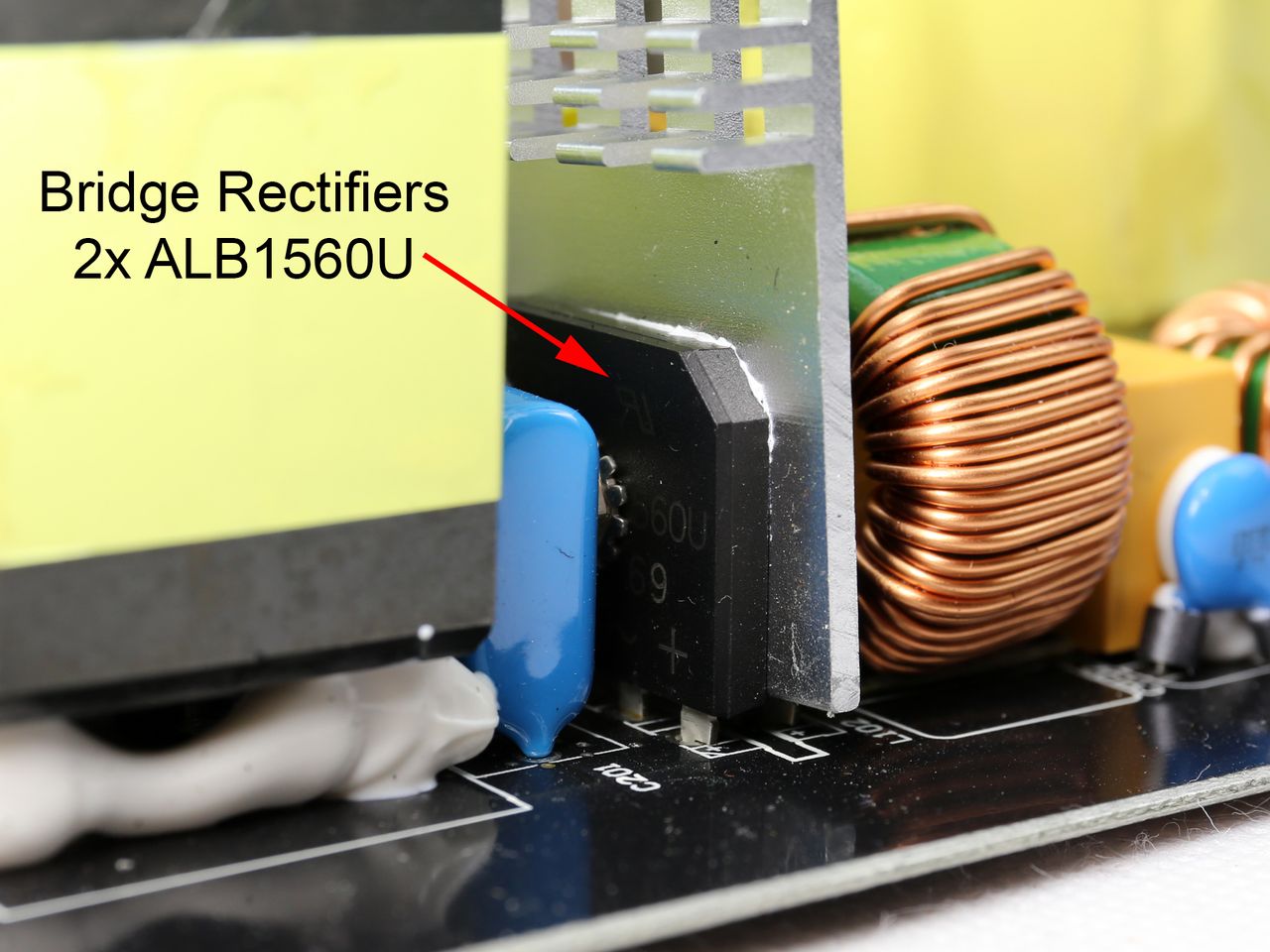

Bridge Rectifier(s) | 2x ALB1560U (600V, 15A @ 100°C) |

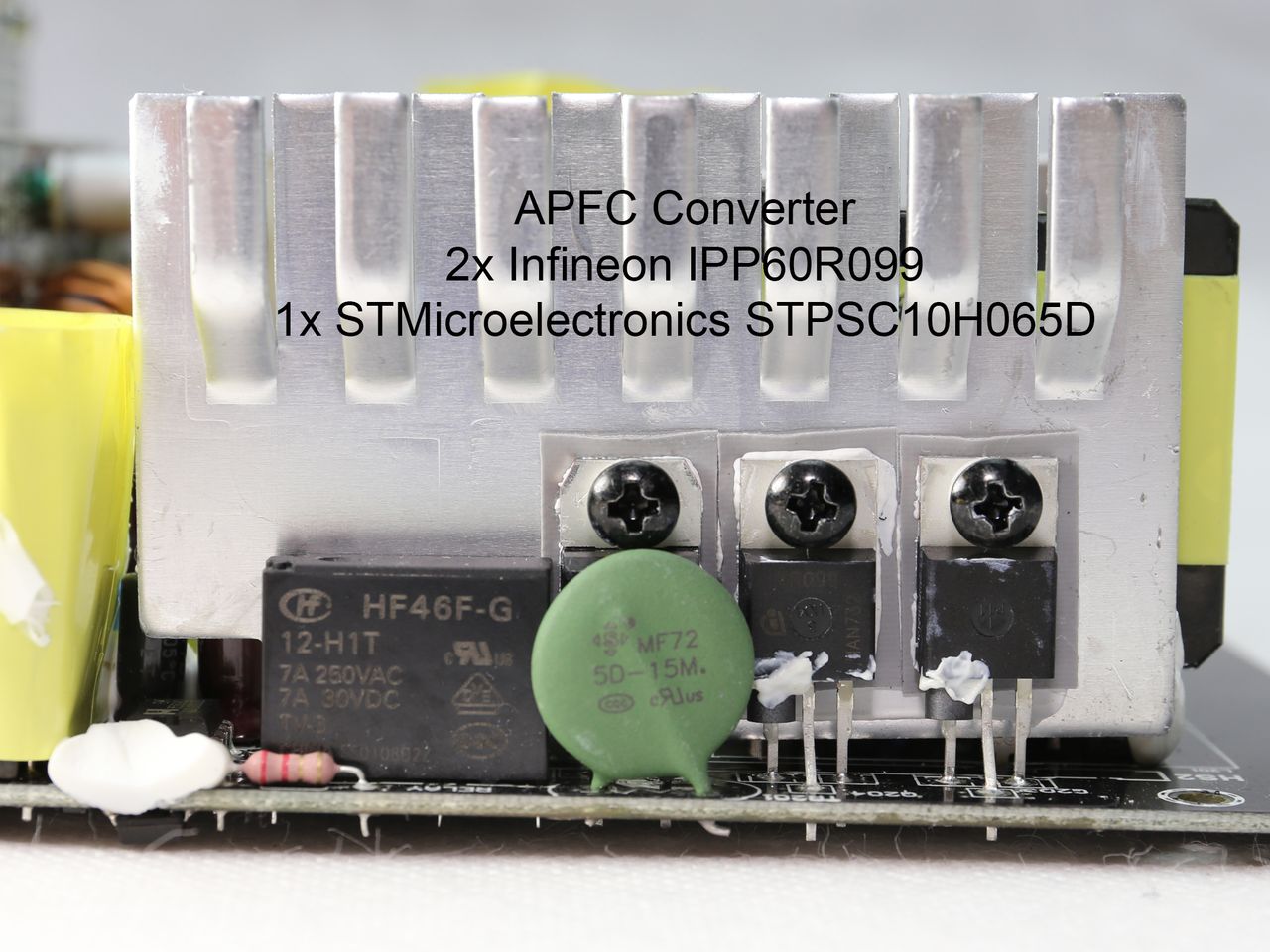

APFC MOSFETs | 2x Infineon IPP60R099 (650V, 19A @ 100°C, 0.099Ω) |
APFC Boost Diode | 1x STMicroelectronics STPSC10H065D (650V, 10A @ 135°C) |

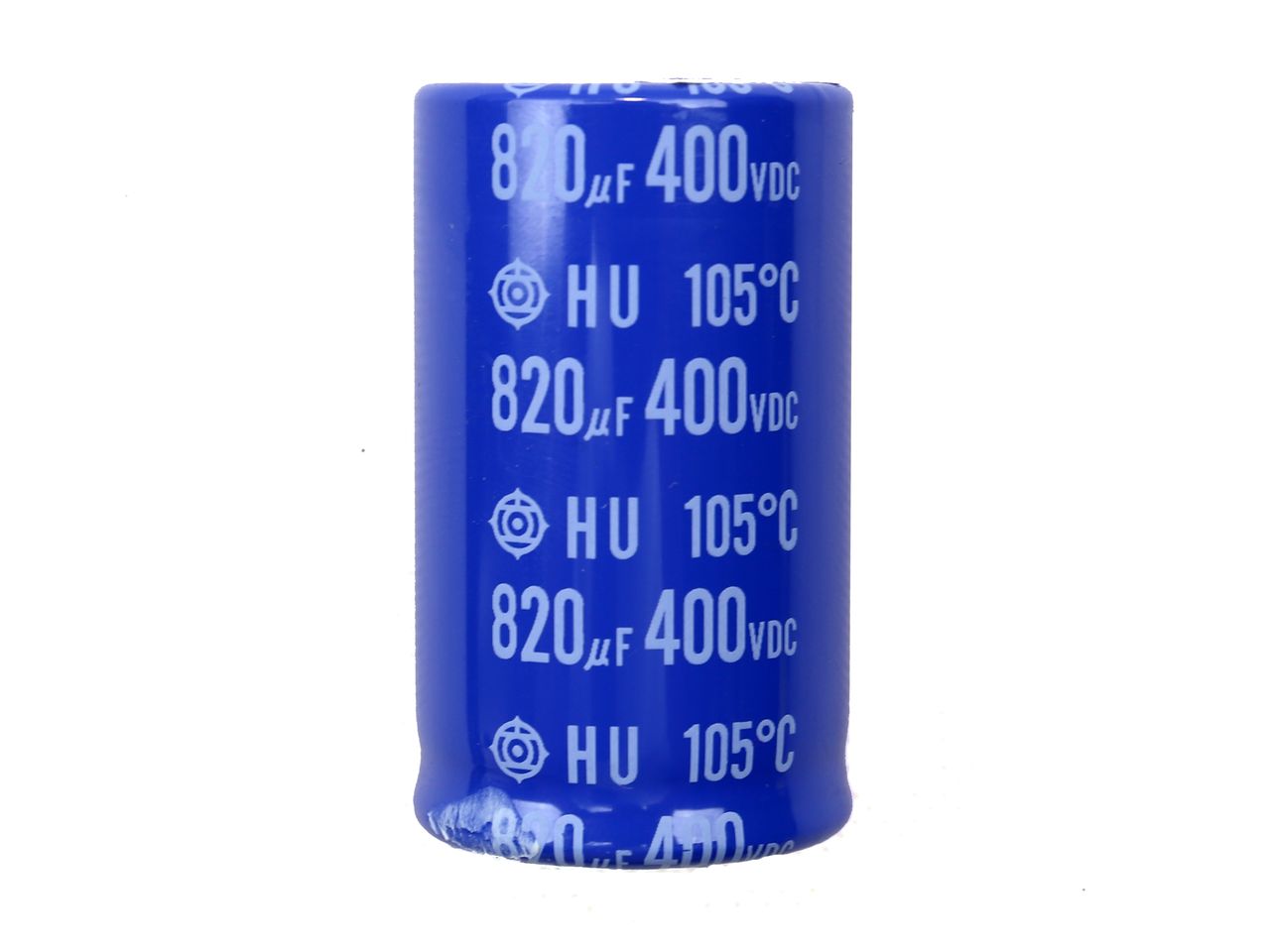

Hold-up Cap(s) | 1x Hitachi (400V, 820uF, 2000h @ 105°C, HU) |

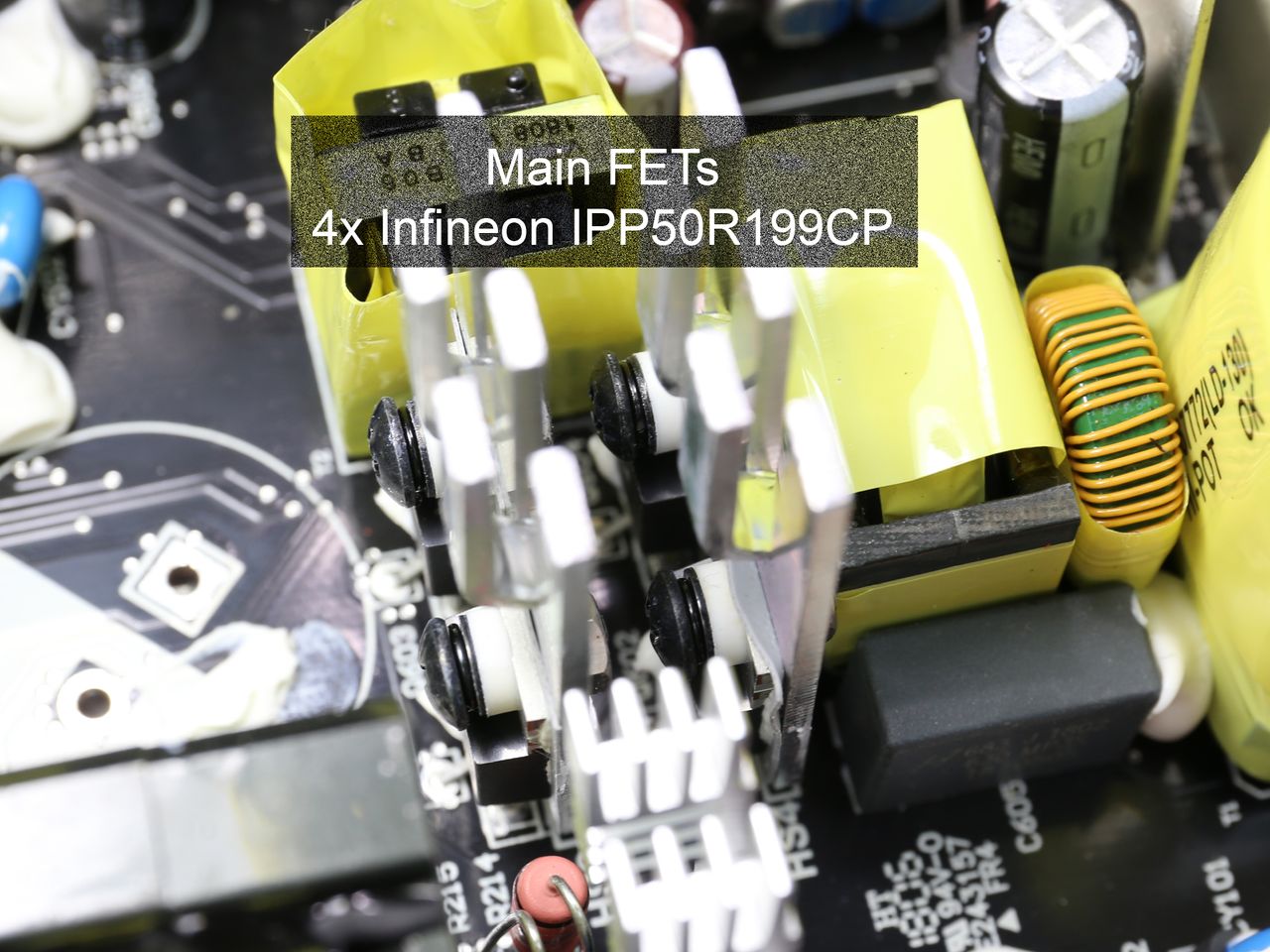

Main Switchers | 4x Infineon IPP50R199CP (550V, 11A @ 100°C, 0.199Ω) |

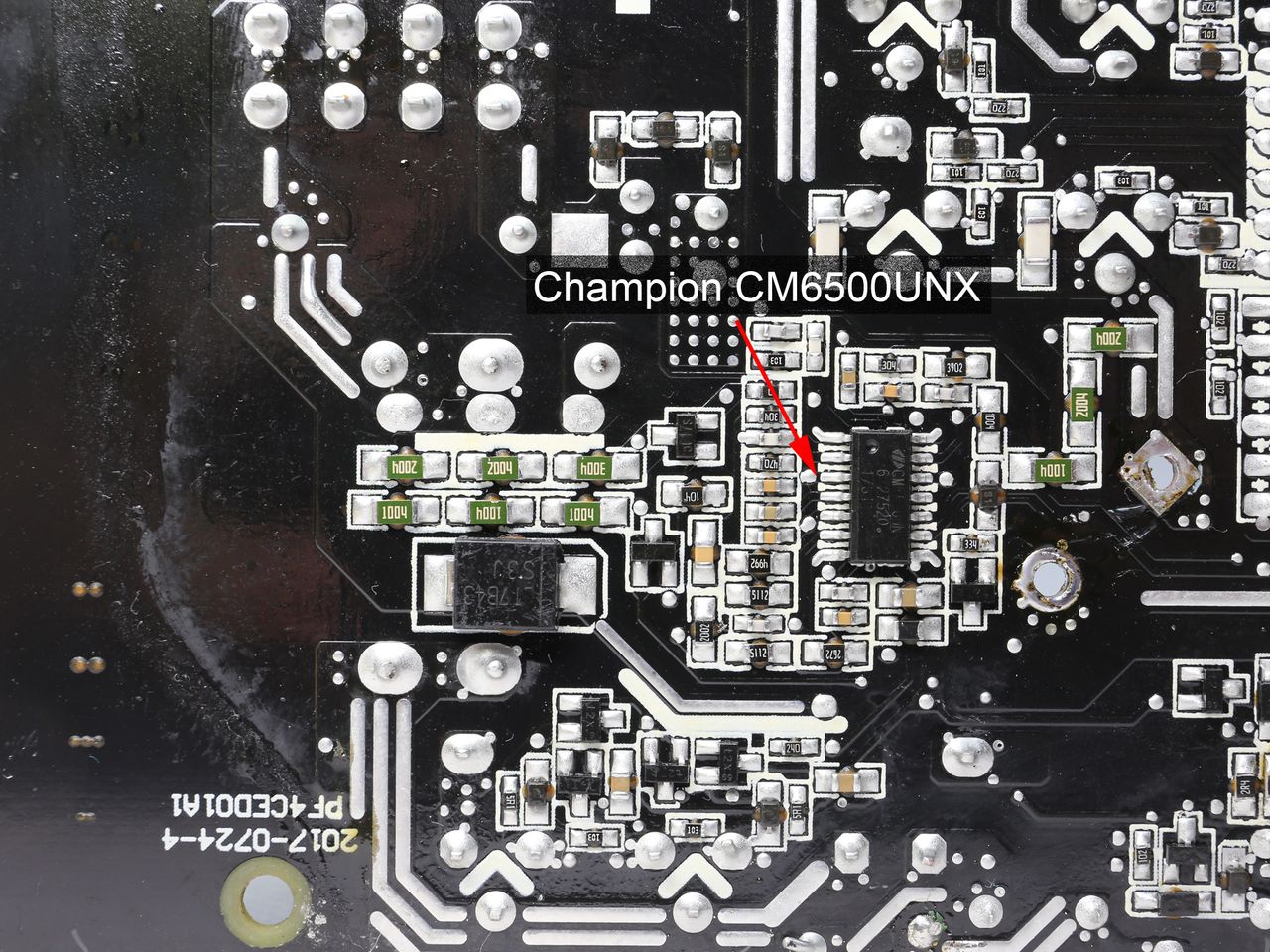

APFC Controller | Champion CM6500UNX |

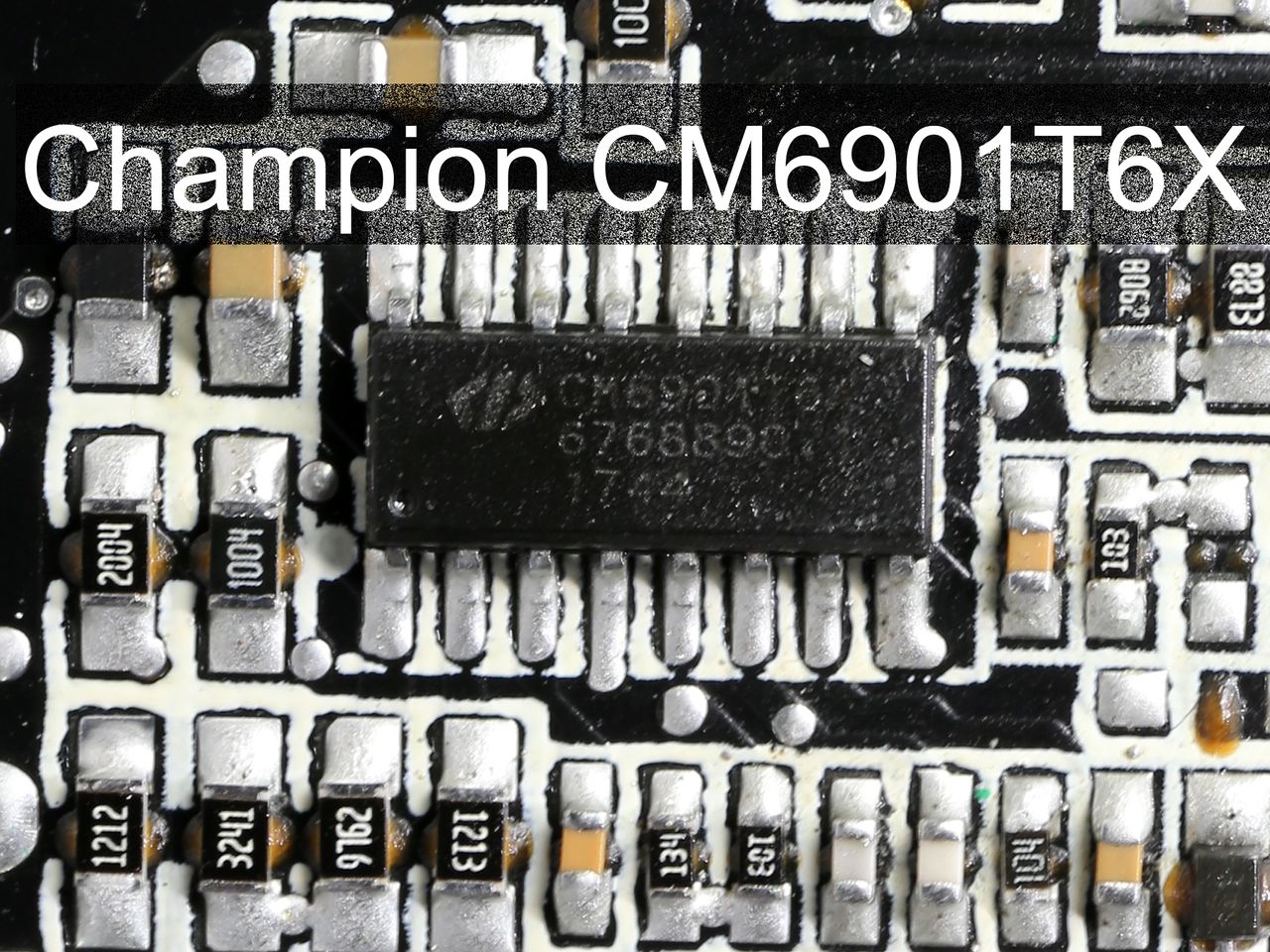

Resonant Controller | Champion CM6901T6X |
Topology | Primary side: Full-bridge & LLC resonant controller Secondary side: Synchronous rectification & DC-DC converters |
Secondary Side | |

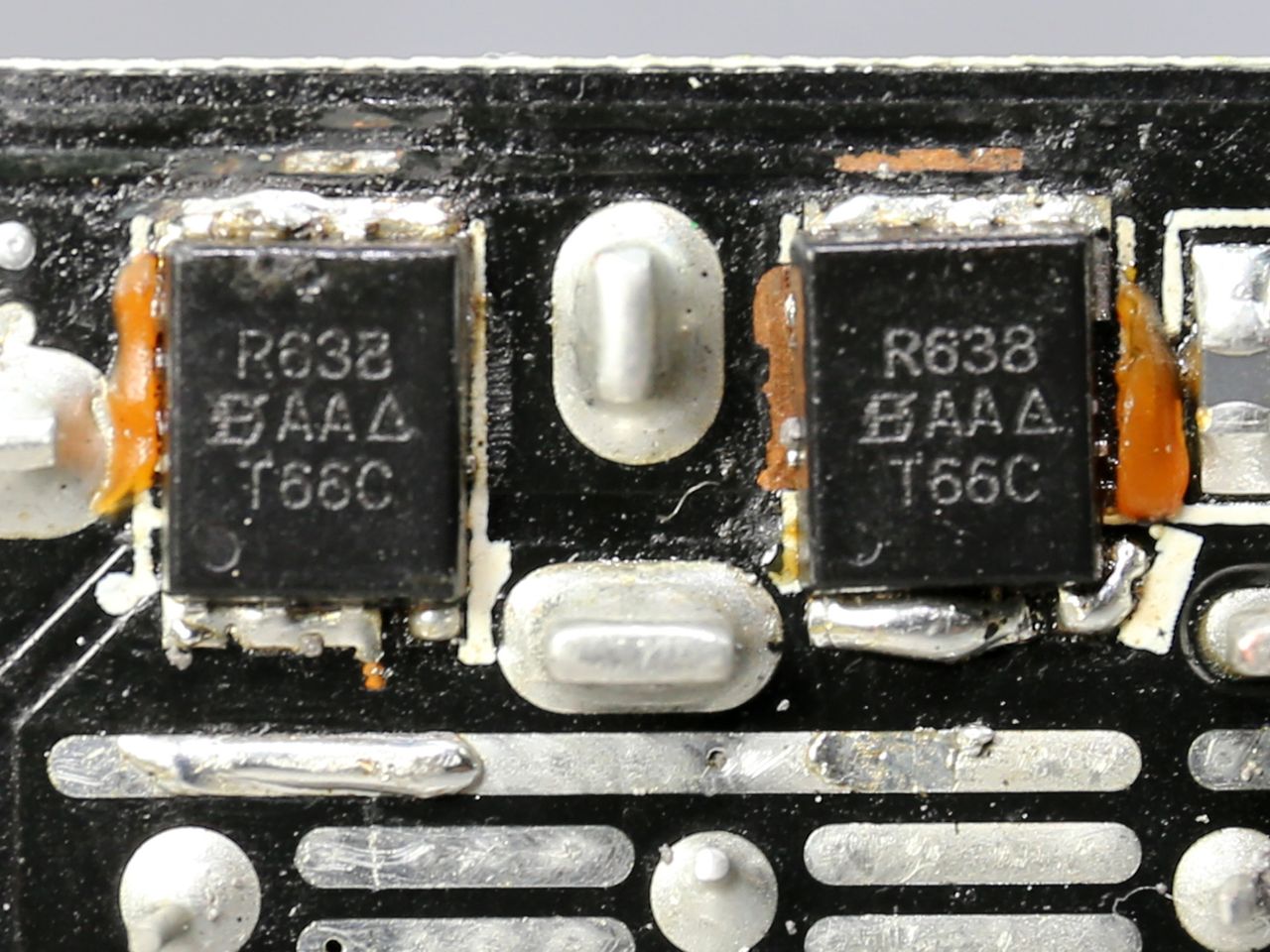

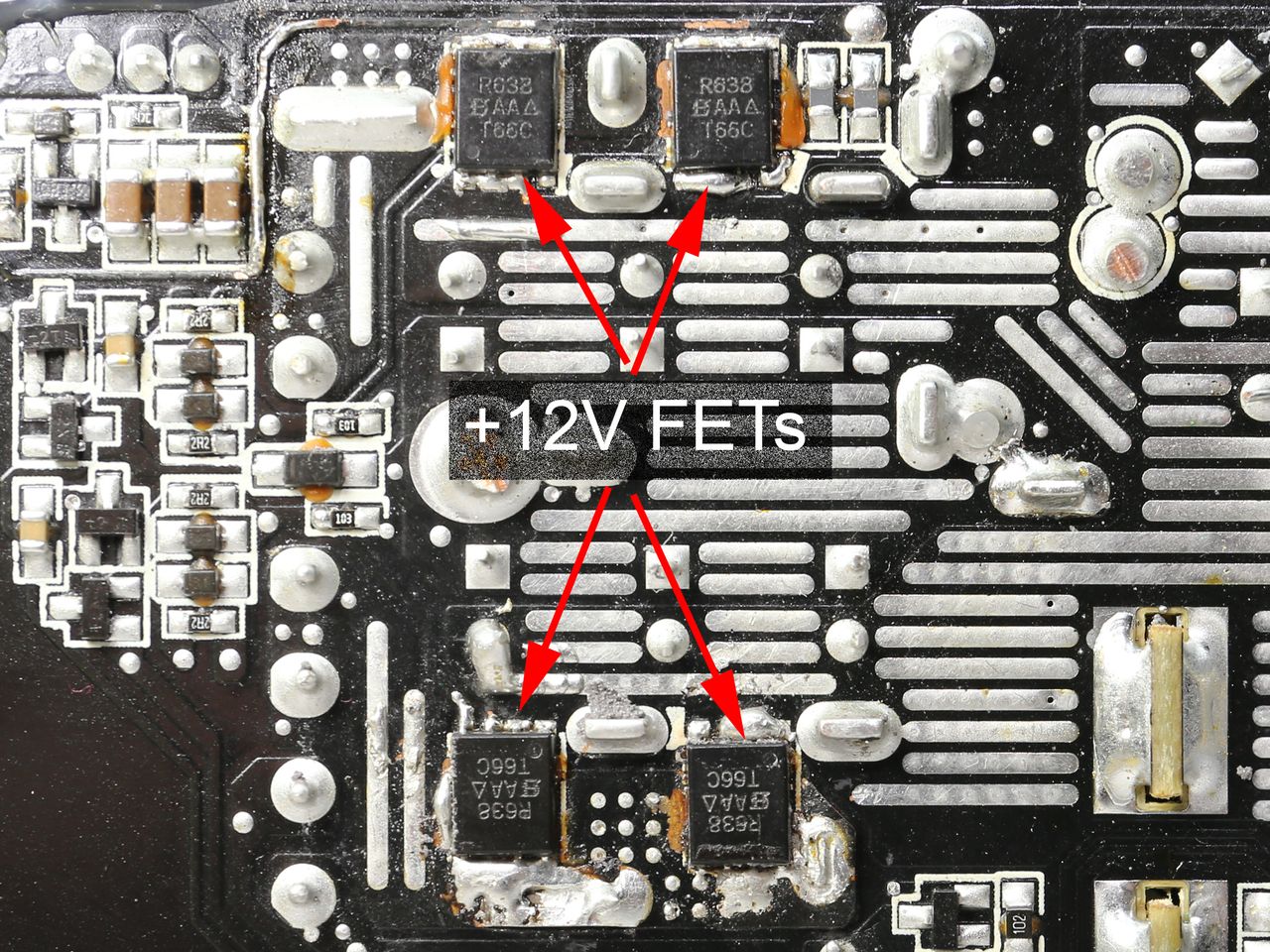

+12V MOSFETs | 4x Vishay SiR638DP (40V, 100A @ 70°C, 0.88mΩ) |
5V & 3.3V | DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mΩ) PWM Controller: Anpec APW7159 |
Filtering Capacitors | Electrolytics: Chemi-Con (1-5000 @ 105°C, KZE), Chemi-Con (4-10,000 @ 105°C, KY), Chemi-Con (105°C, W), Nichicon (4-10,000 @ 105°C, HE) Polymers: Nippon Chemi-Con, FPCAP |

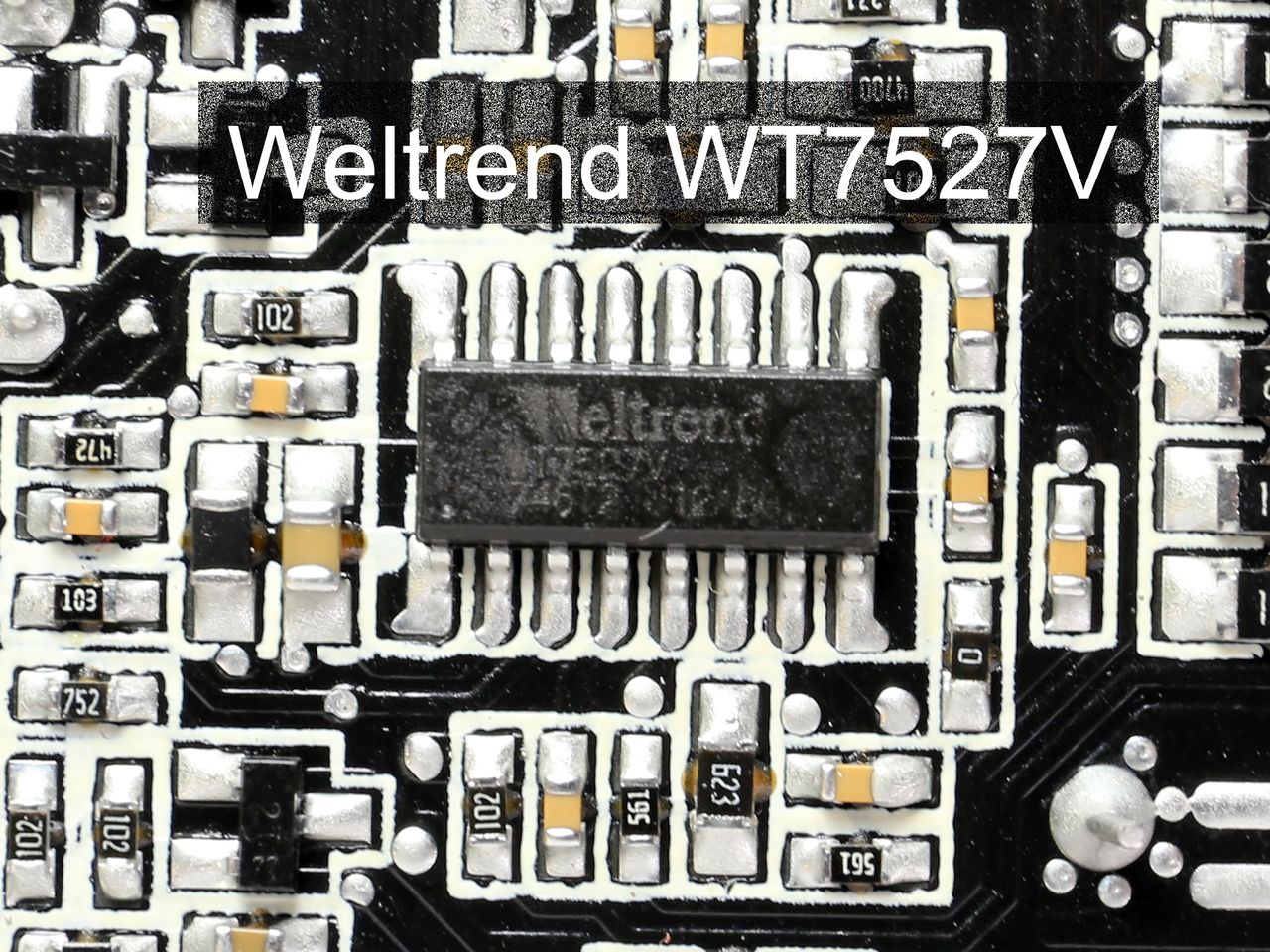

Supervisor IC | Weltrend WT7527V (OVP, UVP, OCP, SCP, PG) |

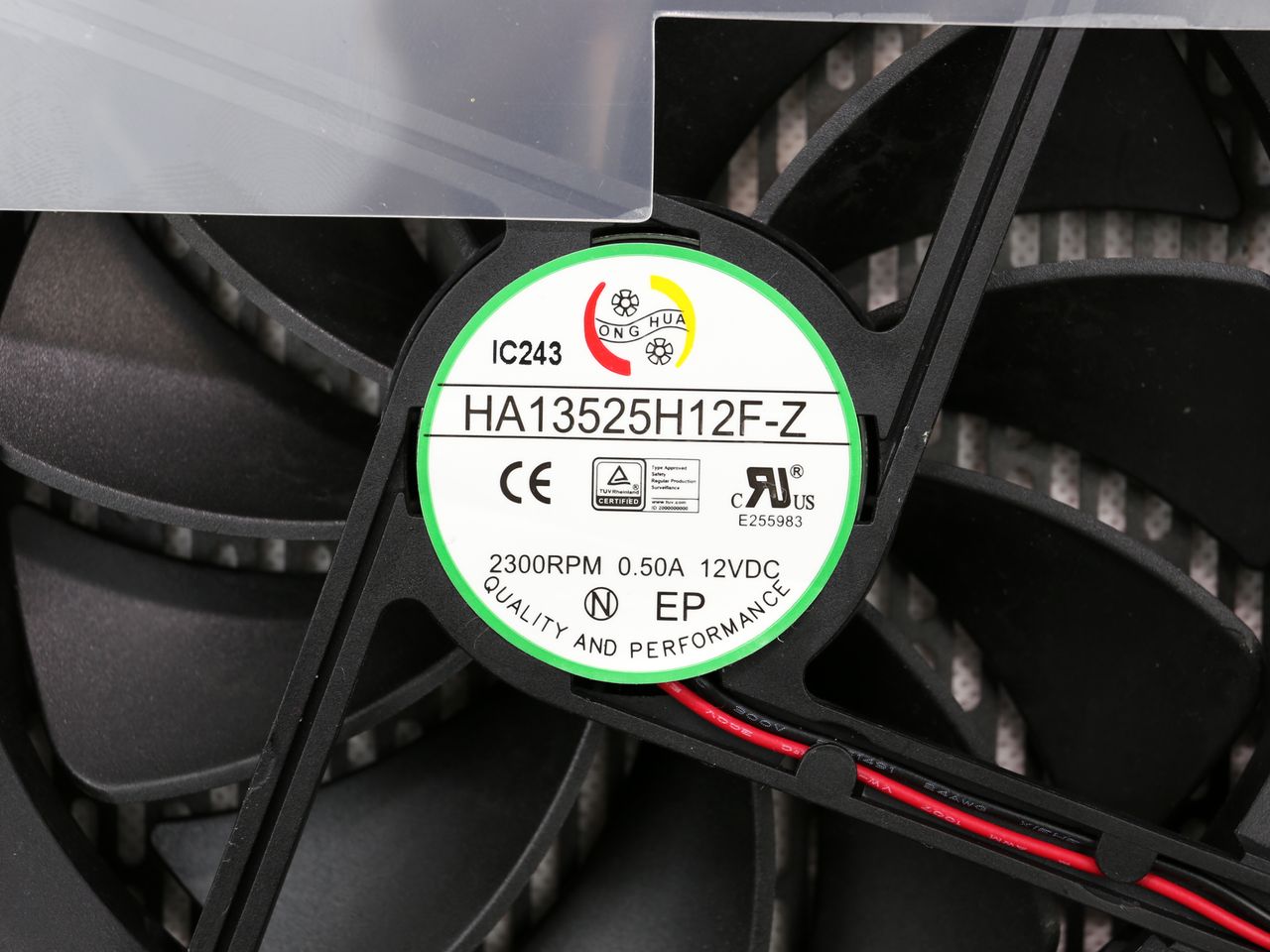

Fan Model | Hong Hua HA13525H12F-Z (135mm, 12V, 0.5A, 2300 RPM, fluid dynamic bearing) |
5VSB Circuit | |
Standby PWM Controller | Excelliance EM8569 |
As mentioned, the Antec HCG1000 Extreme is based on Seasonic's famous Focus Plus Gold platform in its strongest form. It's able to deliver 1kW of power from an impressively small PCB, even under oppressive ambient conditions.
There's an LLC resonant converter and full bridge topology on the primary side, while the secondary side hosts a synchronous design and a couple of DC-DC converters for generating the minor rails. The electrolytic caps are provided by Chemi-Con and Nichicon, while the polymer caps come from Chemi-Con and FPCAP.
Antec's cooling fan of choice is provided by Hong Hua. It utilizes a fluid dynamic bearing with a long lifetime at normal operating temperatures, offering quiet operation. Although the fan has a high maximum speed, we never saw it hit 100% duty cycle, even in a 49°C environment under full load.

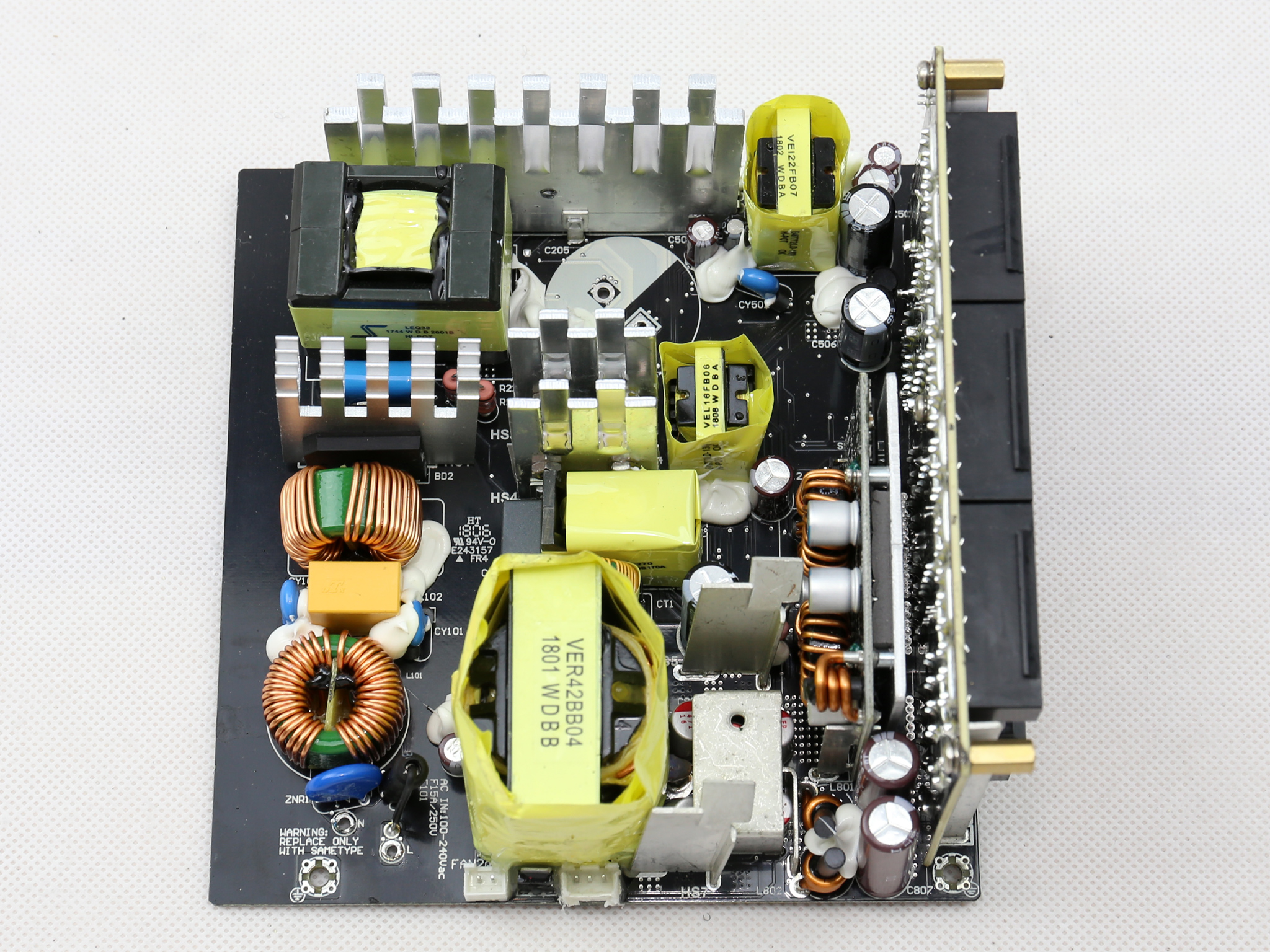

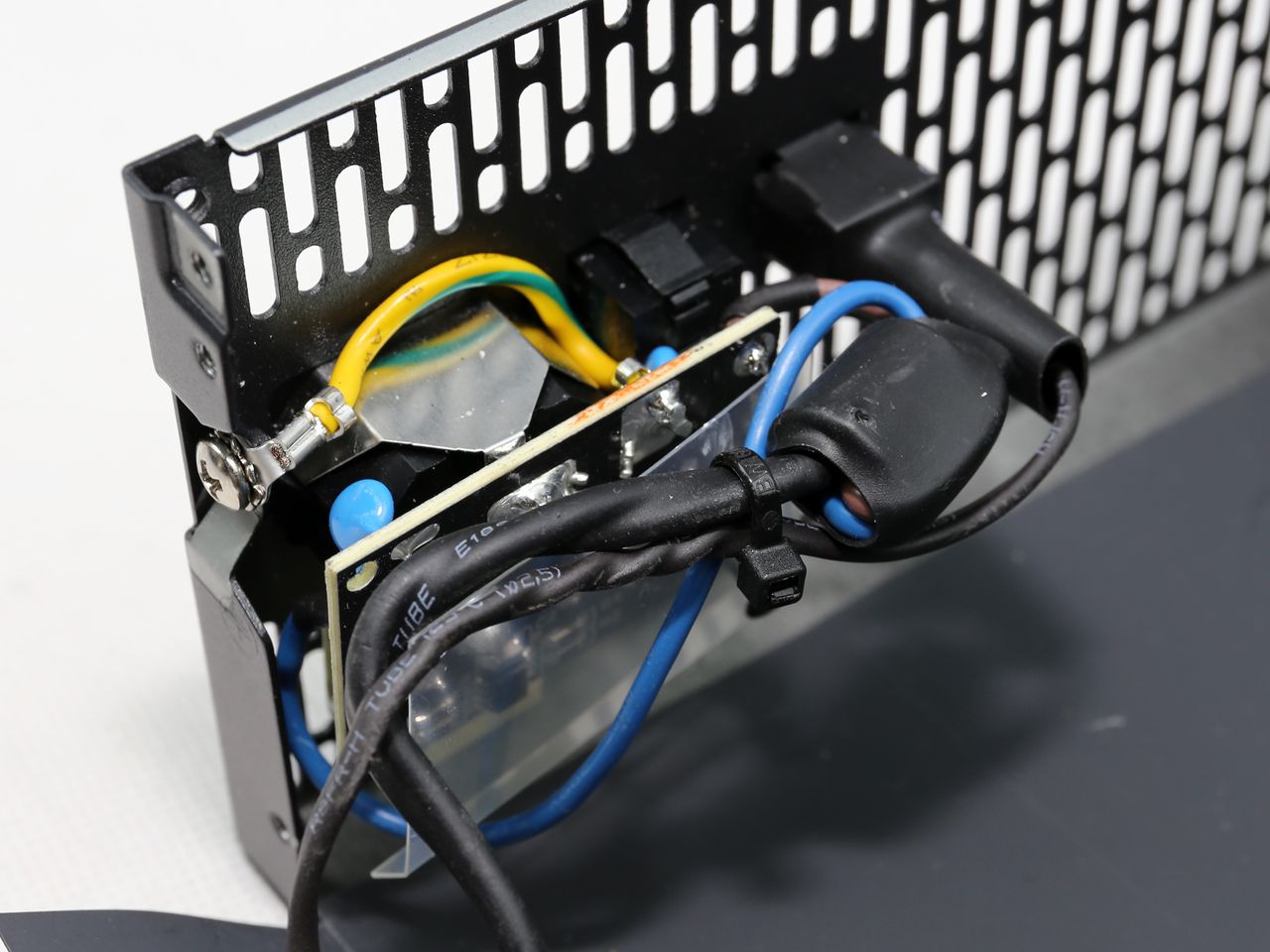

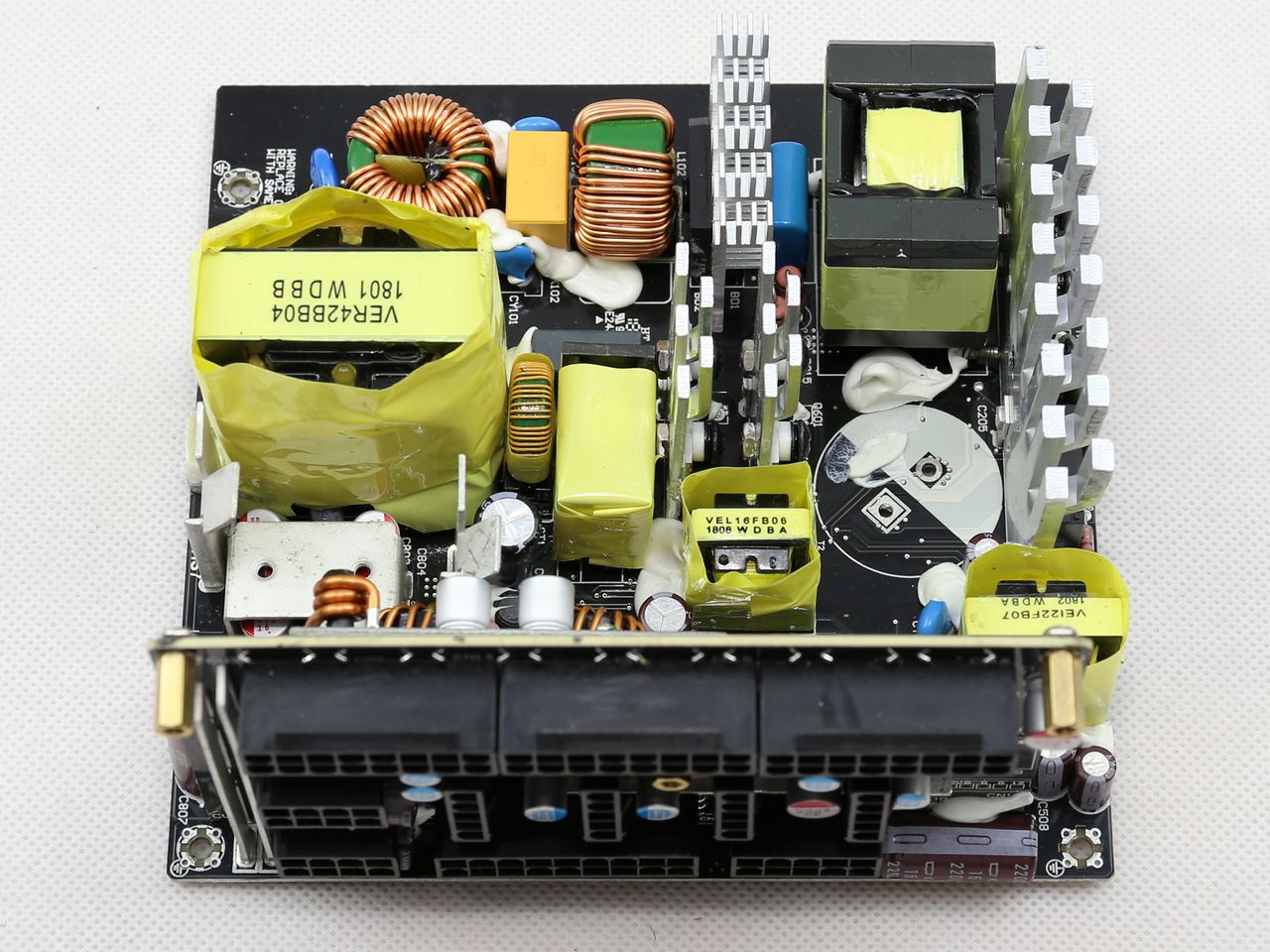

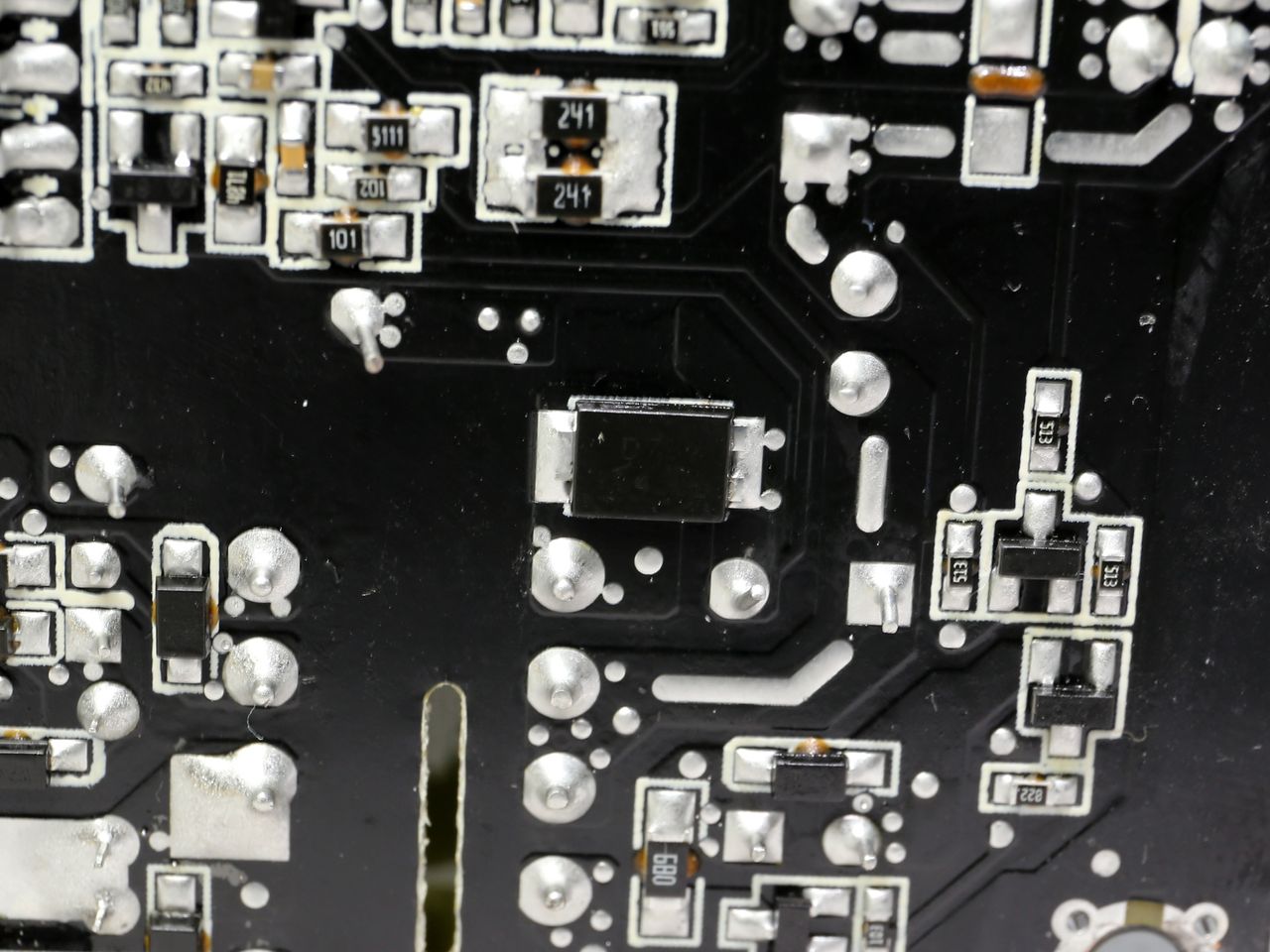

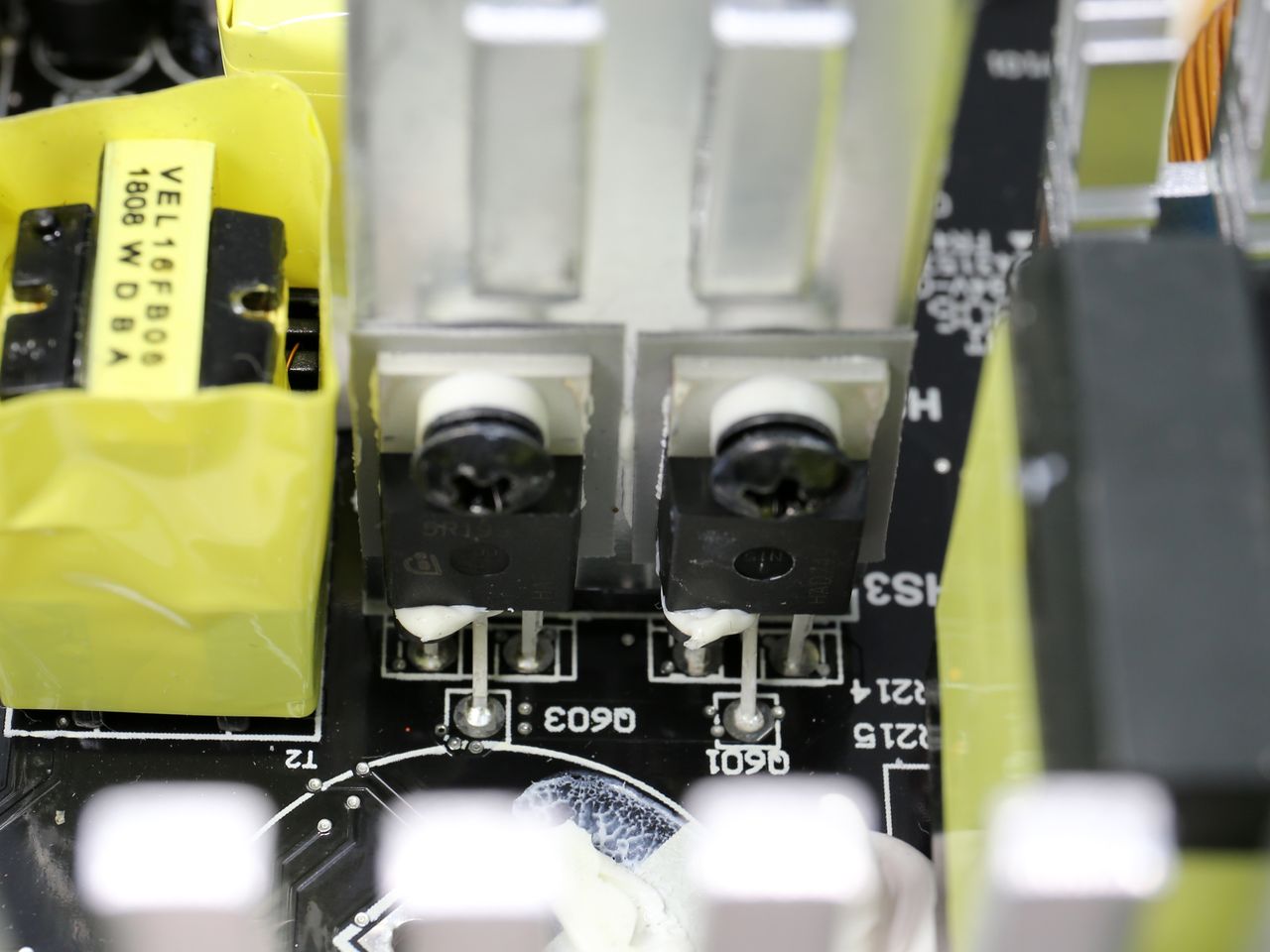

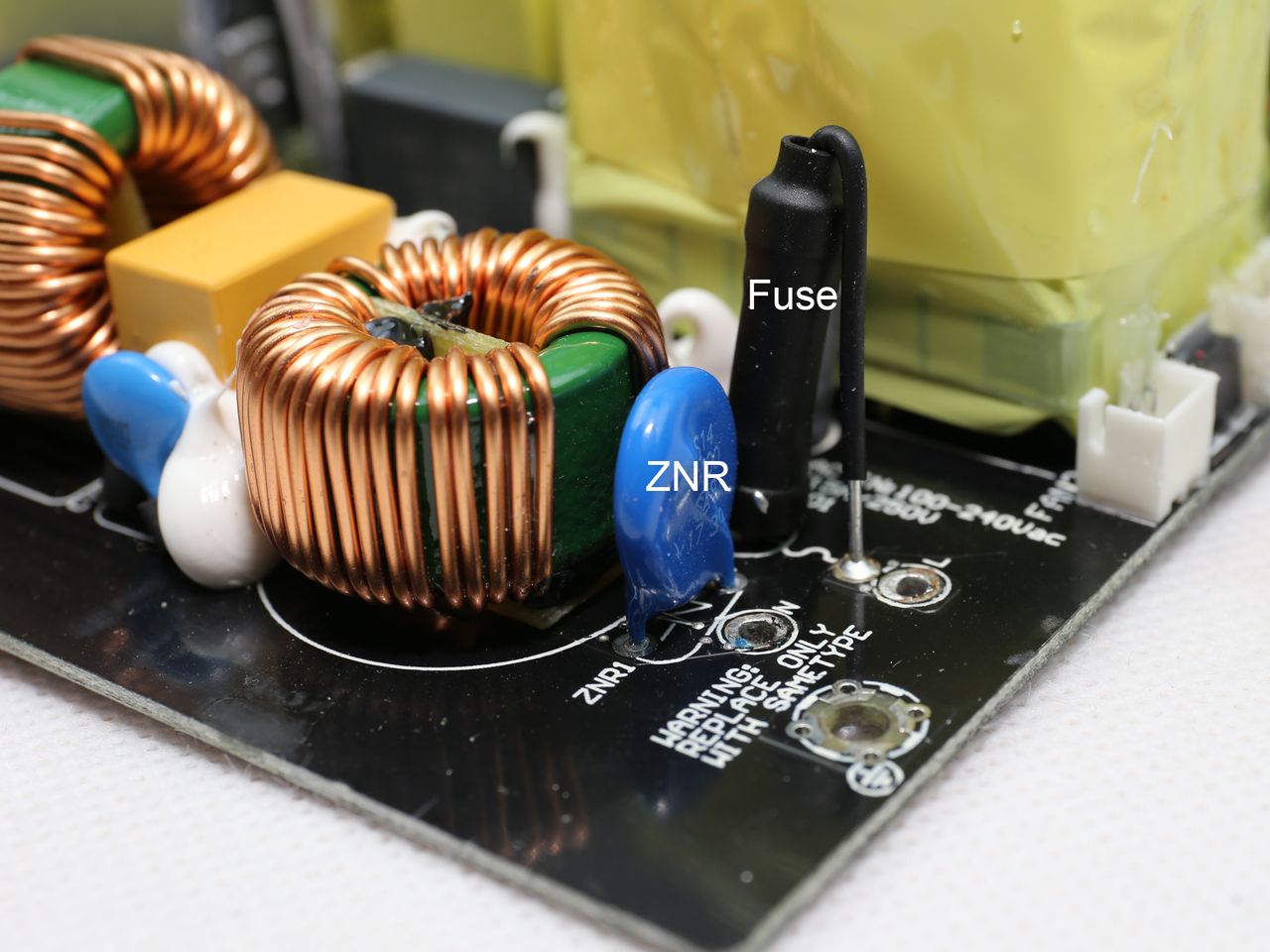

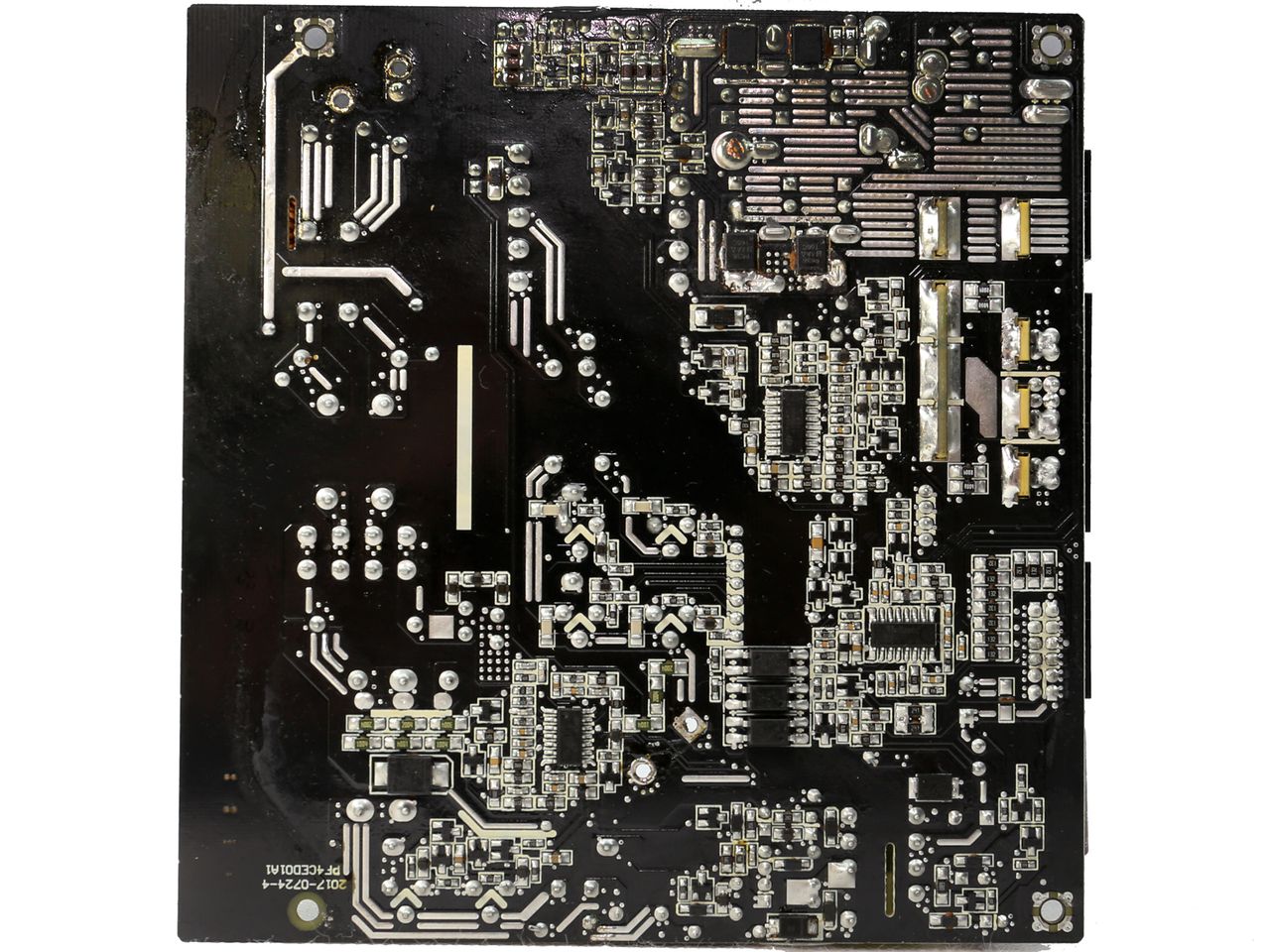

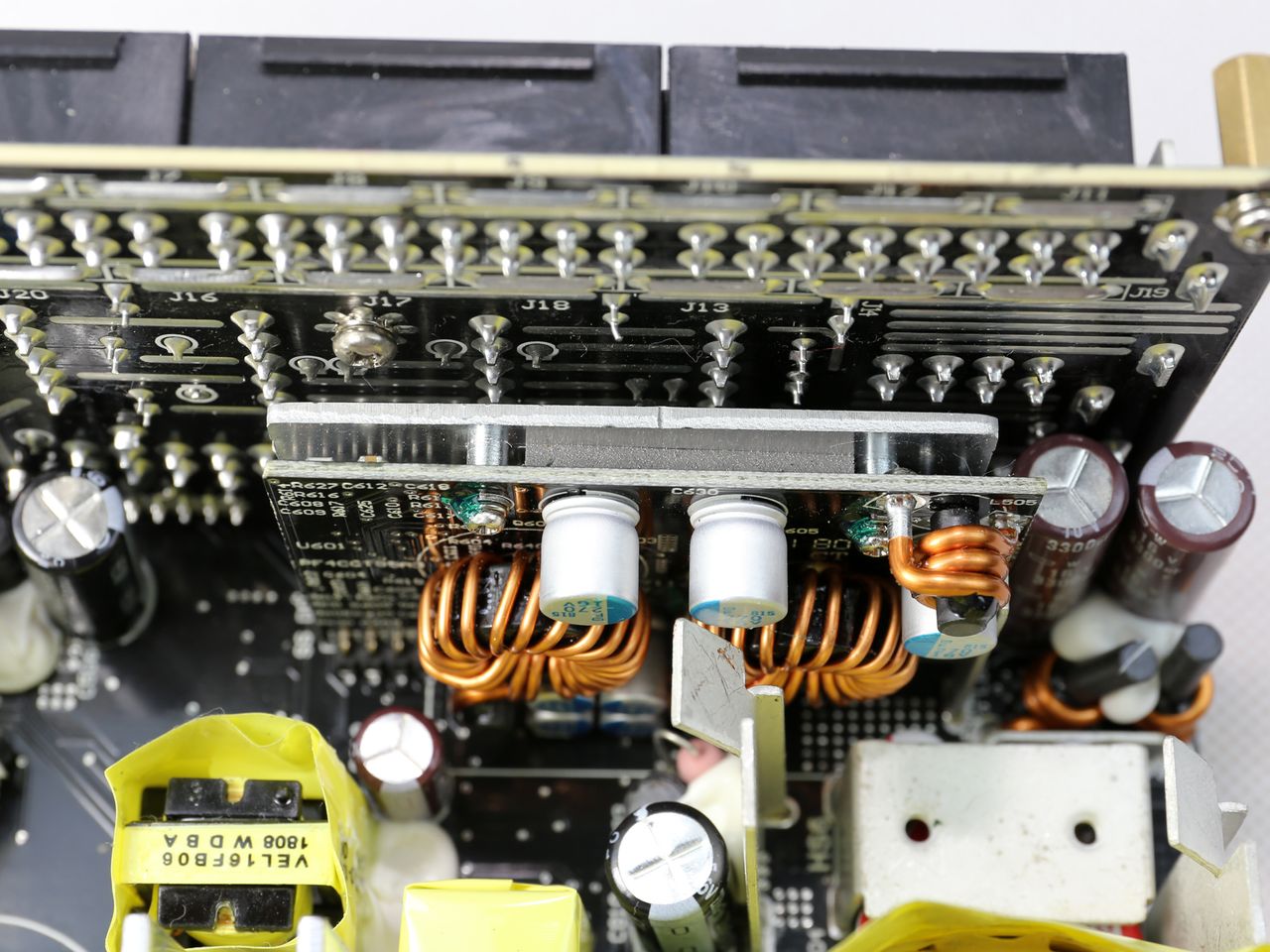

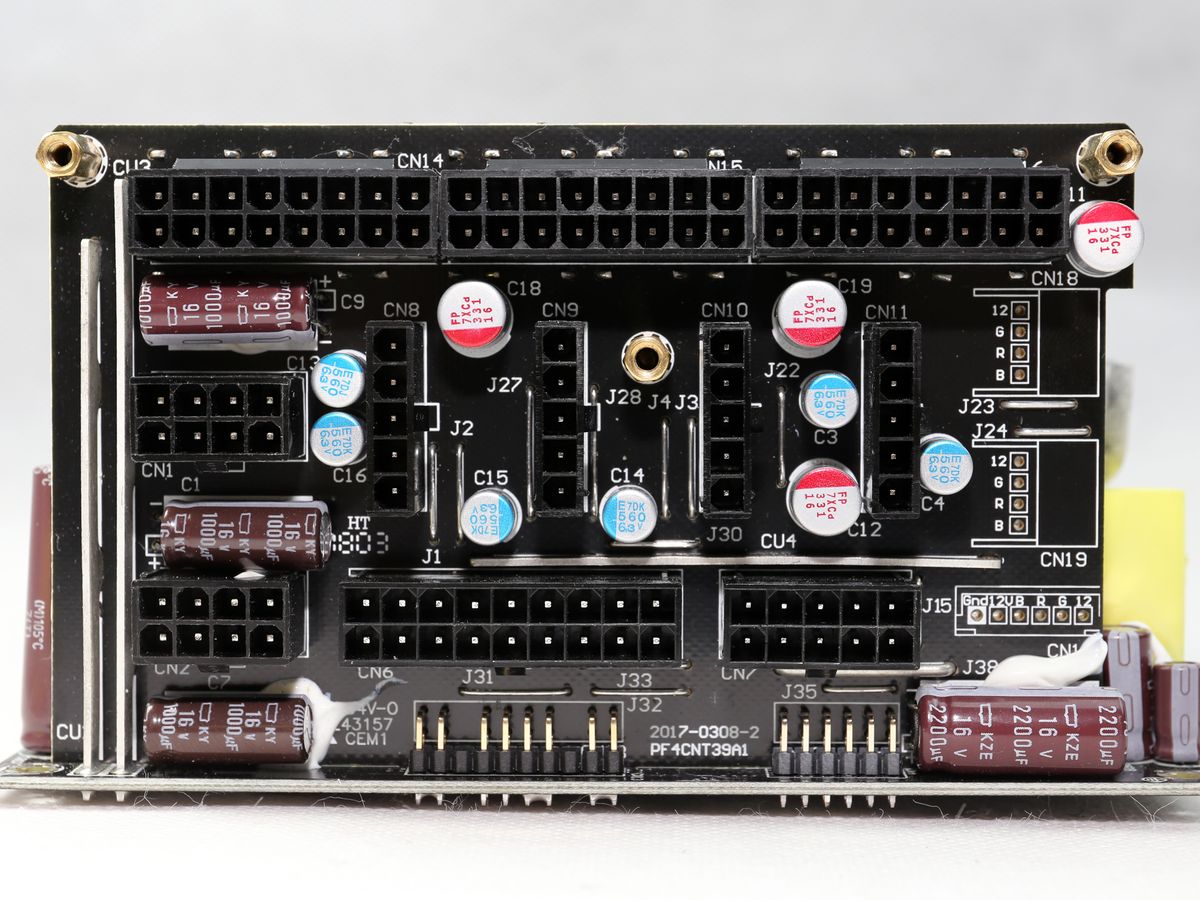

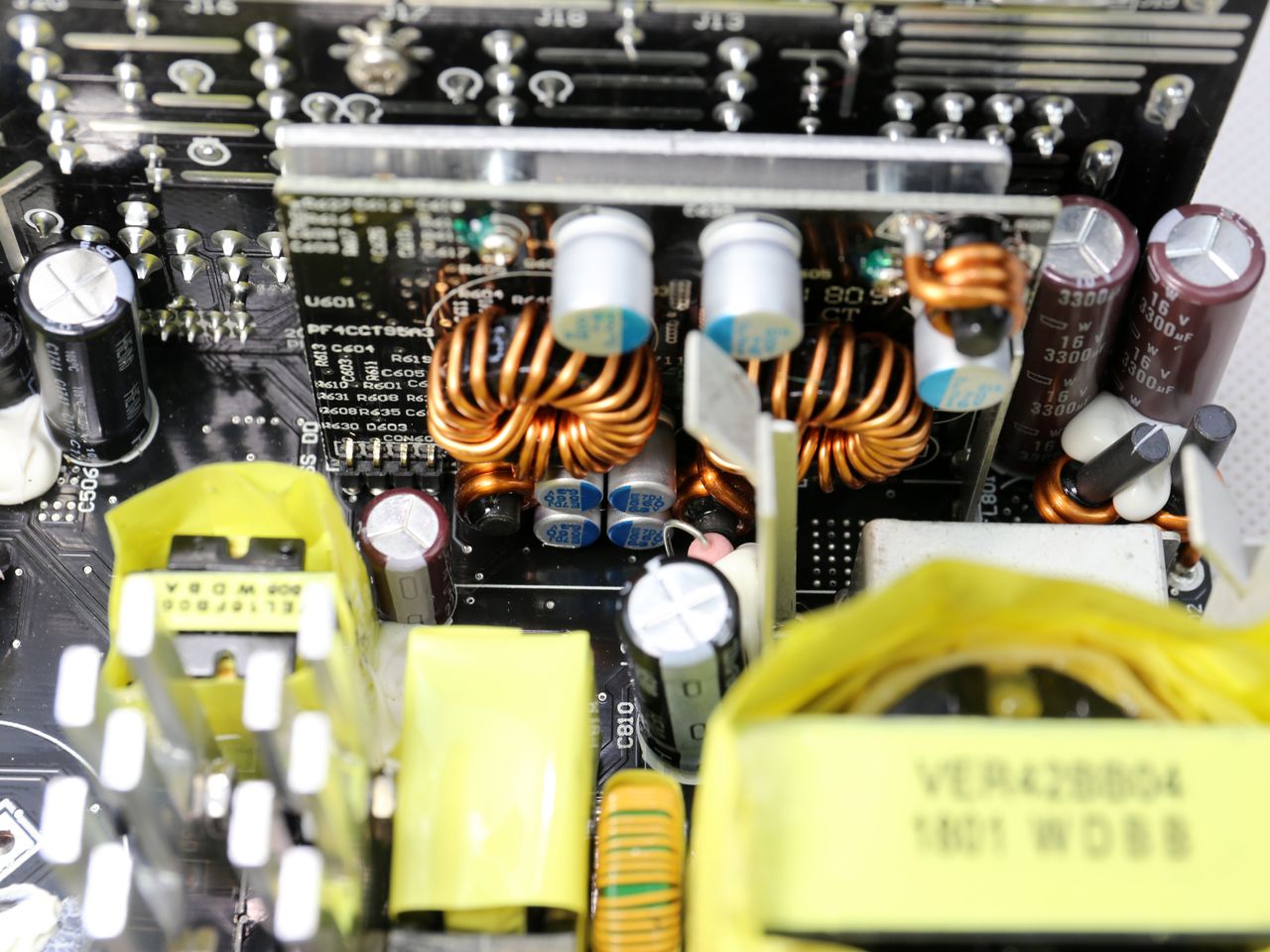

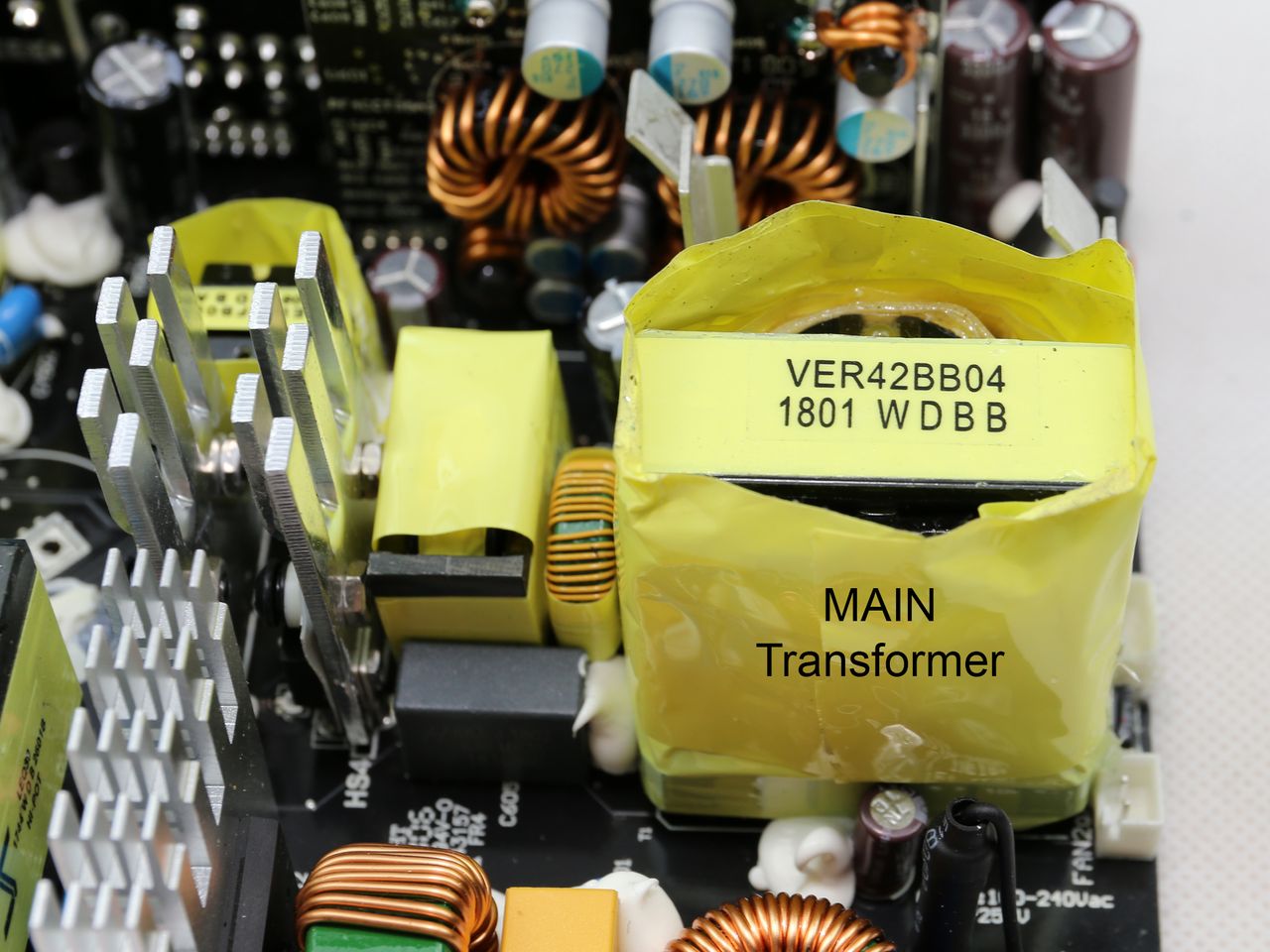

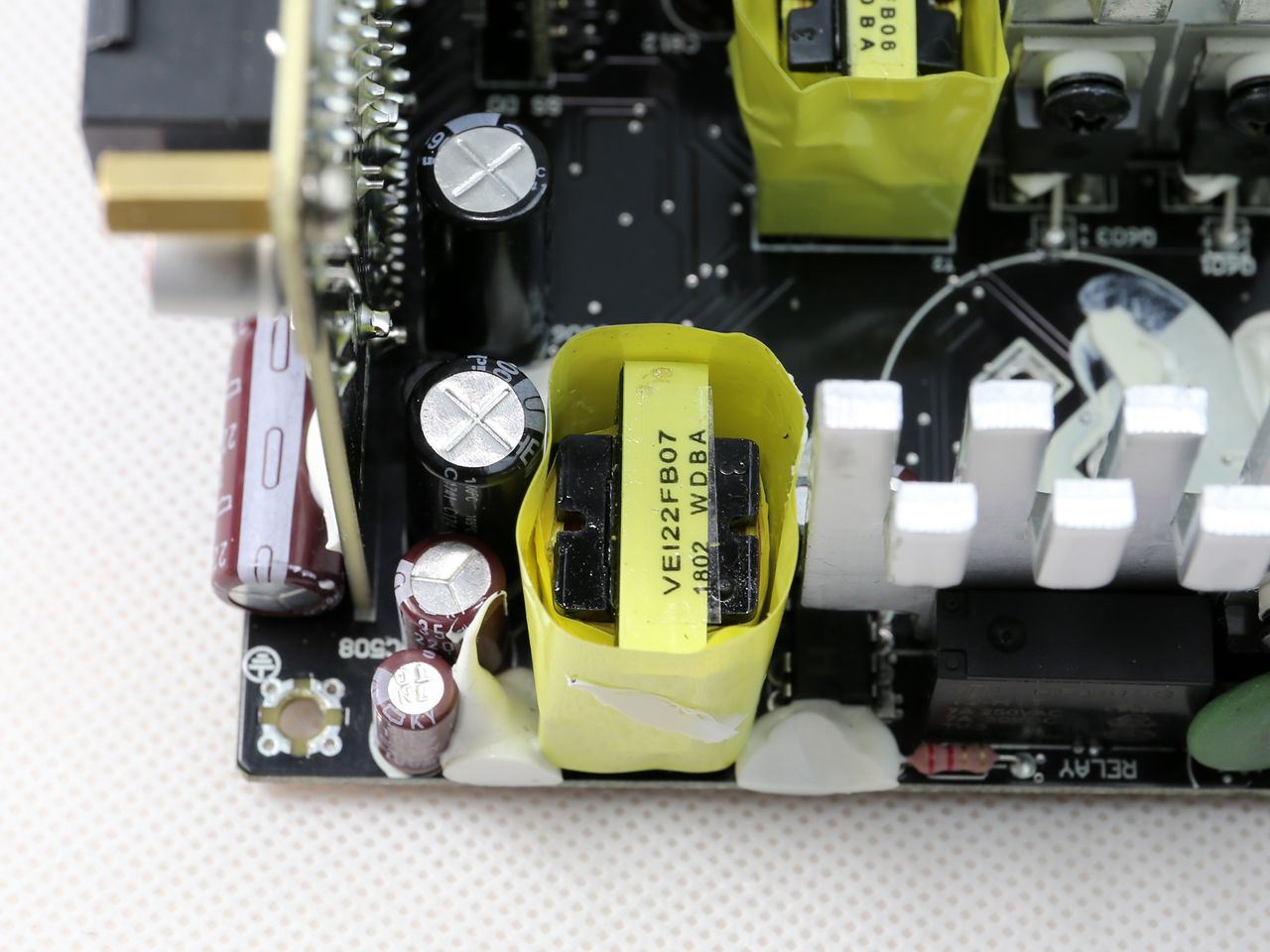

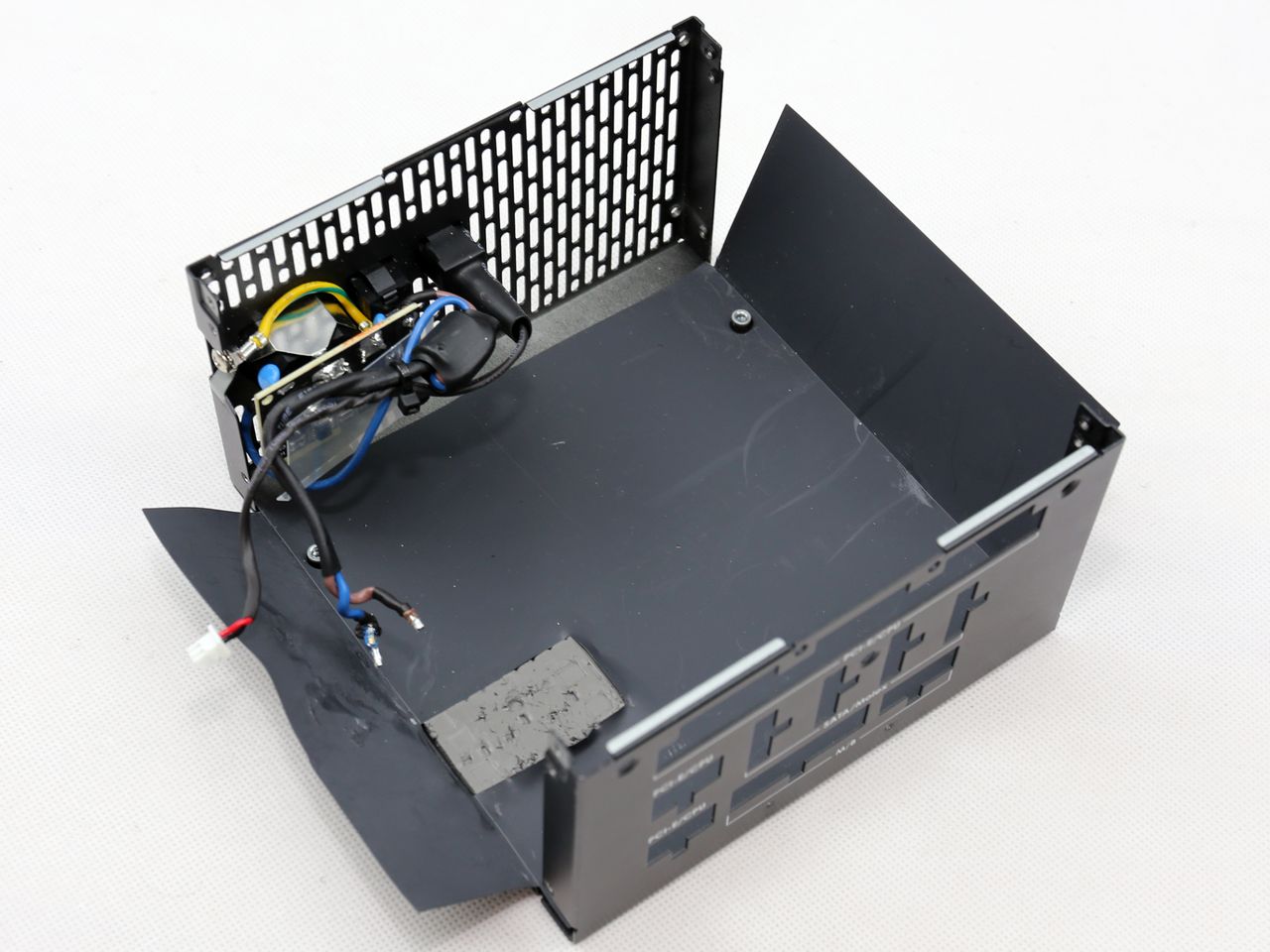

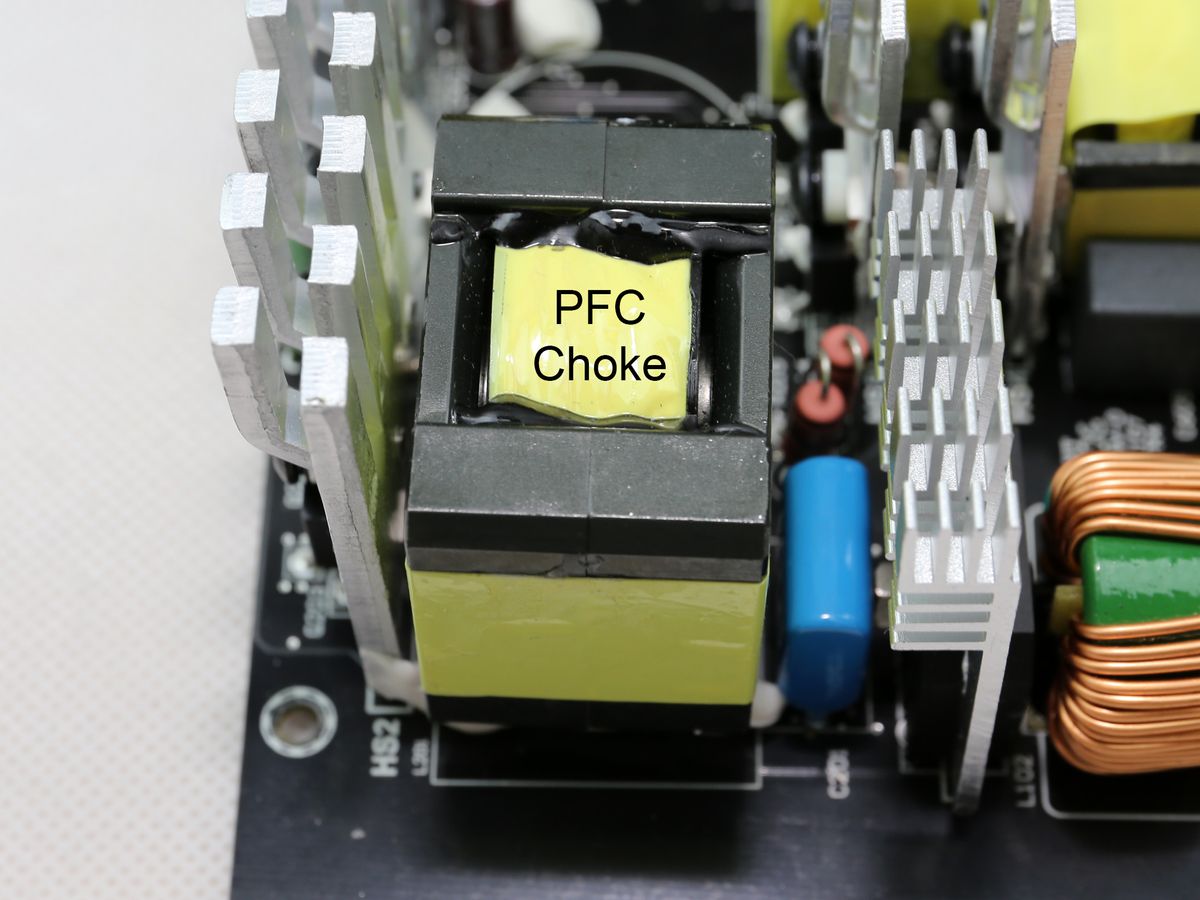

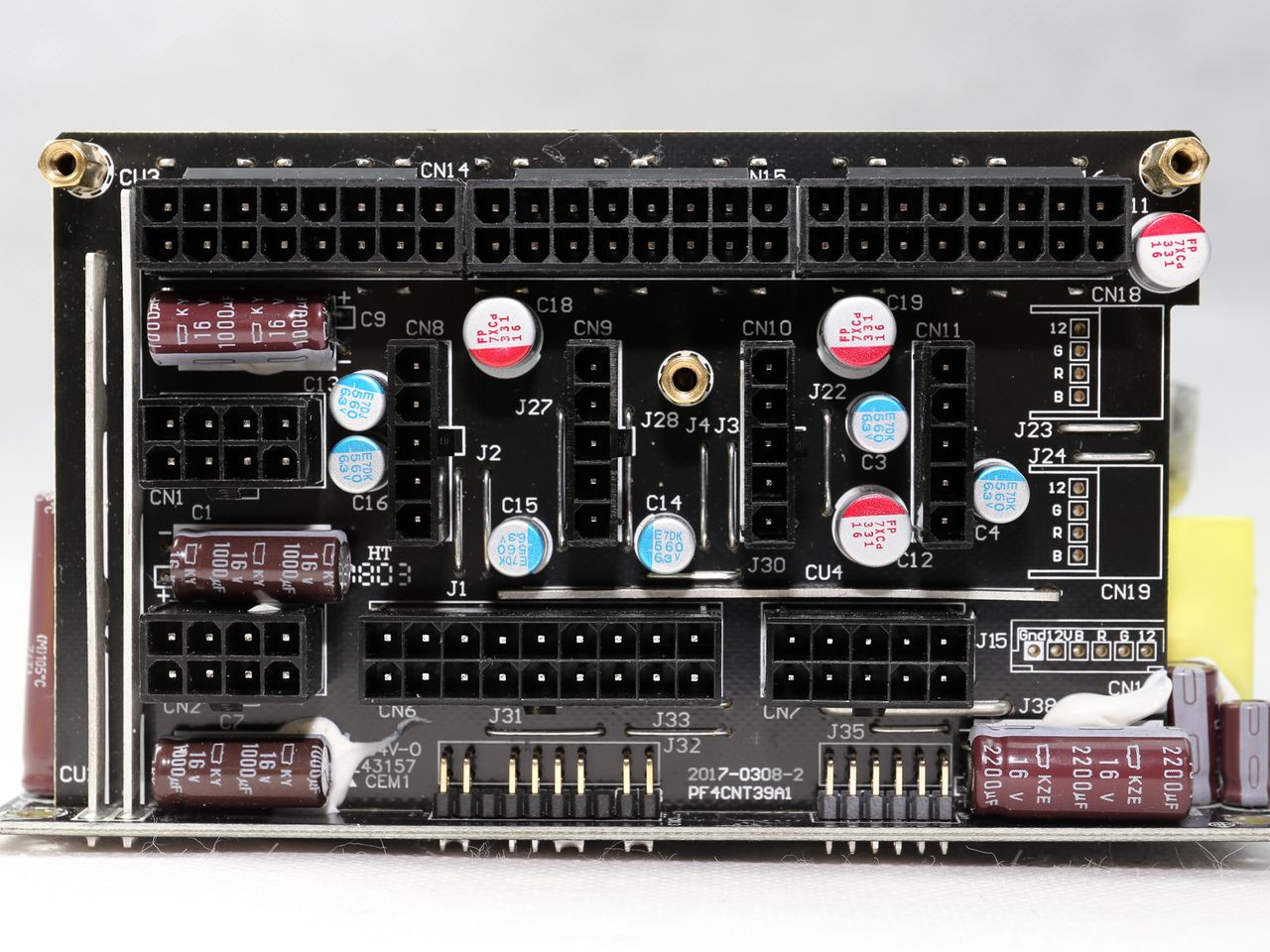

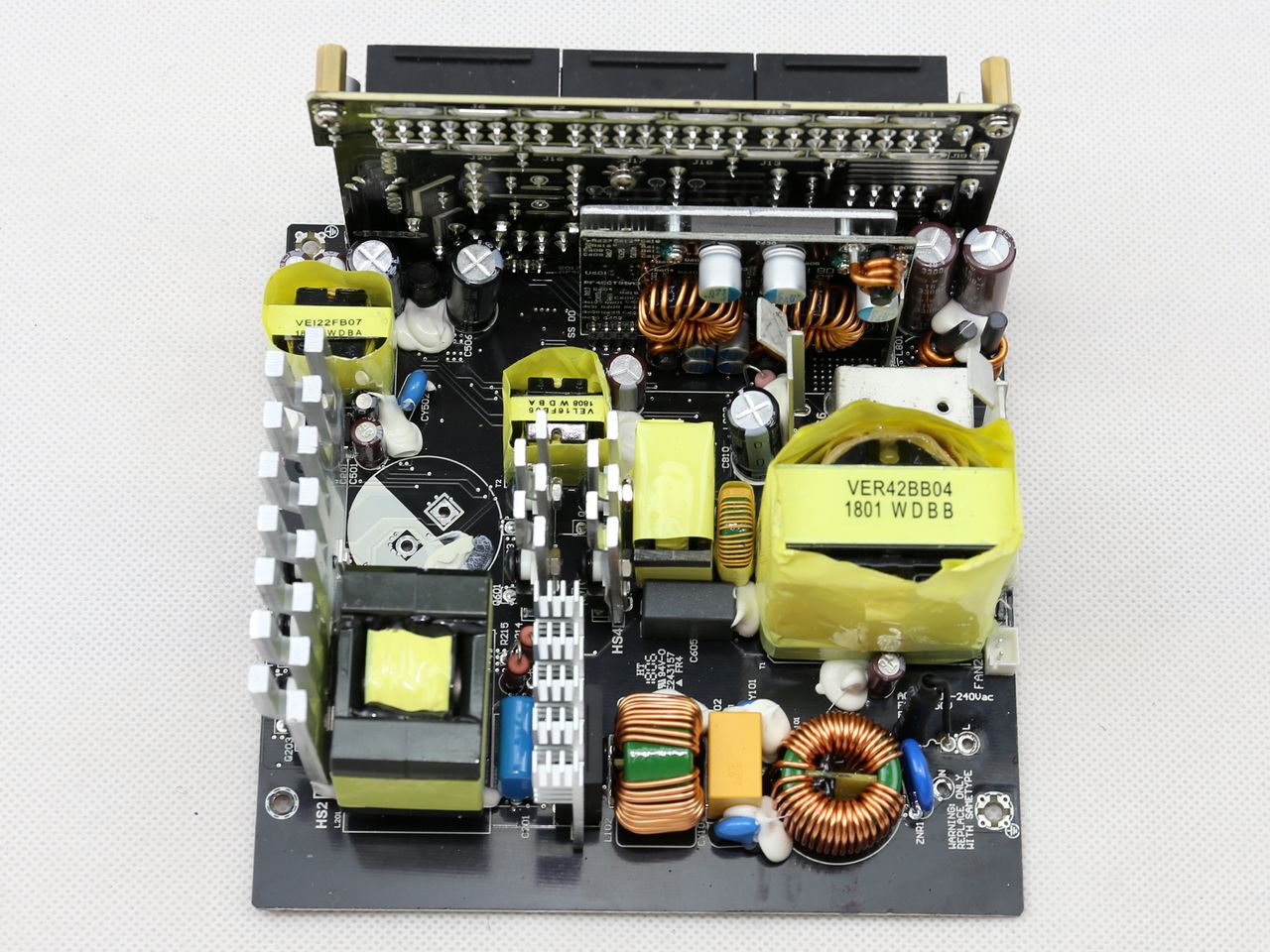

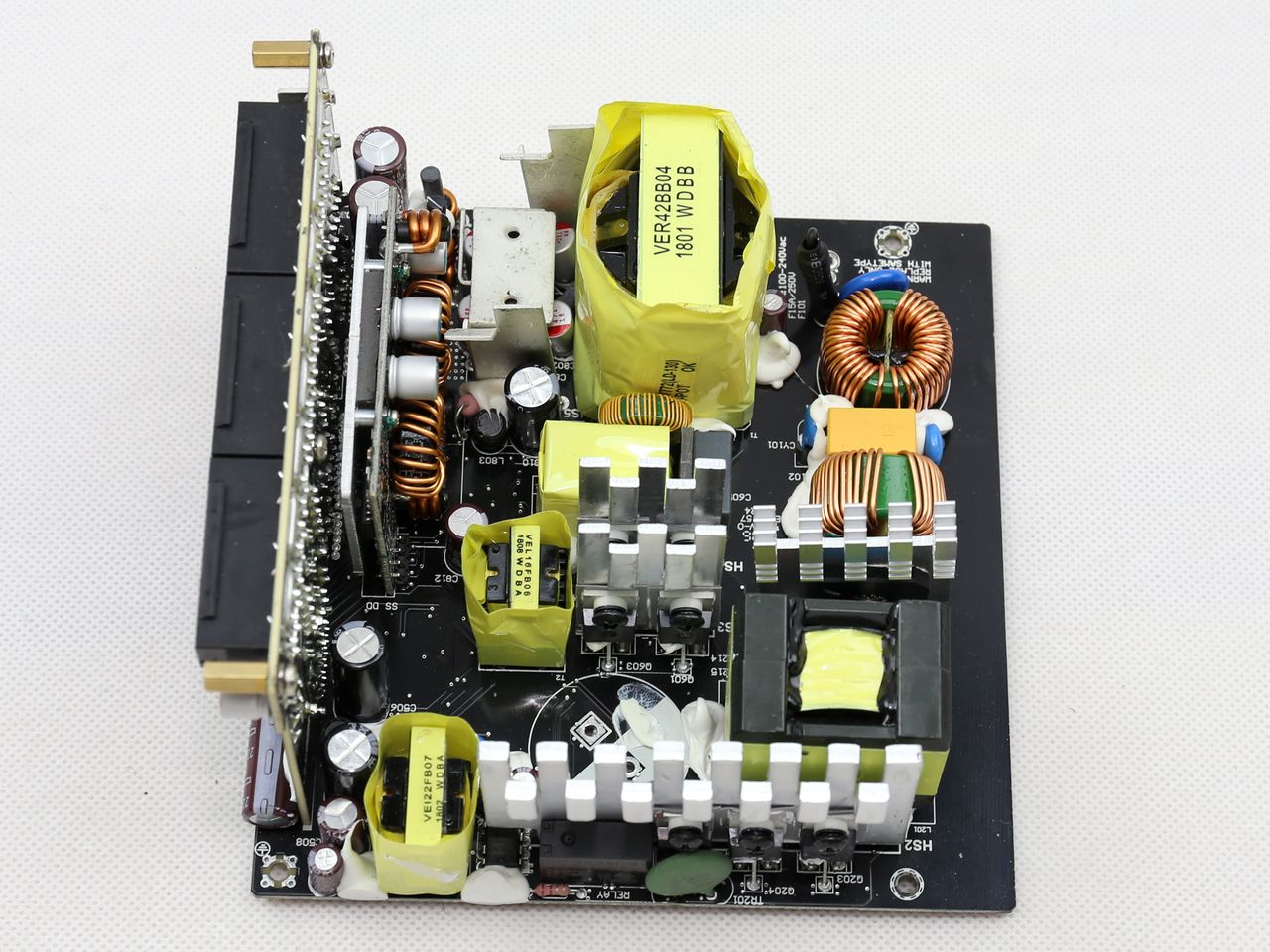

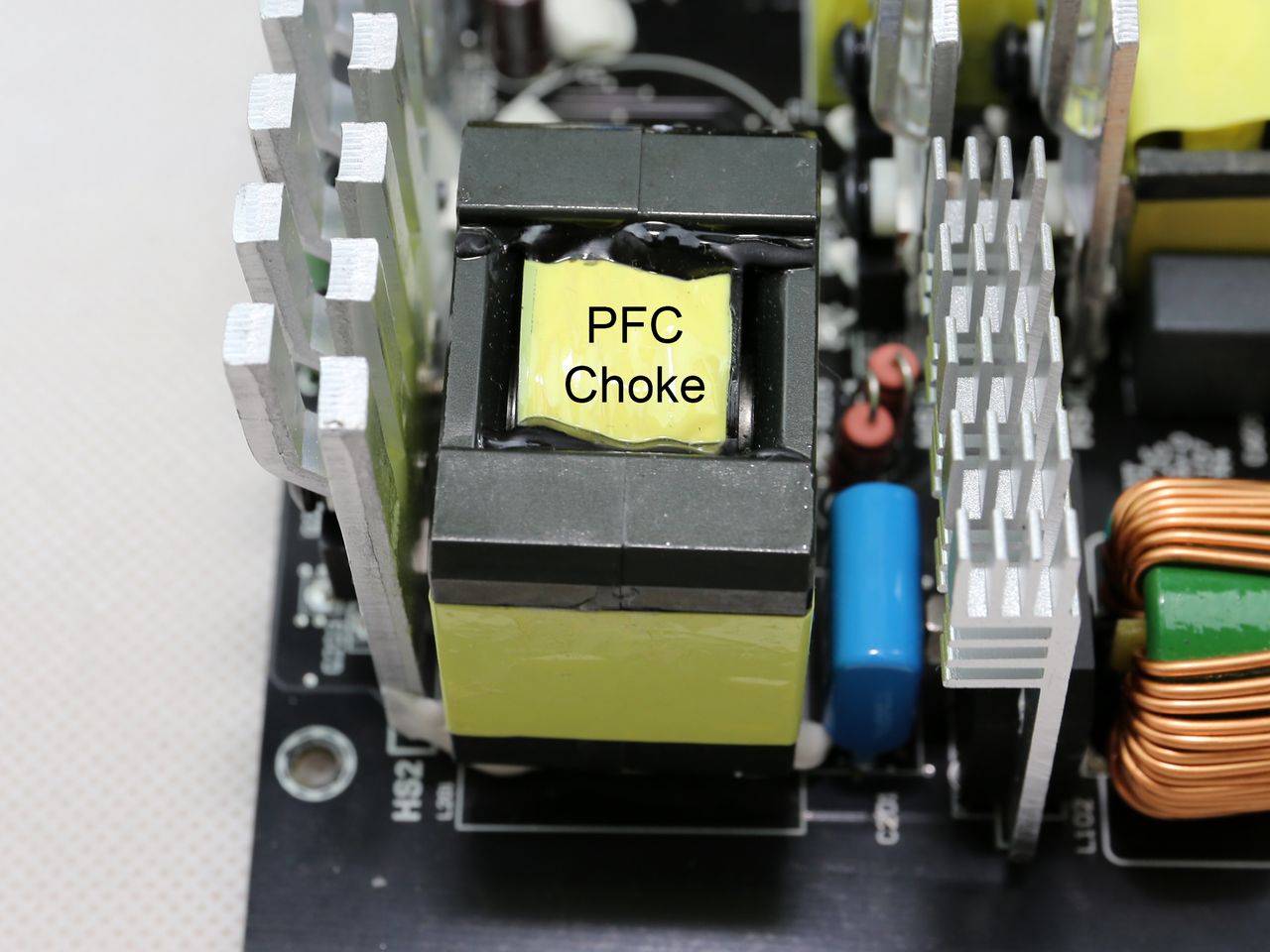

The album above includes photos showing the HCG1000 Extreme's major parts, while the following video illustrates the HCG1000 Extreme’s internals.
MORE: Best Power Supplies
MORE: How We Test Power Supplies
MORE: All Power Supply Content
Current page: Teardown & Component Analysis
Prev Page Unboxing Video Next Page Load Regulation, Hold-Up Time & Inrush CurrentStay On the Cutting Edge: Get the Tom's Hardware Newsletter
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.
Aris Mpitziopoulos is a contributing editor at Tom's Hardware, covering PSUs.
-
