Triple-GPU Scaling: AMD CrossFire Vs. Nvidia SLI

Name: Test Settings - Triple-GPU Scaling: AMD CrossFire Vs. Nvidia SLI
Author: Thomas Soderstrom

by Thomas Soderstrom March 14, 2011 at 12:00 AM

Test Settings

Test System Configuration
CPU	Intel Core i7-2600K (Sandy Bridge) LGA 1155: 3.40-3.80 GHz, 8 MB L3 Cache Overclocked to 4.00 GHz at 1.25 V

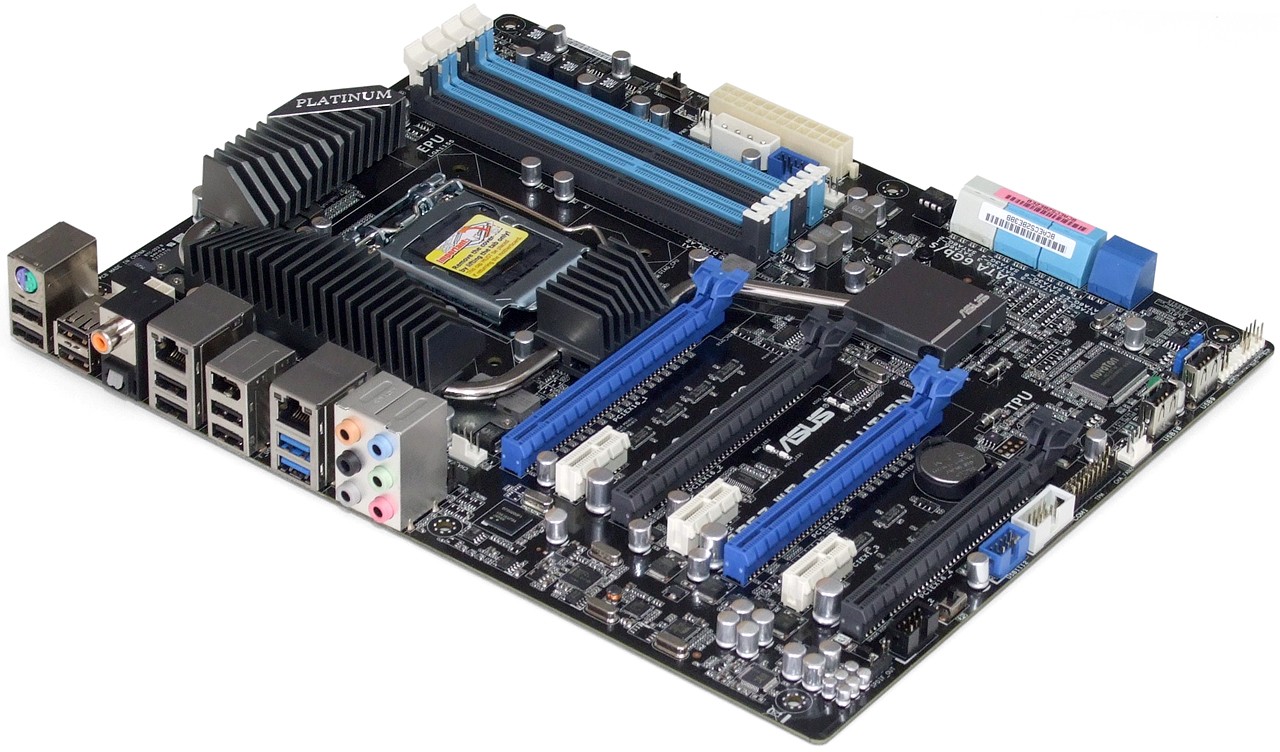

Motherboard	Asus P8P67 WS Revolution: LGA 1155, BIOS 1007 (01/24/2011) Intel P67 Express, Nvidia NF200 PCIe Bridge (2 x PCIe 2.0 x16)
RAM	Kingston KHX2133C9D3T1K2/4GX: 2 x 2 GB, DDR3-2133 at DDR3-1600 CAS 7-7-7-21, 1.60 V
Hard Drive	Western Digital WD1002FBYS: 1 TB, 7200 RPM, SATA 3Gb/s, 32 MB cache
GeForce Graphics	Asus ENGTX570/2DI/1280MD5: 742 MHz GF110 GPU, 1280 MB GDDR5-3800
Radeon Graphics	XFX HD-695A-CNFC: 800 MHz Cayman GPU, 2 GB GDDR5-5000
Sound	Integrated HD Audio
Network	Integrated Gigabit Networking
Power	OCZ-Z1000M: 1000 W Modular, ATX12V v2.2, EPS12V, 80 PLUS Gold
Software
OS	Microsoft Windows 7 Ultimate 64-bit
GeForce Graphics	GeForce/Ion 266.58
Radeon Graphics	AMD Catalyst 11.1
Chipset	Intel INF 9.2.0.1019

CPU “bottlenecks” are always a problem at medium (and lower) resolutions. Today’s tests start at medium resolutions, so we clocked Intel’s Core i7-2600K to 4.0 GHz in an effort to minimize that issue.

The Achilles-heel of Intel’s fastest processor is a platform that supports only sixteen PCIe 2.0 lanes directly from the processor to the graphics card. Asus solves that solution by incorporating Nvidia’s 32-lane NF200 bridge, thereby repeating the same information at full bandwidth to two cards simultaneously. Triple-GPU mode operates in an x8/x8/x16 configuration, as it would with most X58 motherboards.

Power might be the price for performance, but we wanted to see if it also scaled with performance as GPU numbers increased. OCZ’s 80 PLUS Gold-rated Z1000M provides that clean power while adding only around 11% overhead at our watt meter.

Benchmark Configuration
3D Games
Aliens Vs. Predator Benchmark	Alien vs Predator Benchmark Tool Test Set 1: Highest Settings, No AA Test Set 2: Highest Settings, 4x AA
Crysis	Patch 1.2.1, DirectX 10, 64-bit executable, benchmark tool Test Set 1: Highest Quality, No AA Test Set 2: Highest Quality, 4x AA
F1 2010	v1.01, Run with -benchmark example_benchmark.xml Test Set 1: Highest Settings, No AA Test Set 2: Highest Settings, 4x AA
Just Cause 2	Version 1.0.0.2, Built-In Benchmark "Concrete Jungle" Test Set 1: Highest Details, No AA, 16x AF Test Set 2: Highest Details, 4x AA, 16x AF
S.T.A.L.K.E.R.: Call Of Pripyat	Call Of Pripyat Benchmark version, all options, HDAO Test Set 1: Ultra Preset, DX11 EFDL, Ultra SSAO, No AA Test Set 2: Ultra Preset, DX11 EFDL, Ultra SSAO, 4x MSAA
Synthetic Benchmarks and Settings
3DMark 11	Version: 1.0.1.0, Benchmark Only

Previous Next

Summary

About the author

Thomas Soderstrom @hardware_tom

Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
