Gigabyte Z490 Vision D and Vision G Review: For Creators

Good performance, designed for Creators

By

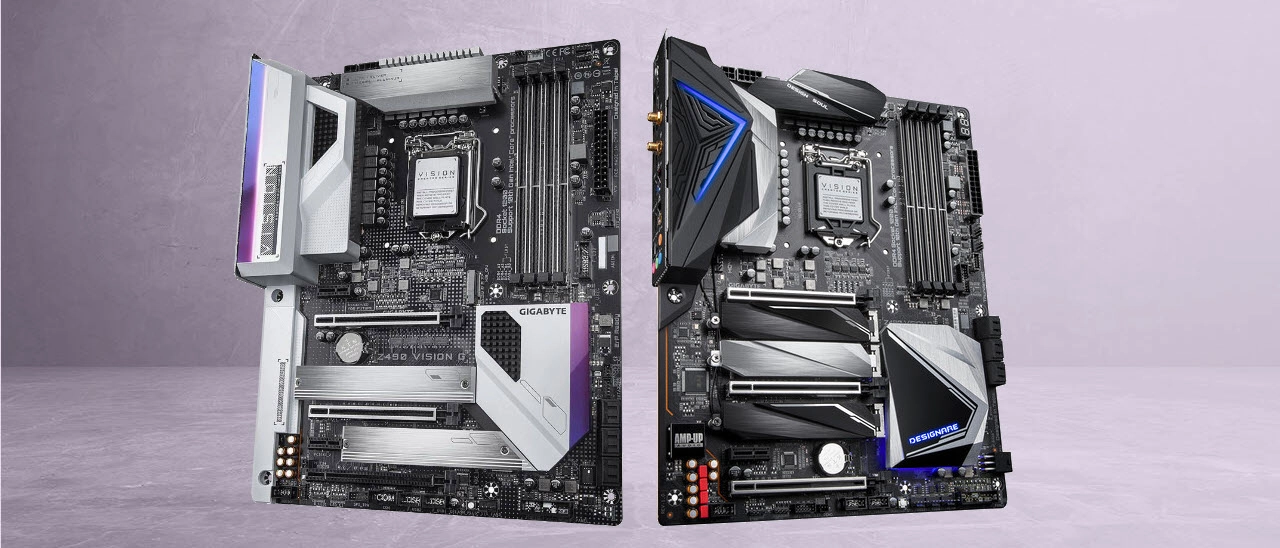

GIGABYTE Z490 VISION G & D
Editor's Choice
(Image: © GIGABYTE)

Software

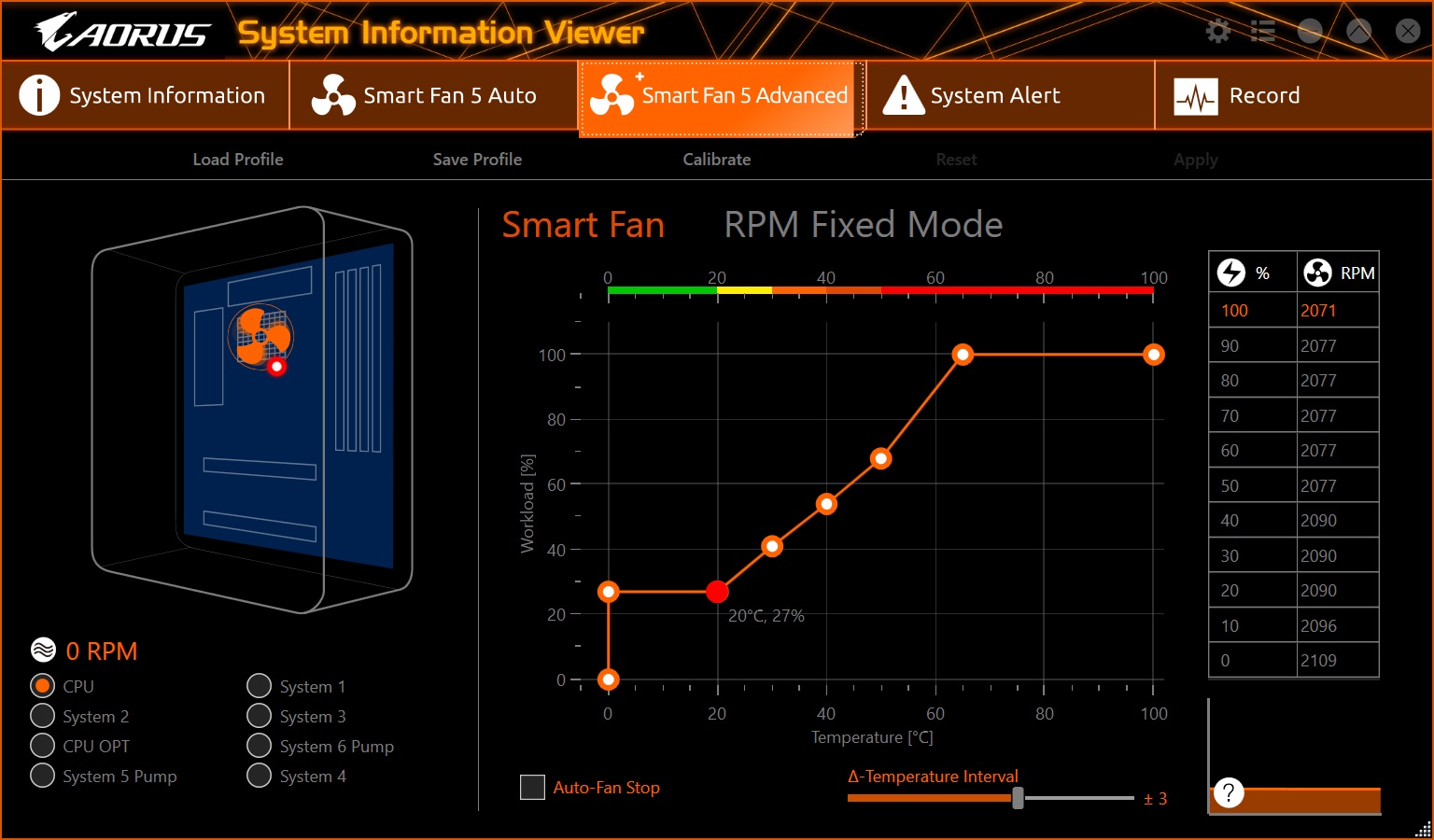

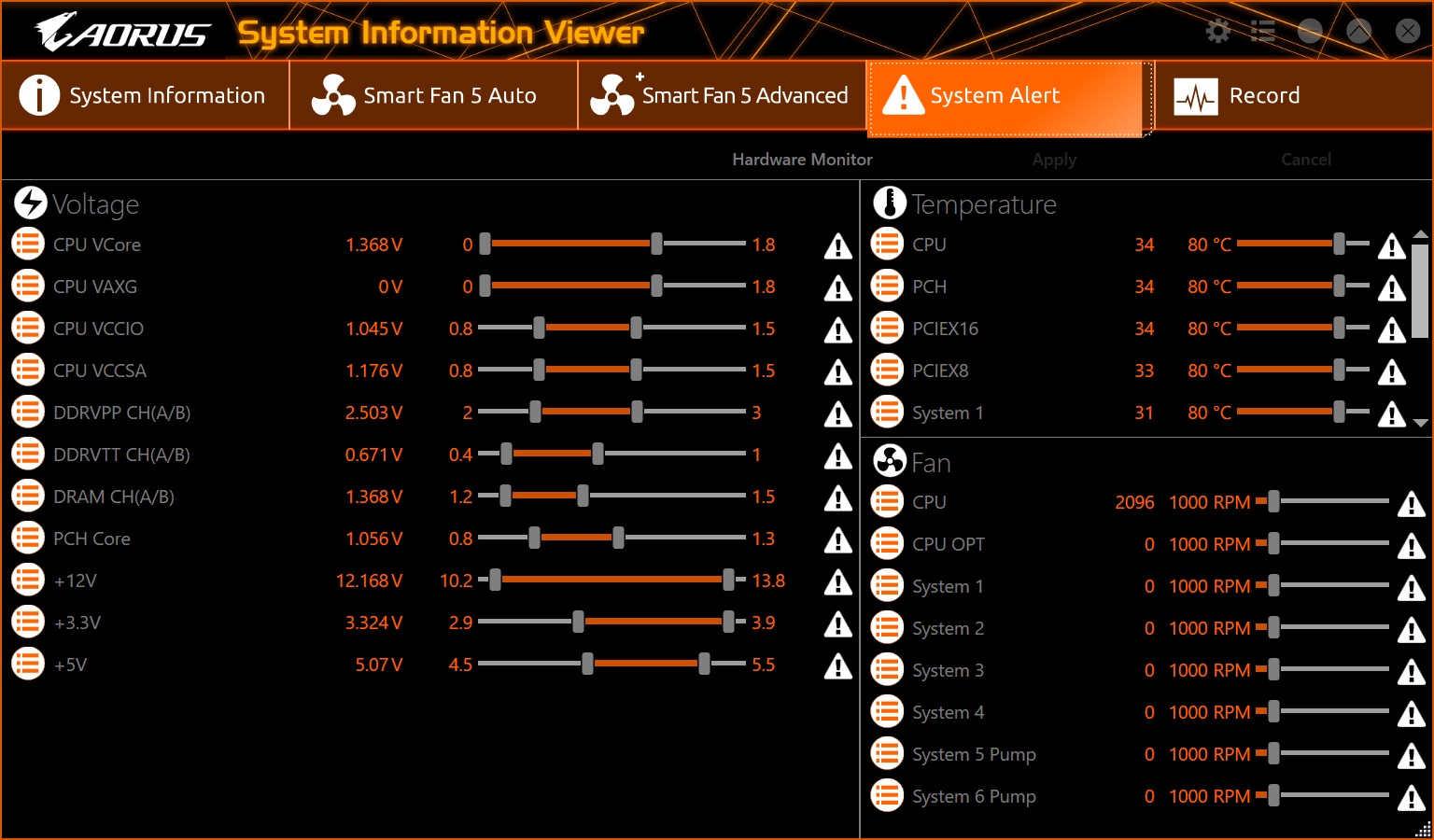

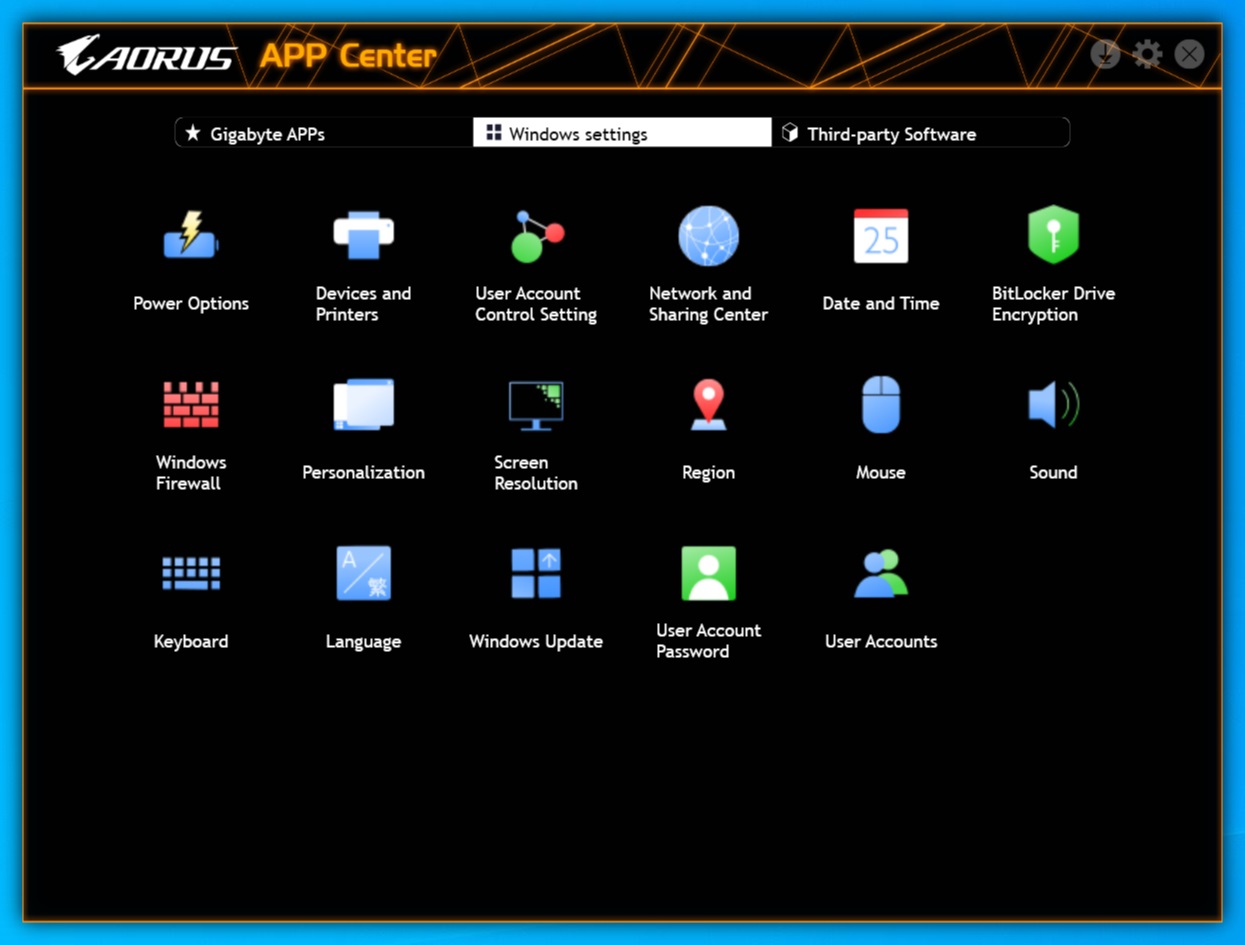

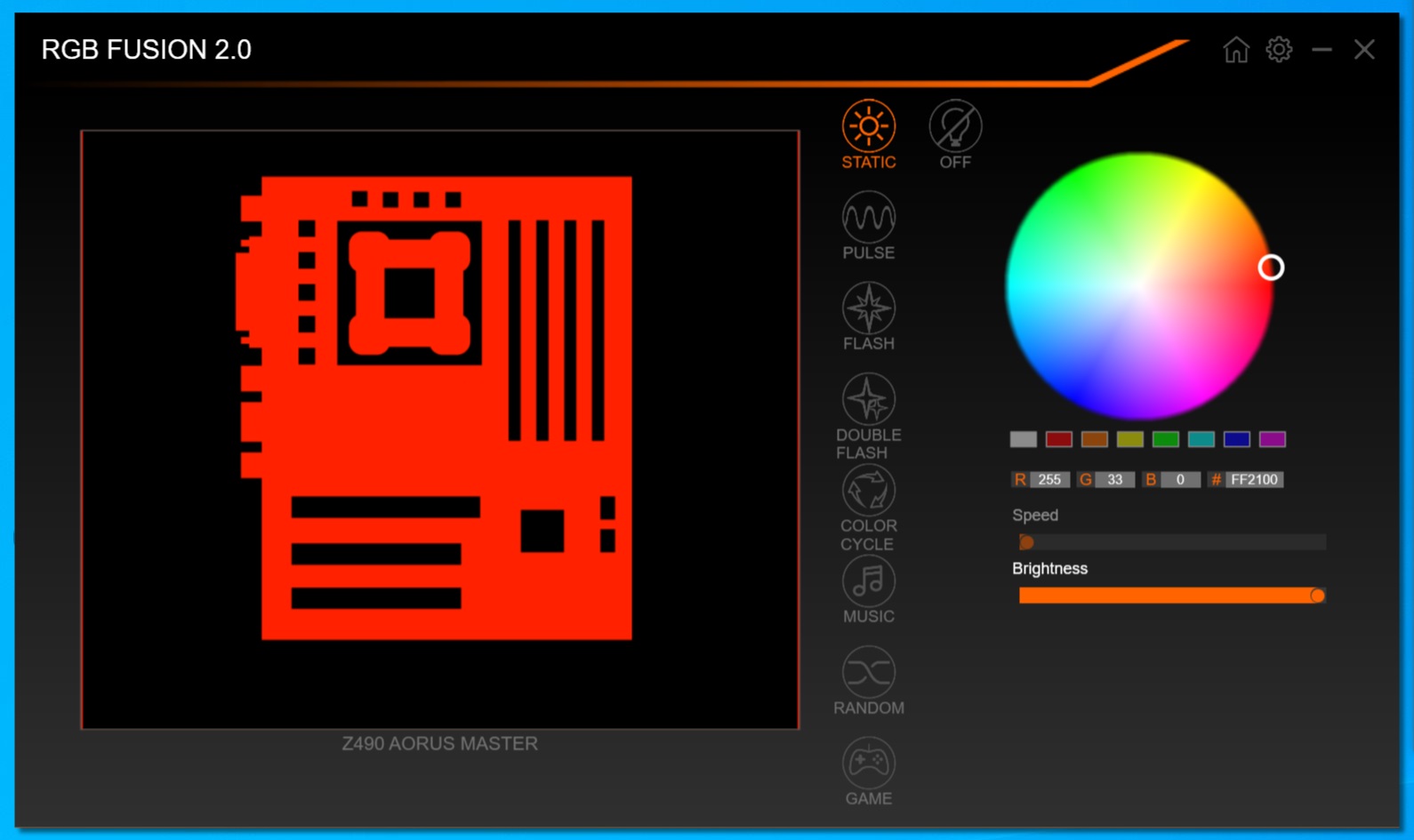

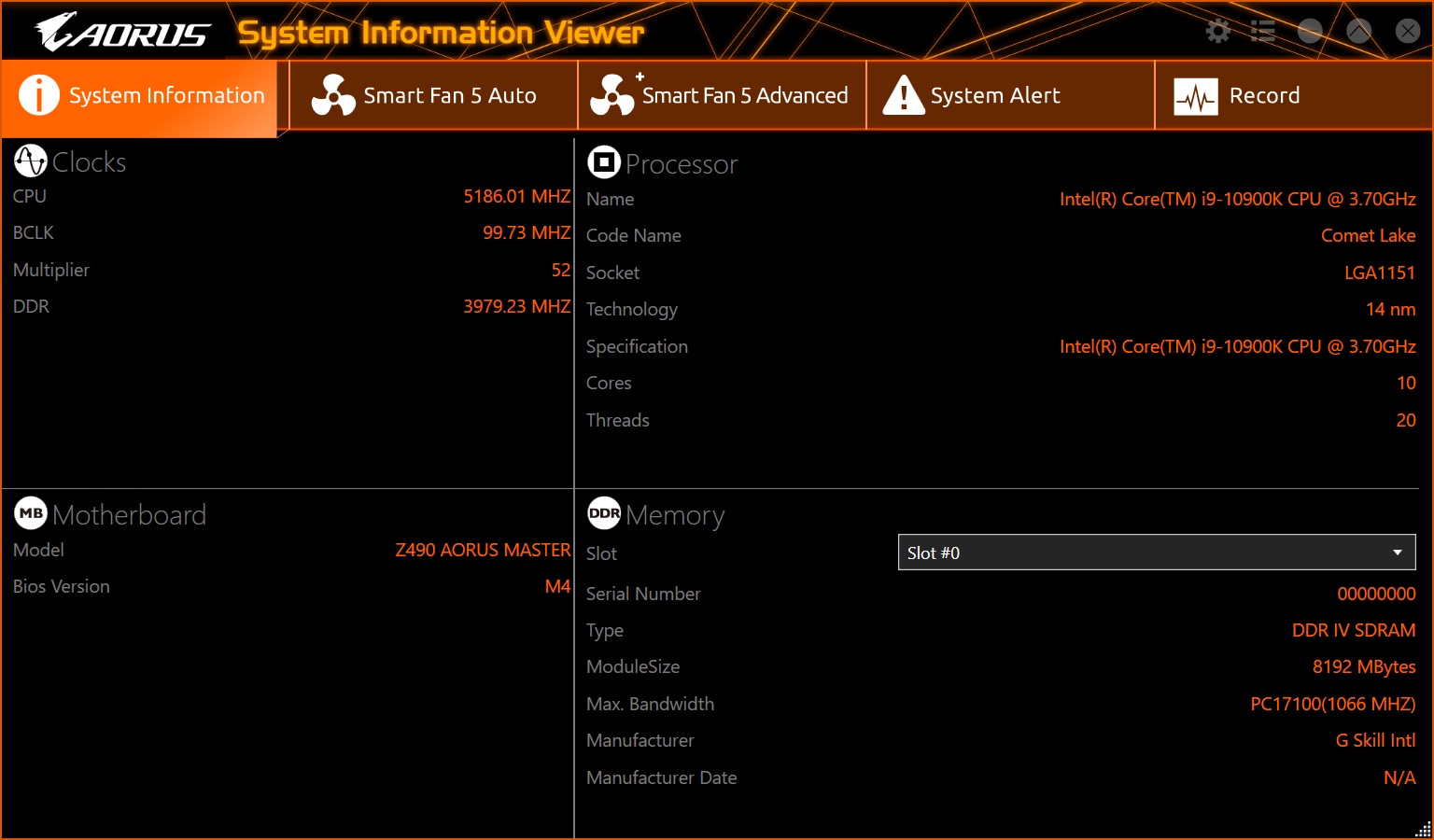

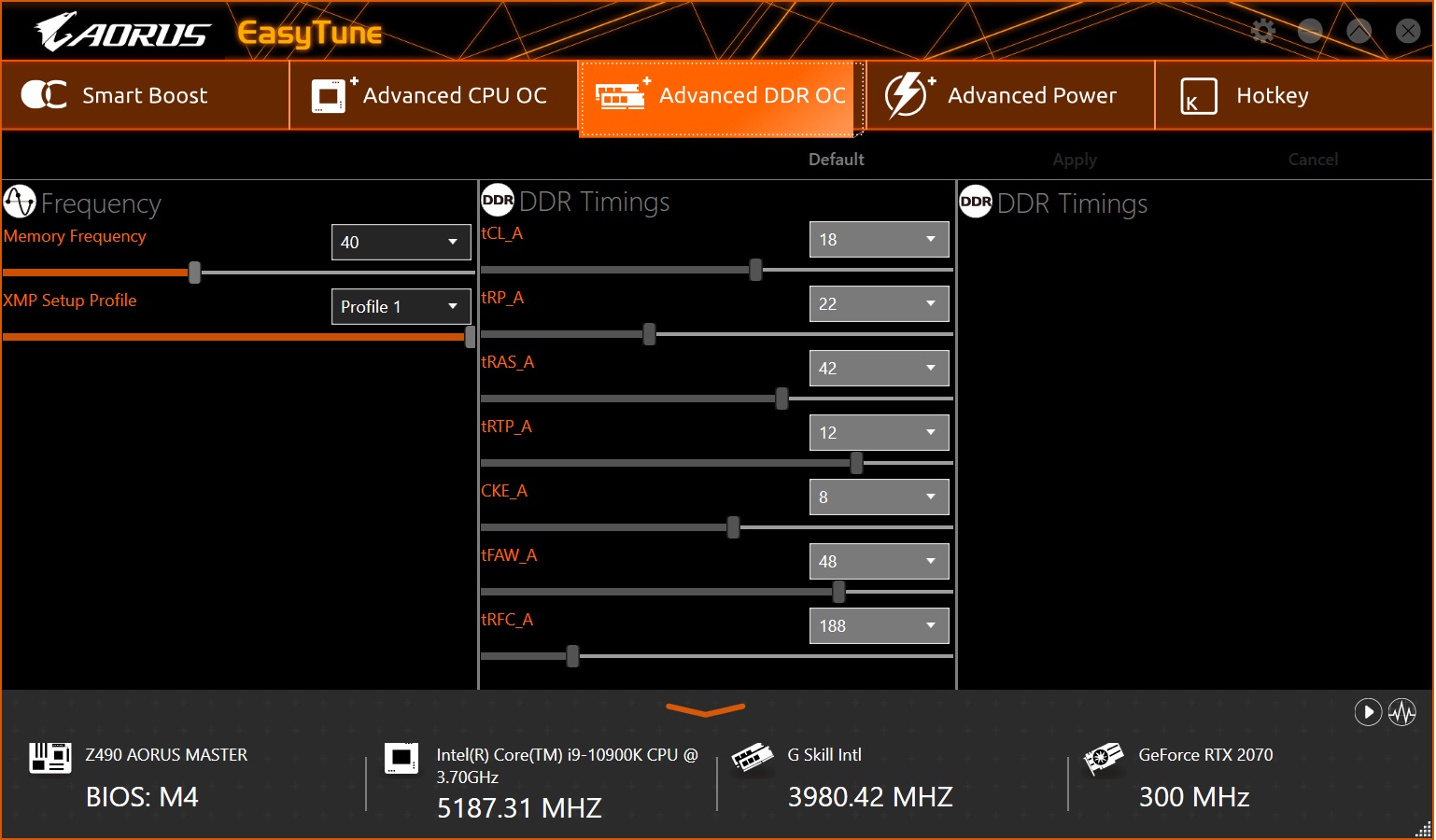

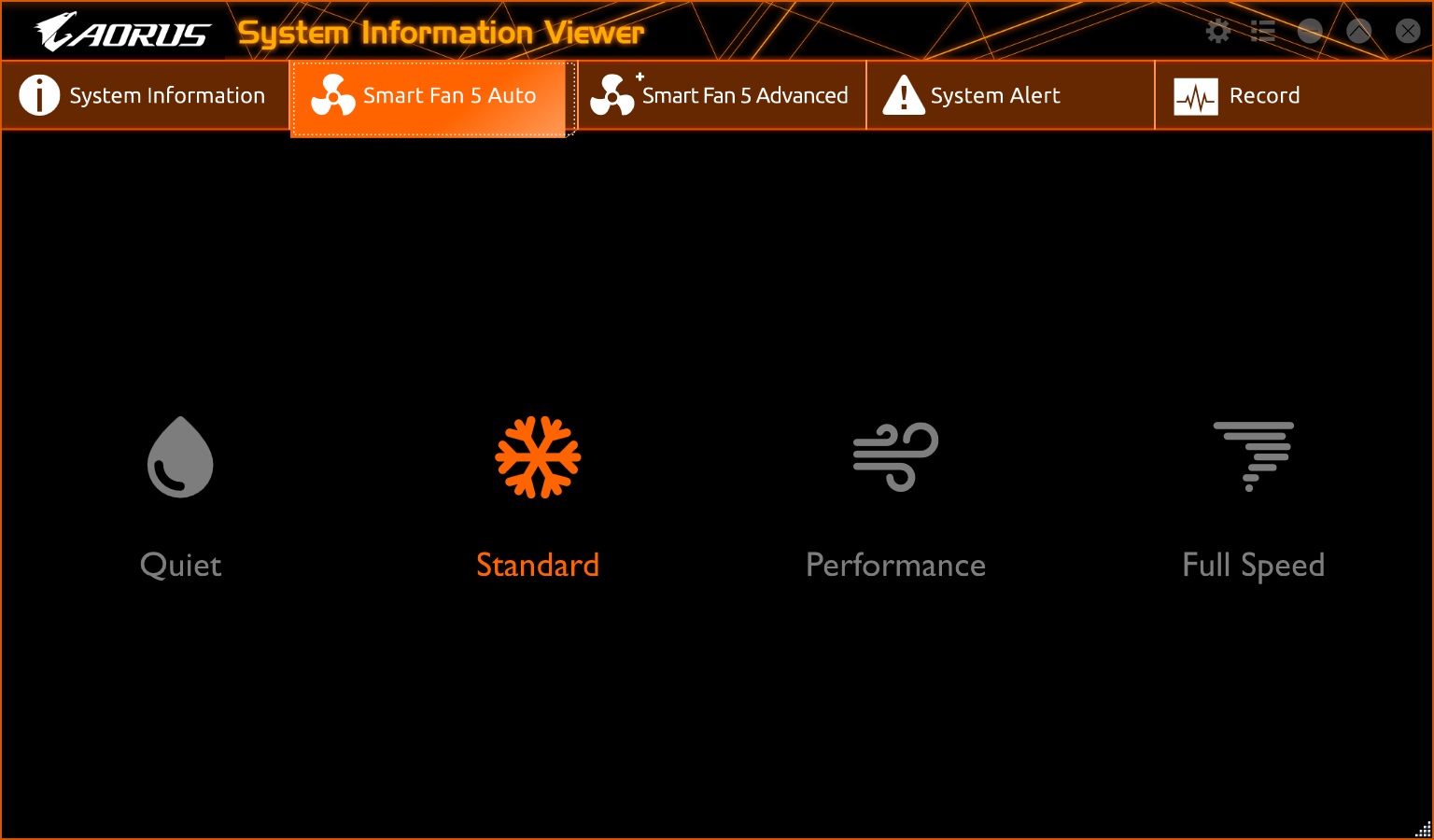

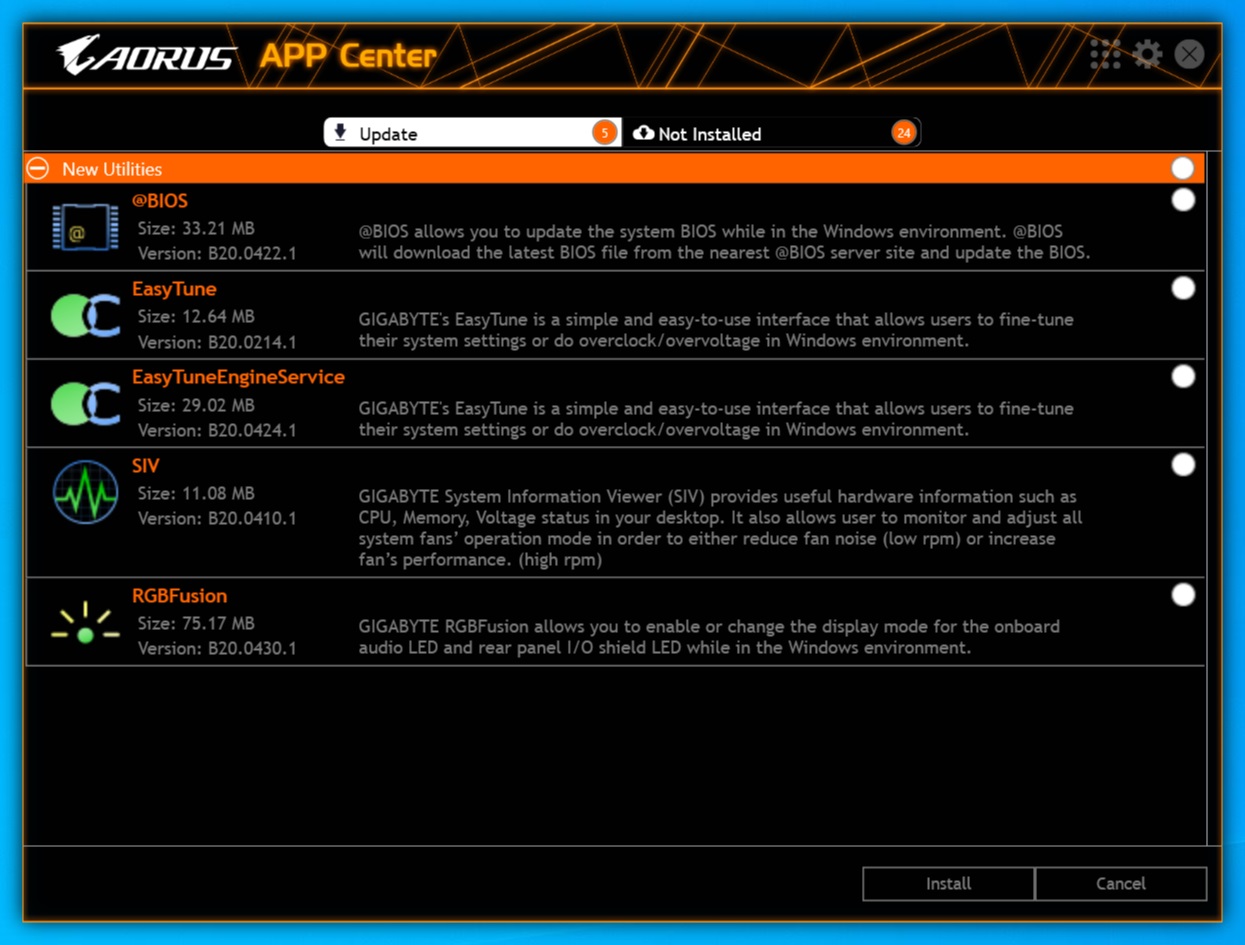

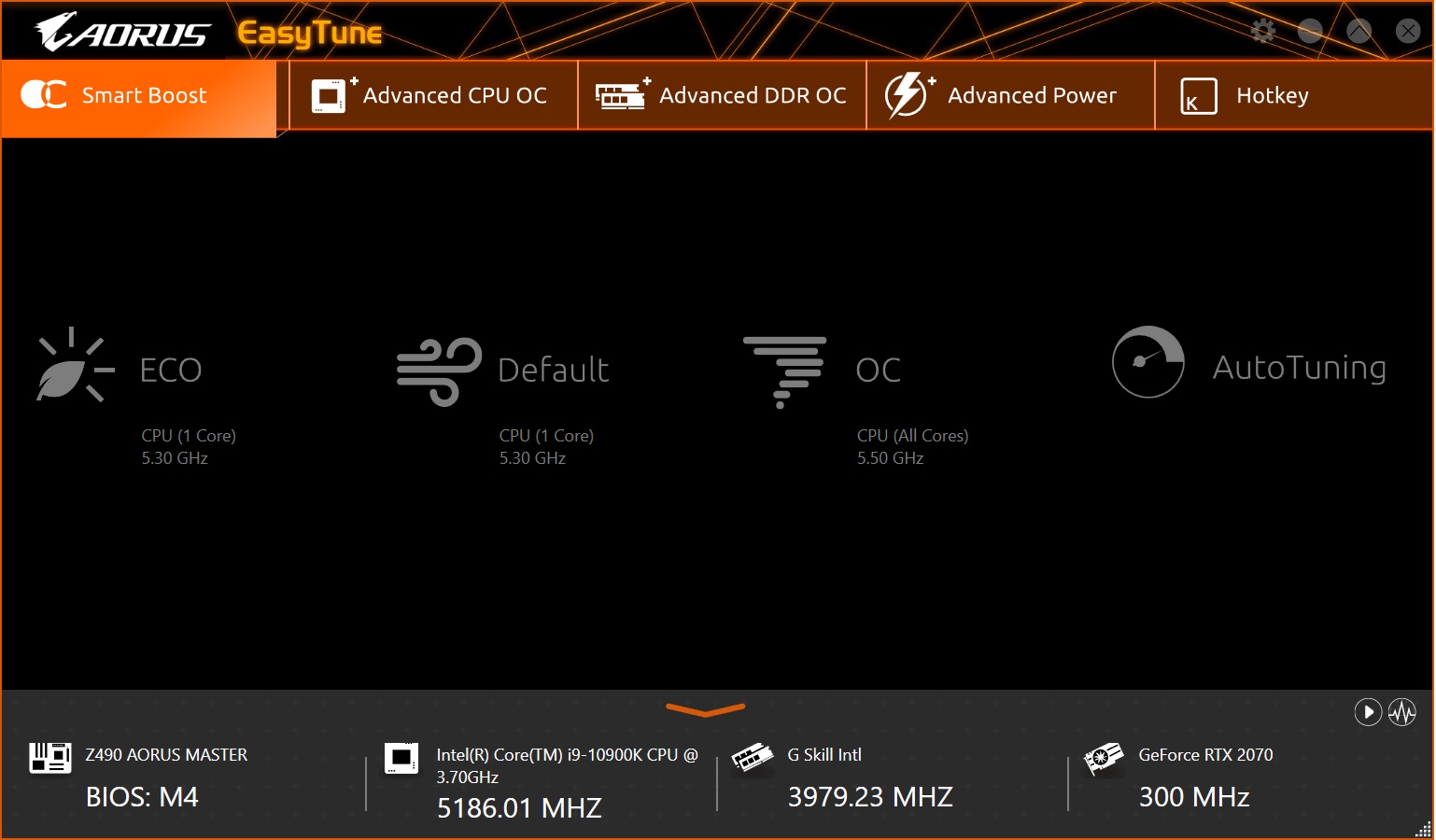

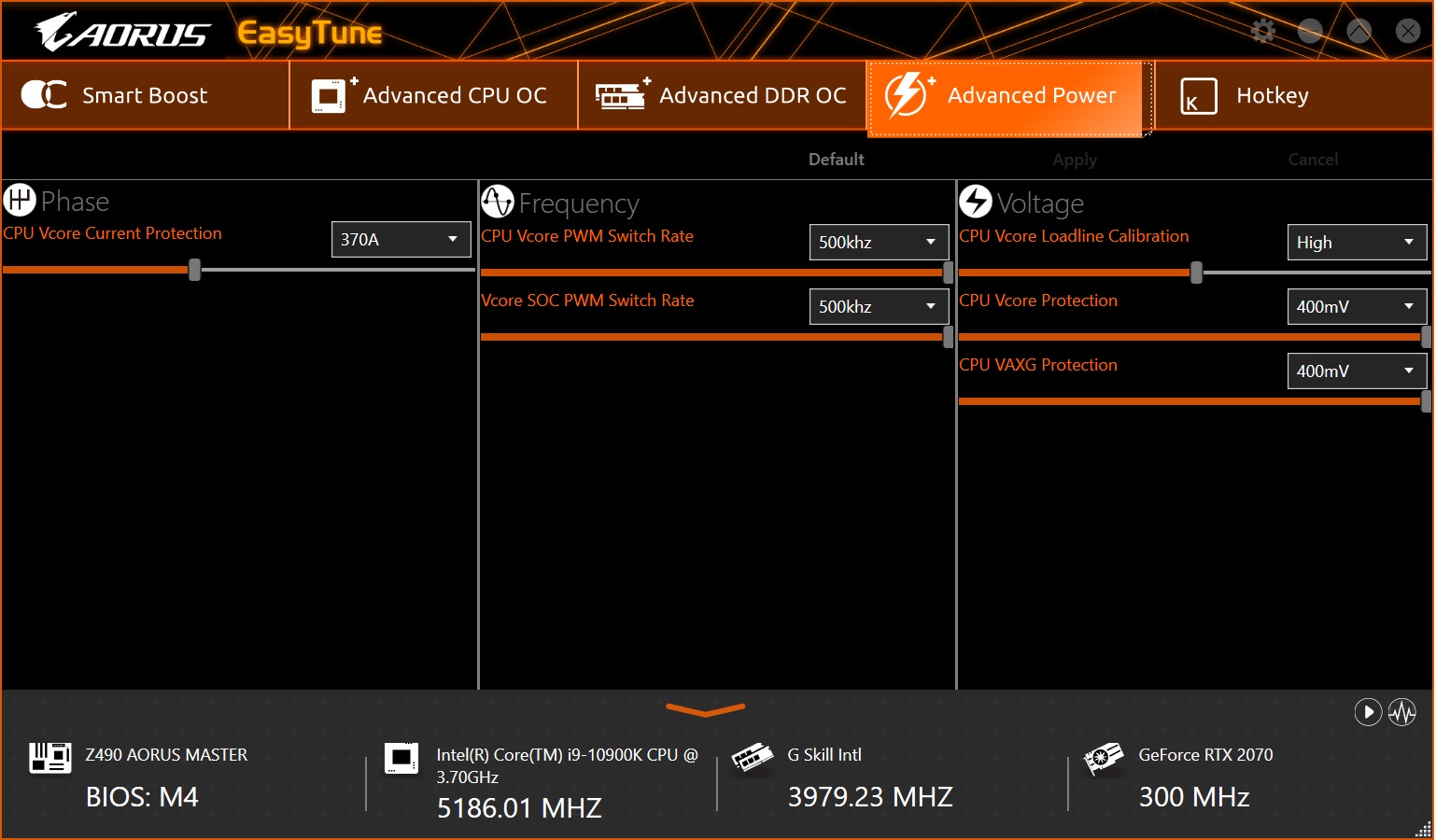

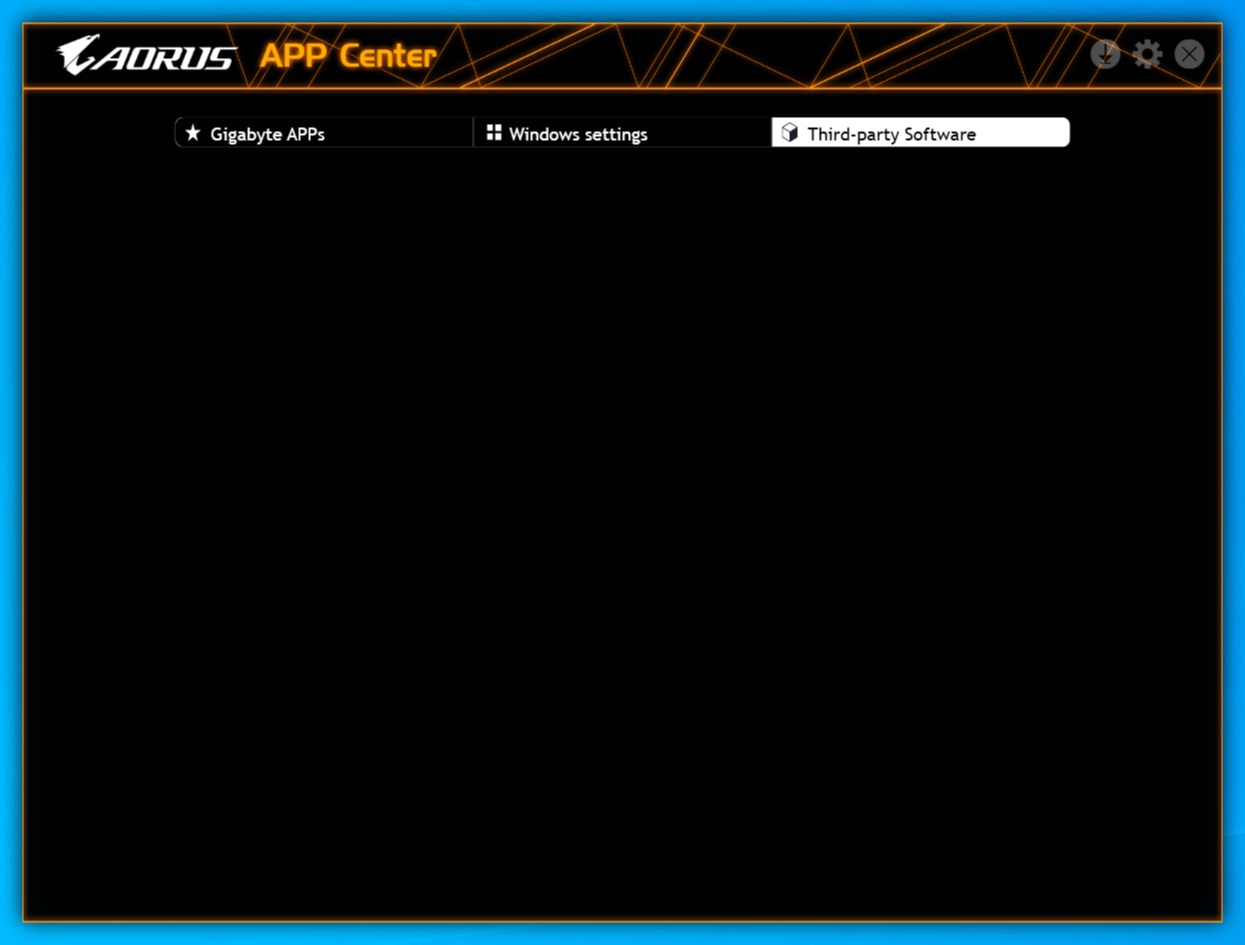

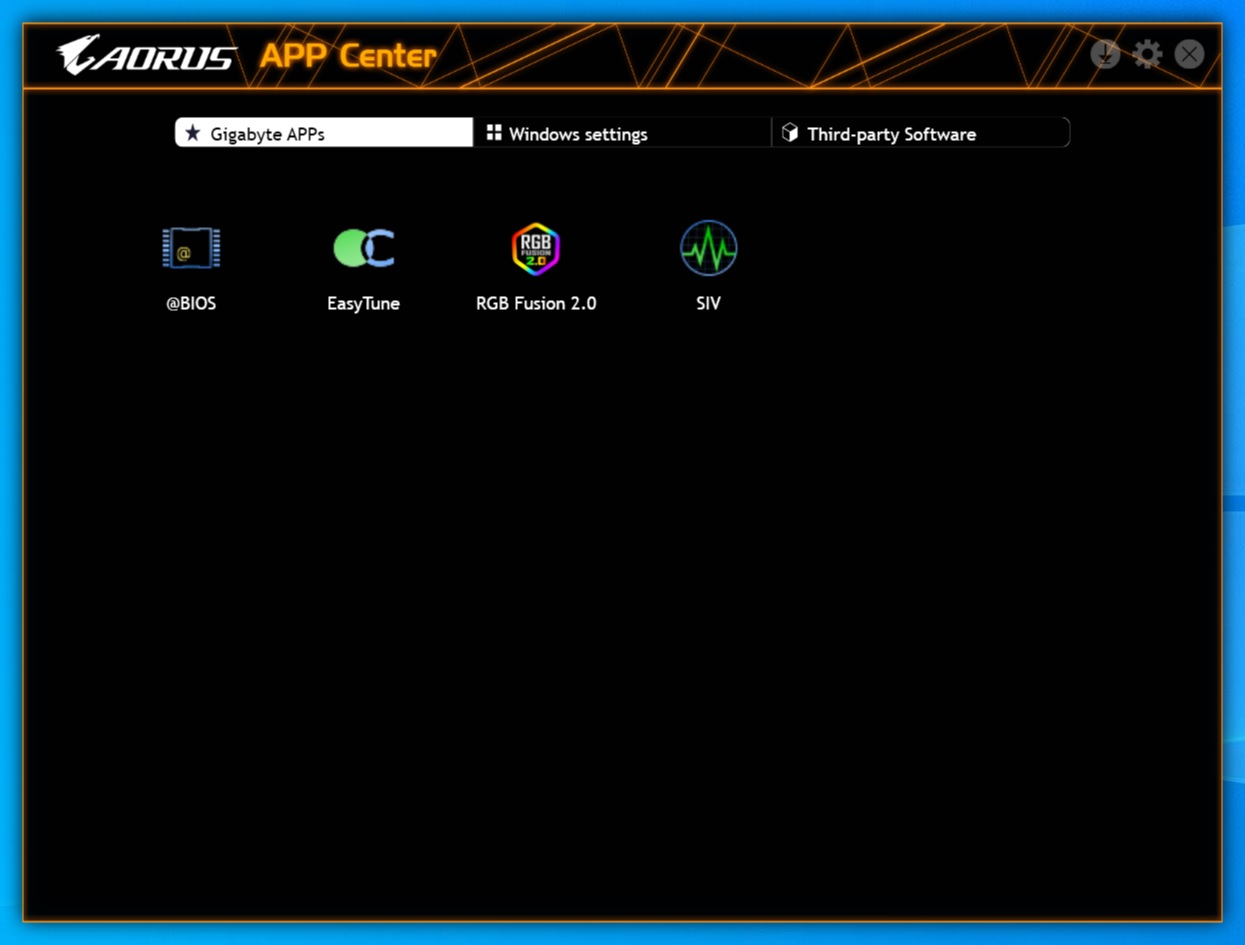

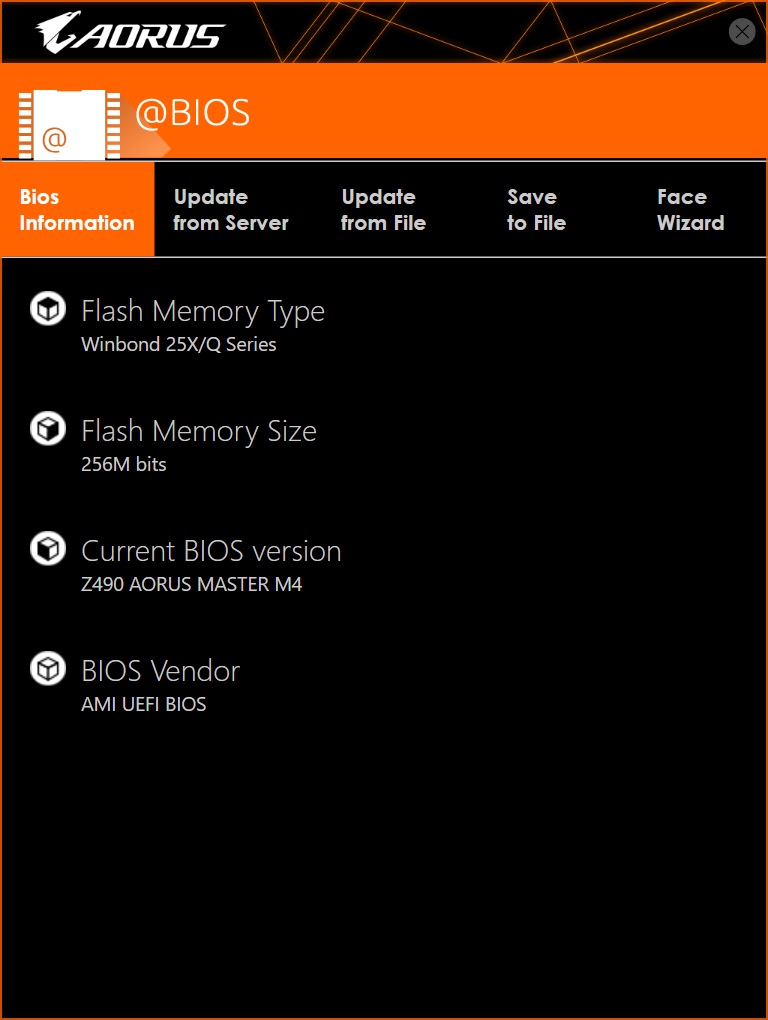

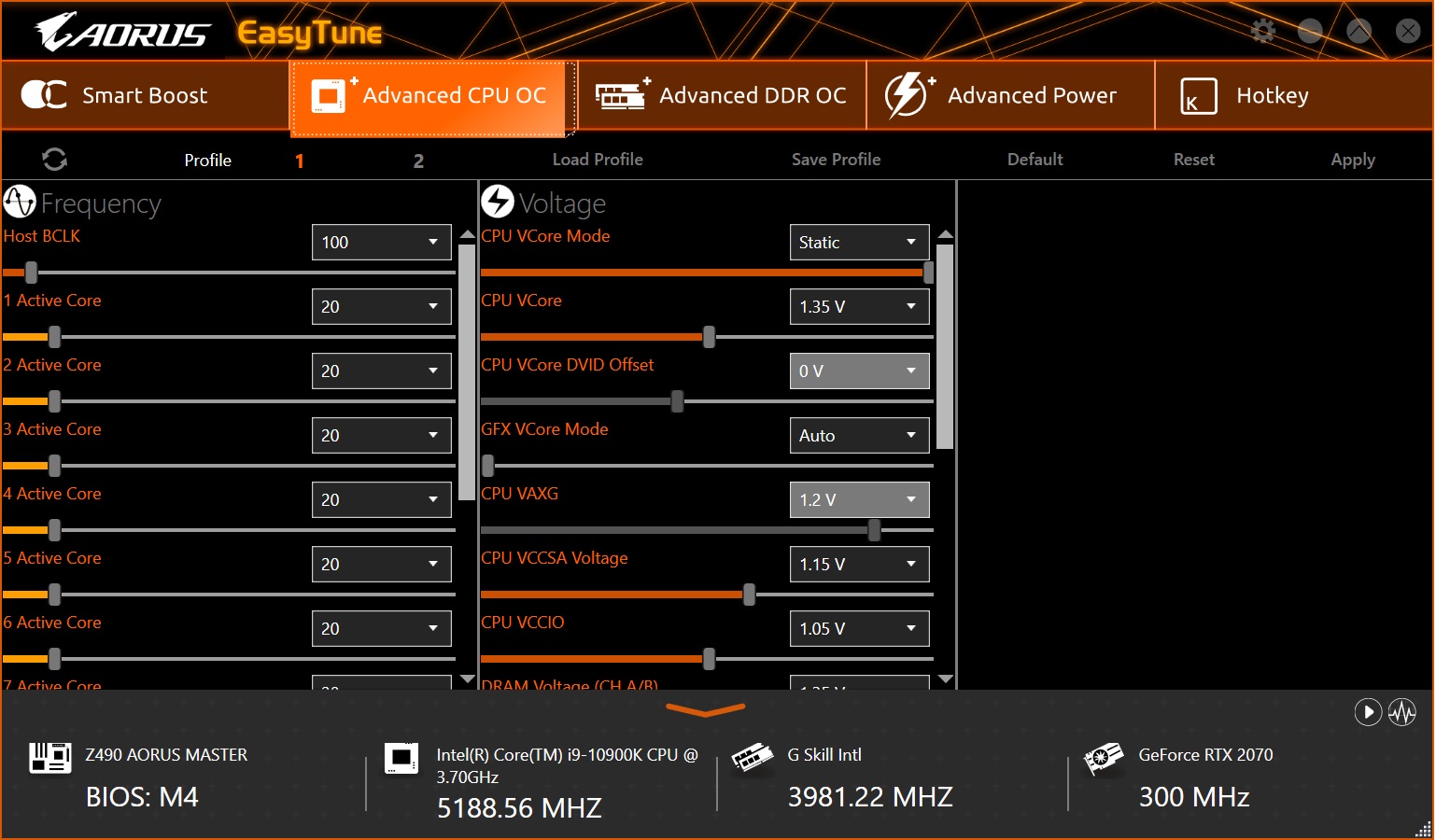

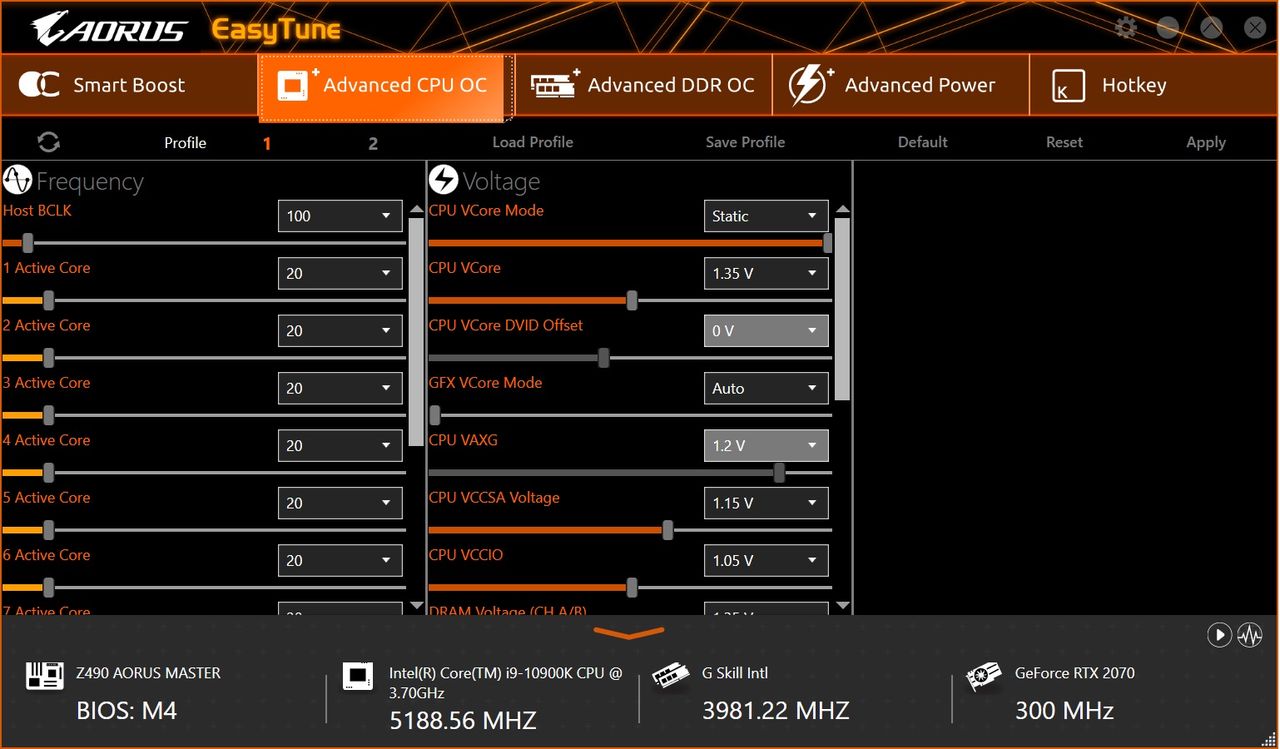

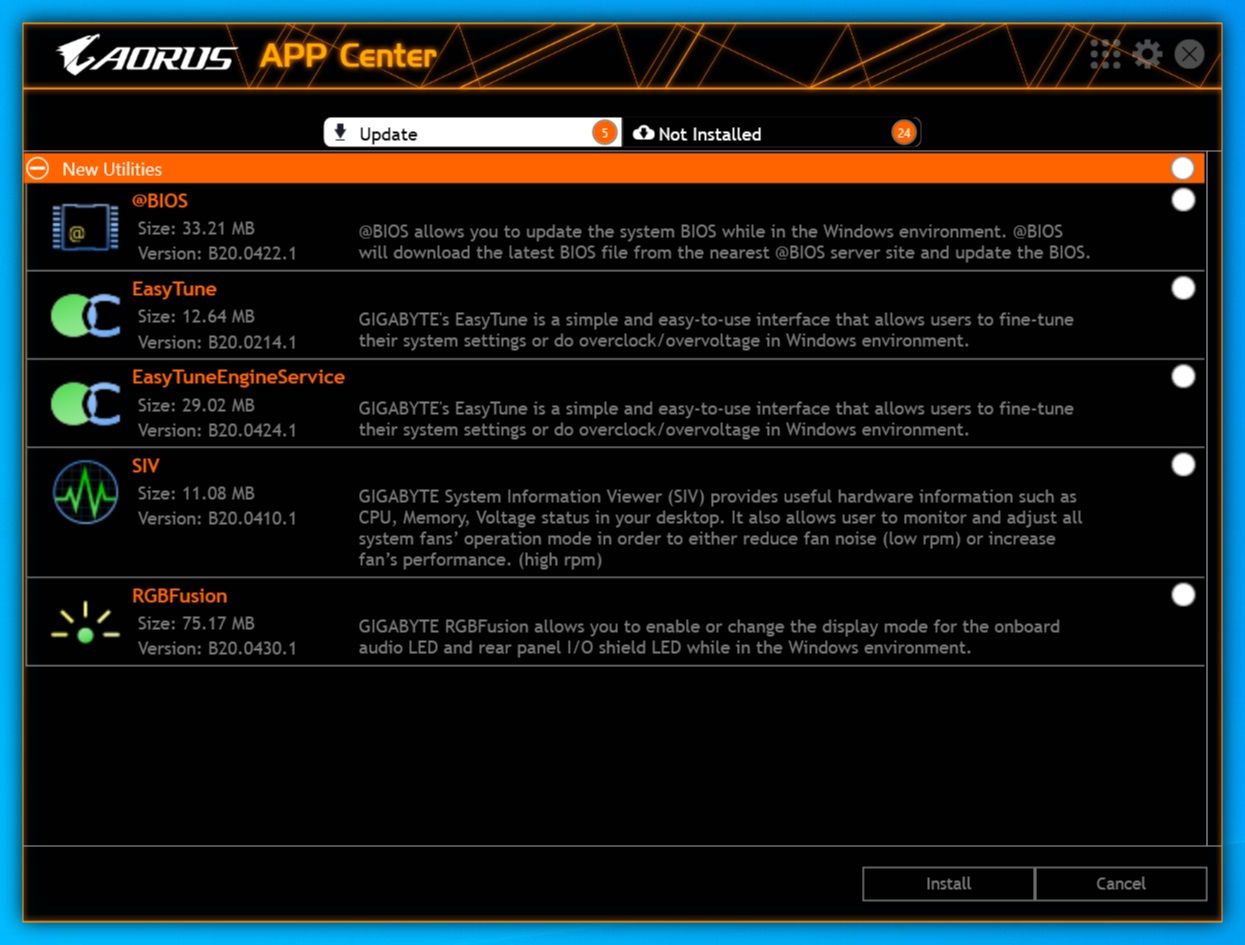

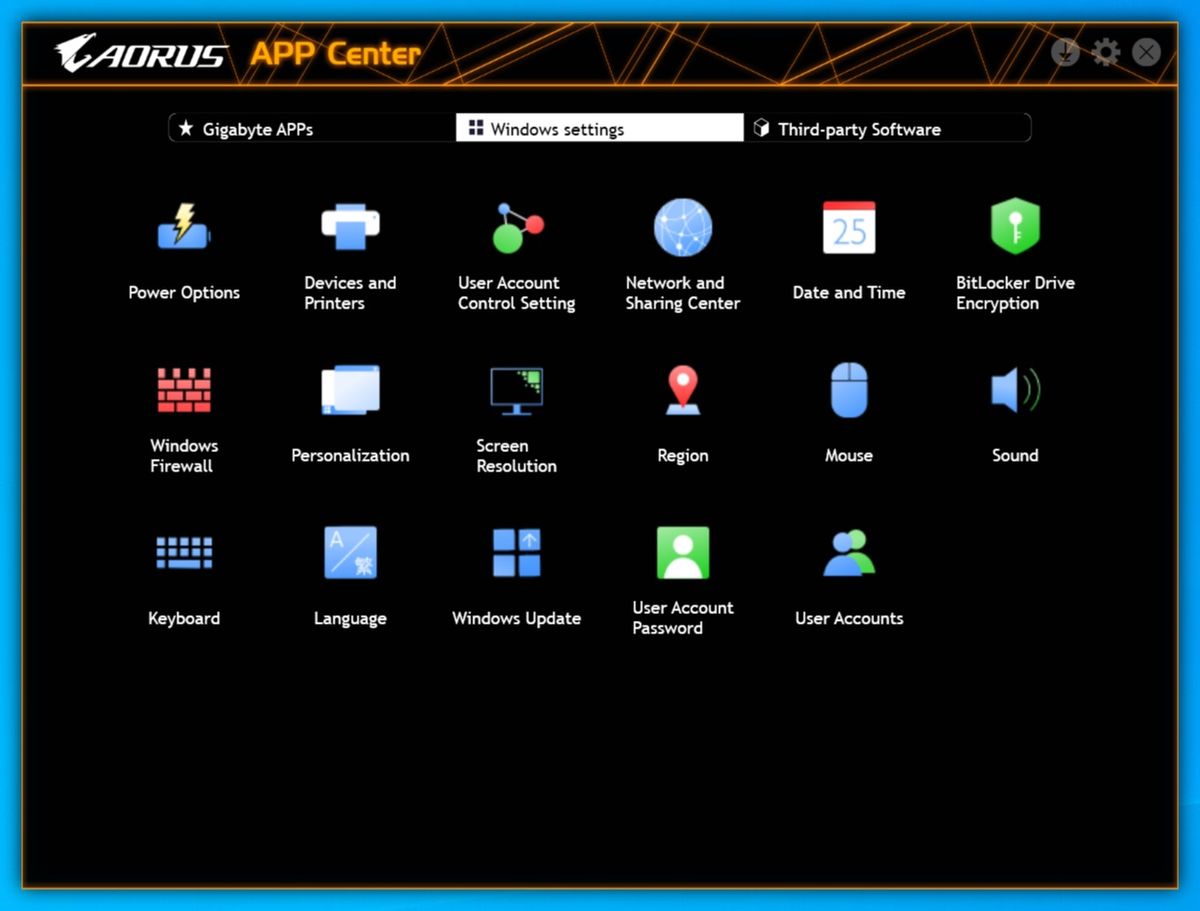

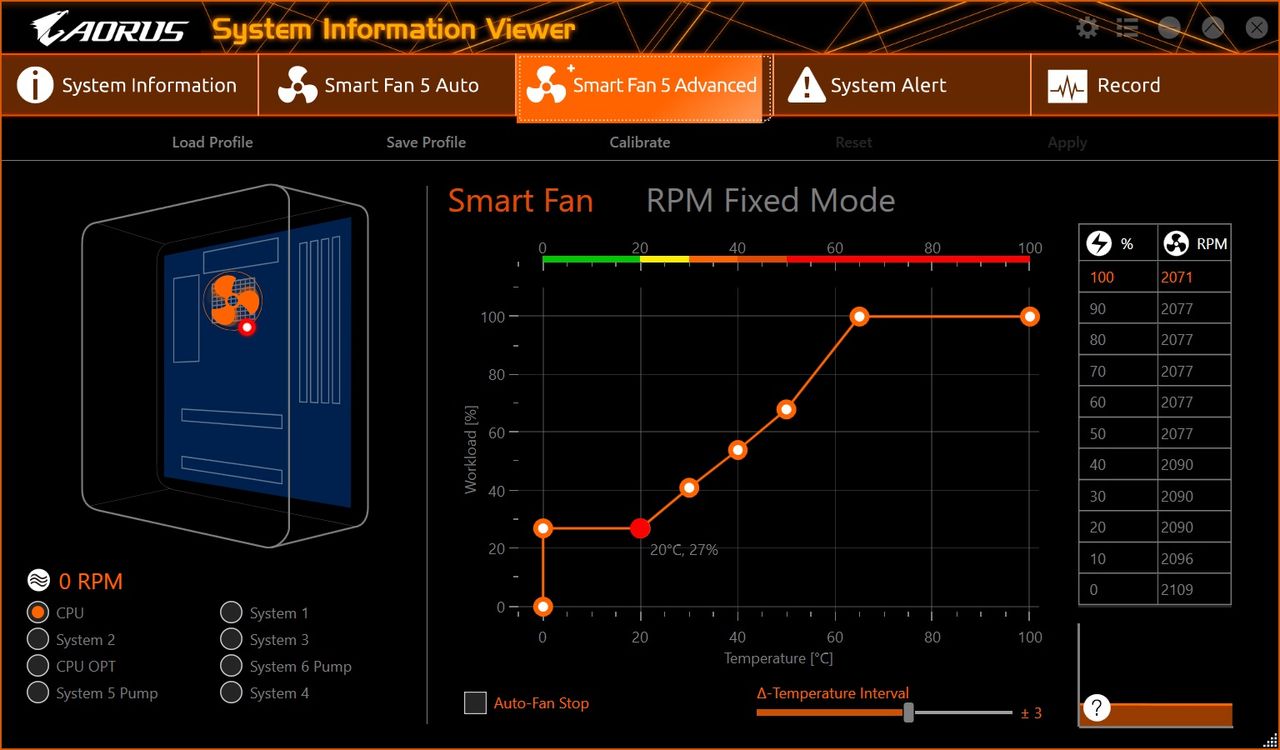

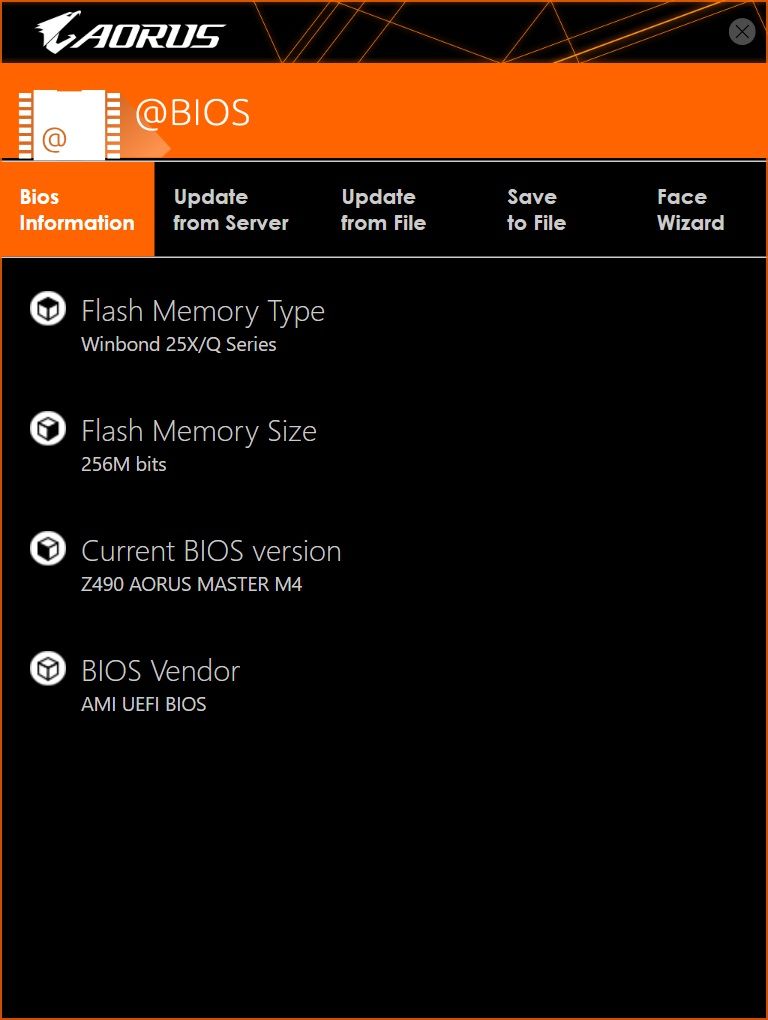

Gigabyte includes a few applications designed for a variety of functions, including RGB lighting control, audio, system monitoring, and overclocking. Below, we’ve captured several screenshots of the App Center, @BIOS, SIV, RGB Fusion and Easy Tune.

Image 1 of 14

(Image credit: Tom's Hardware)
Image 2 of 14

(Image credit: Tom's Hardware)
Image 3 of 14

(Image credit: Tom's Hardware)
Image 4 of 14

(Image credit: Tom's Hardware)
Image 5 of 14

(Image credit: Tom's Hardware)
Image 6 of 14

(Image credit: Tom's Hardware)
Image 7 of 14

(Image credit: Tom's Hardware)
Image 8 of 14

(Image credit: Tom's Hardware)
Image 9 of 14

(Image credit: Tom's Hardware)
Image 10 of 14

(Image credit: Tom's Hardware)
Image 11 of 14

(Image credit: Tom's Hardware)
Image 12 of 14

(Image credit: Tom's Hardware)
Image 13 of 14

(Image credit: Tom's Hardware)
Image 14 of 14

(Image credit: Tom's Hardware)

Firmware

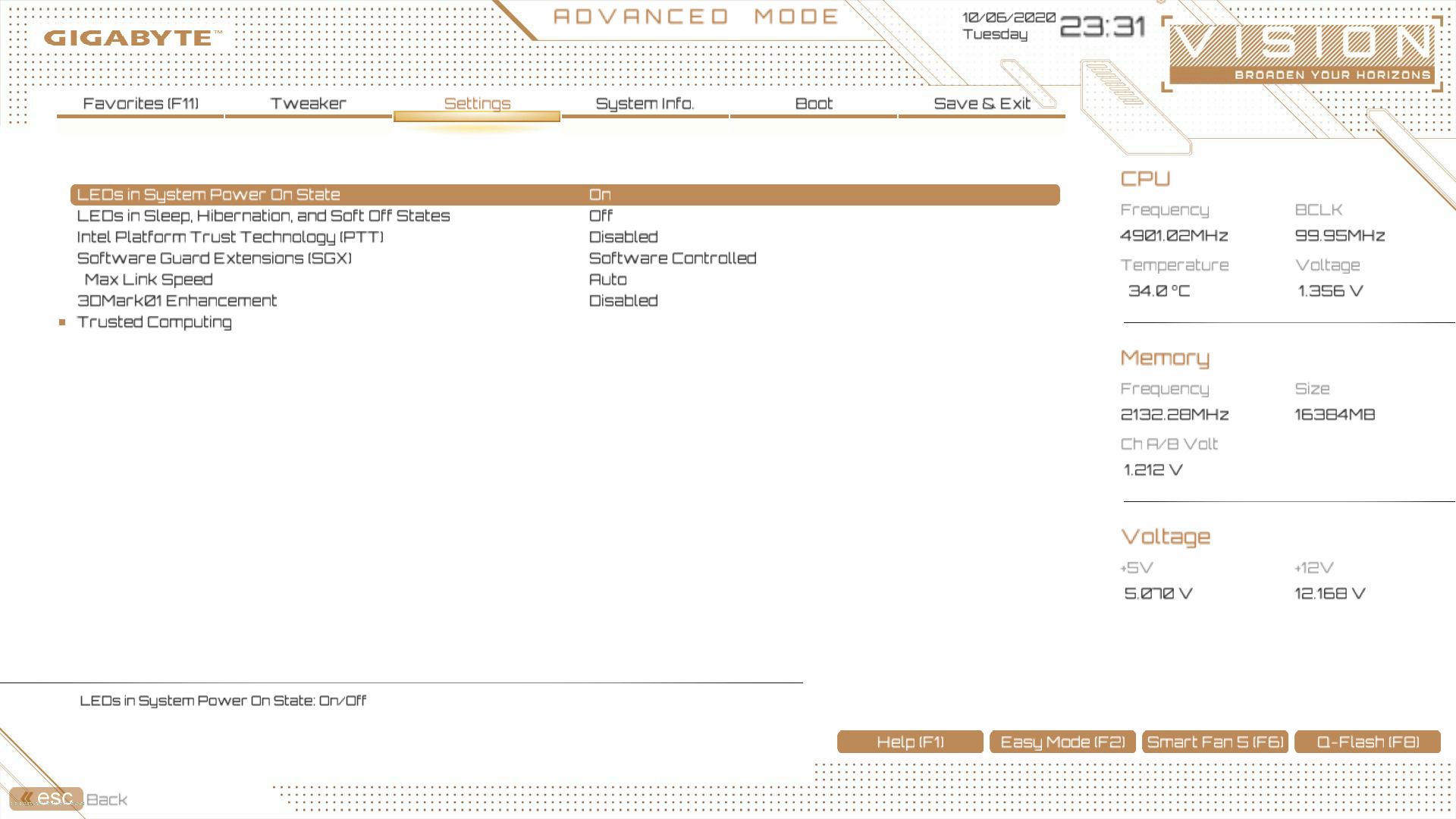

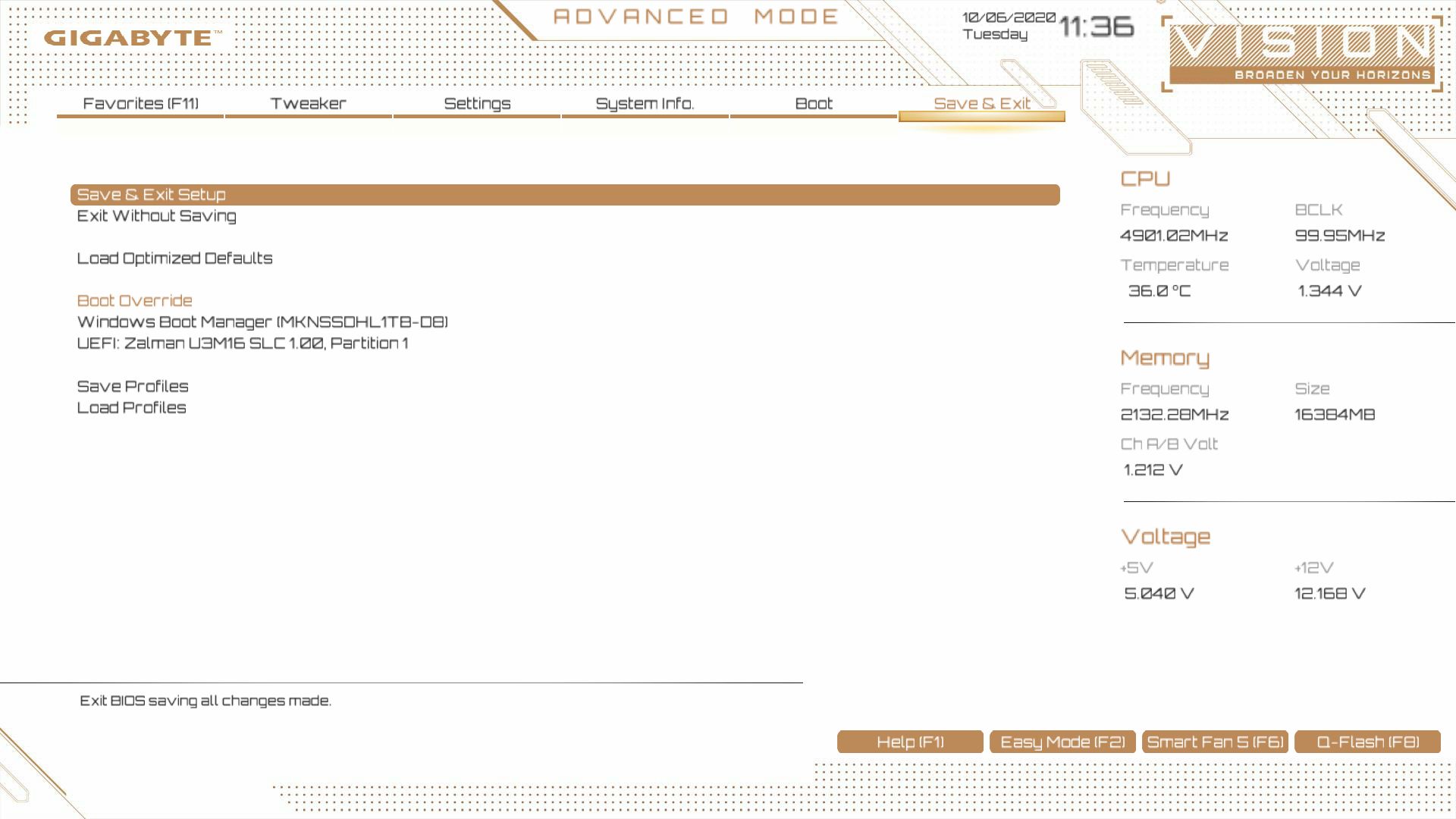

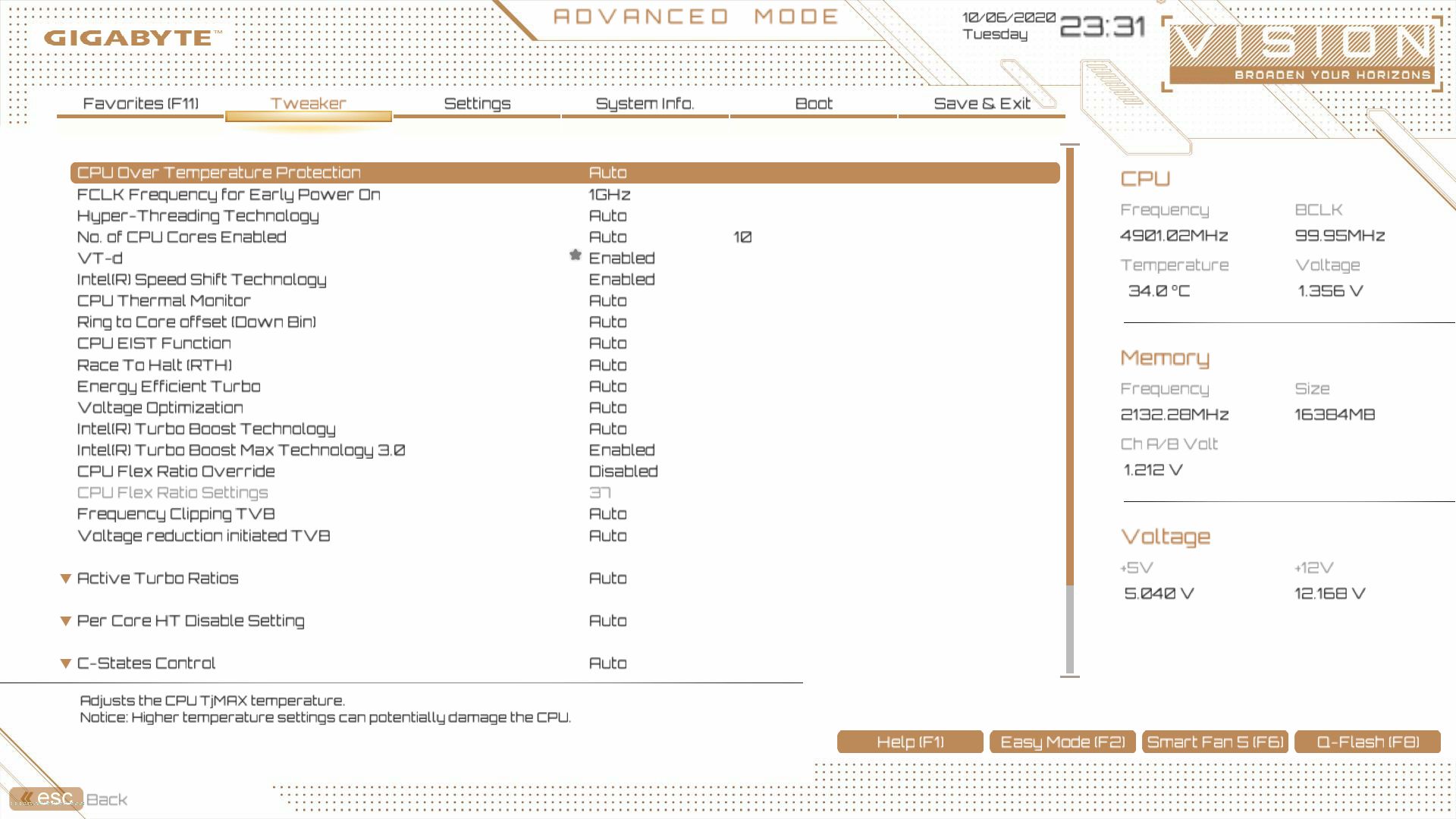

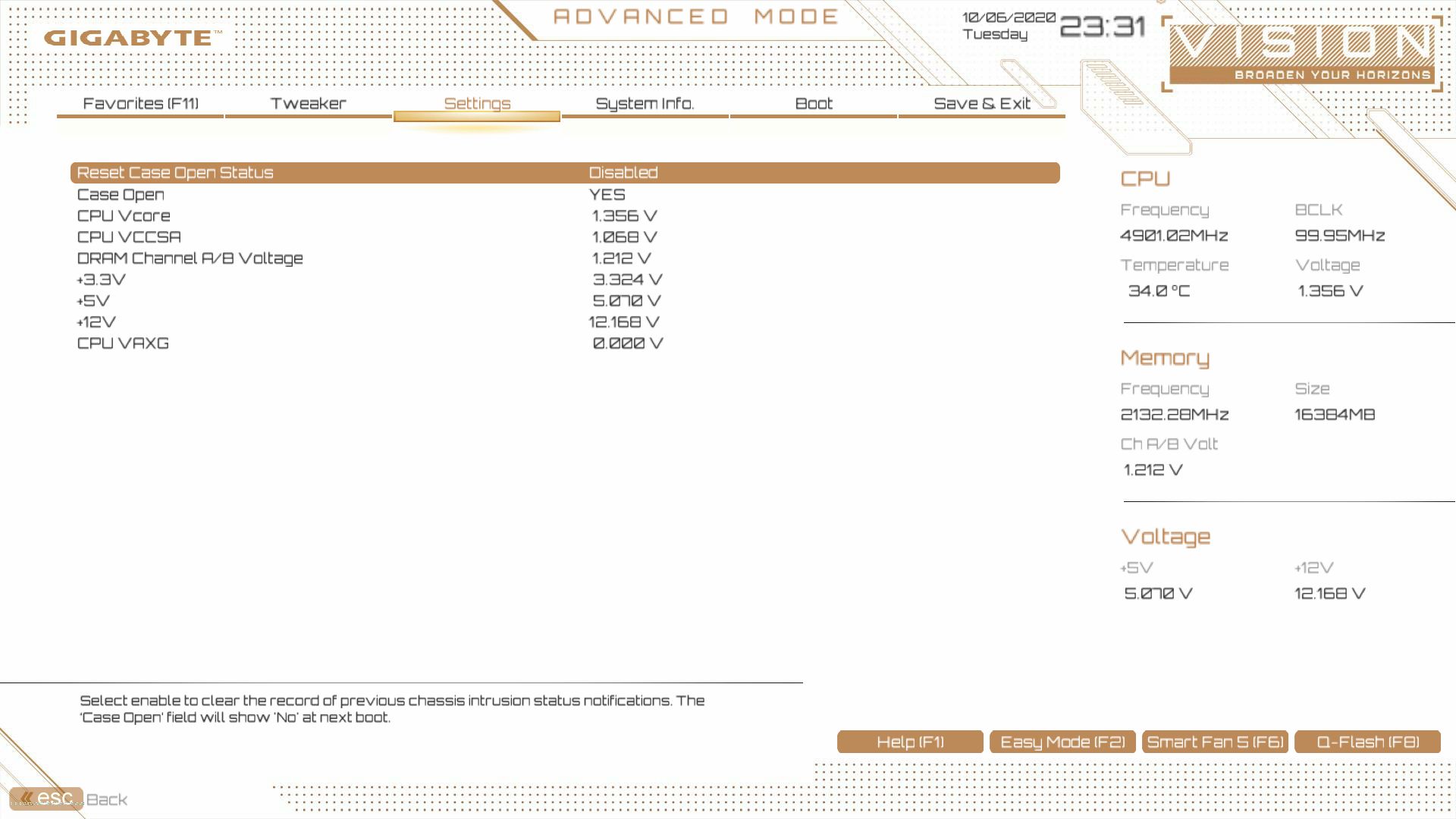

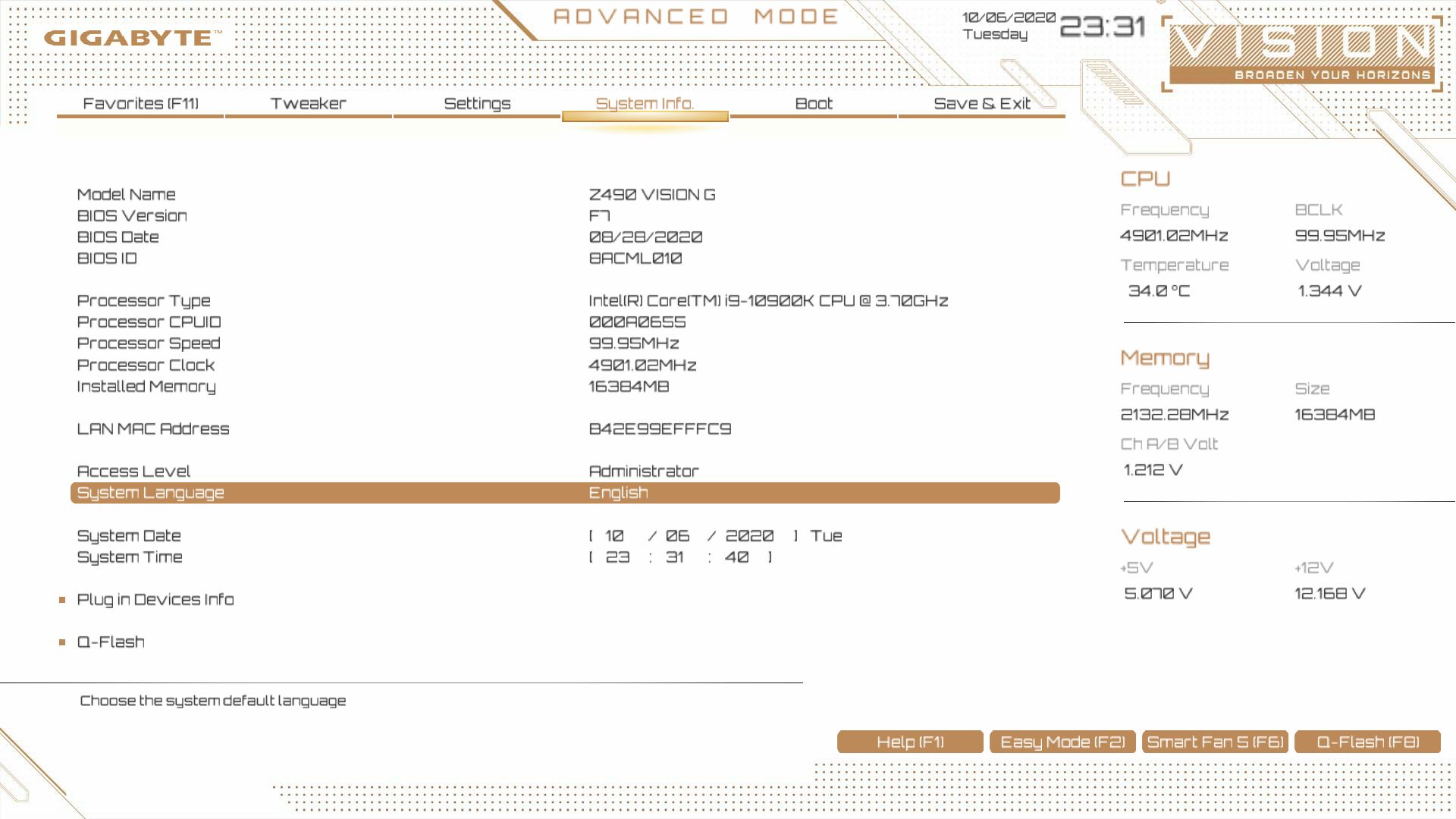

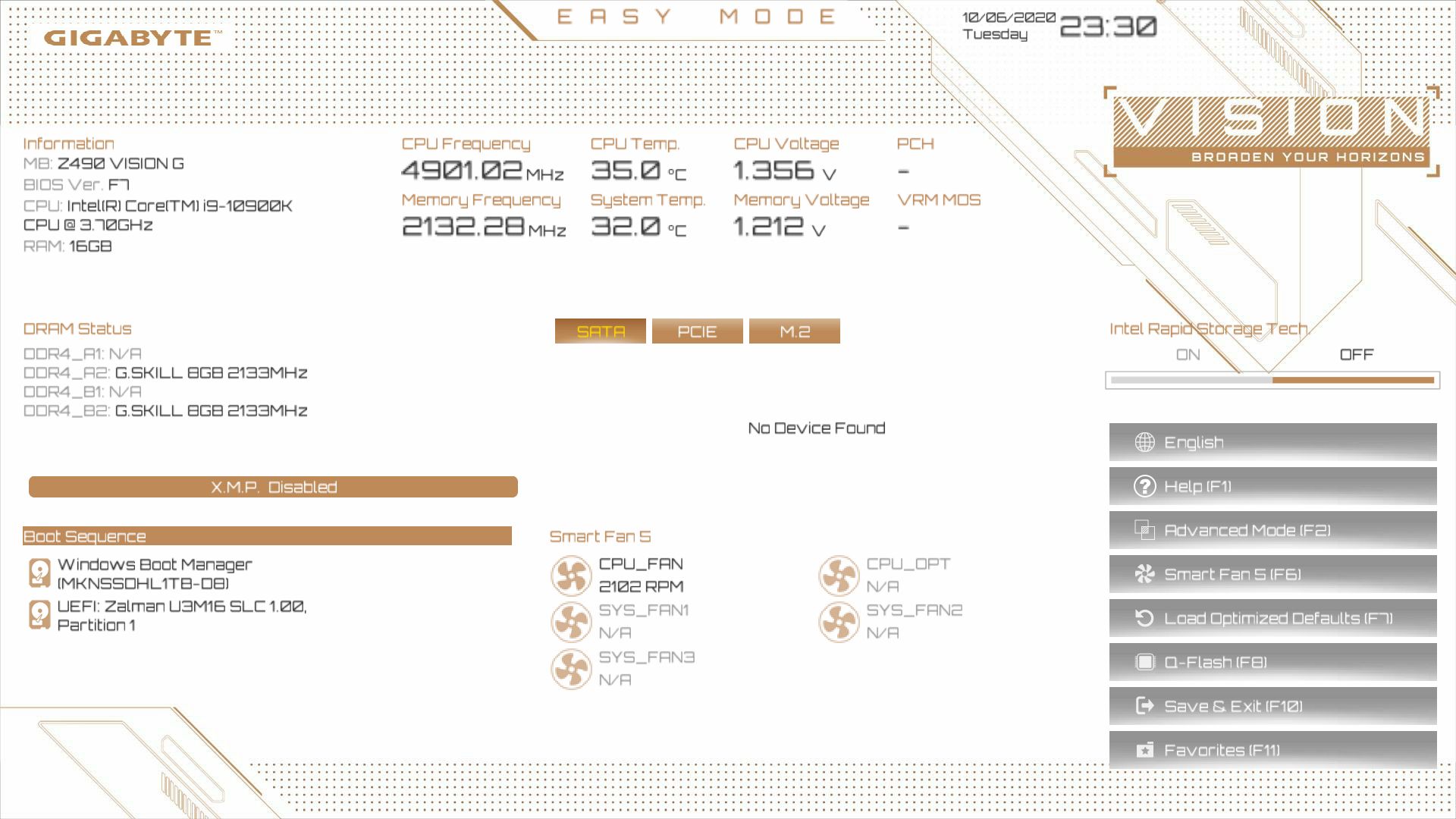

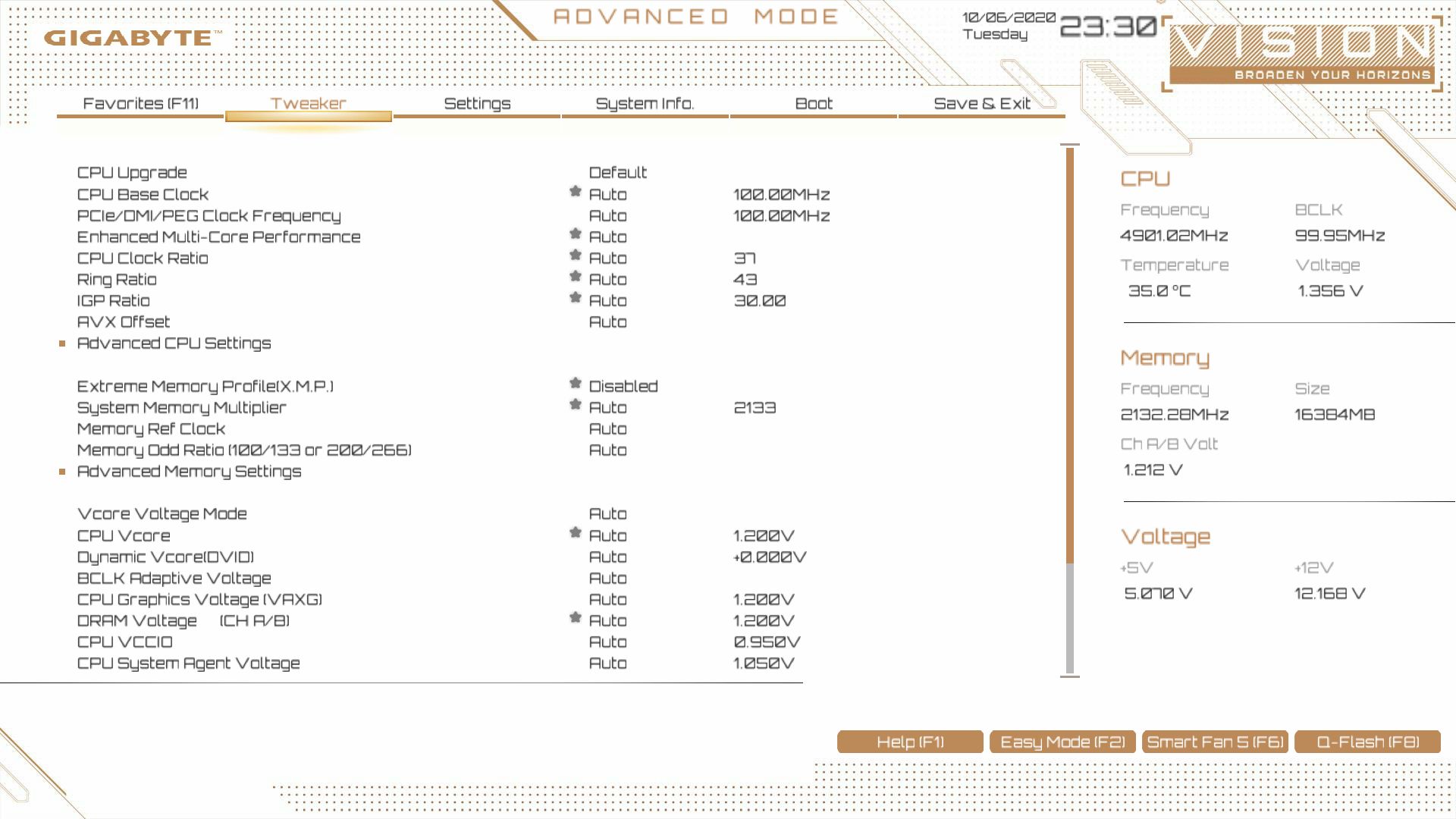

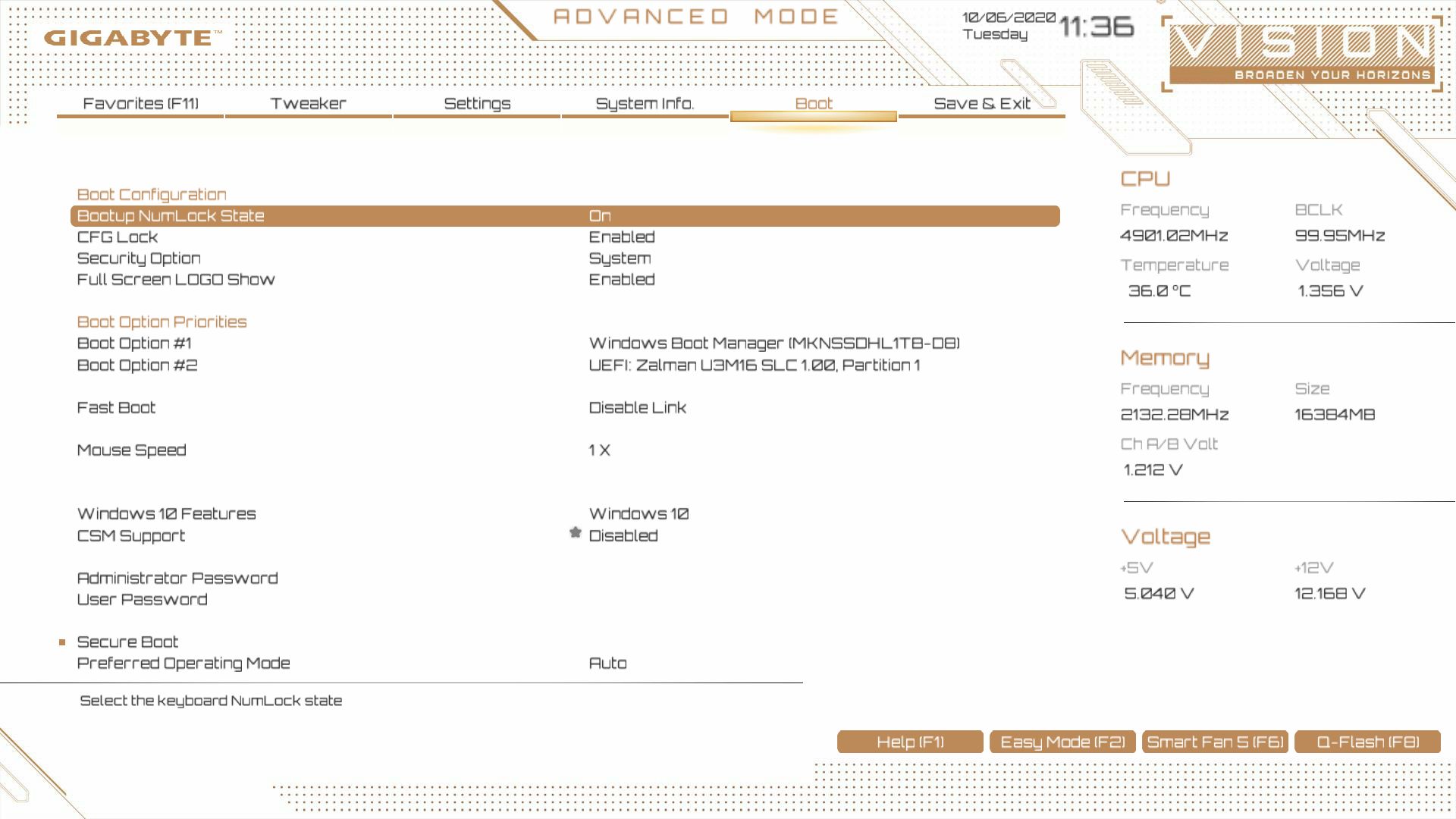

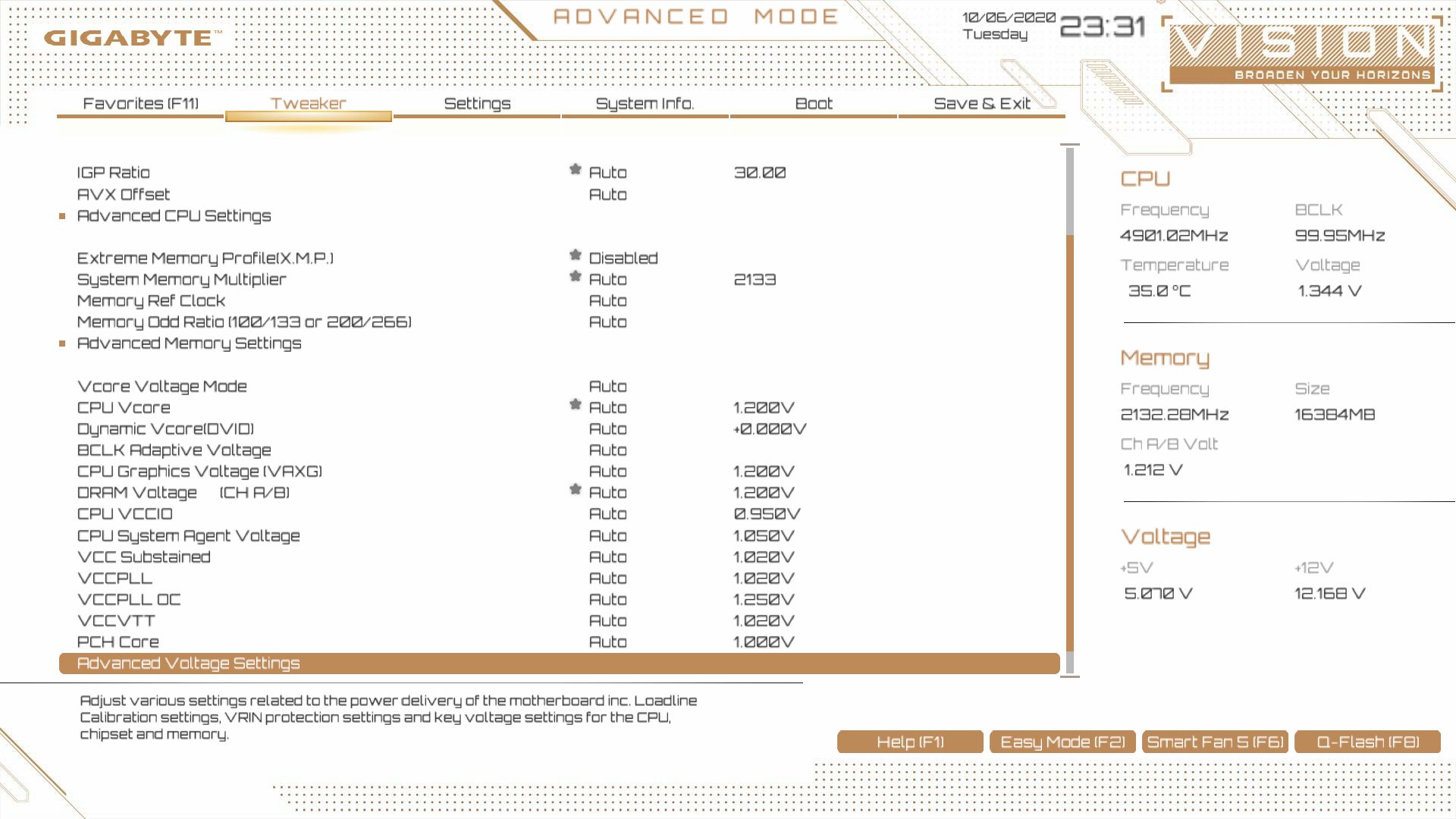

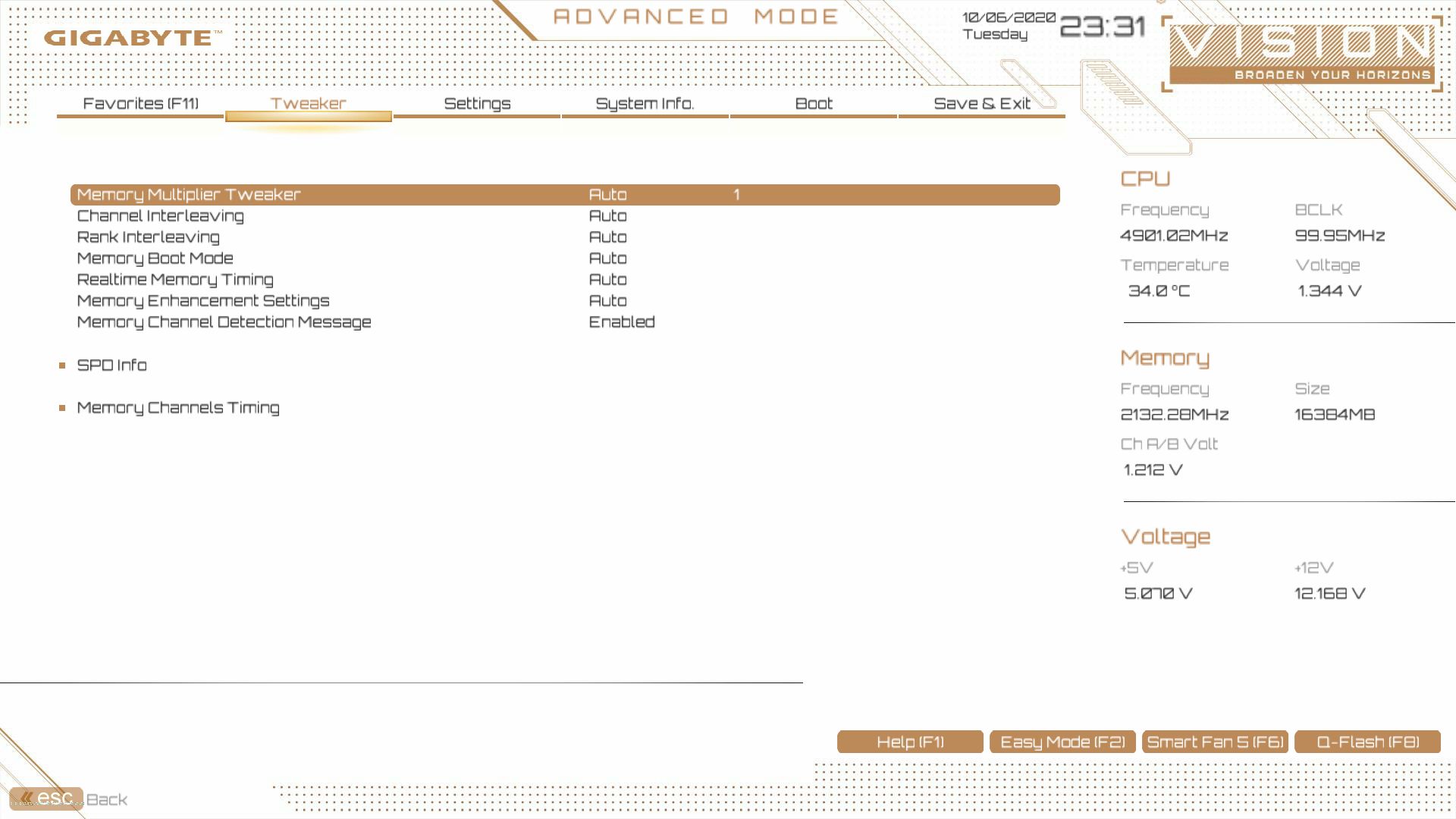

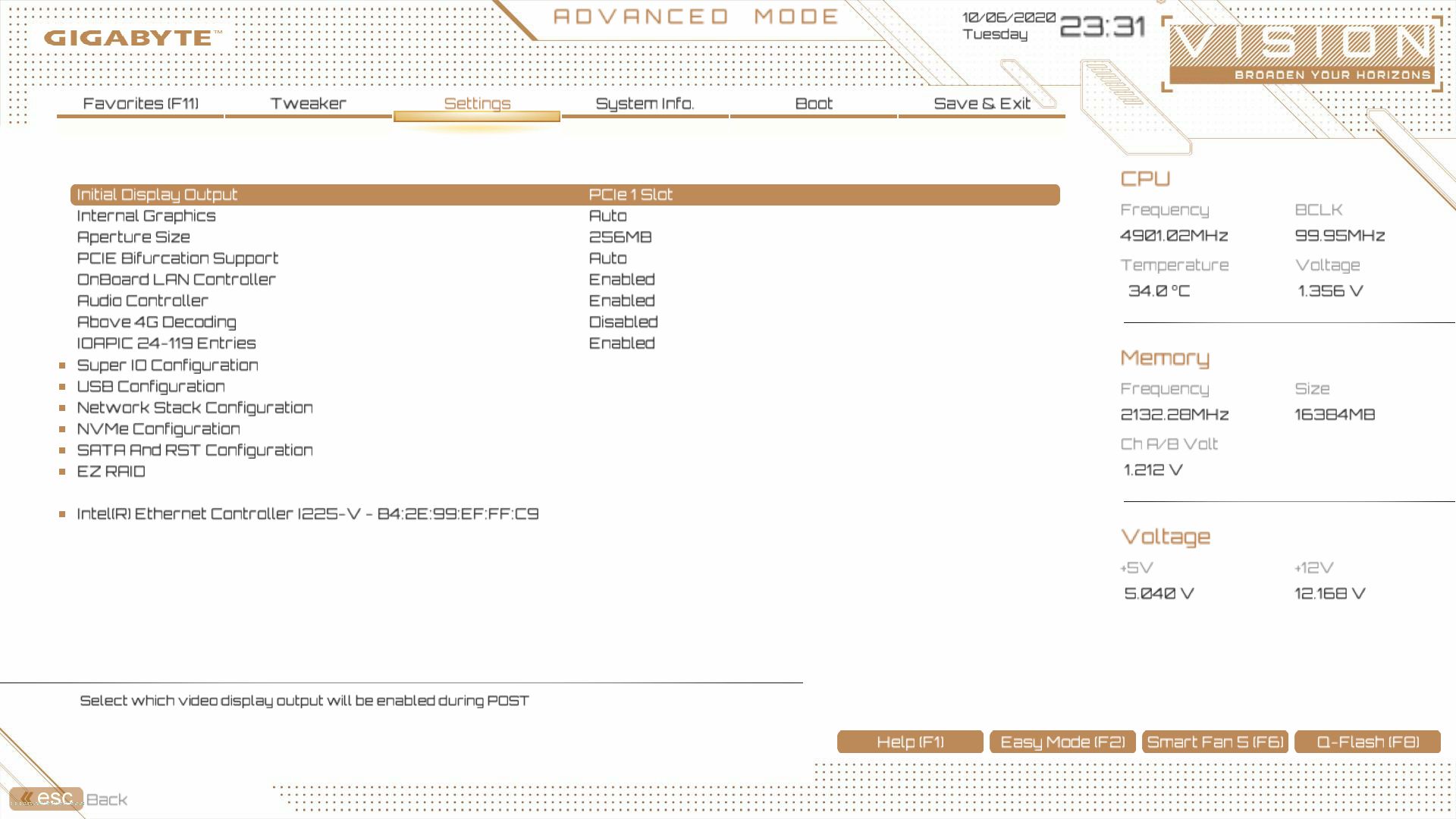

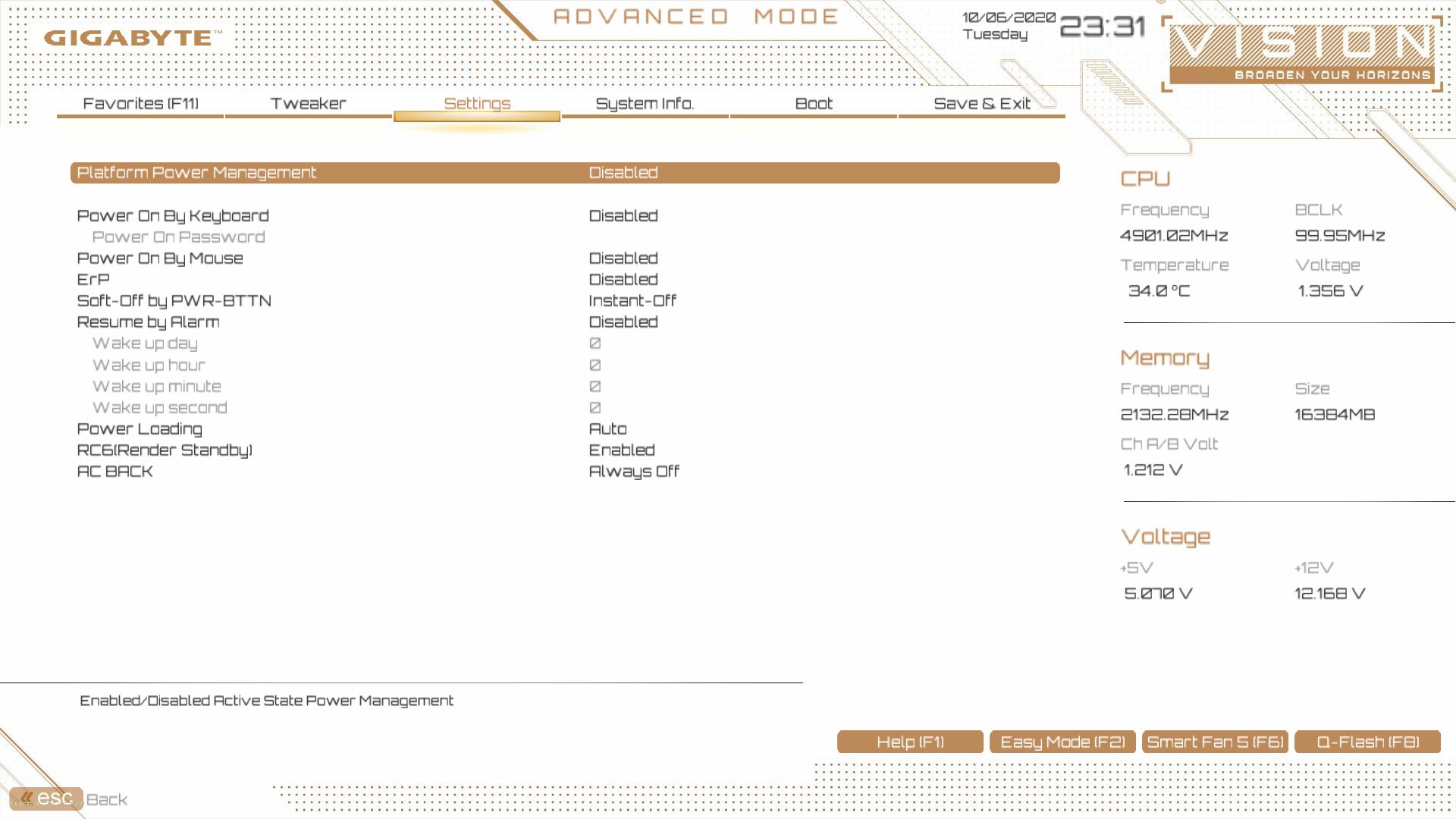

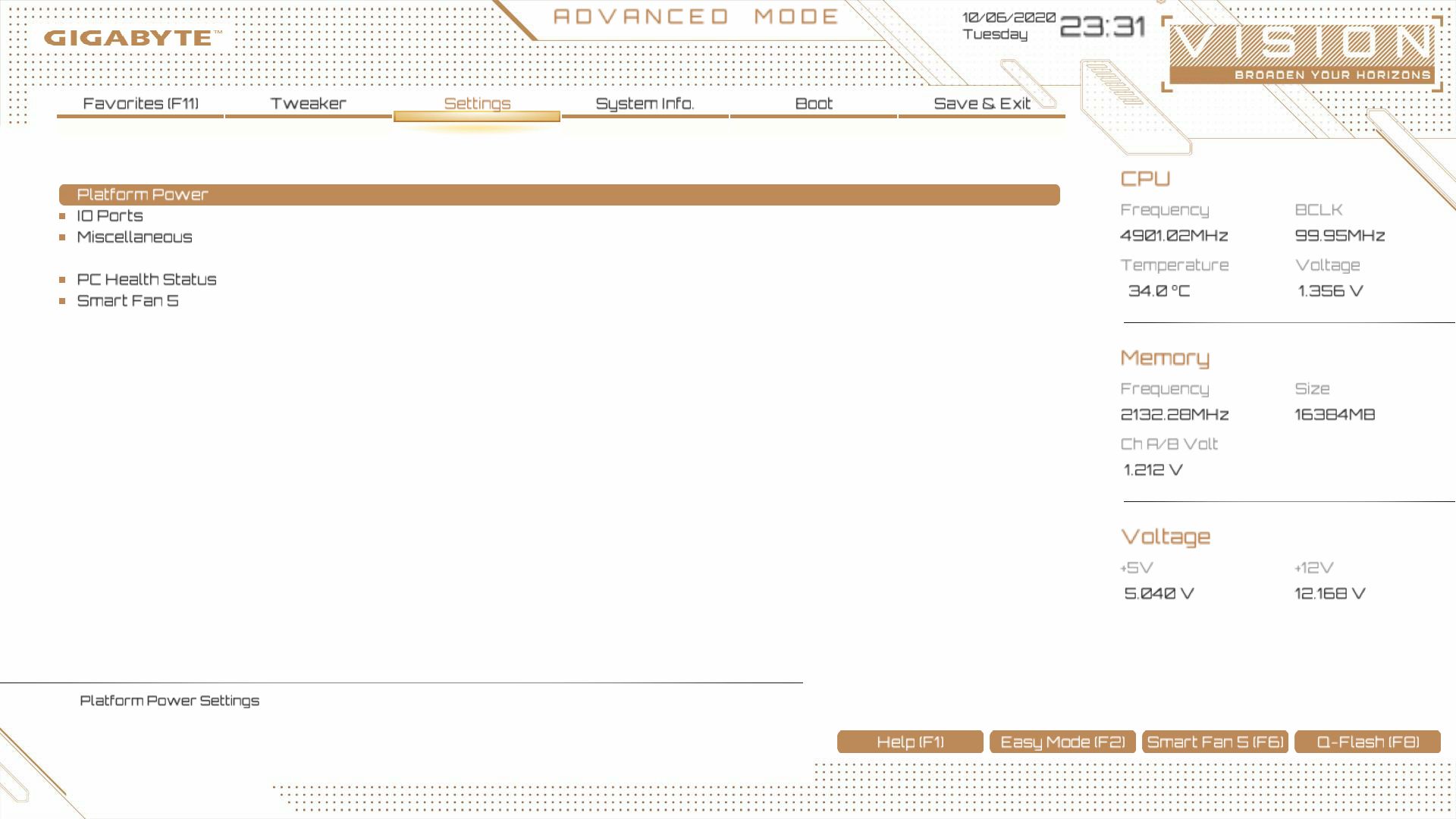

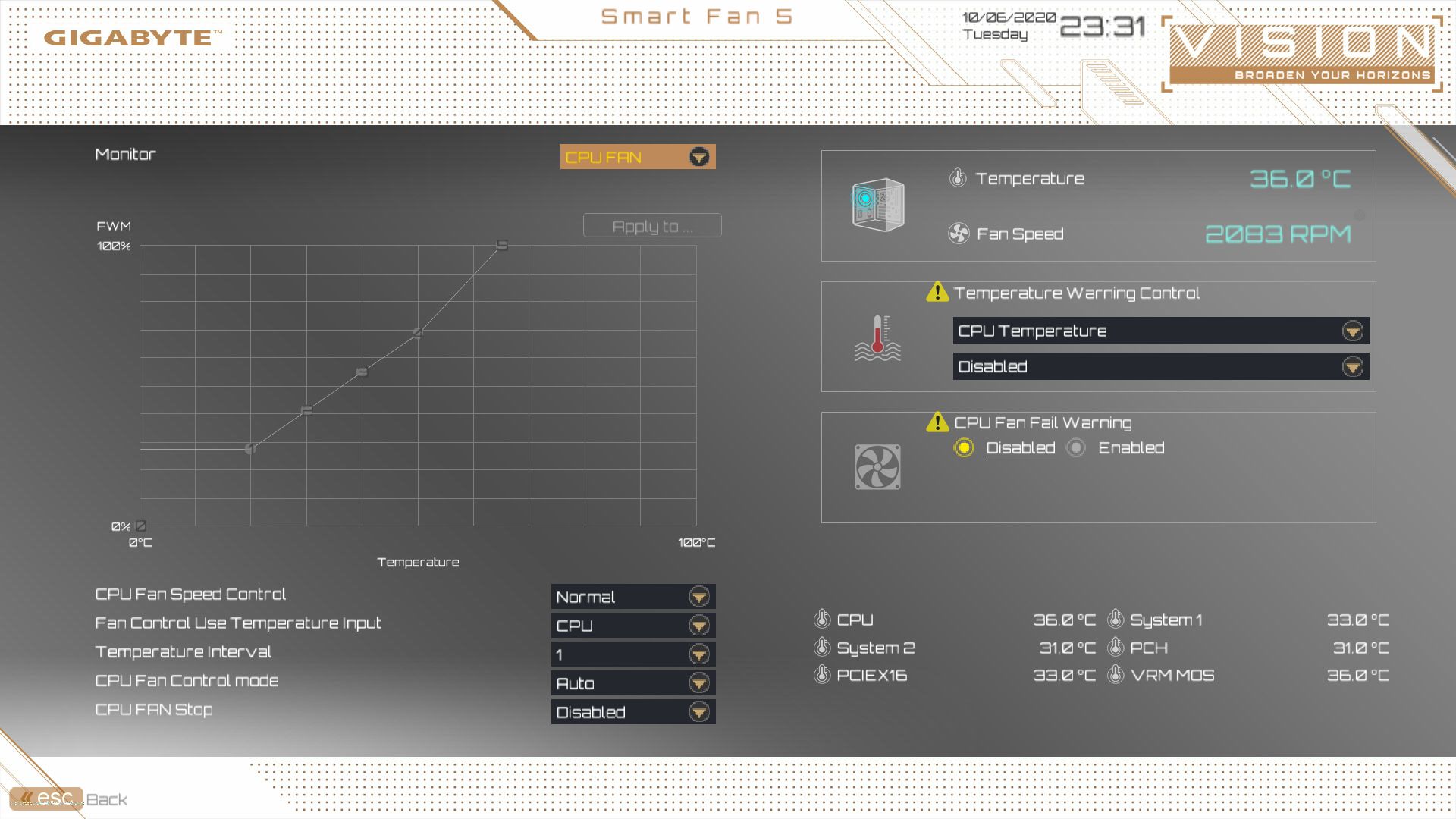

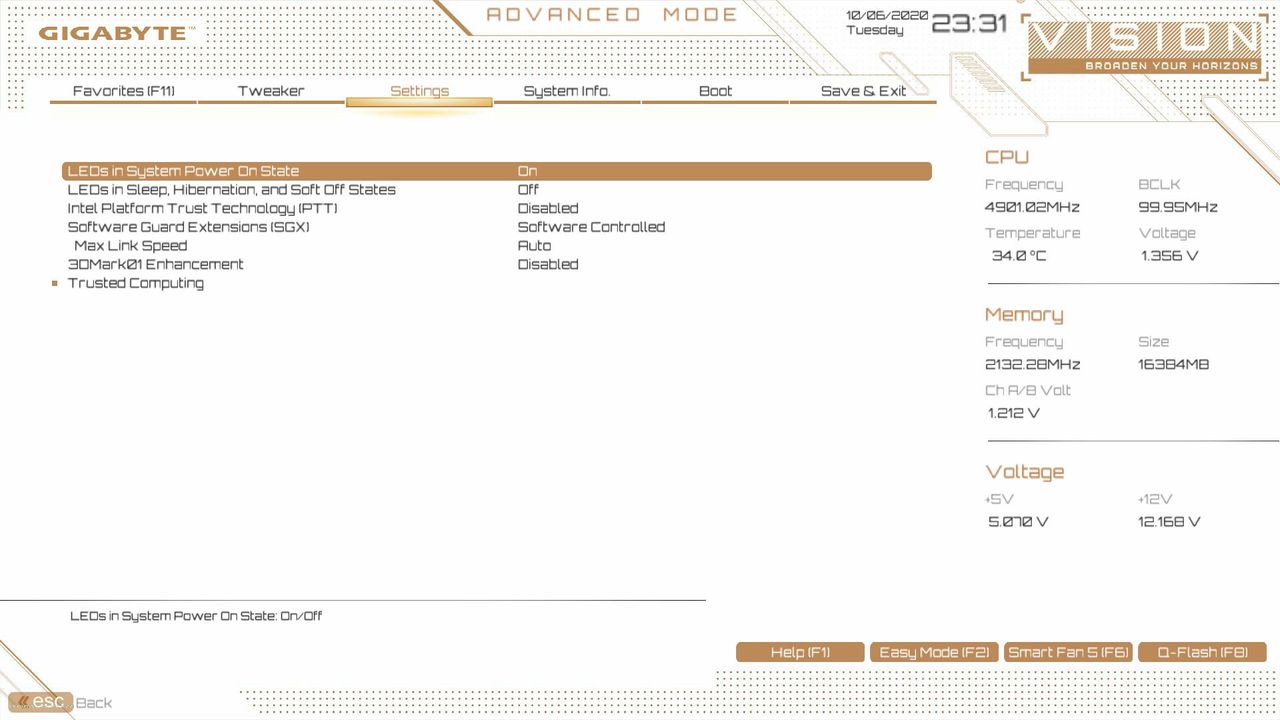

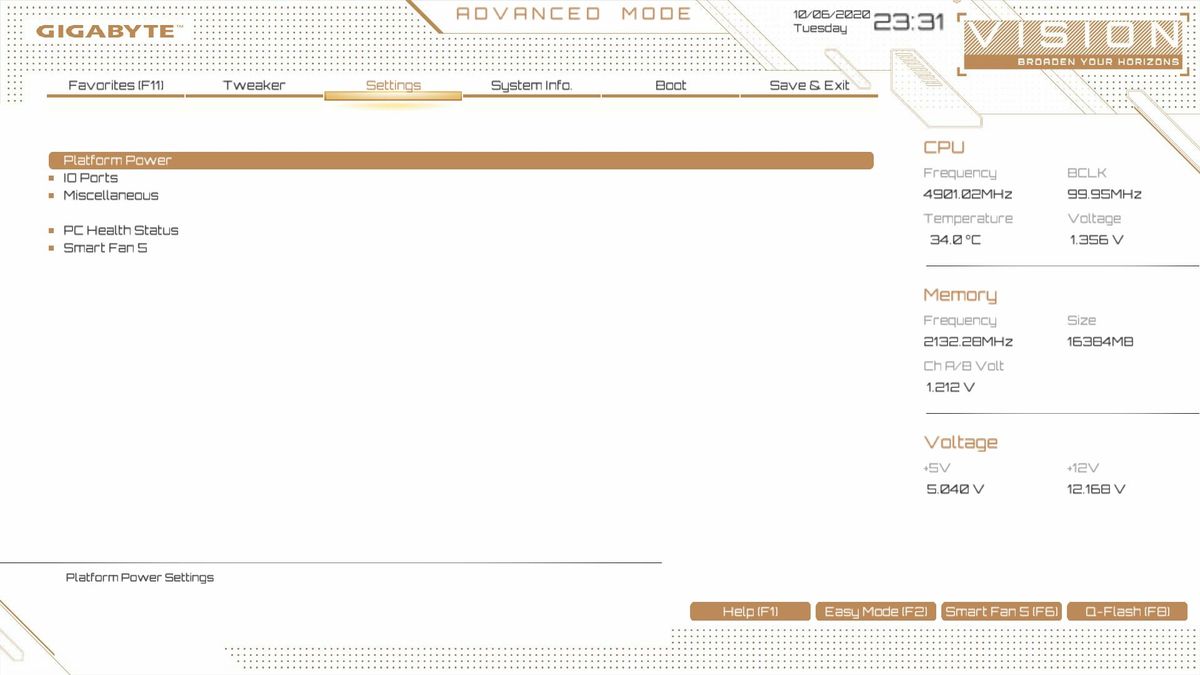

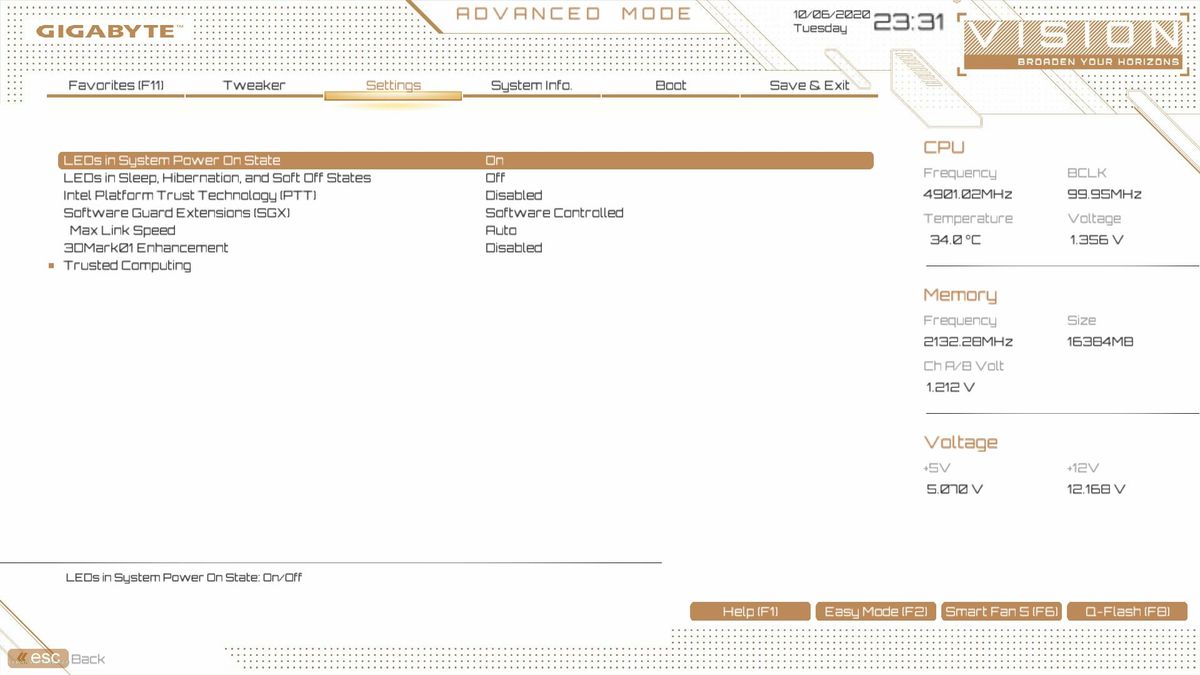

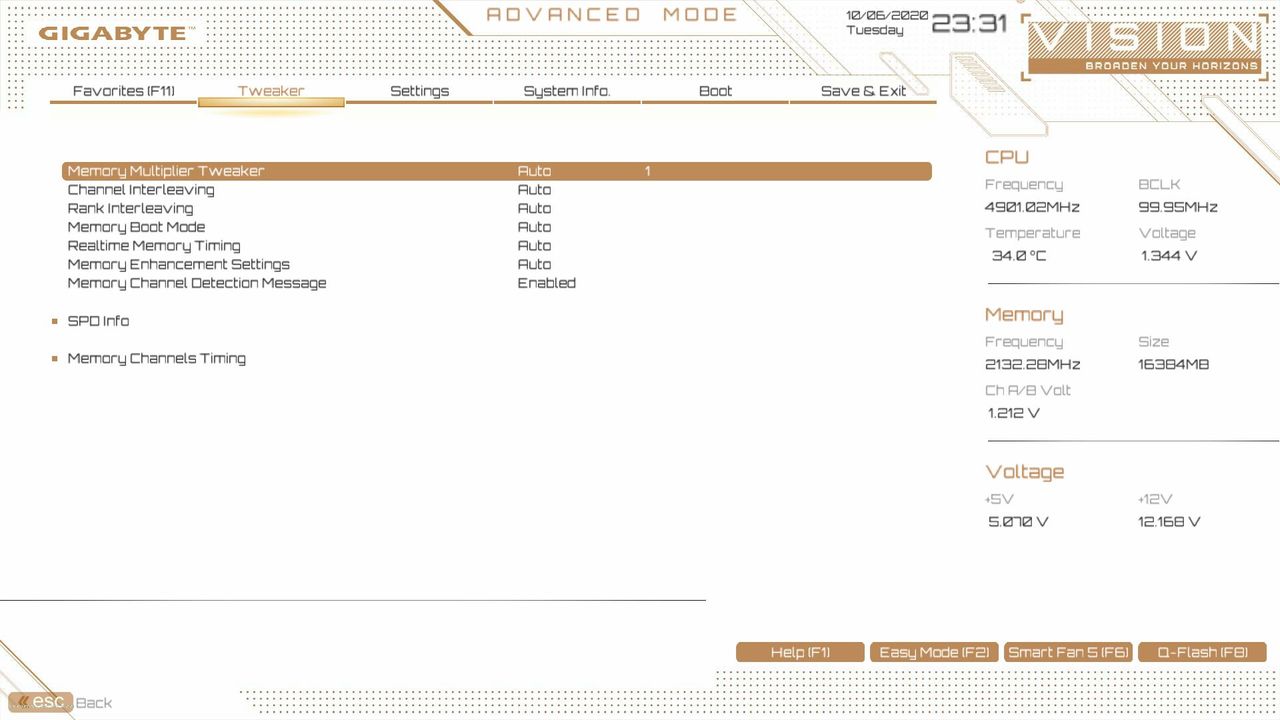

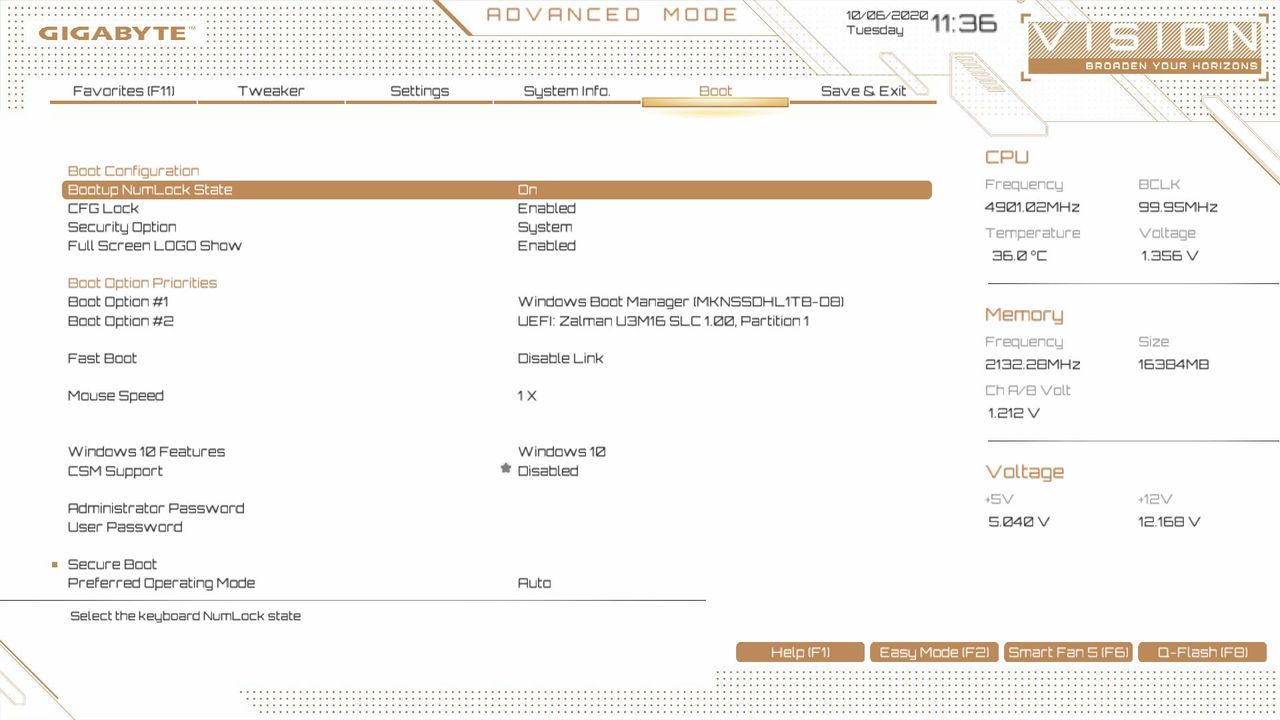

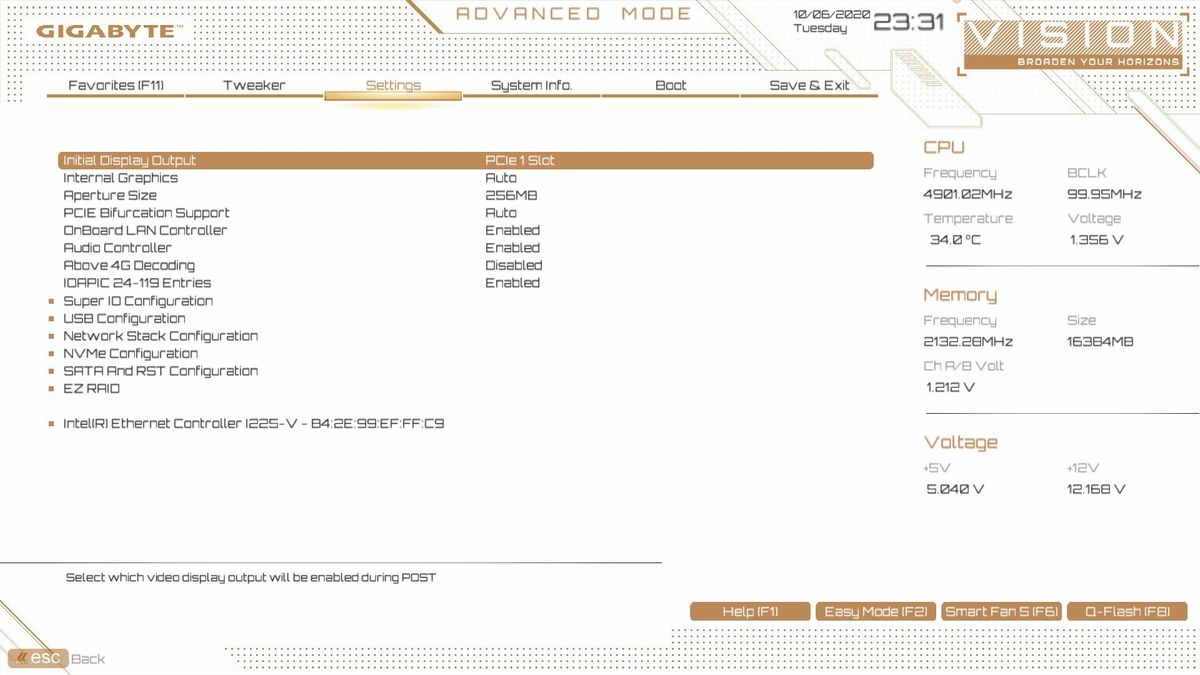

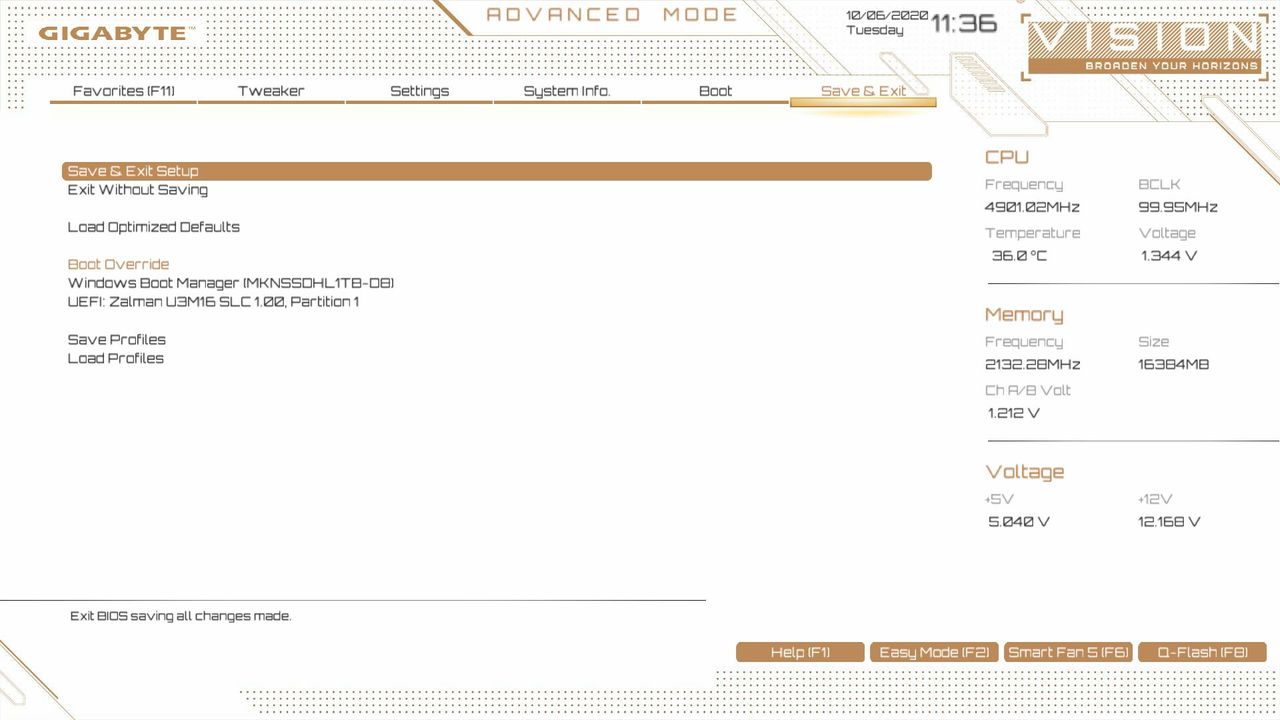

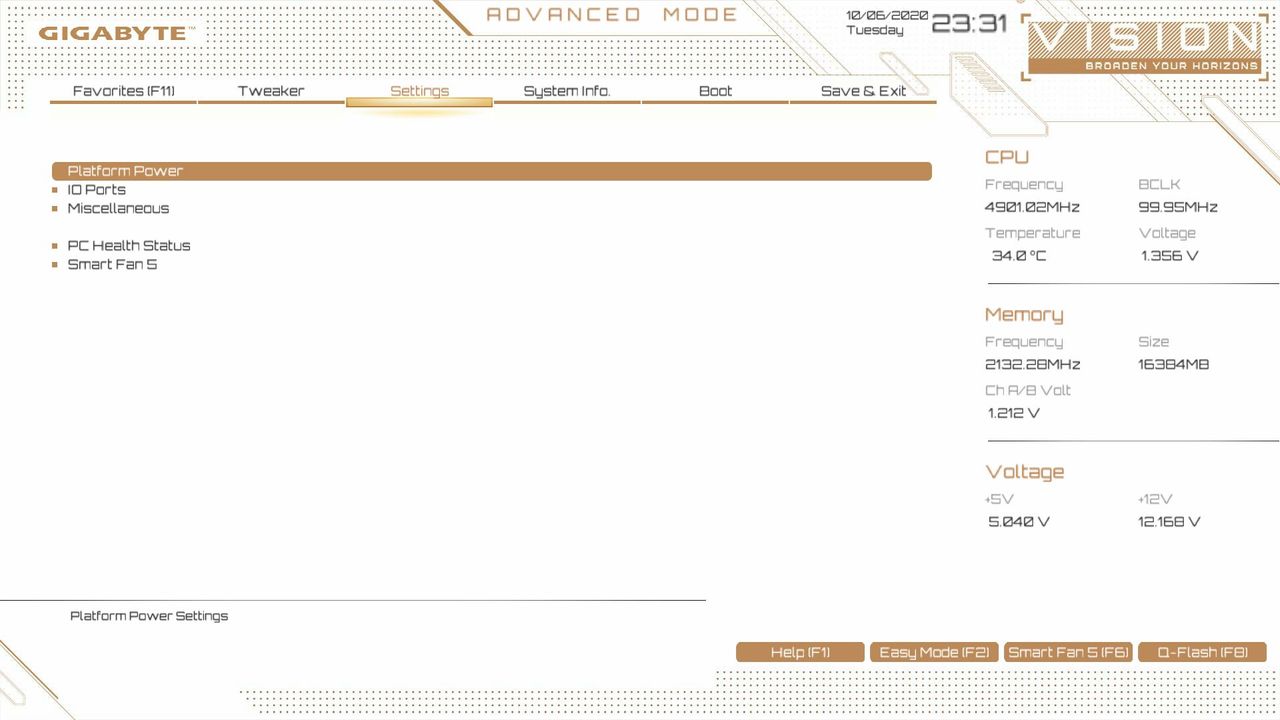

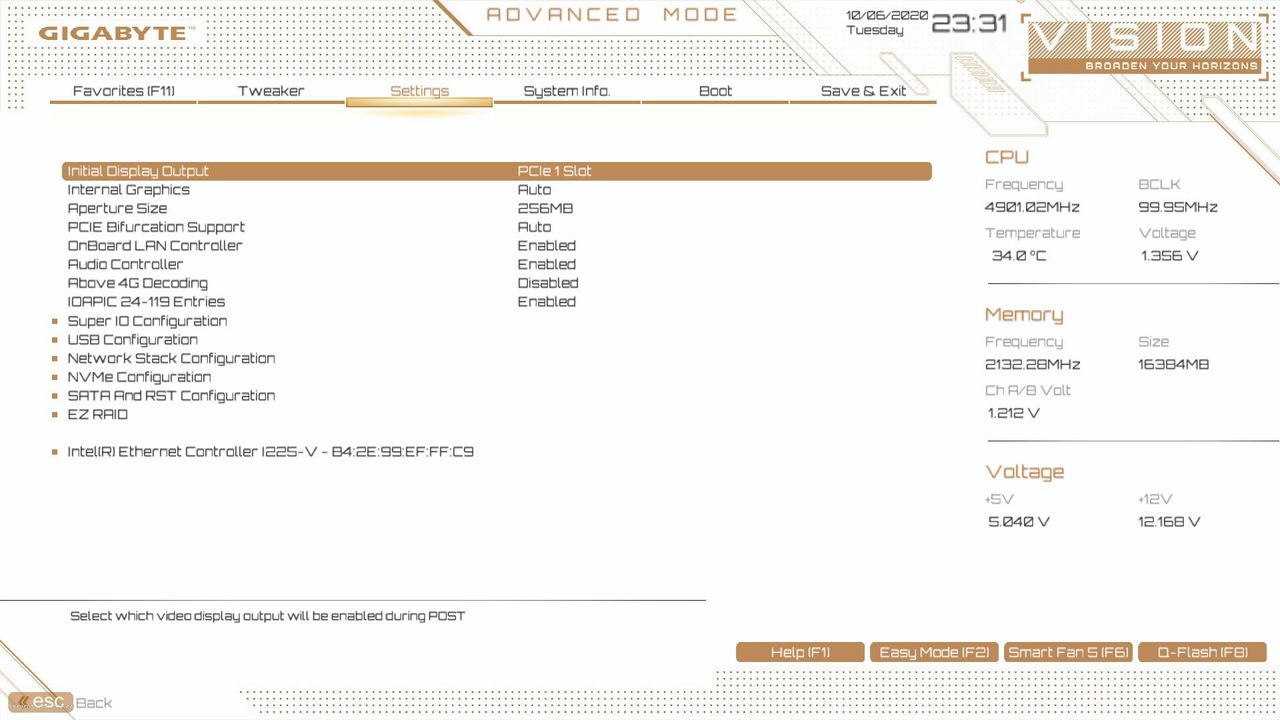

To give you a sense of the Firmware, we’ve gathered screenshots showing a majority of the BIOS screens.

The BIOS on Gigabyte’s Z490 boards has worked well for me since release. The format of headings across the top, with most details on a single page or one level down makes for easy navigation. The biggest difference here is the white-and-gold color theme, compared to the darker designs found with most of the company’s other motherboards.

Image 1 of 14

(Image credit: Tom's Hardware)
Image 2 of 14

(Image credit: Tom's Hardware)
Image 3 of 14

(Image credit: Tom's Hardware)
Image 4 of 14

(Image credit: Tom's Hardware)
Image 5 of 14

(Image credit: Tom's Hardware)
Image 6 of 14

(Image credit: Tom's Hardware)
Image 7 of 14

(Image credit: Tom's Hardware)
Image 8 of 14

(Image credit: Tom's Hardware)
Image 9 of 14

(Image credit: Tom's Hardware)
Image 10 of 14

(Image credit: Tom's Hardware)
Image 11 of 14

(Image credit: Tom's Hardware)
Image 12 of 14

(Image credit: Tom's Hardware)
Image 13 of 14

(Image credit: Tom's Hardware)
Image 14 of 14

(Image credit: Tom's Hardware)

Test System

Our test system uses Windows 10 64-bit OS (1909) with all threat mitigations applied. The motherboard BIOS used is the latest non-beta available to the public, unless otherwise noted. The hardware used is as follows:

CPUIntel i9-10900K
MemoryG.Skill Trident Z Neo 2x8GB DDR4 3600 (F4-3600C16D-16GTZNC)
Memory 2G.Skill Trident Z Royale 4x8GB DDR4 4000 (F4-4000C18Q-32GTRS)
GPUAsus ROG Strix RTX 2070
CPU CoolerCorsair H150i
PSUCorsair AX1200i
SoftwareWindows 10 64-bit 1909
Graphics DriverNvidia Driver 445.75
SoundIntegrated HD audio
NetworkIntegrated Networking (GbE or 2.5 GbE)
Graphics DriverGeForce 445.74

Benchmark Settings

Synthetic Benchmarks and Settings
PCMark 10Version 2.1.2177 64
Essentials, Productivity, Digital Content Creation, MS Office
3DMarkVersion 2.11.6866 64
Firestrike Extreme and Time Spy Default Presets
Cinebench R20Version RBBENCHMARK271150
Open GL Benchmark - Single and Multi-threaded
Application Tests and Settings
LAME MP3Version SSE2_2019
Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLIVersion: 1.2.2
Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
Custom benchmark
7-ZipVersion 19.00
Integrated benchmark
Game Tests and Settings
The Division 2Ultra Preset - 1920 x 1080
Forza Horizon 4Ultra Preset - 1920 x 1080
