Intel Core i7-7740X Kaby Lake-X Review

by
33 Comments

Project CARS & Rise of the Tomb Raider

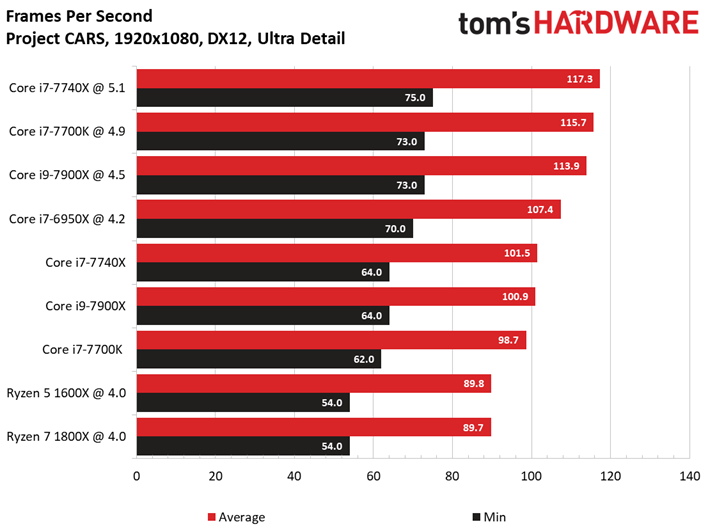

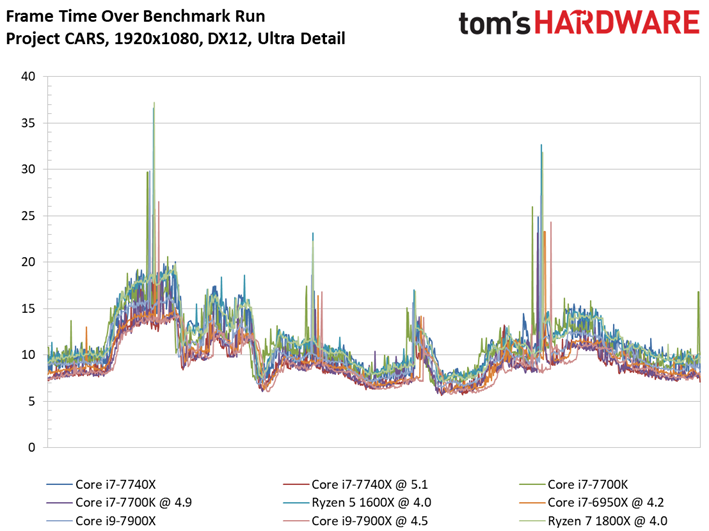

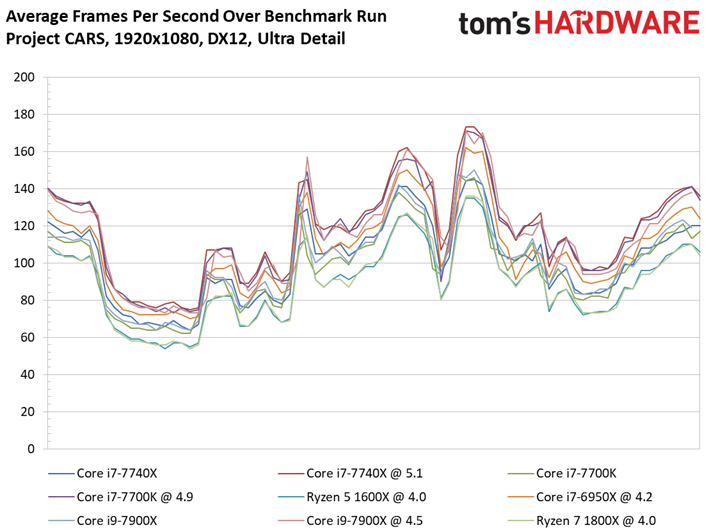

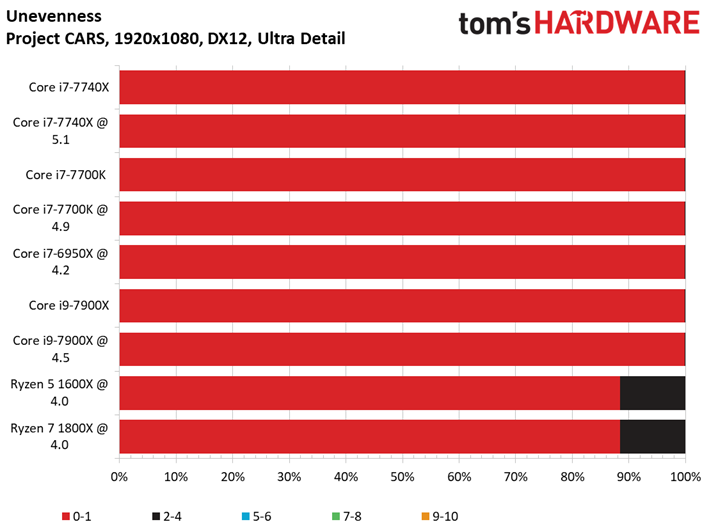

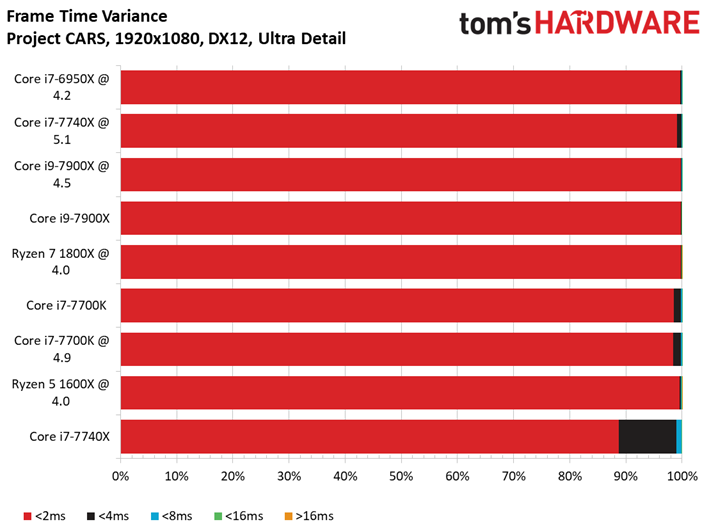

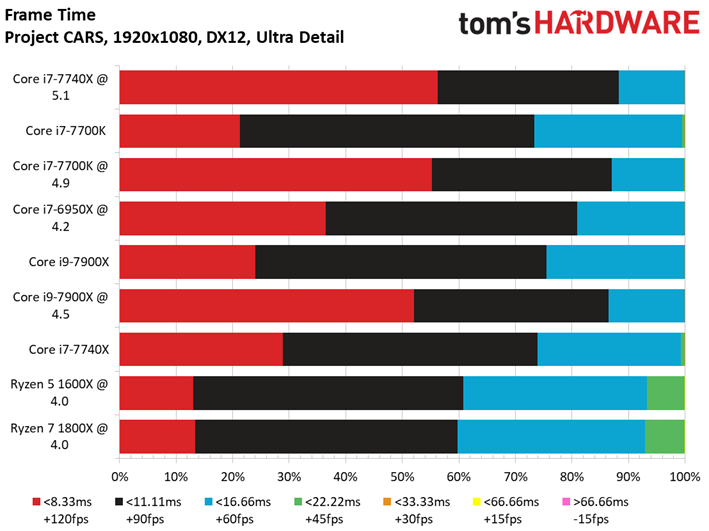

Project CARS

  • image010
  • image016
  • image012
  • image003
  • image014
  • image018

We spot a bit more variation between the stock Core i7s, perhaps suggesting some sensitivity to memory frequency. Project CARS scales very well with increased host processing resources, so the brawny Core i9-7900X unperforms our expectations. Again, the -7740X's gain over the -7700K from overclocking is a mere 1.4%.

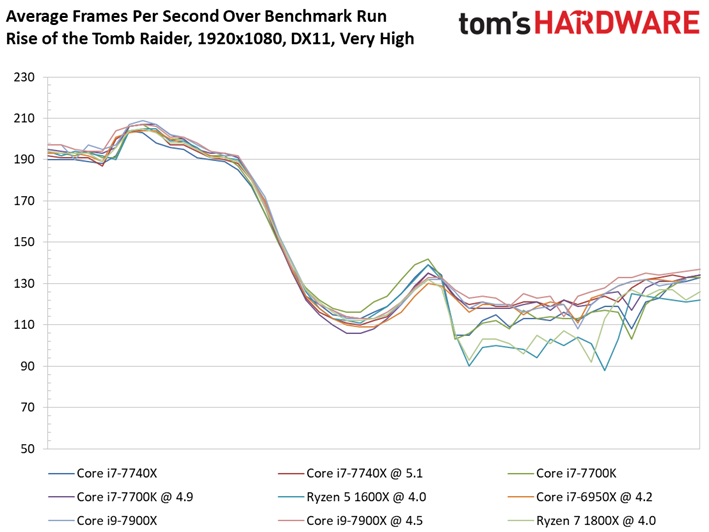

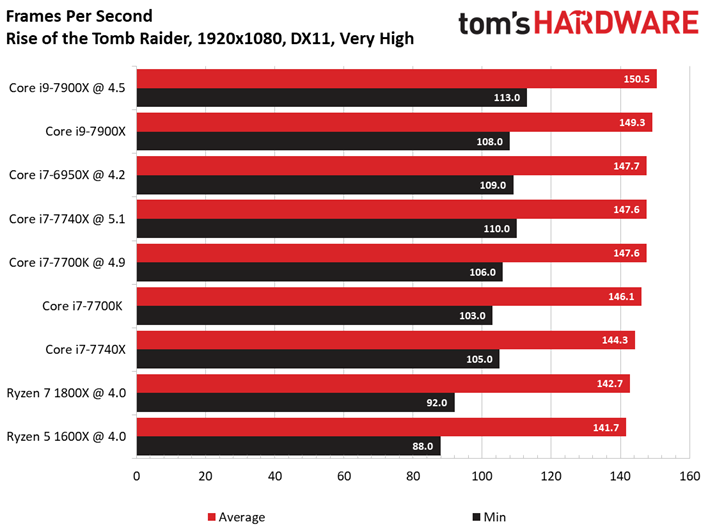

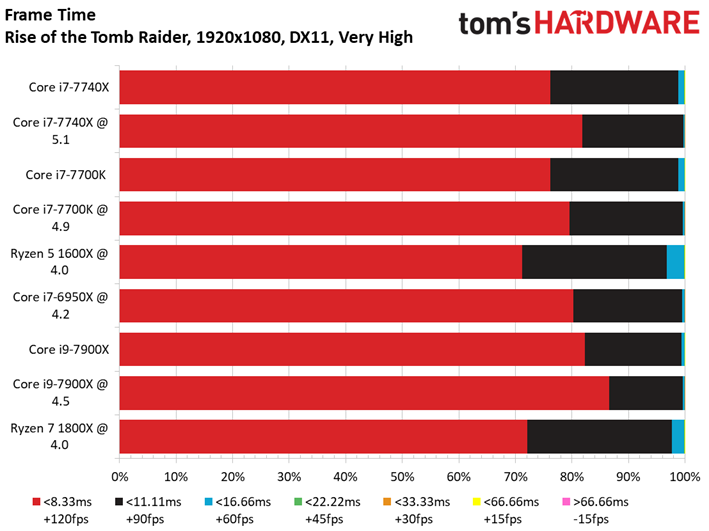

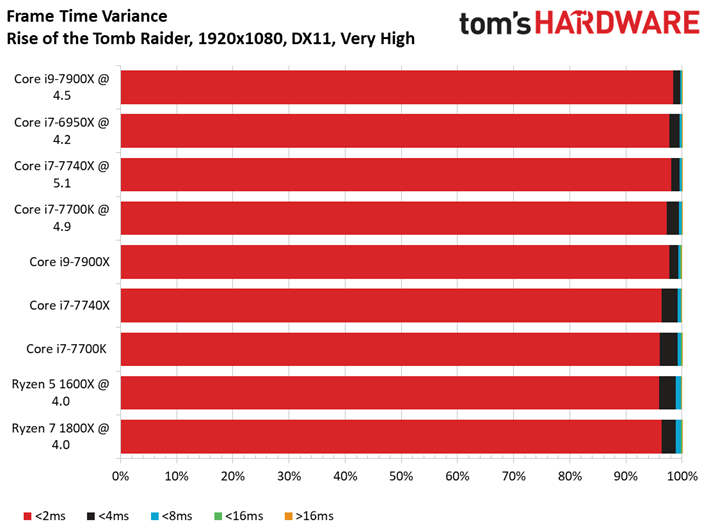

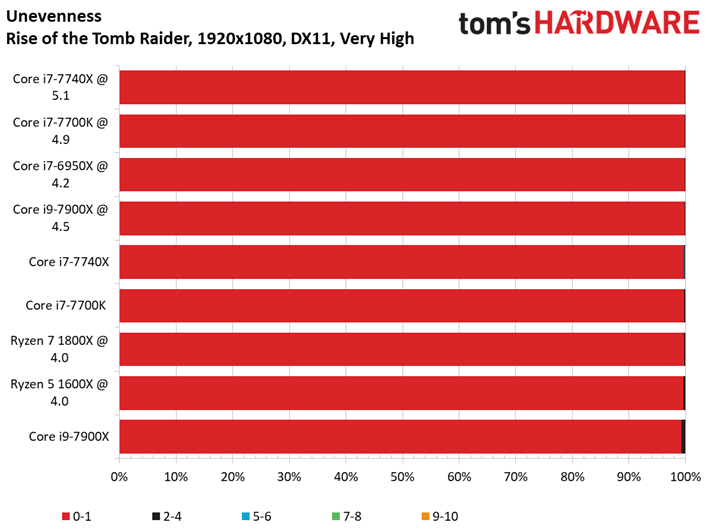

Rise of the Tomb Raider

Rise of the Tomb Raider recently received a patch that significantly improves Ryzen's DX12 performance, making this one more title optimized for AMD's latest platform. We're still sticking to DX11-based testing, though, to keep the playing field as level as possible.

  • image010
  • image012
  • image016
  • image003
  • image014
  • image018

A stock Core i7-7740X loses by 1.3% to the -7700K, but a bit of overclocking turns the tables by 1%. That certainly isn't worth the X299's price premium.

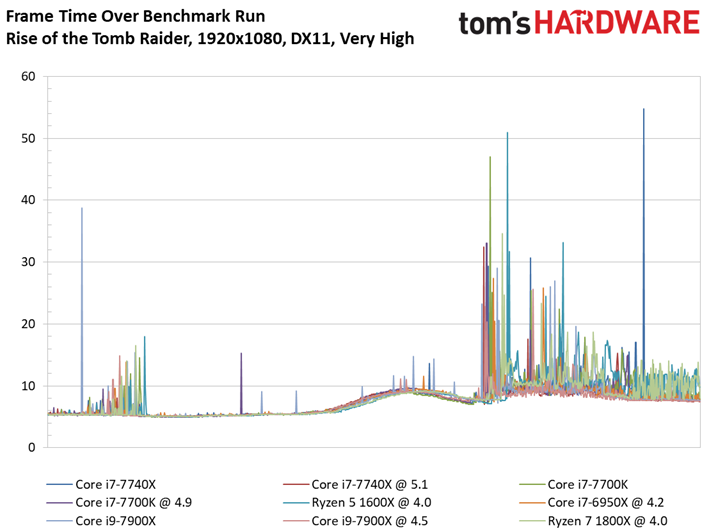

We clearly see the delta between AMD's Ryzen and Intel's Core processors grow at the test sequence's tail end, where it becomes more CPU-intensive. Core i7-7740X encounters a notable frame time outlier towards the end of the test. Meanwhile, the Ryzen 5 1600X briefly spends time under the 90 FPS mark.
