Haswell And Richland Memory Scaling: Picking A 16 GB DDR3 Kit

By Thomas Soderstrom
published

Graphics workloads love fast memory. But how much difference can a desktop-oriented kit have on gaming performance with Intel's HD Graphics 4600 or AMD's Radeon HD 8670D? We test six 16 GB kits, two all the way up to DDR3-2400 to find out.

Results: Battlefield 3

The AMD platform isn’t stable at the DDR3-2400 settings supported by Adata and Patriot, so we can ignore those two XMP readings and be thankful that Battlefield 3 performs similarly at DDR3-2133. Un-charted DDR3-1600 CAS 11 reached a mere 36 FPS.

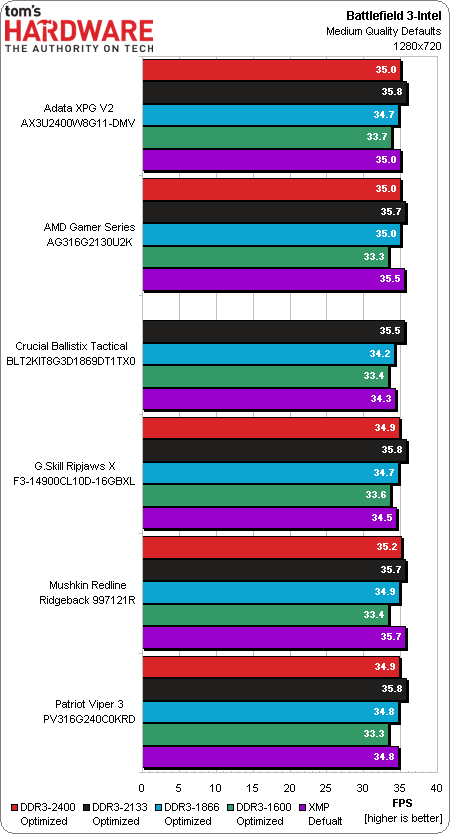

Poor Intel. Its fastest desktop integrated graphics engine is so much weaker that its superior memory controller can’t compensate. Battlefield 3 scaling gets squished into a somewhat-playable 33 to 36 frames per second.

Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
