System Builder Marathon Q2 2015: $1600 Mini Gaming PC

How-to
By published

Because you asked for it, we put an Intel Core i5 and an Nvidia GeForce GTX 980 into a mini-ITX case. But how does it perform compared to its larger twin?

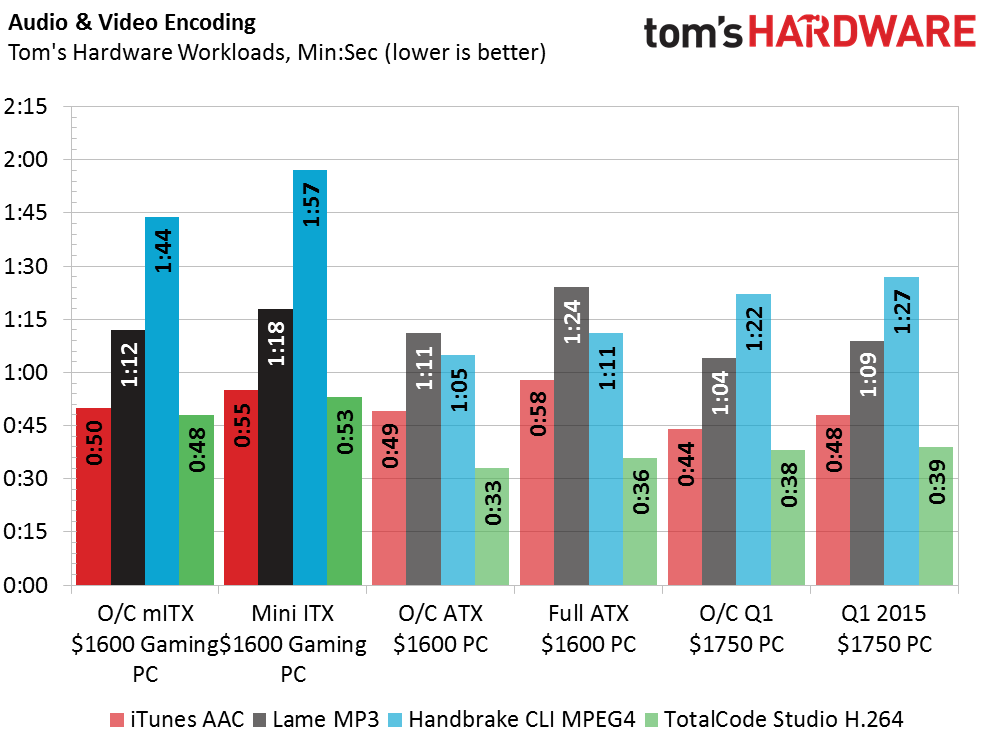

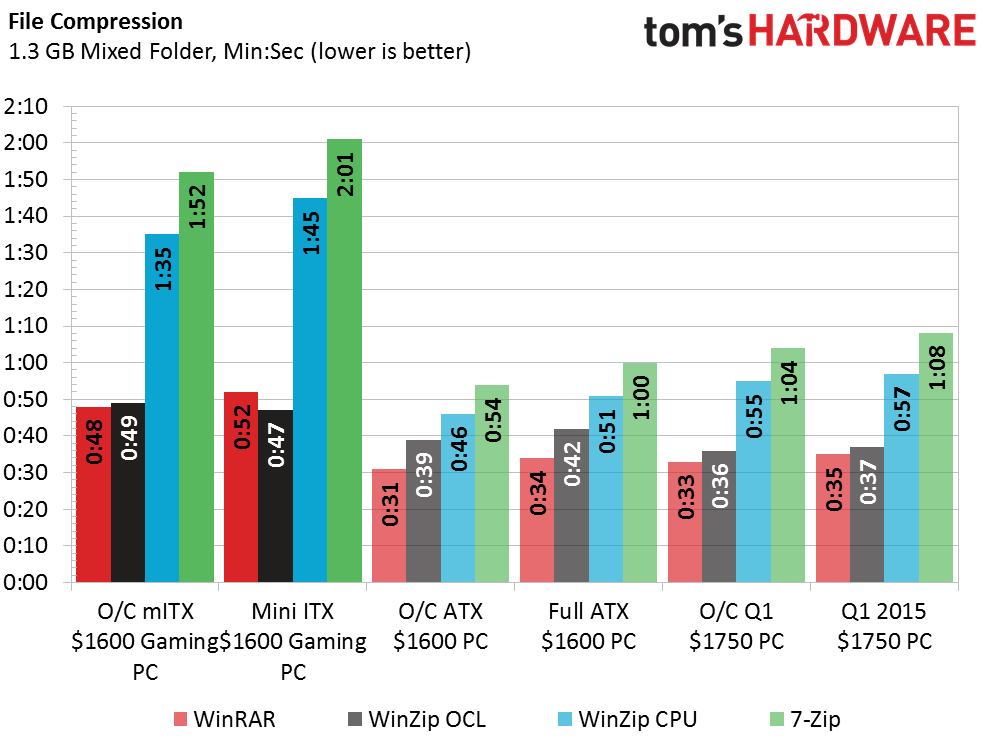

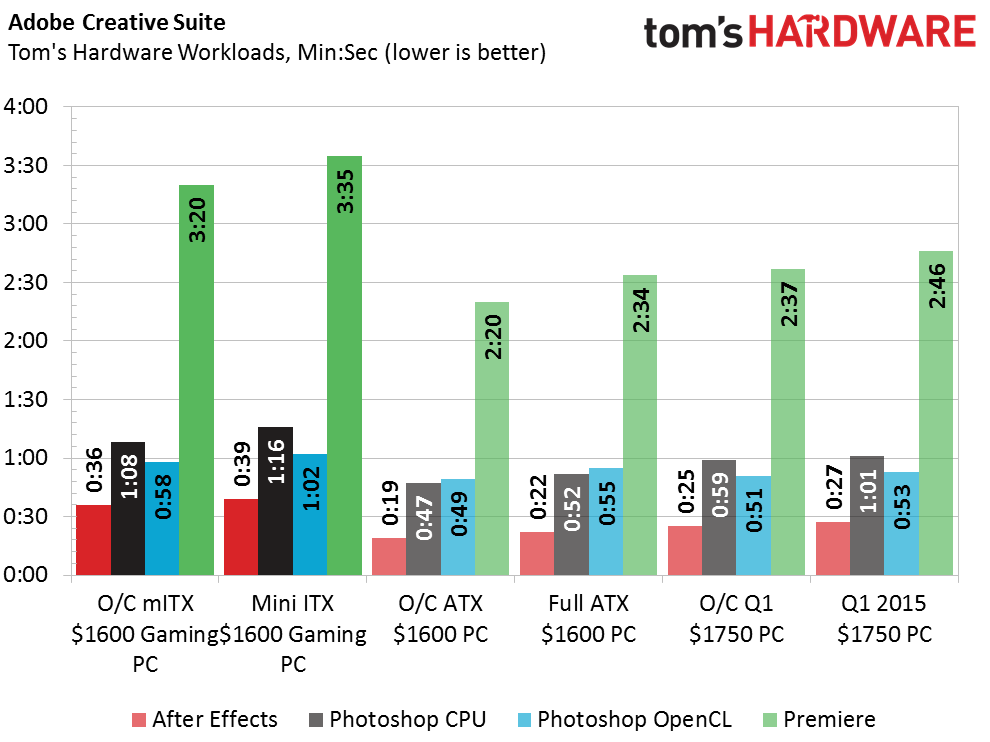

Media, Productivity And Compression

Image 1 of 4

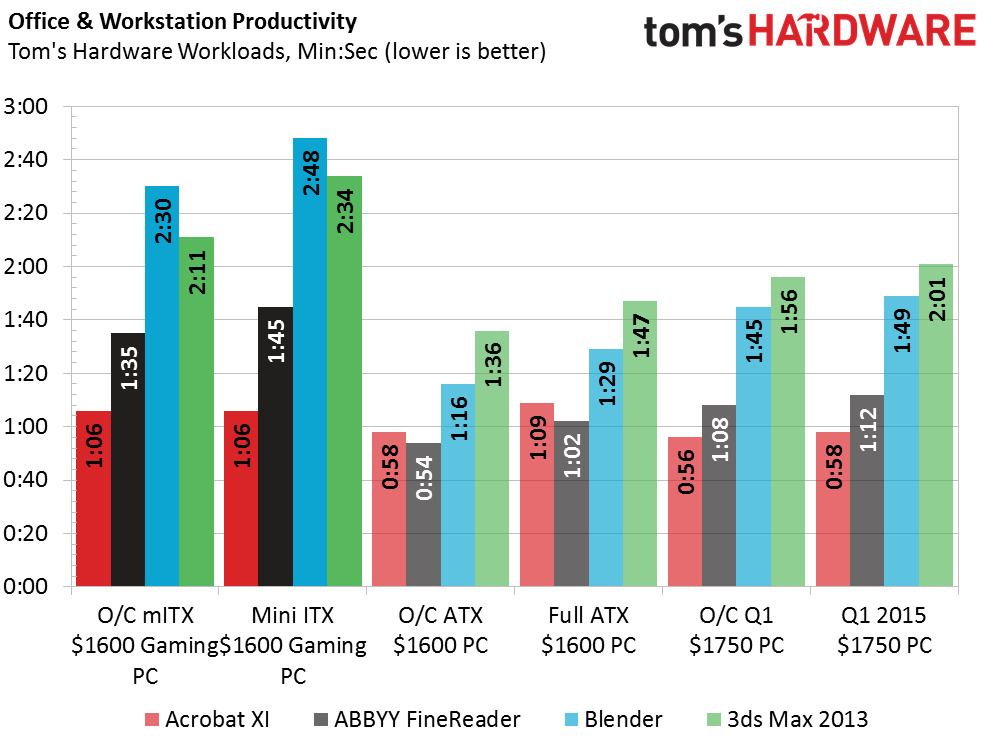

We definitely see the deficiencies of Mini Build’s Core i5 compared to the other machines' i7s. Based on typical home- and work-related tasks, we can see that Mini Build wouldn’t be comfortable as a work PC. Its scores are based on a certain amount of time it takes to do something, and in some cases, those times may be too long.

26 Comments Comment from the forums
  • Onus
    A Rosewill RD? Really? In 2015?
    Having just bought this case, I'll be going over this build for details about the case, but it looks good. The other parts...well, a 980 beats my 970.
    I'd have used a lesser SSD (any SSD is sufficient, vs. a mechanical drive) and likely some cheaper RAM (e.g. DDR3-1866 or -2133) for the sake of a more solid PSU.
    Reply
  • vertexx
    It would help in all of these articles to put the component list with prices at the time of purchase. That might help fray some of the criticisms of parts choice within the budget.

    That said, I'm sure there will be some of the same feedback as yesterday's build. I would have stretched it to a 980ti. Sure, there would have been some compromises, but it's definitely doable for $1,600.

    Within that case, it would have been good to take advantage of the available height for a full height CPU cooler.

    Welcome to the shark tank!
    Reply
  • jtd871
    That's a _lot_ of wasted space in the Mini Build case. I'd have gone with a SG13 or SG05 case with those components. The lower case volume would have allowed for the fans to keep fresh air coming into the major components with ease. This case is gonna need more fans to keep it cool and move all that air out (and avoid dead spots).
    Reply
  • atheus
    That's a _lot_ of wasted space in the Mini Build case. I'd have gone with a SG13 or SG05 case with those components. The lower case volume would have allowed for the fans to keep fresh air coming into the major components with ease. This case is gonna need more fans to keep it cool and move all that air out (and avoid dead spots).
    The irony being that he mentioned mechanical issues with the limited space (repeatedly unplugging wires by accident during assembly). My thoughts aren't dissimilar, though. That mini ITX case is basically the same volume as the ATX case for the "big" build. The use of 5 case fans (only because the absolutely necessary optical drive prevented adding a 6th) is just madness to me.

    I guess I just a have a different philosophy about mini ITX, but to me the whole point of it is to make a computer that is less obtrusive both in size, weight, and noise. A mini ITX build that is both large and loud with 5 case fans feels like a system that should have just been built in a micro ATX case. At the end of the day that's just the design of the Roseweill Neutron — a mini ITX case that I personally would never buy. Plus, if your case is so loud that you wouldn't reasonably want it anywhere within earshot, it barely matters if it's modestly smaller in size.
    Reply
  • dwatterworth
    This build has so many contradictions it seems. The case and motherboard can easily accommodate a larger and more importantly cheaper/more effective CPU cooler. The 256GB 850 pro seems like a total waste of funds when the 850 evo can be had for under $100 USD or step up to the 500GB 850 evo for still less than the 256gb 850 pro. For the same price as the Rosewill case you could have a bitfenix prodigy, Fractal node 304 or any of the other proven boxes. The rosewill PSU seems like a strange choice as well, a gold rated Seasonic unit is about the same price/capacity if the quoted pricing is correct.

    The choice of CPU cooler, case and fan configuration seems to be the most confusing part.

    Maybe something like this:
    http://pcpartpicker.com/p/BBb823
    Reply
  • DonkeyOatie
    My Middle School students have built a few mITX systems this last year, and 'designed' a lot more.

    We would have looked at something like this:

    PCPartPicker part list: http://pcpartpicker.com/p/mF29dC
    Price breakdown by merchant: http://pcpartpicker.com/p/mF29dC/by_merchant/

    CPU: Intel Core i5-4690K 3.5GHz Quad-Core Processor ($241.98 @ Newegg)
    CPU Cooler: Silverstone NT06-PRO 74.0 CFM Sleeve Bearing CPU Cooler ($53.00 @ Newegg)
    Motherboard: ASRock Z97E-ITX/ac Mini ITX LGA1150 Motherboard ($121.98 @ Newegg)
    Memory: G.Skill Trident X Series 16GB (2 x 8GB) DDR3-2400 Memory ($114.99 @ Newegg)
    Storage: Samsung 850 EVO-Series 250GB 2.5" Solid State Drive ($110.99 @ Newegg)
    Storage: Seagate Barracuda 1TB 3.5" 7200RPM Internal Hard Drive ($49.99 @ Newegg)
    Video Card: Gigabyte GeForce GTX 980 Ti 6GB Video Card ($659.98 @ Newegg)
    Case: Thermaltake Core V1 Mini ITX Tower Case ($40.98 @ Newegg)
    Power Supply: Antec High Current Gamer 620W 80+ Bronze Certified Semi-Modular ATX Power Supply ($59.99 @ Newegg)
    Operating System: Microsoft Windows 8.1 OEM (64-bit) ($99.99 @ Newegg)
    Total: $1553.87
    Prices include shipping, taxes, and discounts when available
    Generated by PCPartPicker 2015-07-01 10:12 EDT-0400

    All from Newegg and enough money for an external DVD and an additional case fan if needed. There's also enough room for a much taller CPU cooler, and with the horizontal motherboard layout, weight does not matter much.

    We have built in this case, and the 200mm fan that come stock is both quiet and effective. In spite of what the note says, the GPU will not block use of the mountings for the SSD or HDD.
    Reply
  • Onus
    The Rosewill Neutron looks to be a decent case, although large. It is not as big as the Prodigy though, which is a huge case. I'd thought about getting one, until I saw it at Microcenter. I'd like smaller than the Neutron, although I will probably put 3-4 drives in one. I'm not worried about noise from low-speed fans.
    Reply
  • vertexx
    This is what I would build for a $1,600 mini-ITX gamer. I'm cheating a bit because the Silverstone SG13 is not carried by Newegg - but shame on them for that.

    I would actually go over budget a bit. At $1,670, you can have the 1TB Mushkin Reactor SSD.

    PCPartPicker part list / Price breakdown by merchant
    CPU: Intel Core i5-4690K 3.5GHz Quad-Core Processor ($241.98 @ Newegg)
    CPU Cooler: Cooler Master Seidon 120V 86.2 CFM Liquid CPU Cooler ($49.99 @ Newegg)
    Motherboard: ASRock Z97M-ITX/AC Mini ITX LGA1150 Motherboard ($121.98 @ Newegg)
    Memory: G.Skill Ripjaws Z Series 8GB (2 x 4GB) DDR3-2400 Memory ($52.99 @ Newegg)
    Storage: Mushkin Reactor 512GB 2.5" Solid State Drive ($169.99 @ Newegg)
    Video Card: PNY GeForce GTX 980 Ti 6GB Video Card ($669.98 @ Newegg)
    Case: Silverstone Sugo SG13B Mini ITX Tower Case ($42.38 @ Amazon)
    Power Supply: XFX XTR 550W 80+ Gold Certified Fully-Modular ATX Power Supply ($81.98 @ Newegg)
    Operating System: Microsoft Windows 8.1 OEM (64-bit) ($99.99 @ Newegg)
    Total: $1531.26
    Prices include shipping, taxes, and discounts when availableGenerated by PCPartPicker 2015-07-01 10:31 EDT-0400
    Reply
  • DonkeyOatie
    The Z97E-ITX/AC costs about the same and has much better power phases for overclocking.
    Reply
  • Onus
    Although I frequently delete alternate builds that don't follow SBM rules as being off-topic, that one acknowledges where it strays and the explanation is reasonable.
    I have heard that the pump in the Seidon has been implicated in a few zombie sightings as it is potentially loud enough to wake the dead.
    I'd prefer a 256GB SSD in order to add a mechanical drive for bulk storage. It looks like there's enough in your budget to add one though.
    Reply
