Smooth HD Playback With A Sempron 3200+

AMD's New 780G Chipset Has Powerful GPU
By

Thanks to the integrated HD3000-class graphics unit, the 780G and 780V chipsets enjoy complete HD video decoding support, in the form of ATI's Universal Video Decoder (UVD). As a result, CPU load is greatly reduced when playing back HD-video content such as HD-DVDs, Blu-ray discs, HDTV or recorded HD content.

Can play back Full-HD - AMD Sempron 3500+

Since the on-board graphics unit comes with hardware decoding support for MPEG-2, H.264 and VC-1, a separate add-in card is no longer required to enjoy hardware video acceleration for these codecs. All that's left for the CPU to do is to decode the HDCP copy protection and the audio stream. On the previous 690G chipset, even a brawny Athlon 64 X2 6400 CPU was unable to provide smooth HD-video playback. The new 780G chipset, on the other hand, has no trouble with this task, even when paired with a comparatively anemic AMD Sempron 63 3200+.

Hardware acceleration in Cyberlink's PowerDVD playback software

With its 128 kB L2 cache and 1.80 GHz clock speed, the Sempron 64 3200+ is too slow for Windows Vista. A full three minutes pass before the system has completed the start-up process and the CPU load falls below 10%. Still, 1080p Full-HD playback at a resolution of 1920x1080 doesn't pose any problem whatsoever for the CPU when running PowerDVD 7.3. We played back the James Bond movie Casino Royale from a Blu-Ray disc on an LG GCC-H20L drive. We measured the average CPU load of the Sempron 64 3200+ to be 63.13% during playback, with short peaks reaching up to 90%.

CPU load during Blu-ray playback

CPU load after Vista launches

Smooth and stutter-free playback is no longer possible with an even slower processor, such as an AMD Sempron 64 3000+ running at 1.60 GHz. Some of the scenes created a CPU load of 100%, causing the system to drop frames - due to the low performance of the Sempron 3000+, the 200 MHz clock-speed difference has a huge impact. Our conclusion is that the Sempron 3200+ marks the lower limit for smooth Blu-ray playback.

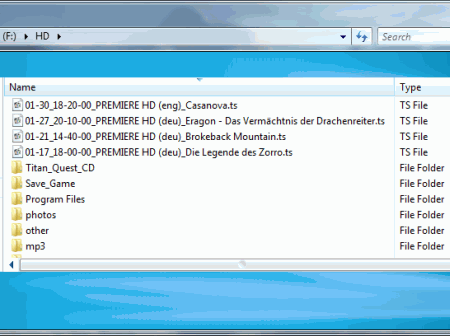

TS files on a Blu-ray disc

However, if you only want to play back HD content you have previously recorded from sources such as satellite or cable, AMD's Sempron 64 3000+ is sufficient, since the CPU doesn't have to deal with encryption.

Display all 20 comments.
  • 0 Hide
    rockwell73 , May 18, 2008 3:29 AM
    I would like to know can i run a video card with this mother board,with all the high demand for great video quality in these new video games such as Crysis, BioShock, Jericho and many others that require a high end video card how am i suppose to play these games without one
  • 2 Hide
    Anonymous , May 23, 2008 2:12 PM
    You just put in any PCI-E video card in the X-16 slot. With the appropriate processor and beefy enough video card, games are not a problem. The real beauty is that the onboard video is plenty for casual, older games at acceptable rates and also makes for a great low power HD media center computer.
  • 1 Hide
    dotroy , June 17, 2008 10:39 PM
    I do not get it, how come 2600XT is more faster than 3450 ? I thought 3450 is newer than 2600XT. Please explain
  • 1 Hide
    gerro1977rm , June 20, 2008 11:36 AM
    What about the northbridge overheating issue everyone is talking about? I've bought this board only to find out it has idle temps of 80C at the northbridge. I'm planning on buying an after market cooler to stabilize it.
  • 0 Hide
    Anonymous , June 23, 2008 5:12 PM
    gerro1977,

    What revision is your board? I just received this board and it's the new revision 1.1 which has a bigger heatsink (you can see the pictures from the gigabyte site for both revisions 1.0 and 1.1). I am getting my CPU soon and want to also check the northbridge temperatures. What can I use to measure the temps?

    Thanks
  • 0 Hide
    Anonymous , July 10, 2008 3:56 PM
    I'm cooling my G780 on GA-MA78GM-S2H rev1.0 with additional pentium 3 box coller heatsink (fits perfectly) and radeon 3450 with p3 box fan :)  - it works fine
  • 0 Hide
    Anonymous , July 16, 2008 7:12 PM
    Does anyone know if the radeon HD4850 works on this board with hybrid graphics and crossfire.
  • 0 Hide
    gerro1977rm , July 21, 2008 7:30 AM
    Deleted Profile 06/23/2008 7;12 AM,

    Unfortunately, I'm using the rev 1.0 board. I fitted it with an HR05 heatsink from thermalright and its now just warm to the touch not hot. I'm using everest to monitor my temps. Aux now registers at 37 C, though I'm not really sure if its the NB temp. You can also use riva tuner among others.
  • 0 Hide
    V3ctor , August 27, 2008 12:49 PM
    I have a ASUS M3A78 EHM HDMI and I have a temperature of only 33ºc with my X2 BE-2350... I'm going tu put a HD3450, but i have a doubt... If i'm only in 2D graphics (like the desktop) the board switches to the HD3200? And when I need power does it "switch" to HD3450?
  • 0 Hide
    kingsize566 , September 17, 2008 2:40 AM
    I have a GA780...DS3H rev1.0 (ATX) and the northbridge heatsink is large but made of some cheap light zinc alloy - waste of time IMHO, 70+ degrees and memory errors - but only when using a PCIex16 graphics card. The problem eased when I added a 40mm fan on top of the rubbish heatsink. I wrote to gigabyte about the issue, who said - tampering with the heatsink invalidates your warranty. Sounds like they're burying their head in the sand over the issue. According to some posts on SPCR, and here, the thermaltake HR05 replacement fits.

    I would question the QA process of a mobo manufacturer who offers not only a poor heatsink design, but a 4 phase mosfet unable to cope with the TDP of some of the higher power phenoms (see Tomshardware and Anandtech). The 780 board by XFX has a heatpipe solution on the mosfets and northbridge which looks like a better design, and similar price (cheaper if you count having to replace the deficient heatsink by Gigabyte). The Asus M3A78 possibly has a better heatsink on the northbridge.
  • 0 Hide
    monkeystomp6 , October 3, 2008 1:05 AM
    Hello I have a Gateway GT5694 with an ATI radeon 3200 onboard and I picked up a PCI-e ATI 3450. I cant get it to run 4 monitors like I need it to. Both cards are installed in the device manager but the 3200 is not showing up on my monitors. Im at whitts end on what to do. From what iv read this is suppose to work. What bios settings should i have GPX-INGFX-GPP-GP0

    there are 4 options with them in different orders. Do i enable CF like some say? I cant find Cross fire enable though Please help me!!
  • 0 Hide
    V3ctor , October 3, 2008 7:36 AM
    I can't remember how i put the graphics setting on the bios, but as soon as I connected the HD3450, the Catalyst Control Center automatically made a crossfire between the 3200 and the 3450. And in the Catalyst Control Center only appears the HD3450... it's like the HD3200 vanished. Search in the Displays Manager and switch the resolution for each one of your monitors.
  • 0 Hide
    salem80 , January 23, 2009 11:01 AM
    dotroyI do not get it, how come 2600XT is more faster than 3450 ? I thought 3450 is newer than 2600XT. Please explain

    2600XT for mid range gfx Profile while 3450 are low cost profile gfx .
  • -1 Hide
    jealousfraud , May 1, 2009 3:02 PM
    Great Post! For anyone who doesn't understand how to setup Multiple Monitors, here are a few tips:

    The Three main ways to Setup Multiple Monitors

    1) You can buy a pre-manufactured multiple monitor computer. The best place to purchase a multiple monitor computer is at:
    Multi-Monitors.com. They carry a multi-monitor computer line called SUPER-PC that can support from 2 to 12 monitors.

    Multi-Screen Computer Systems

    Multiple Monitor LCD Displays

    2) You can get a USB to VGA Adapter, or USB to DVI Adapter that will allow you to add an extra monitor to your computer
    via any USB2.0 Port. You can also add multiple extra monitors by using multiple adapters. This is a great option for viewing
    documents, surfing the web, using Microsoft Office and many other business tasks. This is not a good option for intense
    graphical situations such as HDTV, Blu-ray, Gaming and 3D / CAD Workstation applications. For those types of scenarios,
    it is highly recommended that you purchase a high-powered multi-monitor workstation or a Matrox Dual or Triple Head2Go.

    Multiple Monitor Adapters

    3) You can replace or add an extra video card to your existing computer, depending on how many monitors you wish to support.
    Although this sounds easy enough, this is a rather complex solution for a beginner, especially when trying to find a compatible
    graphics card. For this reason, I am going to write an entirely seperate post on that topic and will link to it here, very soon.

    Multi-Monitor Graphics Cards

    Once you have your multiple monitor system set up and ready to use, you will need to enable all of your monitors in
    your “Display Properties” Control Panel. Here is a great link to a complete and animated walkthrough of how to enable
    your multiple monitors in Windows.

    How to Setup Multiple Monitors (Instructions)

    This is what it will look like when you are done:

    Multi-Monitor Video Demo 1
    Multi-Monitor Video Demo 2
  • 0 Hide
    digvijaysingh , January 22, 2010 4:02 AM
    which operating system was used for the test. Please tell me whether crossfire with HD 3200 and HD 3450 is possible on window 7 32 bit.
    digvijay
  • 0 Hide
    dlee7283 , January 28, 2011 10:37 AM
    hybrid crossfire works in Windows 7, I am using 64 bit and I am sure it will work for 32 bit
  • 0 Hide
    asifgunz , April 18, 2011 4:40 PM
    how abt an ACER [1025] motherboard, any way of overclocking the hd 3200 on it?
  • 0 Hide
    asifgunz , April 18, 2011 4:44 PM
    here, exactly how mine is http://www.techpowerup.com/gpuz/7c9ne/
  • 0 Hide
    alykh96 , June 18, 2011 11:20 AM
    I have AMD 780G chipset and tried to overclock the GPU core to 950MHz from bios (GFX engine override) the PC can't even boot up I realized then that the chipset heats up so I lowered the overclock to 750Mhz , the same time
    I accessed my user on windows......BSOD it's working on 625MHz the question is why I can't overclock to 950MHz like the article said
  • 0 Hide
    Anonymous , July 6, 2011 10:15 PM
    Hi. I have a HD3200 IGP (AMD 780G chipset) and would like to know what's the best GPU to setup Hybrid Crossfire with?
